Product Description
DC V/I I/V V/V I/I Signal Isolated Amplifier/Transmitter with Power Distribution

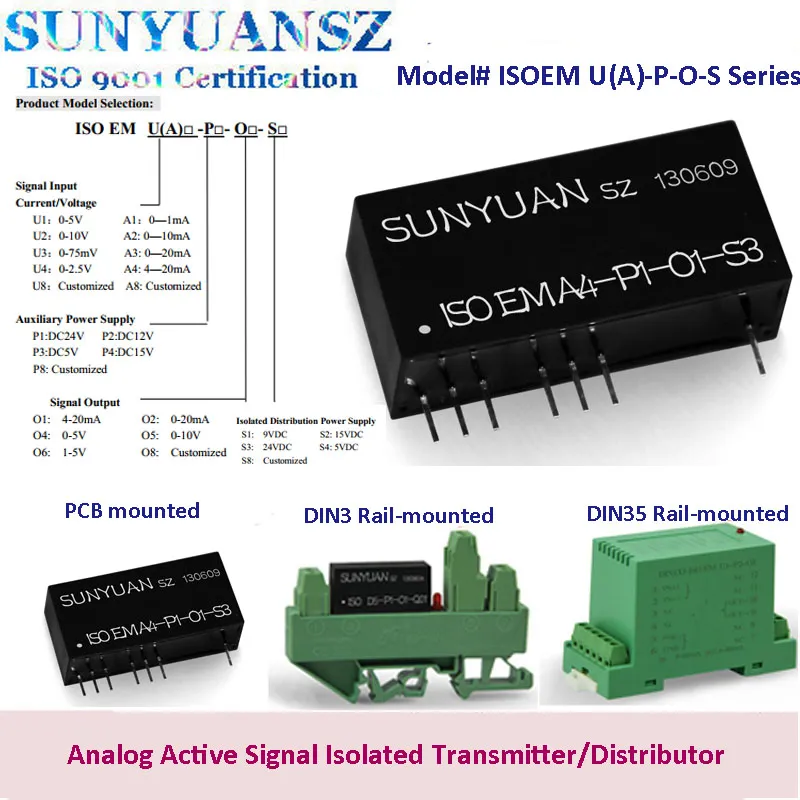

Analog Active Signal Isolated Transmitter/Distributor - ISOEM U/A-P-O-S Series
⚙
Key Features

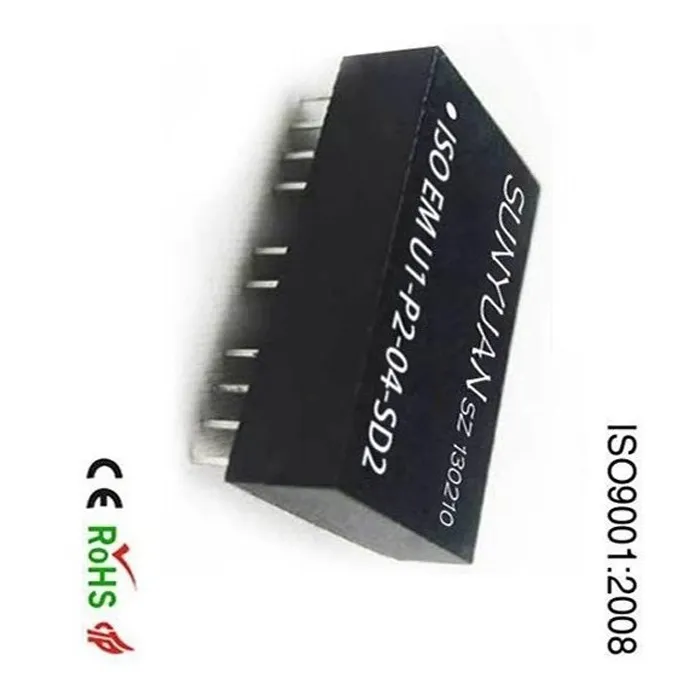

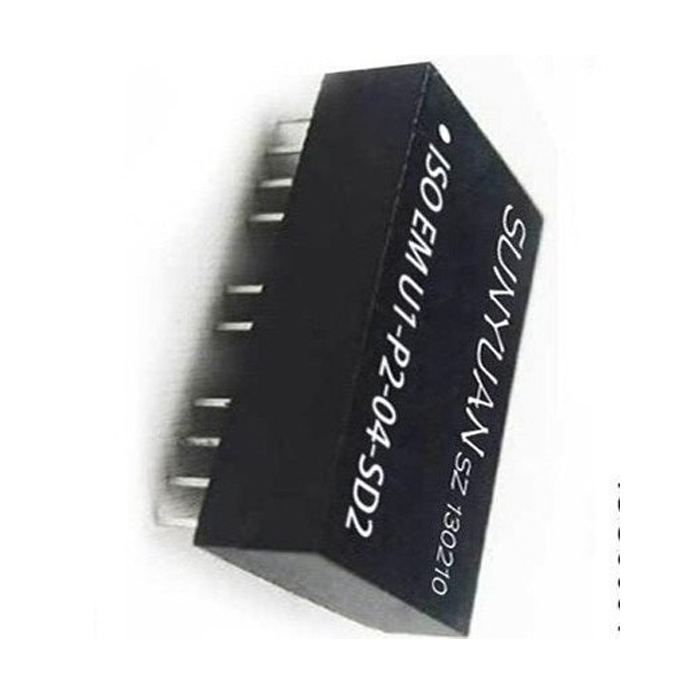

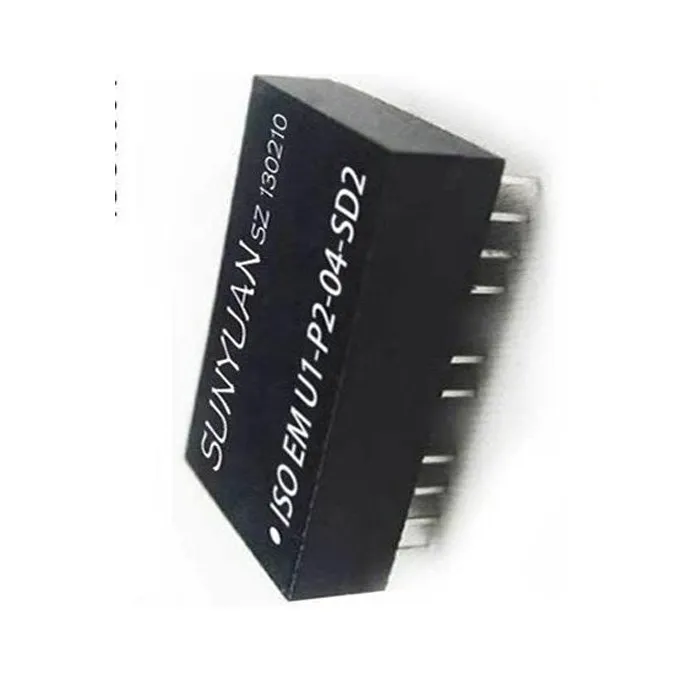

- Compact SIP 12Pin, comply with UL94V-0 standard, flame retardant package.
- External potentiometer, zero and gain adjustment is not required (Non-linearity <0.1%).
- 3KVDC Isolation among auxiliary power supply, signal input, output.
- Auxiliary Power Supply: 5V, 12V, 15V, 24VDC, etc single power supply.
- Power distribution in input end for function expansion: 5V,12V, 15V, 24VDC, etc.
- 0-75mV/0-10V/0-1mA/4-20mA, etc analog signal isolation amplification and conversion.
- Industrial operating temperature range: -40~+85℃.
- Suitable for EMC special situations with shielding and electro-magnetic rejection circuits.
🚀
Typical Applications
- Passive sensor isolated power distribution, signal acquisition & transmission.
- Supply power for preamplifier, weighing bridge to collect signals.
- PLC, DCS analog signal isolation and data acquisition.
- DC current/voltage signal isolation, amplification and conversion.
- Analog signal ground interference rejection and data isolated acquisition.
- Industrial site signal isolation and long-distance transmission.
- Receiving and Transmitting the signals between meters & Instruments and sensors.
- Electric monitoring, medical equipments isolated safety bar.
The SIP12 Pin package ISOEM-S Series Analog Active Signal Isolated Transmitter/Distributor is a signal module with an electro-magnetic hybrid integrated circuit. It includes a multi-isolation DC/DC transformation power and a set of electro-magnetic coupling analog signal isolated amplifier/transmitters. By employing internal isolation technique, the isolated voltage is up to 3000VDC.
This series achieves isolated conversion for industrial site signals without the need for gain/zero adjustment. The isolated power supply in the input end can distribute power to displacement, resistance, and other passive two-wire/three-wire sensors.
| Category |
Isolation Amplifier >> Isolation Transmitter with Distribution Power |
| Input |
0-5V/0-10V/0-75mV/0-2.5V/0-1mA/0-10mA/0-20mA/4-20mA |
Output |
0-5V/0-10V/0-75mV/0-2.5V/0-1mA/0-10mA/0-20mA/4-20mA |
| Isolation Method |
Electromagnetic isolation |
Isolation Voltage |
3000VDC |
| Package |
SIP 12Pin |
Remark |
DC Isolated Amplifier/Transmitter |
Technical Information & Product Selection
Commonly used two-wire passive isolation amplifier, isolation transmitter IC:
- 1. 4-20mA (0-20mA) Current Loop Isolator IC: ISOS 4-20mA
- 2. 4-20mA two-wire passive I/V conversion isolation transmitter IC: ISO 4-20mA-O series
- 3. 4-20mA isolation controller (active signal PLC current loop active load) IC: ISO 4-20mA-E
- 4. Two-wire passive sensor 4-20mA loop isolation distributor IC: ISO 4-20mA-F
- 5. Two-wire voltage signal power distribution isolation transmitter IC: ISO V-4-20mA
Commonly used active type (external auxiliary power supply required) isolation amplifier transmitter IC:
- 1. ISO mV series: millivolt-level analog small signal dedicated isolation amplifier IC
- 2. ISO EM U(A)-P-O-T Series: Zero-point, gain-adjustable analog isolation amplifier
- 3. ISO EM A(U)-P-O-S Series: Input Distribution Isolation Transmitter IC
- 4. ISO EM-U(A)-P-O-O Series: Analog Input Isolation Transmitter with 1 to 2 Output
- 5. ISO EM A-P-O Series: 0-±10V Bilateral DC Signal Isolation Amplifier
- 6. DIN3 ISOEM U-P-O(A-P-O) Series: Single DIN35 rail mounting packaging
- 7. DIN 1X2 ISOEM U(A)-P-O Series: One input and two output rail mounting
- 8. DIN 2X1 C-P-O Series: 2 input and 1 output analog average isolation
- 9. DIN 2X2 ISOEM U(A)-P-O Series: Two in two out rail mounting
- 10. DIN 1X3 ISOEM U(A)-P-O Series: One in three out rail mounting
- 11. DIN ISO AC Series: Passive two-wire AC to DC signal isolation
- 12. ISO EMH 4-20mA Series: High isolation barrier for track voltage
- 13. ISO F-P-O Series: Frequency Signal (FV/FI Conversion) Isolated Converter
- 14. ISO U(A)-P-F Series: Analog Signal to Frequency Pulse Signal (V/F)
- 15. ISO EM RMS-P-O Series: Analog True RMS (RMS) Signal Isolation
- 16. Large current output type high precision signal transmitter
Frequently Asked Questions (FAQ)
Q1: What is the isolation voltage for the ISOEM U(A)-P-O-S Series?
The series provides a high isolation voltage of up to 3000VDC between the auxiliary power supply, signal input, and output.
Q2: Does this signal transmitter require external zero or gain adjustment?
No, it is designed for ease of use. Zero and gain adjustment is not required, as it maintains a non-linearity of less than 0.1%.
Q3: What types of input signals are supported?
It supports a wide range of international standard signals including 0-75mV, 0-10V, 0-1mA, 4-20mA, and many other analog variations.
Q4: What are the primary applications for this device?
Common applications include PLC/DCS analog signal isolation, passive sensor power distribution, signal acquisition for weighing bridges, and long-distance industrial signal transmission.
Q5: Can it operate in extreme temperature environments?
Yes, the industrial operating temperature range is quite broad, specified from -40°C to +85°C.
Q6: What is the packaging type of the ISOEM series?

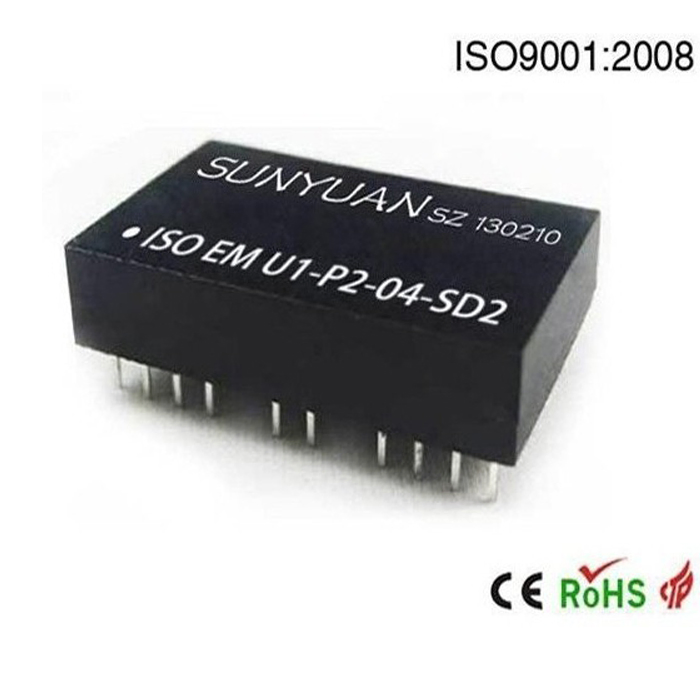

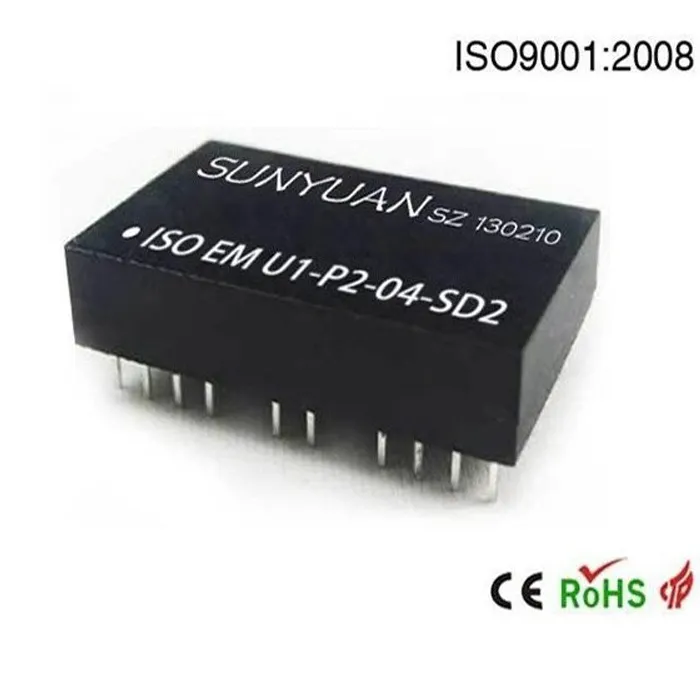

It typically comes in a compact SIP 12Pin or DIP 24pin package, which is flame retardant and complies with UL94V-0 standards.
