Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
1 / 5
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength
Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength

Customized Zct35 10va Power Rating Zero Phase Current Transformer with 2kv Dielectric Strength

Customization: Available
Application: Instrument
Type: Current Transformer
Send Inquiry

Product Description

📋Basic Specifications
Model NO.
ZCT35
Phase
Single
Operation Condition
Indoor
Usage
Protection
Installation
Penetration Type
Magnetic Circuit Structure
Single Stage Type
Voltage Principle
Capacitive Type
Rated Voltage
600VAC
Power Rating
10VA
Dielectric Strength
2kV
Capacity
10000PCS/Week
⚙️Technical Parameters
Customized ZCT35 10VA Power Rating Zero Phase Current transformer with 2kV Dielectric Strength
Dimension ZCT-35: 35mm / ZCT-80: 80mm / ZCT-120: 120mm
Primary GF Current 200mA
Secondary GF Current 1.5mA
Tolerance ±10%
Power Rating 10VA
Rated Voltage 600VAC
Dielectric Strength 2kV
Insulation 10MΩ (500VDC Megger)
Mounting Panel
⚡ Applicable for Ground Fault Protection Devices (EGR)
🔍 Detect Zero Phase Current
📷Product Showcase

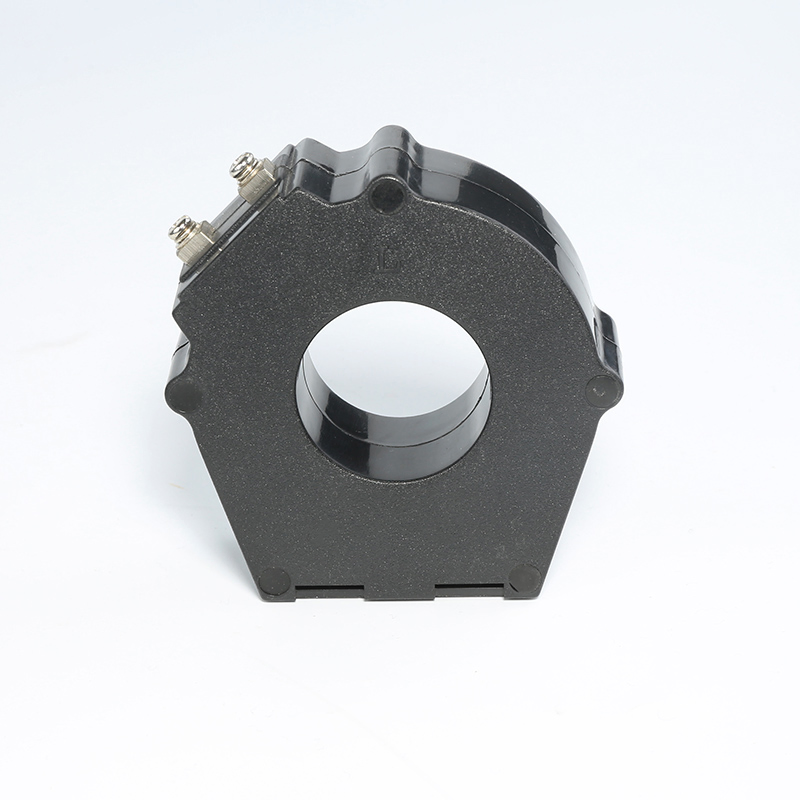

Zero Phase Current Transformer

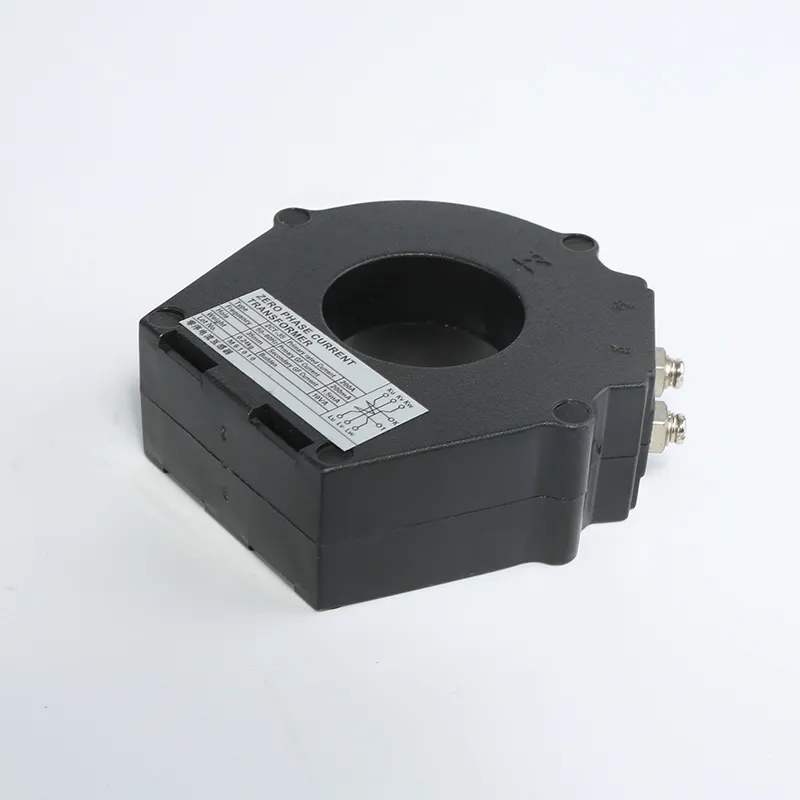

Current Transformer Detail

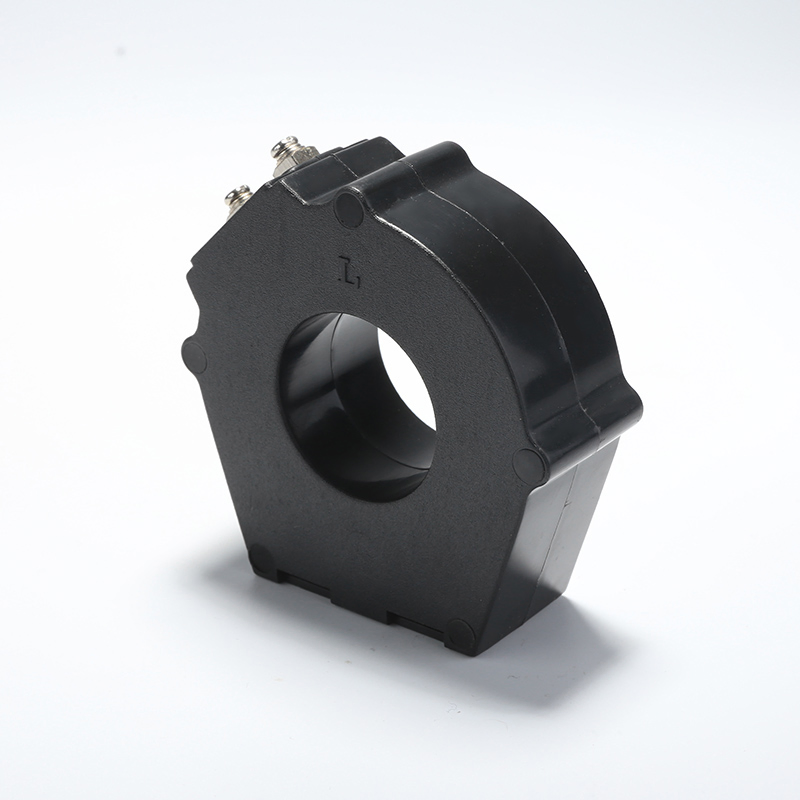

Current Transformer View

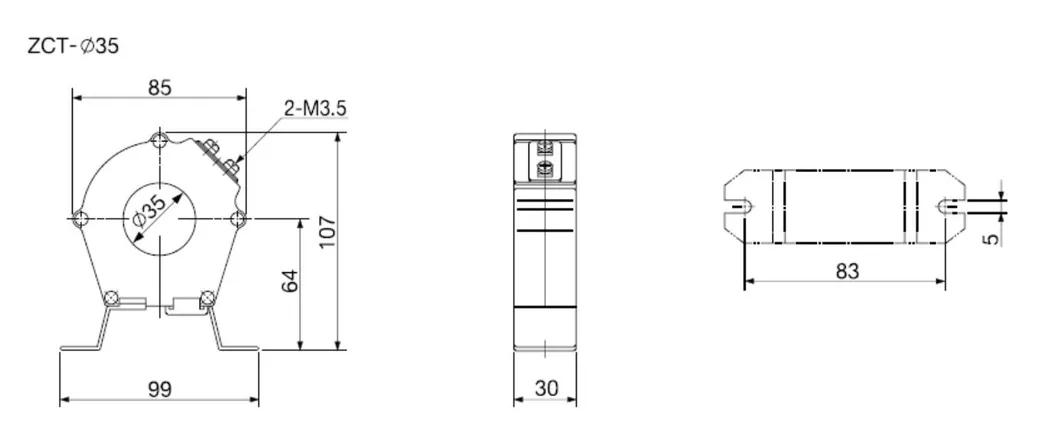

📐Installation Dimension Drawings
Drawing 1
Drawing 2
Drawing 3
Drawing 4
Drawing 5
❓Frequently Asked Questions
Q1: Are you a factory or trading company?
A: We are a factory founded in 2010 and have over 10 years of OEM and international trading experience.
Q2: What's your main product?
A: Our main products are Time Relays, Voltage Relays, Motor Protectors, Current Relays, and Solid State Relays.
Q3: Do you accept OEM or ODM?
A: Yes, we welcome both OEM and ODM orders.
Q4: What's your main payment term?
A: We primarily accept T/T, L/C, and D/P.
Q5: Is there any quality guarantee or after-sales service?
A: All products come with a 2-year guarantee. For any quality complaints, we provide a solution within 5 days.
Q6: Can sample fees be refunded?
A: Yes, the sample amount can be deducted from your bulk order payment when the order quantity exceeds 1000 pieces for the first time.
