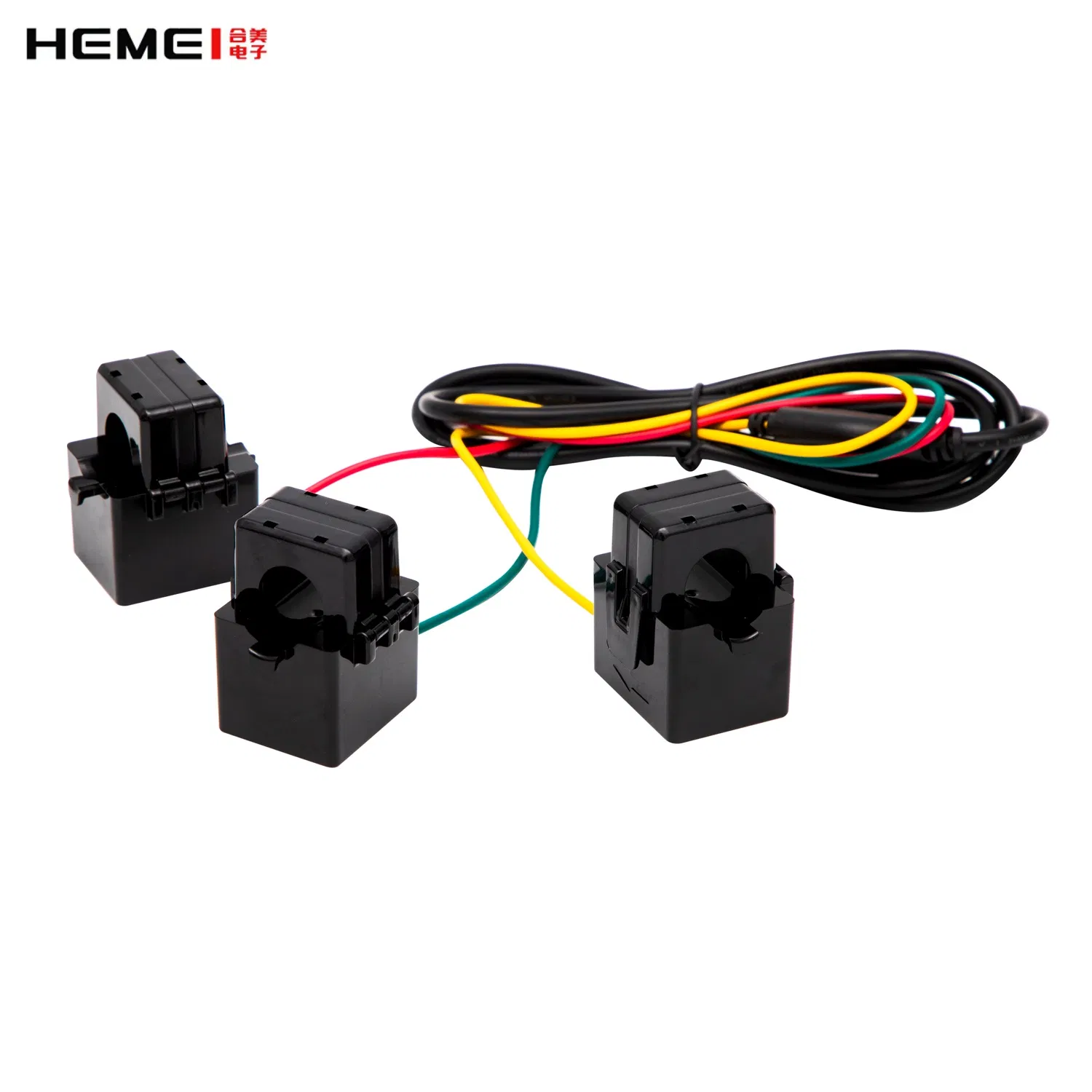

Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
1 / 5
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer
Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer

Instrument Transformer Clamp on Current Sensor High Accuracy Split Core Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📦 Basic Info
Model NO. HMGK5 Phase Single
Operation Condition Indoor Usage Protection, Measurement
Winding Form Single Layer & Tightly Wound Insulating Medium Epoxy Resin
Installation Active Type Magnetic Circuit Single Stage Type
Transformation Principle Electromagnetic Type Core Permalloy
Primary Input -600A~+600A High Precision 0.2/0.5
Lead Time 7-15 Working Days Turns Ratio 2000t
Package Size 25.00cm * 25.00cm * 14.00cm Gross Weight 2.000kg
📝 Product Description

Split Core Current Transformer

The split core current transformer are designed for fast and easy installation. The CTs are ideal for installation on existing electrical cables by clamping on the conductor. This method permits a safer, easy and portable current measurement.

An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

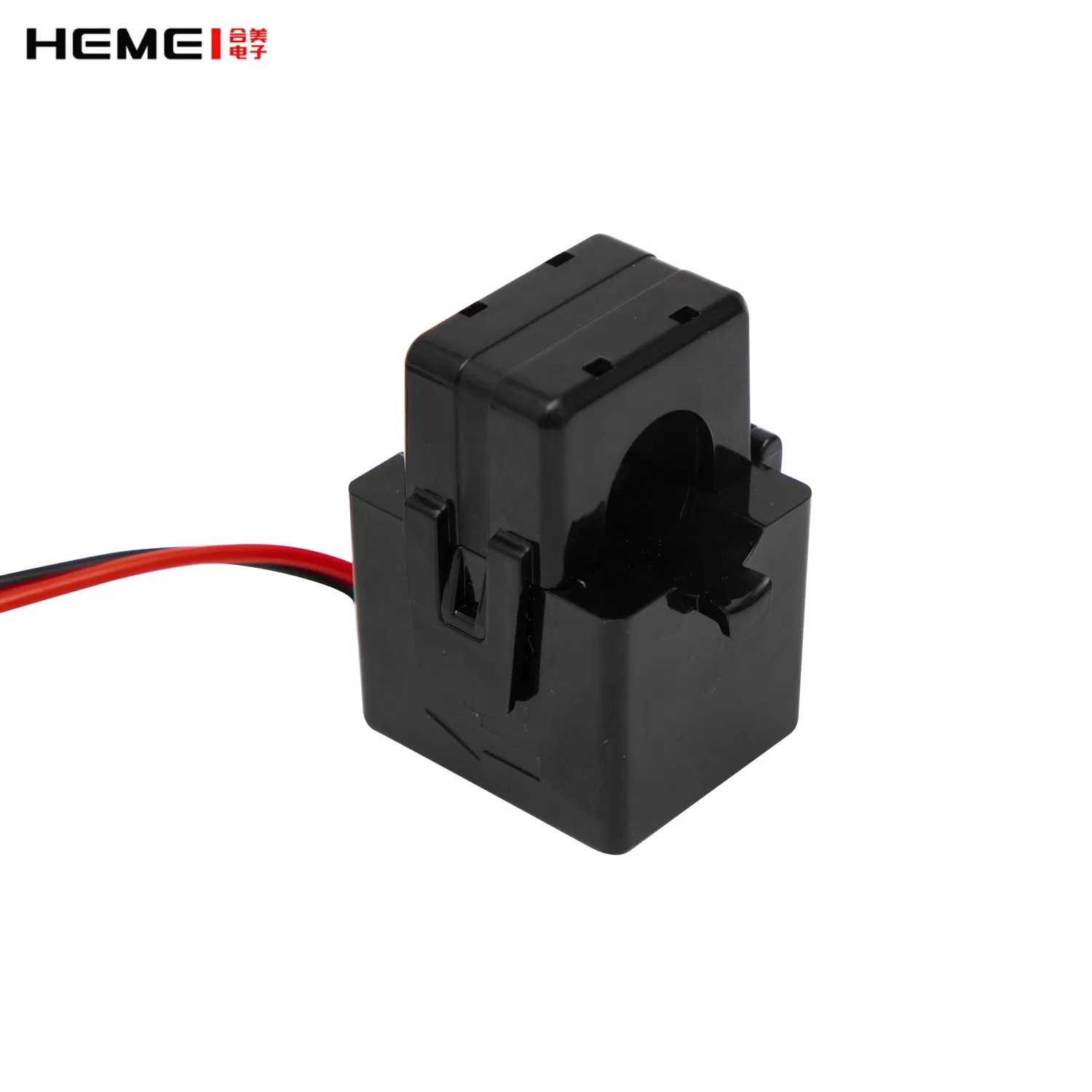

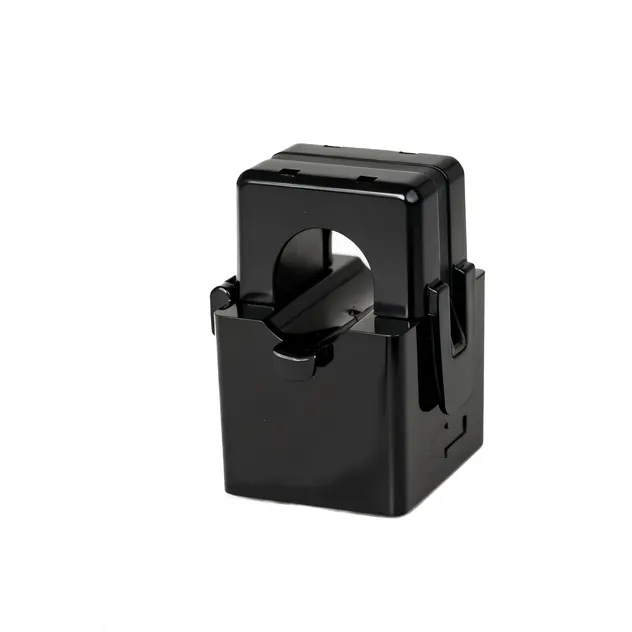

Split Core Current Transformer 1

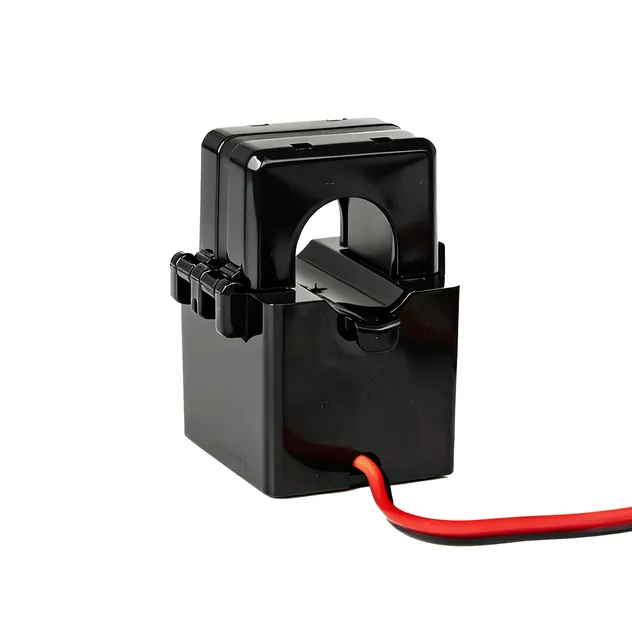

Split Core Current Transformer 2

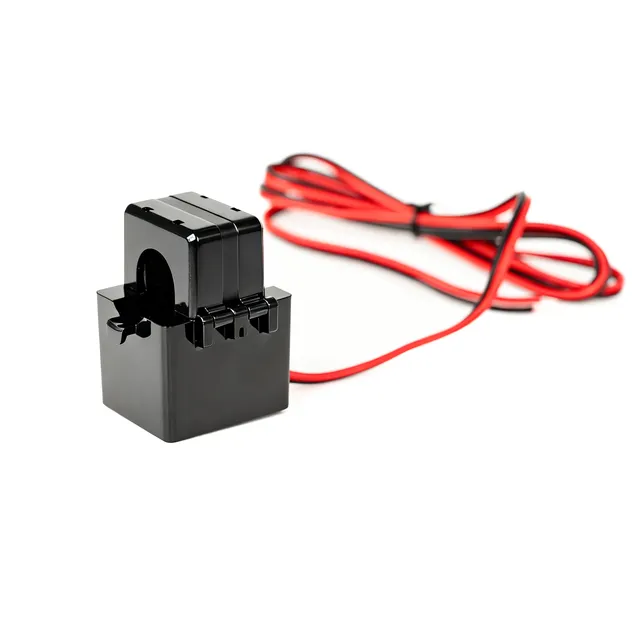

Split Core Current Transformer 3
⚙️ General Technical Indicators
Technical Indicators Indicator Parameters
Operating voltage≤0.72KV
Operating frequency50Hz~1KHz
Rated accuracy level0.2%/0.5%/1.0%
Input current0A~600A
Rated short-time thermal current60 times rated current @1sec
Insulation resistance≥1M ohms@500Vdc
Power frequency withstand voltage3500V@2mA\1min\50Hz
Product flame retardant levelUL94-V0
Insulation heat resistance levelE level
Phase linearity error≤20′
📊 Product Parameters
Model Inner Diameter Turns Ratio Input Current Accuracy
HM-CTSC-1010mm500/1 to 3000/10A~80A0.2% / 0.5%
HM-CTSC-1616mm500/1 to 3000/10A~150A0.2% / 0.5%
HM-CTSC-2424mm500/1 to 3000/10A~300A0.2% / 0.5%
HM-CTSC-3535mm500/1 to 3000/10A~600A0.2% / 0.5%
🔍 Application Scenarios
Application Scenarios
🛡️ Main Products & Certifications

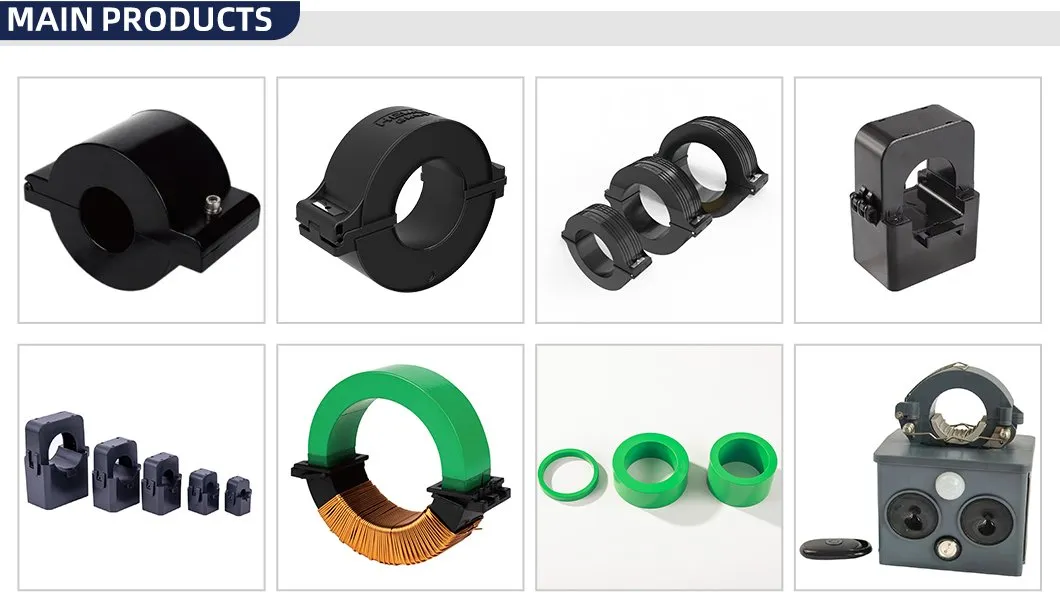

Product Range
Certifications
🏭 Manufacturing & Packaging
Production Facility
Production Process
Quality Control
Packaging and Shipping
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in current transformers and electrical components.
Can I request a sample order?
Yes, we welcome sample orders to test and verify quality. Please note that sample fees and freight costs are applicable.
Do you offer customized products (OEM/ODM)?
Absolutely. Our R&D team has over 10 years of experience in the electrical industry. We provide comprehensive personal services including OEM, ODM, and OPM to meet specific requirements.
What is the expected lead time for orders?
For customized products, the lead time is usually 10-15 days, depending on the complexity of the design and the total order quantity.
How do you ensure product quality?
All production processes strictly follow ISO9001 standards. We have technical instructors for each process, regular QC inspections, and perform comprehensive performance tests upon completion.
What are the safety standards of your products?
Our products meet high safety standards, including UL94-V0 flame retardancy and high power frequency withstand voltage of 3500V.
