Product Description

Basic Info.

Model NO.
ISOEM A6-P2-O1-SD1
Output Signal
4-20mA
Auxiliary Power
12V
Temperature Range
-20 ~ +70 Degree
Precision Grade
0.1, 0.2; Nonlinearity Grade
Package
DIP 24pin, UL94V-0
Wielding Temp
+300degree (<10s)
Operating Temp
- 45 ~ + 85 degree
Transport Package
Plastic Tube and Gift Box
Specification
10g
HS Code
9026900000
Capacity
50000PCS Per Month

Product Description

Millivolt Small Signal, Zero/Gain/Span Adjustable Analog Signal Isolation Amplifier/Isolated Converters with Power Distribution

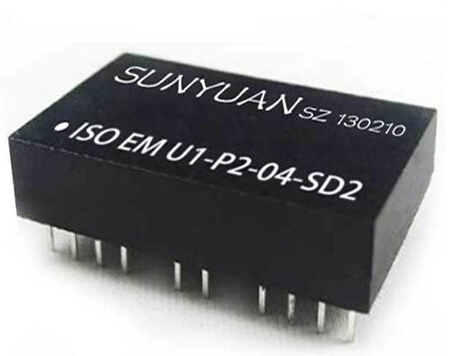

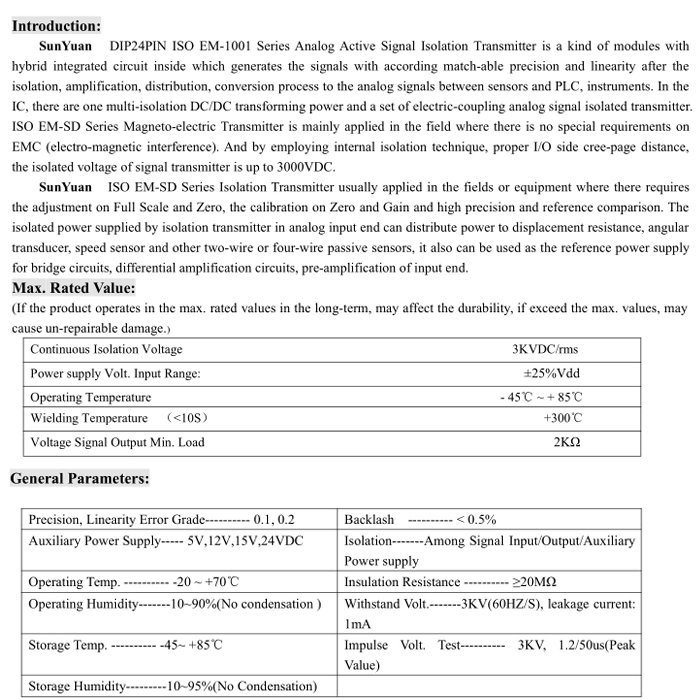

ISO EM-1001 Series Analog Active Signal Isolation Transmitter is a kind of modules with hybrid integrated circuit inside which generates signals with matching precision and linearity after isolation, amplification, and distribution. It includes a multi-isolation DC/DC transforming power and an electric-coupling analog signal isolated transmitter.

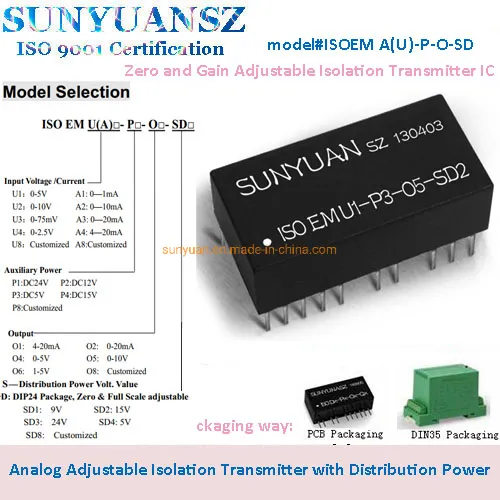

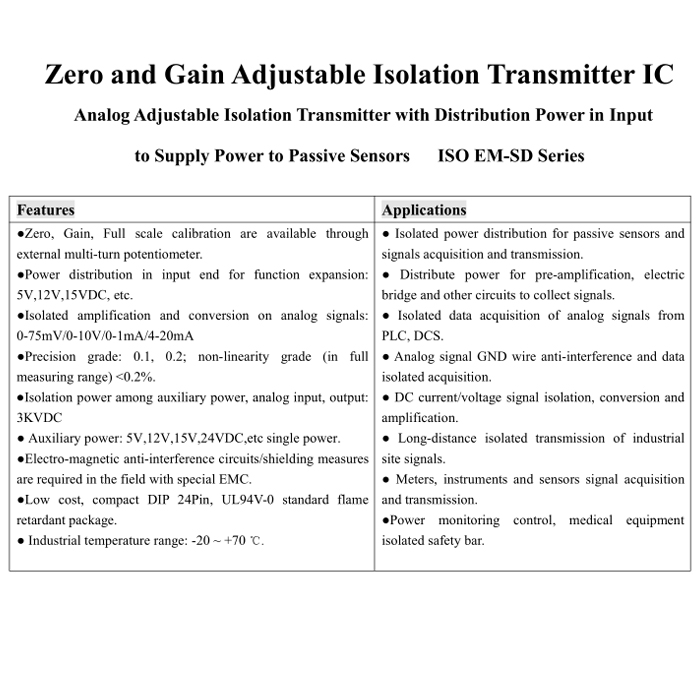

Key Features

  • Zero, Gain, Full scale calibration available via external multi-turn potentiometer.
  • Power distribution in input end for function expansion: 5V, 12V, 15VDC, etc.
  • Isolated amplification and conversion on analog signals: 0-75mV / 0-10V / 0-1mA / 4-20mA.
  • Precision grade: 0.1, 0.2; non-linearity grade < 0.2%.
  • 3KVDC isolation power among auxiliary power, analog input, and output.
  • Industrial temperature range: -20 ~ +70 ºC.
  • Standard DIP 24Pin, UL94V-0 flame retardant package.

Applications

• Isolated power distribution for passive sensors.
• Analog signal acquisition from PLC and DCS.
• DC current/voltage signal conversion and amplification.
• Long-distance transmission of industrial signals.
• Medical equipment isolated safety bars.
• Power monitoring and control systems.

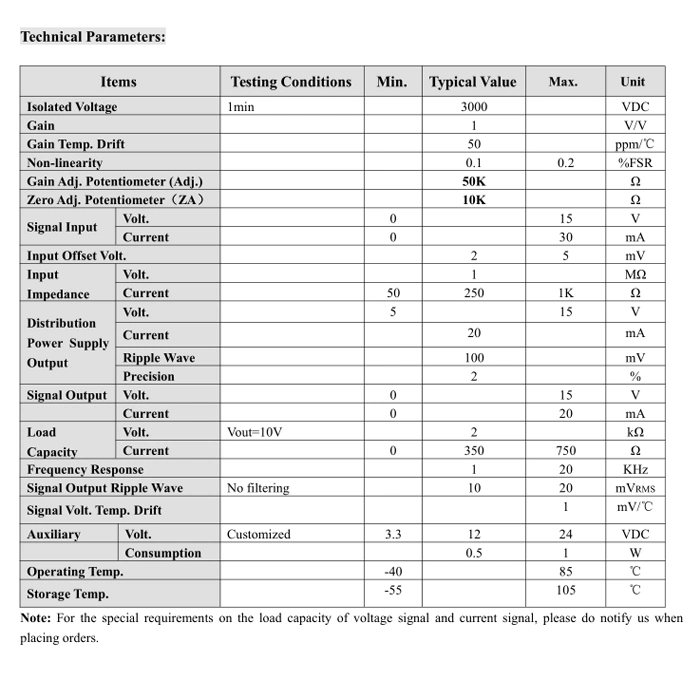

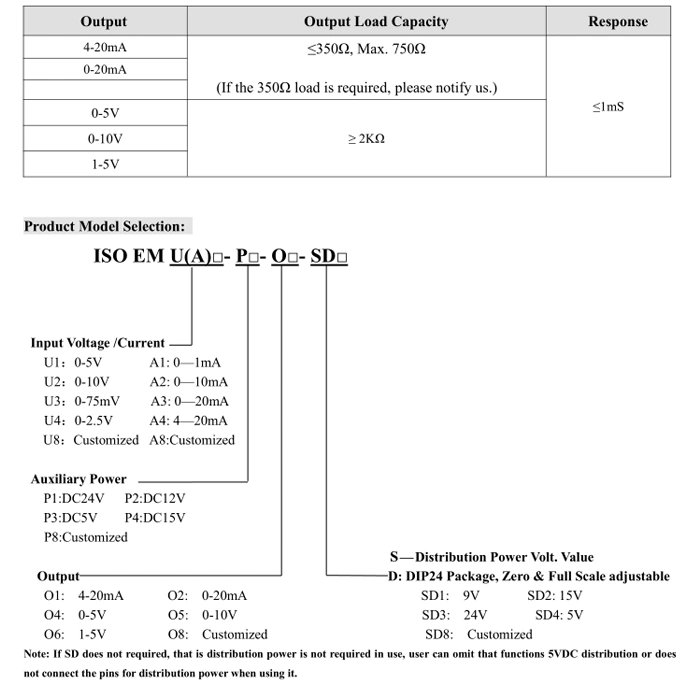

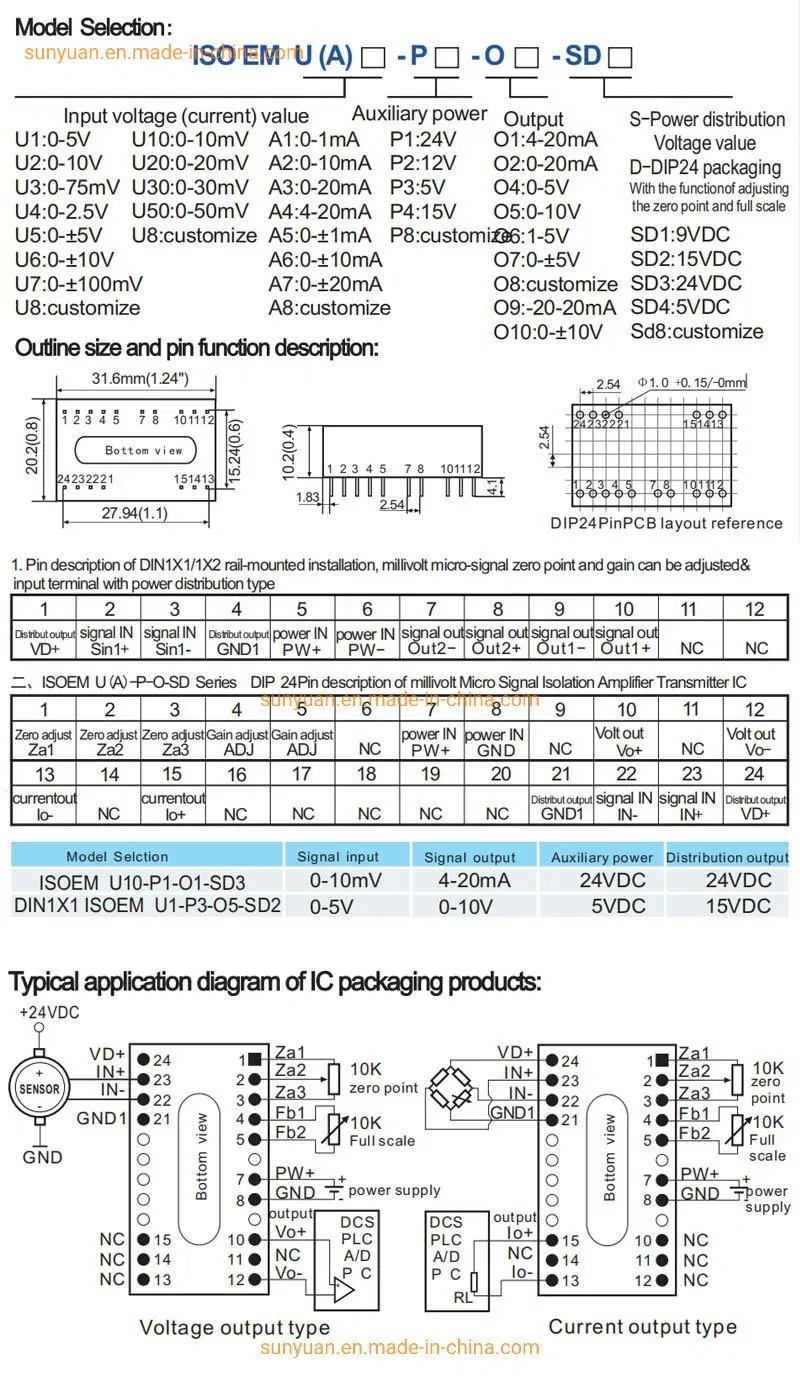

Category Isolation Amplifier >> mV Small Signal Isolation Transmitter
Input 0-75mV/0-2.5V/0-5V/0-10V/0-±100mV/0-±5V/0-±10V/4-20mA,etc Output 0-75mV/0-2.5V/0-5V/0-10V/0-±100mV/0-±5V/0-±10V/4-20mA,etc
Isolation Method Magneto-electric Isolation voltage 3000VDC
Package DIP 24Pin Remark Zero/Gain Adj. Isolated Converter
Analog Signal Isolation Amplifier
Converter Circuit Current Transformer

Packaging Options

SIP Pin Packaging and DIN35 Rail-mounted Packaging

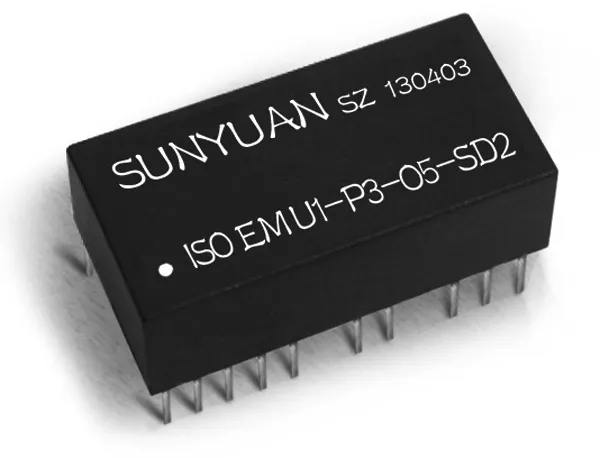

SIP Packaging

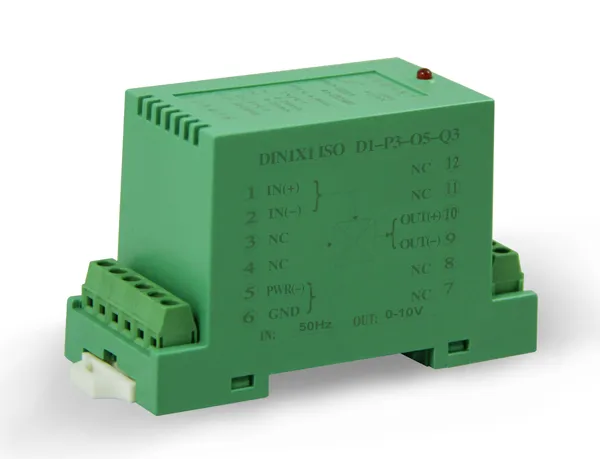

DIN35 Rail Packaging

Technical Reference Series

1. ISOS 4-20mA: Current Loop Isolator IC
2. ISO 4-20mA-O: Two-wire passive I/V conversion transmitter
3. ISO 4-20mA-E: Active signal PLC current loop controller
4. ISO 4-20mA-F: Two-wire passive sensor loop isolation distributor
5. ISO V-4-20mA: Two-wire voltage signal distribution transmitter
6. ISO mV Series: Millivolt-level analog small signal isolation amplifier
7. ISO EM U(A)-P-O-T: Zero-point, gain-adjustable analog isolation transmitter
8. ISO EM A(U)-P-O-S: Input Distribution Isolation Transmitter
9. DIN3 ISOEM U-P-O: Single DIN35 rail mounting packaging
10. DIN 1X2 ISOEM: One input and two output rail mounting transmitter
11. ISO F-P-O Series: Frequency Signal (FV/FI Conversion) Isolated Converter
12. ISO U(A)-P-F Series: Analog Signal to Frequency Pulse Signal (V/F) Converter

Frequently Asked Questions

What is the main function of the ISO EM-SD signal isolation transmitter?
It is designed to isolate, amplify, and convert analog signals between sensors and PLC/instruments with high precision and linearity, supporting zero and gain adjustments.
What is the maximum isolation voltage for this series?
The isolated voltage of the signal transmitter reaches up to 3000VDC, providing high safety and anti-interference capabilities.
Does this module support power distribution to sensors?
Yes, it can distribute power (5V, 12V, 15V, etc.) to displacement resistances, angular transducers, and other two-wire or four-wire passive sensors.
What are the available packaging types for this converter?
It is available in standard DIP 24Pin IC-mounted packaging and DIN35 Rail-mounted packaging for industrial installation.
Can I calibrate the signal output manually?
Yes, the module allows for Zero, Gain, and Full-scale calibration through external multi-turn potentiometers.
What is the operating temperature range?
The industrial-grade version operates between -20 to +70 °C, while the wider operating range covers -45 to +85 °C.
