Basic Info & Specifications
| Model NO. | JDZ10-10 |
| Phase | Single |
| Operation Condition | Indoor |
| Usage | Protection, Measurement |
| Winding Form | Single Layer & Tightly Wound Type |
| Insulating Medium | Epoxy Resin |
| Insulation Level | 12/42/75kv |
| Rated Frequency | 50Hz or 60Hz |
| Power Factor | CosΦ=0.8(Lag) |
| Package Size | 40.00cm * 25.00cm * 30.00cm |
| Package Gross Weight | 33.000kg |
| Origin | China |

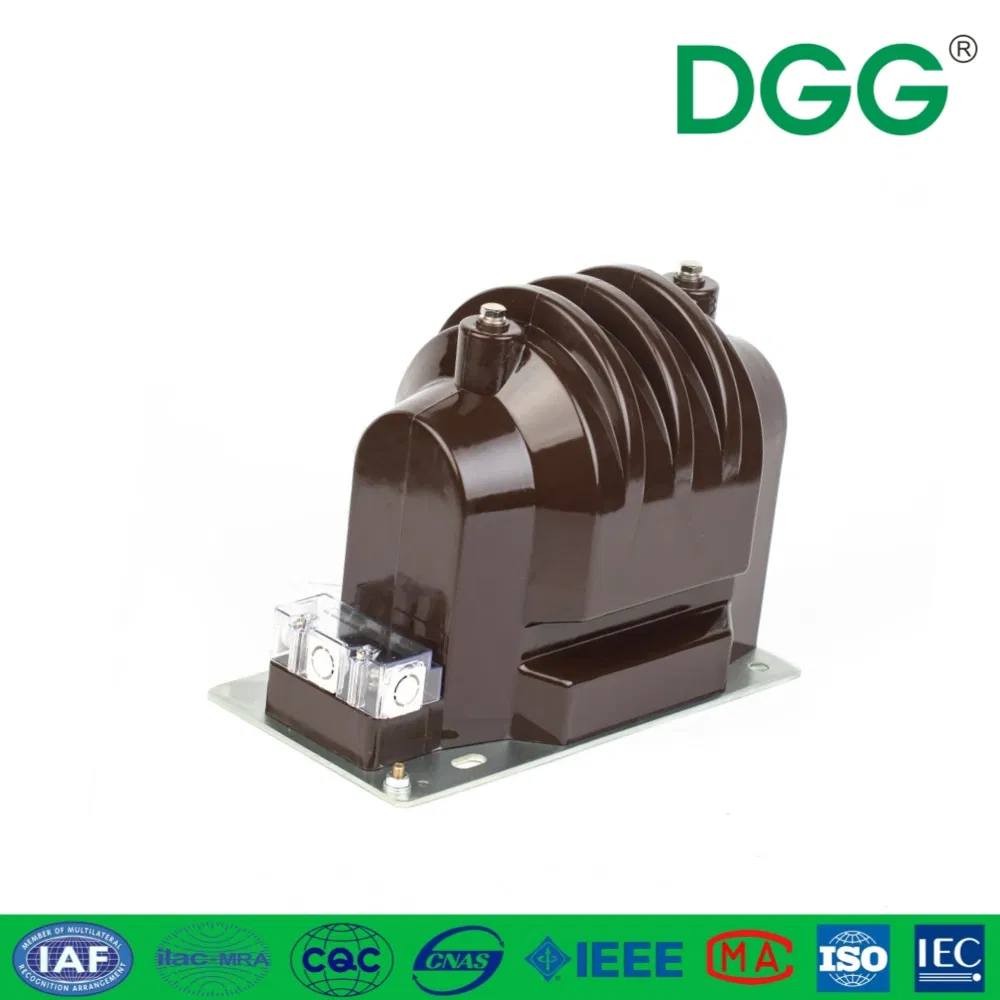

Product Overview

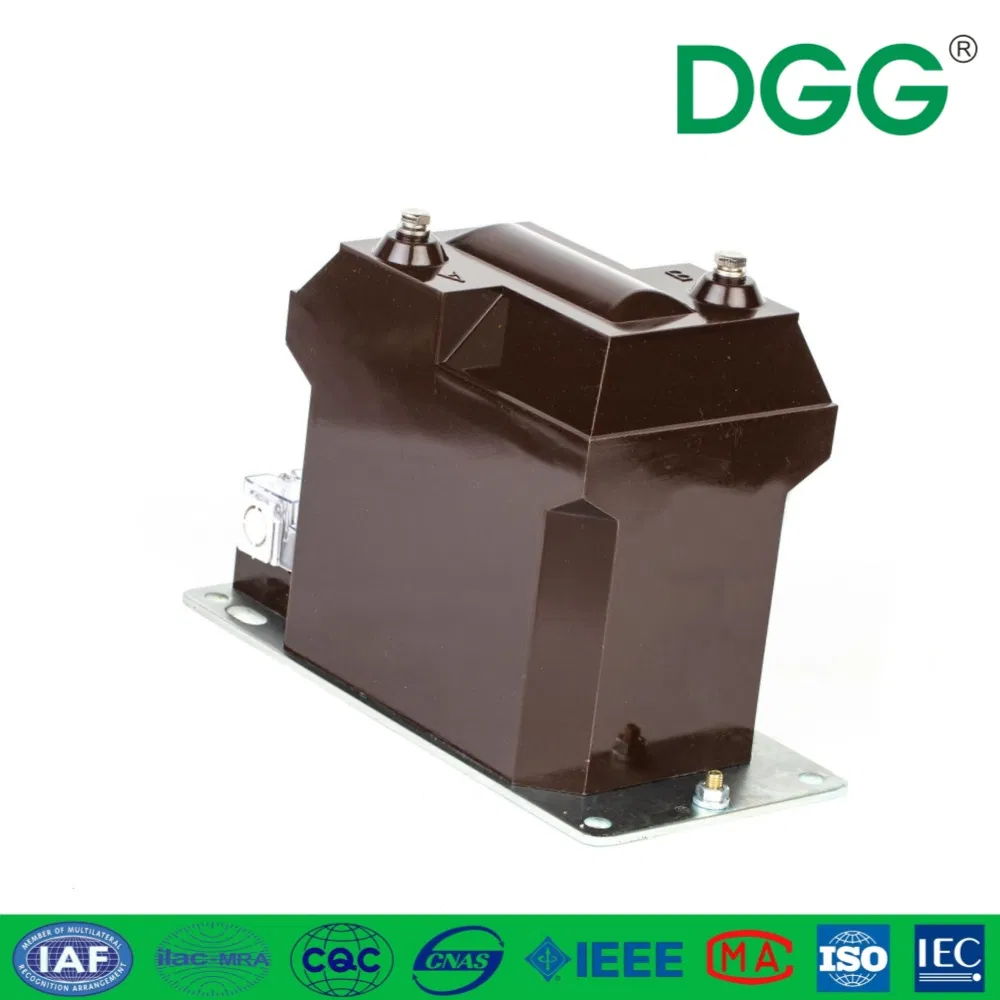

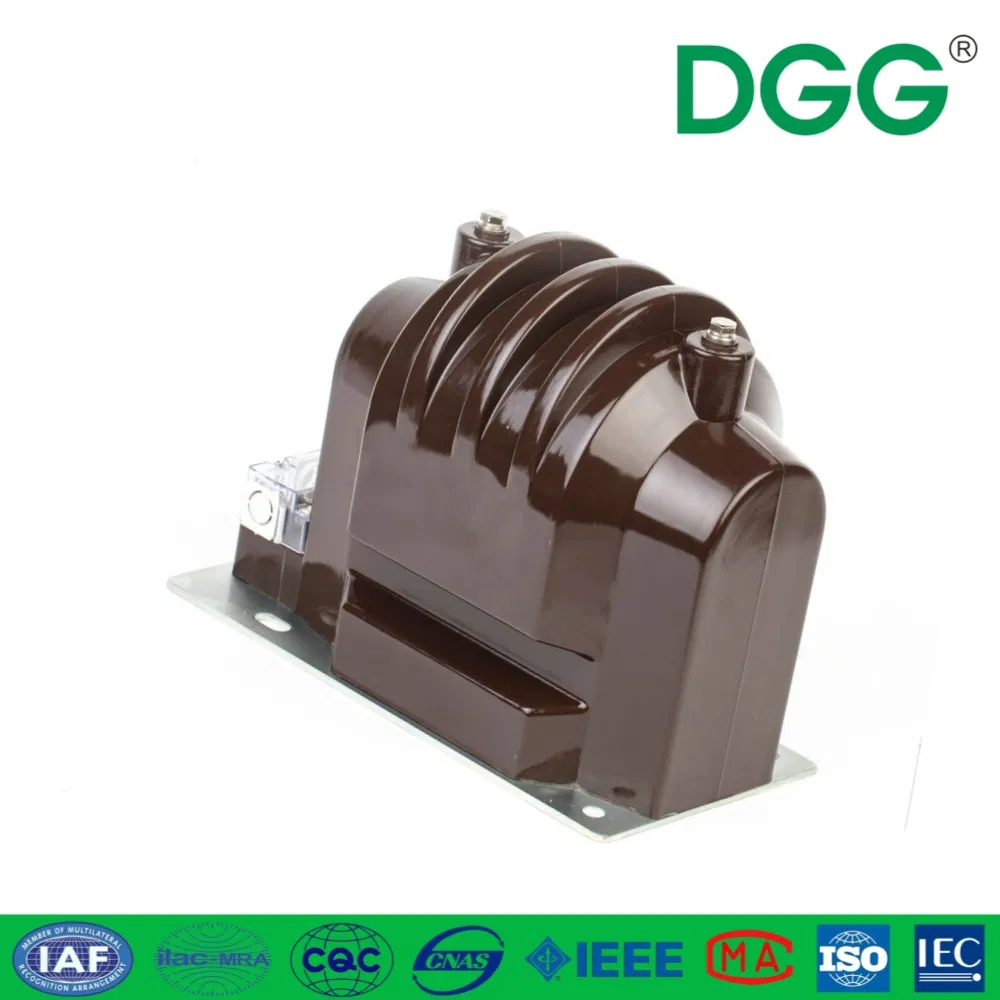

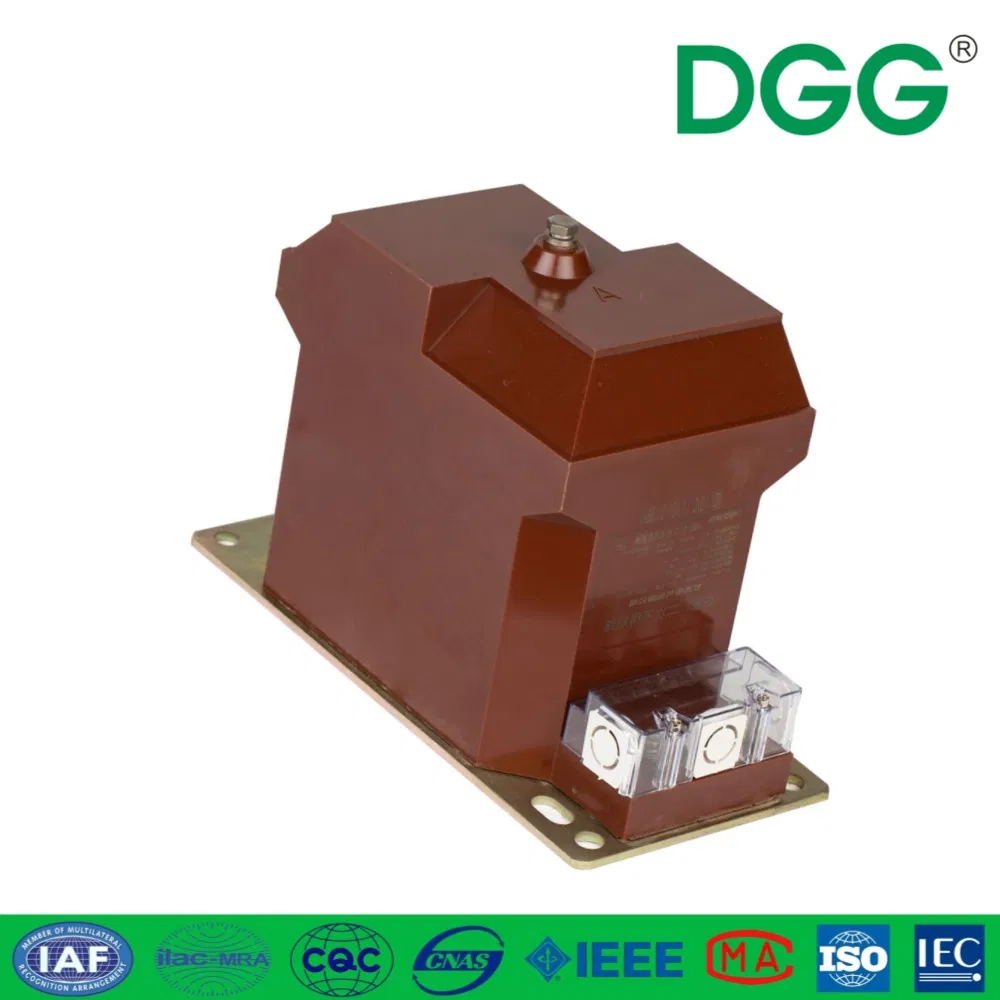

Enter a world where precision meets unwavering reliability with our advanced current transformer. Expertly engineered utilizing the latest epoxy resin casting techniques, this transformer stands as a beacon of high-performance engineering. It offers not just outstanding accuracy but also remarkable longevity, positioning it as an essential tool for all your electrical measurement requirements. Whether navigating rigorous industrial settings or complex power systems, this extraordinary instrument redefines the benchmarks of excellence.
Leveraging the sophistication of advanced epoxy-resin vacuum casting technology, this transformer proudly showcases a fully enclosed, elegantly designed single-phase structure. Seamlessly operating at frequencies of both 50Hz and 60Hz, it delivers unrivaled precision in electric energy metering and voltage measurement. It meets the rigorous criteria of GB 20840.1-2010 and GB 20840.3-2013.
Advanced Technical Parameters
- Insulation Level: Masterfully engineered to handle 12/42/75kV and 7.2/30/60kV.
- Optimized Power Factor: Exceptional efficiency with cosΦ=0.8 (lag) for energy savings.
- Environmental Adaptability: Altitude up to 1000m; Temperature range -5ºC to +40ºC.
- Humidity Resistance: Efficient operation with air relative humidity at or below 85%.
Global Reach & Certification
Our products have a remarkable presence in numerous regions, demonstrating unmatched success from the landscapes of Ghana, Ethiopia, and the Philippines to Australia, Pakistan, and South Korea. This reach is a testament to our global impact. Our solutions are proudly supported by prestigious certifications, including ISO and Kema, ensuring the highest standards of reliability.

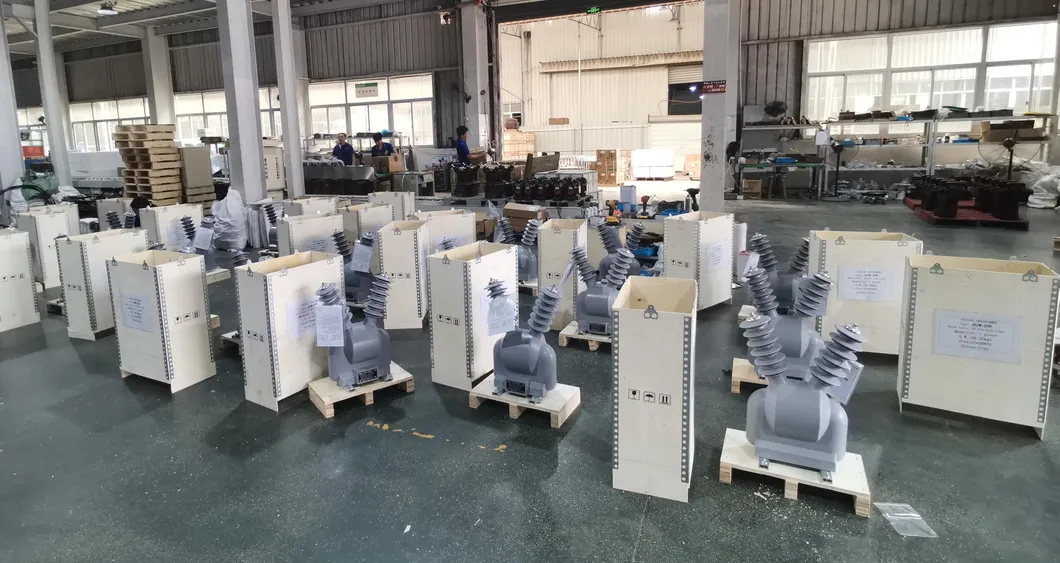

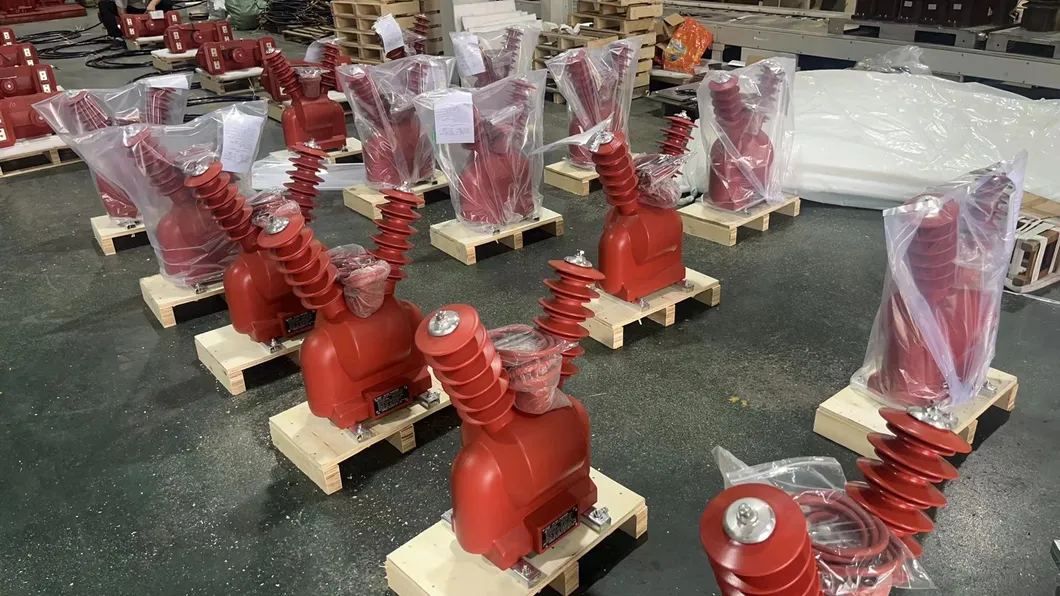

Professional Packaging

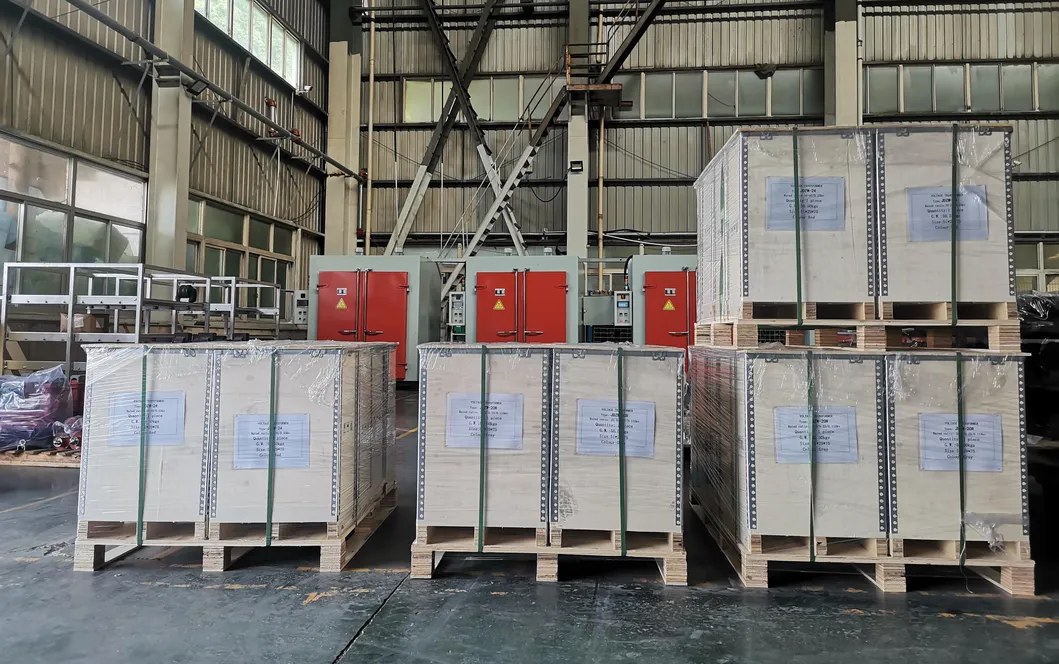

We understand that first impressions last. Our team creates tailor-made wooden boxes that perfectly match your specific needs, integrating customized logos and labels. Each transformer is meticulously packaged to ensure it reaches you in pristine condition.

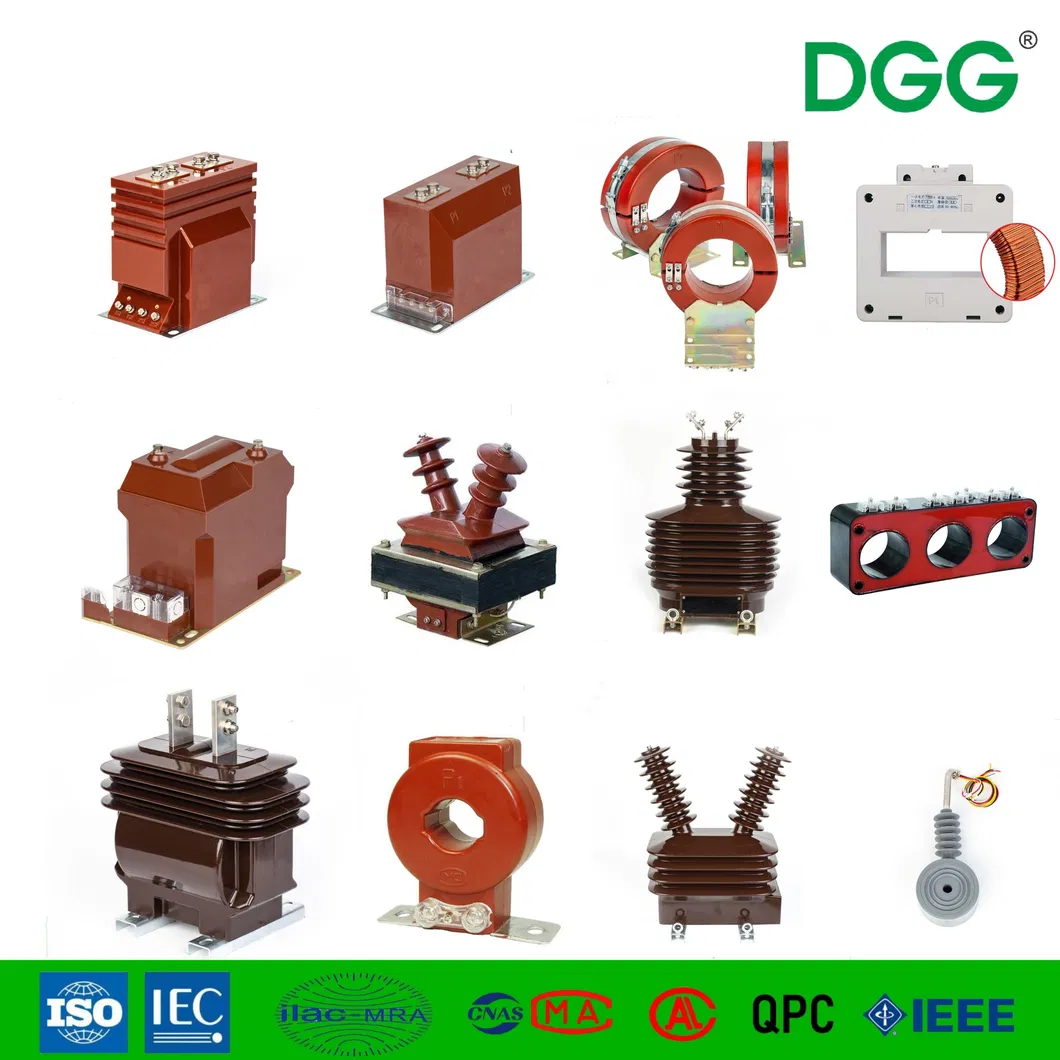

Other Instrument Transformers
Discover our extensive and curated range of instrument transformers, specially designed to meet diverse electrical requirements. Our collection promises outstanding functionality and long-lasting dependability.
Frequently Asked Questions
1. Can you print my logo and design?
Yes, we can print your logo. Please provide the logo artwork, required size, color, and positioning details.
2. Are you a factory or a trader?
We are a factory with over 20 years of production experience, supporting both OEM and ODM modes for customized manufacturing.
3. What is the minimum order quantity (MOQ)?
Our minimum order quantity is 1 unit.
4. What shipping methods are available?
We offer shipping by sea (most cost-effective), by air, and by express services (DHL, FedEx, UPS, etc.).
5. What is the production lead time?
For samples in stock, it takes 10-15 days. Standard production time usually ranges between 30 to 50 days.
6. How can I obtain a sample?
Some samples are provided free of charge if a bulk order is confirmed; you would only need to cover shipping. For customized samples, please contact us for specific fees.
