As a pioneering professional manufacturer, our specialization in high-precision current transformers ensures that our offerings not only meet but exceed the most stringent industry standards. Our diverse product range boasts highly reliable dropout fuse cutouts, robust and exceptionally durable voltage transformers, cutting-edge advanced vacuum circuit breakers, and reclosers. Each product is meticulously crafted with unparalleled attention to detail and quality.

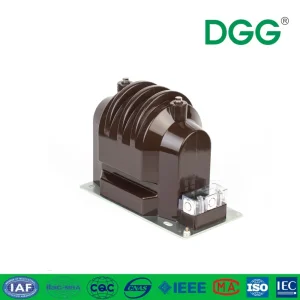

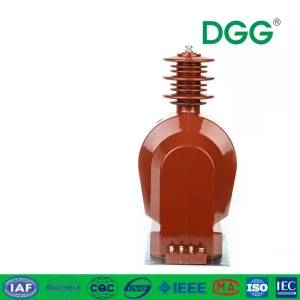

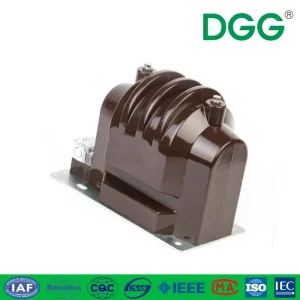

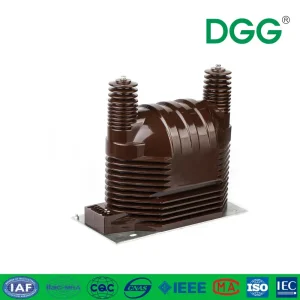

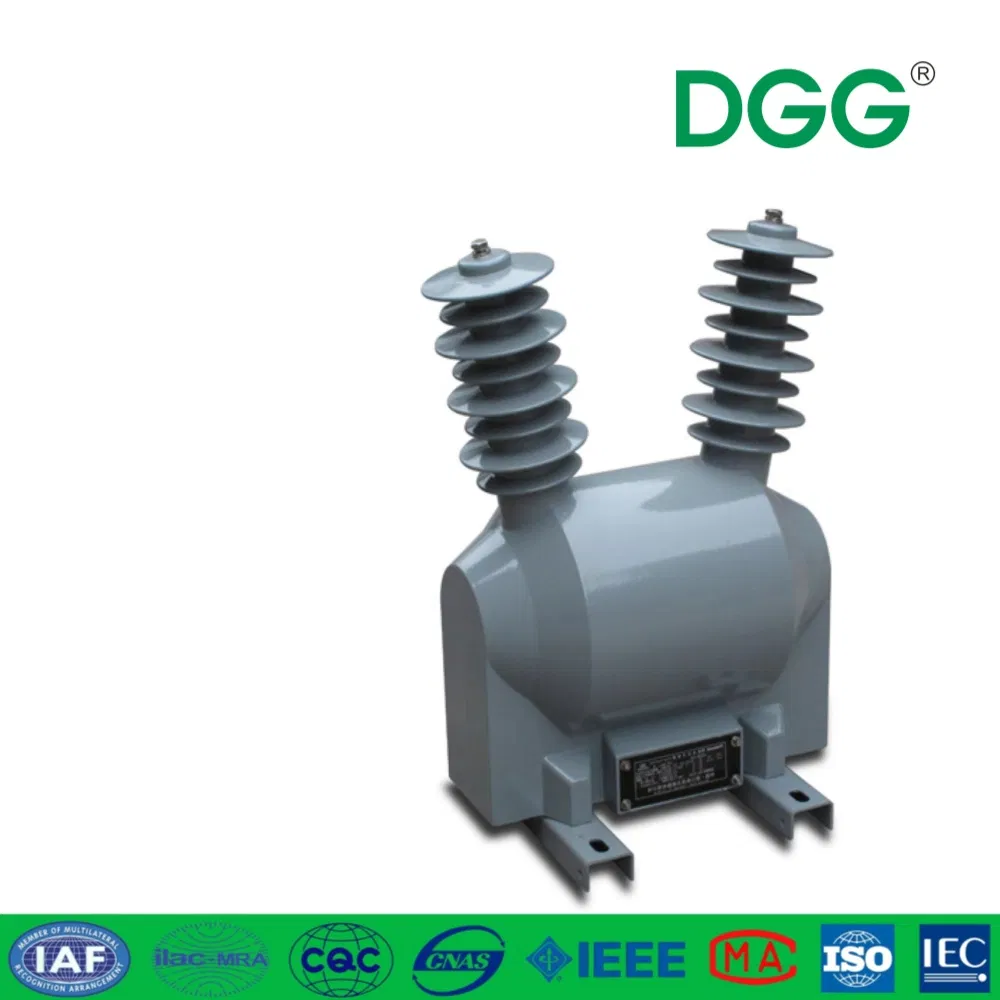

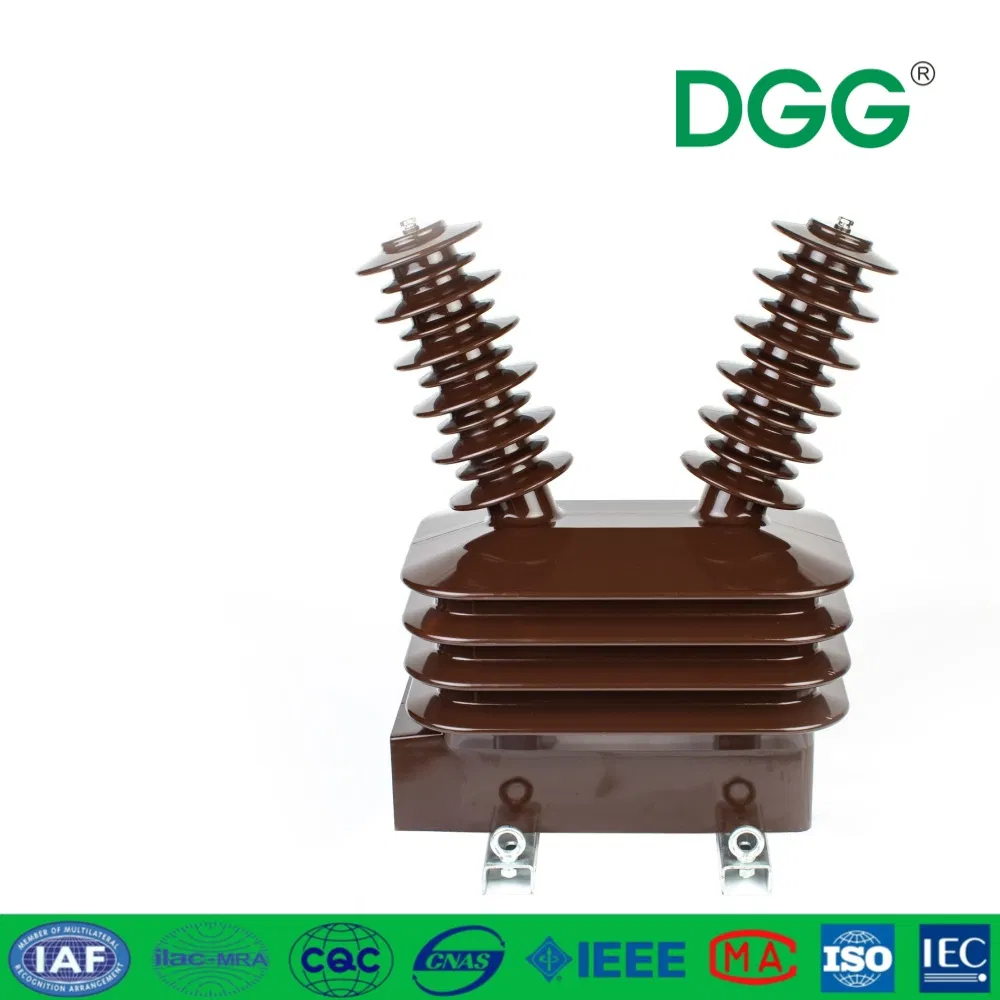

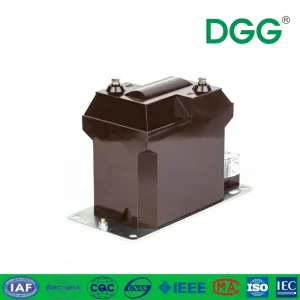

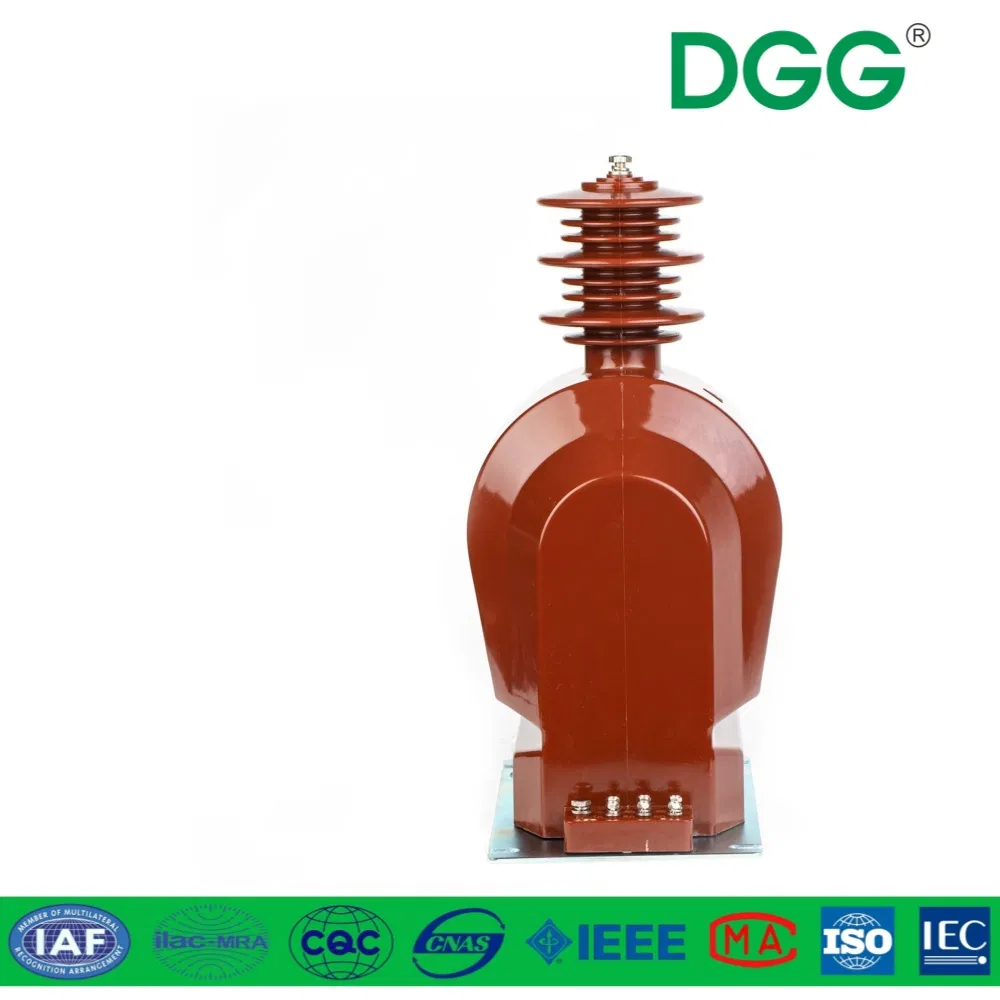

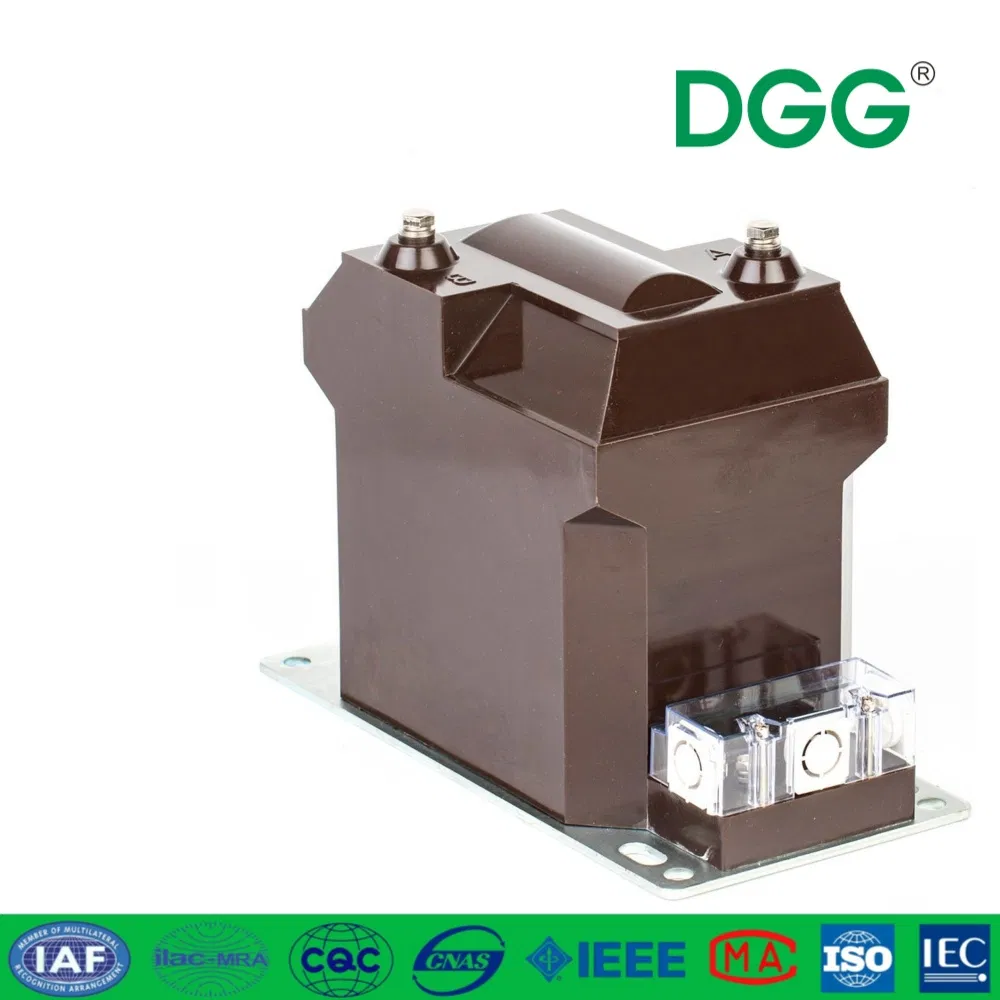

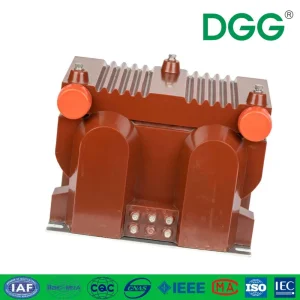

This state-of-the-art voltage transformer is meticulously crafted with advanced epoxy-resin vacuum casting technology. Featuring a fully enclosed single-phase structure, it is tailor-made for indoor environments and seamlessly integrates into power systems with a rated frequency of 50Hz or 60Hz. Designed to handle a rated voltage up to 35kV, it is an ideal solution for precise electric energy metering and accurate voltage measurement.
| Rated Voltage Ratio (kV) | Accuracy Class | Rated Output (VA) | Limit Output (VA) |
|---|---|---|---|
| 6/0.1/0.22 | 0.2/3 | 20/500 | 800 |
| 6/0.22 | 3 | 500 | 800 |
| 10/0.1/0.22 | 0.2/3 | 30/500 | 800 |
| 10/0.22 | 3 | 500 | 800 |

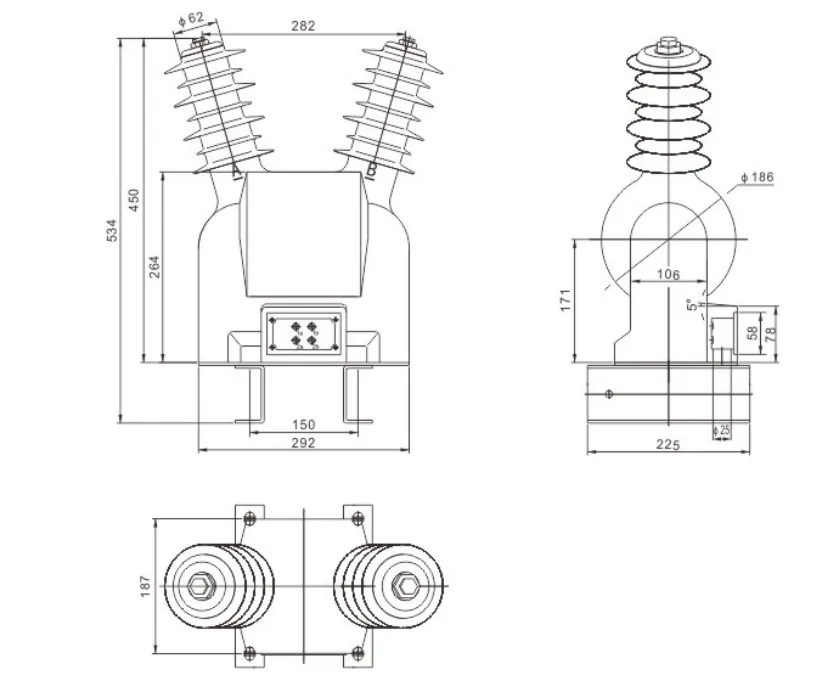

Precise installation and external dimension drawings are provided above. Custom sizes and dimensions can be tailored based on specific customer requirements to meet unique spatial constraints.
Our company has successfully expanded its global influence across diverse international markets, including Ghana, Ethiopia, the Philippines, South Korea, Australia, and more. Our 35kV Protective Current Transformers have earned widespread acclaim for their exceptional performance and reliability.

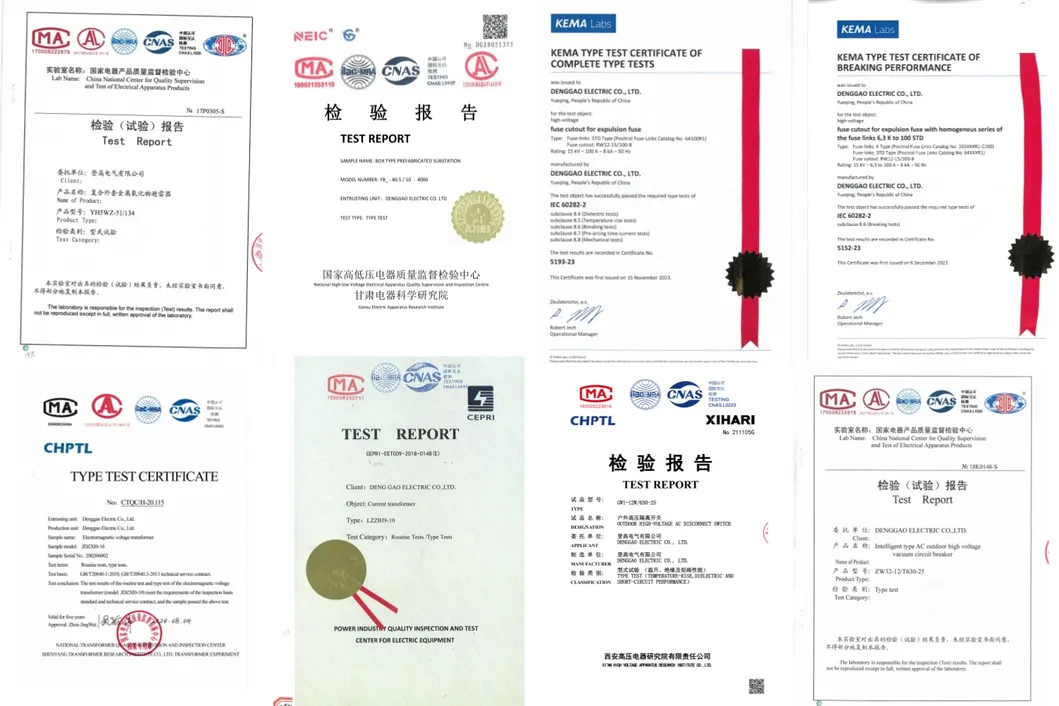

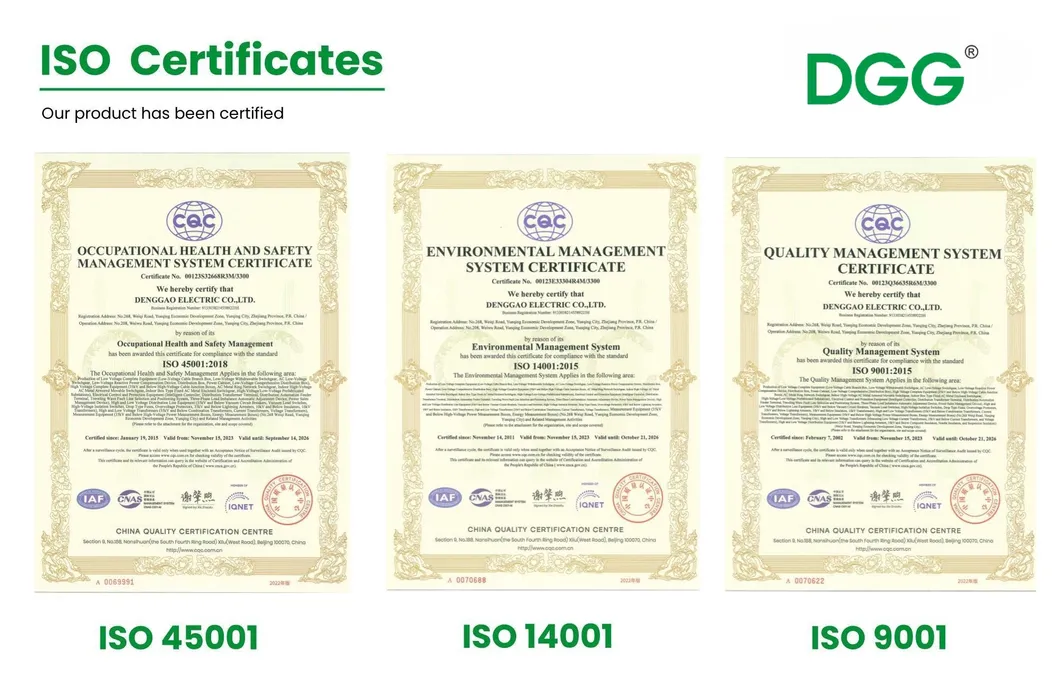

Our products are supported by prestigious certifications such as ISO and Kema. We maintain an extensive archive of meticulous type test reports to ensure the highest standards of quality.

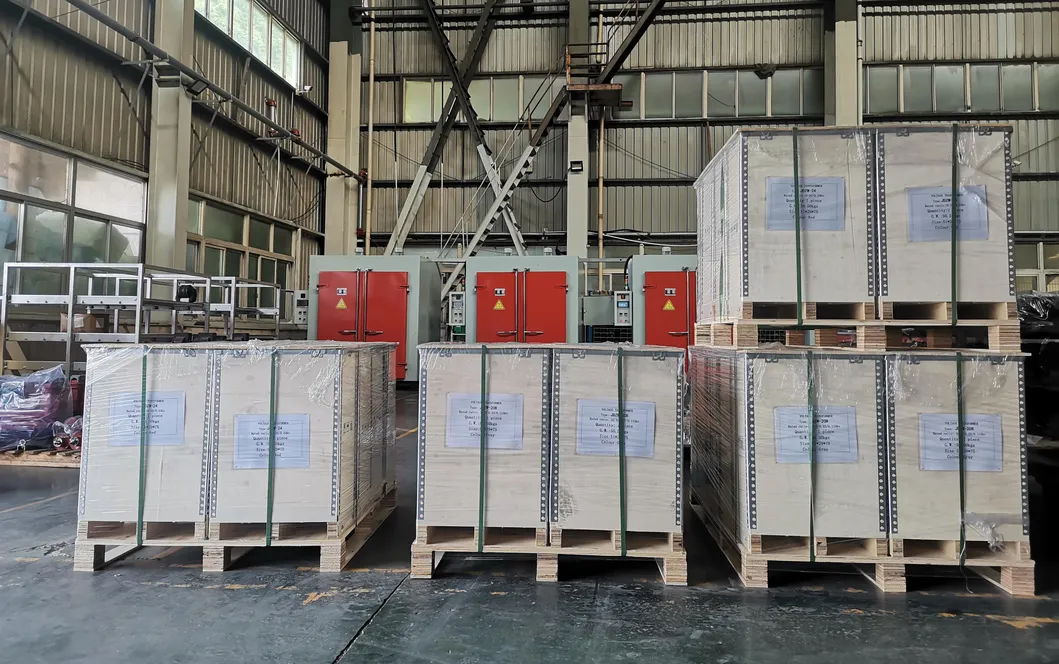

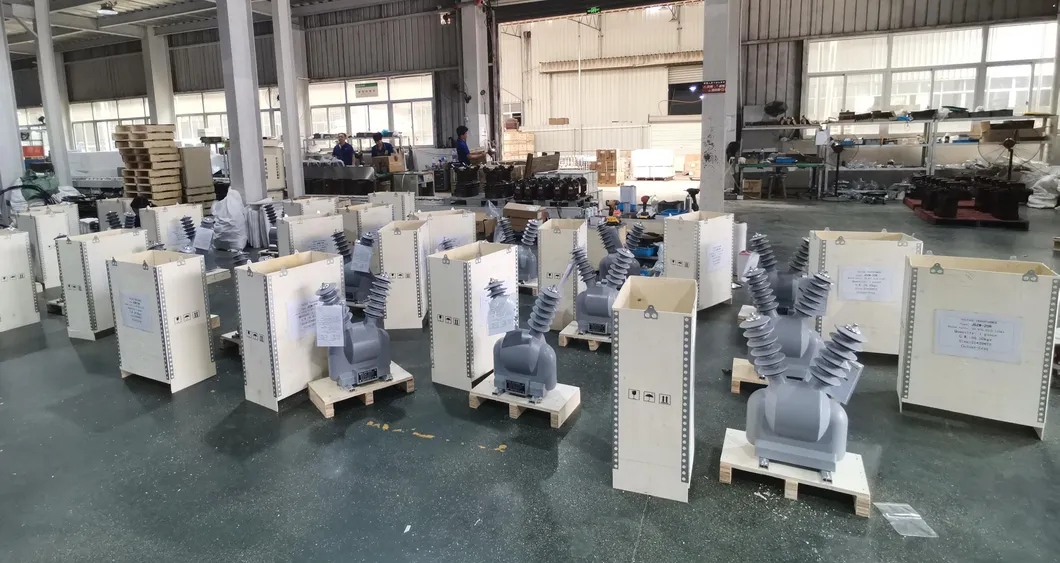

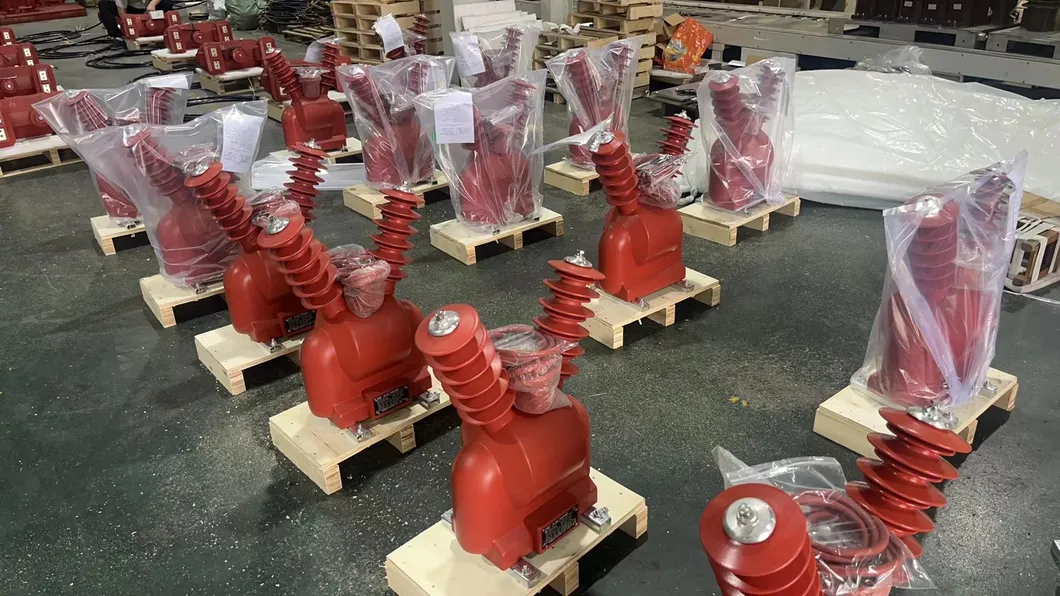

Our specialized packaging team excels in creating custom wooden boxes designed to meet your precise specifications, ensuring safety and style during transit.
