Orange Product Description

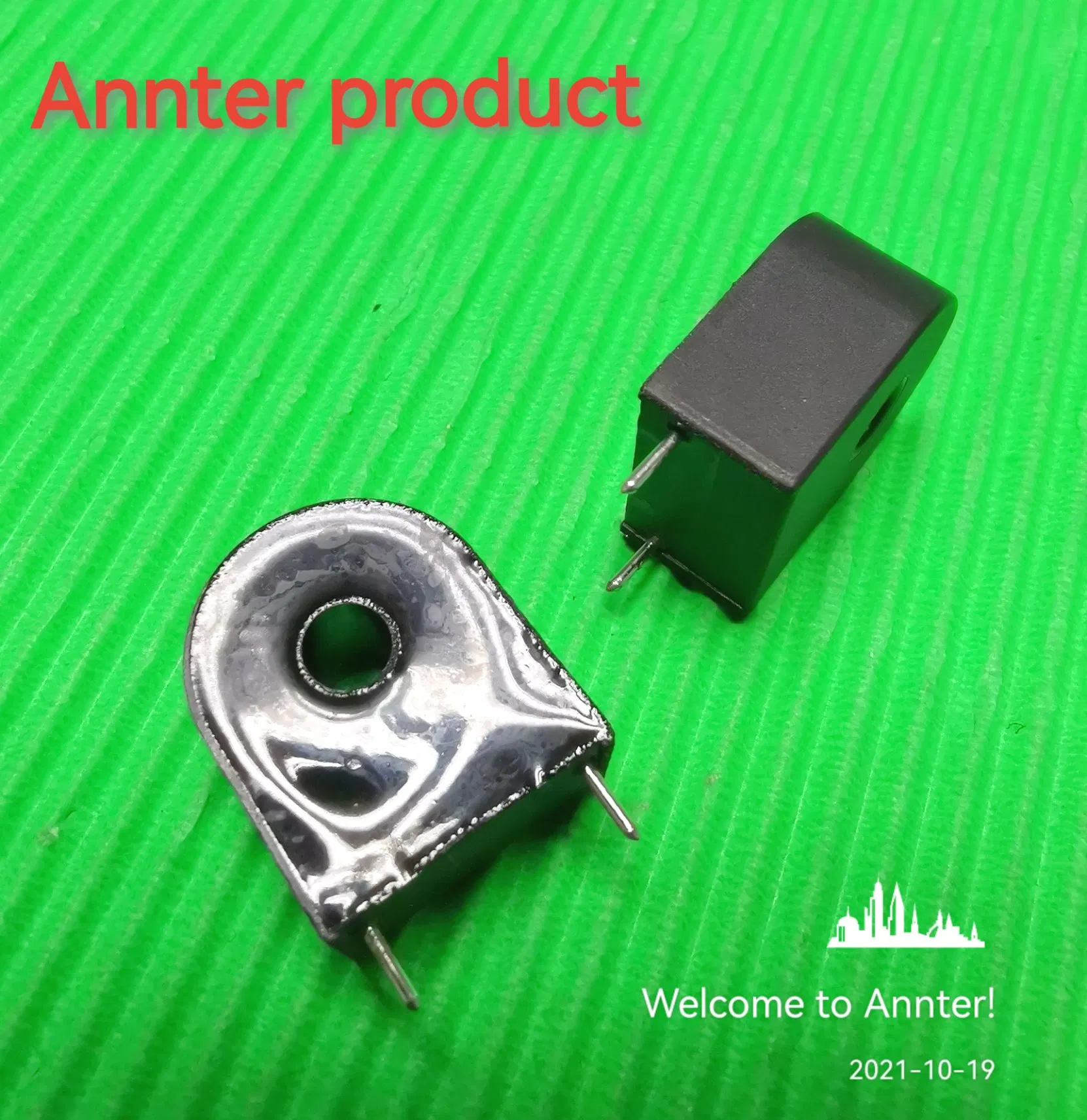

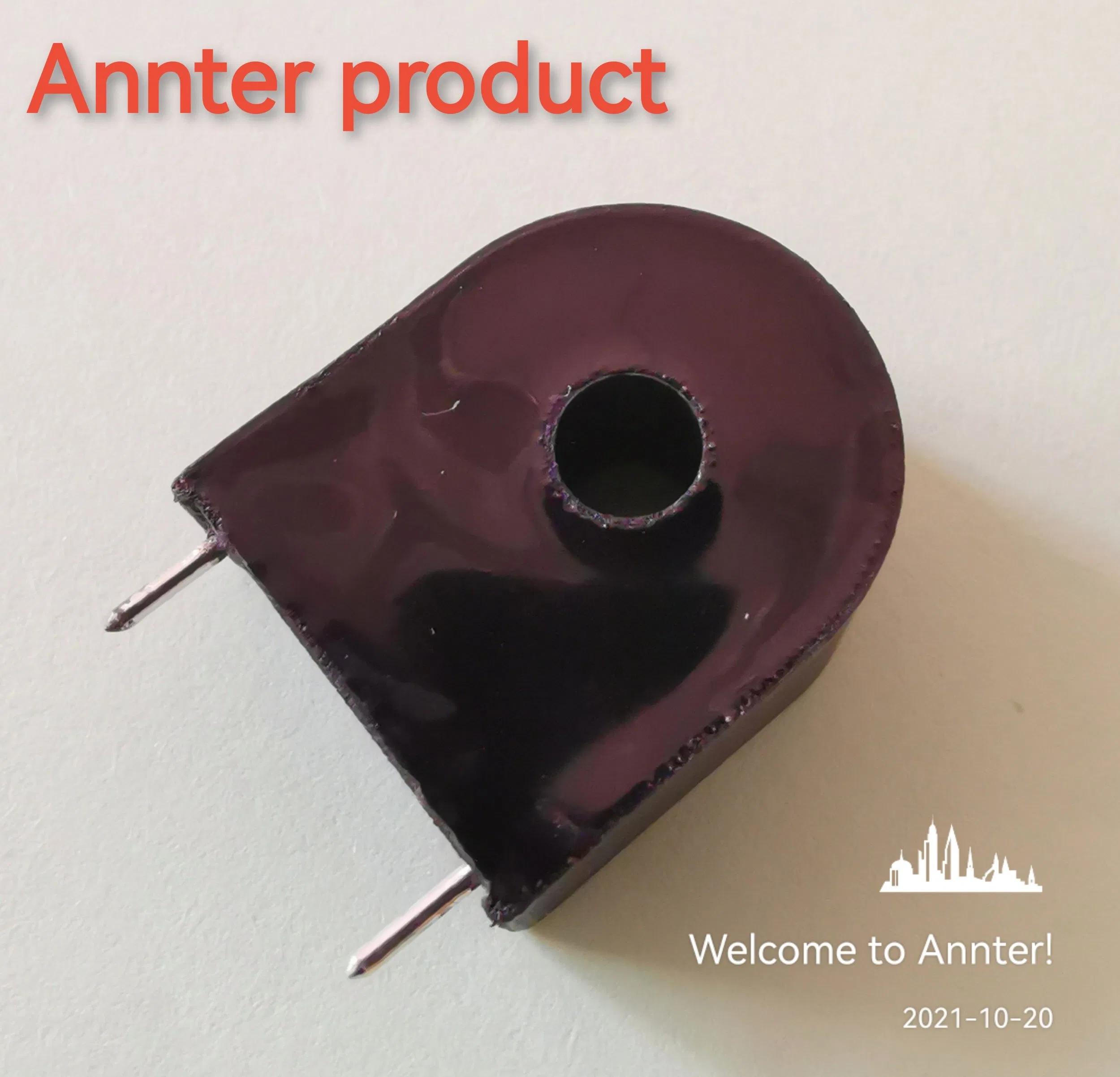

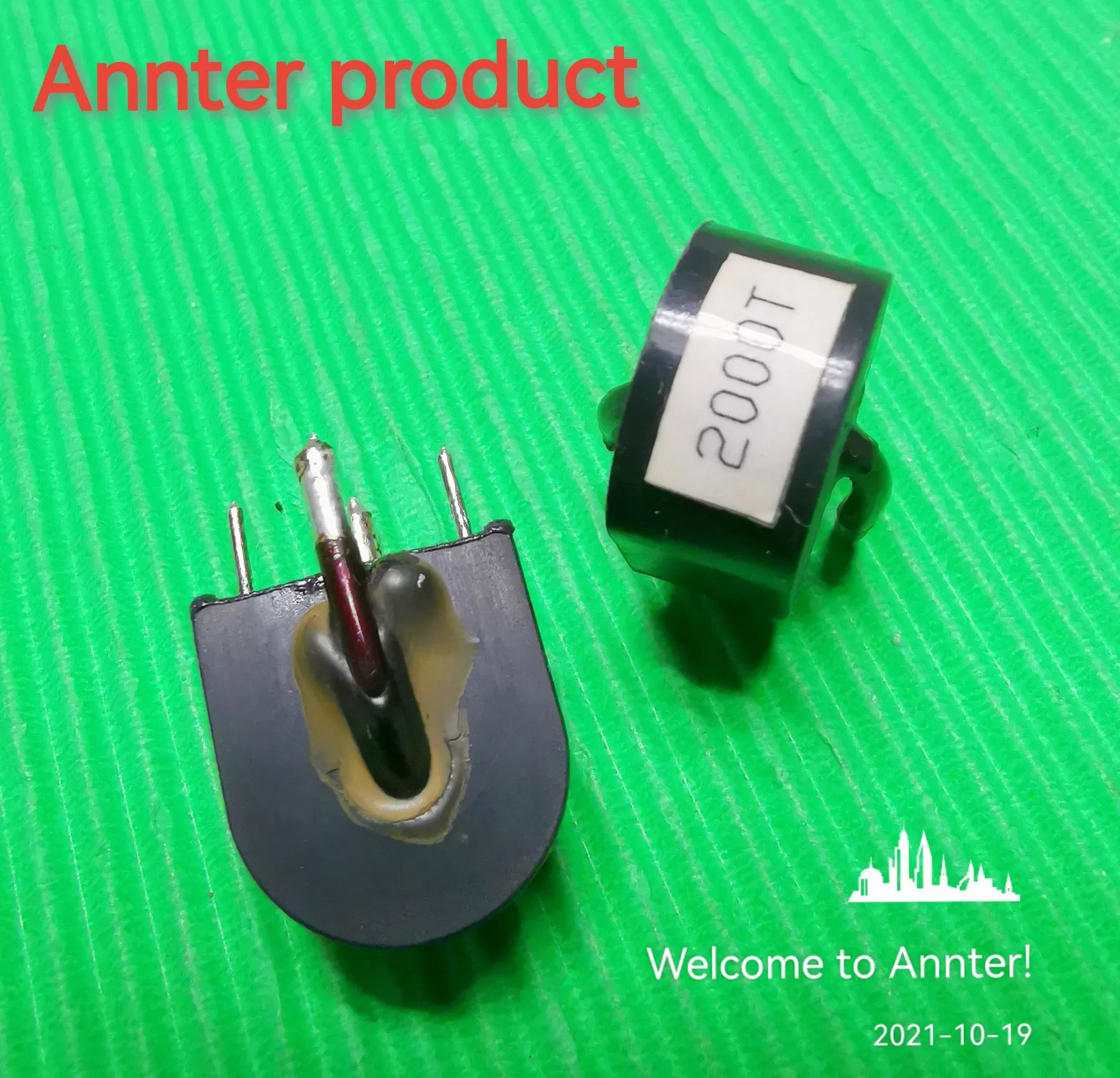

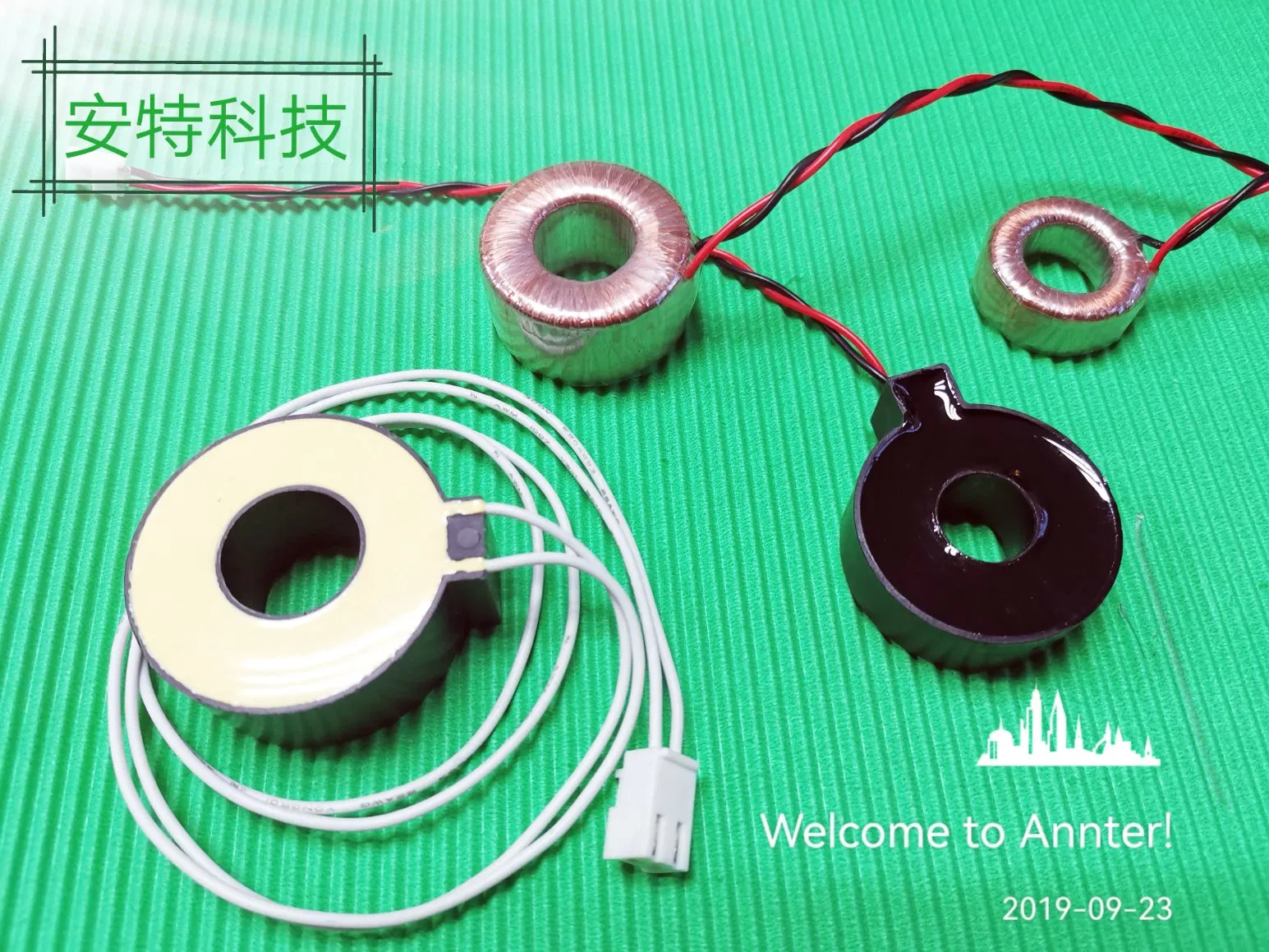

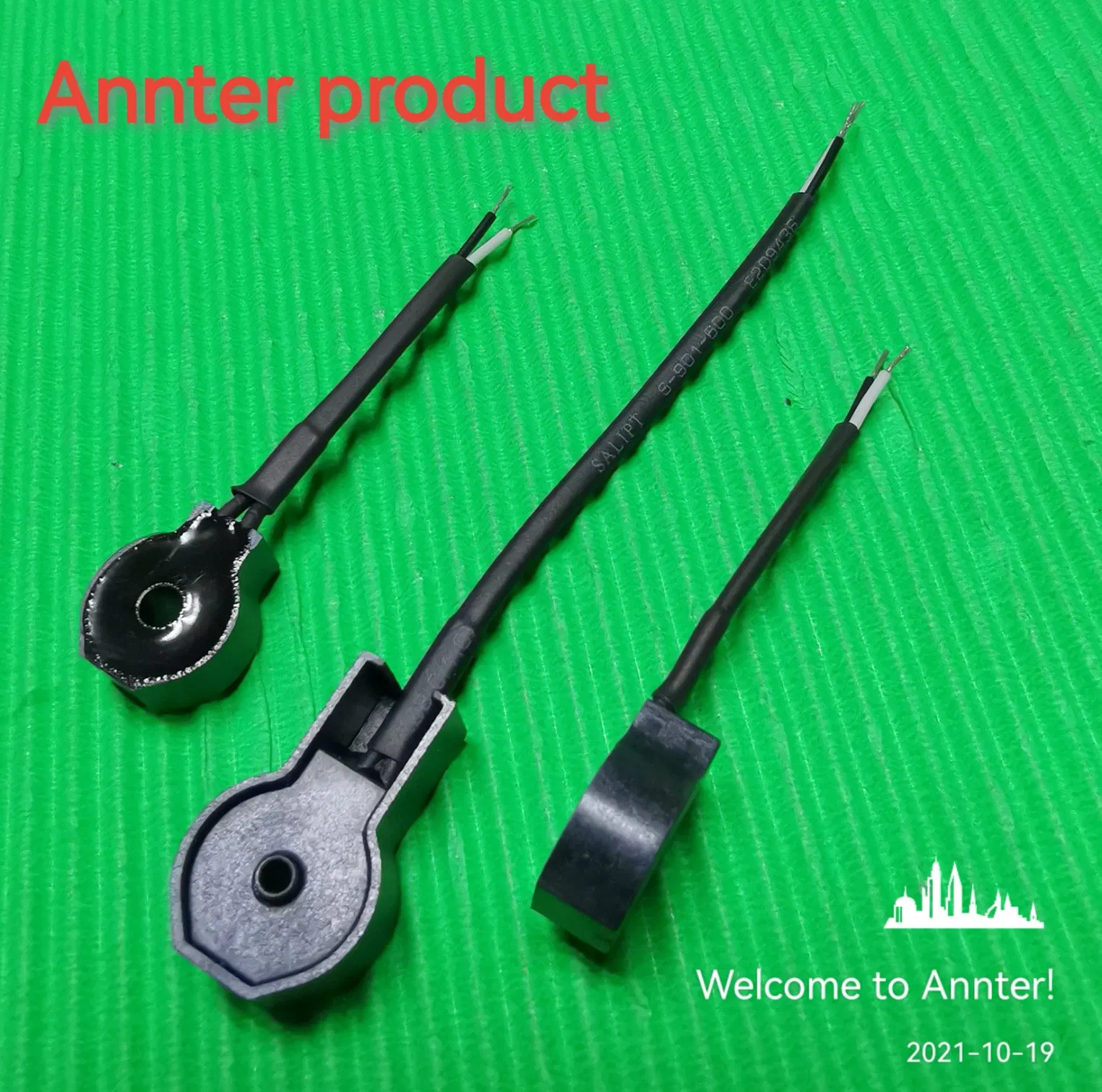

This Current Transformer is specifically designed for use in electronic watt-hour meters, offering high precision and excellent linear performance.
- ✔ Suitable for 120/240V 50/60 Hz single and polyphase applications.
- ✔ Features epoxy or tape wrapped coil protection for enhanced durability.
- ✔ Utilizes high permeability permalloy for huge current load capacity.
- ✔ High accuracy sensor for power transducers with 1:100 ratio.

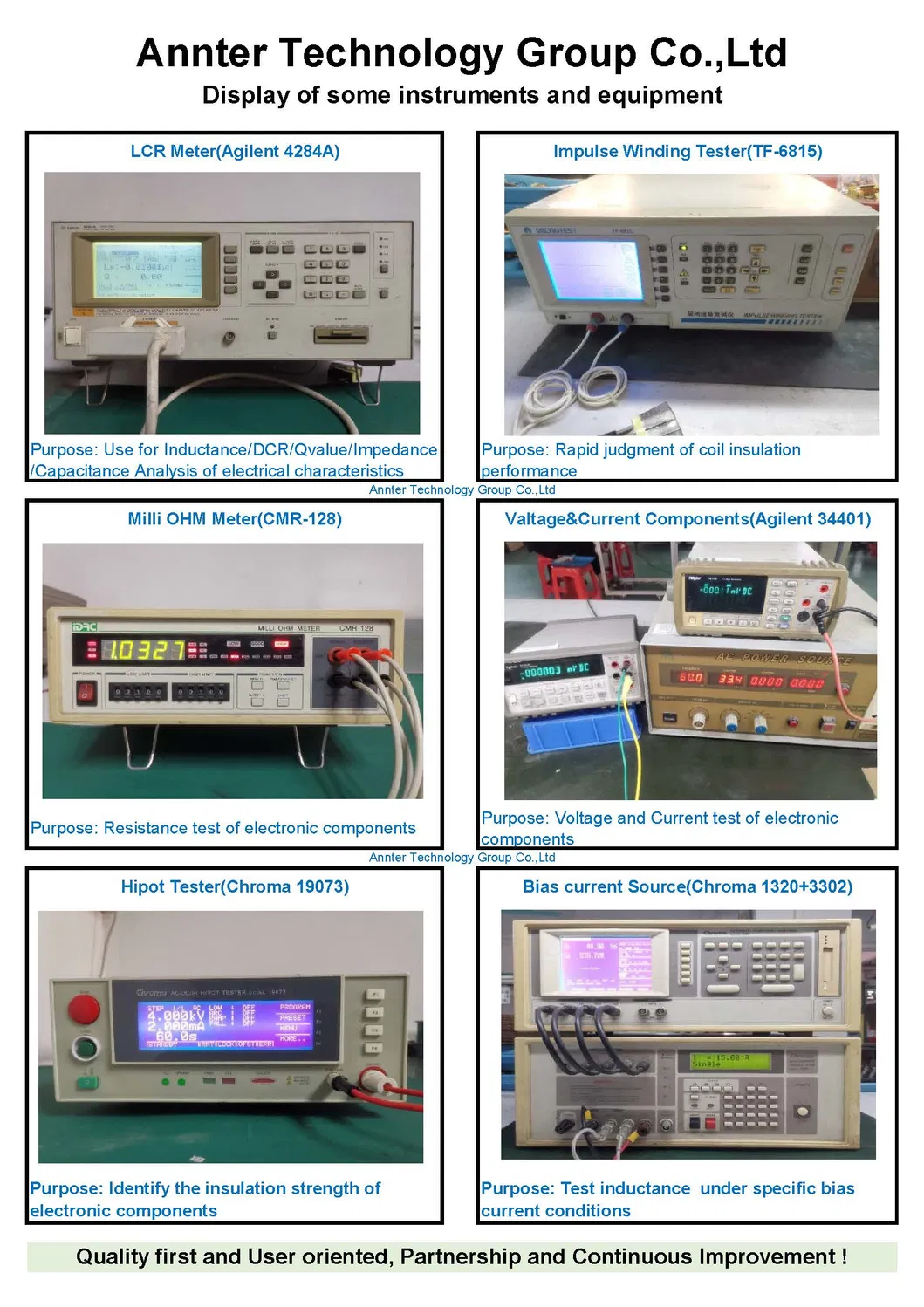

Orange Detailed Photos

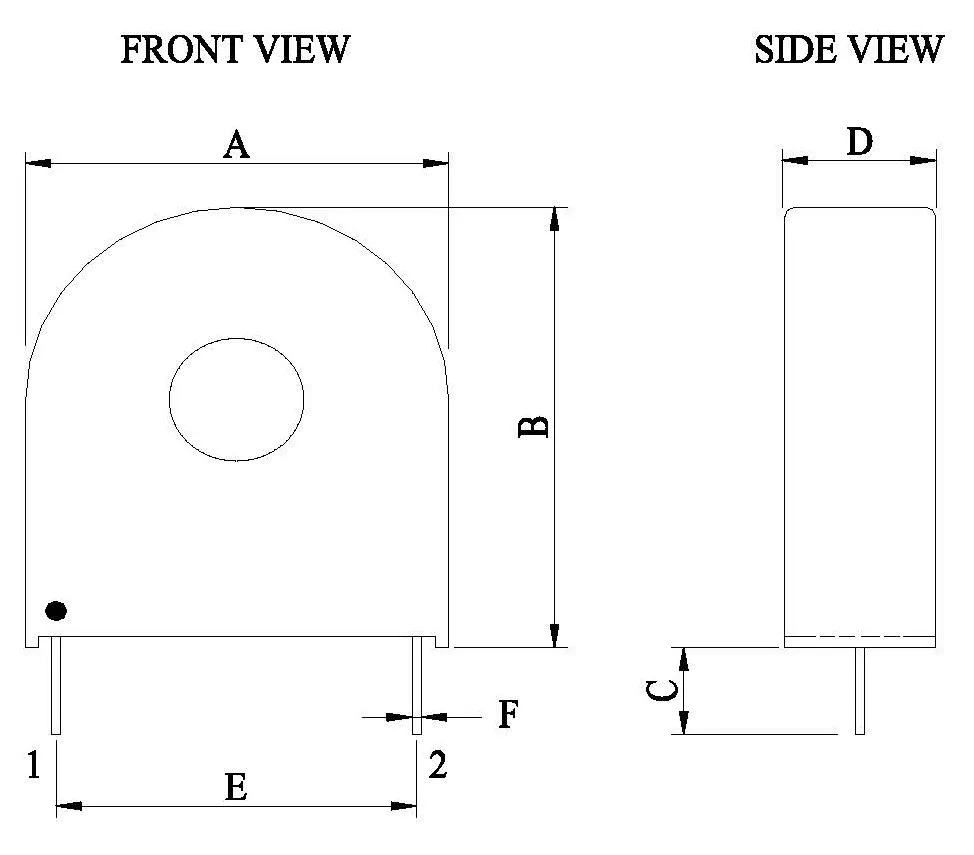

Orange Mechanical & Electrical Specifications
| Voltage Application |
120/240V, 50/60 Hz |
| DC Current Capability |
Up to 150 Apk |
| AC Current |
Up to 480 Apk |
| Electrical Strength |
3000VAC 1mA |
| Insulation Resistance |
500VDC ≥ 100MΩ |
| Inductance |
20mH @ 1KHz/0.25V |
| DCR |
1.40Ω Max (25ºC) |
| Turns Ratio |
100T +/-3% |
| Hipot Test |
3750V 5mA 1 Sec |

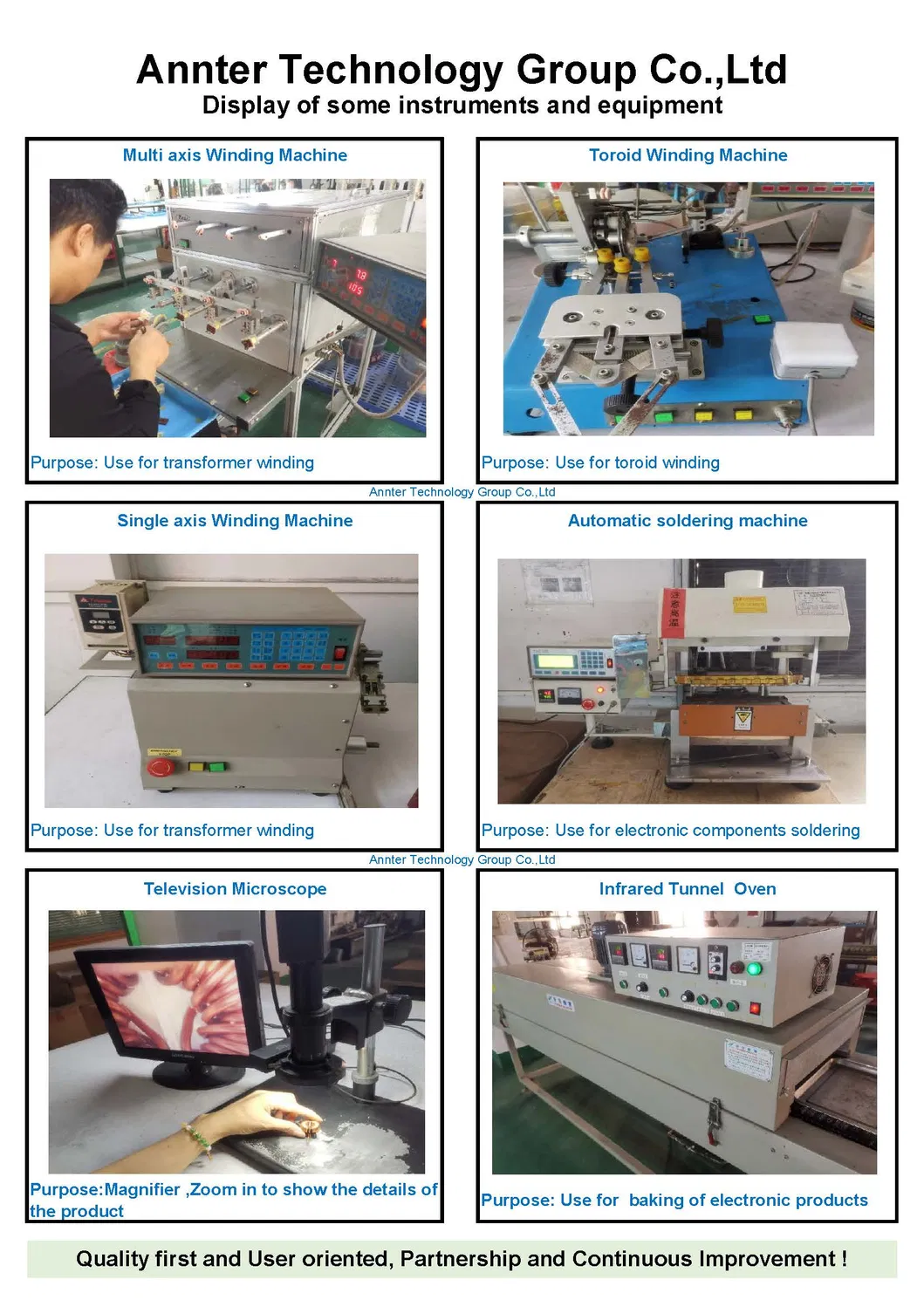

Orange Why Choose Our Solutions
- ★ Over 15 years of industry experience in power inductors and transformers.
- ★ Fully customizable products tailored to your specific technical requirements.
- ★ Flexible order sizes to meet diverse business needs.
- ★ 3 to 5 years guarantee on all products for long-term reliability.
- ★ Professional engineering support for texture packing and design.
Orange Frequently Asked Questions
Q1: What is the primary application for this current transformer?
A: It is primarily designed for electronic watt-hour meters and power transducer applications requiring high accuracy.
Q2: What are the insulation specifications?
A: The transformer provides an insulation resistance of 500VDC ≥ 100MΩ and an electrical strength of 3000VAC 1mA.
Q3: Can the turns ratio or inductance be customized?
A: Yes, we offer full customization for technical parameters including inductance, turns ratio, and mechanical dimensions to suit your project.
Q4: What environmental standards does the product meet?
A: All materials used are compliant with RoHS 2.0 requirements and meet UL safety standards.
Q5: What is the lead time and monthly production capacity?
A: We have a production capacity of 2,000,000 PCS per month, ensuring stable supply for high-volume orders.
Q6: How long is the warranty period?
A: We guarantee all our products for a period of 3 to 5 years, reflecting our confidence in their quality and durability.
