Product Description

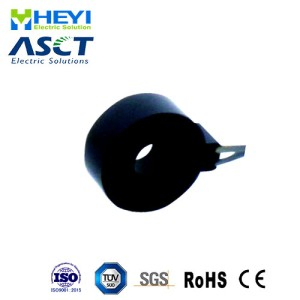

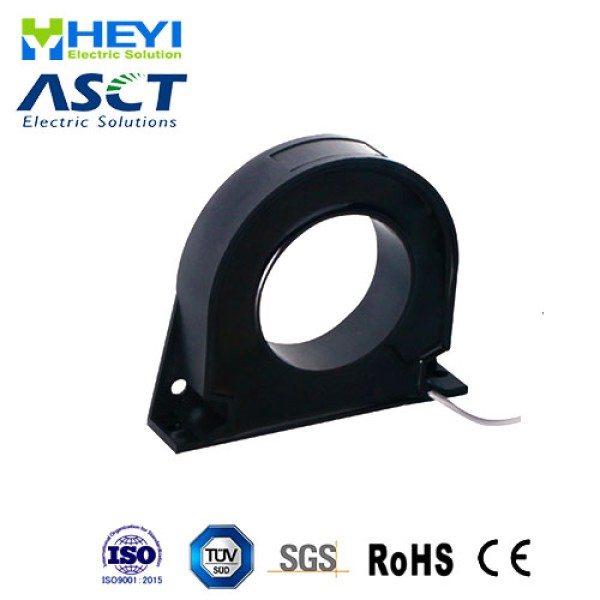

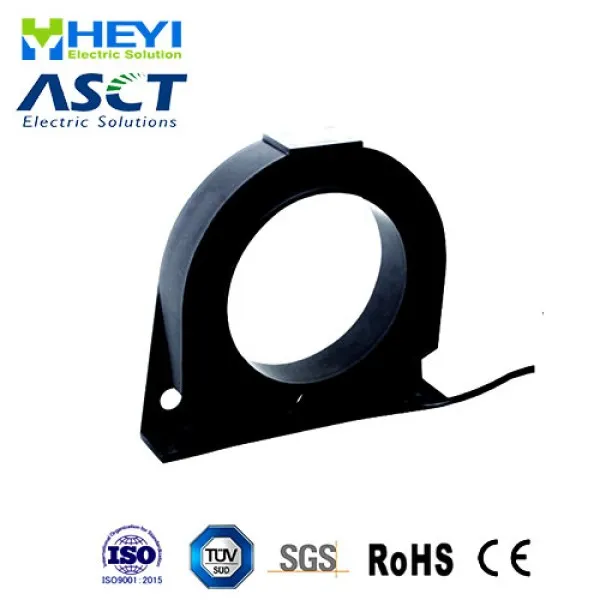

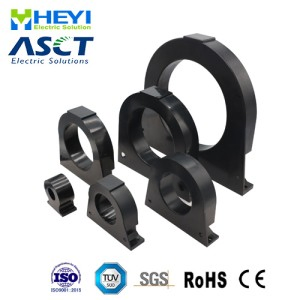

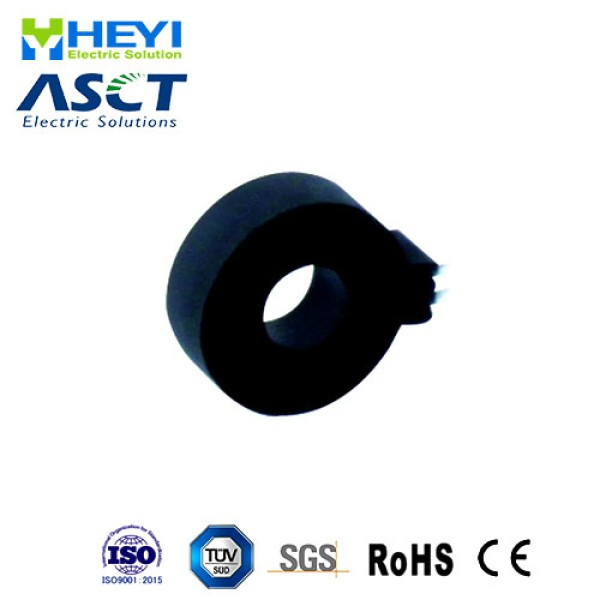

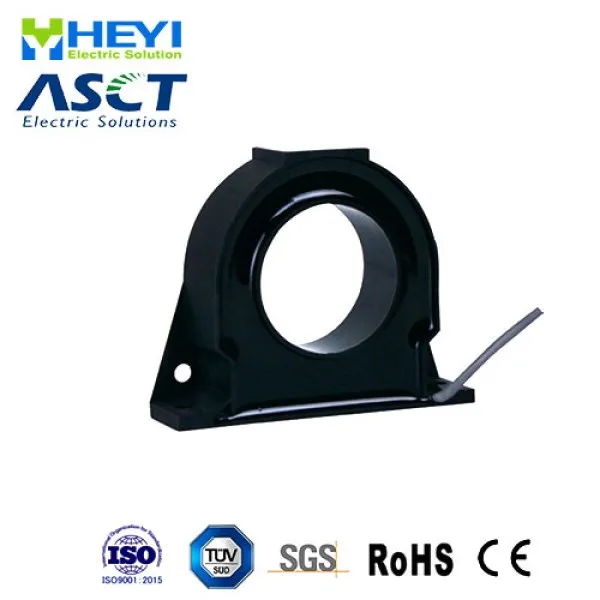

Zero sequence current transformer HY-ZCT is a current transformer specially used to measure or detect the zero sequence component of current in three phase power systems. Unlike common transformers, which are primarily used to measure phase currents, HY ZCT focus on capturing zero sequence currents. This zero sequence component indicates an unbalance or fault condition in the system.
Zero Sequence Sensitivity: High sensitivity to zero sequence currents and low sensitivity to positive/negative sequence currents for accurate ground fault detection.
Symmetrical Core Design: Ensures equal magnetic coupling for all three phases, reducing errors caused by magnetic unbalance.
High Linearity: Provides a linear output over a wide range of zero sequence current, critical for coordination with protective relays.
Wide Frequency Range: Capable of measuring over a wide range including power system frequencies and harmonics.
❓
Frequently Asked Questions
What is the primary function of the HY-ZCT Zero Sequence Current Transformer?
The HY-ZCT is specifically designed to measure and detect the zero sequence component of current in three-phase power systems, primarily used for ground fault detection and system monitoring.
How does the ZCT handle unbalanced loads?
By measuring the zero sequence current, the ZCT provides data on current distribution across phases, helping to identify load imbalances that could lead to inefficient power consumption or equipment overheating.
Is the installation of HY-ZCT intrusive to the power system?
No, the ZCT is typically installed around the neutral conductor or all three phase conductors, allowing for non-intrusive installation without the need to break the circuit or interrupt power.
What materials are used for the transformer's protection?
The transformer features an ABS flame-retardant plastic shell and epoxy resin casting encapsulation, which provides excellent insulation, moisture resistance, and seismic durability.
What is the frequency range for these transformers?
The HY-ZCT series is designed to operate over a wide frequency range, typically from 50Hz to 400Hz, making it suitable for various industrial applications.
What accuracy classes are available for the HY-ZCT series?
Depending on the specific model and application requirements, the HY-ZCT series offers accuracy grades of 0.2, 0.5, or 0.2G.
