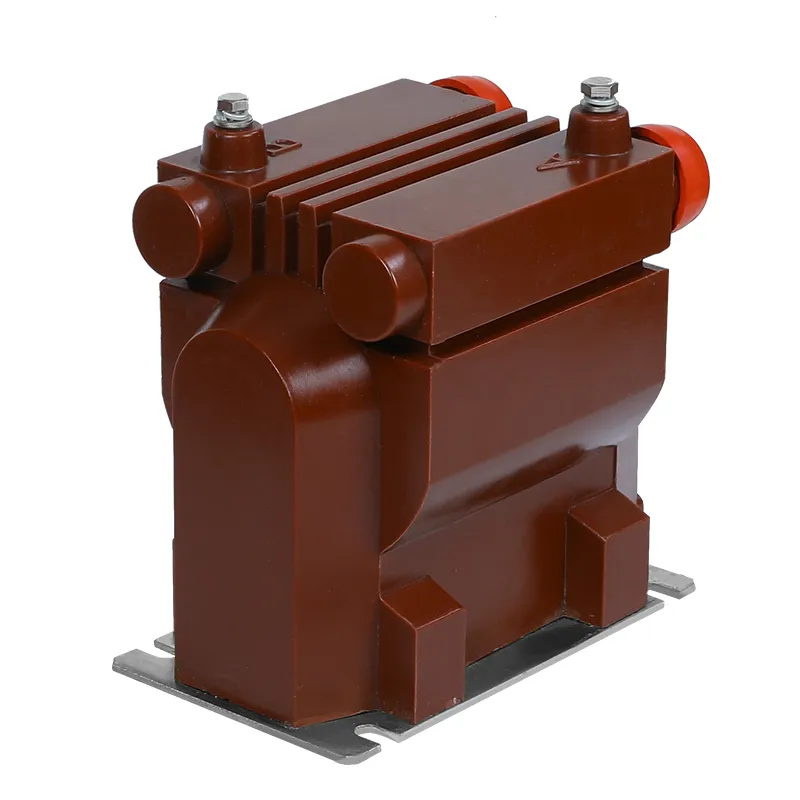

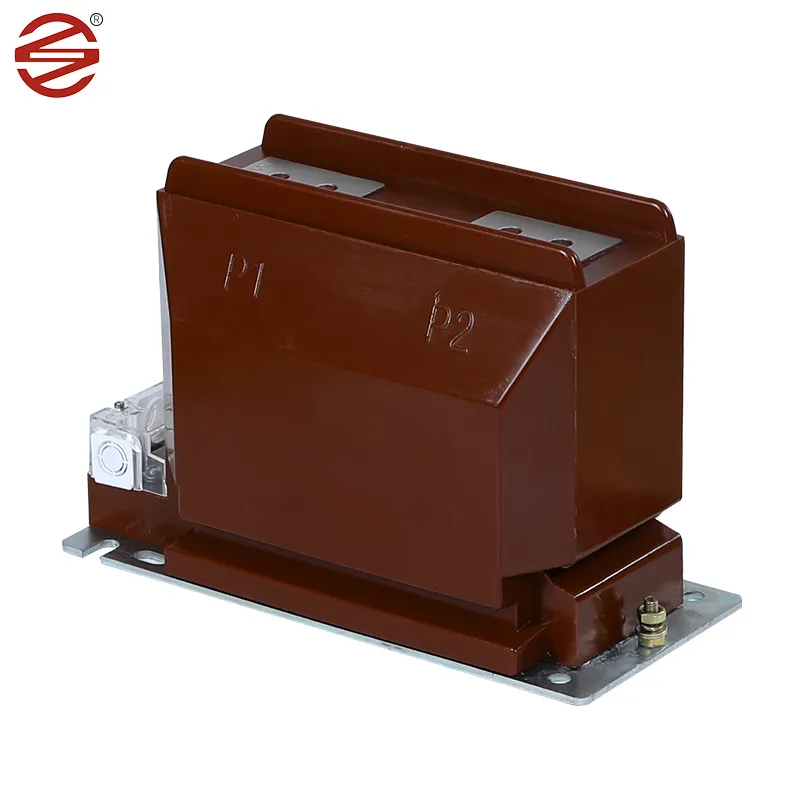

Fully enclosed integrated current transformer is a kind of equipment used for measurement and protection in power system, which has the following features and technical specifications:
●

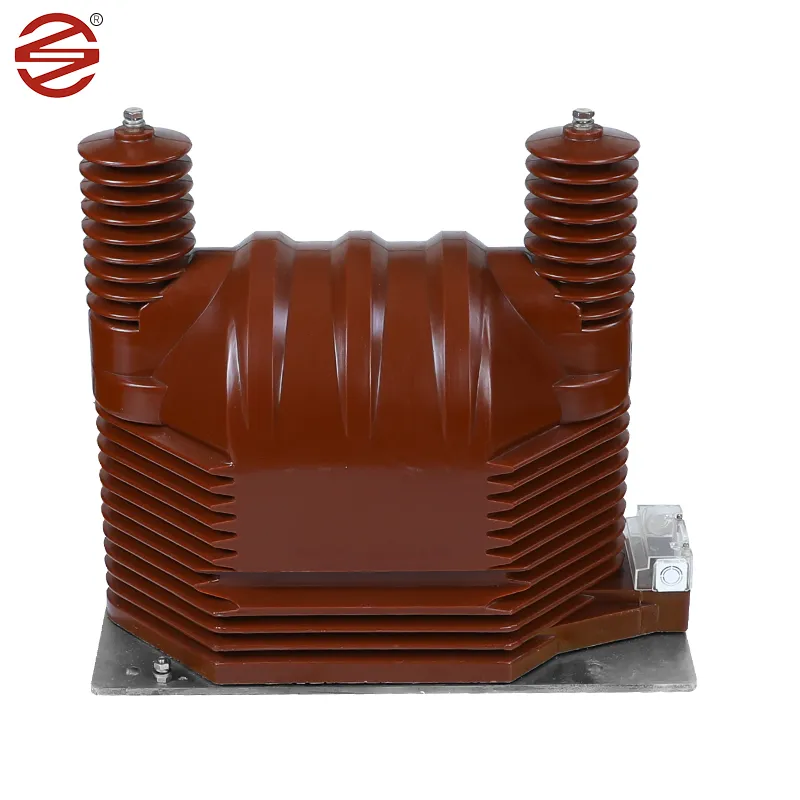

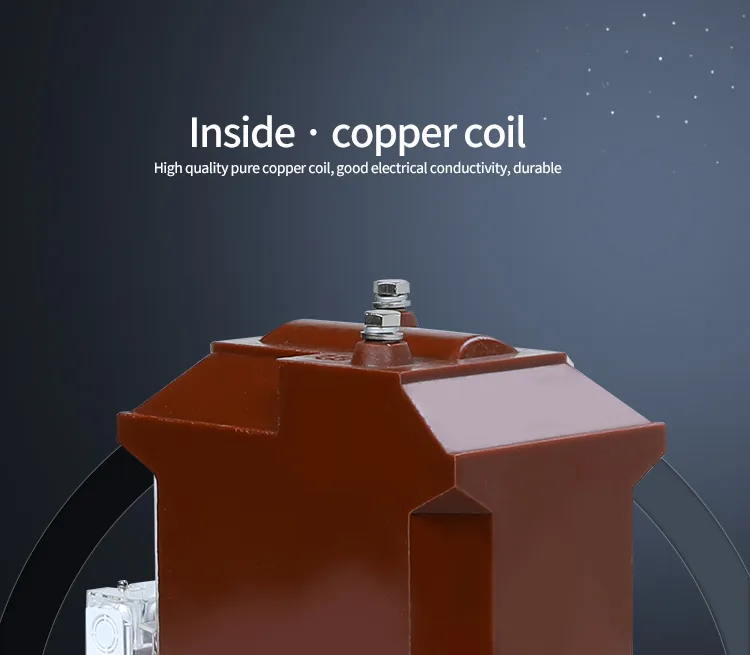

Structural features: Fully enclosed integrated current transformers are usually cast in epoxy resin, providing good insulation and moisture resistance. They are compact, small in size, light in weight and easy to install and maintain.
●

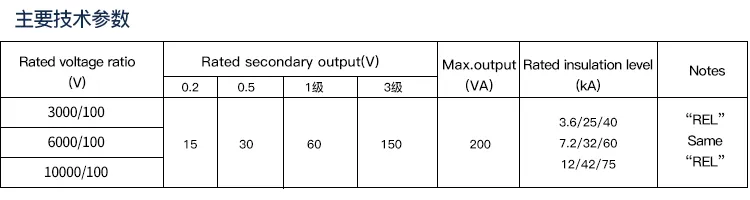

Rated insulation level: These transformers are usually rated at 12/42/75kV, ensuring high voltage resistance without breakdown.
●
Rated secondary current: Usually rated at 5A or 1A, allowing for versatile use in different circuits.
●

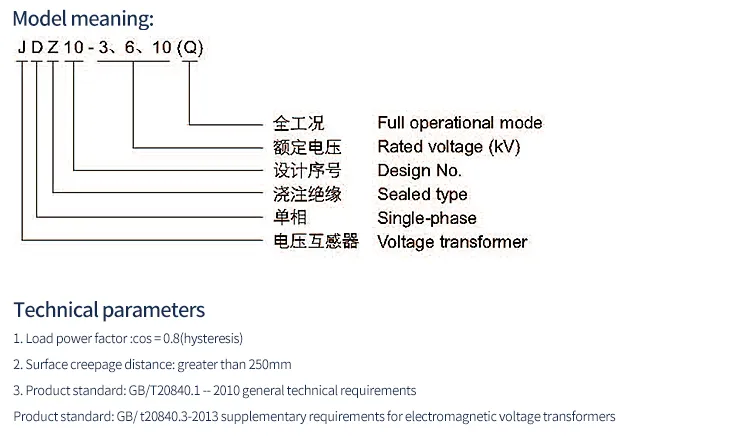

Power factor of the load: Designed with cosΦ = 0.8 (lagging).
