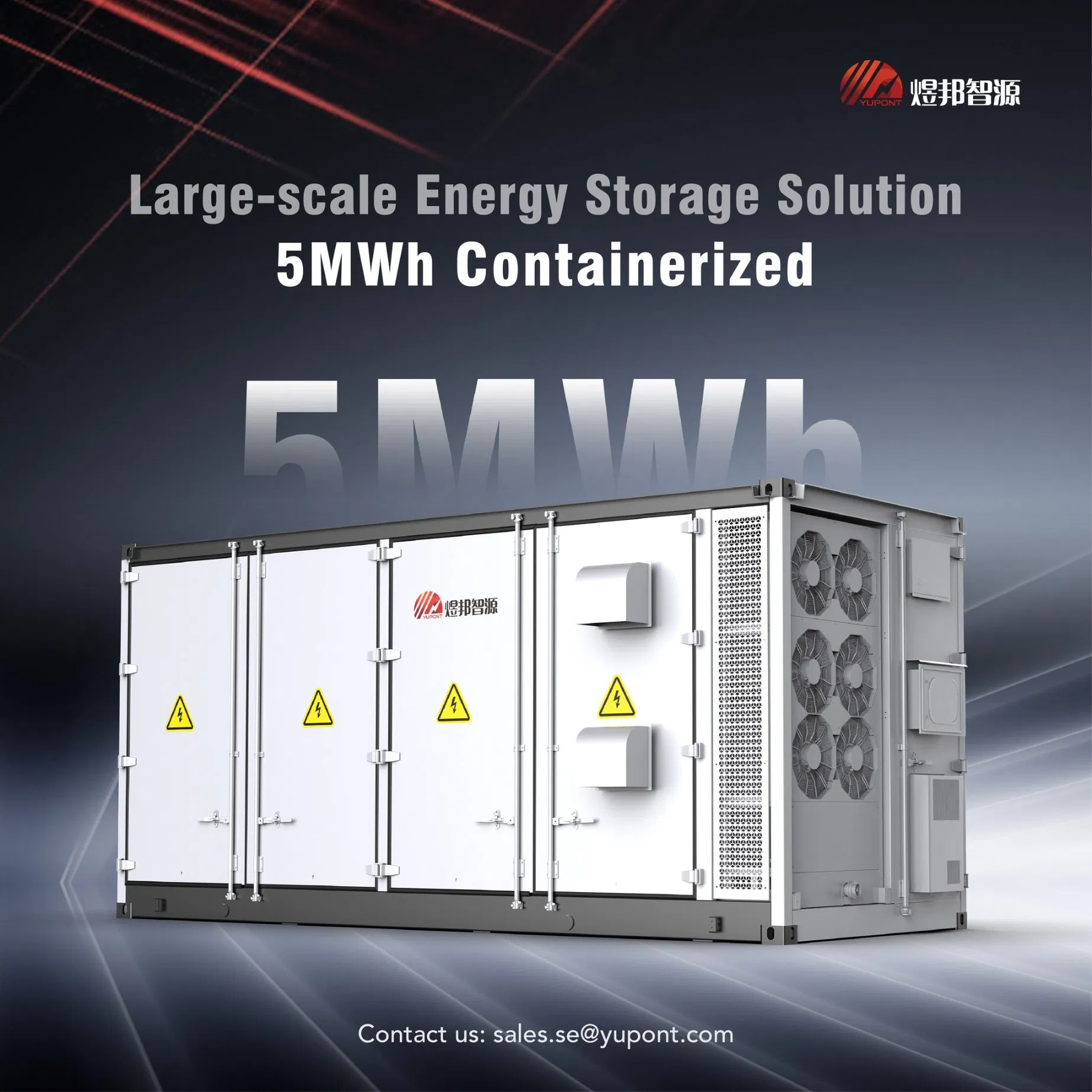

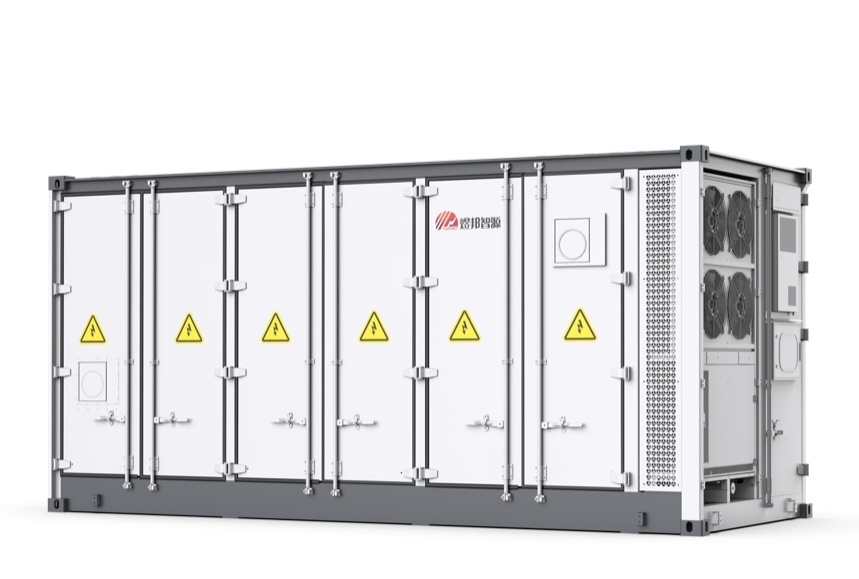

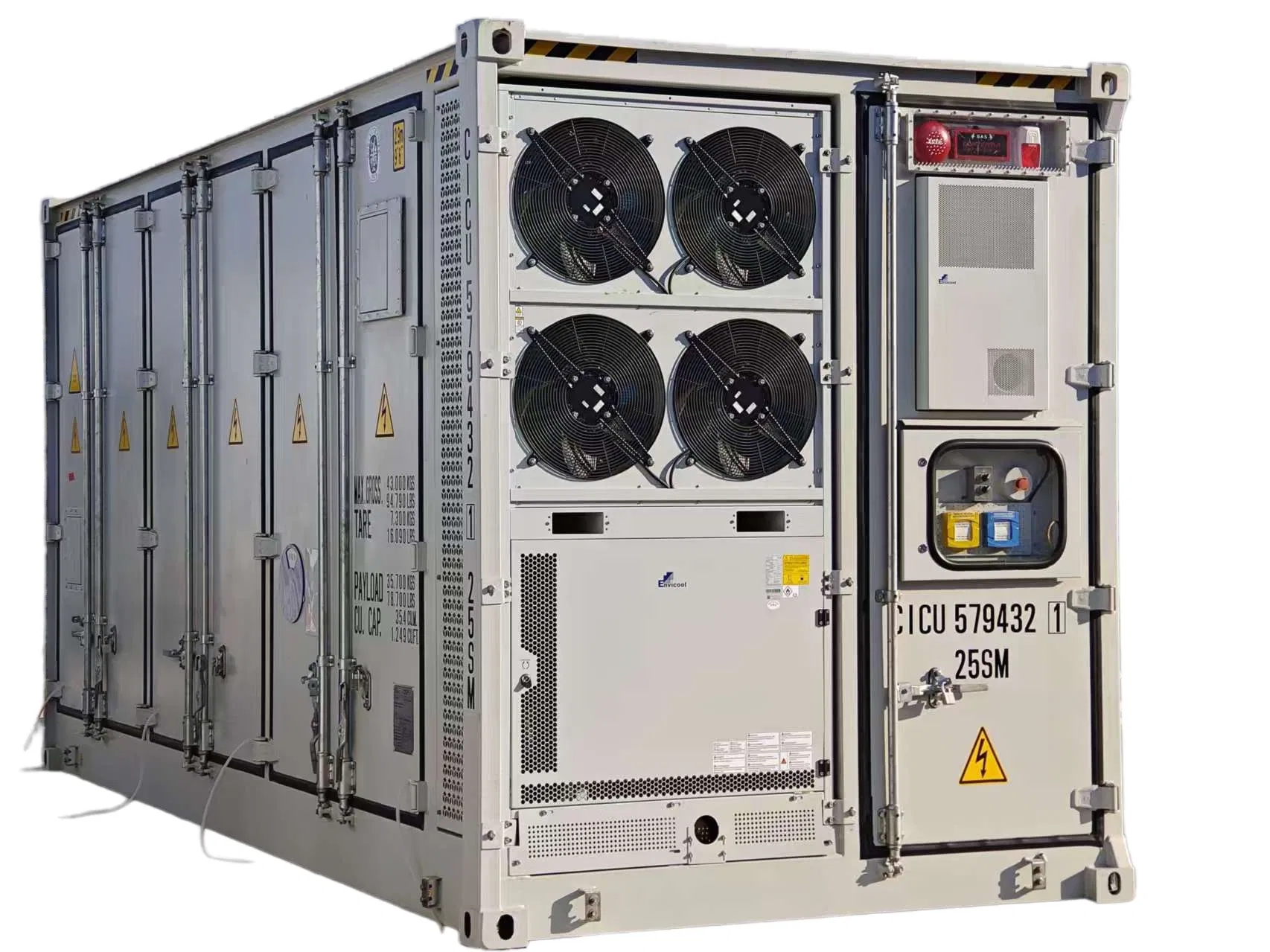

Yupont bess 5MWh 4.59MWh 4.18MWh LFP Battery Container for Efficient Energy Storage

Customization:	Available
Container Size:	6058(L)2438(W)2896(H)mm
Weight:	45000kg

📊

Basic Information

Model NO.	YPZY-CeCABIN-5000Li-D-INTL	Nominal Voltage	1331.2V-1497.6V
Warranty	3 Years	Nominal Capacity	5015.96kWh
Cycle Life	>6000 Cycles @25℃, 90%DOD	Cell Type	LFP 3.2V/314Ah
Rated Energy	5.01MWh	Protection Grade	IP54/IP55
Operating Temp	-30~55℃	Application	PV Supporting Energy Storage

🔋

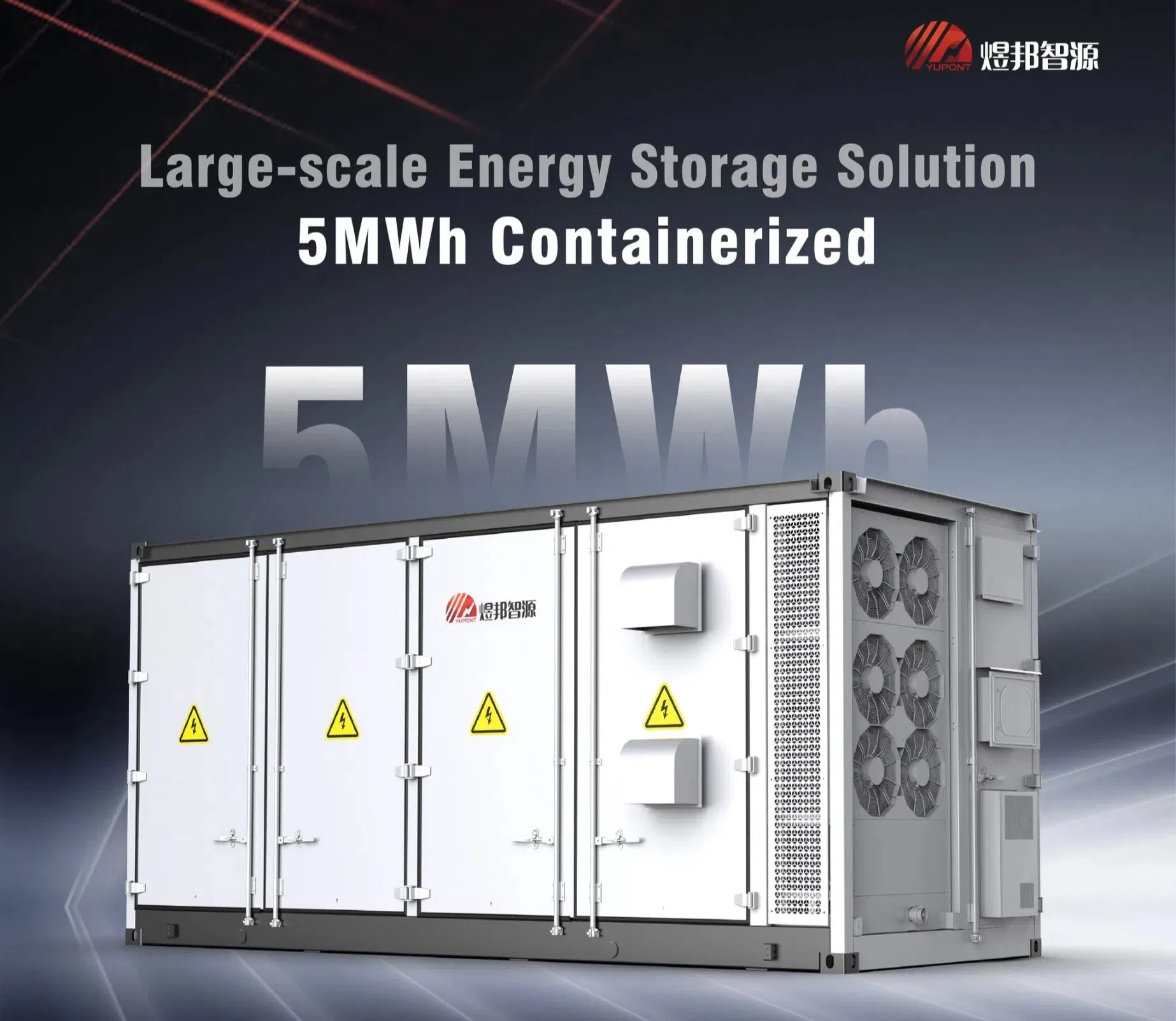

High-Capacity Lithium Battery Container

This large-scale energy storage system features a rated capacity of 5MWh. It integrates energy storage battery systems, liquid cooling systems, advanced fire protection, and intelligent BMS power distribution. Designed for efficiency and stability, this product serves as a core solution for grid-side and industrial energy management.

⚙️

Key Specifications & Advantages

🚀

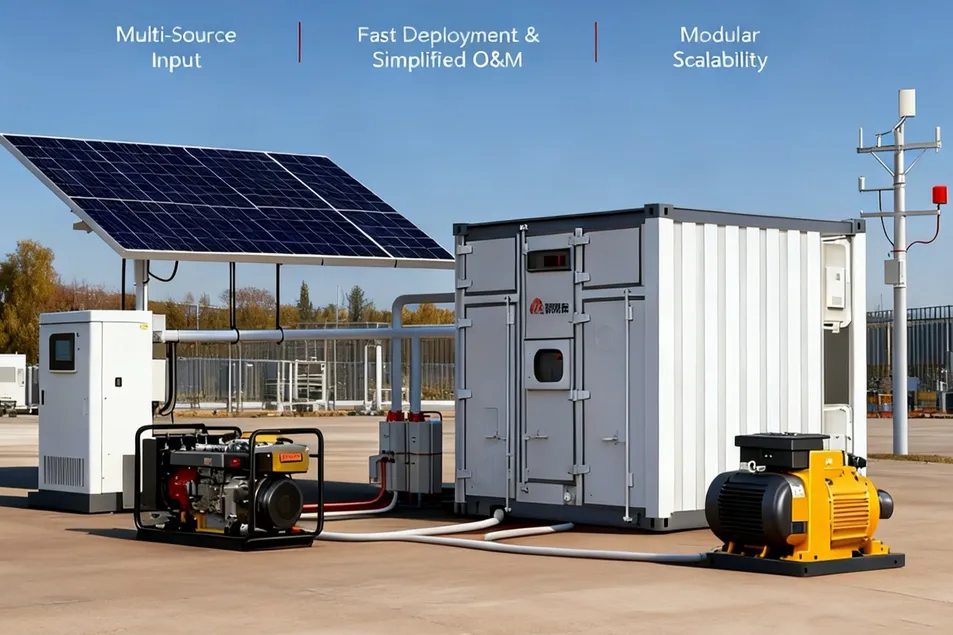

Flexible Deployment

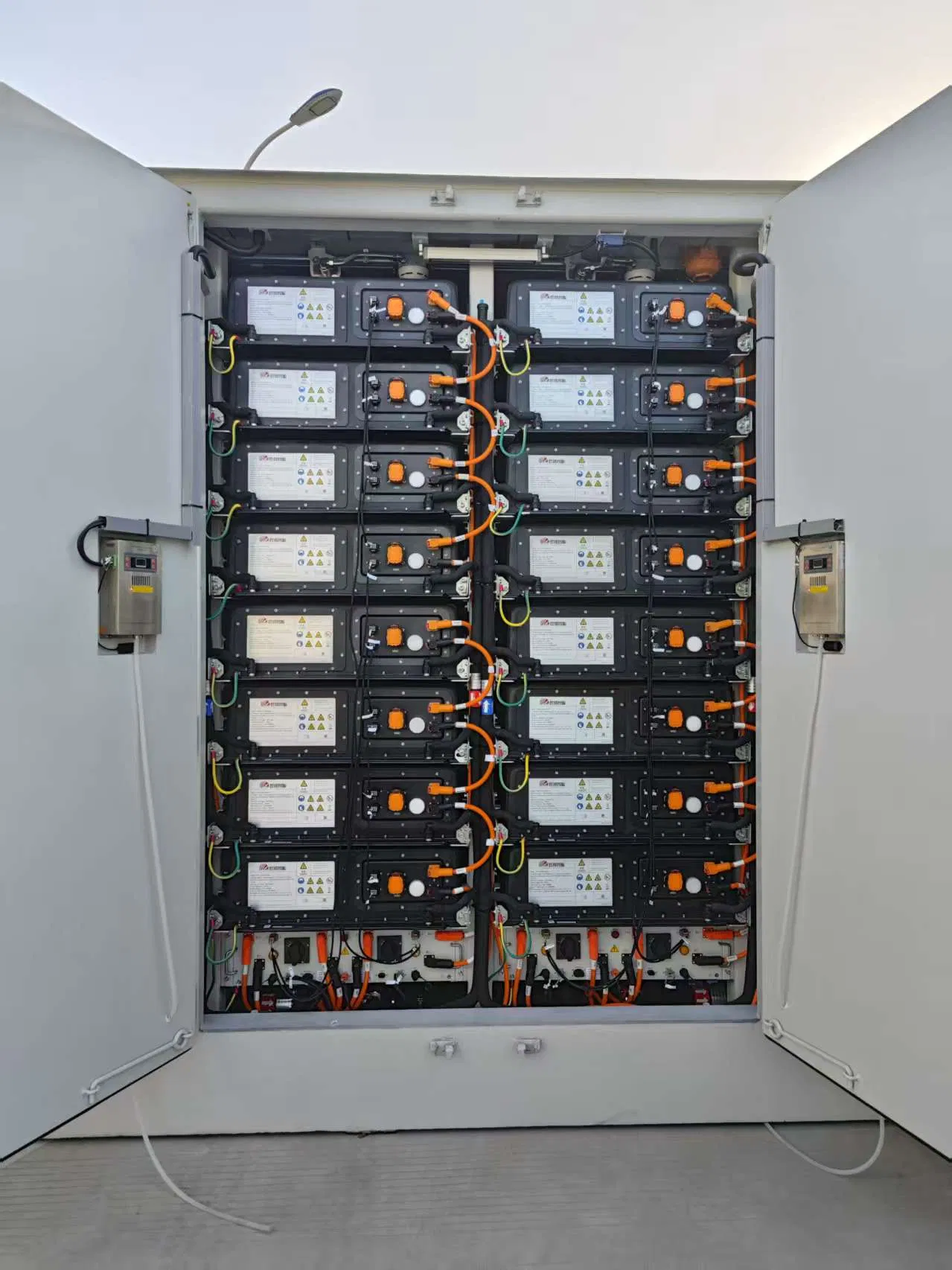

Pre-installed battery cells shipped as a complete cabinet. No on-site installation required. Independent maintenance windows ensure high efficiency.

🛡️

Safety & Reliability

Multi-level fire protection with AI fault warning features. Electrical isolation and dual overcharge/over-discharge protection for every battery compartment.

💡

Intelligent Control

Variable-frequency temperature control reduces energy consumption. Supports fault recording and troubleshooting via multiple communication protocols.

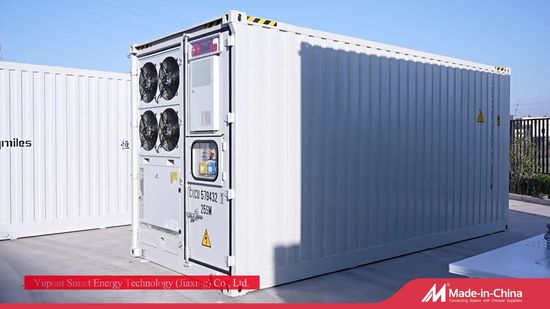

Product Video Demonstration

📋

Technical Comparison

Model Parameter	4.18MWh	4.59MWh	5.0MWh
Operating Weight (kg)	39,720	42,360	45,000
Nominal Capacity (kWh)	4179.96	4597.96	5015.96
String Configuration	10*1P416S	11*1P416S	12*1P416S

📐

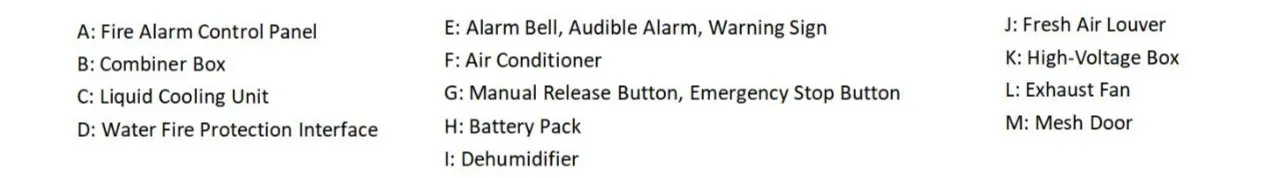

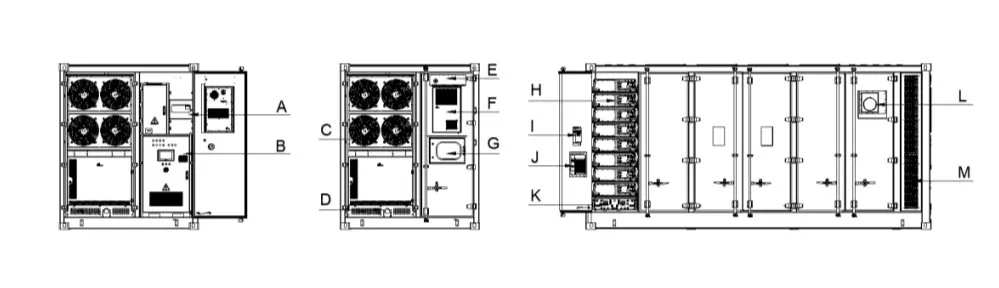

Engineering Elevations

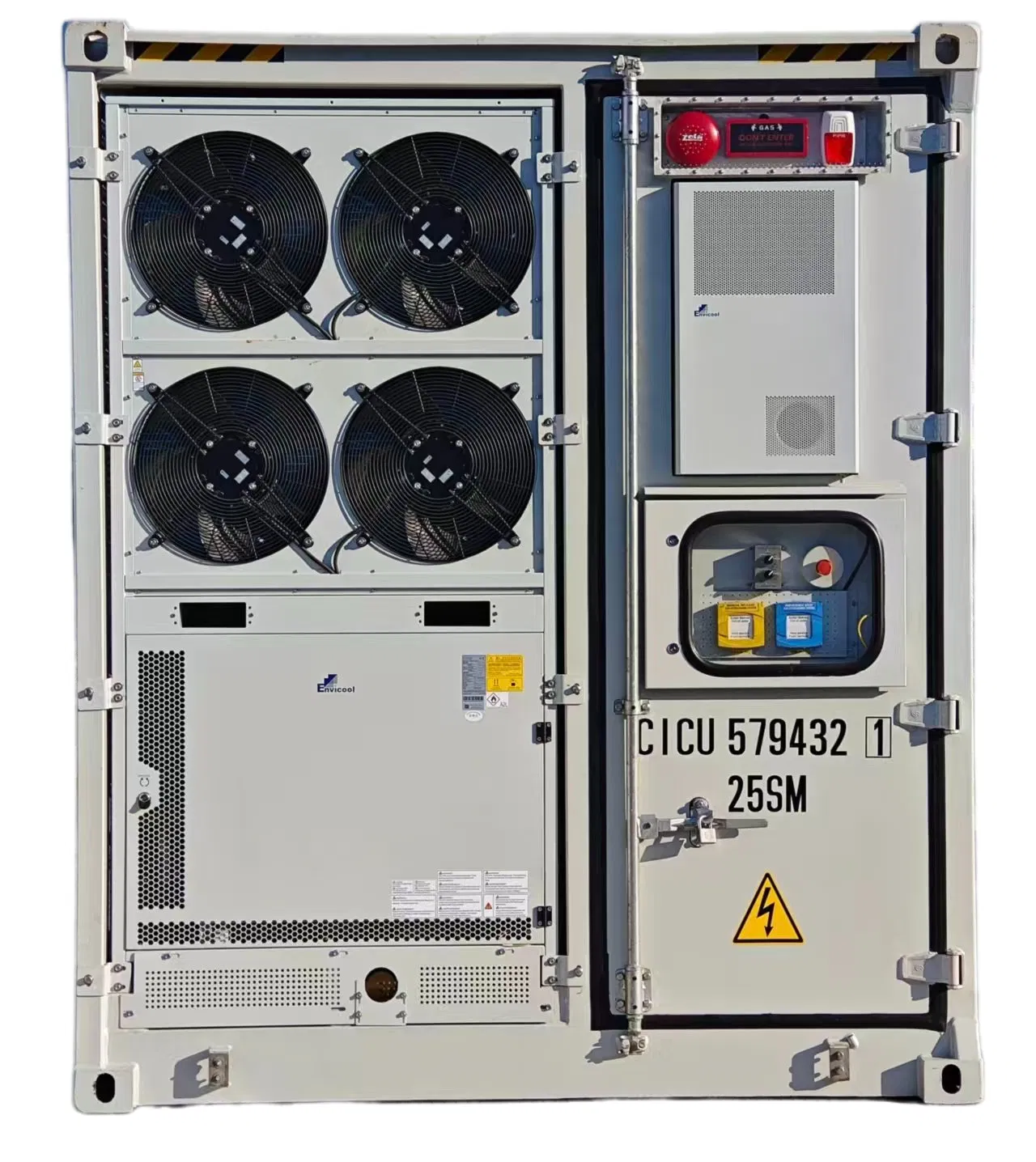

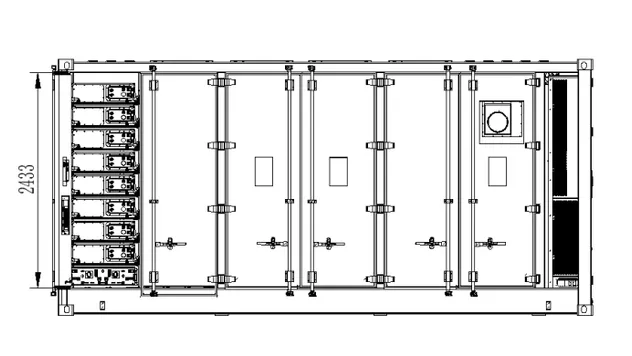

Front Elevation

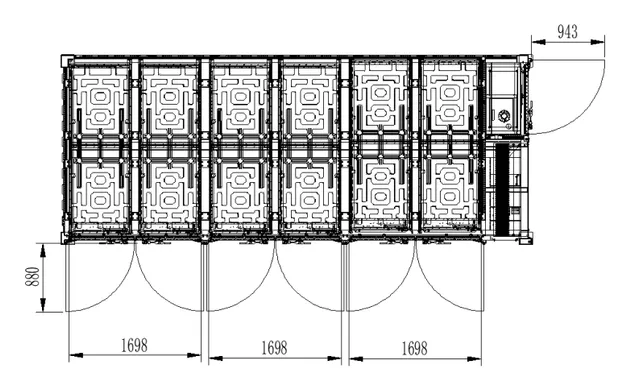

Back Elevation

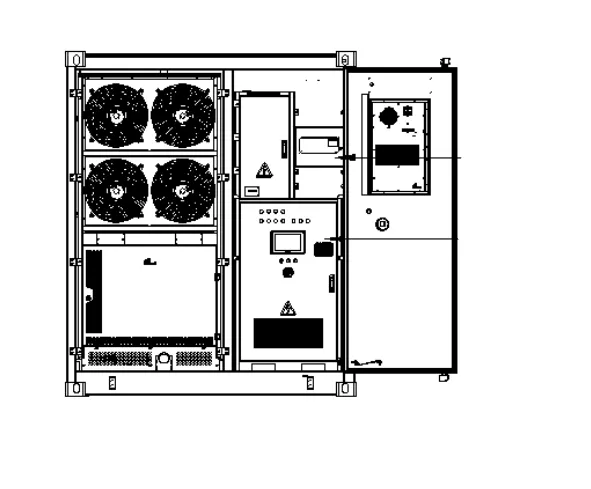

Left Elevation

📜

Global Certifications

🏭

Manufacturing & Projects

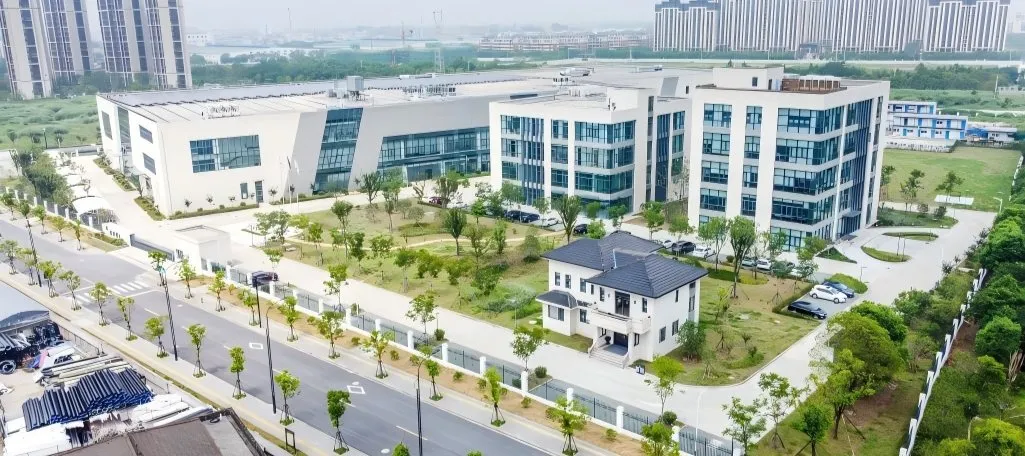

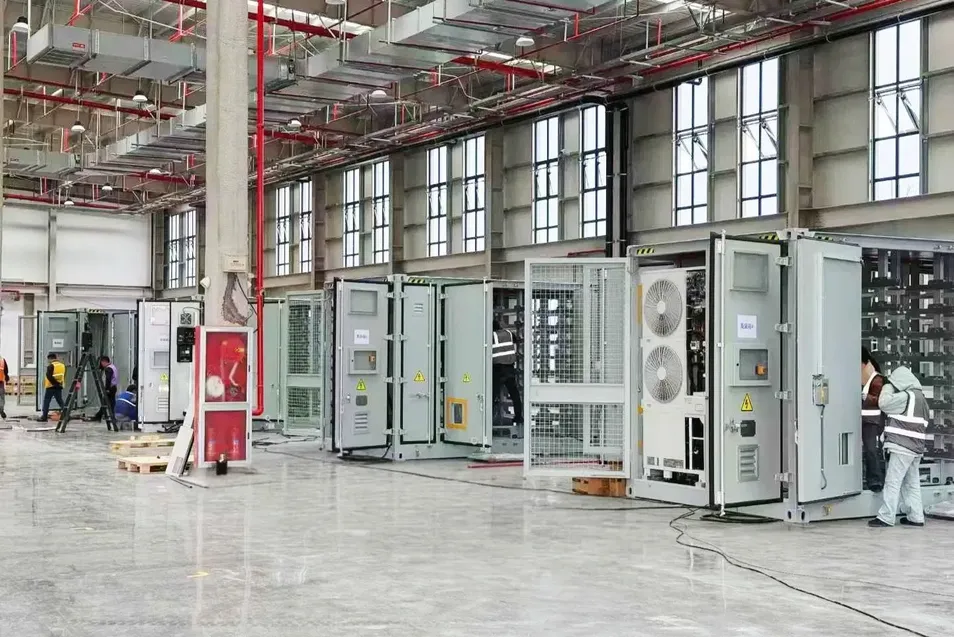

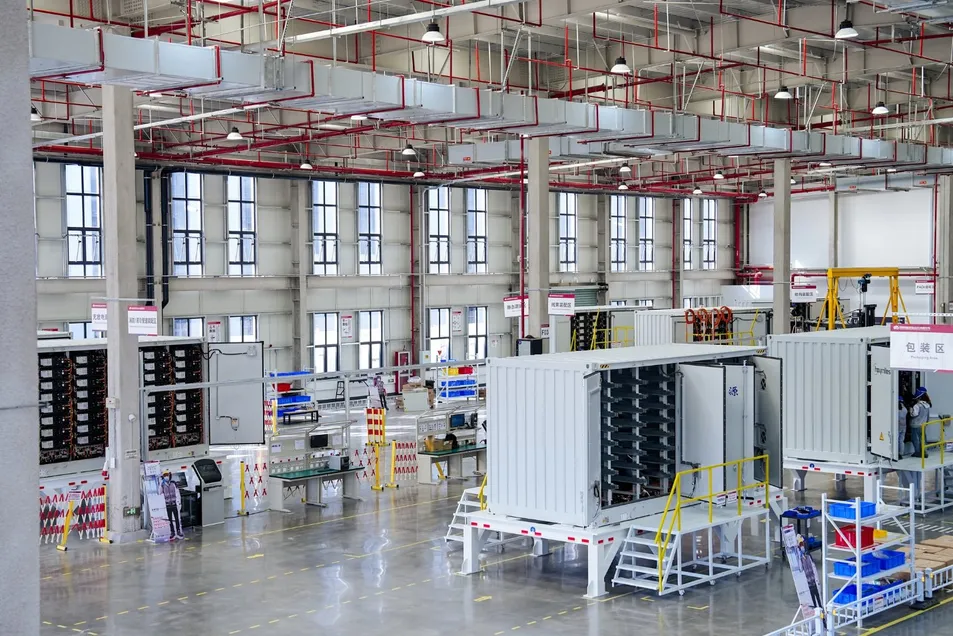

Smart Manufacturing Workshop

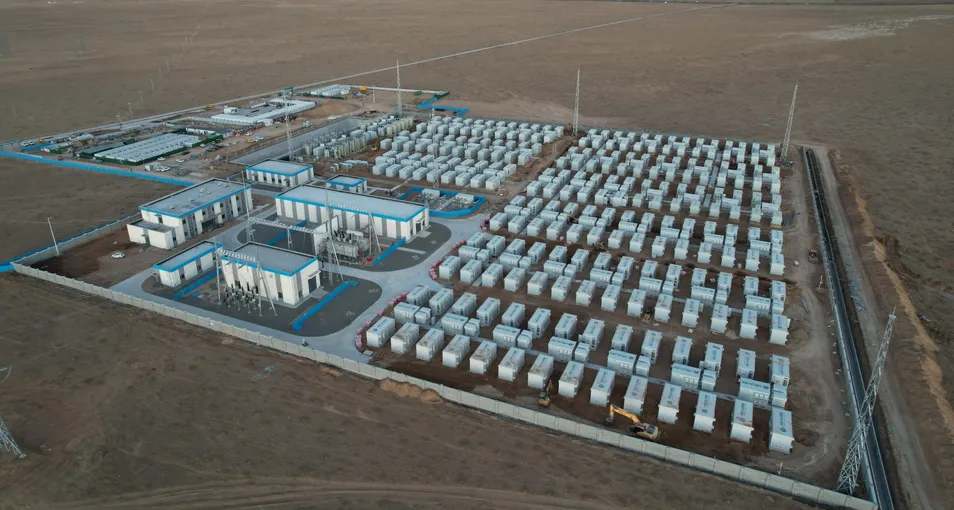

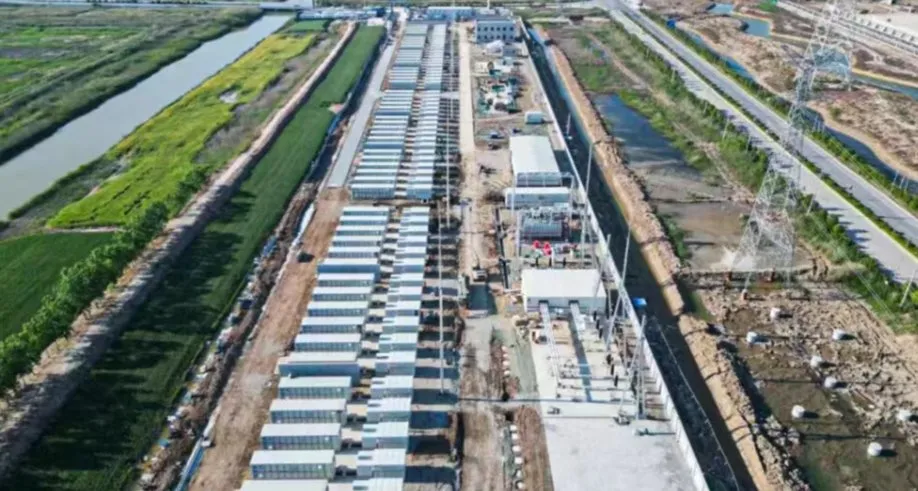

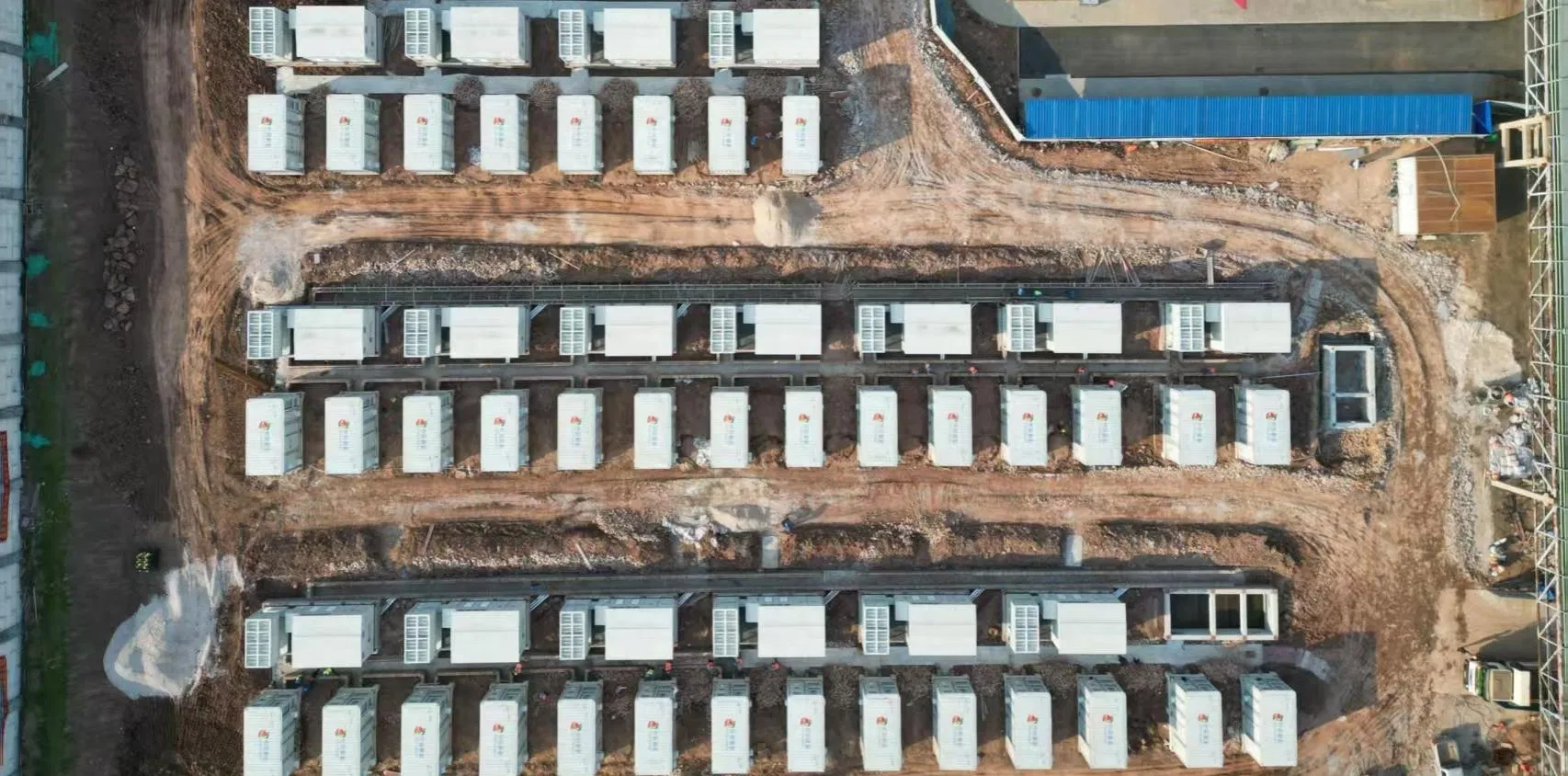

Project Global Cases

🏢

Company Capability

Specializing in the R&D, manufacturing, and sales of equipment for grid-side large-scale energy storage and industrial distributed solutions. Our facility features a 10GWh smart manufacturing capacity and full-life cycle expert support.

❓

Frequently Asked Questions

What is the standard warranty for the energy storage container?

We offer a standard warranty of 3 years, along with 24/7 global technical assistance and spare parts supply.

Can the system capacity be customized for specific project needs?

Yes, we provide tailored solutions including different capacities (4.18MWh, 4.59MWh, 5MWh) and custom configurations upon request.

What safety mechanisms are integrated into the unit?

The system includes multi-level fire protection, AI-driven fault warnings, liquid cooling for temperature uniformity, and electrical isolation between battery clusters.

Is on-site installation required for the battery cells?

No, the battery cells are pre-installed and the cabinet is shipped complete, allowing for rapid deployment and connection on-site.

What communication protocols does the BMS support?

Our system supports standard protocols including CAN, Modbus RTU, Modbus TCP/IP, and IEC 61850 for seamless integration.

How is the product transported?

The unit is designed as a standard 20FT container, making it compatible with global sea and land transport logistics.
