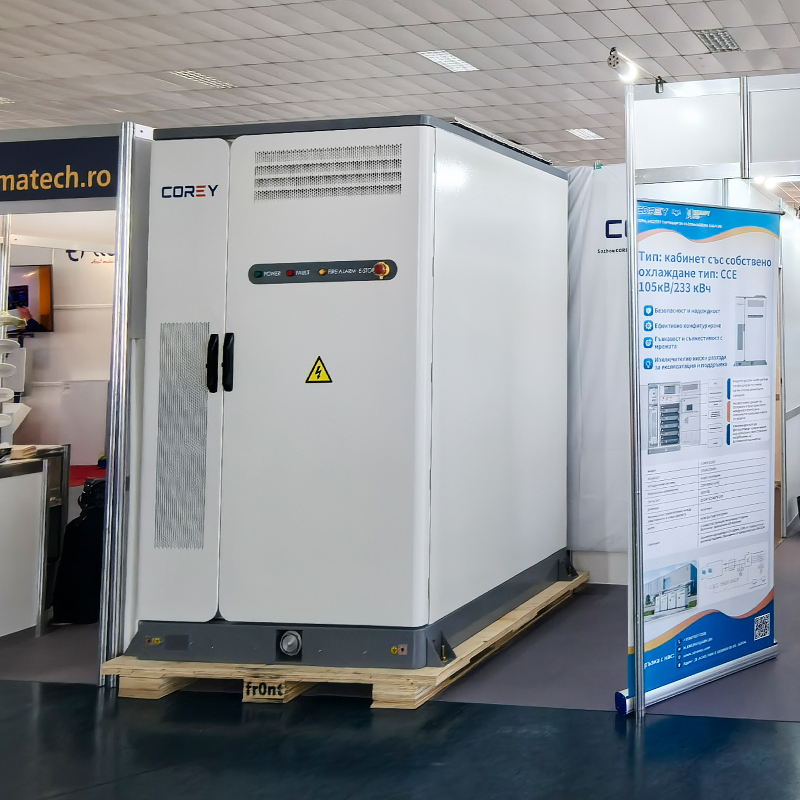

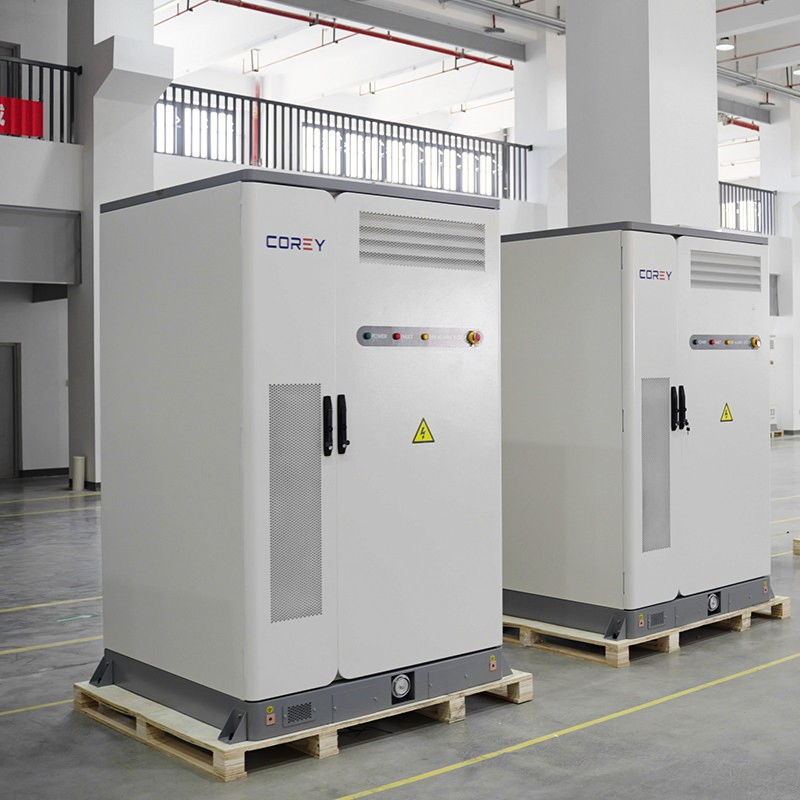

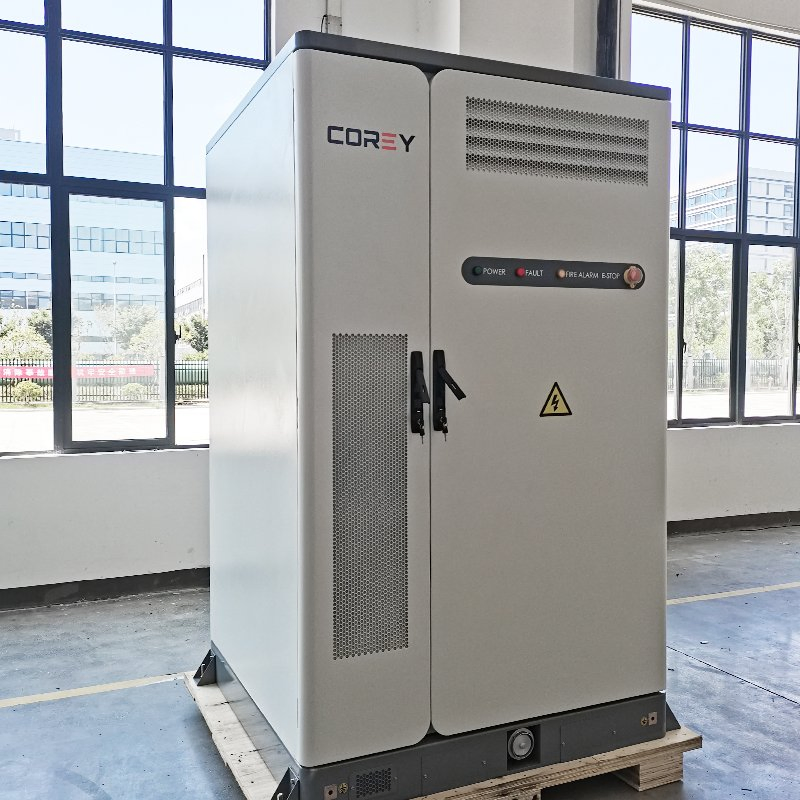

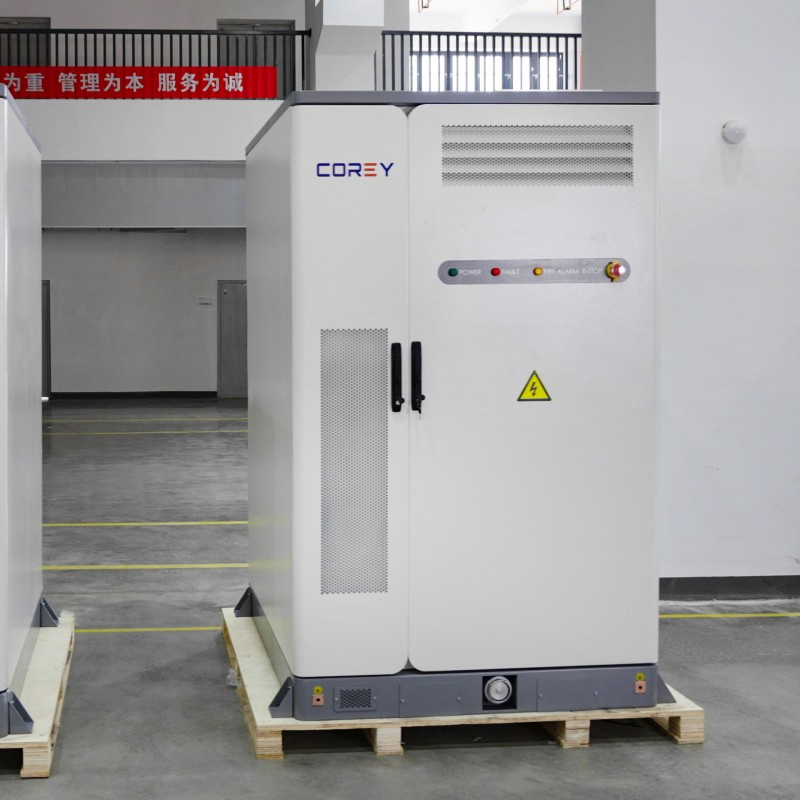

Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage

Customization: Available
Container Size: L1560mm*D1380mm*H2385mm
Weight: 2600kg

Product Description

📊

Overview - Basic Information

Model NO.
Corey-233
Nominal Voltage
230V/400V
Warranty
5 years
Nominal Capacity
233kWh
Cycle Life
9000
Battery Type
LiFePO4
Cooling Method
Intelligent Liquid Cooling
Protection Level
IP54 / C4
Energy Storage System
💡

Product Description & Key Functions

Industrial and commercial energy storage cabinets use an integrated design with high flexibility, allowing businesses to expand storage capacity easily as power demands grow.

  • Peak - valley arbitrage: Charge during low-cost periods and discharge during high-cost peak periods to cut expenses.
  • Power Supply Reliability: Functions as a backup power source for uninterrupted operations during grid outages.
  • Power Quality Improvement: Mitigates fluctuations and ensures stable voltage/frequency for sensitive equipment.
  • Demand Response: Earn financial incentives by modifying electricity usage patterns in response to grid requirements.
Application Scenario 1

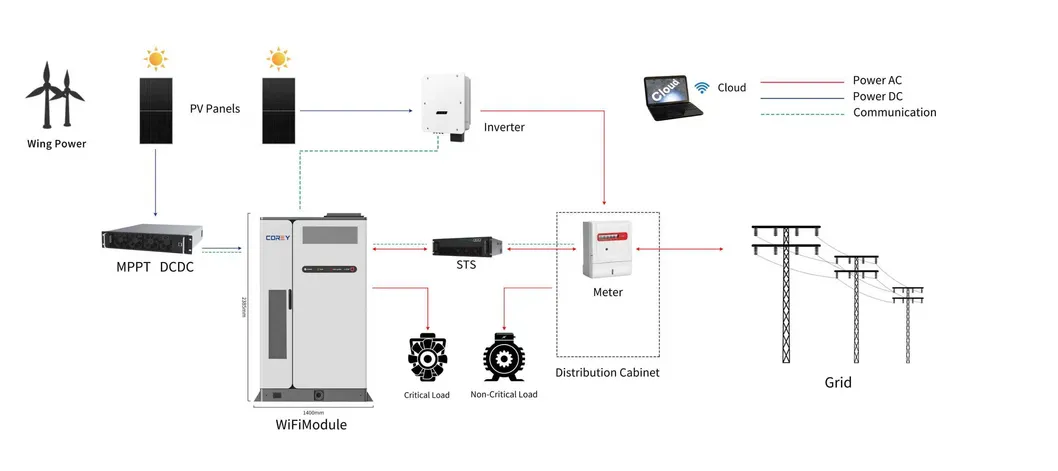

Application Scenario 2
📈

Project Case: Economic Analysis

Actual Case Data: Based on time-of-use prices in Germany, with a peak/off-peak difference of approx. 0.238 euros per kWh.

Project Unit Numerical Value
System CapacitykWh100
Total investment32,609
Annual electricity bill savings€/year8,099
Annual net income€/year7,447
Static payback periodYear4.4

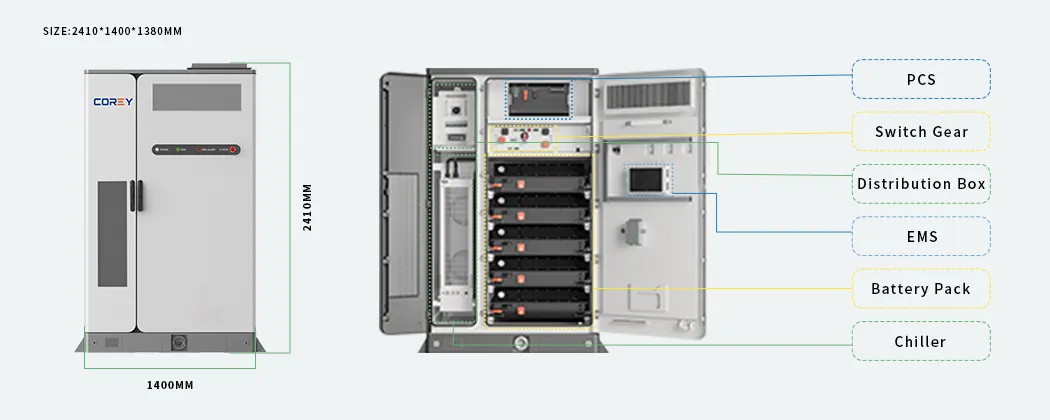

Technical Layout
⚙️

Technical Parameters

System Specification COREY 233CE
SystemBattery CellLFP (LiFePO4) 3.2V 280Ah
Rated Power105kW
Fire FightingAerosol + Water Fire Protection
Weight / Size2800kg / 1560*1380*2385mm
AC SideRated Voltage230V/400V (±15%)
Rated Frequency50/60 Hz
Switching Time20ms (Optional)
DC SideRated Voltage832V
Discharge Depth95% DOD

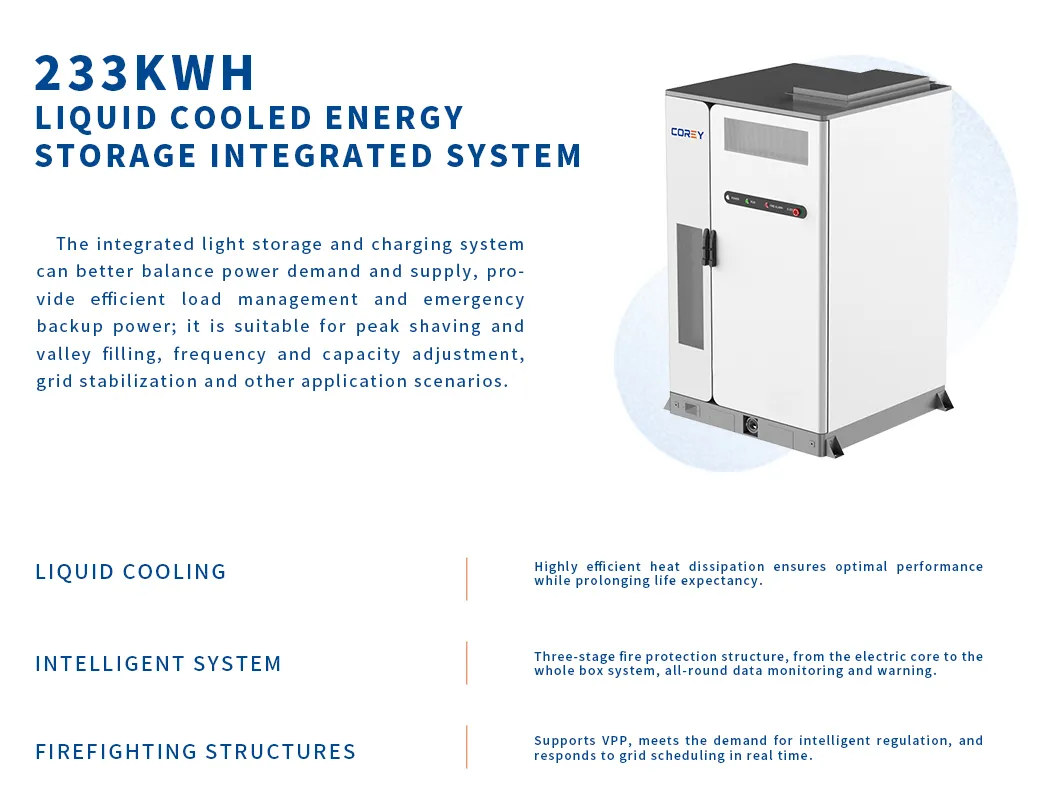

Factory Application

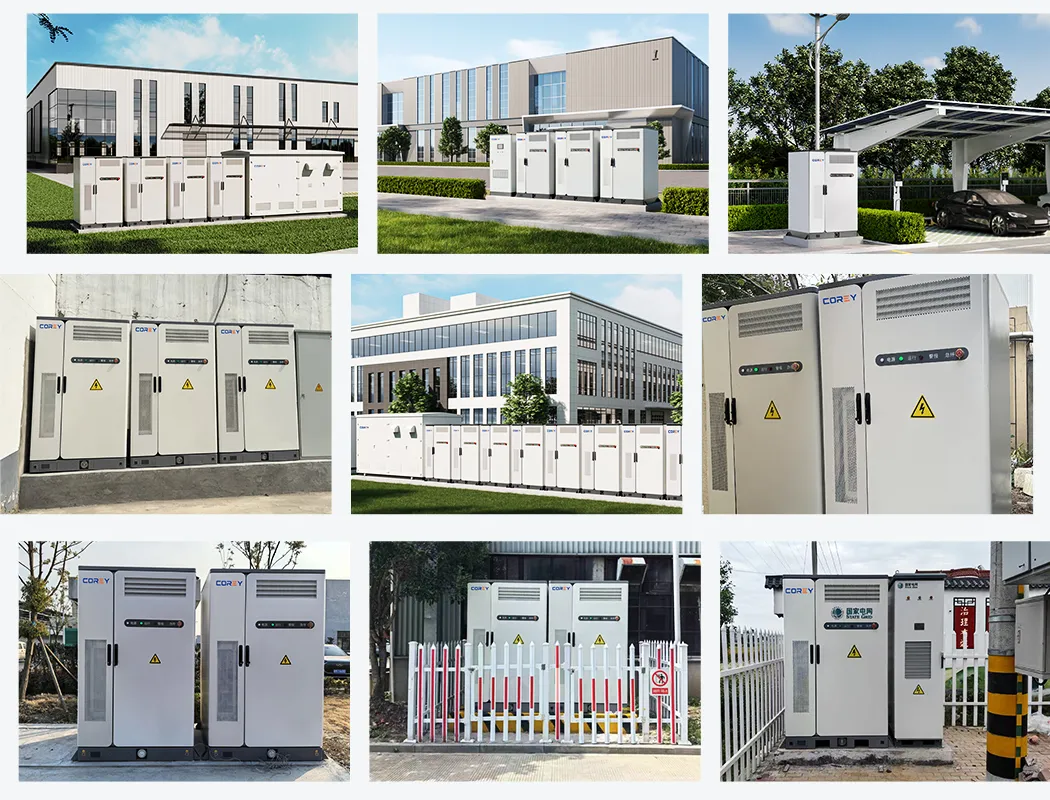

Project Case Site
🛠️

Applications & Manufacturing

Ideal for factory buildings, commercial complexes, and remote areas with power shortages. Systems are built using advanced laser welding technologies and automated manufacturing solutions.

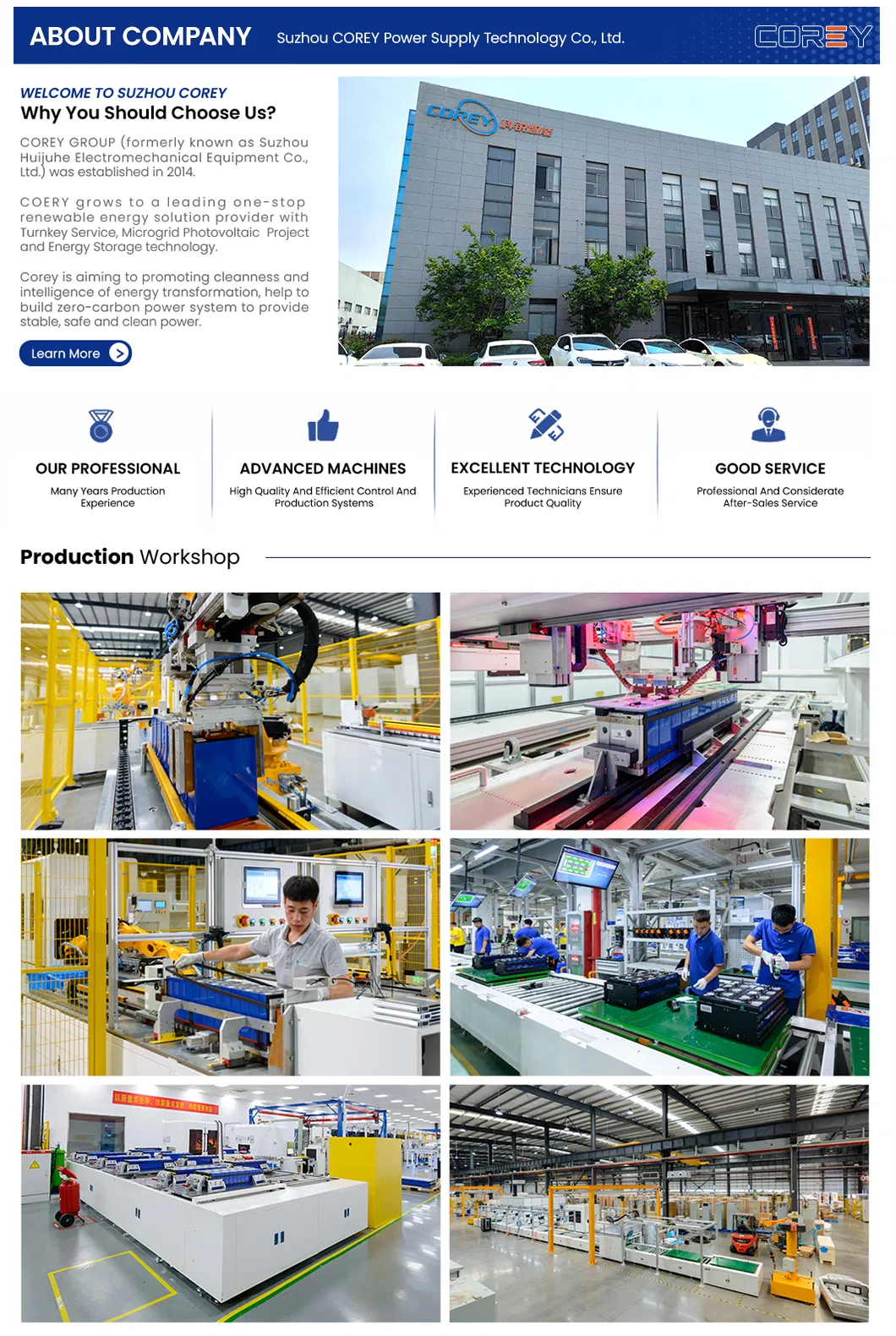

Manufacturing Process 1
Manufacturing Process 2
Quality Control
Standard Testing

Frequently Asked Questions

What is the nominal capacity and battery type of the Corey-233?
The system has a nominal capacity of 233kWh and utilizes high-safety LiFePO4 (Lithium Iron Phosphate) battery cells.
How long is the expected cycle life of the system?
The Corey-233 is designed for a long service life with approximately 9000 cycles.
Is the system suitable for outdoor or harsh environments?
Yes, it features IP54 protection and C4 anti-corrosion levels, making it reliable for various industrial and commercial environments.
What fire safety measures are integrated into the cabinet?
The system includes a multi-level fire protection strategy: Aerosol protection at the pack and cluster levels, plus cabinet-level water fire protection.
Does the system support automatic switching during power outages?
Yes, it supports automatic on-grid and off-grid switching with an optional response time of 20ms to ensure uninterrupted power supply.
What is the typical payback period for this investment?
Based on German market data and peak-valley arbitrage strategies, the static payback period is approximately 4.4 years.
