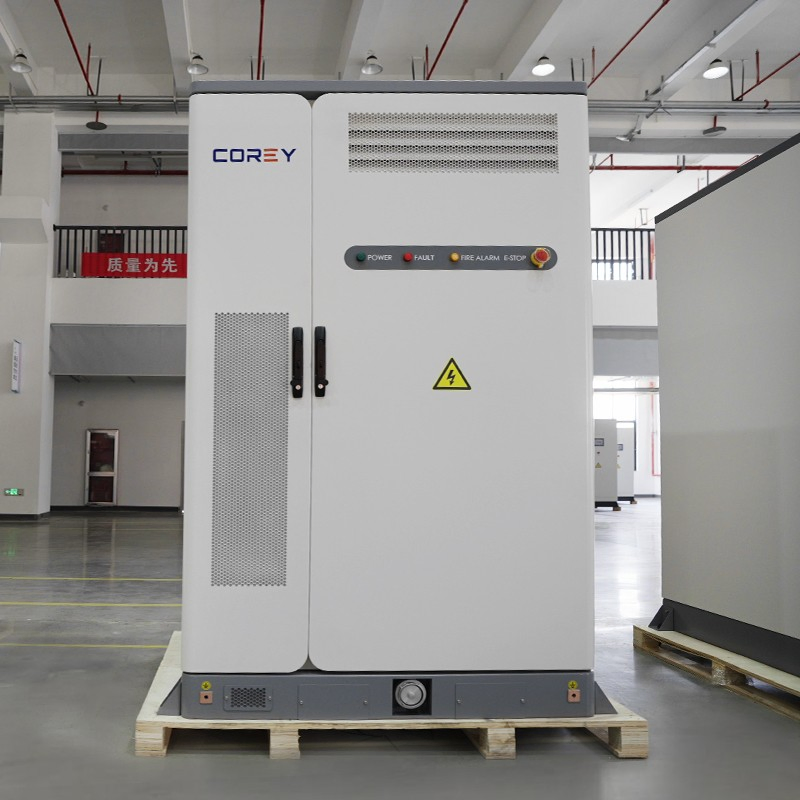

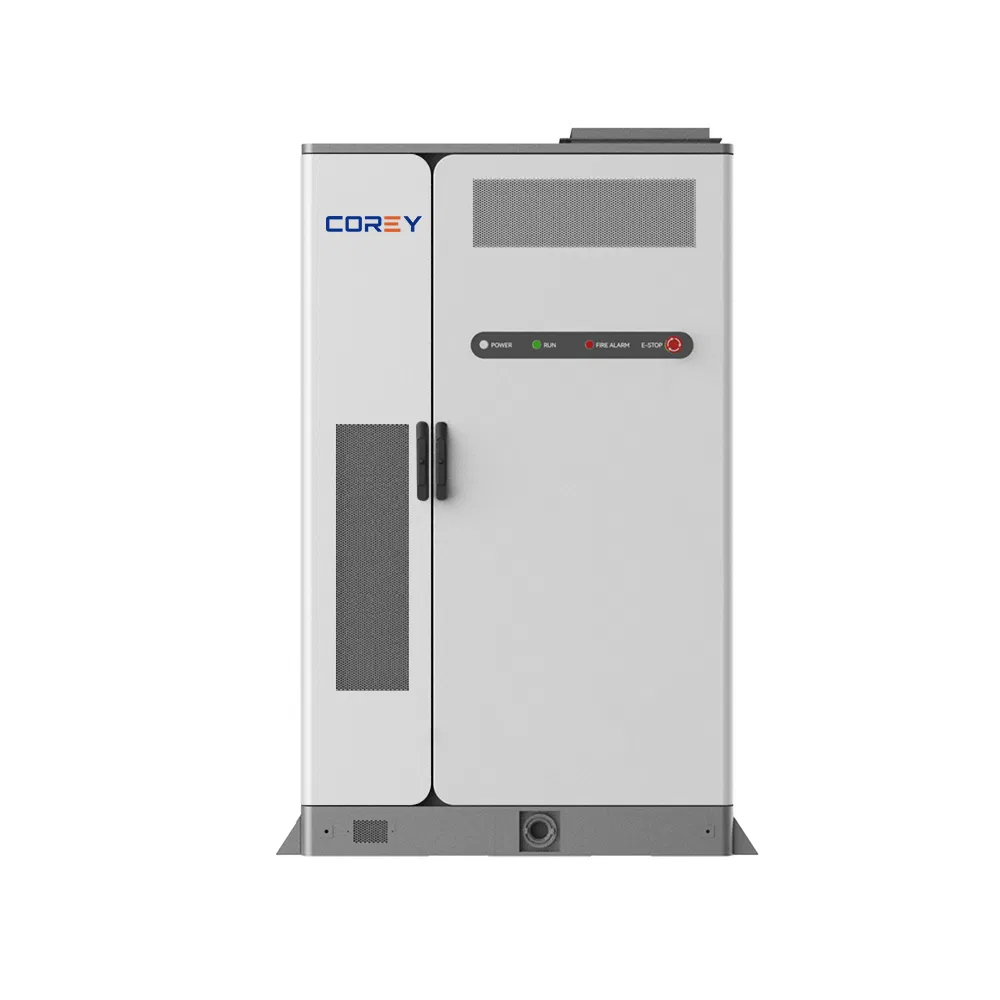

233kwh Outdoor Energy Storage Power Hybrid Lithium Battery Lithium 100kw on Grid Battery Energy Storage System

Customization: Available

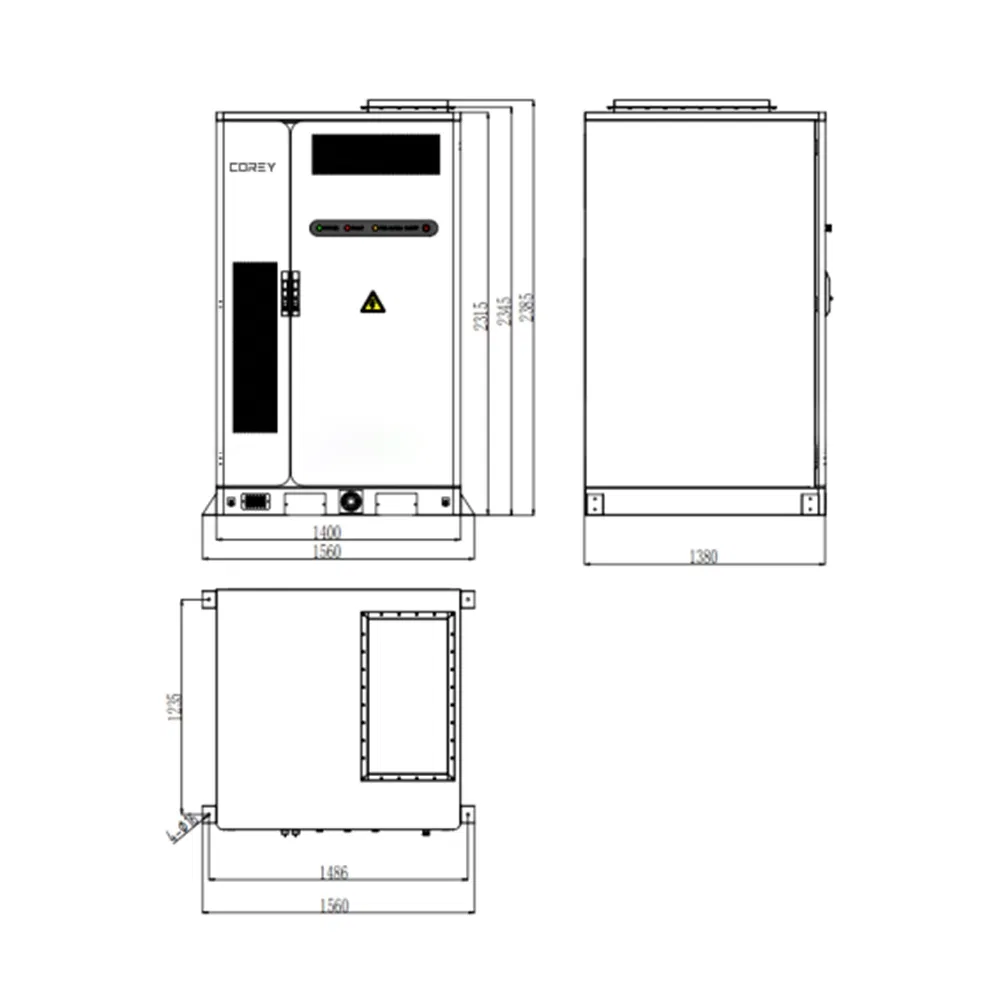

Container Size: L1560mm*D1380mm*H2385mm
Weight: 2600kg

Product Description

📊

Overview

Energy Storage System

Intelligent energy storage + peak shaving and valley filling, saving 30% of annual electricity bills.

Basic Info
Model NO.233kWh System
Nominal Voltage230V/400V
Warranty5 Years
Nominal Capacity233kWh
Cycle Life9000
Battery TypeLiFePO4
Grid ConnectionHybrid Grid
Communication InterfaceCan/RS485/Ethernet/4G
Cooling MethodIntelligent Liquid Cooling
Discharge Depth95% Dod
Protection LevelIP54
📈

Profit Analysis for European Customers

Sharing of actual case data from our customers. Based on the wholesale time-of-use electricity prices in Germany, the difference between peak and off-peak electricity prices is approximately 0.238 euros per kWh (Data as of June 17, 2025). With a static payback period of approximately 4.4 years.

Project Unit Numerical Value
System CapacitykWh100
Total Investment32,609
Peak and Valley Electric Charges€/kwh0.238
Annual Electricity Bill Savings€/year8,099
Annual Net Income€/year7,447
Static Payback Periodyear4.4

Revenue Model

  • Peak - valley arbitrage: Charge during low-cost valley periods and discharge during high-cost peak periods.
  • Enhance power supply reliability: Functions as a backup power source during grid outages.
  • Improve power quality: Mitigate load fluctuations and ensure stable operation of electrical equipment.
  • Demand response initiatives: Modify usage patterns to earn financial incentives from the grid.
🛠️

Product Description

Industrial Storage 1

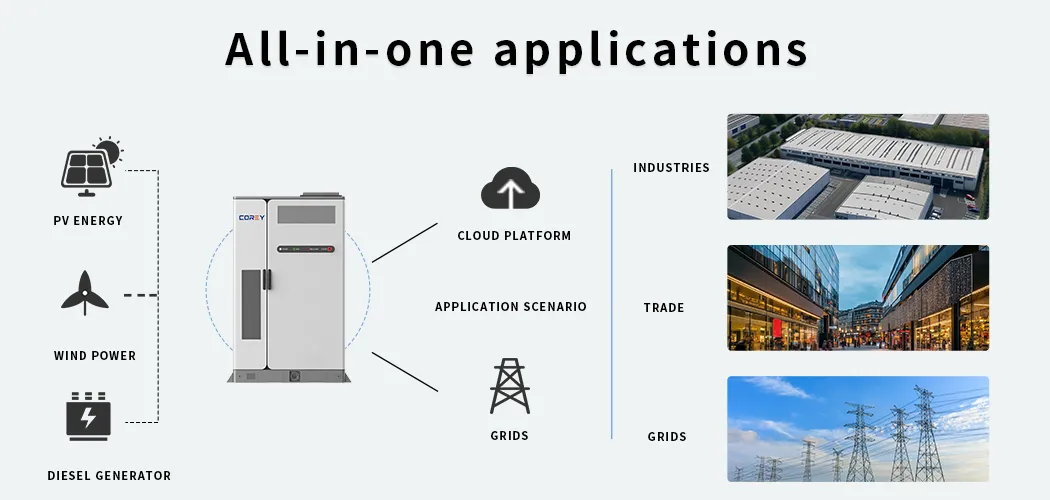

Industrial Storage 2

The commercial and industrial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults. Divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.

Product Advantages

  • Safe and reliable: Emergency backup power for continuous operation.
  • Flexible configuration: Modular design for expansion and customization.
  • High efficiency: Optimized energy usage to reduce operational costs.
  • Intelligent O&M: Promotes green energy with low maintenance costs.
  • Grid-friendly: Supports seamless on-grid/off-grid switching.
📋

Technical Parameters

System Parameter Details
Battery CellLFP(LiFePO4) 3.2V 280Ah
Rated Power105kW
Cooling MethodIntelligent Liquid Cooling
Fire FightingAerosol (Pack + Cluster level) + Water (Cabinet level)
Operating Temperature-20ºC to 50ºC (Discharge)
Protection LevelIP54 / C4 Anti-corrosion
AC Rated Voltage230V/400V (±15%)
Max Current167A
Switching Time20ms (Optional)
🏢

Application & Project Case

Ideal for commercial buildings, factory buildings, remote areas, and regions with power shortages.

Application Case 1

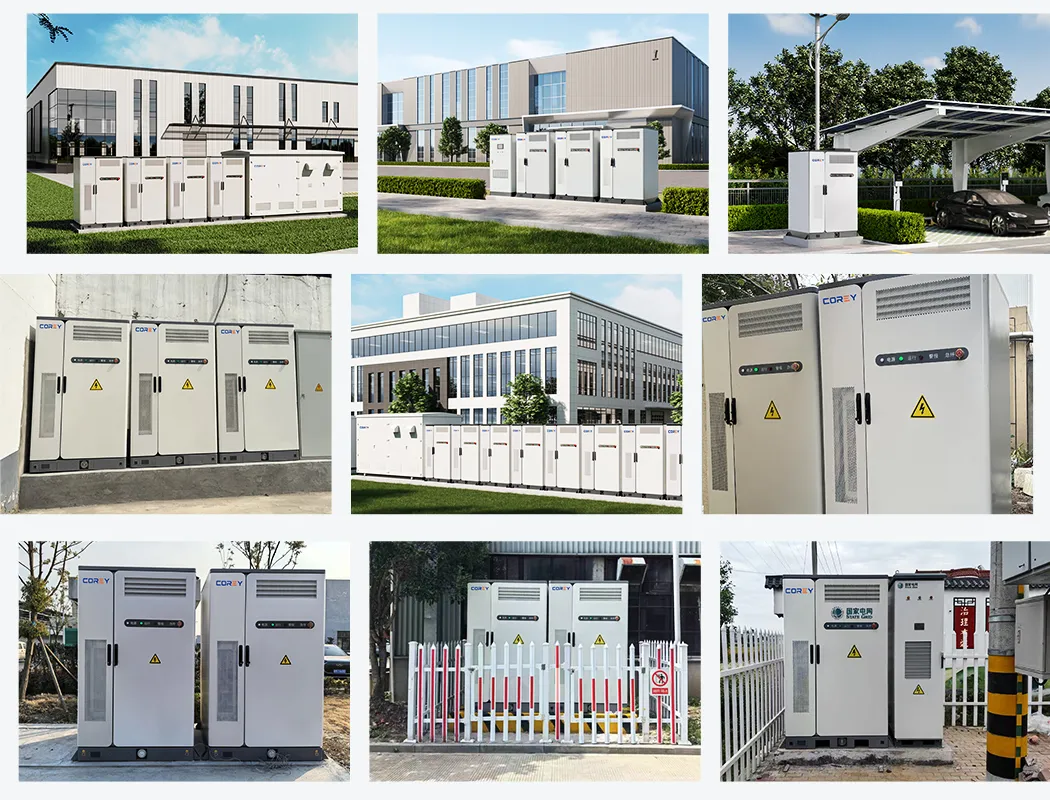

Application Case 2

Frequently Asked Questions

What is the expected lifespan of the battery?
The system uses high-quality LiFePO4 cells with a cycle life of up to 9,000 cycles, ensuring long-term reliability for over a decade under standard operating conditions.
How does the liquid cooling system benefit the storage unit?
Intelligent liquid cooling maintains a consistent temperature within the battery cabinet (optimum 25ºC±2ºC), which prevents overheating, extends battery life, and improves overall energy efficiency.
What safety measures are in place to prevent fires?
The system features a three-tier fire safety design: Aerosol protection at both the pack and cluster levels, combined with cabinet-level water fire protection.
Can this system function during a total grid outage?
Yes, the system supports both on-grid and off-grid modes. With an optional switching time of 20ms, it can act as a backup power source to ensure uninterrupted operation for industrial facilities.
What is the typical payback period for this investment?
Based on actual case data from the European market, particularly Germany, the static payback period is approximately 4.4 years through peak-valley price arbitrage and electricity bill savings.
