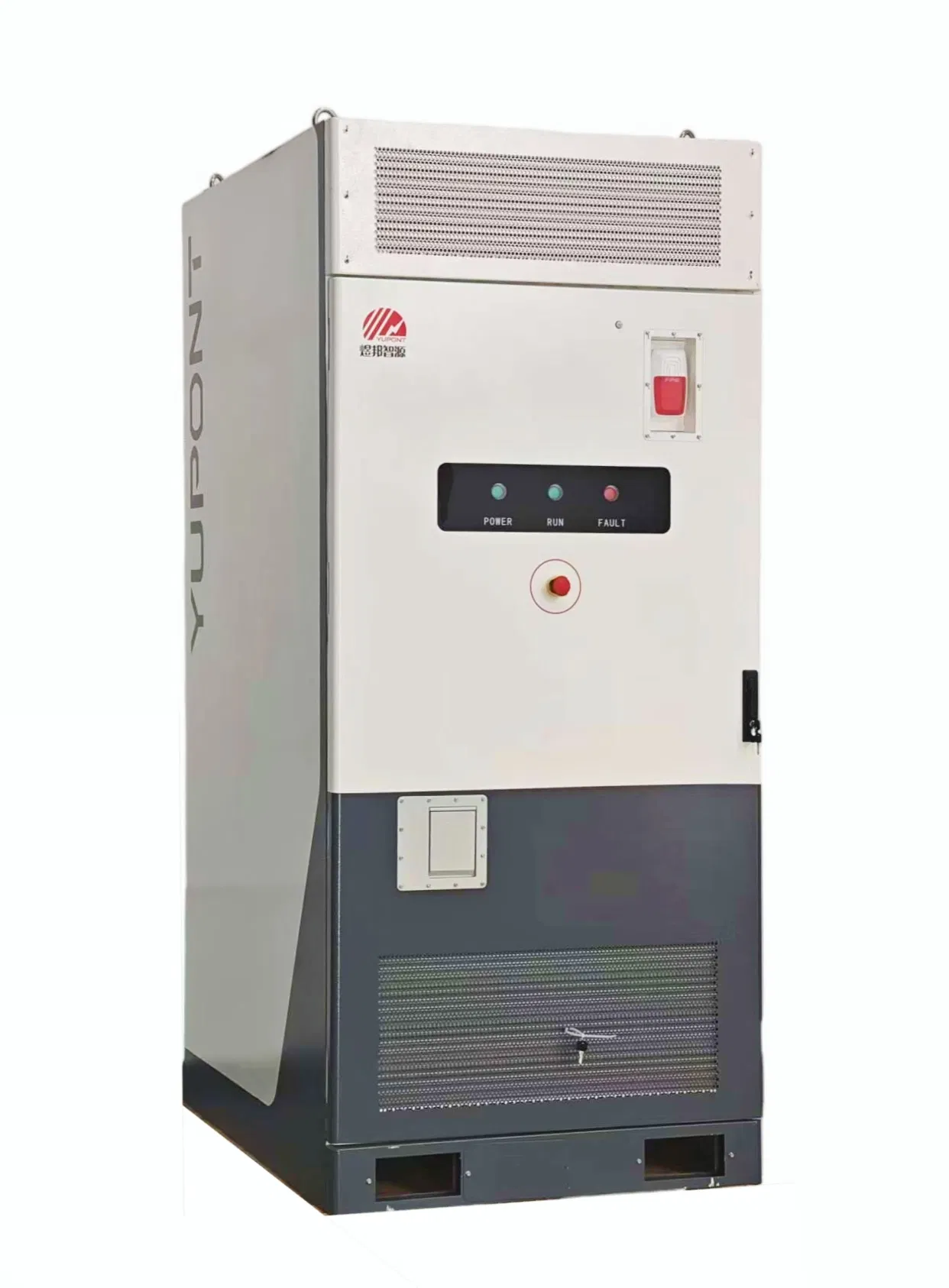

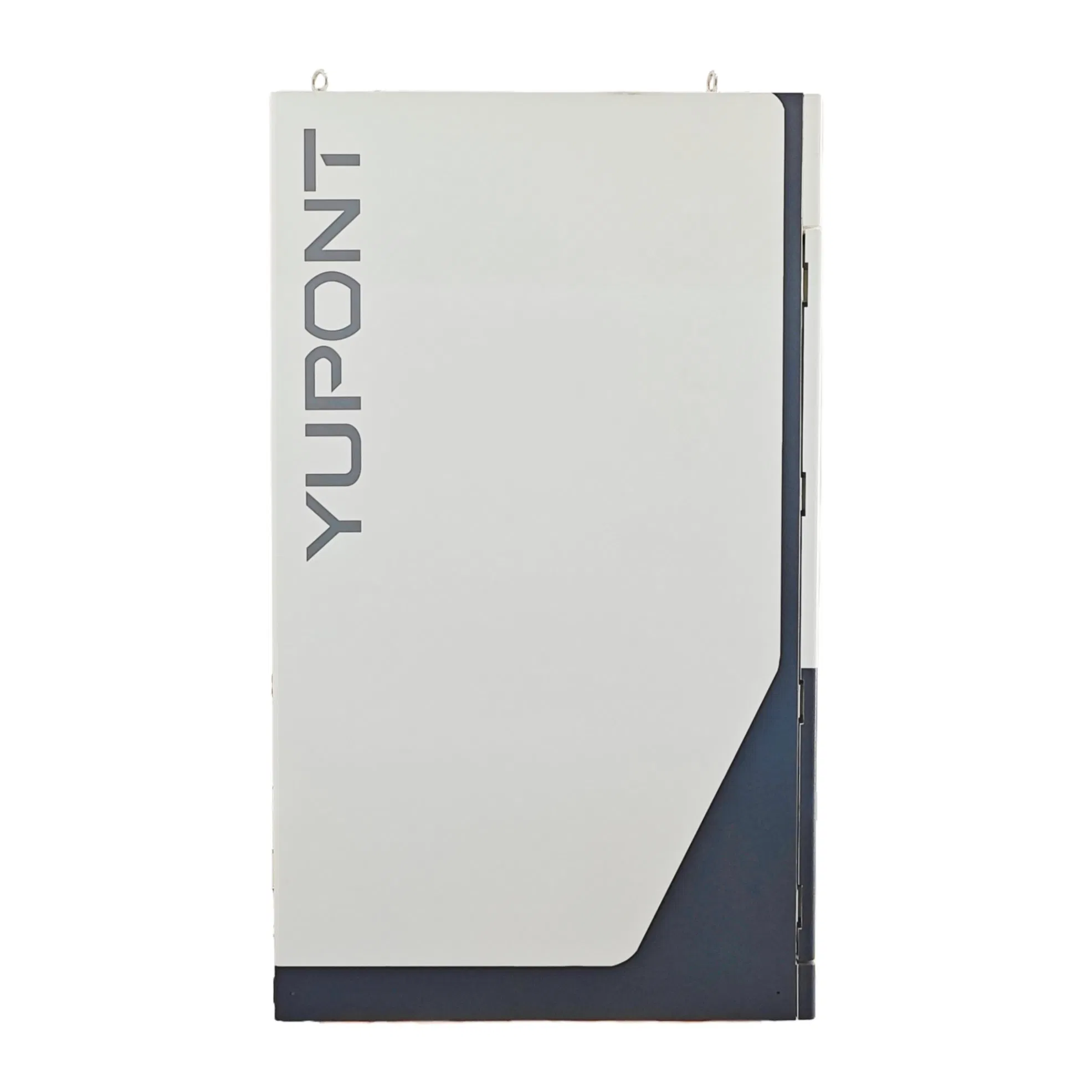

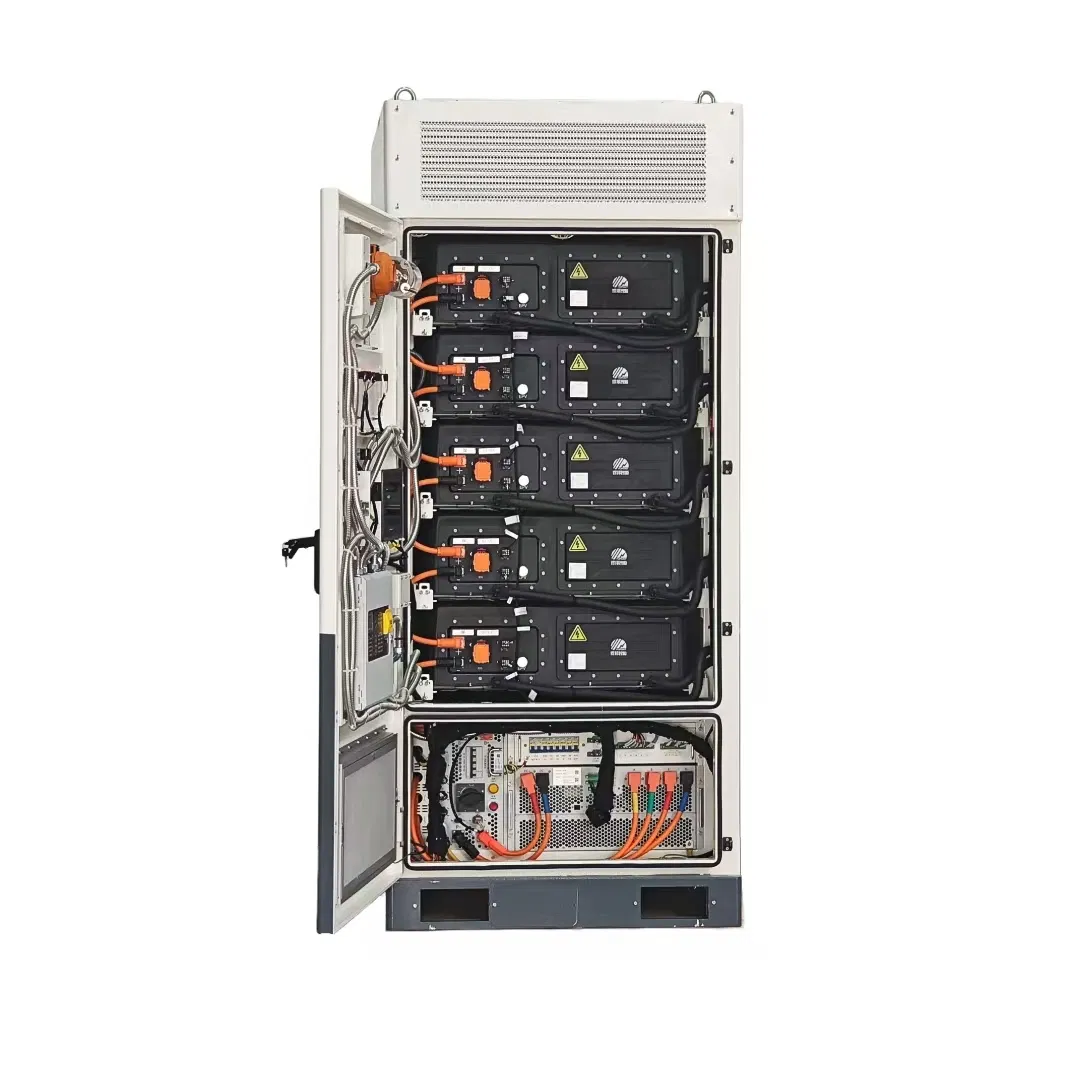

Yupont 125kW/261kWh Integrated C&I Liquid-Cooled Energy Storage Cabinet for Outdoor Use

1 / 5

Yupont 125kW/261kWh Integrated C&I Liquid-Cooled Energy Storage Cabinet for Outdoor Use

Customization:	Available
Application:	Mine Off-Grid Power Supply
Installation:	Cabinet Floor-Mounted

Send Inquiry

Product Description

Basic Information

Model NO.

YPZY-DSU-L261

Energy Capacity

100kWh-500kWh

Power Configuration

100kW-250kW

Cycle Life

≥6000 Cycles (90%Dod)

Cooling Method

Full Liquid Cooling

Cell Type

LFP 3.2V/314Ah

Rated Voltage

832V

System Capacity

261.248kWh

Protection Level

IP54/IP55

Efficiency

>92%

Product Description

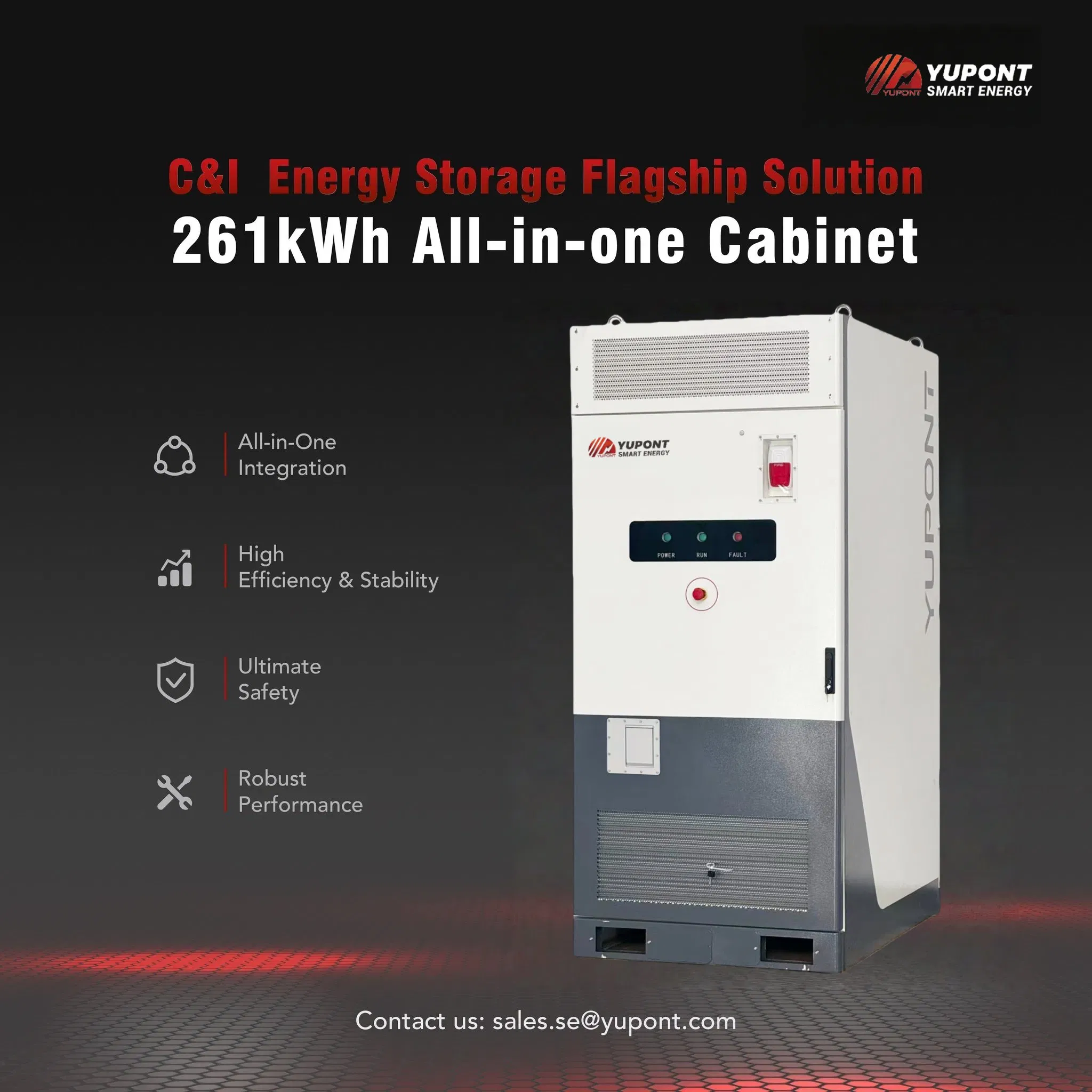

125kW/261kWh Integrated C&I Liquid-Cooled Energy Storage Cabinet for Outdoor Use
This flagship C&I All-in-One Cabinet has obtained international CE certification. Featuring a highly integrated design with a footprint of only 1.3 m³, it offers simplified installation and efficient after-sales maintenance, engineered specifically for commercial and industrial energy storage scenarios.

Core Strengths

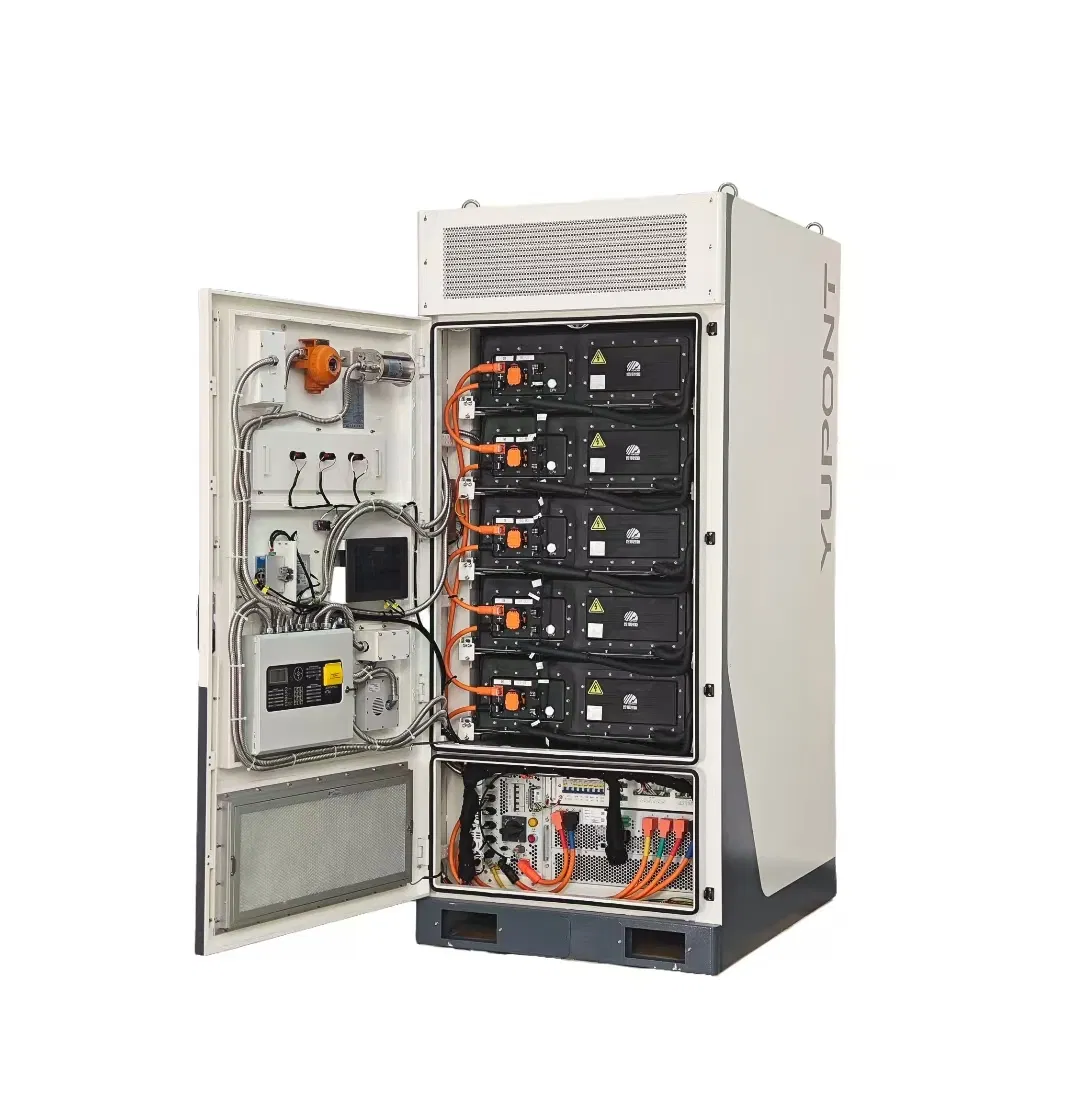

All-in-One Integration: Deeply integrated AC/DC systems, liquid cooling thermal management, fire protection and BMS.
Ultimate Safety: LFP battery cells + intelligent BMS + eco-friendly fire protection.
High Efficiency & Stability: 125kW rated power | Intelligent monitoring powered by big data algorithms.
Robust Performance: Advanced liquid cooling ensures uniform temperature distribution and extended cycle life.

Product Parameters

Parameter	Specification
Model	125kW/261kWh C&I Liquid Cooling Energy Storage Cabinet
Module Configuration	26.1248kWh/1P26S

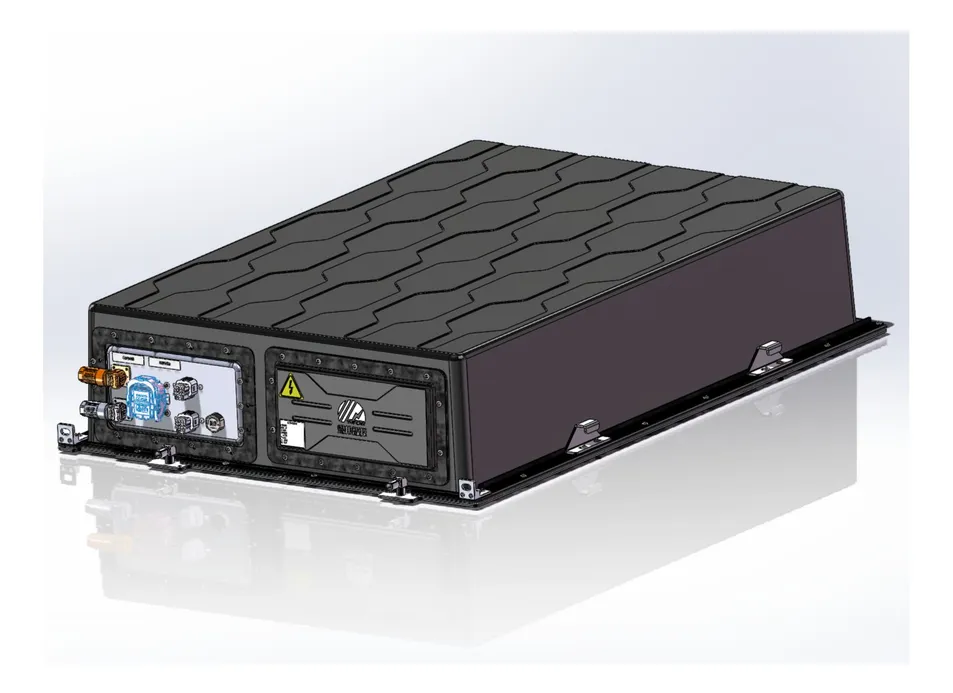

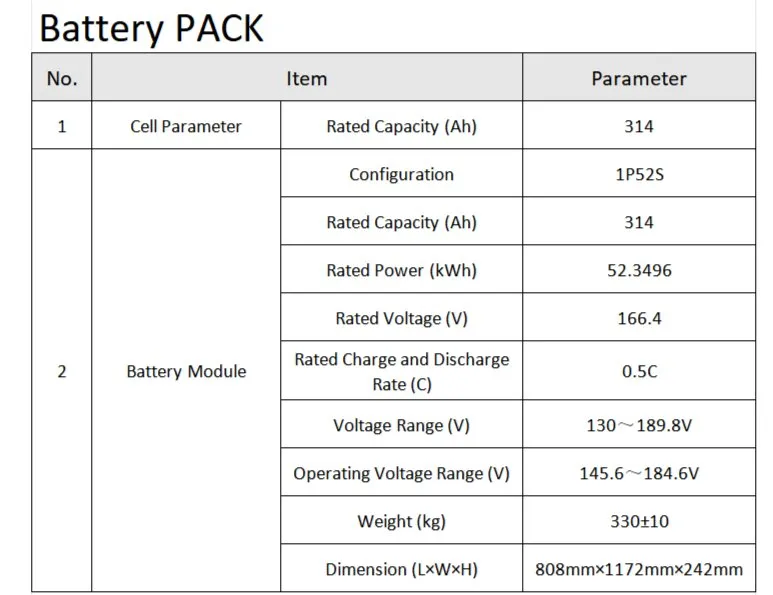

PACK Configuration	52.249kWh/1P52S
System Configuration	261.248kWh/1P260s
Allowed Grid Voltage(VAC)	380/400(-15%~15%)
Allowed Grid Frequency(Hz)	50(-2.5~2.5)
Depth of Discharge	90%DOD
Off-grid Mode	Support

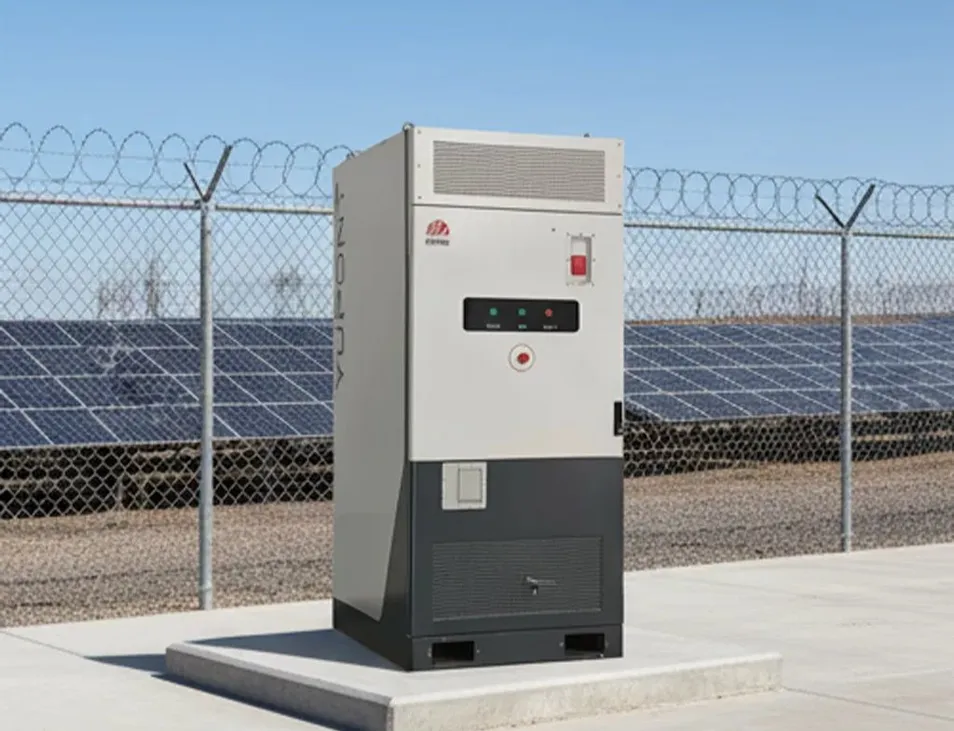

Key Features

Convenient and Flexible: High power density design, occupying only 1.3m³.
Safe and Reliable: Intelligent Control with early system fault warning.
Cost-effective: System circulation efficiency over 90%.
Intelligent Maintenance: Multiple control modes with millisecond-level response.

System Components

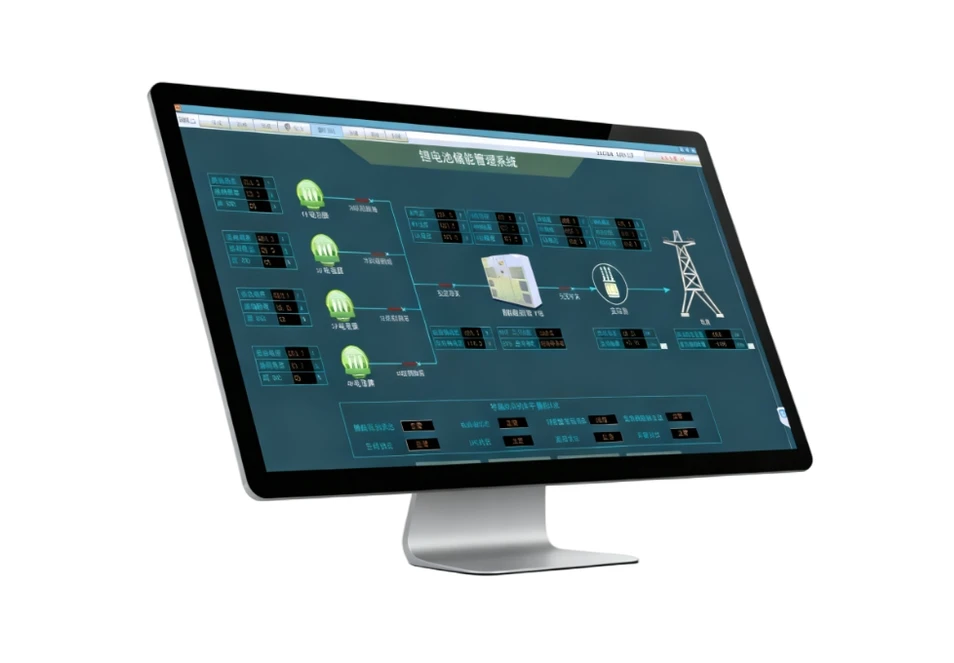

EMS (Energy Management System): Monitors and coordinates the operation of energy storage components like battery clusters and PCS.

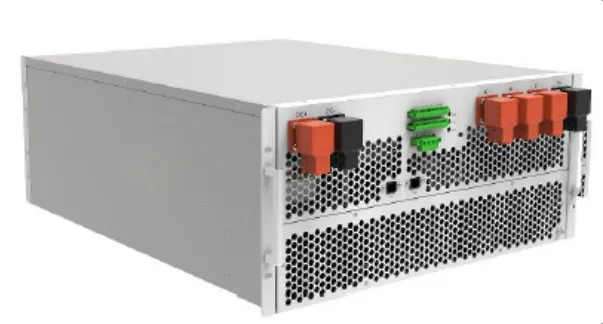

PCS (Power Conversion System): Bidirectional AC/DC conversion and energy flow, supporting grid-connected/off-grid switching.

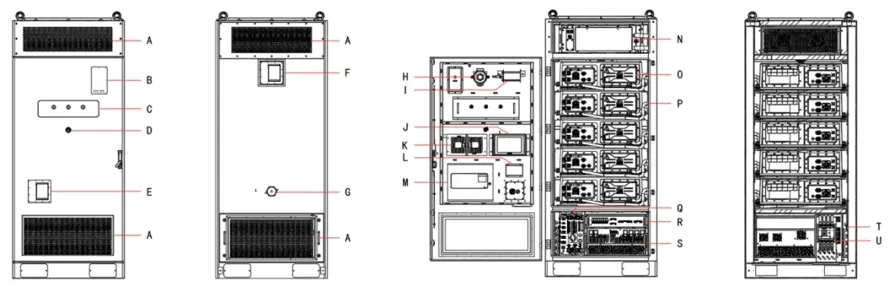

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

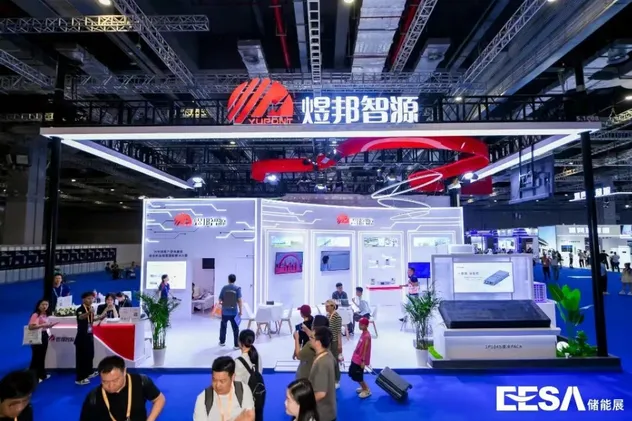

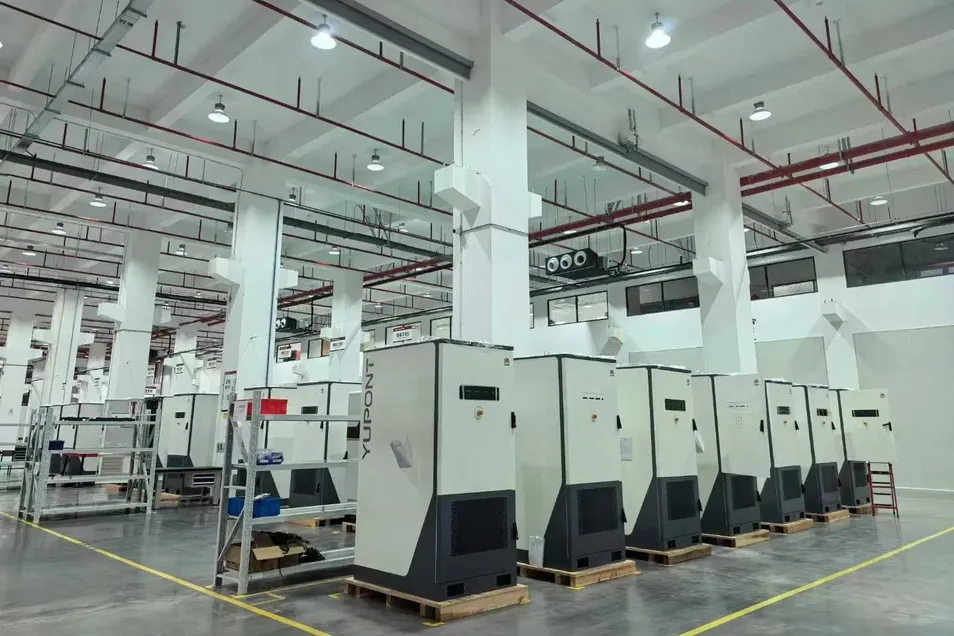

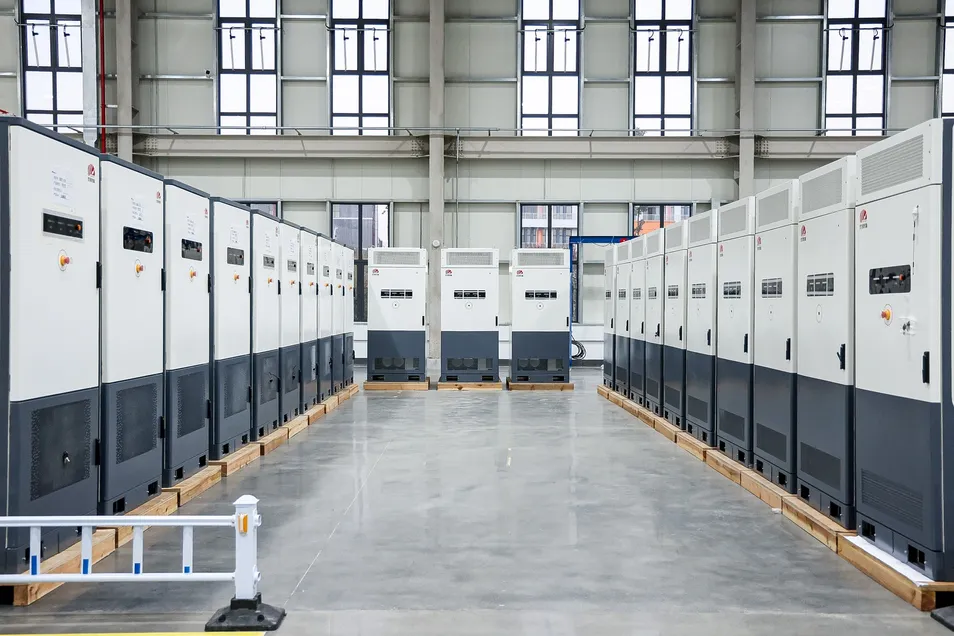

Workshop & Display

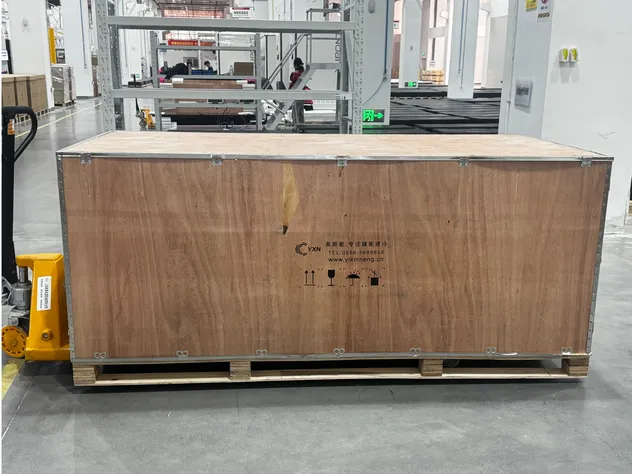

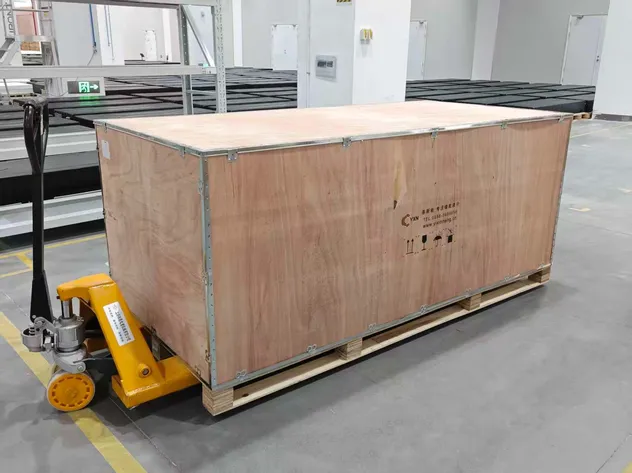

Certifications & Delivery

After Sales Service

Standard Warranty: 36 months or 2,000 operating hours (whichever comes first).
Global Support: 24/7 technical assistance and spare parts supply.

Frequently Asked Questions

Q: What information is needed for an accurate price quote?

A: Please provide details such as product capacity, quantity preference, any customization requirements (logo/packaging), and the shipping destination address.

Q: Is overseas after-sales service available?

A: Yes, we have established partnership service centers in major global regions to provide professional support.

Q: Can the energy storage systems be customized for specific projects?

A: Absolutely. We can provide customized solutions based on your specific requirements, including capacity adjustments and structural tailoring.

Q: What are the shipping options for these large cabinets?

A: We offer multiple logistics options including sea freight, air freight, or coordination with your designated freight forwarder.

Q: Does the system support off-grid operation?

A: Yes, our PCS (Power Conversion System) supports both grid-connected and off-grid switching.

Q: What is the estimated cycle life of the batteries?

A: The system uses high-quality LFP cells designed for a cycle life of ≥6000 cycles at 90% Depth of Discharge (DoD).
