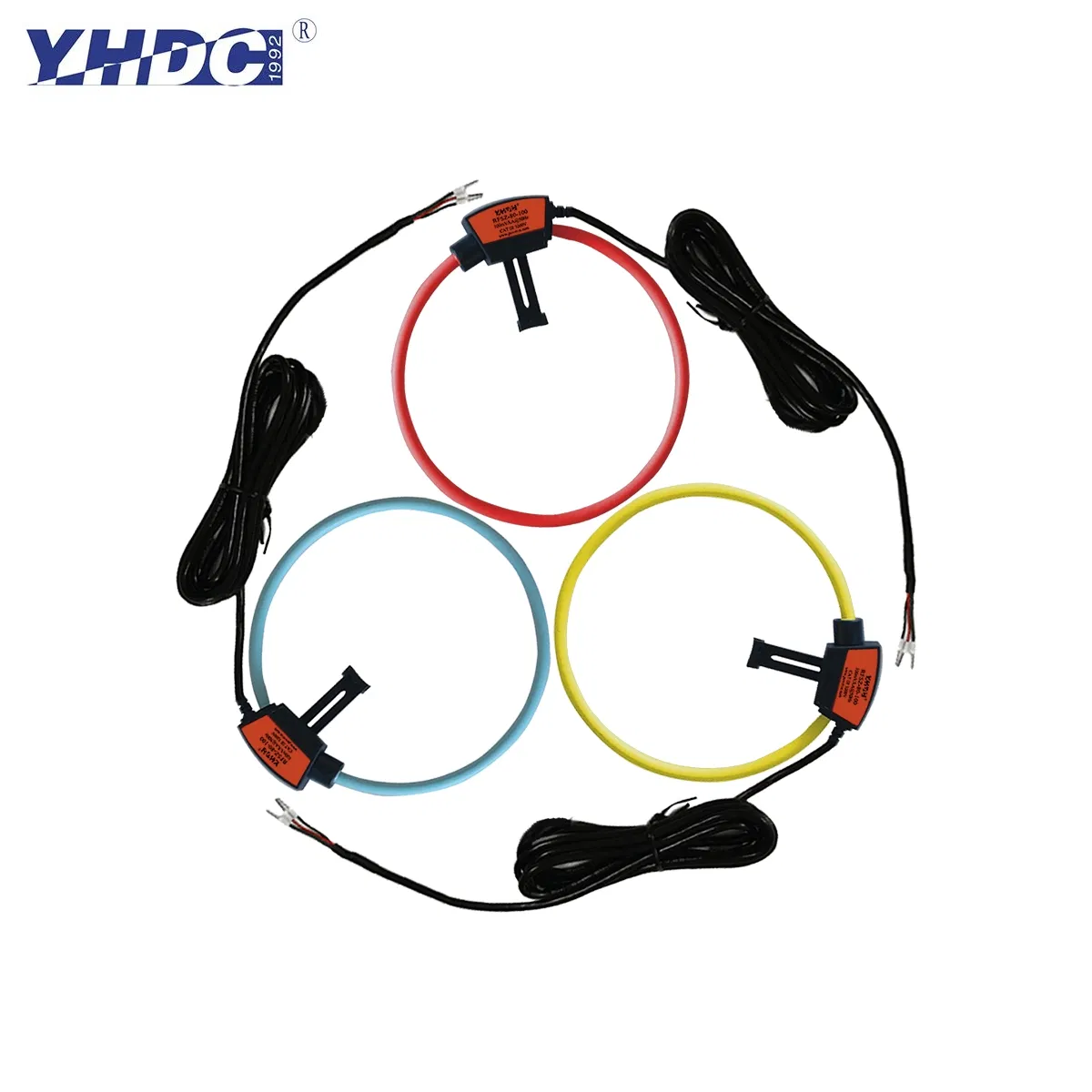

Basic Specifications
| Model NO. | RFSZ |
| Application | Measuring Instrument, Laboratory Instrument |
| IP Rating | IP67 |
| Certification | CE, RoHS |
| Accuracy | 0.5% at 25℃ |
| Dielectric Strength | 7400vrms/1min |
| Working Voltage | 1000vrms Catiii/600vrms Cat IV |
| Frequency Range | 10Hz ~ 20kHz |
| Output Voltage | 85mv/Ka@50Hz, 102mv/Ka@60Hz |
| Coil Length | 293mm - 943mm |
| Window Diameter | 80mm - 300mm |
| Rated Current | ≤500ka |
| Position Error | ±1% |

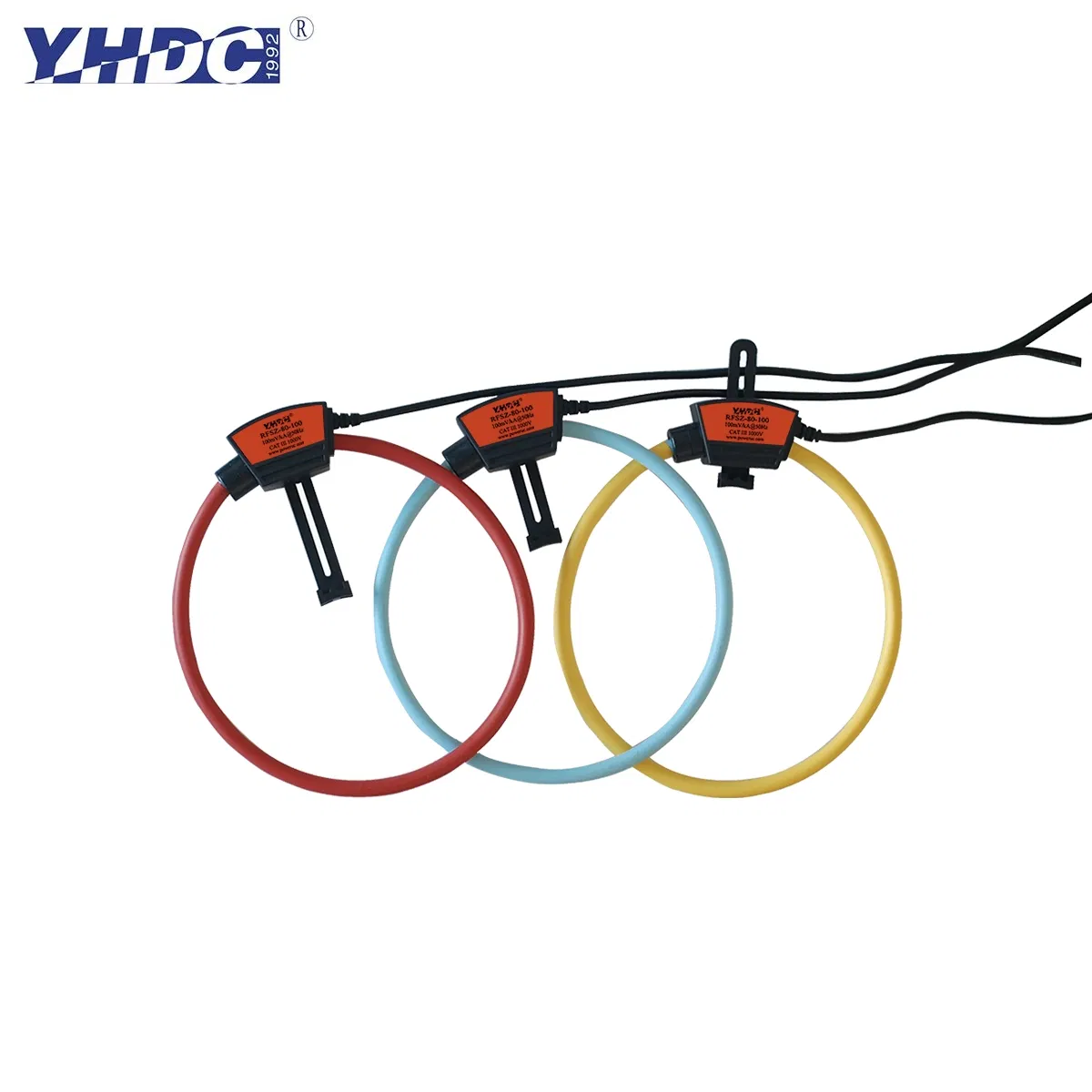

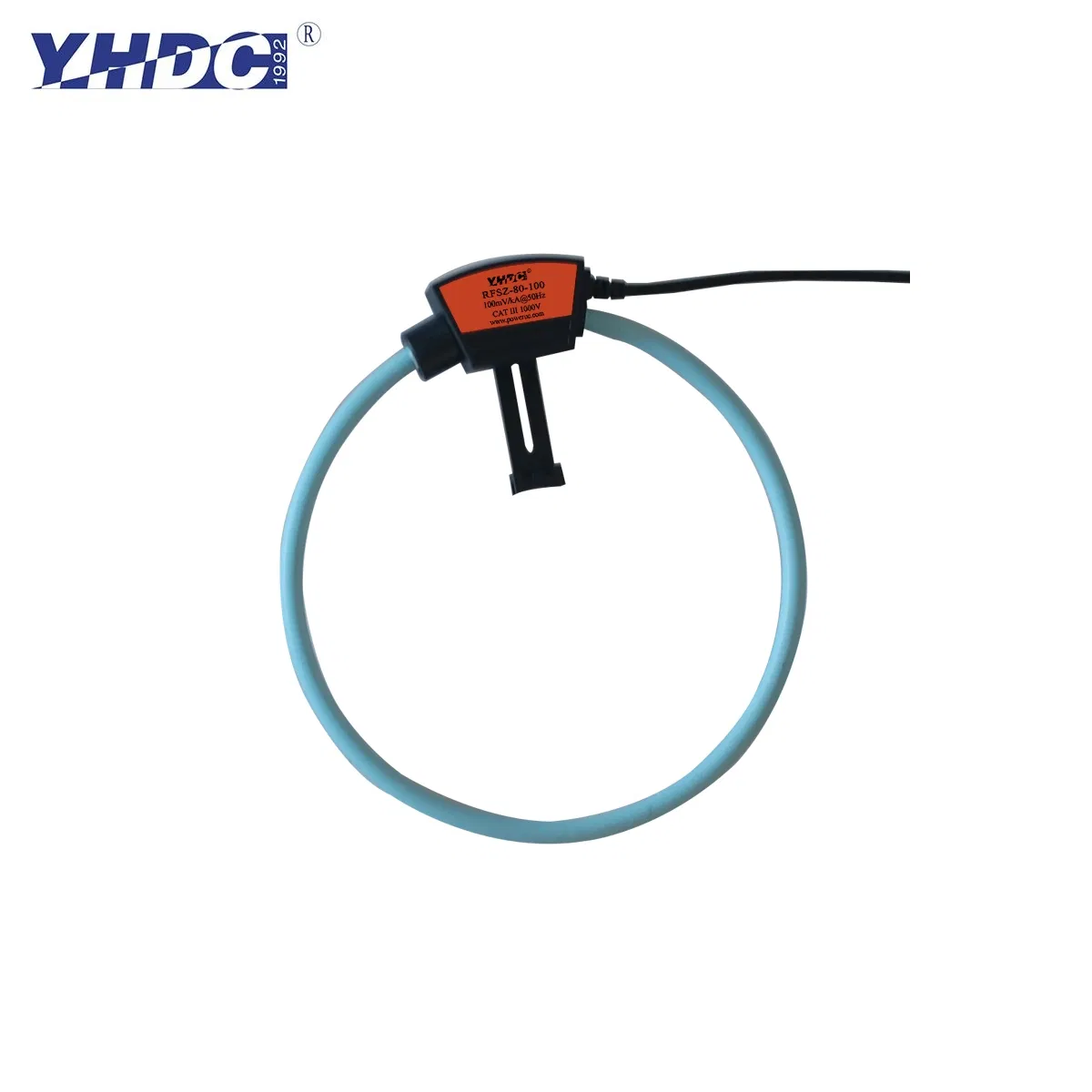

Product Overview

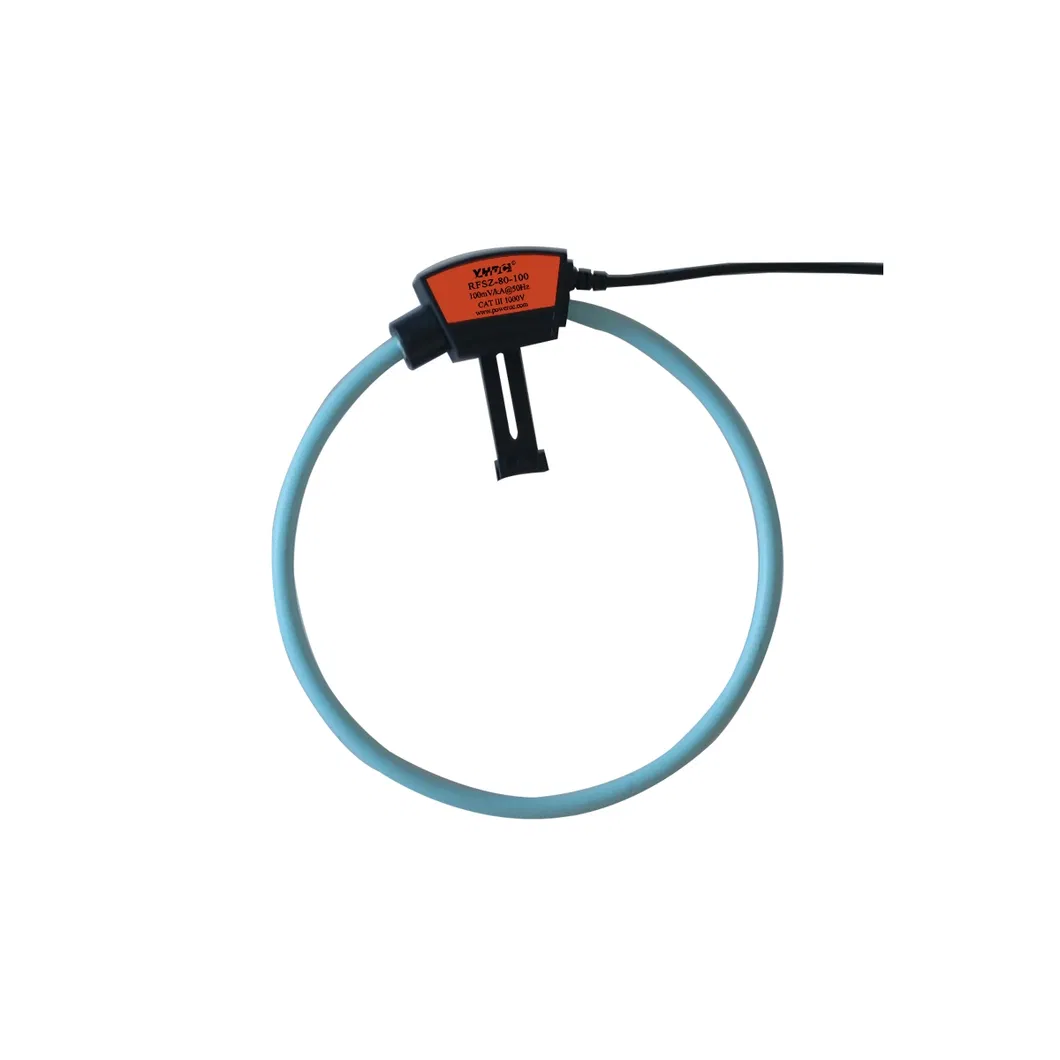

Rogowski Coil Introduction
The Rogowski coil, also known as a differential current sensor, is an "empty core" toroidal coil arranged around a conductor. The alternating magnetic field generated by the current induces a voltage in the coil. It serves as a current transformer coupled to the conductor under test, where the voltage output is proportional to the rate of change of the current.

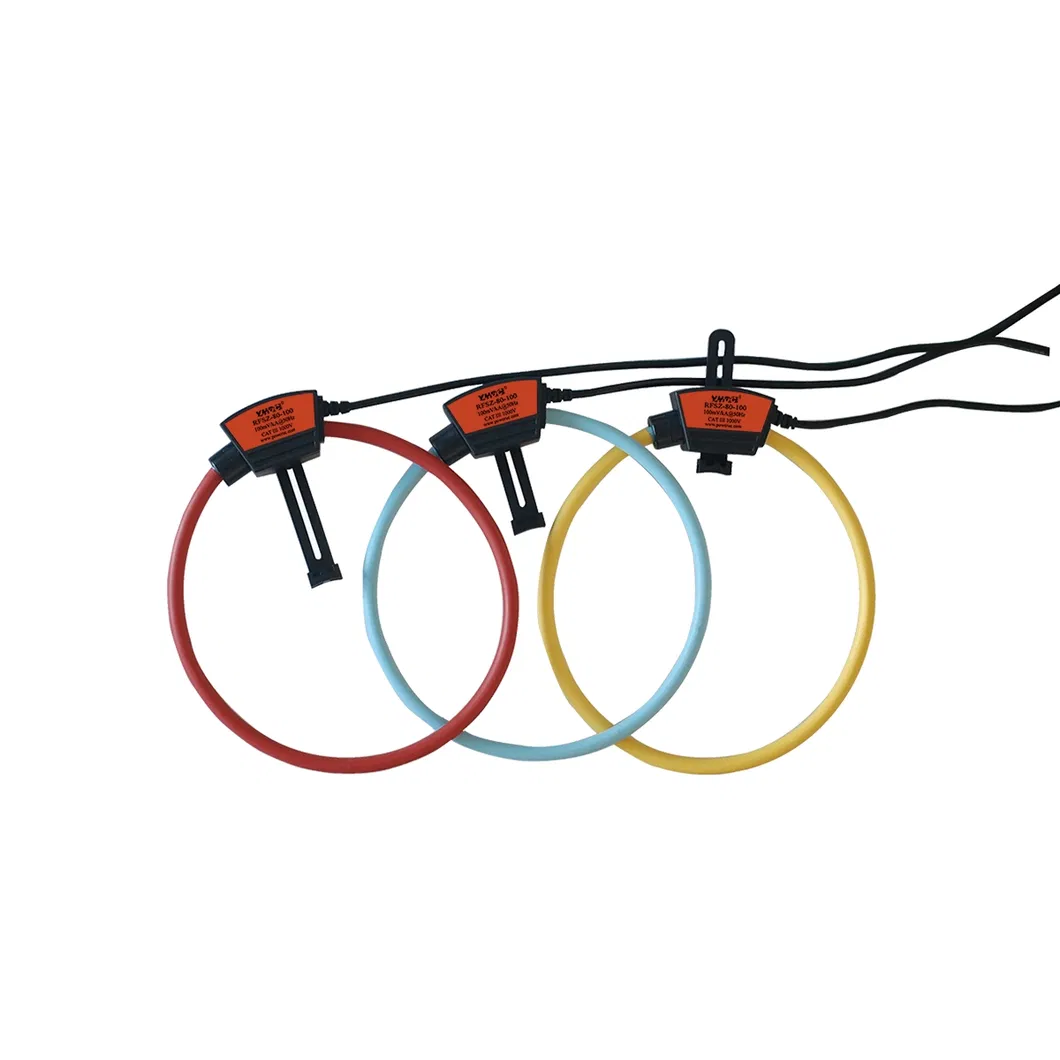

The RF series current sensor offers a lightweight and cost-effective solution in various sizes. It features no magnetic saturation and includes a shielding layer to resist external magnetic field interference, ensuring stable measurement from low currents to hundreds of kA.
⚙️Key Features
- Lightweight and flexible installation
- Wide bandwidth range (10Hz~20kHz)
- No lag, no saturation
- No danger of secondary open-circuit
- Excellent linearity (±0.2%)
- Customizable multiple sizes

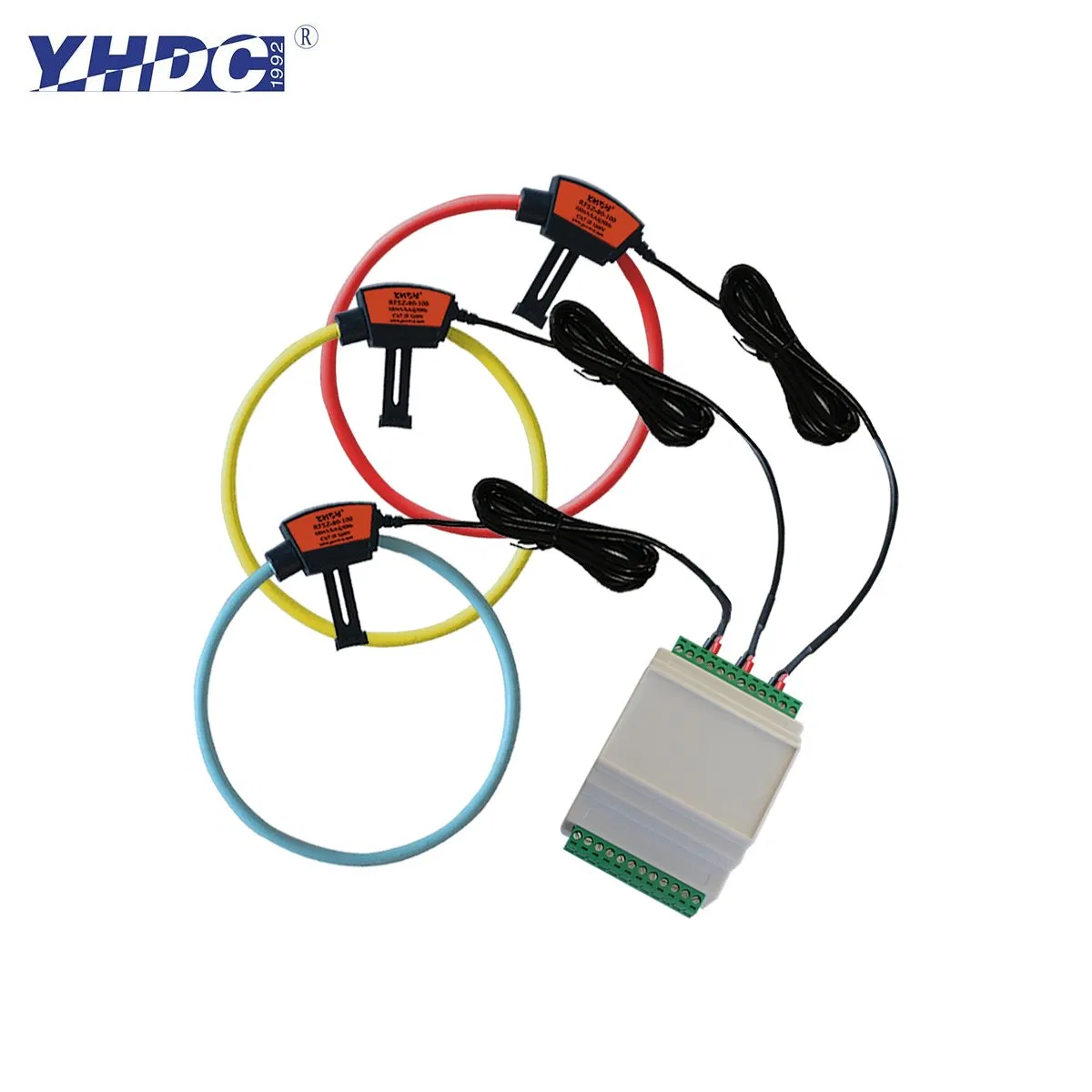

📍Applications
- Power monitoring systems
- DC ripple measurement
- Harmonic and transient monitoring
- Smart power meters
- Power analyzer sensors
- Laboratory instruments

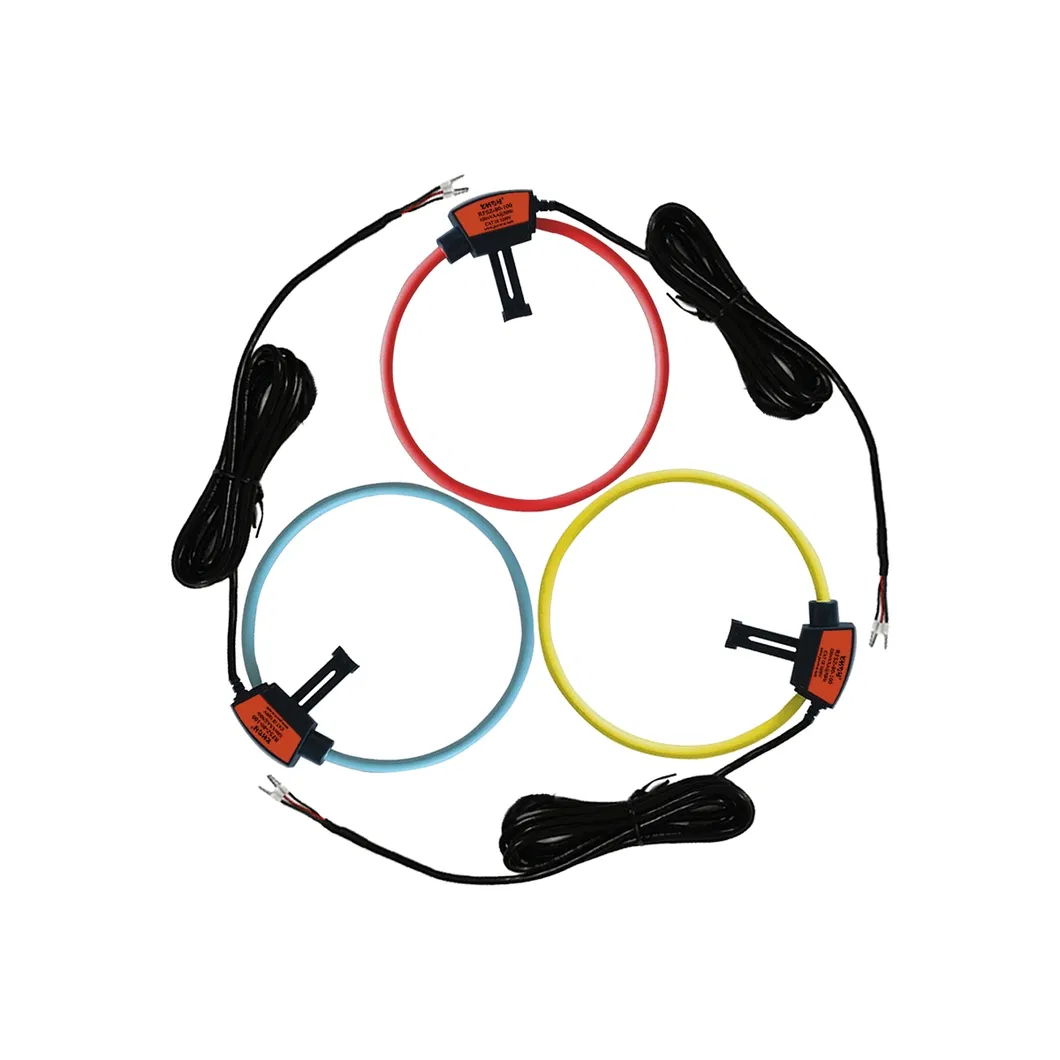

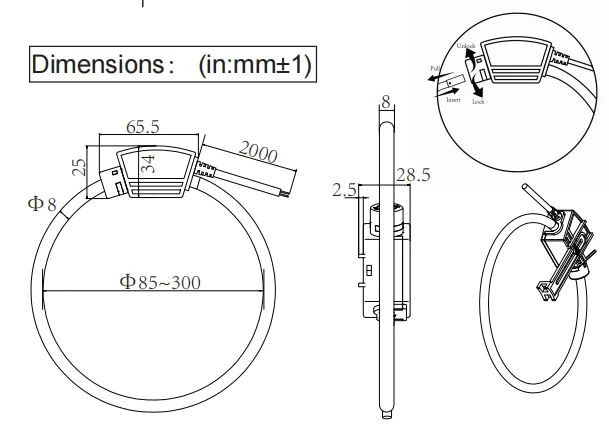

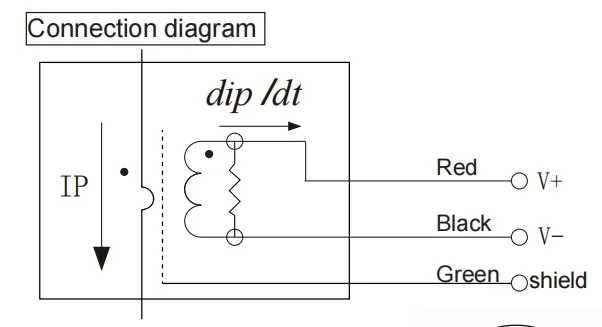

Dimensions & Diagram
Notice:
1. Output voltage is proportional to the derivative of the input current (di/dt).
2. Measured by RMS value, output is a constant rated frequency sinusoidal waveform.
3. Warning: Avoid mechanical force (twisting, piercing, excessive bending) to maintain accuracy.
