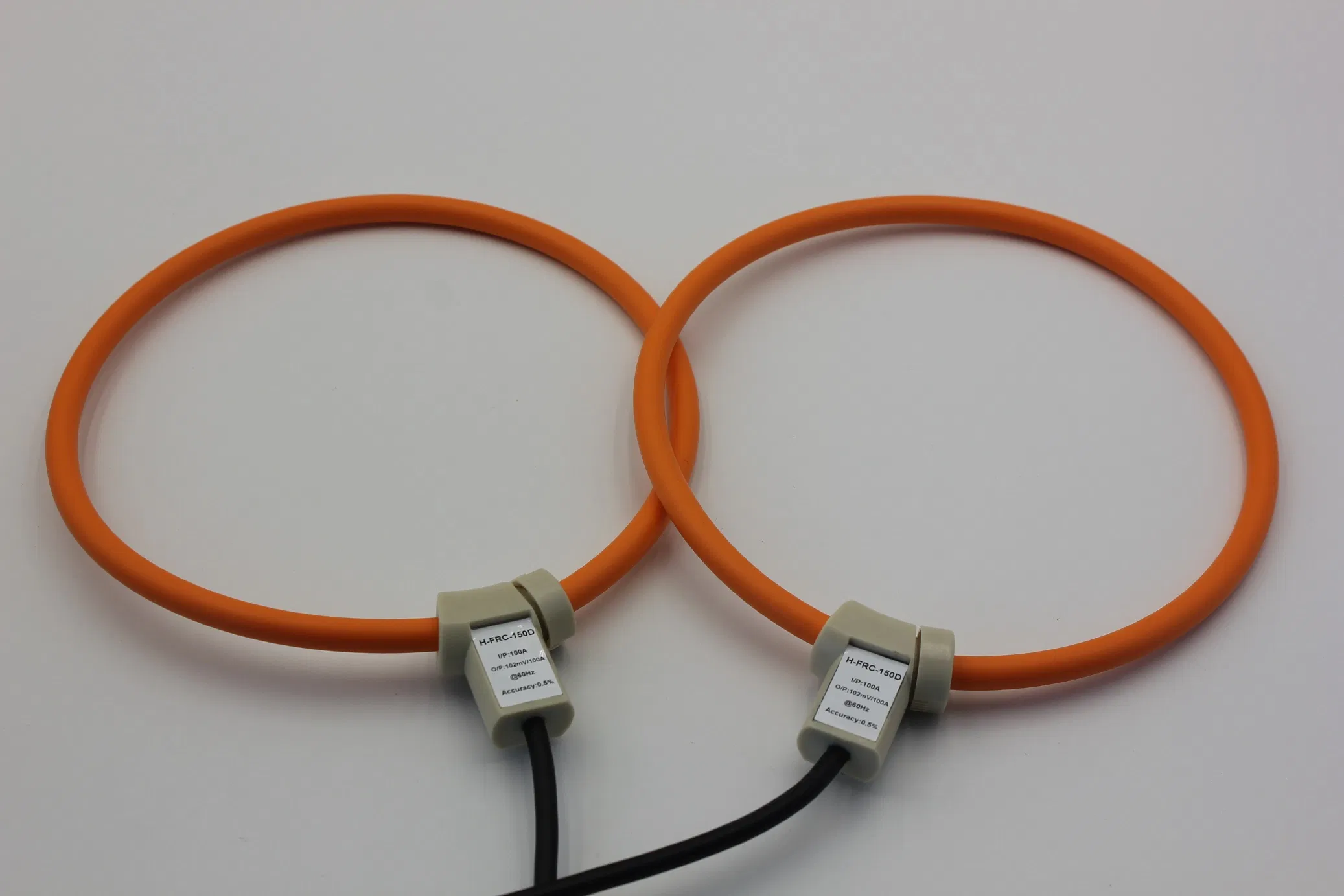

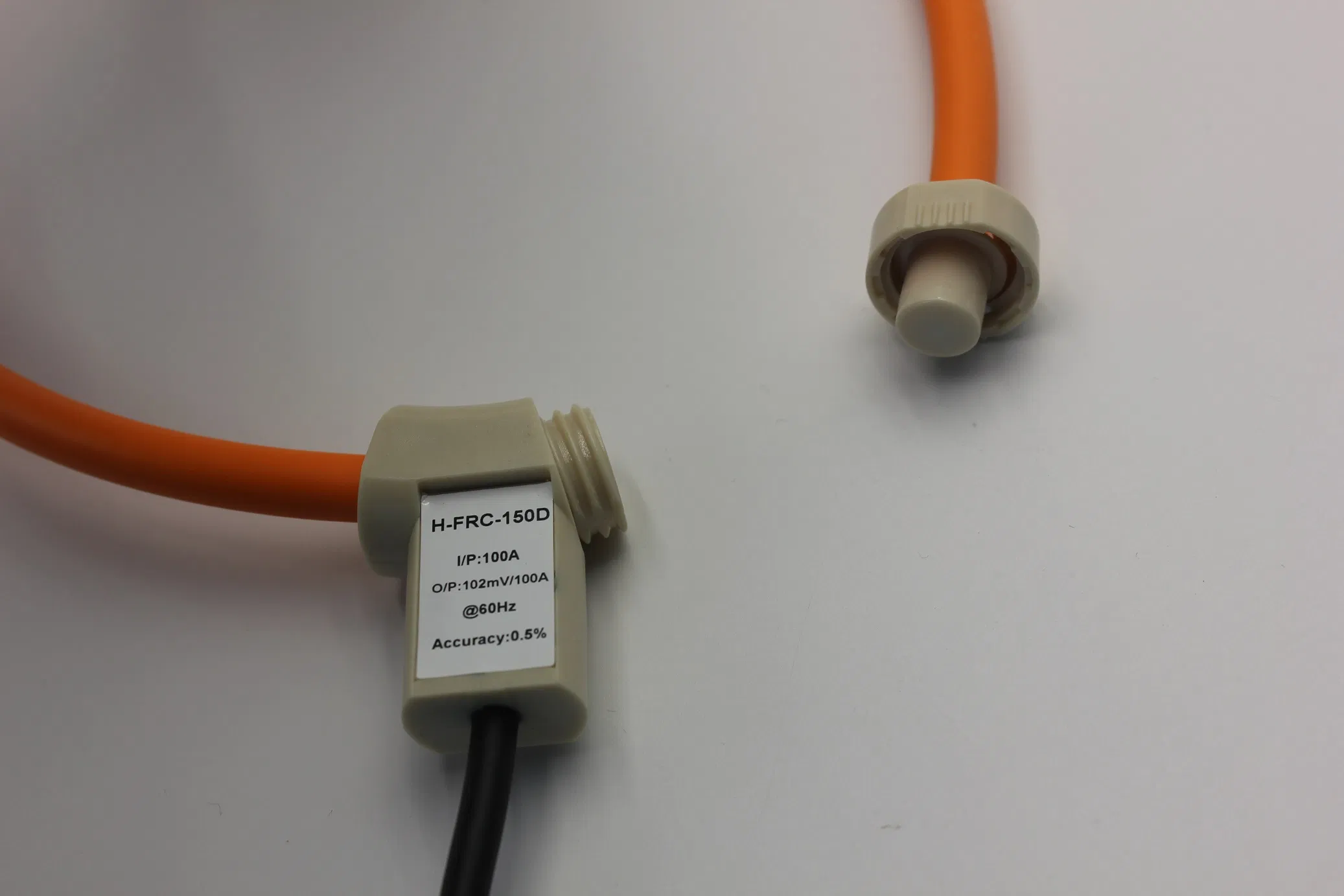

Rogowski Coil Current Sensor with 3000A/3V

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.H-FCT021-420

CoreAmorphous Alloy Transformer

Cooling MethodDry-type Transformer

Winding TypeAuto-transformer

CertificationISO9001-2000, ISO9001, CCC

UsageSingle-phase Transformer

FrequencyLow Frequency

BrandE-Power

Current Range3000A/3V

Accuracy±0.5% of Reading

Frequency Range0 -16MHz

OriginChina

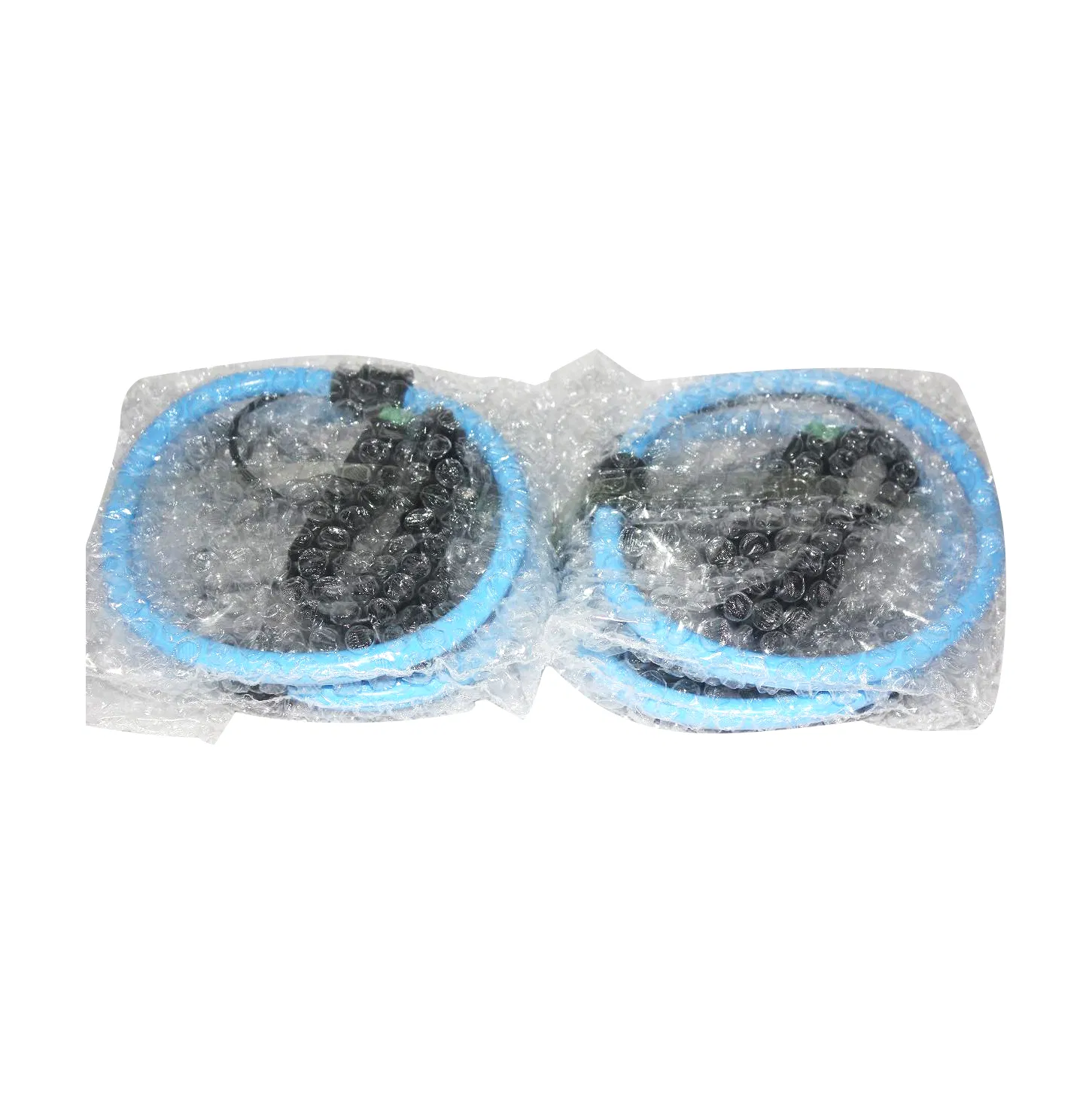

📦 Packaging & Delivery

Package Size46.00cm * 35.00cm * 33.00cm

Gross Weight14.500kg

Capacity3000PCS Per Month

Package TypeCarton

🔍 Product Description

Coil & Cable	Thermoplastic rubber, Flame retardant UL 94 V-0 Rated
Couplings	PA6 UL 84 V-O Rated
Color Options	Black, Yellow, Red, Green and Blue
Shielded	100% coil, 100% output cable

❓ Frequently Asked Questions

What is the measurement range of this current sensor?

The sensor supports a wide current range from 0 to 100KA AC with an output sensitivity of 144mV/1000A at 60Hz.

How accurate is the Rogowski Coil?

It offers high precision with an accuracy of ±0.5% of the reading and a linearity of ±0.2% within the 10% to 100% range.

What are the environmental operating conditions?

The device is designed to operate reliably in temperatures ranging from -20°C to +70°C.

Is the material flame retardant?

Yes, the coil and cable use thermoplastic rubber with a flame retardant rating of UL 94 V-0.

What certifications does this product have?

The product is compliant with international standards, holding ISO9001-2000, ISO9001, and CCC certifications.

Does position affect the measurement?

The position sensitivity is minimal, with a maximum influence of ±1% on the closing unit.
