Product Description

Basic Specifications

Model NO.HF

Production ProcessIntegration

MaterialCompact Shield Aluminium Alloy

Accuracy Grade±1%

ApplicationIntegrate, Amplify, Convert Electric Signals

IP RatingIP20

Rated Output1V AC Peak (Max 12V Peak)

Frequency100kHz to 1MHz

Power Supply4-12V DC

Response Time≤1us

Dimensions86*90*29mm

Linearity±0.5% of Reading

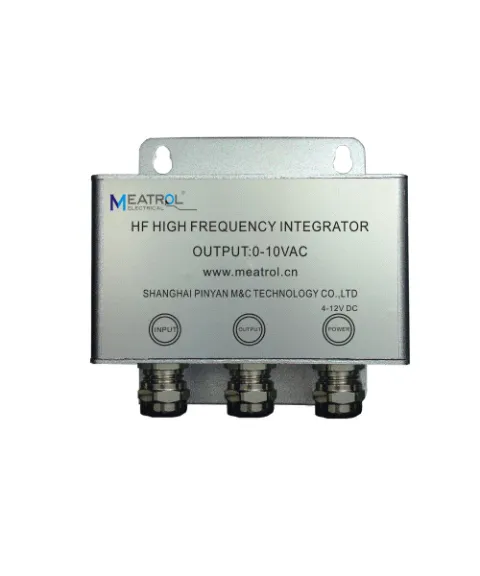

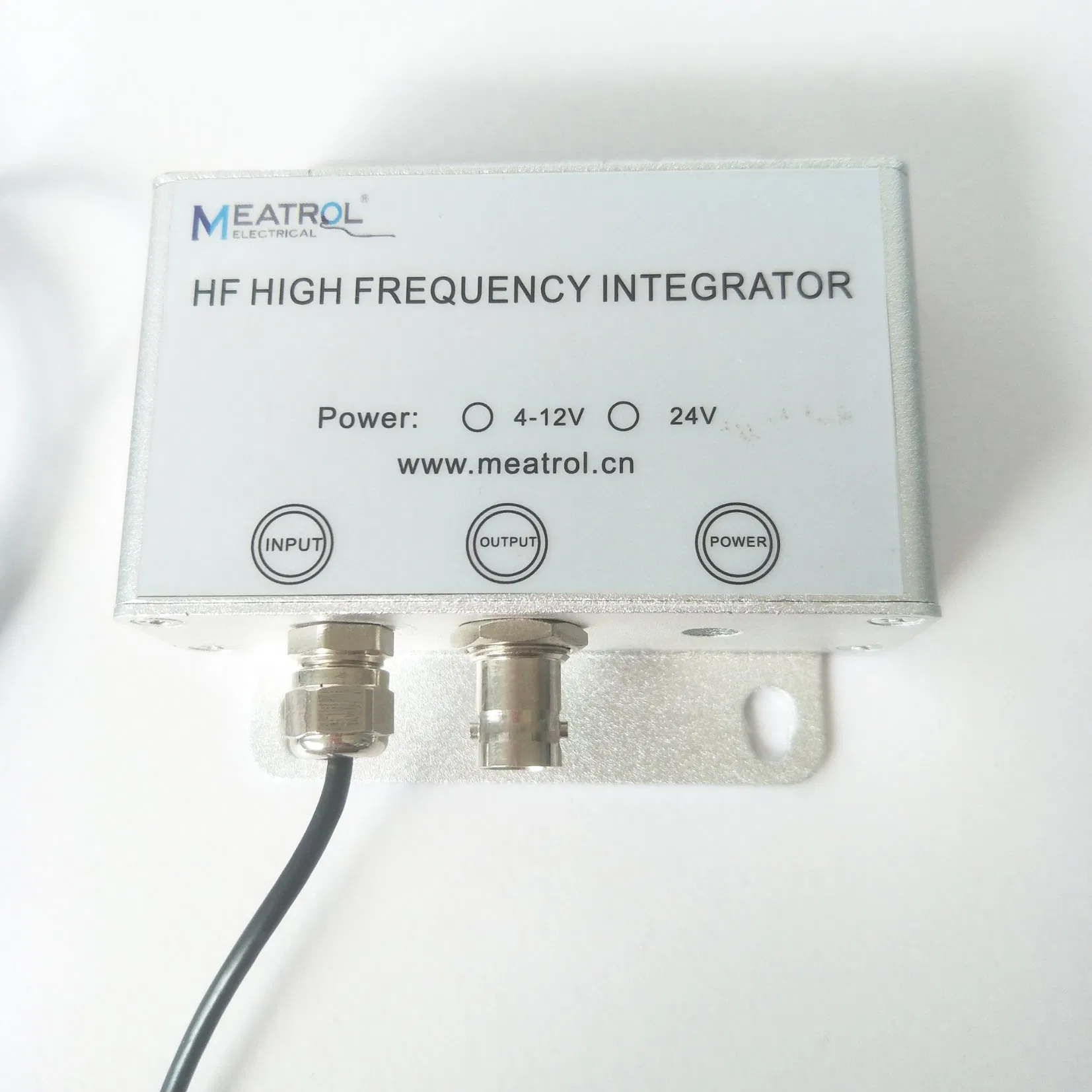

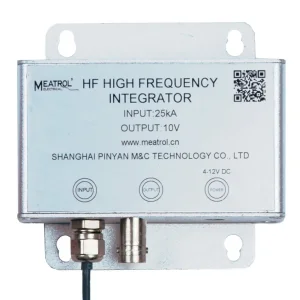

HF High Frequency Integrator

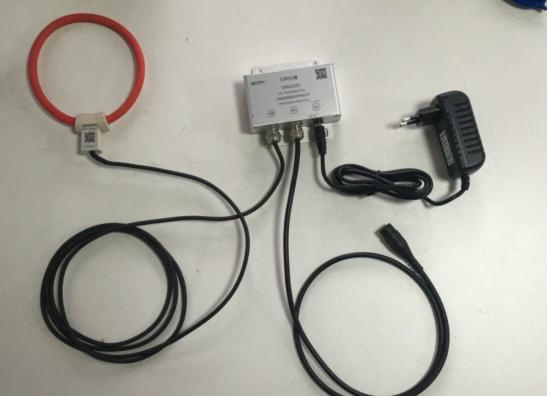

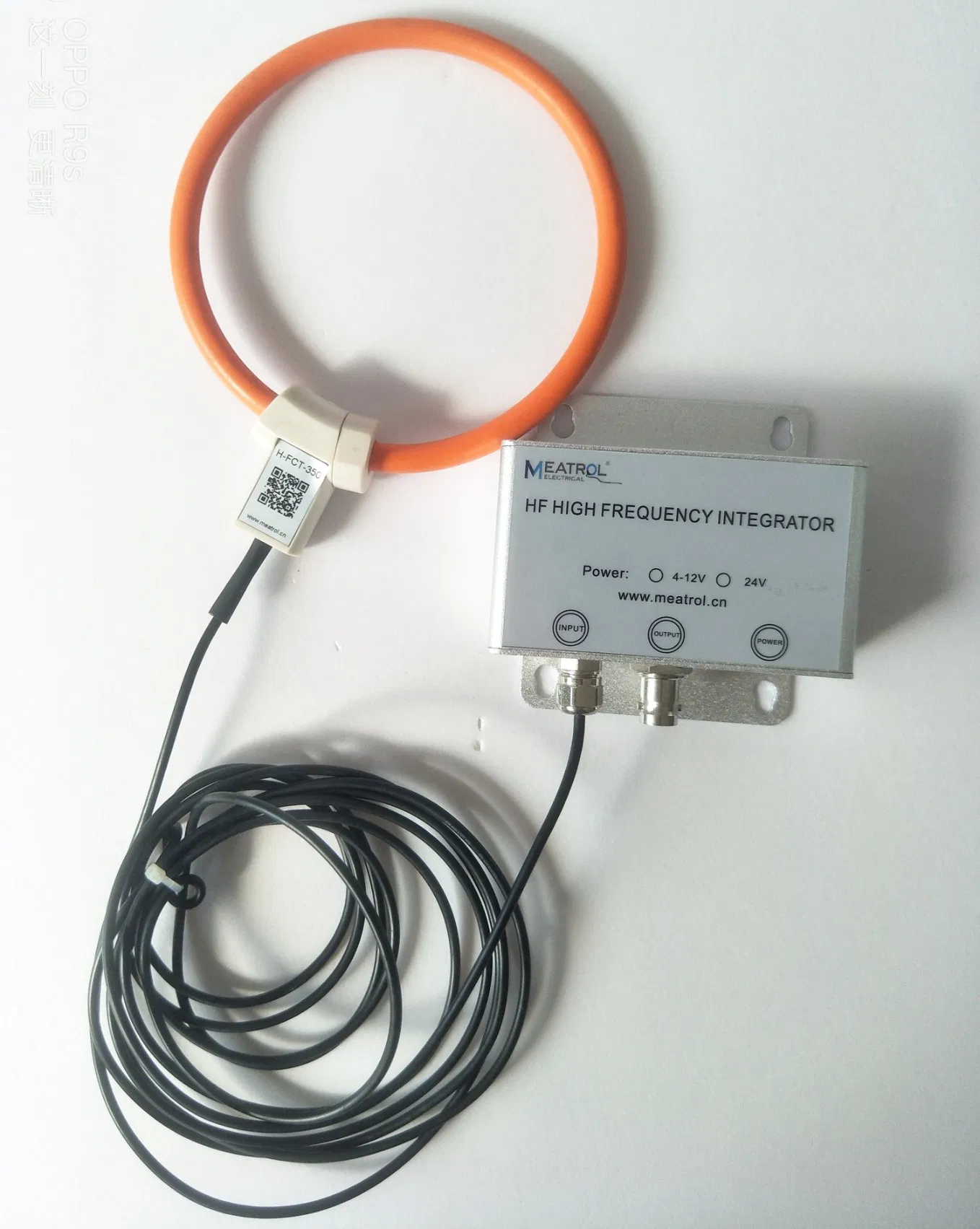

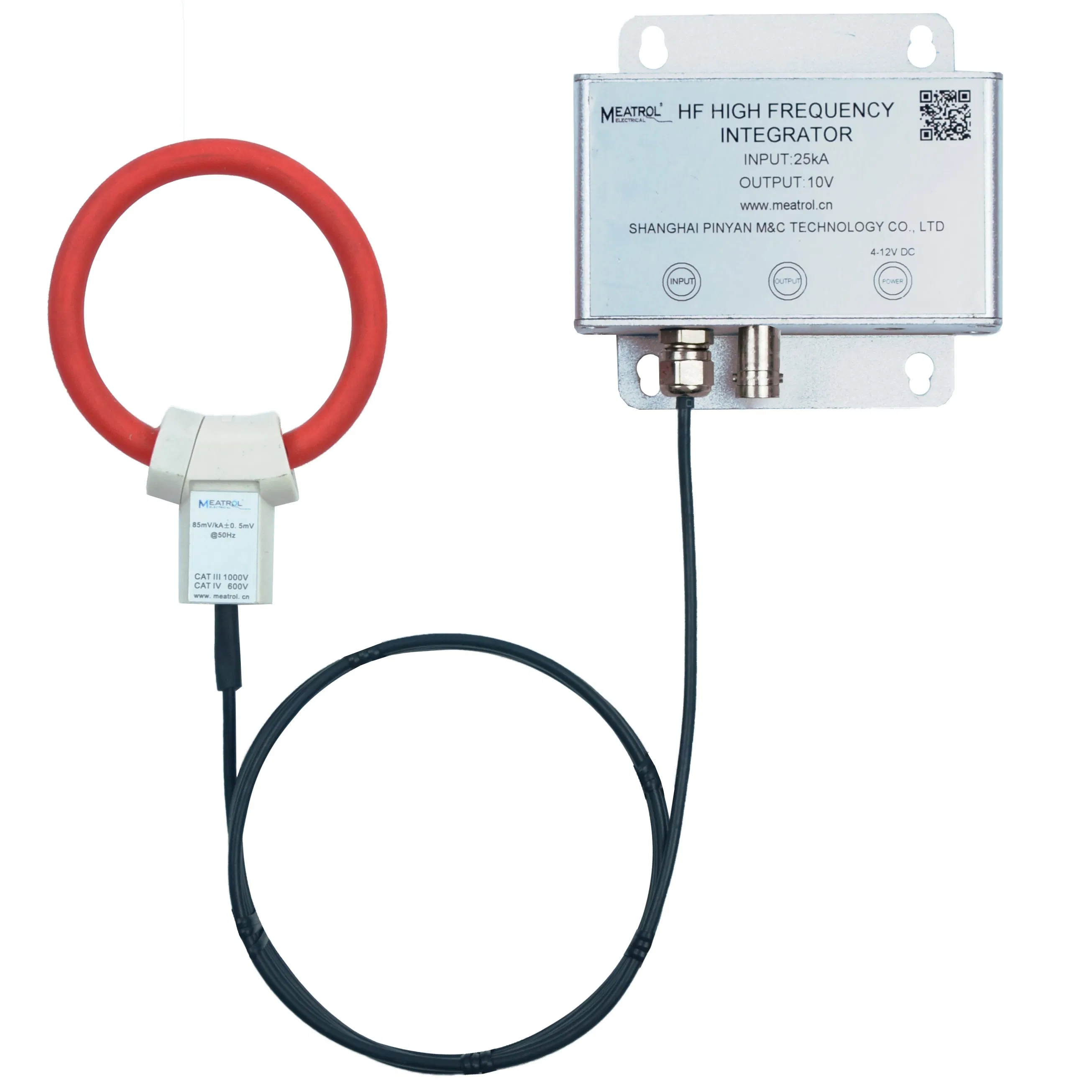

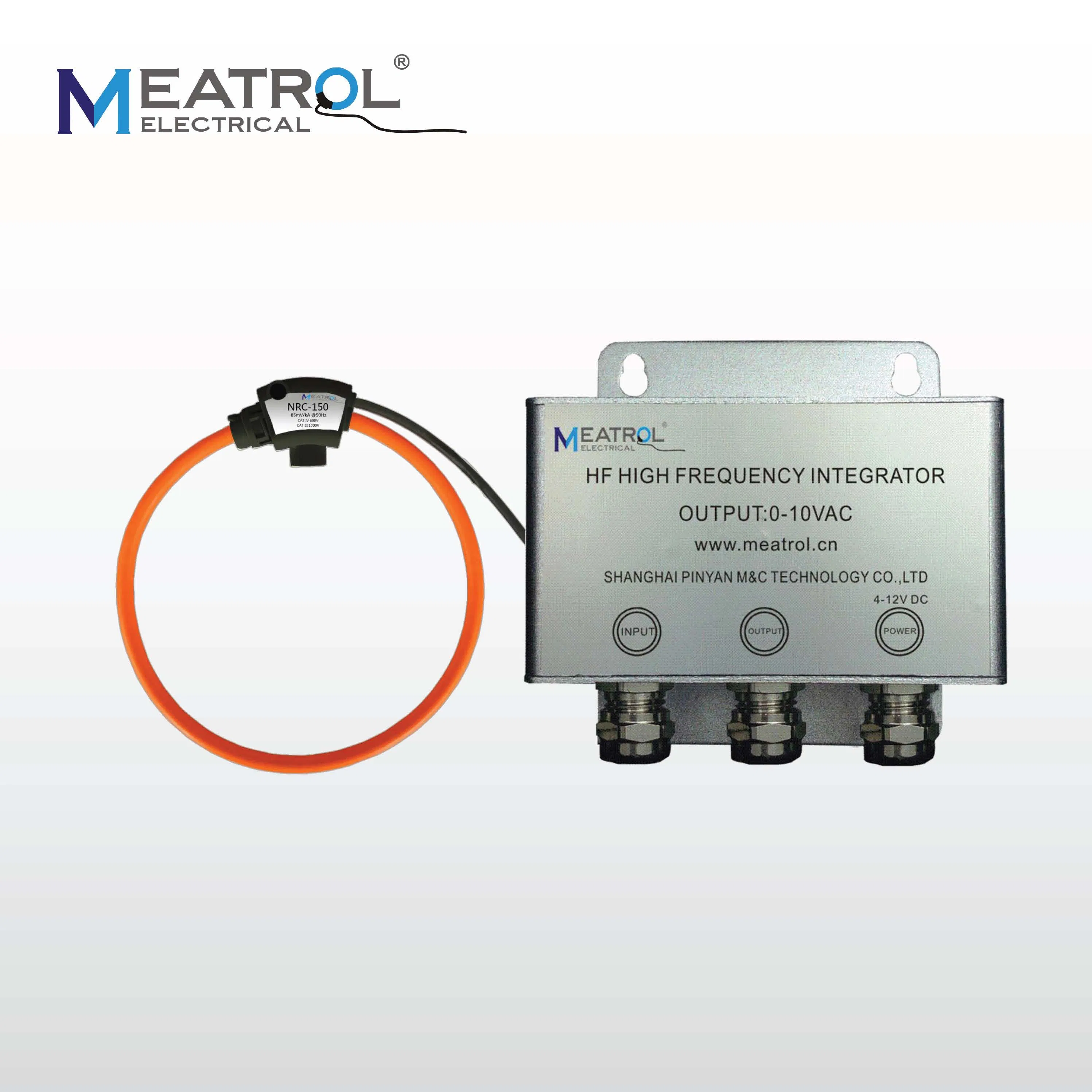

The HF is a High Frequency Rogowski coil integrator housed in a compact shield aluminium alloy enclosure. It provides precise measurement for various waveforms such as 3/5μs, 8/20μs, and 10/350μs across a frequency range of 100kHz to 1MHz. It is designed for direct connection to oscilloscopes for real-time analysis.

What does the Integrator do?

Amplify & Convert: Converts weak mV signals from Rogowski coils into standard signals readable by multimeters and scopes.
Signal Equalization: Ensures a linear response over a wide frequency range, compensating for the frequency-proportional output of the coil.
Phase Shifting: Essential for shifting the output signal by 90° to accurately reflect the measured current.

Key Features

Compatible with Y-FCT, NRC, MRC, and SRC Rogowski coils.
Available output values: 0-12V peak.
Highly flexible system for high power load analysis.
Ideal for impulsive current monitoring and DC ripple measurement.

Advantages

High read accuracy (2% typical).
Wide power supply range: 4-12VDC.
Lightning current measurement up to 500kA.
Fast waveform restoration (1/5μs, 8/20μs, 10/350μs).

Technical Specifications

Parameter	Specification Details
Rated Output	1V AC peak
Maximum Output (Overload)	12V AC peak
Rated Ratio	1kA/1V, 10kA/1V, 50kA/1V (Customizable)
Phase Error	≤0.5°
Response Time	≤1us
Power Consumption	300mW
Temperature Drift	200ppm/ºC
Operating Temperature	-20ºC to 70ºC
Terminal Type	Input: Locked signal cable; Output: BNC female

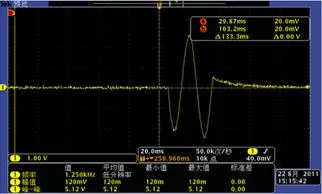

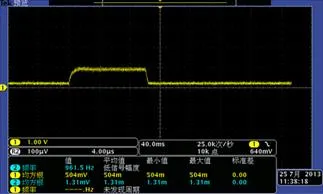

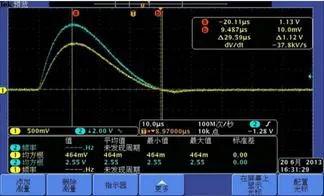

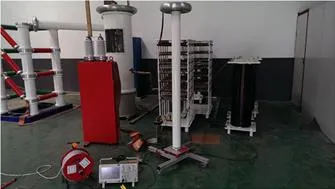

Actual Waveform Performance

Safety & Application

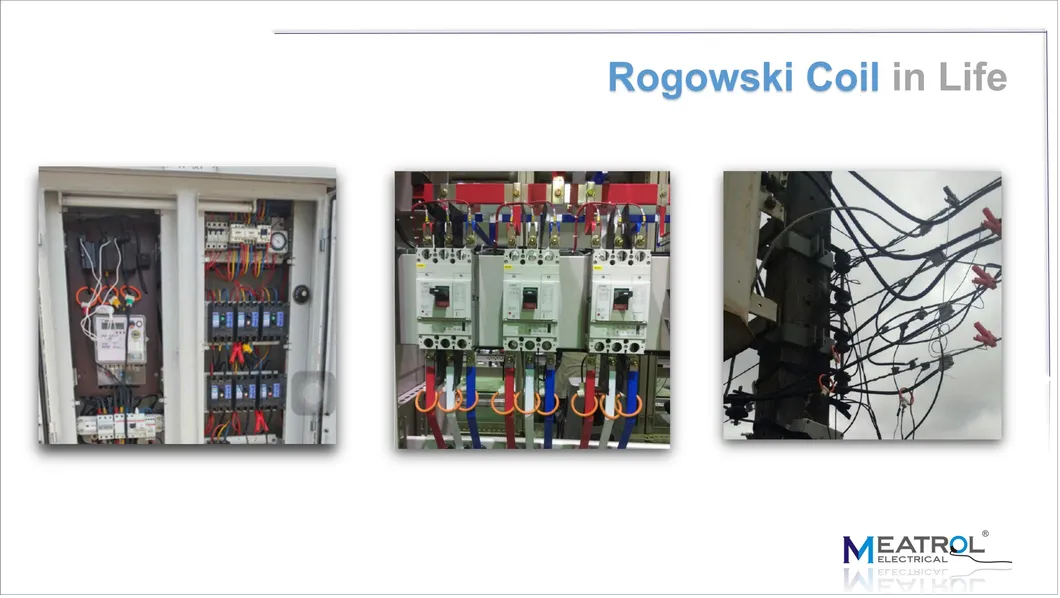

Applications Include: Arc fault current, Rectifier current measurement, Insulator leakage detection, Motor overload protection, Lightning current detection, and Power grid harmonic monitoring.

⚠️ Safety Warnings

Installation must be performed by qualified personnel. Ensure the main power supply is disconnected before installation. Do not apply mechanical force (twisting, puncturing) to the coil as it will degrade accuracy.

Product Gallery

Frequently Asked Questions

Q1: What frequency range does the HF integrator support? A: The HF integrator supports a high-frequency range from 100kHz to 1MHz, making it suitable for transient and pulse current analysis.

Q2: Can I use this integrator with different Rogowski coil models? A: Yes, it is a flexible system that can be combined with various models including Y-FCT, NRC, MRC, and SRC Rogowski coils.

Q3: What is the maximum lightning current this device can measure? A: This system is capable of measuring lightning currents up to 500kA.

Q4: Does the integrator require an external power supply? A: Yes, it requires a 4-12V DC power supply. A standard 85-265V AC to 12V DC adaptor is typically included.

Q5: What are the typical waveforms it can restore? A: It is designed to accurately restore common test waveforms including 1/5μs, 8/20μs, and 10/350μs.

Q6: Is the output signal compatible with an oscilloscope? A: Absolutely. The integrator features a BNC output specifically for direct connection to an oscilloscope for detailed waveform analysis.
