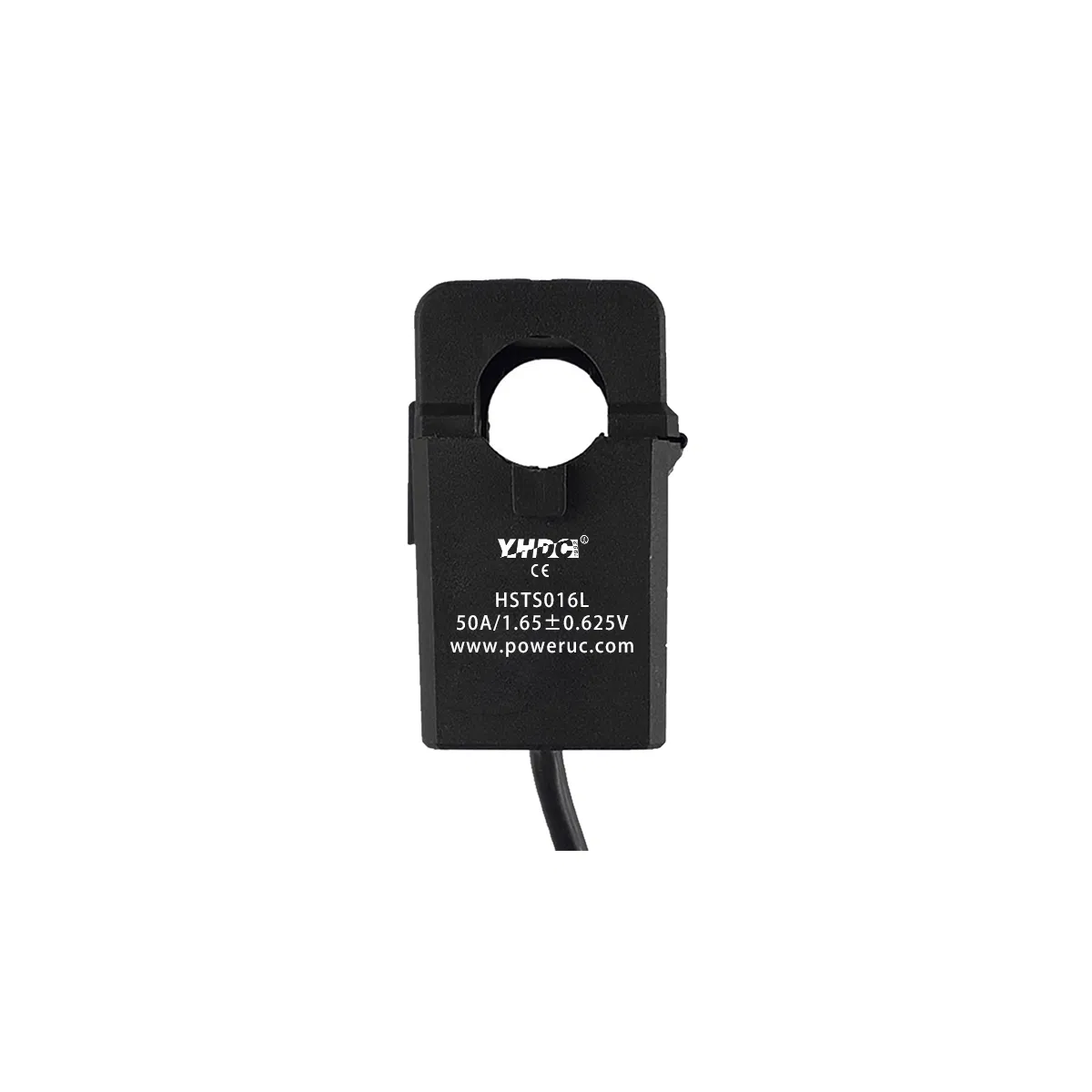

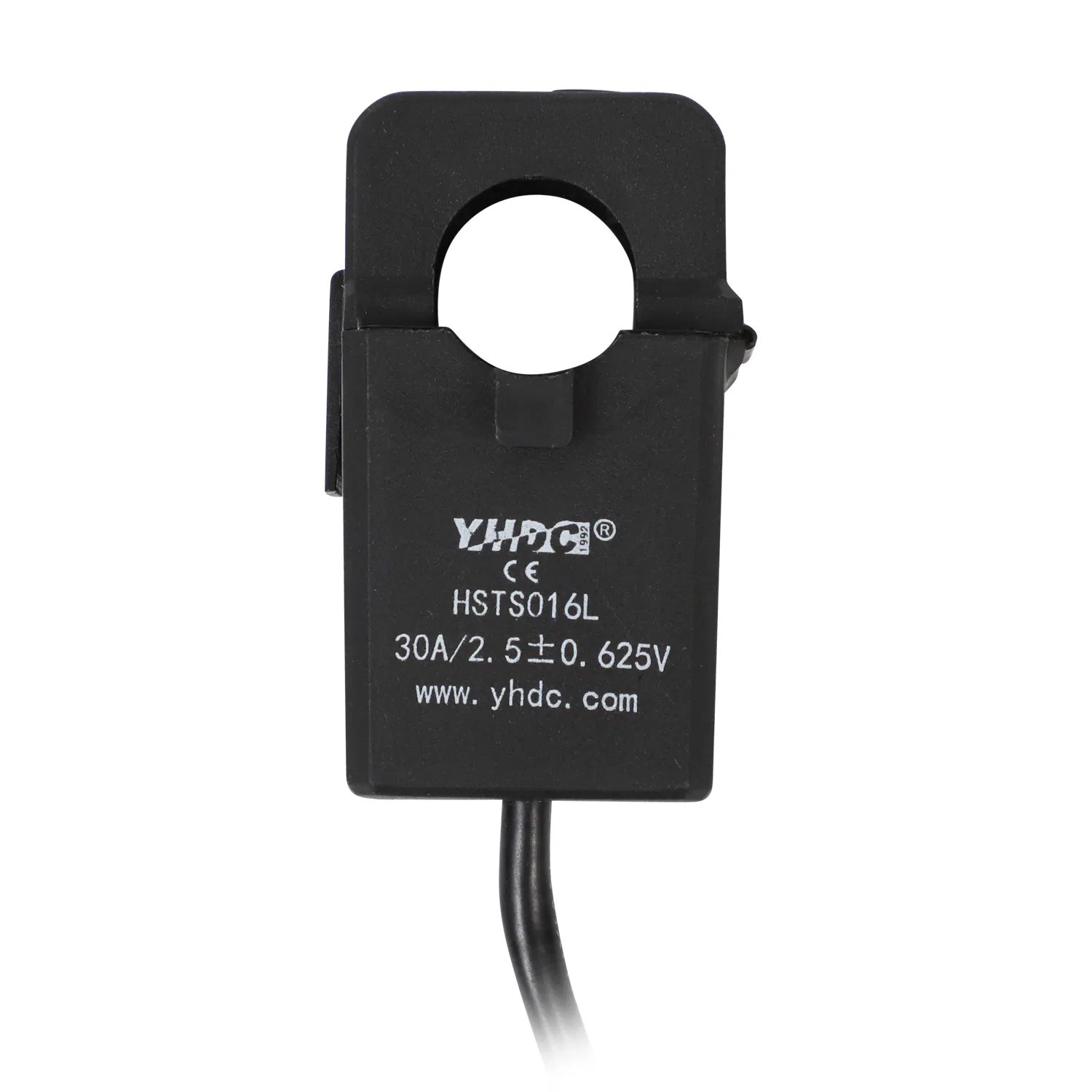

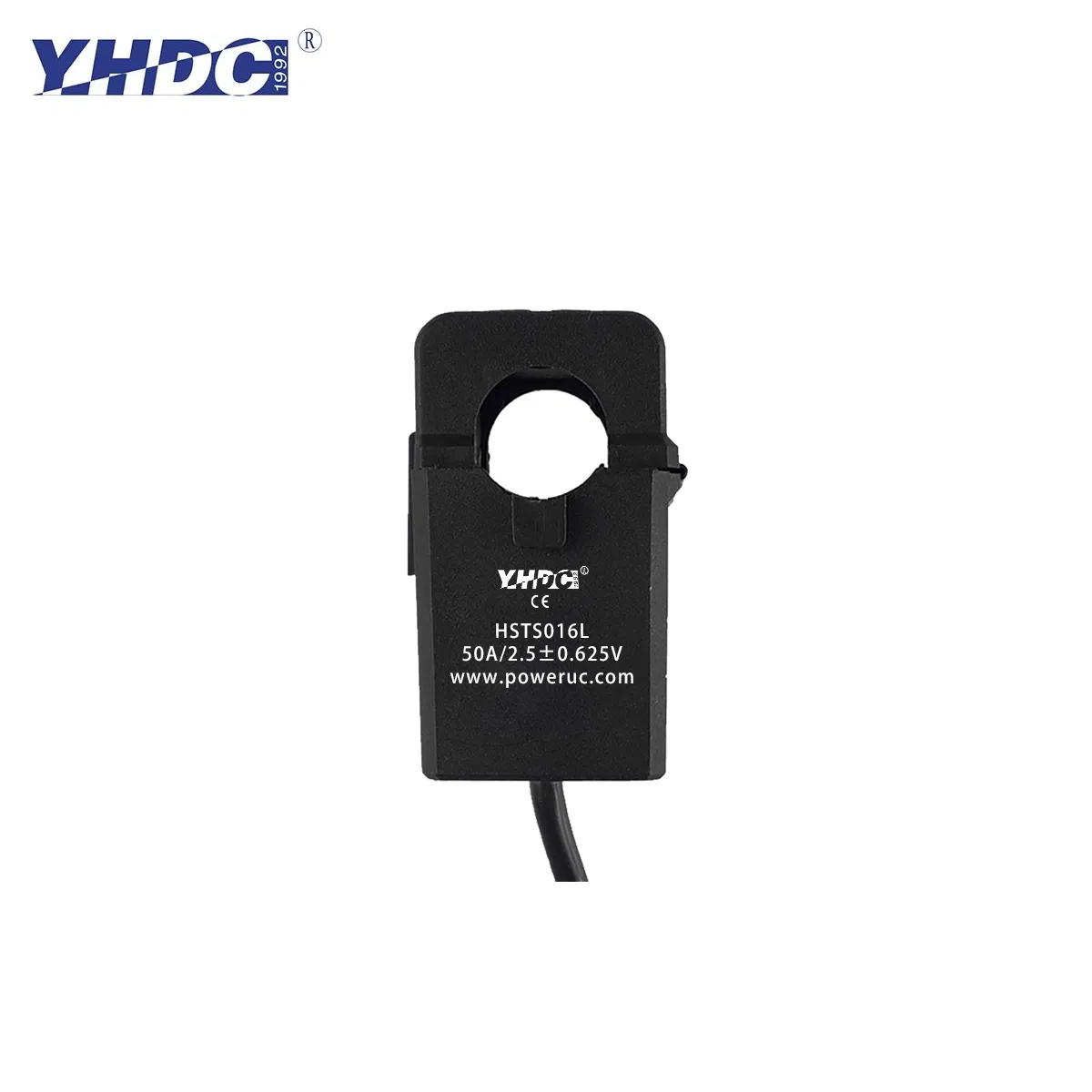

Hall Effect Split Core Current Sensor HSTS016L
Open loop split core type, hanging installation, cable output. Detect DC, AC and pulse current. High insulation between primary side and the vice side circuit.
★ Product Features
★ Product Applications
| Parameter | Specifications | ||||||
|---|---|---|---|---|---|---|---|
| Rated Input | ±10A | ±20A | ±30A | ±50A | ±100A | ±150A | ±200A |
| Measurement Range | ±15A | ±30A | ±45A | ±75A | ±150A | ±200A | ±200A |
| Rated Output | 2.5V±0.625V / 1.65V±0.625V | ||||||
| Accuracy / Linearity | 1% / 1% | ||||||
| Supply Voltage | +5V / +3.3V | ||||||
| Response Time | ≤5μs | ||||||
| Band Width | DC~25KHz | ||||||
| Dielectric Strength | 2.5KV 50Hz 1min | ||||||

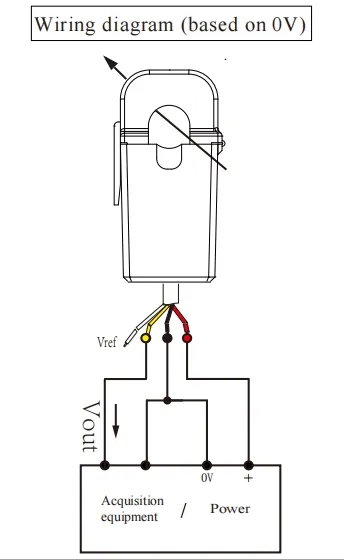

Instructions for Use:
Safe Operation:
| Picture | Model | Input | Output | Voltage | IP Rating |
|---|---|---|---|---|---|
 |

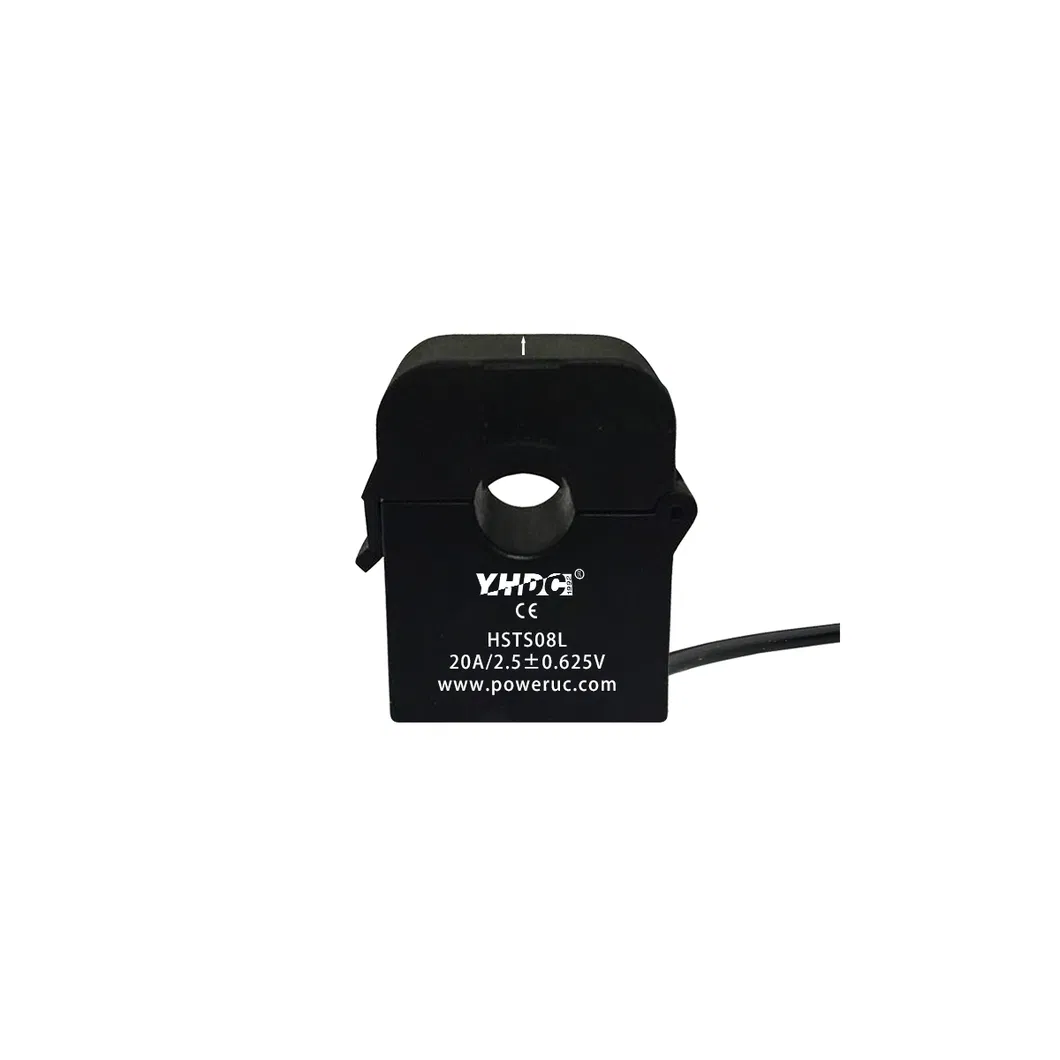

HSTS08L | 10A-20A | 2.5V±0.625V | +5V | IP00 |
 |
HST016L | 50A-200A | ±4V | ±12V/±15V | IP00 |
 |

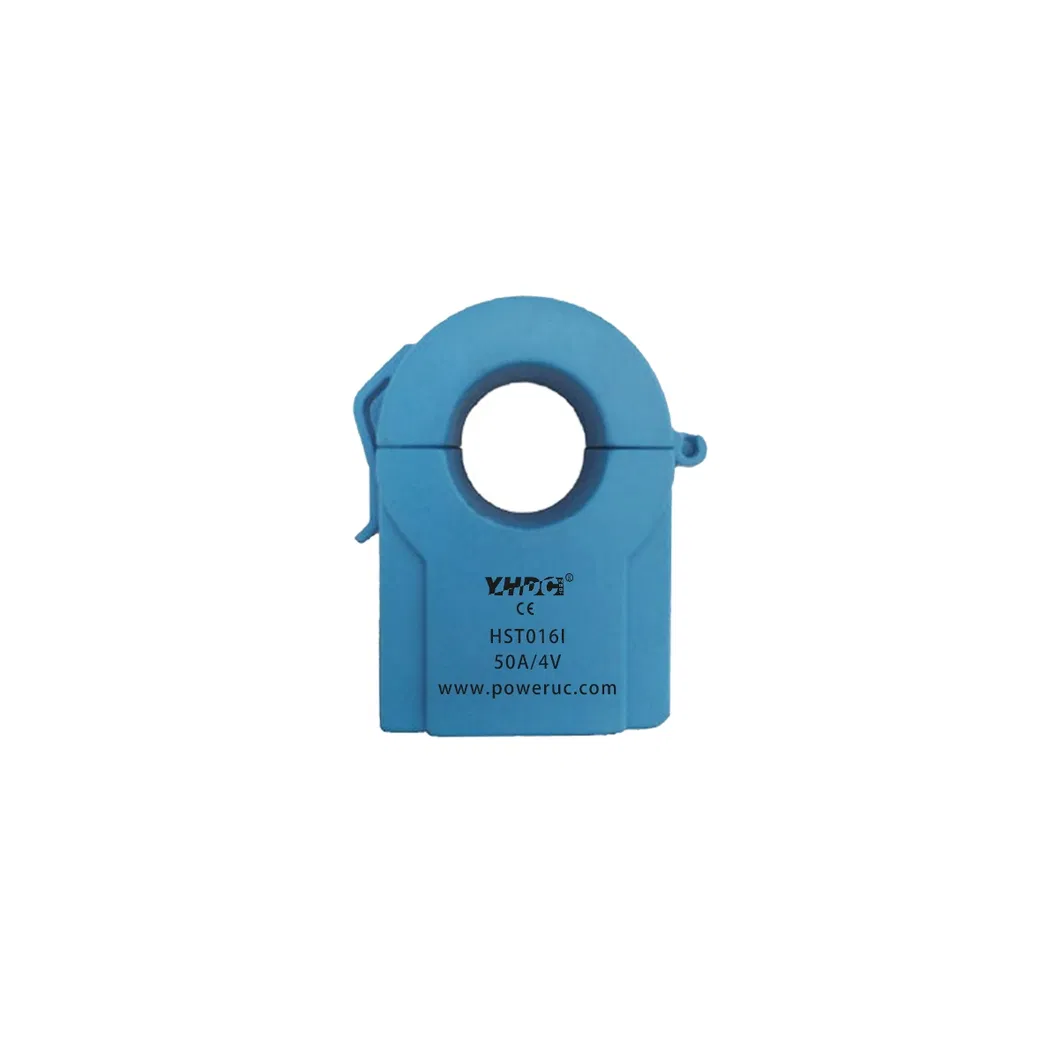

HST016I | 100A-500A | ±4V | ±12V/±15V | IP63 |

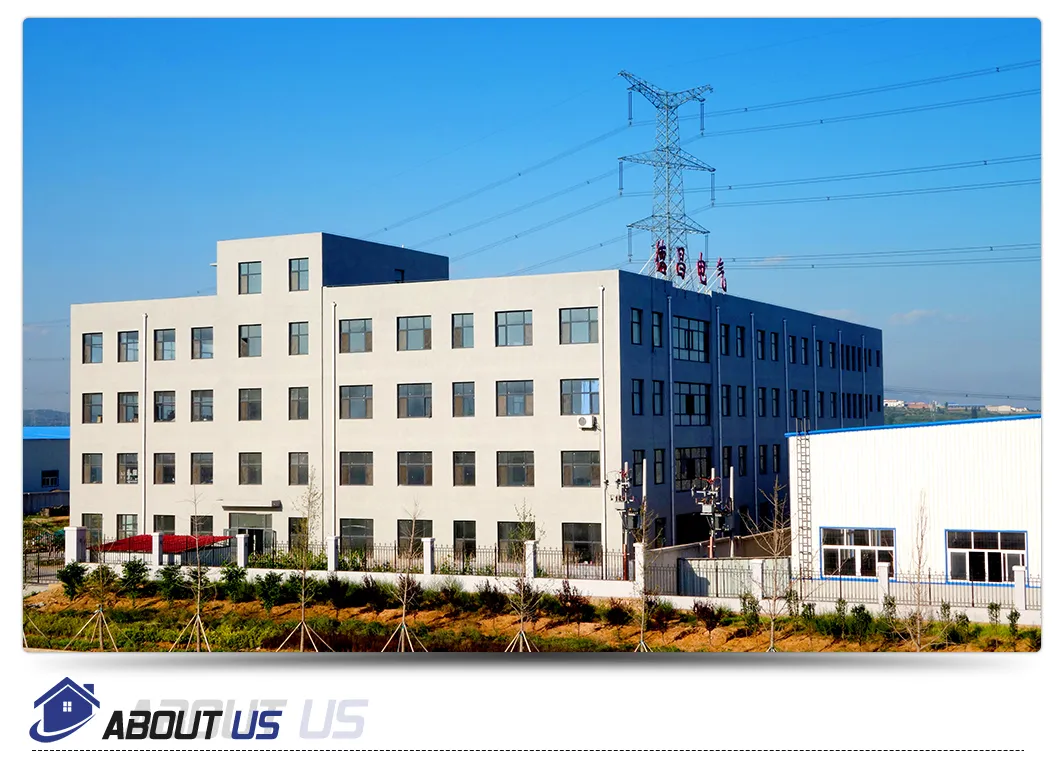

Established in 1992, we are a leading manufacturer of electromagnetic components. Our products are widely used in industrial equipment, precision instruments, aerospace, medical, and renewable energy sectors. We specialize in power transformers, current sensors, and Rogowski coils, focusing on high-quality design for severe environments with a service life of up to 20 years.
We value our customers with 24-hour timing replies. We provide professional recommendations based on specific requirements and offer a 1-year warranty with full technical support from our experienced team.
Package Details: All products are well-packed in cartons. We support neutral packing or OEM custom labels.
Shipping: Via DHL, FedEx, UPS, TNT (door to door), or air/sea shipment for bulk orders.
