Product Description

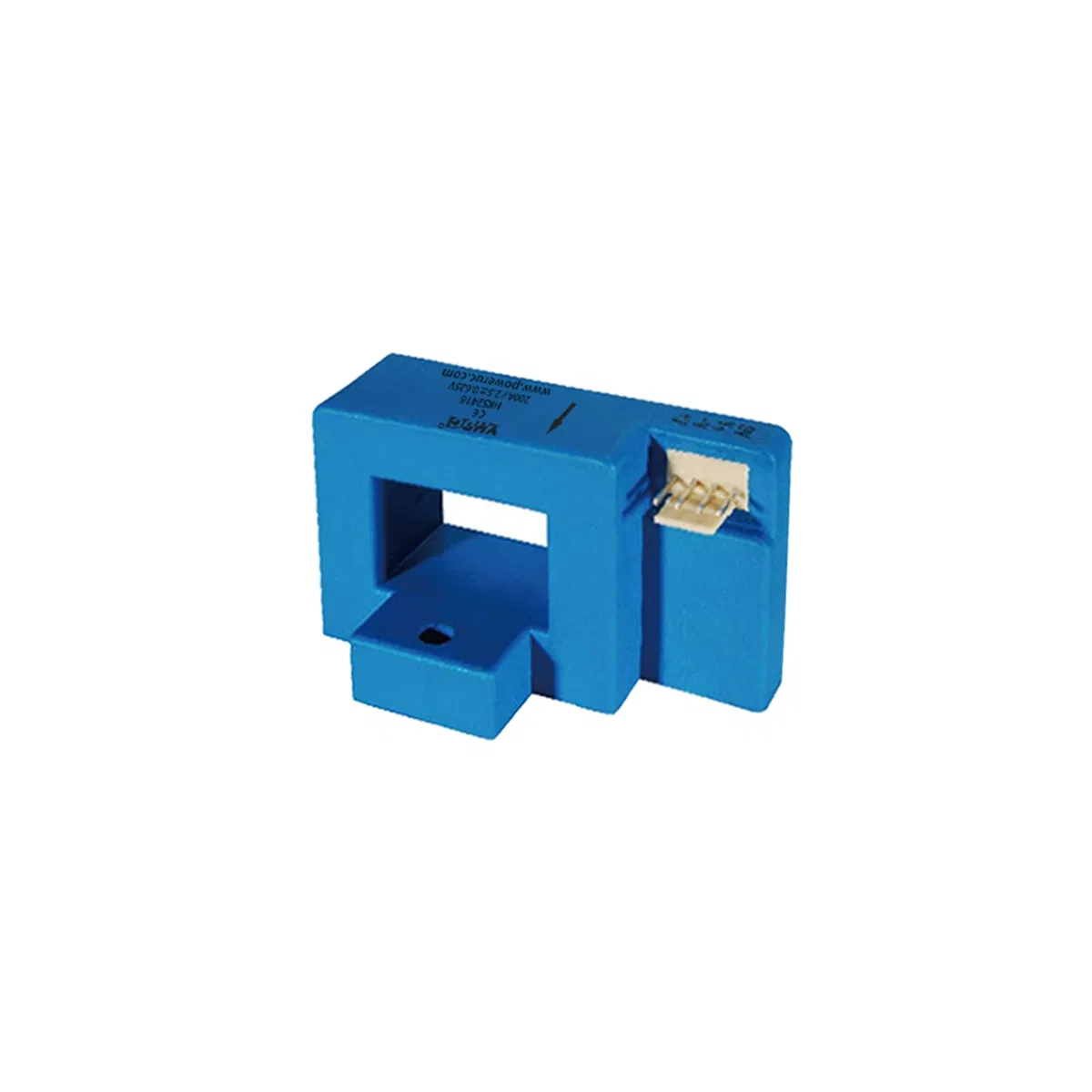

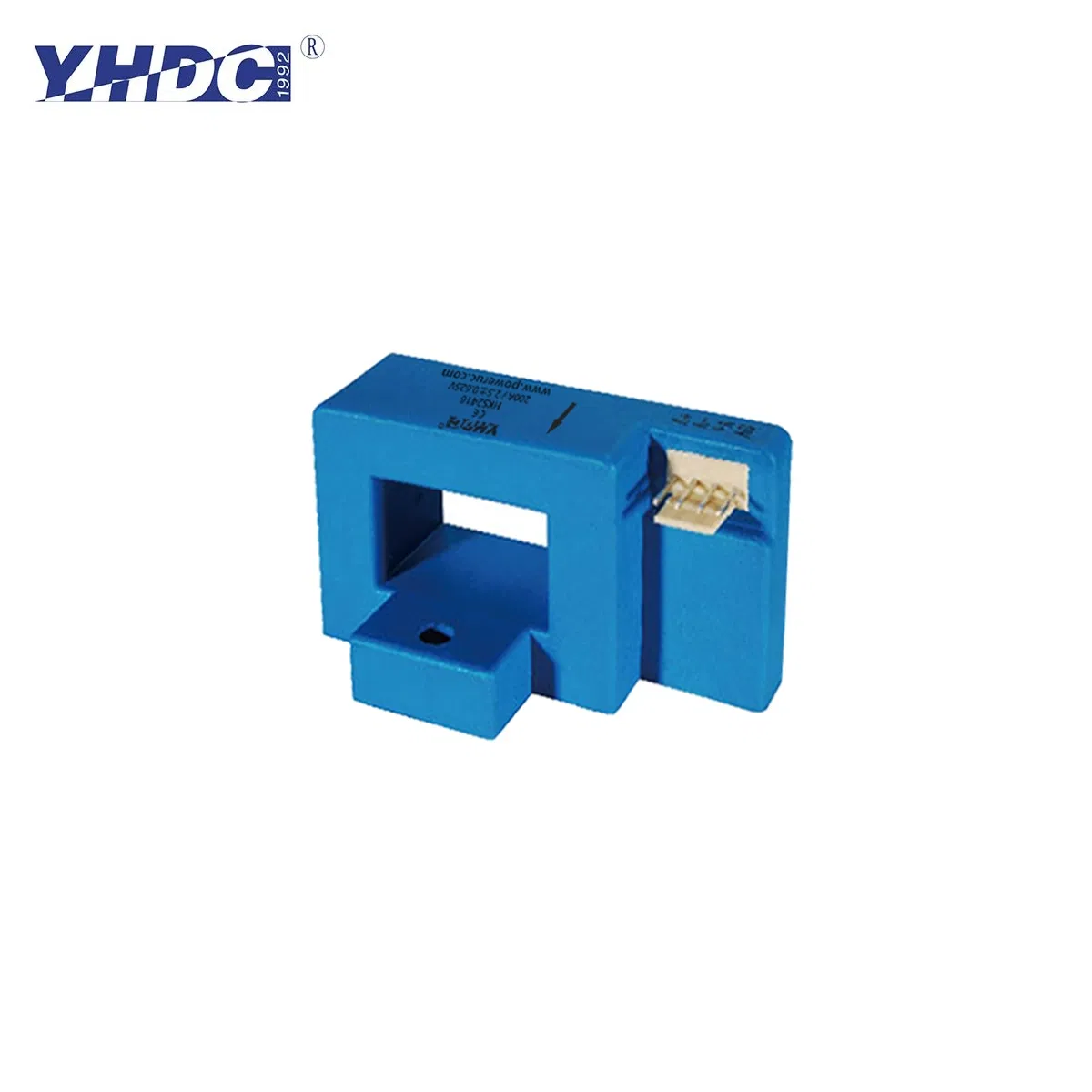

Open Loop Hall Effect AC/DC Current Sensor HKS2416
Plate mount, terminal output. Detect DC, AC and pulse current. High insulation between primary side and the vice side circuit.
🚀 Product Features
- Light weight
- Low power consumption
- Good linearity
- No insertion loss
- Fast response time
- Good anti-interference ability
🛠️ Product Application
- Railway & Metallurgical
- Welding machine & Robot
- Motor & Inverter power supply
- Variable frequency governor
- Uninterrupted power supply (UPS)
📝
Instructions & Safety

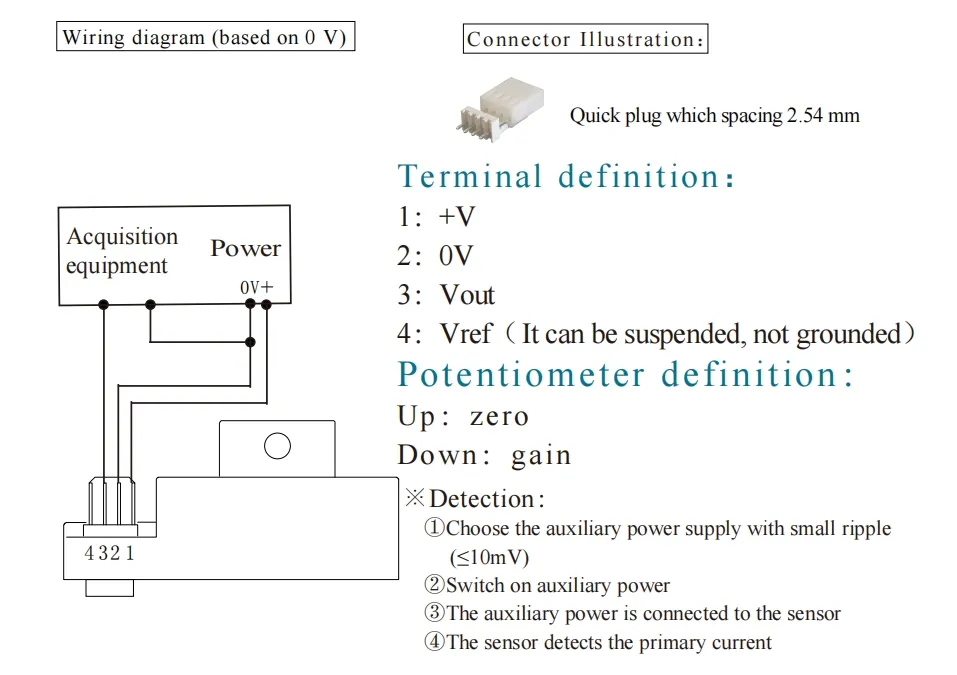

Calculation Formula (0V datum):
• Forward direction: 2.5+(I/IP N)*0.625
• Reverse direction: 2.5-(I/IP N)*0.625
⚠️ Safe Operation:
Please read specifications carefully. Disconnect power before moving. Check for shell or wire damage immediately.
🏭

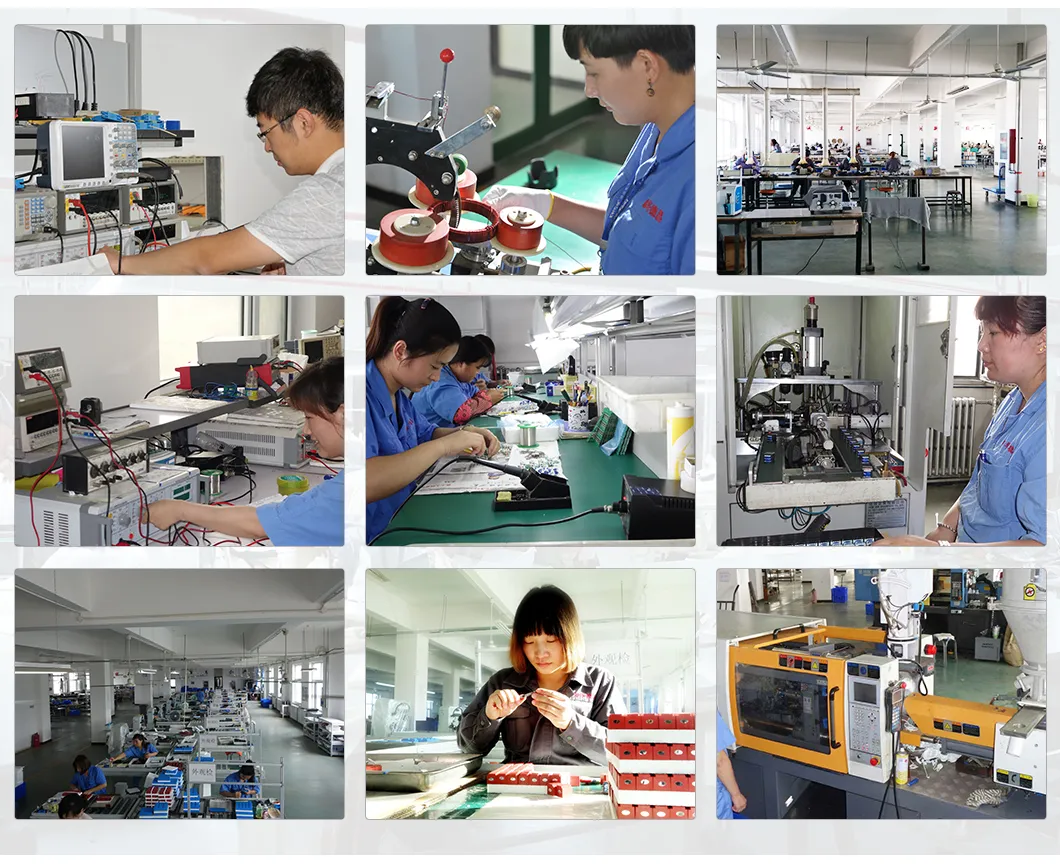

Company Profile

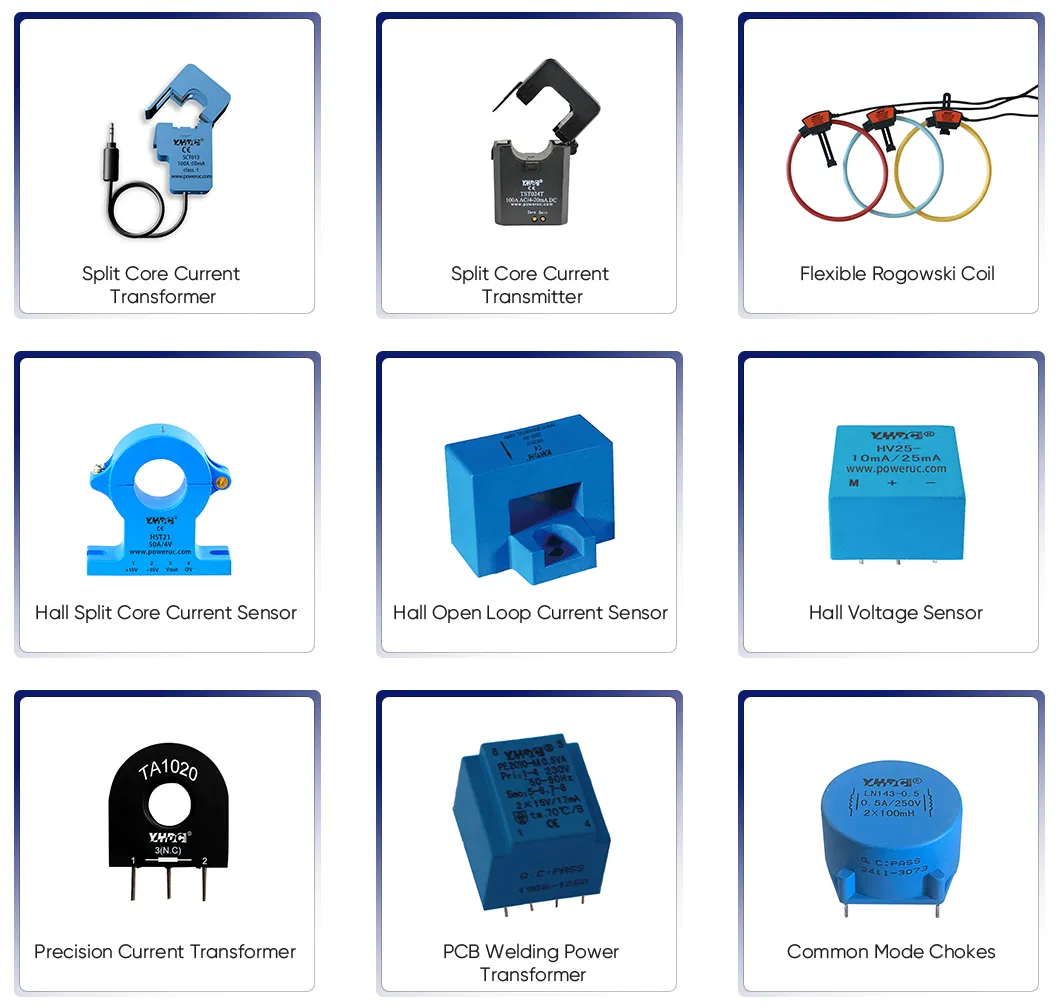

Established in 1992, we are a leading manufacturer of electromagnetic components. Our products are widely used in industrial equipment, precision instruments, aerospace, medical, and renewable energy sectors. Our R&D team develops high-performance devices including power transformers, current sensors, and Rogowski coils designed for long-term reliable operation up to 20 years.
📦
Packaging & Shipping
• All products are well-packed in cartons.
• Supports neutral packing or OEM customization.
• Shipping via DHL, FedEx, UPS, TNT (door to door), or air/sea for bulk orders.
❓
Frequently Asked Questions
Q1: Can this sensor measure both AC and DC current?
Yes, the HKS2416 is an open-loop Hall effect sensor designed to detect DC, AC, and pulse currents.
Q2: What is the standard lead time for orders?
The typical delivery time is 5-7 working days depending on order volume.
Q3: Do you provide samples for testing?
Yes, we provide samples and support product customization to meet specific technical requirements.
Q4: What certifications do your products hold?
Our current sensors are certified with CE, RoHS, and Reach standards, ensuring high quality and safety.
Q5: What is the warranty period for the sensors?
We provide a 1-year warranty. Our technical team is available to provide support throughout the product's lifecycle.
Q6: How is the product shipped for international orders?
We ship worldwide via express couriers like DHL, FedEx, and UPS, as well as air and sea freight for larger quantities.
