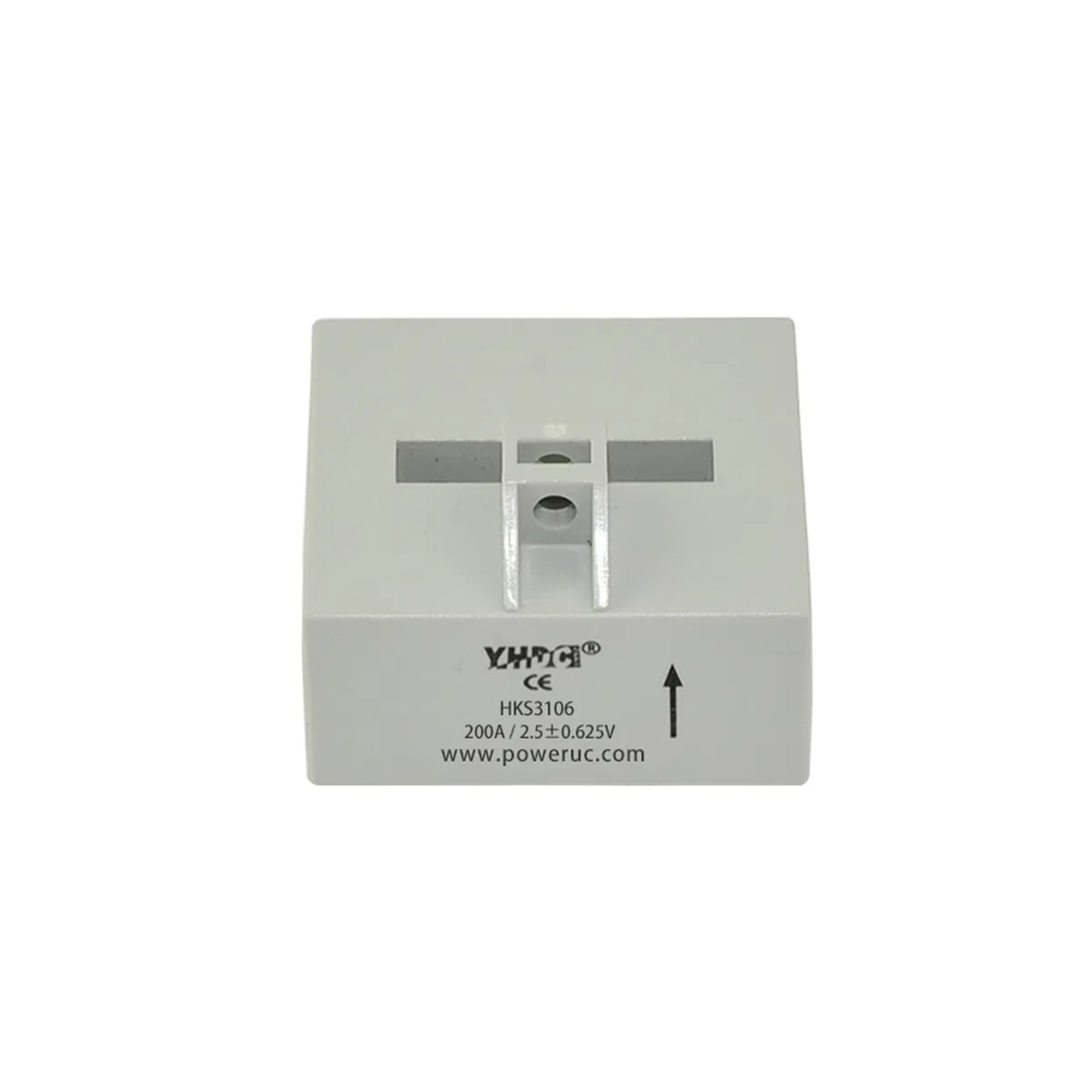

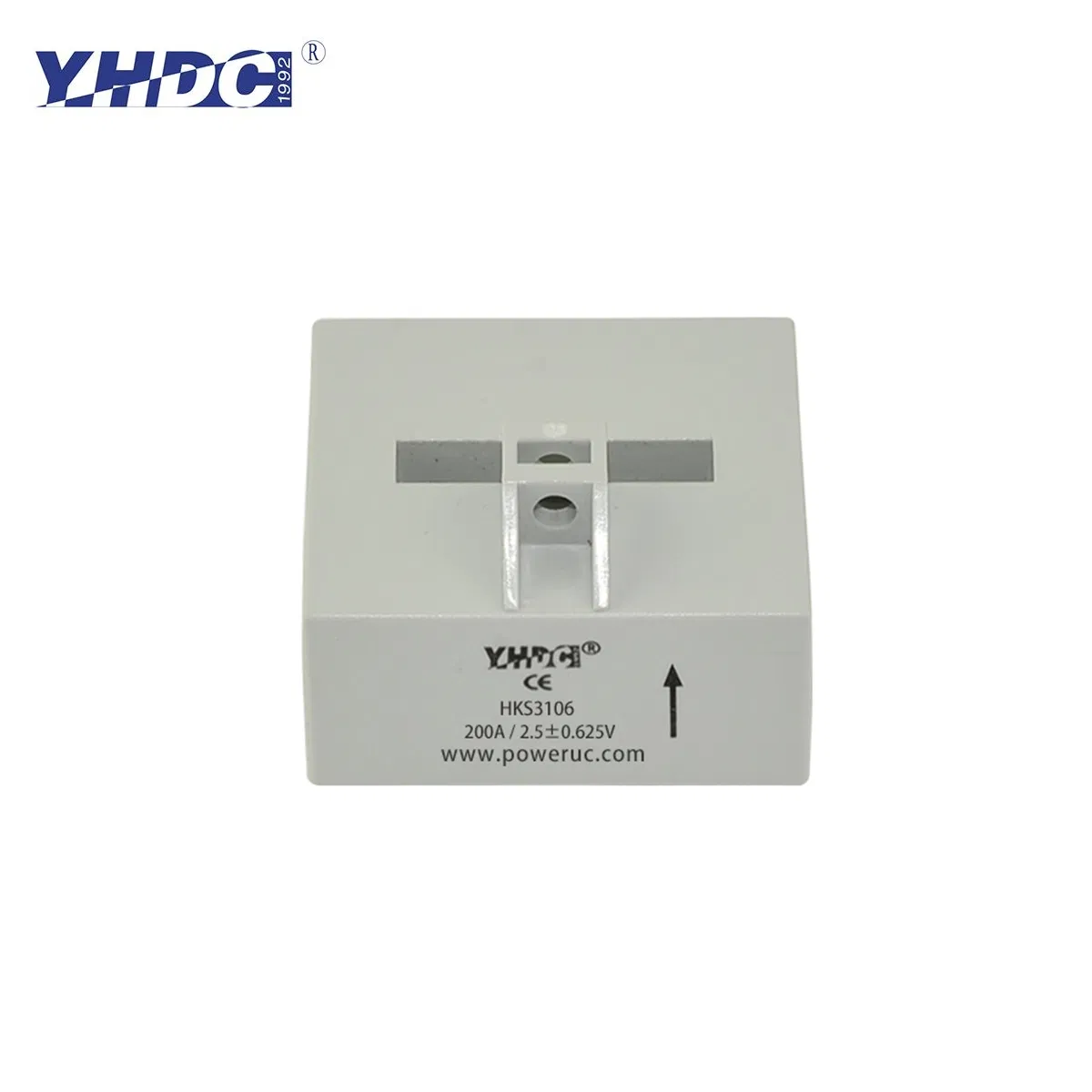

Open Loop Hall Effect AC/DC Current Sensor HKS3106
Plate mount, terminal output. Detect DC, AC and pulse current. High insulation between primary side and the vice side circuit.
Product Features
Product Applications
| Parameter | Specifications | |||||
|---|---|---|---|---|---|---|
| Rated Input | ±100A | ±200A | ±300A | ±500A | ±600A | ±800A |
| Measurement Range | ±150A | ±300A | ±450A | ±750A | ±800A | ±800A |
| Rated Output | 2.5V±0.625V | |||||
| Accuracy / Linearity | 1% / 1% | |||||
| Supply Voltage | +5V | |||||
| Response Time | ≤5μs | |||||
| Band Width | DC~25KHz | |||||

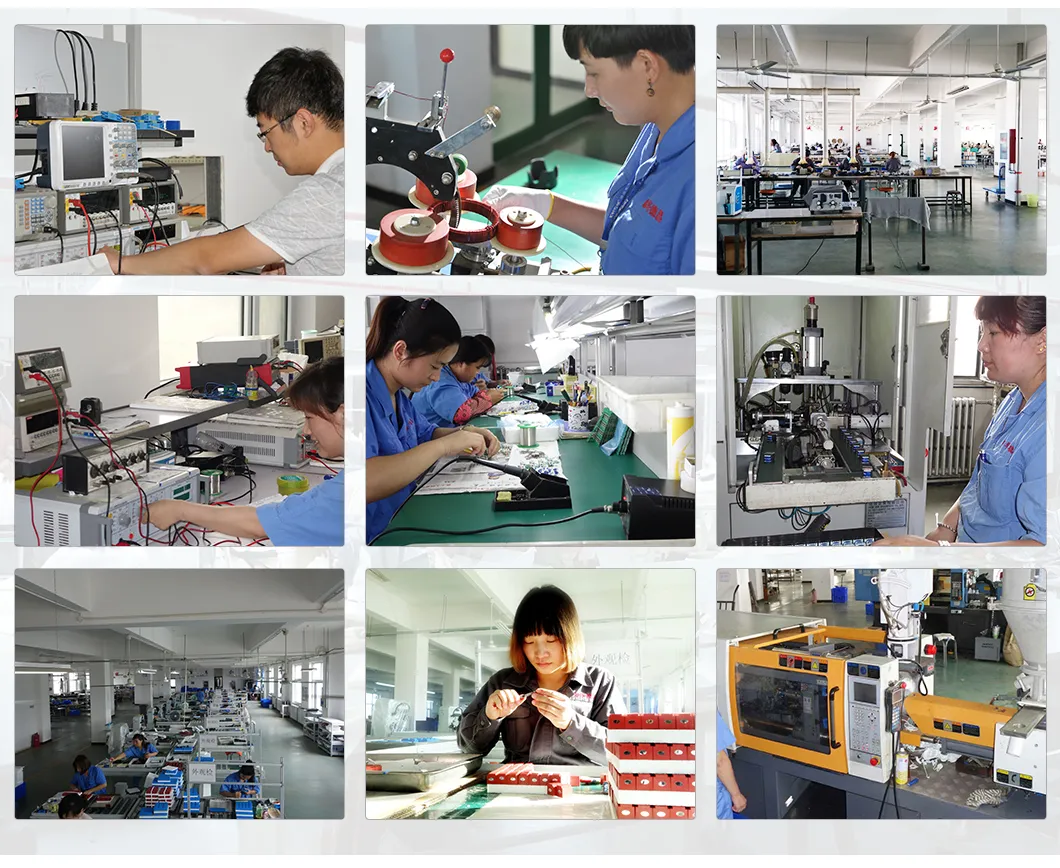

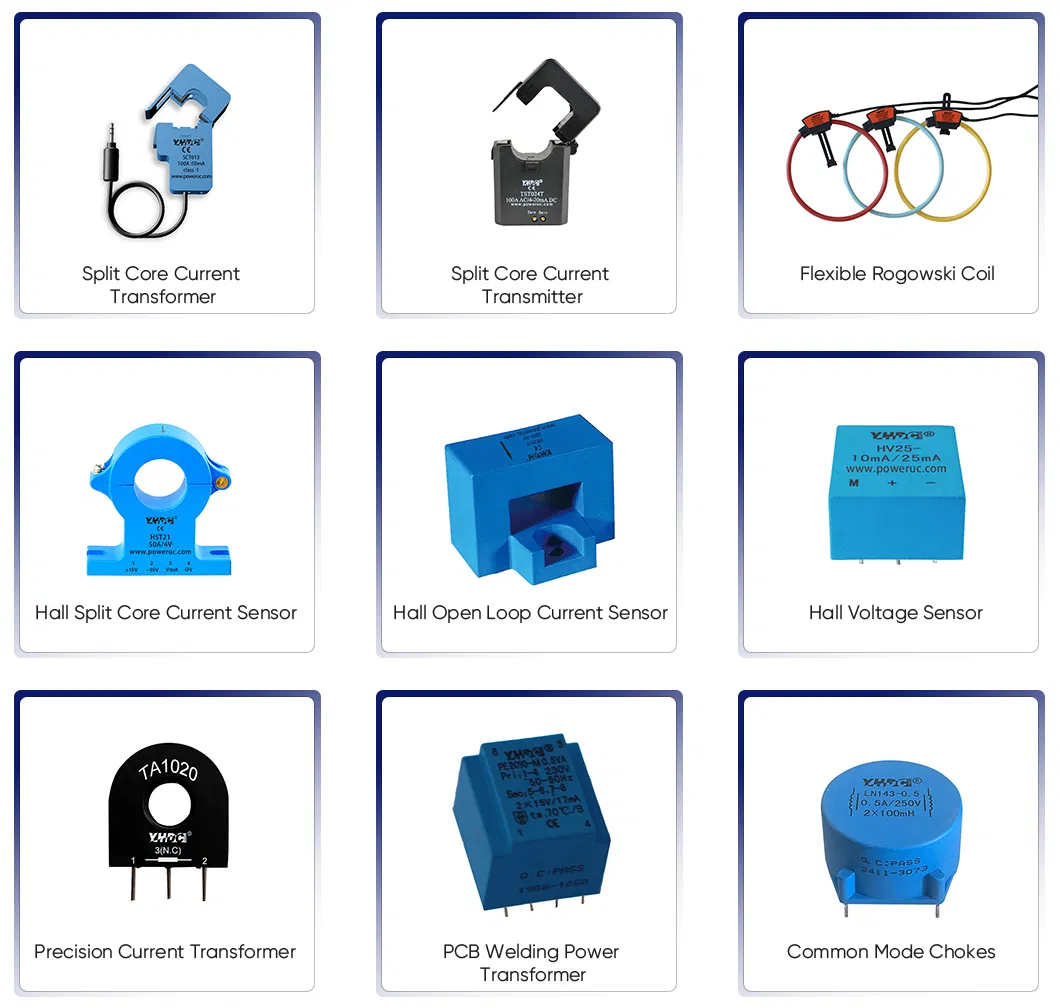

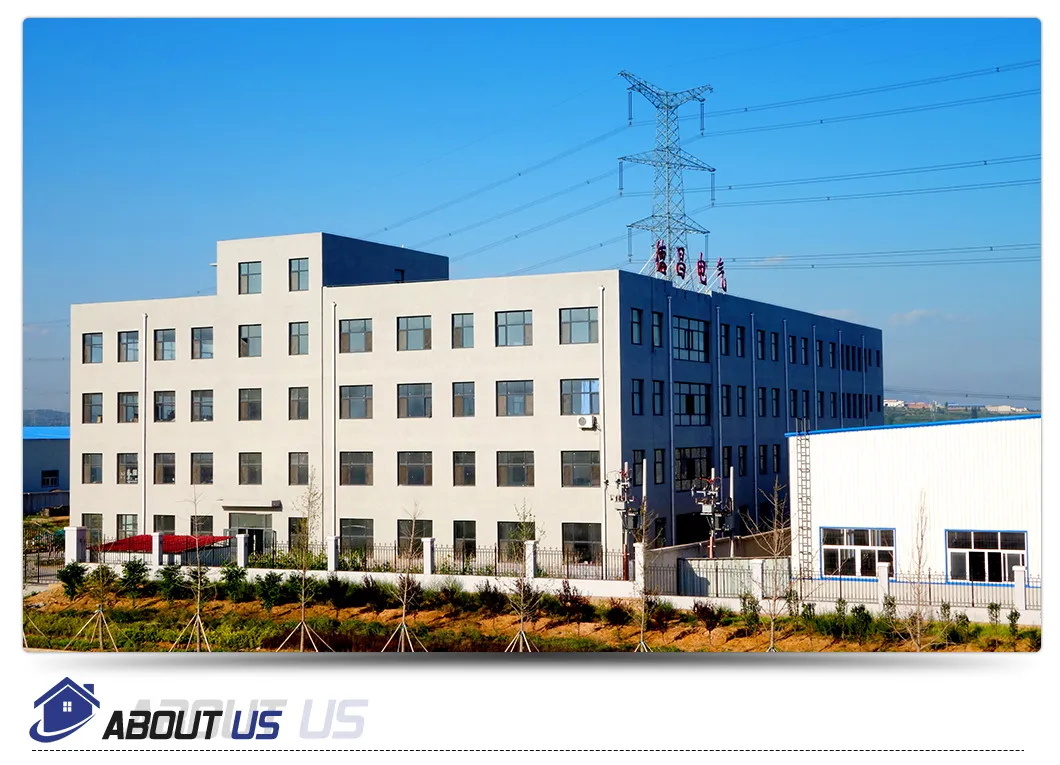

Established in 1992, we are a leading manufacturer of electromagnetic components and devices. Our products are widely used in industrial equipment, precision instruments, aerospace, medical, railway, and wind power industries. The product range includes power transformers, current transformers, SCR trigger transformers, DC current sensors, and Rogowski coils. Our R&D team develops new high-performance devices annually, supported by our own mold manufacturing and injection molding workshops.
Our Advantages
We value our customers with 24-hour timing replies. We provide 1-year warranties and full technical support. Our products are designed for long-term reliable operation, with a service life of up to 20 years.
Package Details: All products are well-packed in cartons. We offer neutral packing or OEM options. You can design your own label and package.
Shipping: Products are shipped via DHL, FedEx, UPS, TNT (door to door), or via air and sea shipment for larger quantities.
