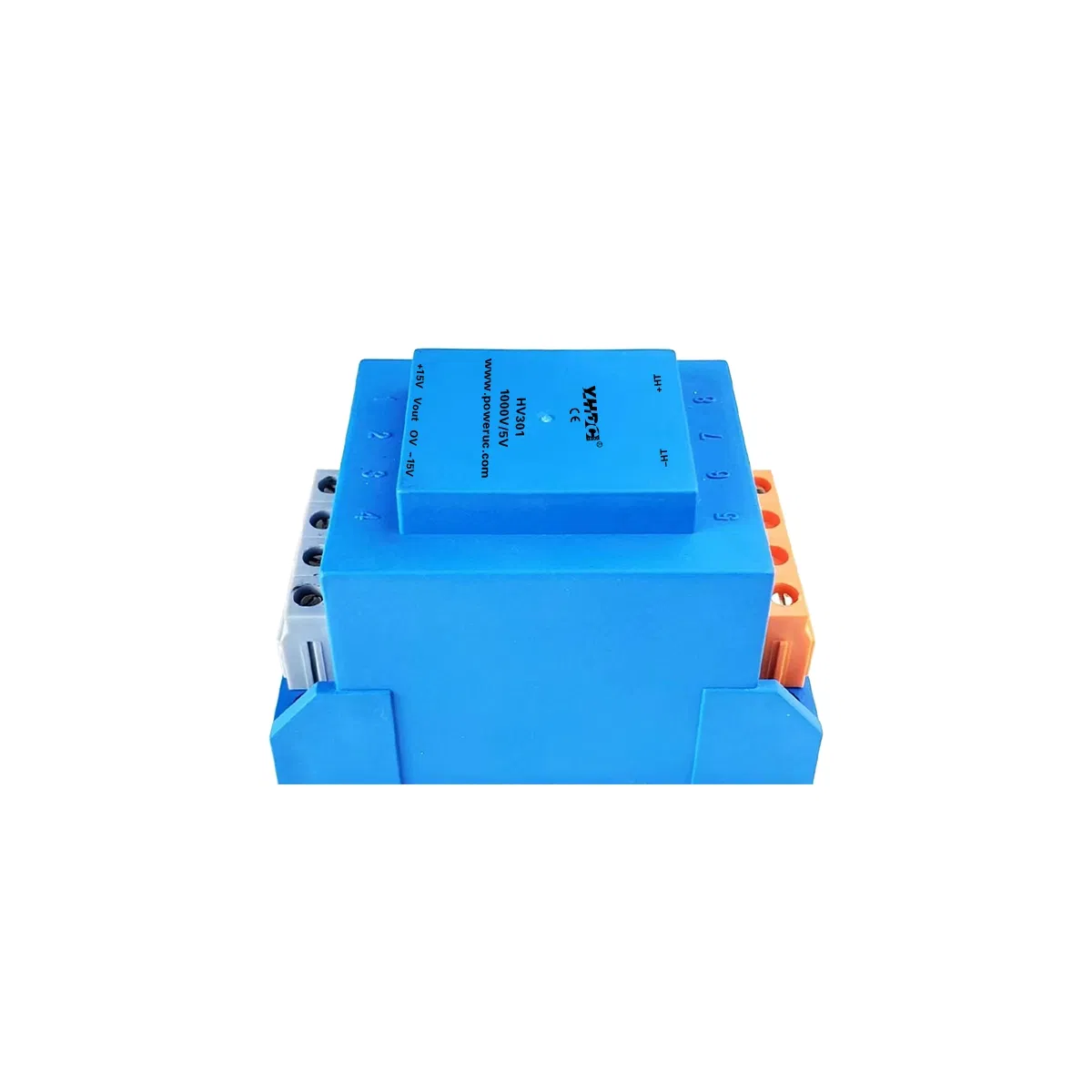

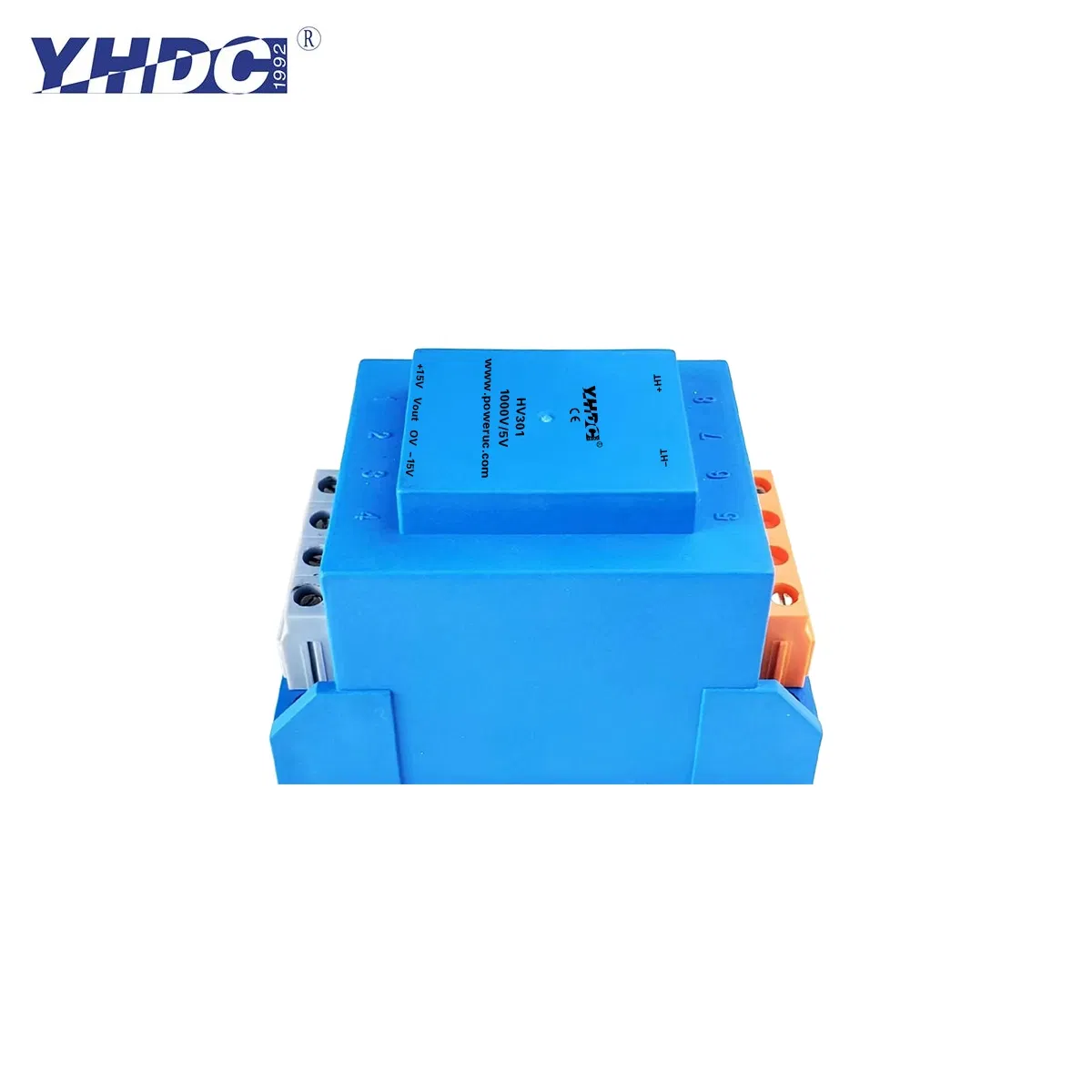

Hall Voltage Sensor HV301

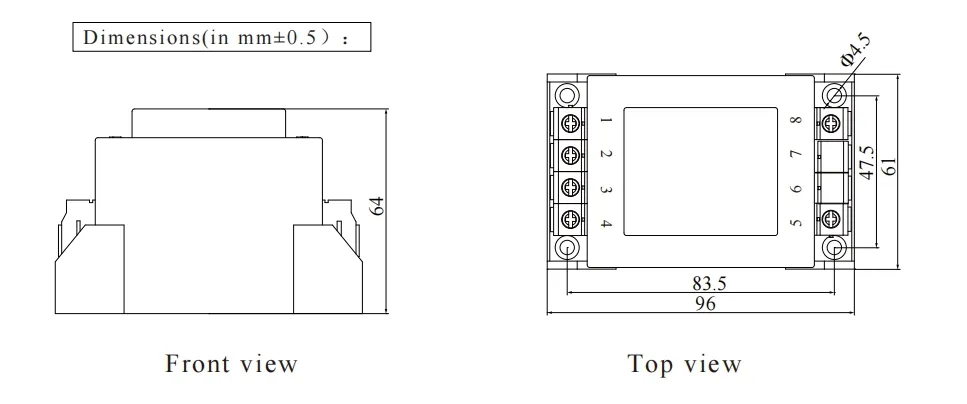

Sub-plate installation, Crimping terminal output. Detect DC, AC and pulse current, High insulation between primary side and the vice side circuit.
| Rated input | ±1000V / ±2000V |
| Input measured range | ±1500V / ±3000V |
| Rated output | ±5V |
| Accuracy | 1% |
| Linearity | 0.2% |
| Supply voltage(±5%) | ±12V/±15V |
| Current consumption | ±20mA+Is |
| Load impedance | ≥10KΩ |
| Zero offset TA=25ºC | ≤±30mV |
| Response time | 40~200μs |
| Working temperature | -10~+70ºC |
| Dielectric strength | 3.5KV 50Hz 1min |
Electrical isolation: Hall voltage sensors provide electrical isolation between the sensor and the circuit under test, improving measurement safety.
Wide band response: Capable of measuring voltage signals from DC to high frequency.
Strong anti-interference: Excellent resistance to surrounding electromagnetic interference.

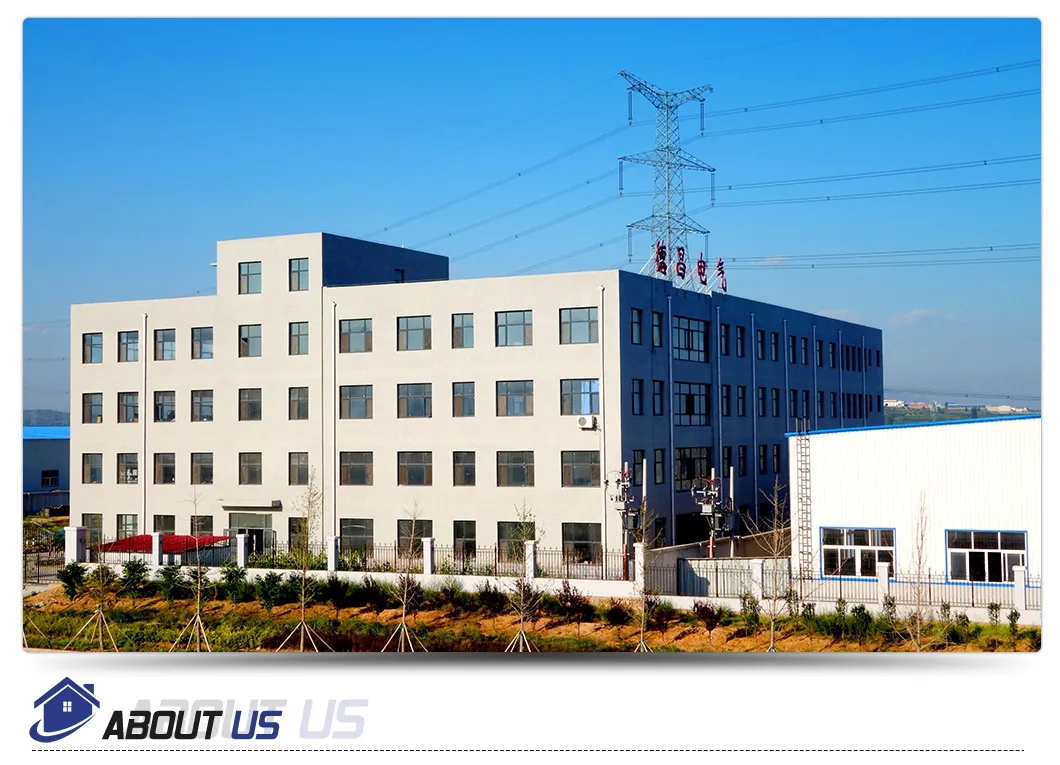

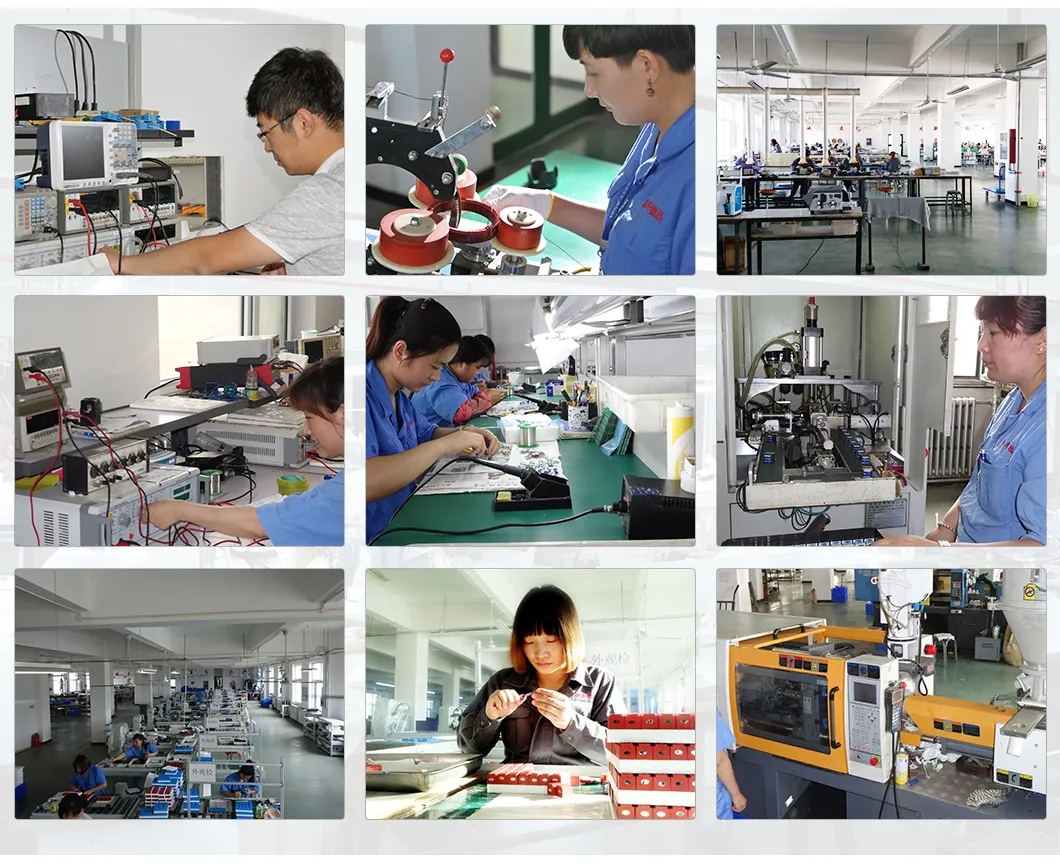

Established in 1992, the manufacturer is a leader in electromagnetic components. Products are widely used in industrial equipment, precision instruments, aerospace, medical, railway, and wind power industries. The facility includes mold manufacturing and injection molding workshops, focusing on high-quality designs for severe environments with a service life of up to 20 years.
• All units are well-packed in cartons.
• Supports neutral packing or OEM requirements.
• Shipped via DHL, FedEx, UPS, TNT (door to door), or via air/sea for large quantities.
