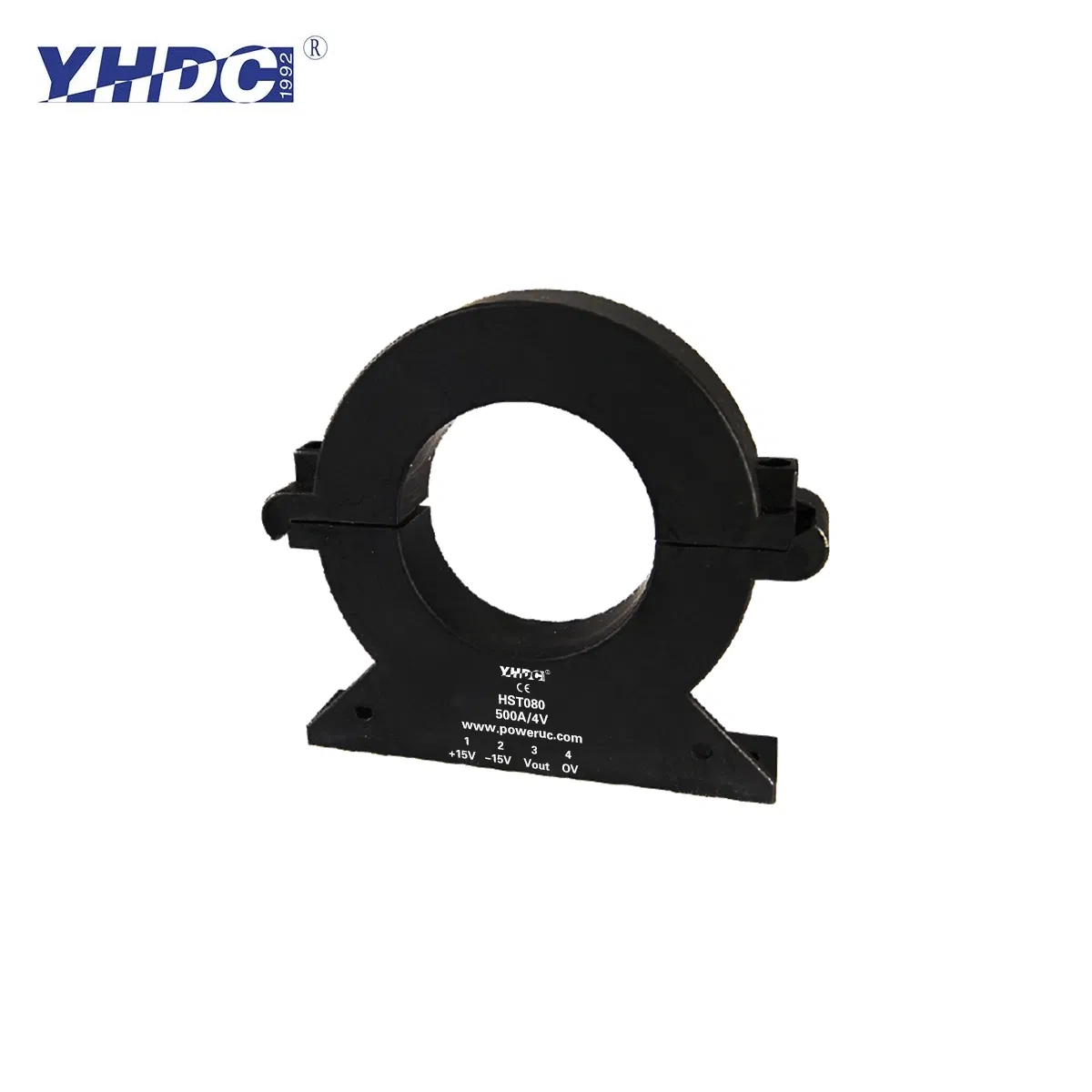

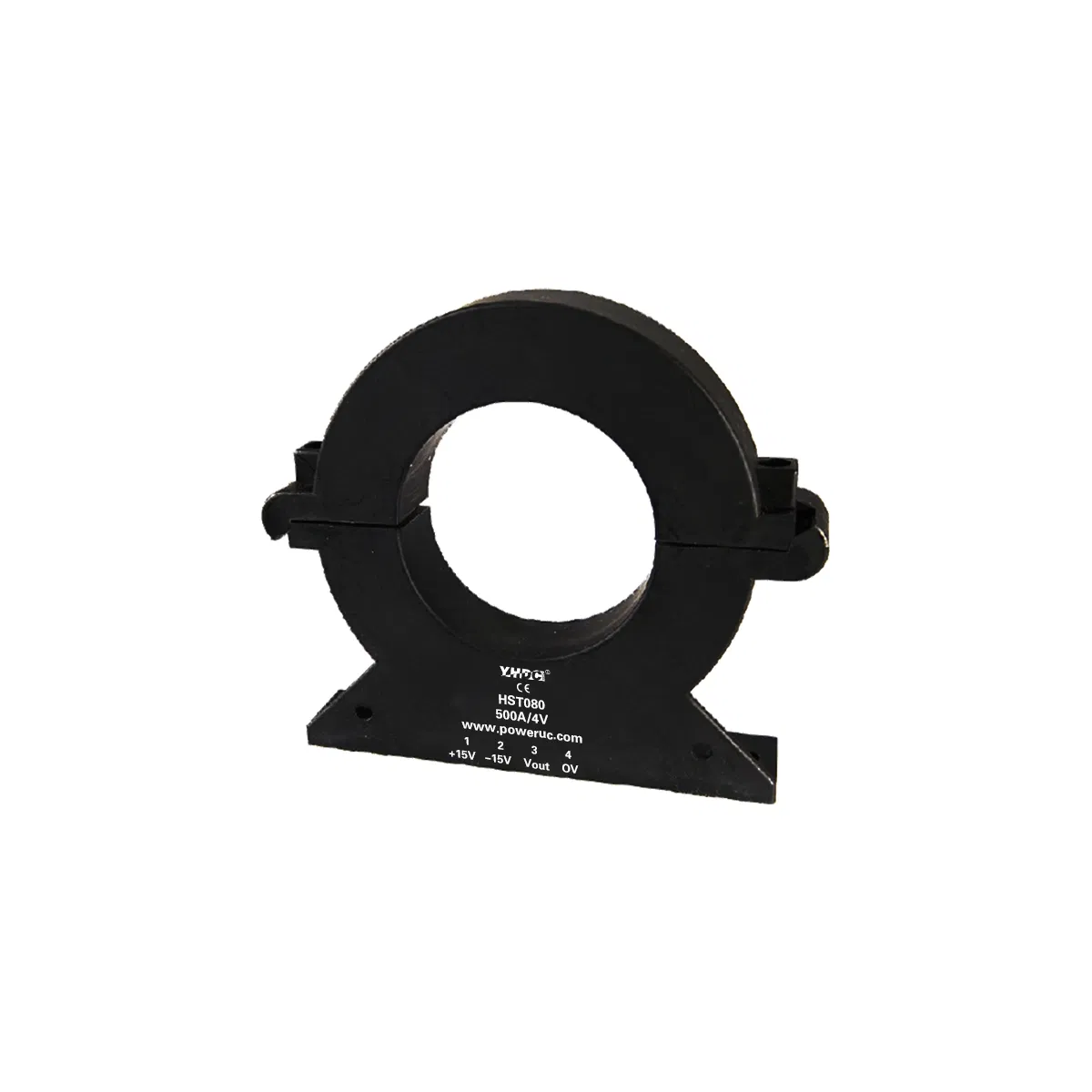

Hall Effect Split Core Current Sensor HST080
Open loop split core type, sub-plate installation, terminal output. Detect DC, AC and pulse current. Features high insulation between primary side and the vice side circuit.
| Parameter | Specifications |
|---|---|
| Rated input | ±500A, ±600A, ±800A, ±1000A, ±1200A, ±1500A |
| Input measurement range | ±600A to ±1800A |
| Rated output | ±4V |
| Accuracy / Linearity | 1% |
| Supply voltage | ±12V / ±15V |
| Current consumption | ≤±16mA |
| Load impedance | ≥10KΩ |
| Zero offset voltage | ≤±15mV |
| Response time | ≤5μs |
| Band width | DC ~ 10KHz |
| Operation temperature | -10 ~ +70ºC |

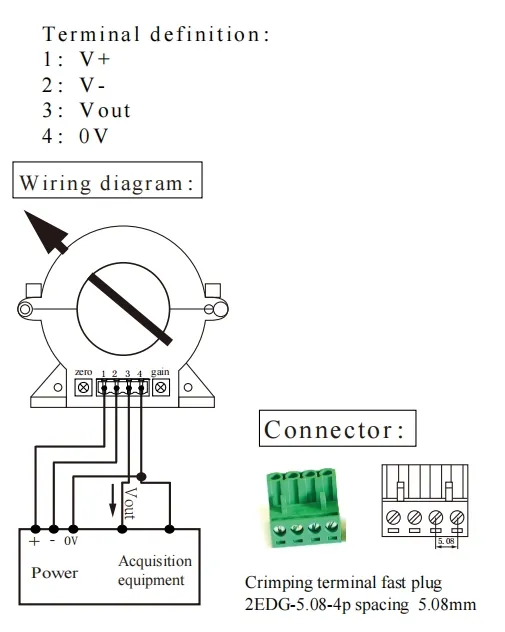

Instructions for use:
Established in 1992, the manufacturer is a leader in electromagnetic components. Products are widely used in industrial equipment, precision instruments, aerospace, medical, railway, and wind power industries. The product range includes power transformers, current transformers, SCR trigger transformers, and Rogowski coils. Equipped with internal mold manufacturing and injection workshops, the company focuses on high-quality designs capable of long-term reliable operation for up to 20 years.
Package Details: All units are well-packed in cartons. Options for neutral packing or OEM are available.
Shipping: Products are shipped via international couriers (DHL/FedEx/UPS/TNT) or via air and sea shipment for larger quantities.
