Yhdc 2000A-5000A ± 4V AC/DC Hall Effect Split Core Current Sensor Hst18244

Basic Information

Model NO.

HST18244

Accuracy Grade

1.0G

Certification

CE

Rated Input

2000A-5000A

Output

±4V

Supply Voltage

±12V/±15V

Opening Size

182mm*44mm

Weight

4537g

Product Overview

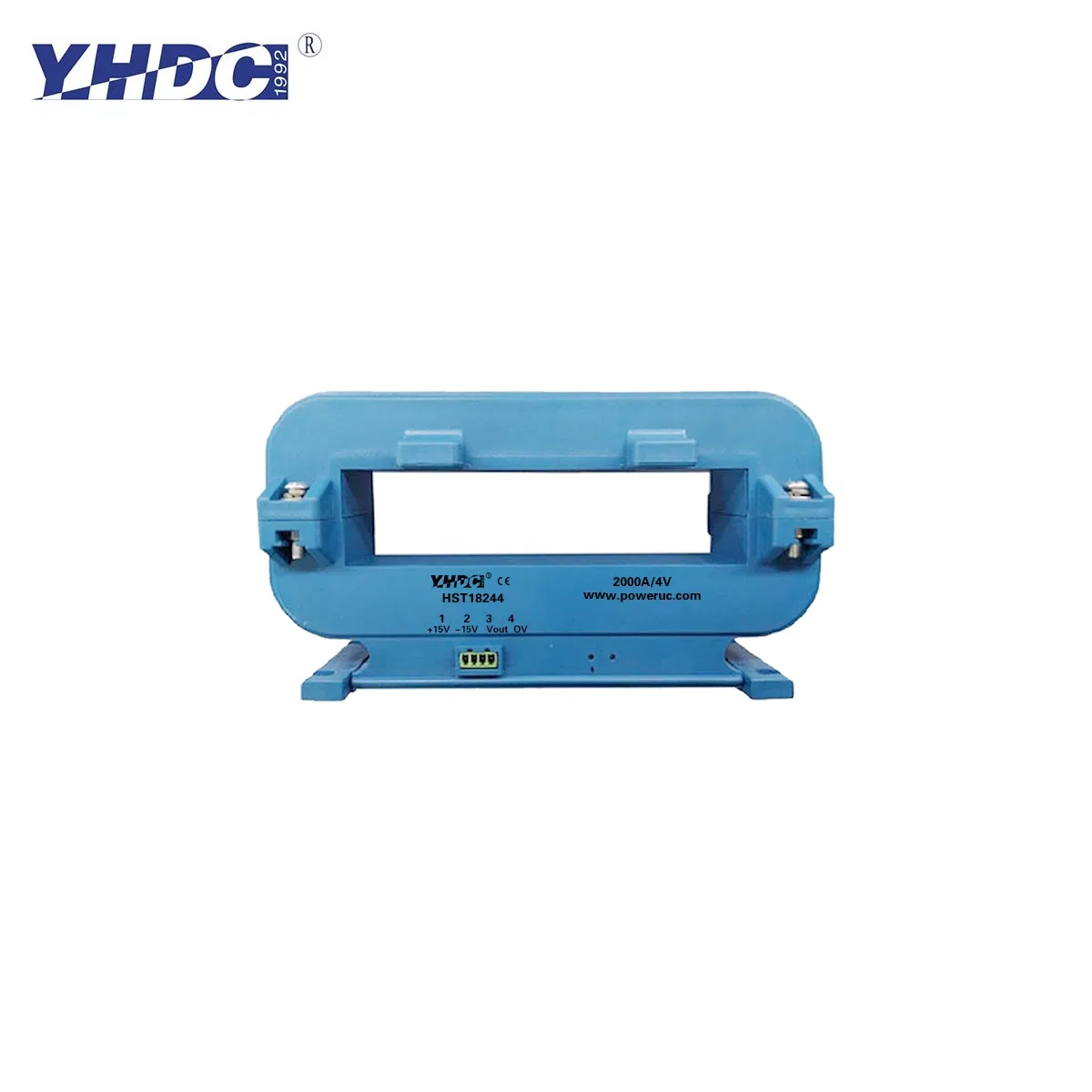

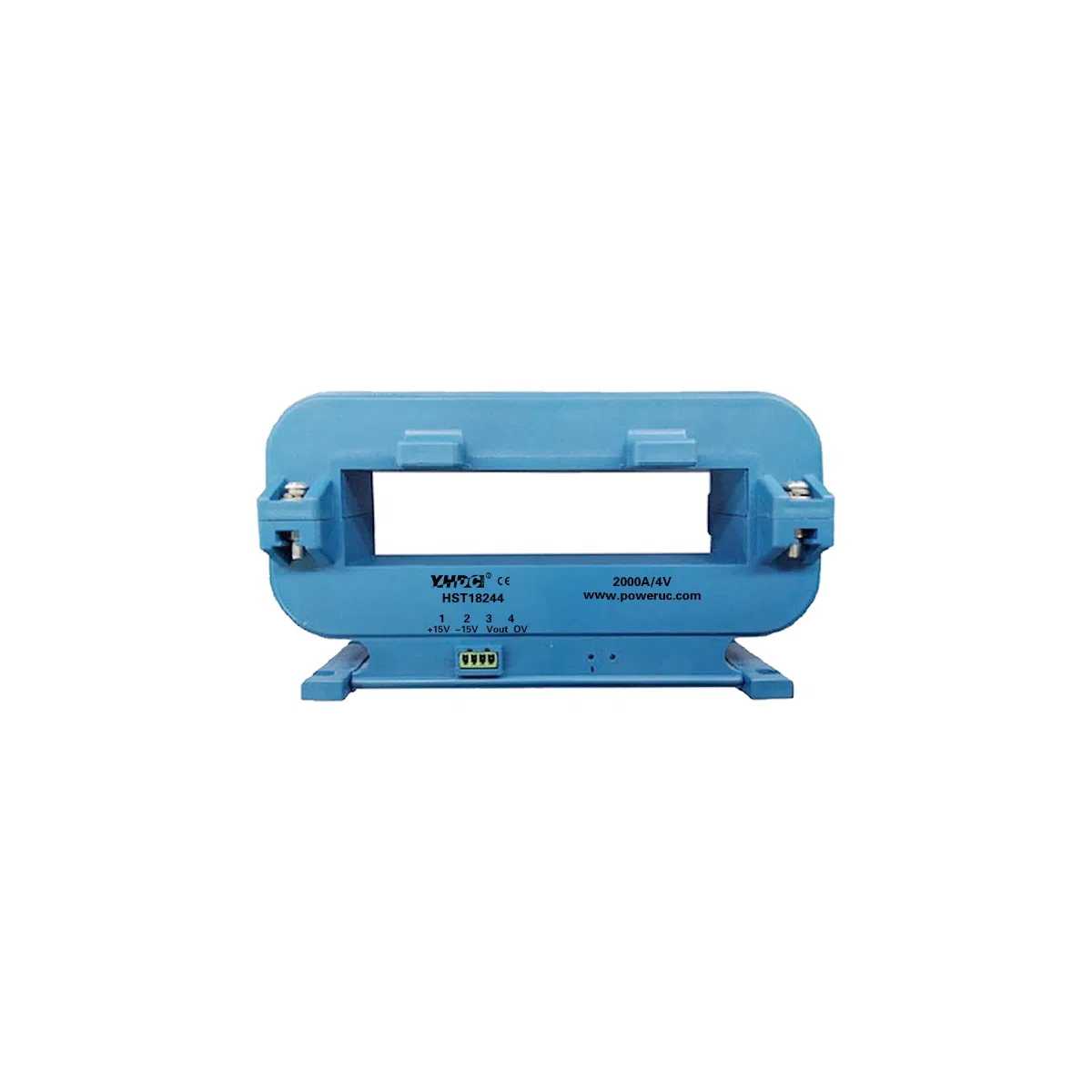

Hall Effect Split Core Current Sensor HST18244

This series features an open loop split core design for sub-plate installation with terminal output. It is engineered to detect DC, AC, and pulse currents with high insulation between the primary side and the secondary circuit.

Product Features

Light weight & Low power consumption
Excellent linearity
No insertion loss
Fast response time
Superior anti-interference ability

Applications

Railway & Metallurgical systems
Welding machines & Robotics
Motor & Inverter power supplies
Variable frequency governors
Uninterrupted power supplies (UPS)

Electrical Parameters

Rated Input	±2000A	±3000A	±4000A	±5000A
Measurement Range	±2200A	±3600A	±4800A	±5000A
Rated Output	±4V
Accuracy / Linearity	1% / 1%
Response Time	≤5μs
Dielectric Strength	6KV 50Hz 1min
Operation Temp.	-10 ~ +70ºC

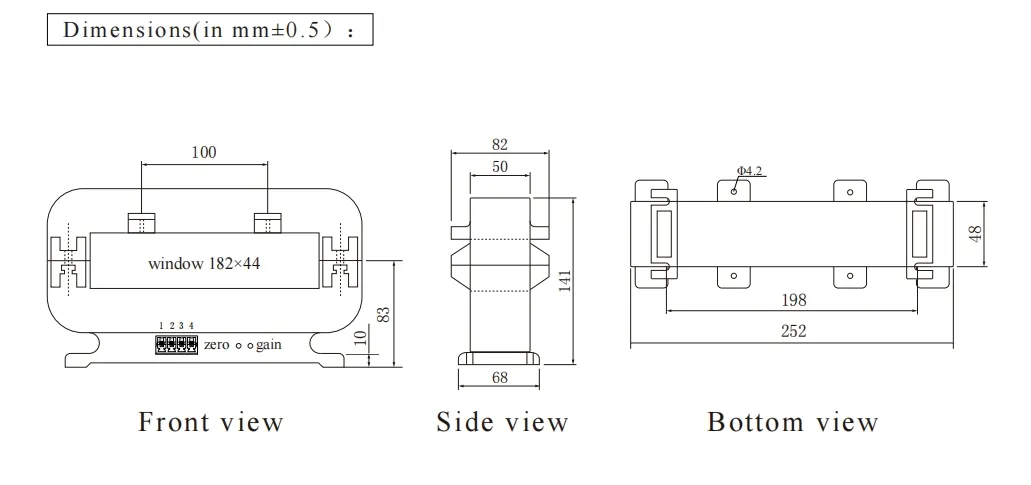

Dimensions and Diagrams

Operation Guide

📝

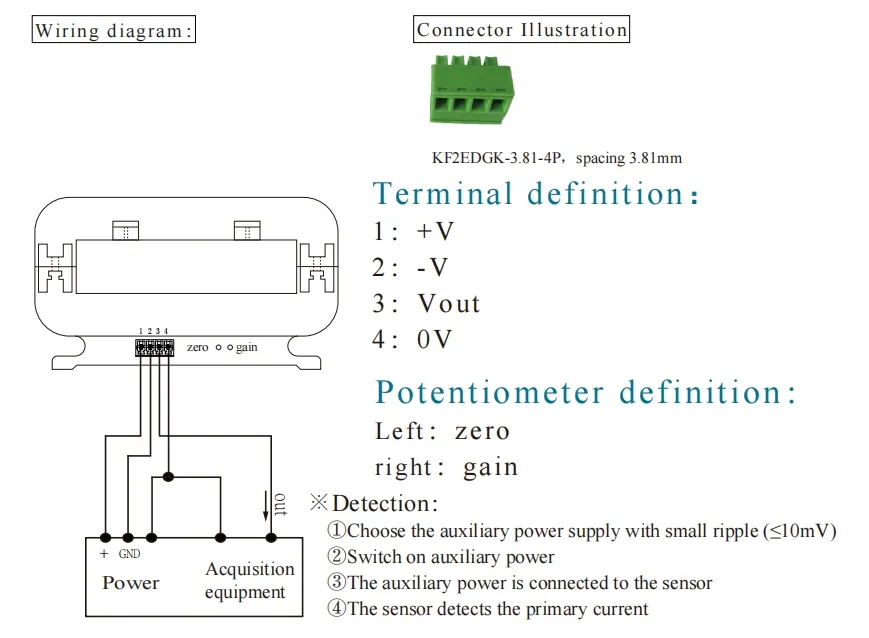

Instructions for Use:
1. Ensure correct connection according to the mode.
2. The arrow direction indicates positive flow.
3. Hole measurement provides the best response speed.
4. Avoid faulty wiring to prevent product damage.

🛡️

Safe Operation:
* Read specifications carefully before use.
* Disconnect power and cables before moving the product.
* Immediately address any damage to the shell or wiring to avoid hazards.
