UL Certification 15mm Ring Type Solid Core Zero-Phase Current Transformers
UL Certification 15mm Ring Type Solid Core Zero-Phase Current Transformers
UL Certification 15mm Ring Type Solid Core Zero-Phase Current Transformers
1 / 3
UL Certification 15mm Ring Type Solid Core Zero-Phase Current Transformers
UL Certification 15mm Ring Type Solid Core Zero-Phase Current Transformers
UL Certification 15mm Ring Type Solid Core Zero-Phase Current Transformers

UL Certification 15mm Ring Type Solid Core Zero-Phase Current Transformers

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
ECO1530-L6-G
Phase
Single
Operation
Indoor
Usage
Measurement
Winding
Single Layer & Tightly Wound
Insulation
Insulating Paper
Installation
Active Type
Structure
Single Stage Type
Principle
Electromagnetic Type
Package
400PCS/Box
Origin
China
HS Code
8504500000
Product Description

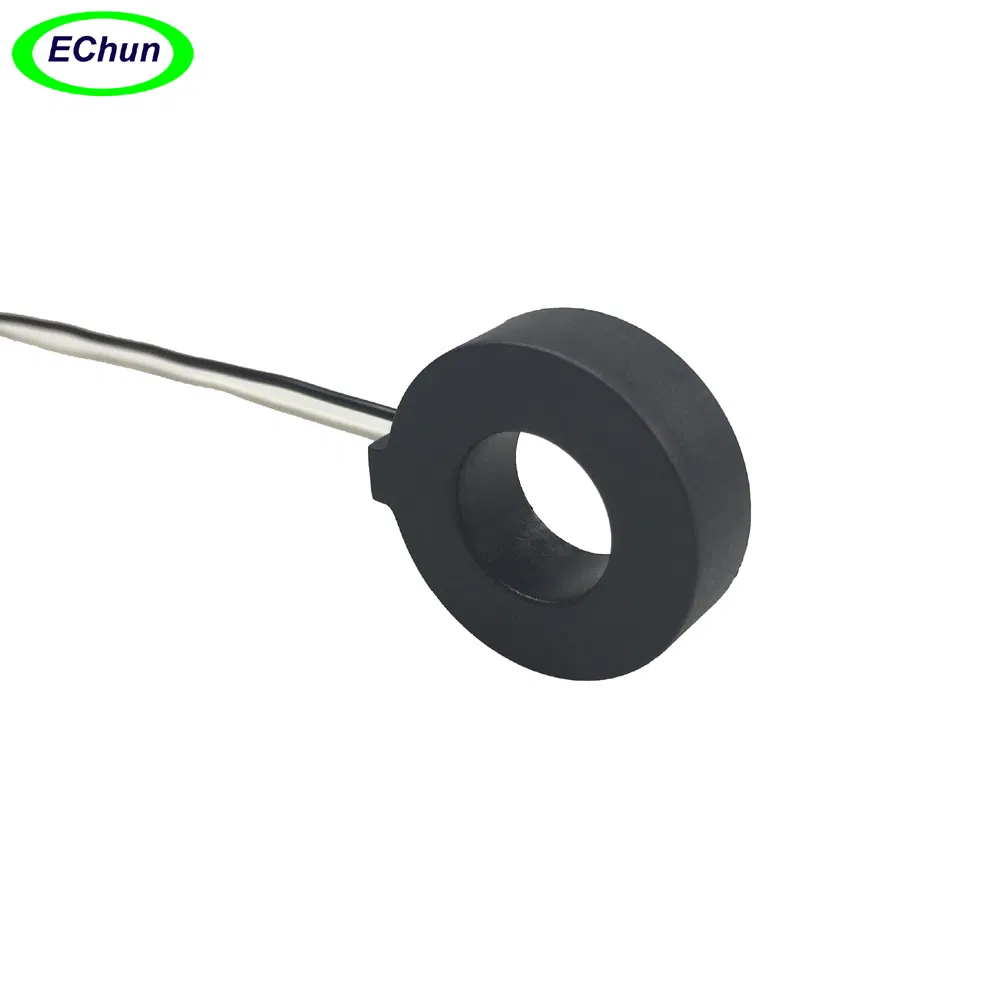

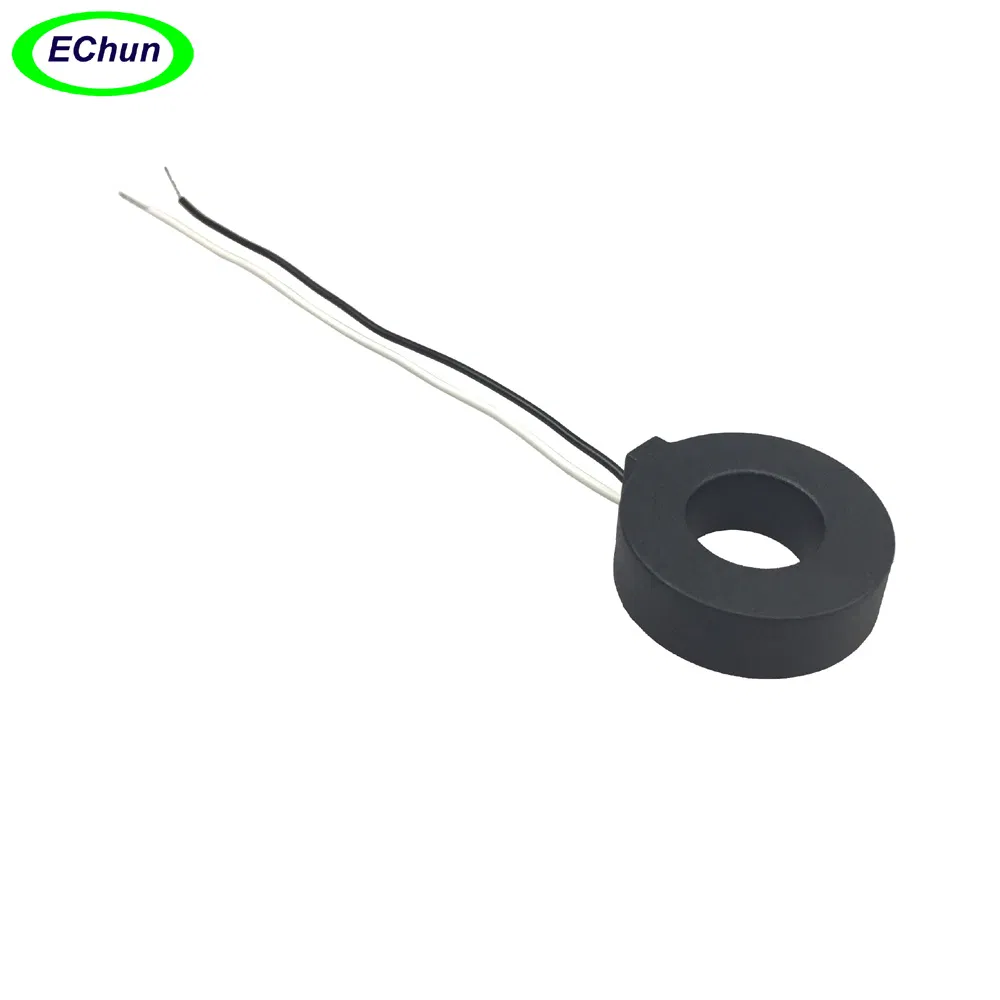

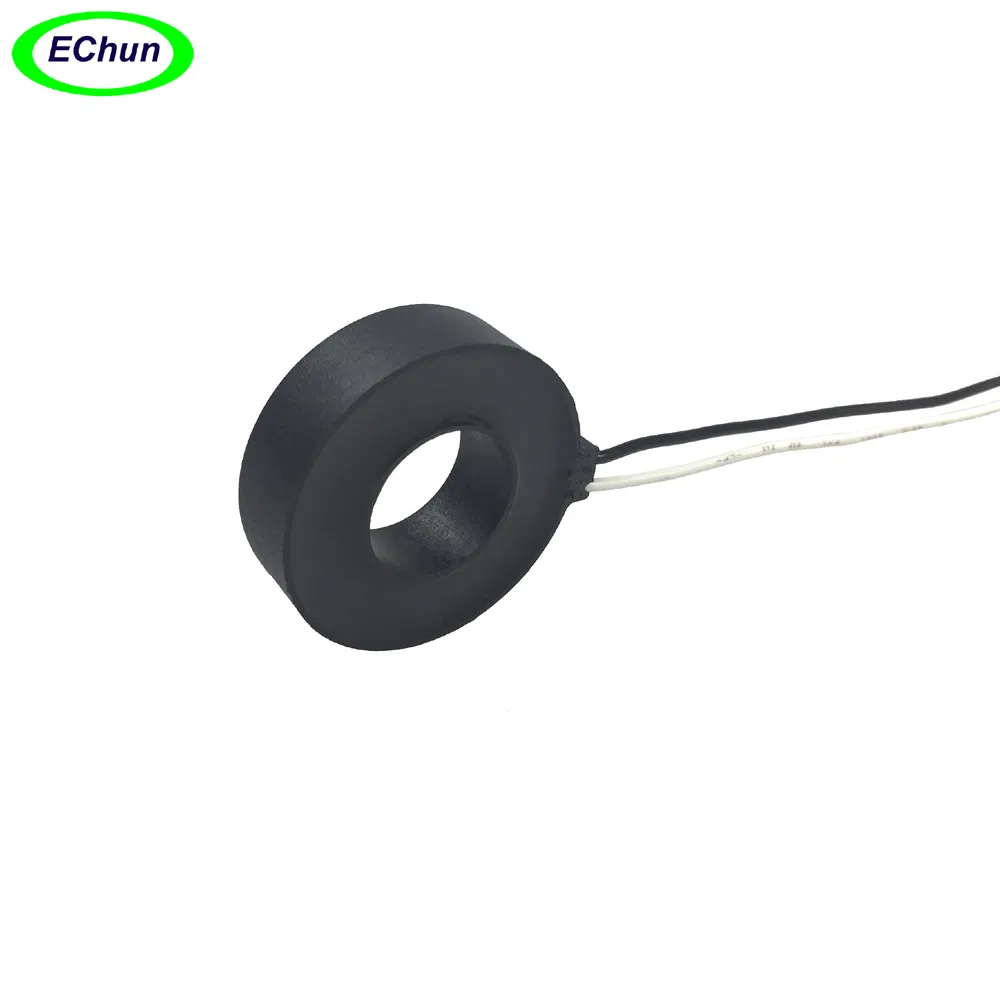

UL certification 15mm Ring type solid core Zero-phase current transformers

The ECO15 Series are Zero-phase Current Transformers. The ZT is small size, features lead wire connectivity, and offers a low-cost solution for precise electrical monitoring.

★ Customized current ratio available.
Max. Continuous Current (Amp.) 30
Turn ratio Np:Ns=1:1000
Rated Output Voltage (mV) 7.5min @Io=11.25mA, RL=1KΩ
Winding D.C. Resistance at 20 ºC(Ω) 28 ±10%
Operating Temperature Range -20~65ºC
Storage Temperature Range -25~80ºC
Dielectric Withstanding Voltage(Hi-pot) 4.0KV/1mA/1min
Impulse Withstand Voltage 5KV Peak
Insulation Resistance DC500V/100MΩ min
🚀 Key Advantages
Excellent linearity over the whole range.
Fully RoHS compliant.
Small size and easy installation.
Cost-effective electromagnetic type design.
🎯 Applications
Current measurement and monitoring.
Protection systems and network equipment.
Energy and sub-metering products.
Instruments, sensors, and control systems.
Product Gallery

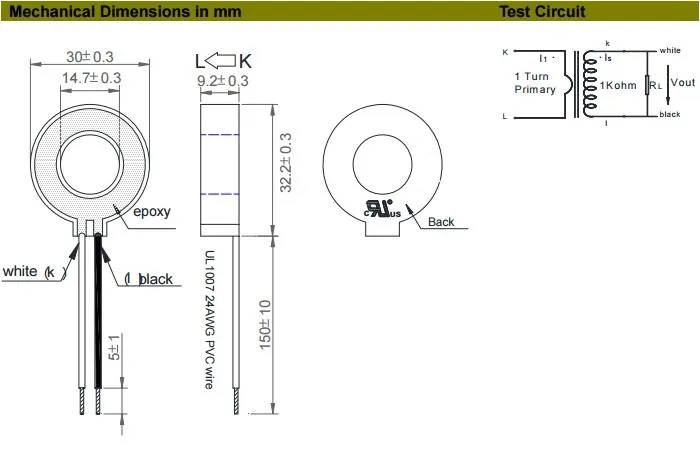

Current Transformer 1

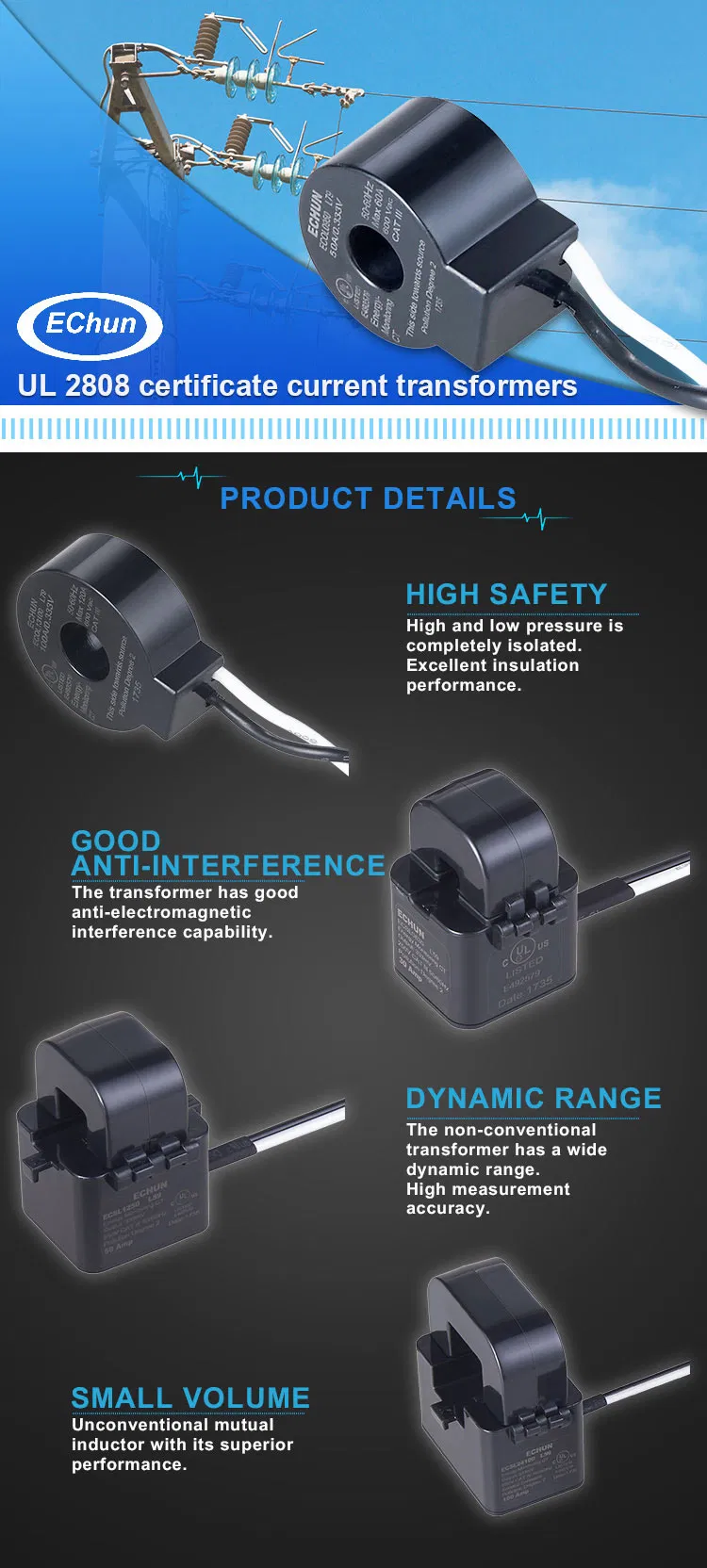

Current Transformer 2
Current Transformer 3
Current Transformer 4
Current Transformer 5
Current Transformer 6
Frequently Asked Questions
Q1: What is the primary purpose of the ECO1530-L6-G series?
A: It is a Zero-phase Current Transformer designed for current measurement, monitoring, protection, and energy metering applications.
Q2: What is the turn ratio of this current transformer?
A: The standard turn ratio is Np:Ns = 1:1000, but customized current ratios are also available.
Q3: Does the product meet international safety and environmental standards?
A: Yes, it is UL certified and fully RoHS compliant, ensuring high safety and environmental protection standards.
Q4: What are the temperature limits for operation and storage?
A: The operating temperature range is -20°C to 65°C, and the storage temperature range is -25°C to 80°C.
Q5: What is the insulation performance of the ECO15 series?
A: It features a dielectric withstanding voltage (Hi-pot) of 4.0KV/1mA/1min and an insulation resistance of DC500V/100MΩ min.
Q6: What is the packaging specification for bulk orders?
A: The standard transport package contains 400 pieces per box.
