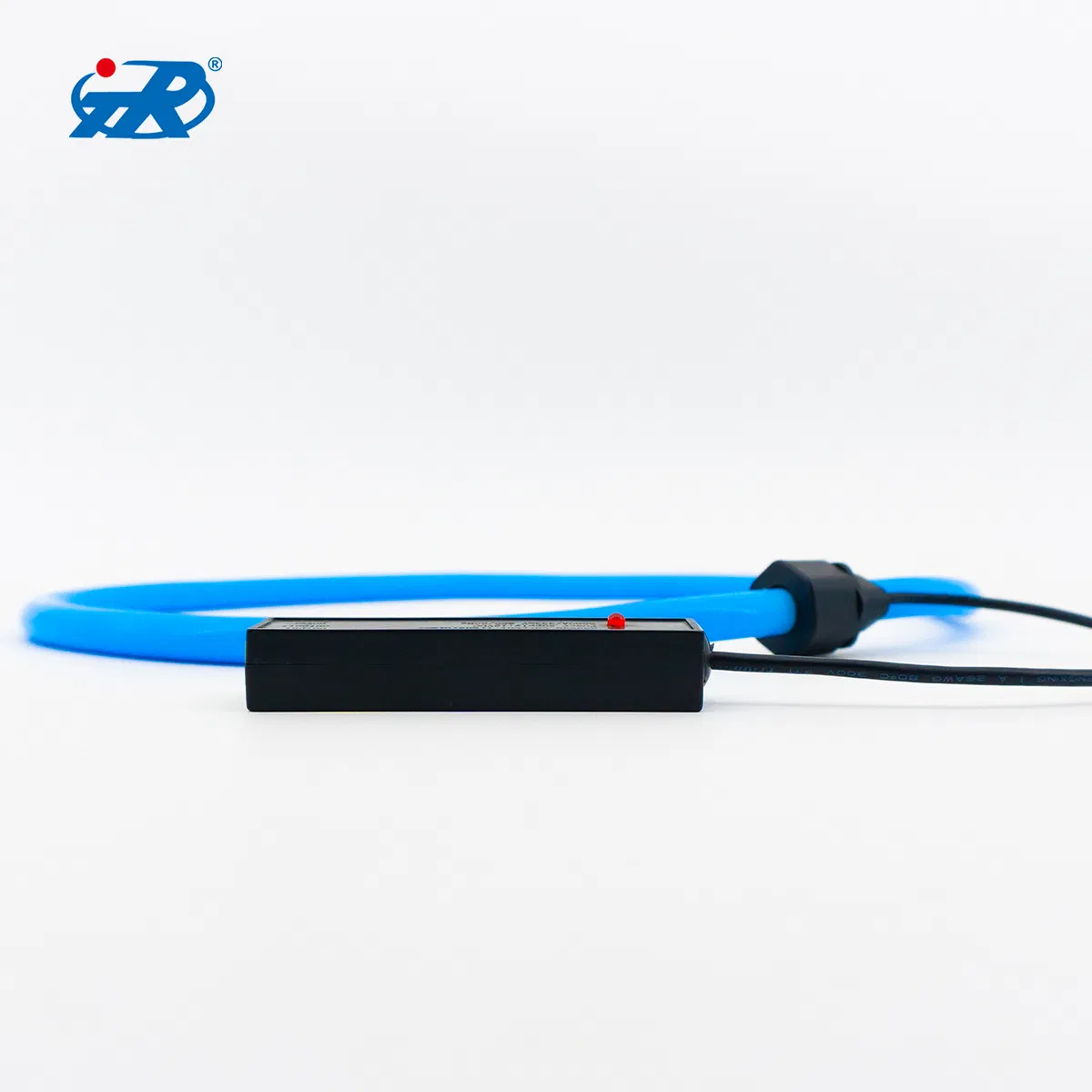

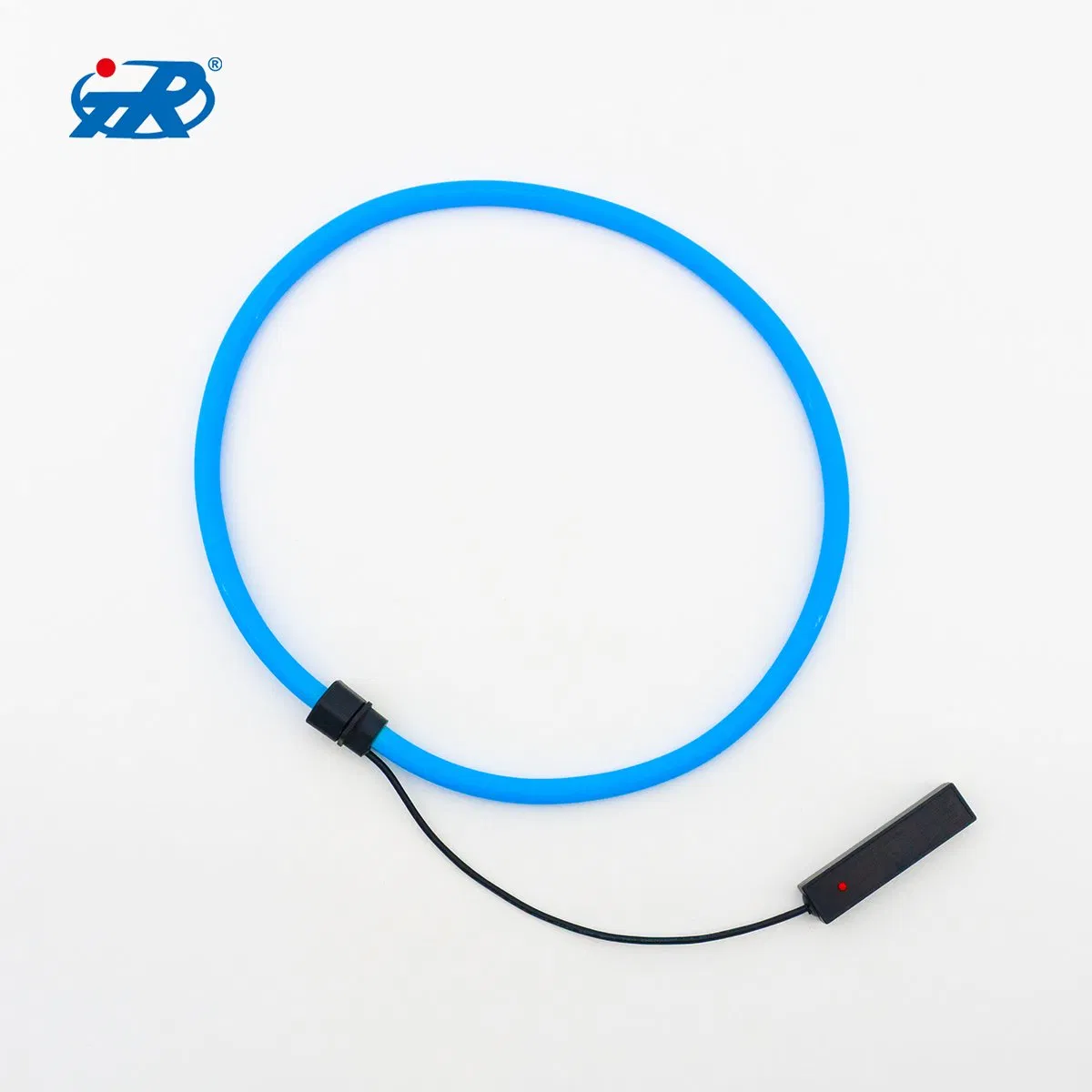

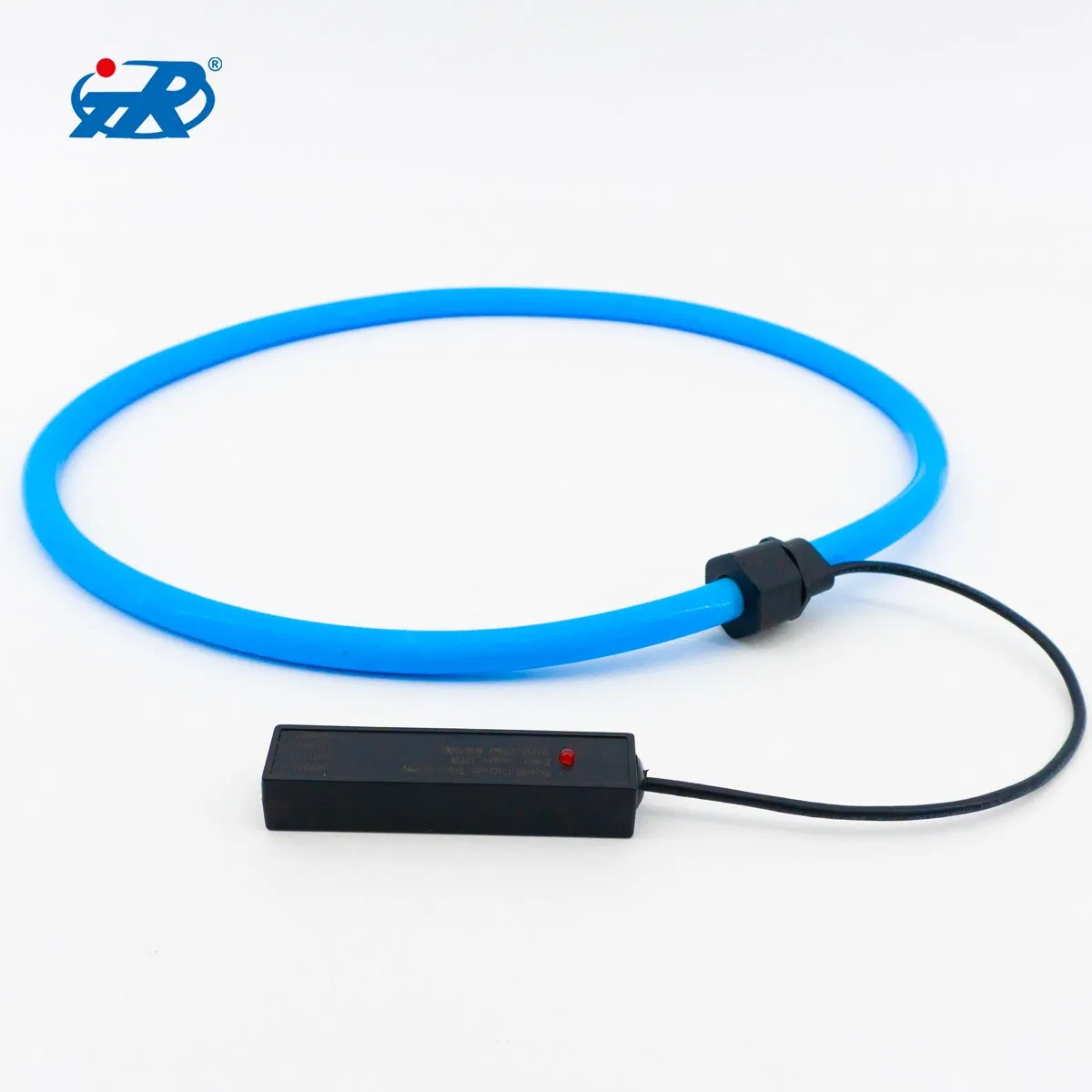

TRKLS-R series split-core three-phase flexible Rogowski coils are mainly used for the measurement and protection of three-phase current in power lines. The output signal is the differential of the current against time, and through an integrator, the measured current can be truly restored.

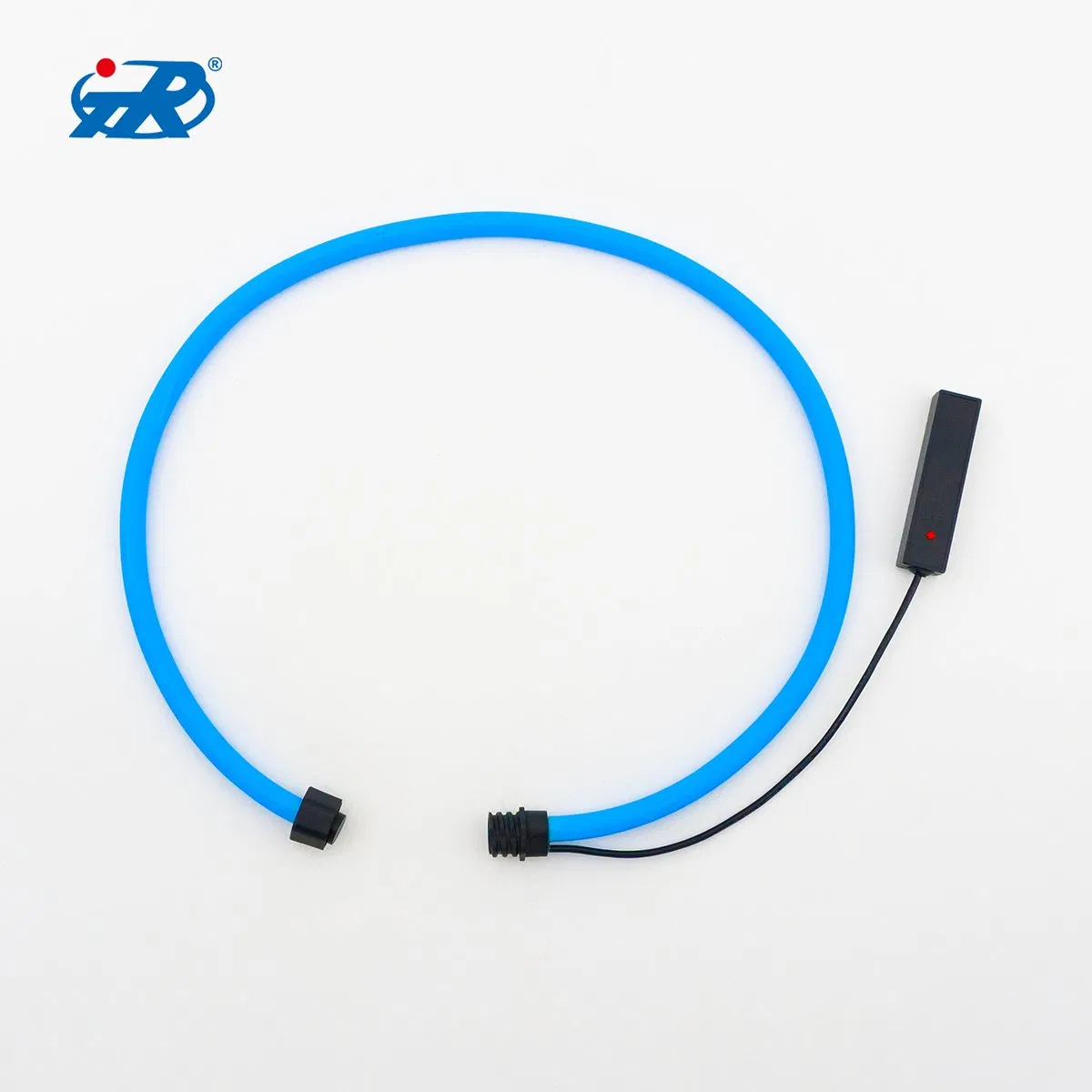

The coil has excellent transient response ability, no hysteresis and magnetic and saturation phenomenon, wide measurement range, high precision and wide frequency response range. The split-core structure, flexible silicone rubber quilt and skeleton, can be used to measure the current of conductors with large size or irregular shape. The coil requires very little installation space, light weight, simple and convenient installation, and no need to damage the conductor.
| PERFORMANCE SPECIFICATIONS | |||
|---|---|---|---|
| Working Temperature | -40ºC ~ +70ºC | Relative Humidity | ≤90% |
| Voltage Level | 0.4/0.66/0.72KV | Accuracy Class | 5% (without integrator) / 1% (with integrator) |
| Rated Input Current | 10~2000A | Phase Error | ≤60' (45Hz~65Hz) |
| Linear Range | 5%~200% | Response Bandwidth | 1Hz~1MHz |
| Integrator Power | 5~15VDC | Insulation Strength | 1000MΩ/500V/min |
| Skeleton Material | Silicone Rubber | Protection Class | IP65 |

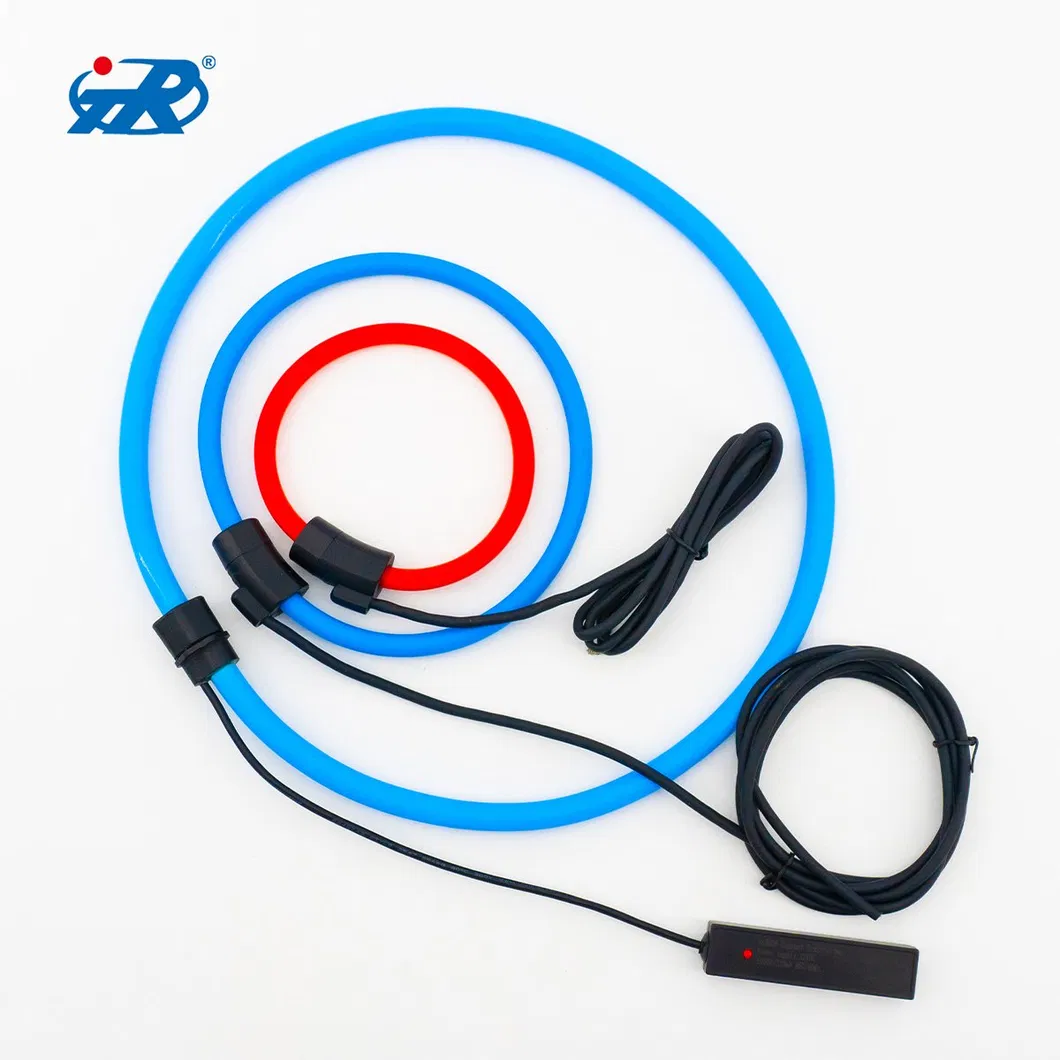

| Model No. | Rated Input | Rated Output | Precision Class | Φ1 (mm) | Φ2 (mm) |
|---|---|---|---|---|---|

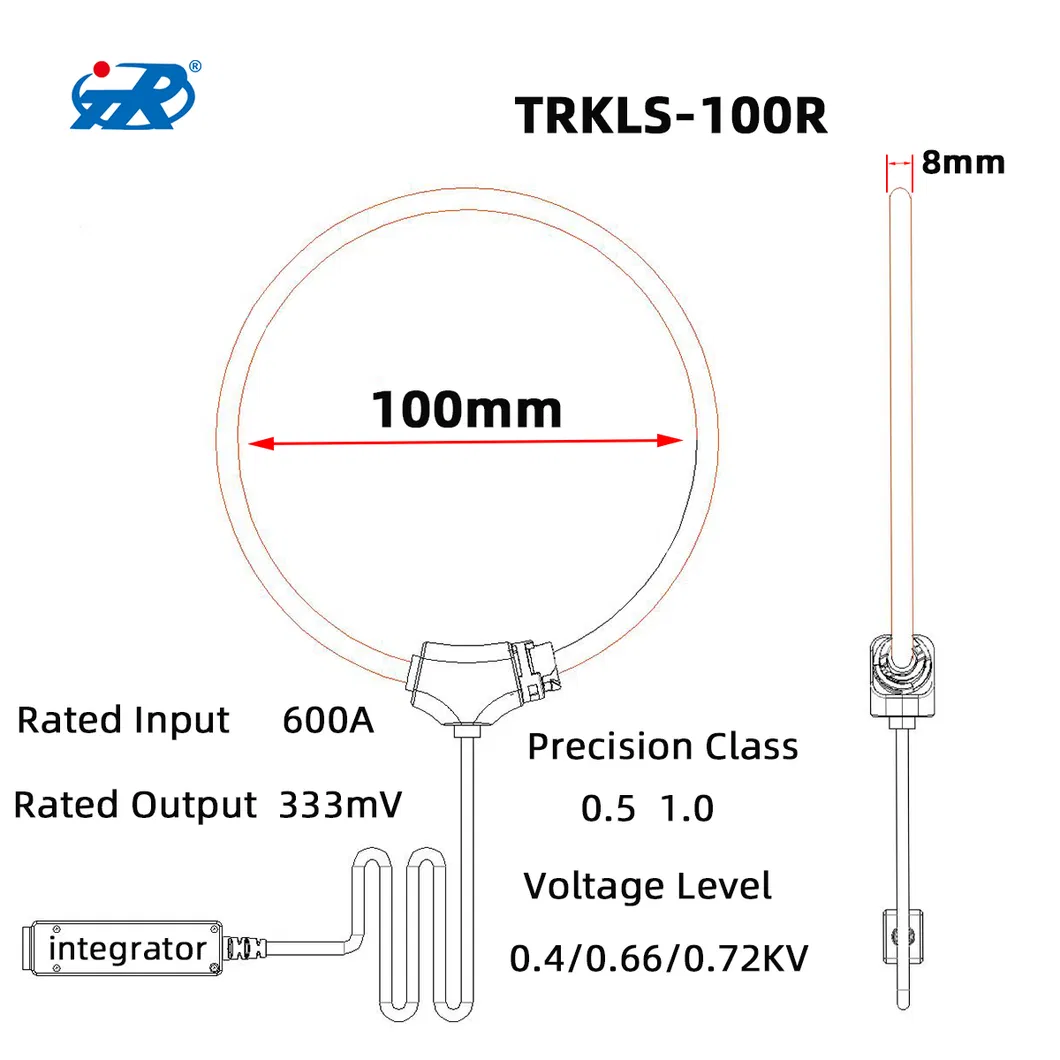

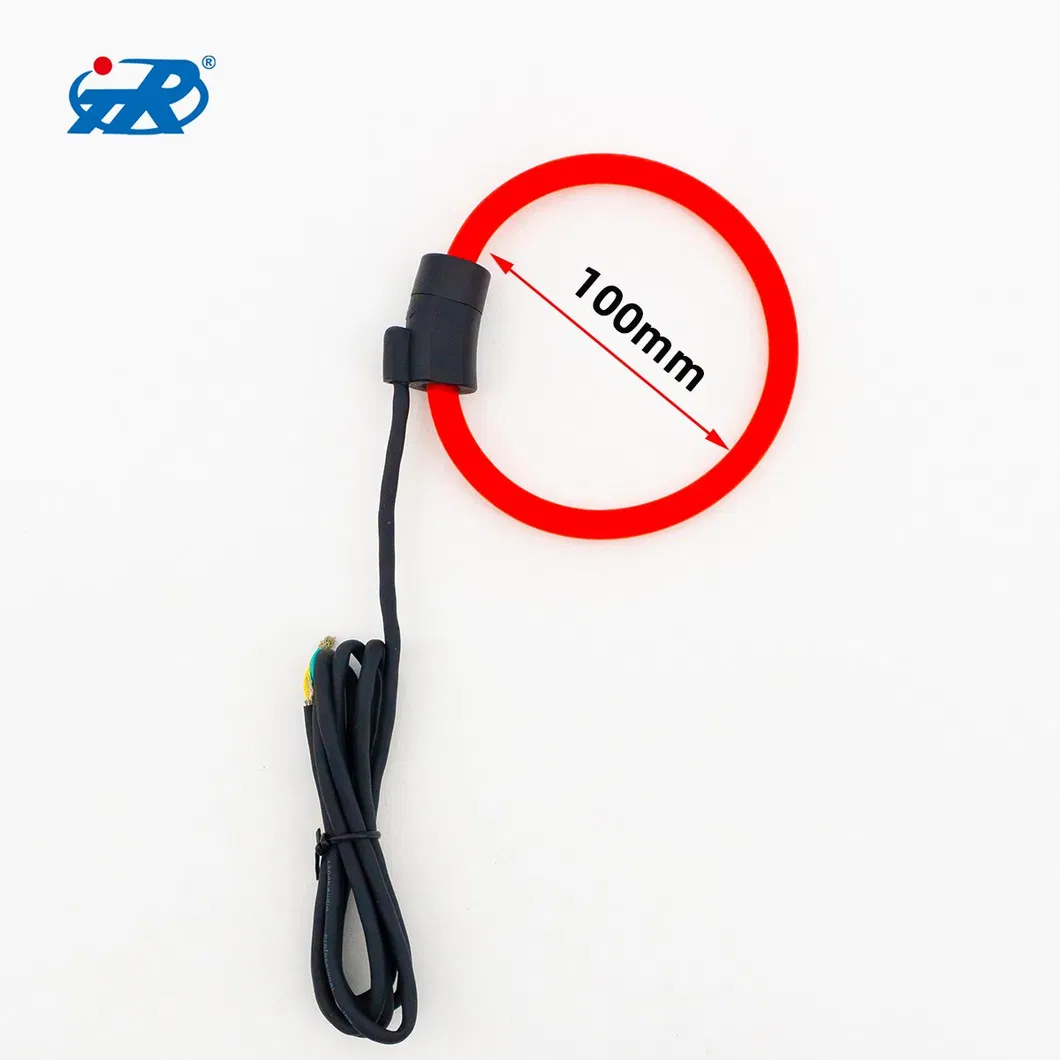

| TRKLS-100R | 600A | 333mV | 0.5 / 1.0 | 100 | 8 |

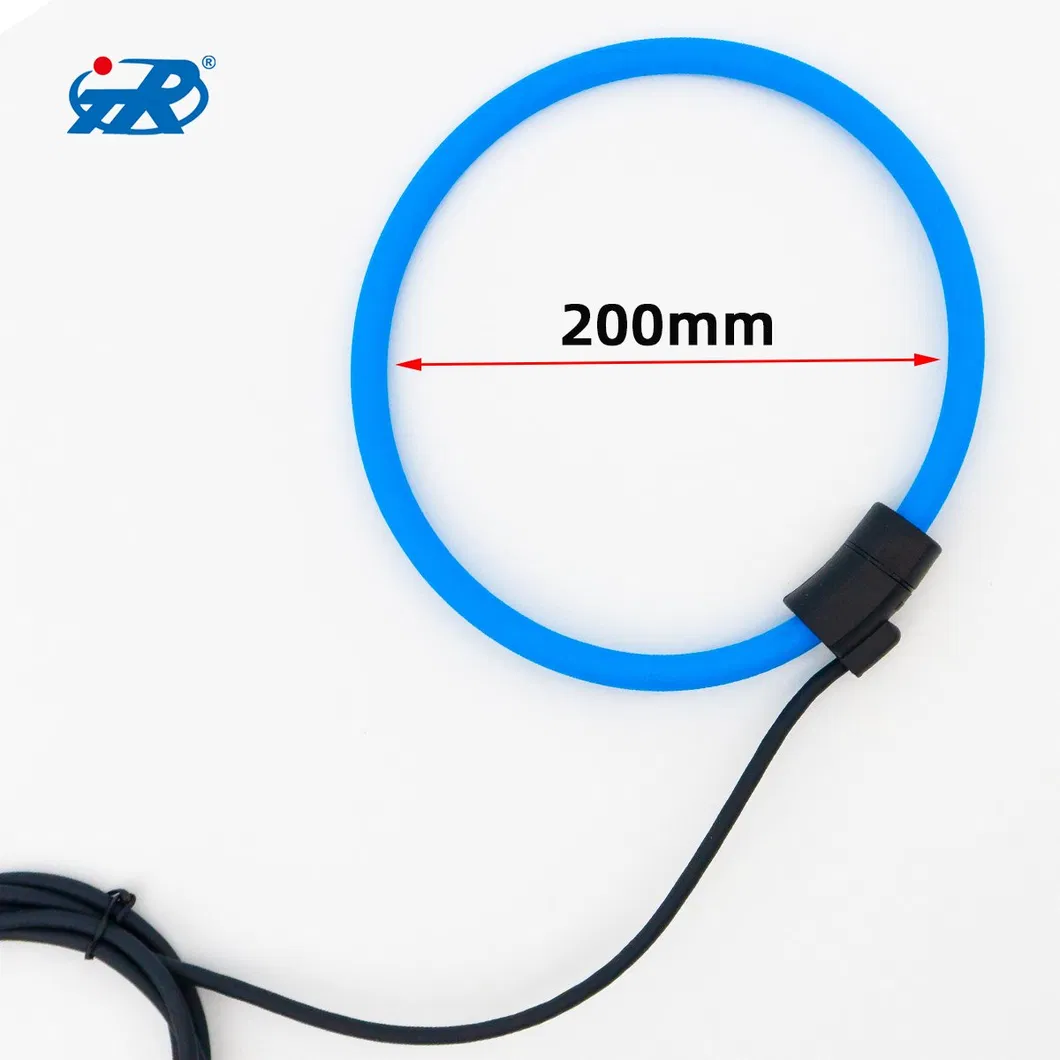

| TRKLS-200R | 1000A | 50mV | 0.5 / 1.0 | 200 | 8 |

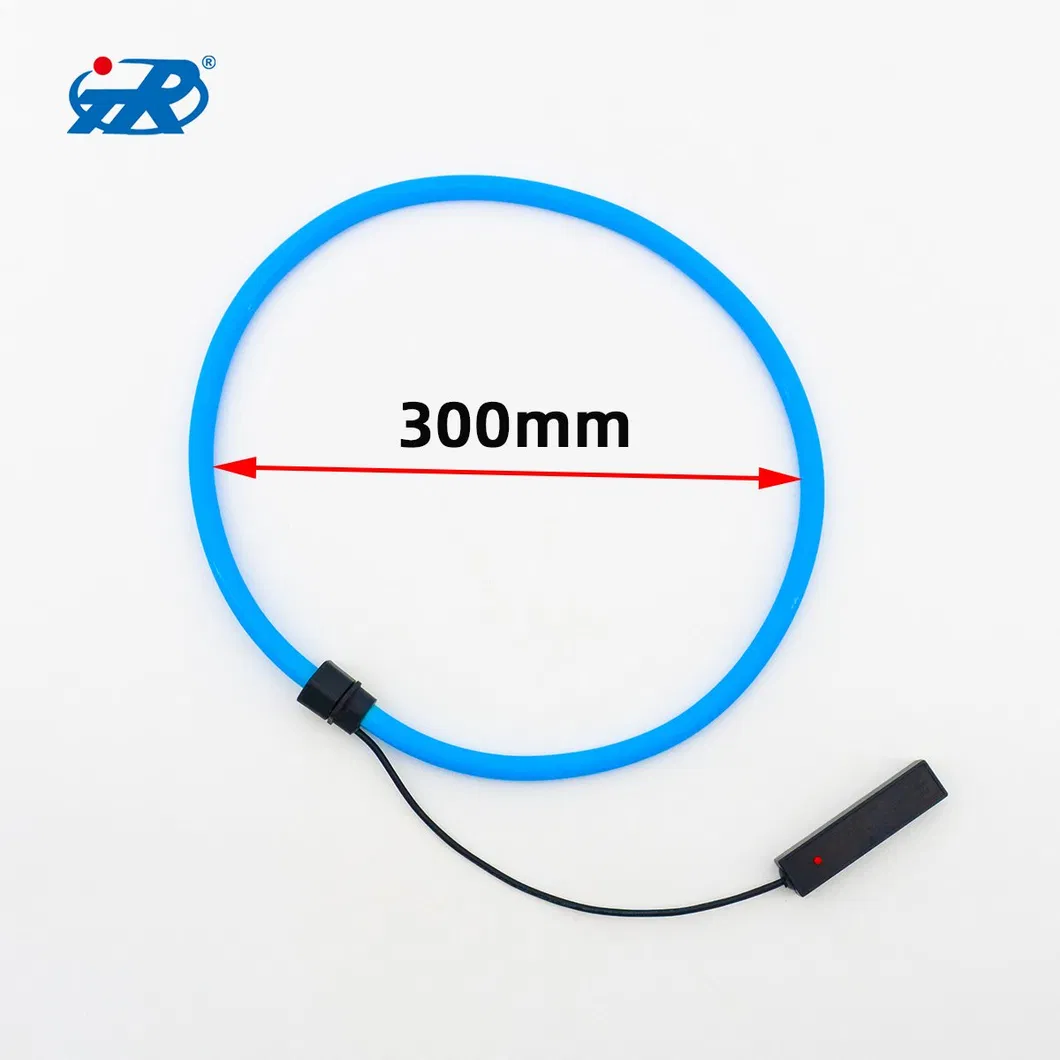

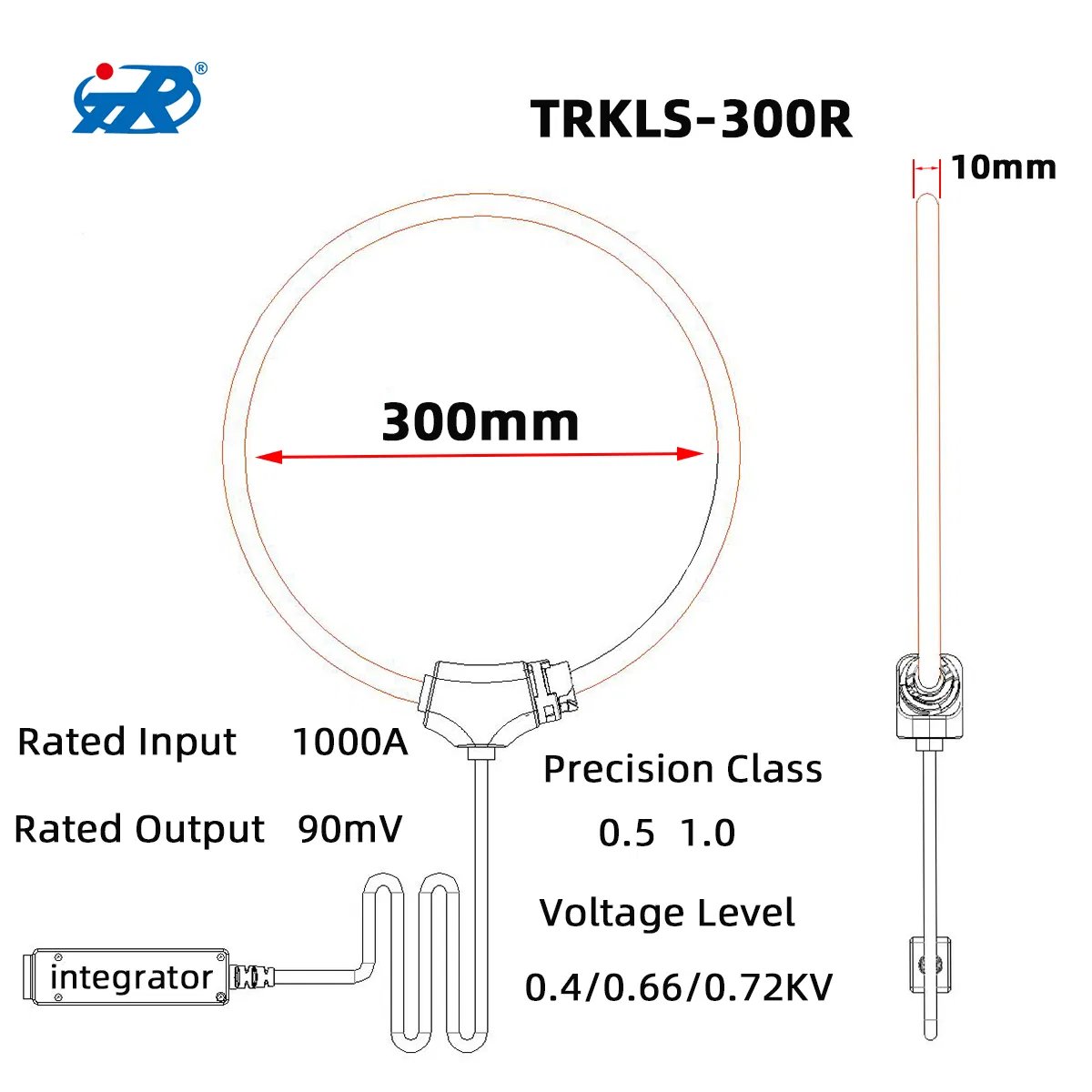

| TRKLS-300R | 1000A | 90mV | 0.5 / 1.0 | 300 | 10 |
Measurement of high current AC signals (short-circuit), pulse signals (lightning current), harmonic signals, electric welding machines, irregular conductor currents, and clamp meter transformers.
