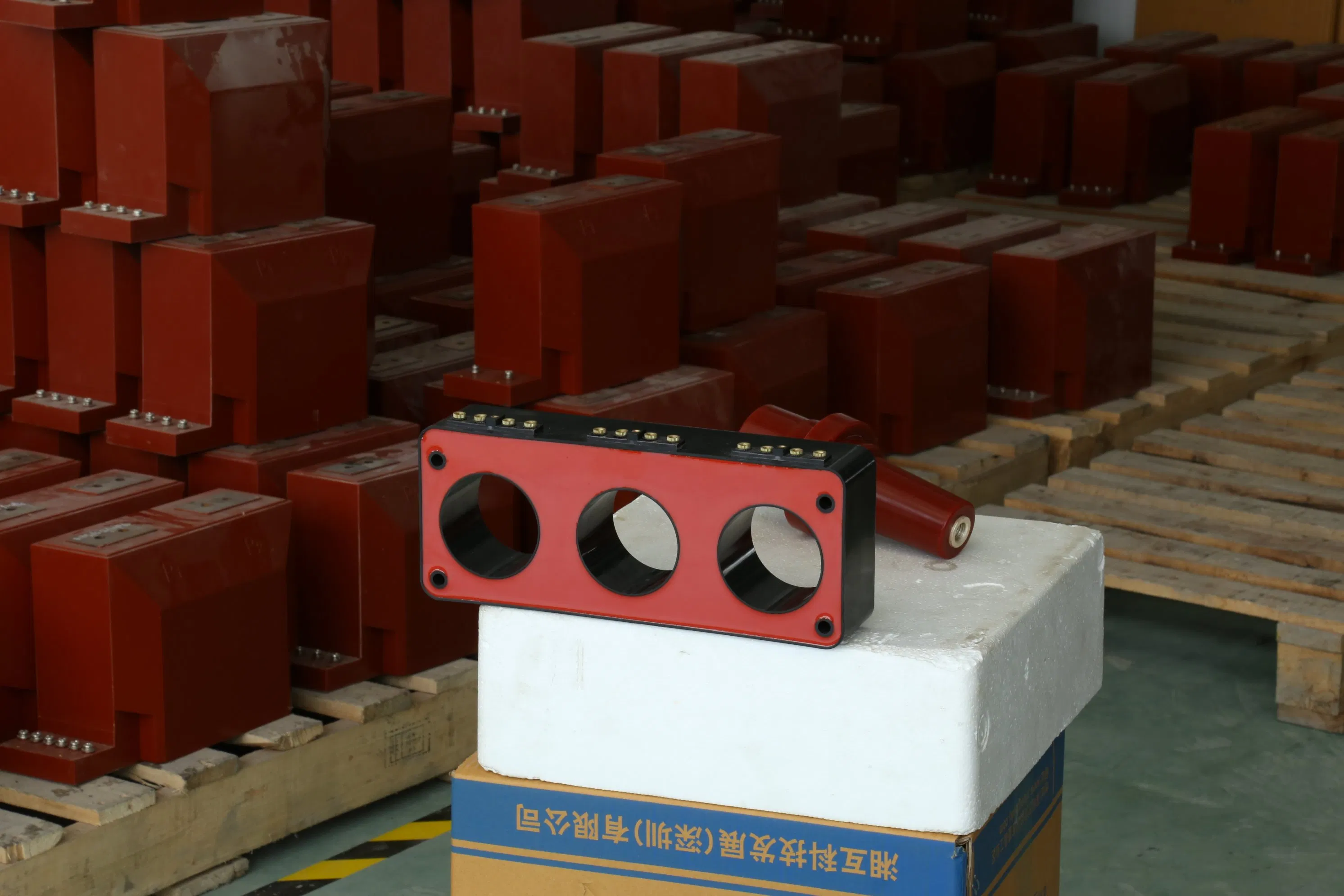

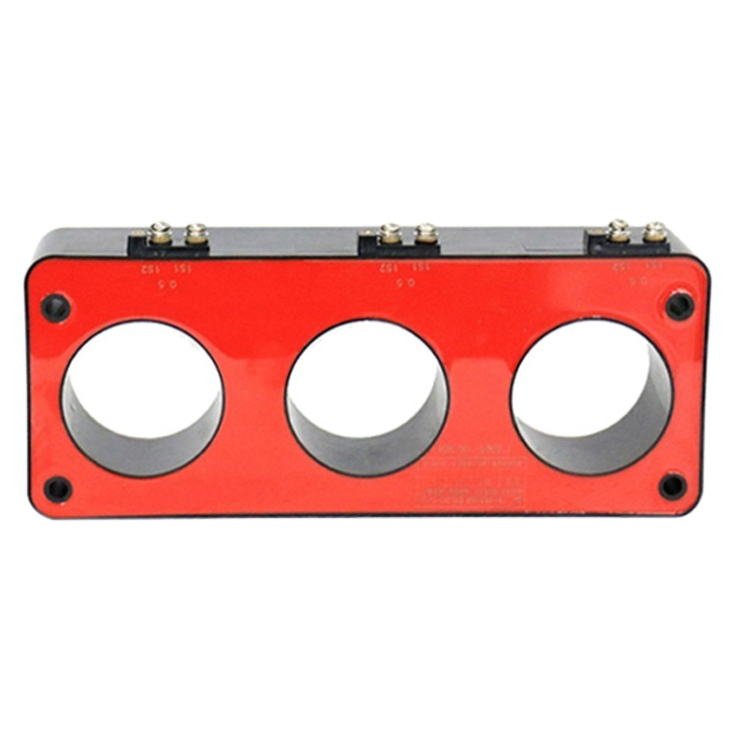

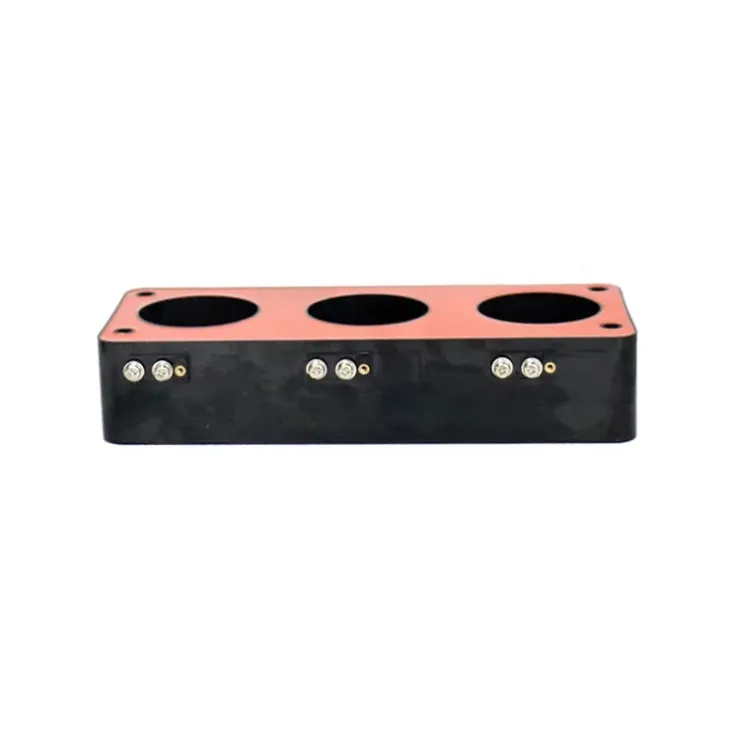

Three-Phase Integrated CT Transformer for High Voltage Applications

1 / 5

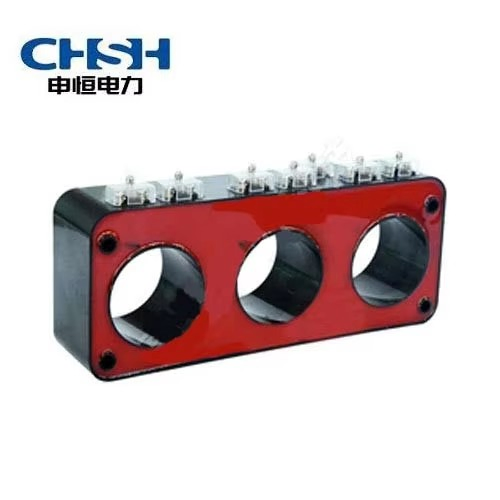

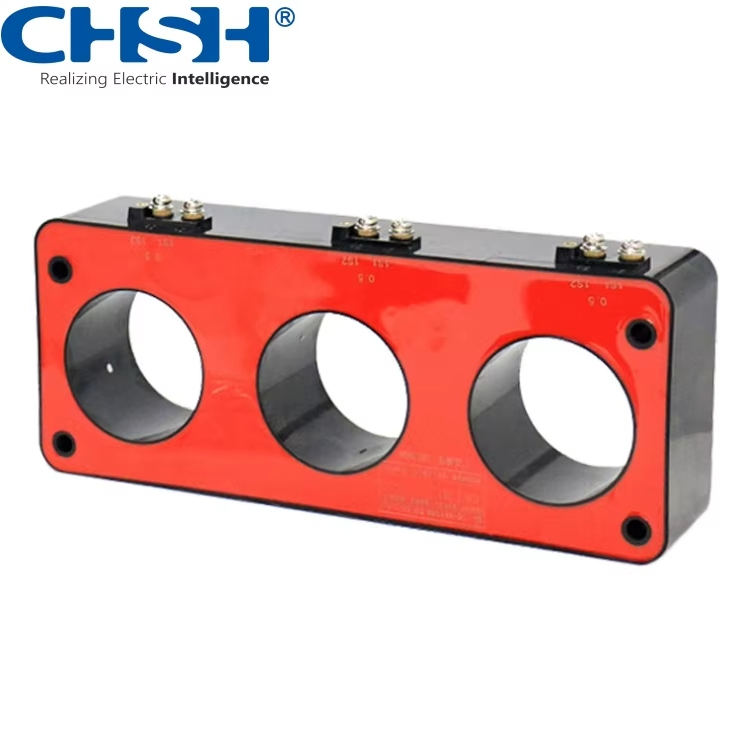

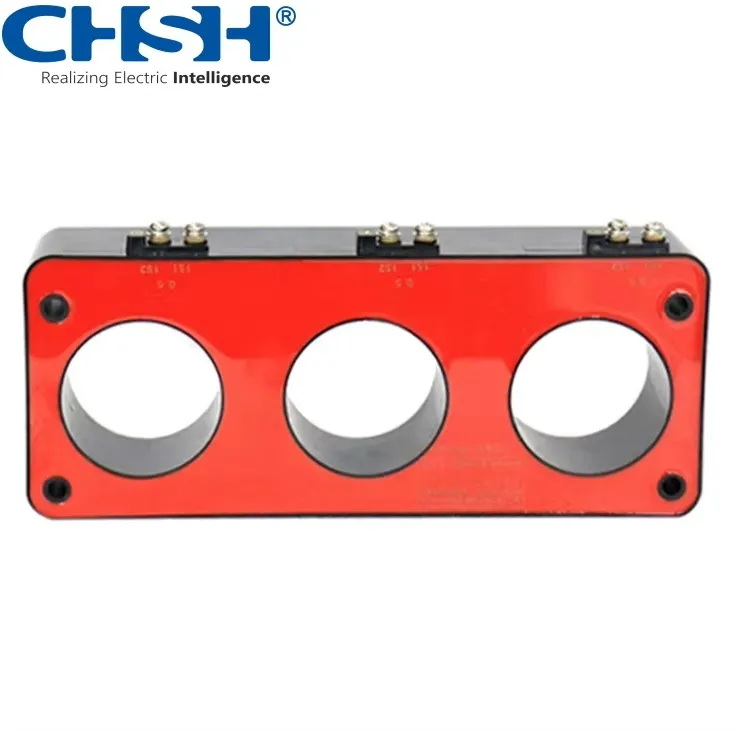

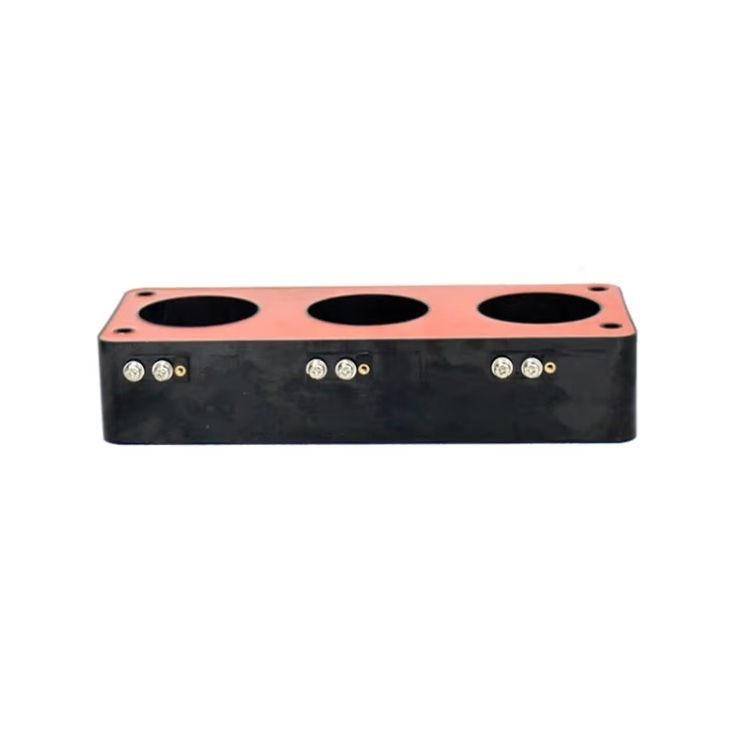

Three-Phase Integrated CT Transformer for High Voltage Applications

Customization:	Available
Application:	Electronic, Instrument, Position Sensor, Audio, Lighting
Type:	Current Transformer

Send Inquiry

Product Description

⚡ Basic Information

Model NO.

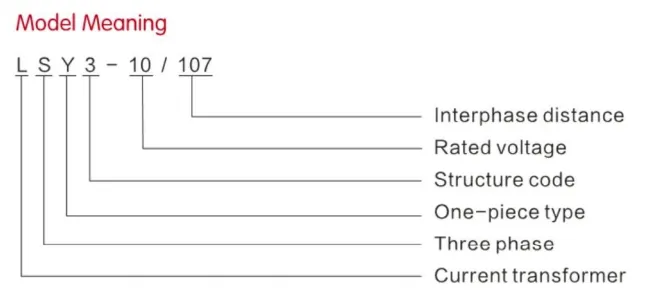

LSY3-10/107X

Phase

Three

Operation Condition

Indoor

Usage

Protection, Measurement

Winding Form

Multilayer Honeycomb Type

Insulating Medium

Insulating Gas

Installation

Active Type

Current Frequency

50Hz

Winding Material

Copper

Specification

10kv

Production Capacity

50000

📦 Product Description

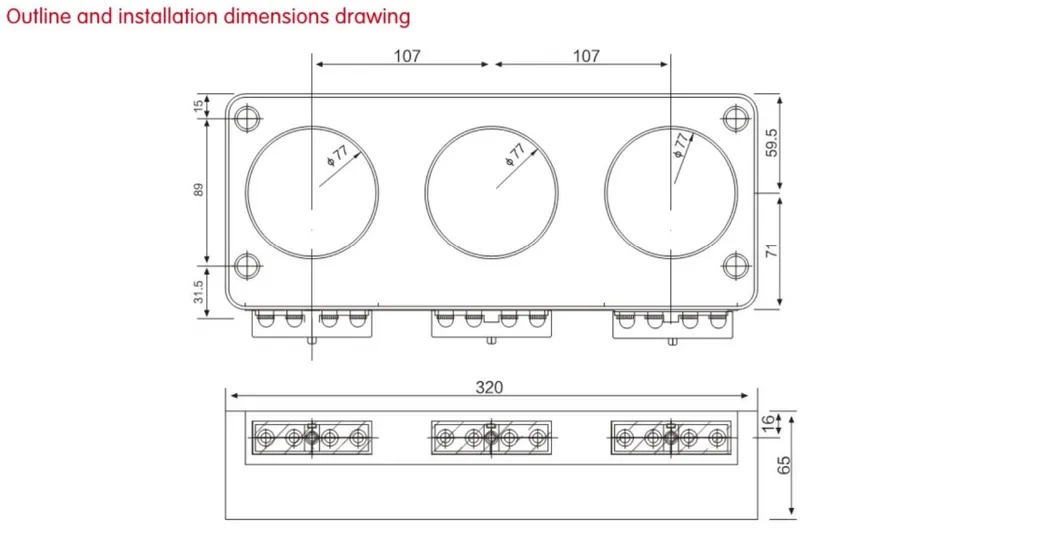

📊 Product Parameters

The rated current ratio, accuracy level, and rated load specifications (Secondary current 5A or 1A).

Use	Measuring current transformer			Protection current transformer			Double-winding current transformer
Rated primary current	Accuracy level and load rating(VA)			Accuracy level and load rating(VA)			Compound accuracy level and load rating(VA)
Rated primary current	0.2s	0.2	0.5	10P20	10P15	10P10	0.2s	0.5	10P15	10P10
75	-	-	1	-	-	-	-	1	-	-
100	-	-	2.5	-	-	-	-	1	-	-
150	-	-	2.5	-	-	2.5	-	1.5	-	-
200	-	2.5	2.5	-	-	5	-	2.5	-	5
300	2.5	2.5	5	-	-	5	-	2.5	-	5
400	5	5	5	-	-	7.5	-	5	-	7.5
500	5	5	10	-	-	10	-	5	-	10
600	5	5	10	-	-	10	-	5	-	10
800	10	10	10	-	-	10	-	5	-	10

*Note: Stainless steel spring cards are customized according to user requirements.

🏢 Manufacturing Excellence

📜 Certifications

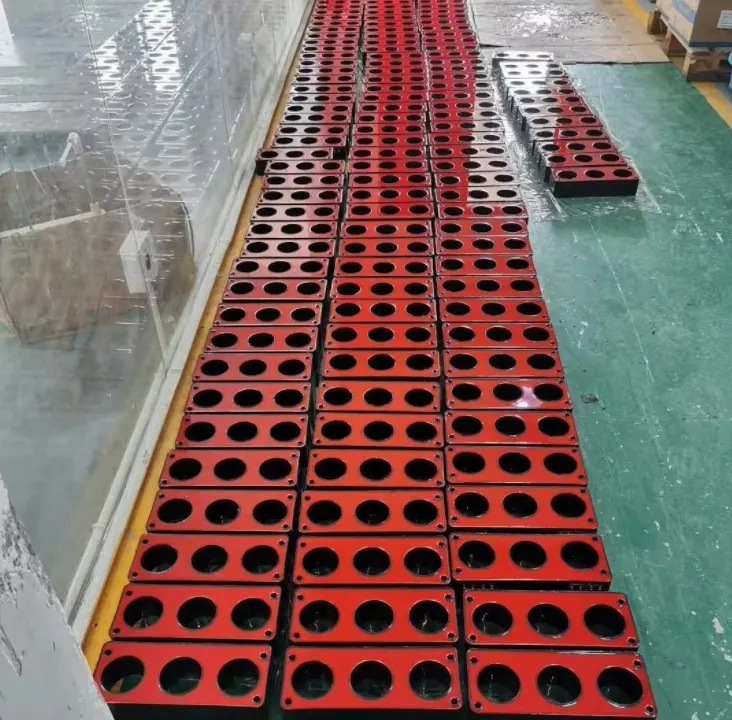

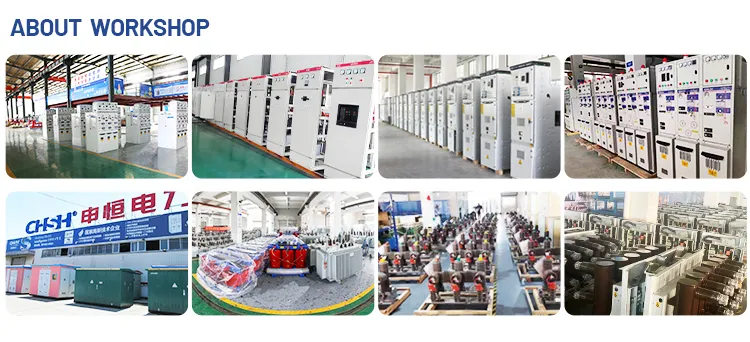

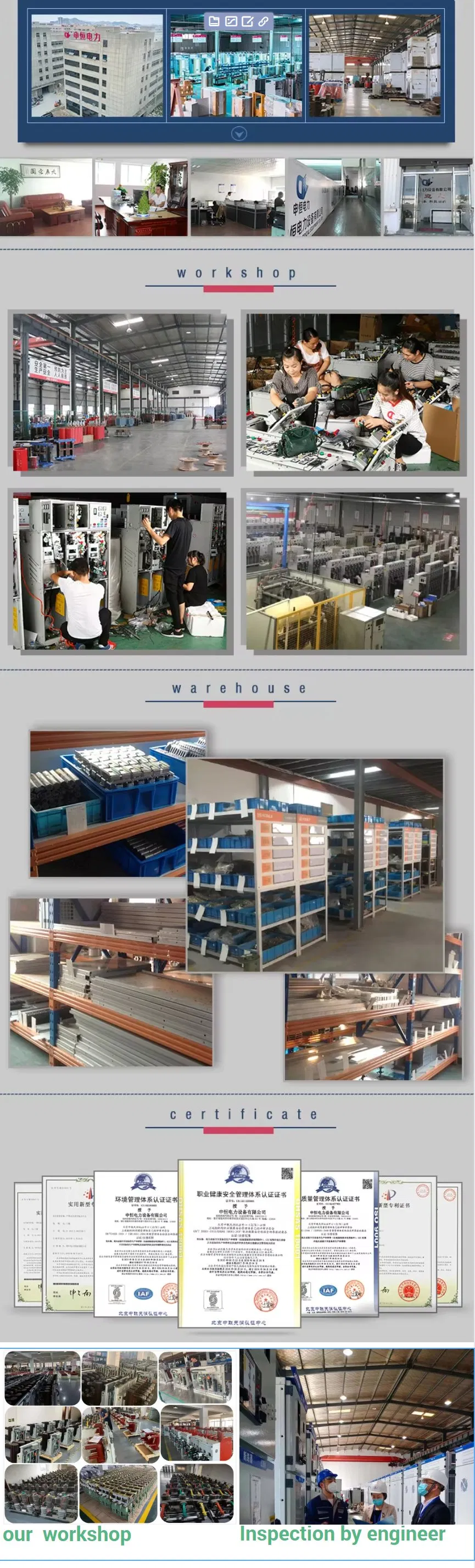

🛠️ Company Workshop

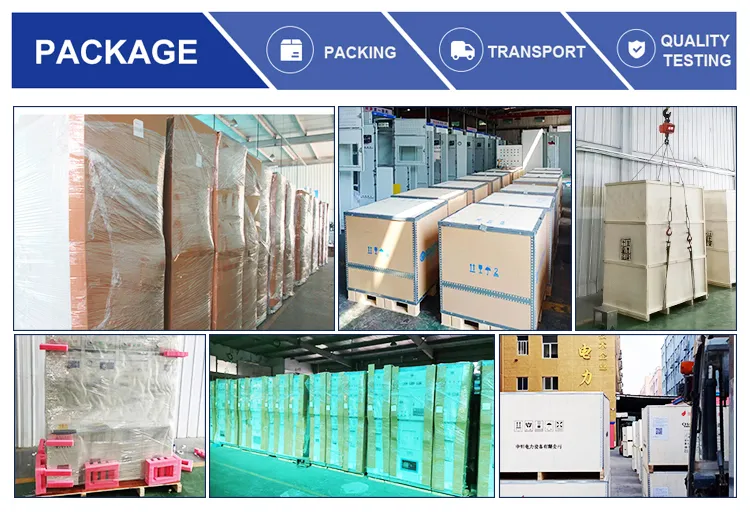

🚢 Packaging & Shipping

❓ Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional factory with over 10 years of experience specializing in high and low voltage switchgears, transformers, and electrical equipment.

Do you provide OEM/ODM services?

We offer comprehensive OEM and ODM services, including logo printing and project customization based on your specific technical drawings and parameters.

What is the minimum order quantity (MOQ)?

Our minimum order quantity is 1 piece, catering to both small and large scale requirements.

How long is the typical delivery lead time?

Delivery generally takes between 5 to 10 working days, depending on the specific product requirements and the total quantity ordered.

How do you handle quality control issues?

If any quality issues arise, please provide detailed photos. Our technical and quality testing departments will analyze the data and provide a solution within 2 days.

What payment terms do you accept?

Our standard terms are 30% T/T in advance and 70% before shipment. We also accept West Union and L/C for your convenience.
