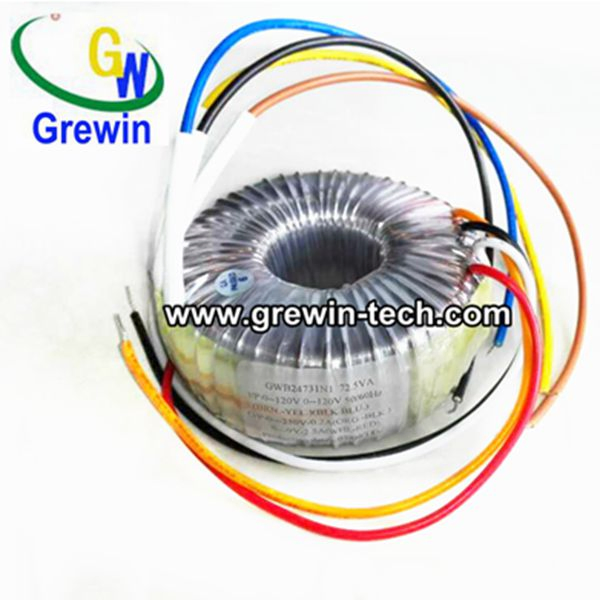

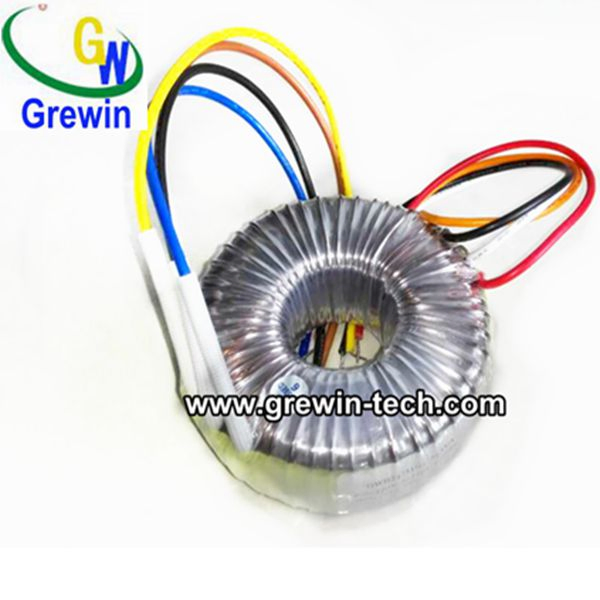

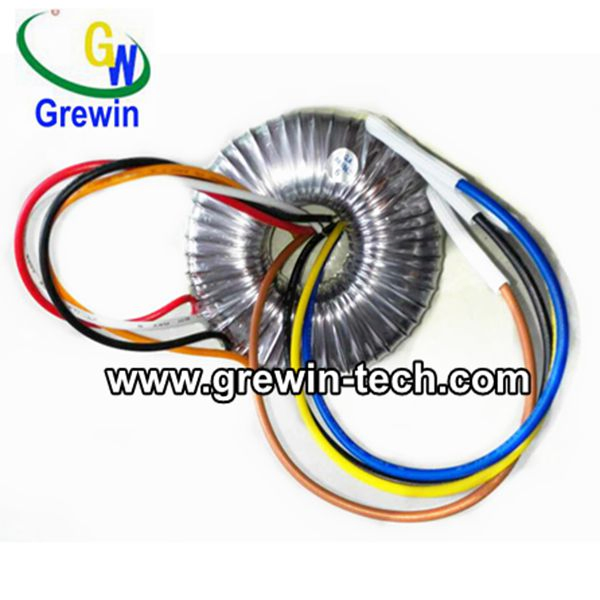

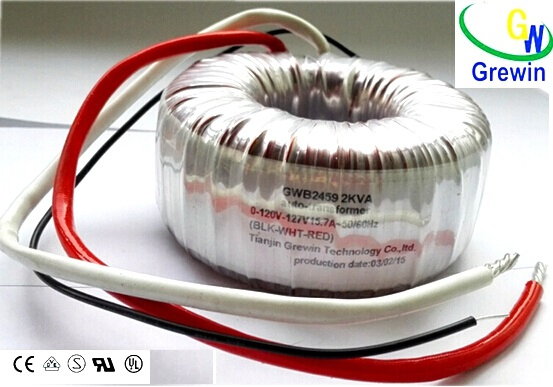

100/5A Toroidal Current Transformer Direct Manufacturer

1 / 5

100/5A Toroidal Current Transformer Direct Manufacturer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Core:

Toroid Core

Cooling Method:

Dry-type Transformer

Winding Type:

Multi-winding Transformer

Certification:

ISO9001, CCC, CE

Usage:

Single-phase Transformer

Frequency:

Power Frequency

Shape:

Ring / Toroidal

Efficiency:

95% High Efficiency

Application:

Solar Inverter, Medical Equipment, Audio

Protection:

Short-Circuit-Proof Safety

100/5A Toroidal Current Transformer

Our products are manufactured under strict quality control with ISO9001:2015, IEC, and CE approvals. We guarantee quality is the first priority for every component produced.

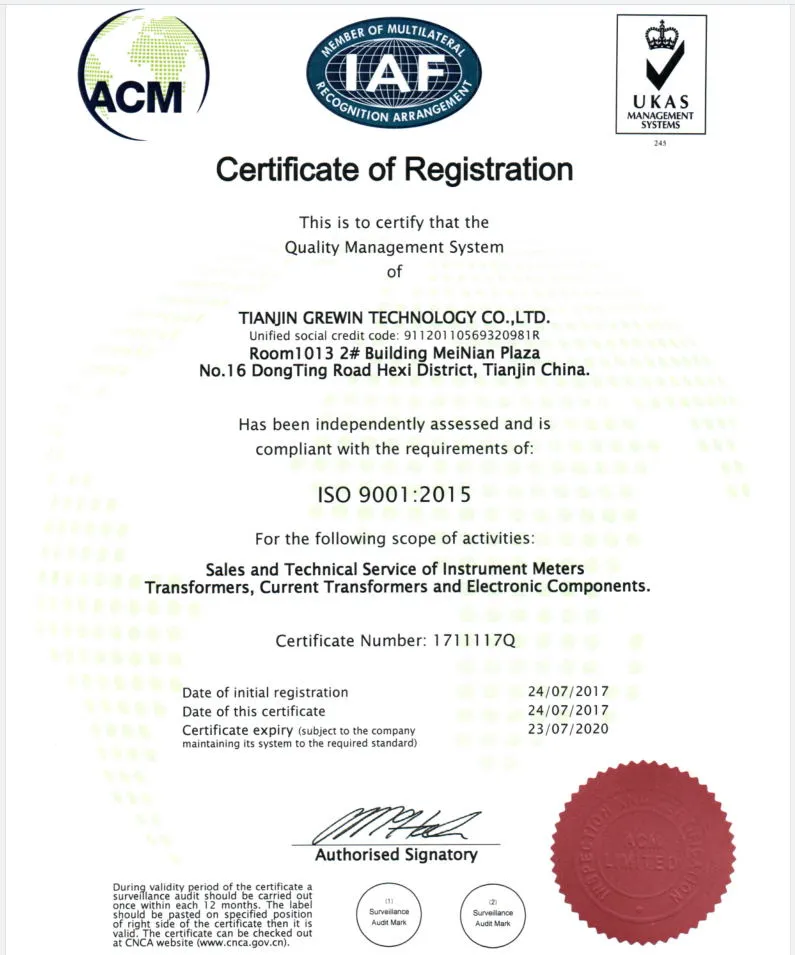

Toroidal Current Transformer Certification

Technical Parameters

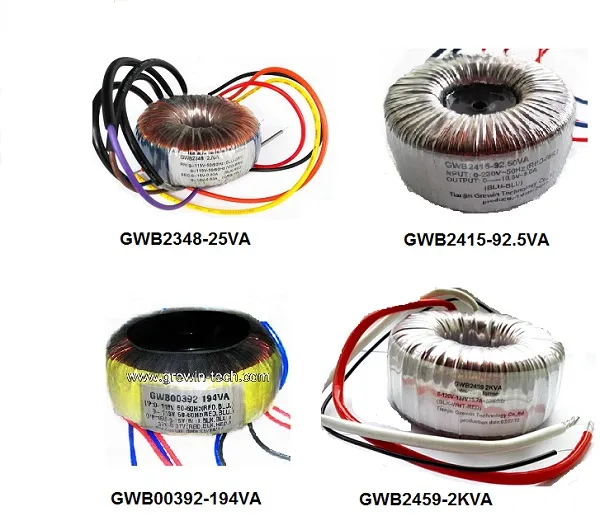

Power	Thermal Fuse	Current Fuse	Dimension (mm)	Approvals
GWB25VA	135ºC 250V 2A	250V T 2A	80*35	CE UL TUV CQC
GWB50VA	135ºC 250V 2A	250V T 2A	93*34	CE UL TUV CQC
GWB100VA	135ºC 250V 2A	250V T 2A	114*38	CE UL TUV CQC
GWB200VA	135ºC 250V 5A	250V T 5A	124*49	CE UL TUV CQC
GWB500VA	135ºC 250V 5A	250V T 10A	155*62	CE UL TUV CQC

Strict Testing Process

No-load test (voltage, current, and loss)
Inductive voltage test
Load test (voltage and temperature rise)
Insulated resistance & Hi-pot test
Leakage inductance & DC resistance test
Final surface inspection

Applications & Advantages

Main Applications:

Audio & Video equipment
Electric control systems
Solar energy devices
Telecommunications
Medical equipment

Why Choose Us:

100% High-quality copper core
Over 14 years of industry experience
Full range of toroidal transformer types
Customized design according to requirements

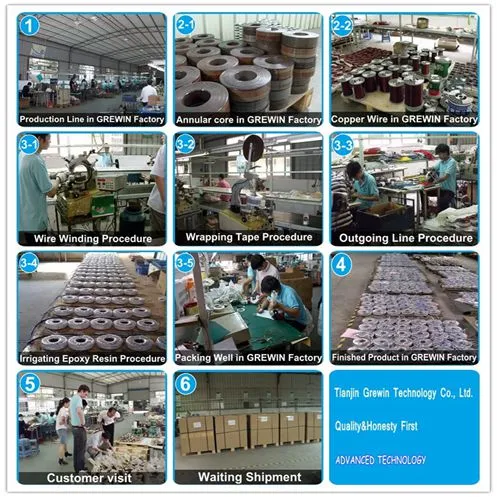

Production & Packaging

Our production line follows international standards, ensuring each unit is packed in export-standard cartons with reinforced pallets for safe transport.

Trading Flow Chart

Step	Activity	Timeline
01	Request & Quotation	1-2 Days
02	Sample Preparation	3-10 Days
03	Order Confirmation	1 Day
04	Mass Production & QC	15-20 Days
05	Balance & Delivery	1-4 Days

Frequently Asked Questions

What are the advantages of a toroidal core over a traditional square core?

Toroidal transformers offer higher efficiency, lower electromagnetic interference (EMI), and a more compact size with reduced weight compared to traditional EI transformers.

Can you customize the input and output voltage?

Yes, we can design appropriate products according to specific requirements, including installation dimensions, input/output voltage, and power ratings.

What materials are used in the windings?

We use 100% high-quality copper core for all our toroidal transformers to ensure maximum conductivity and durability.

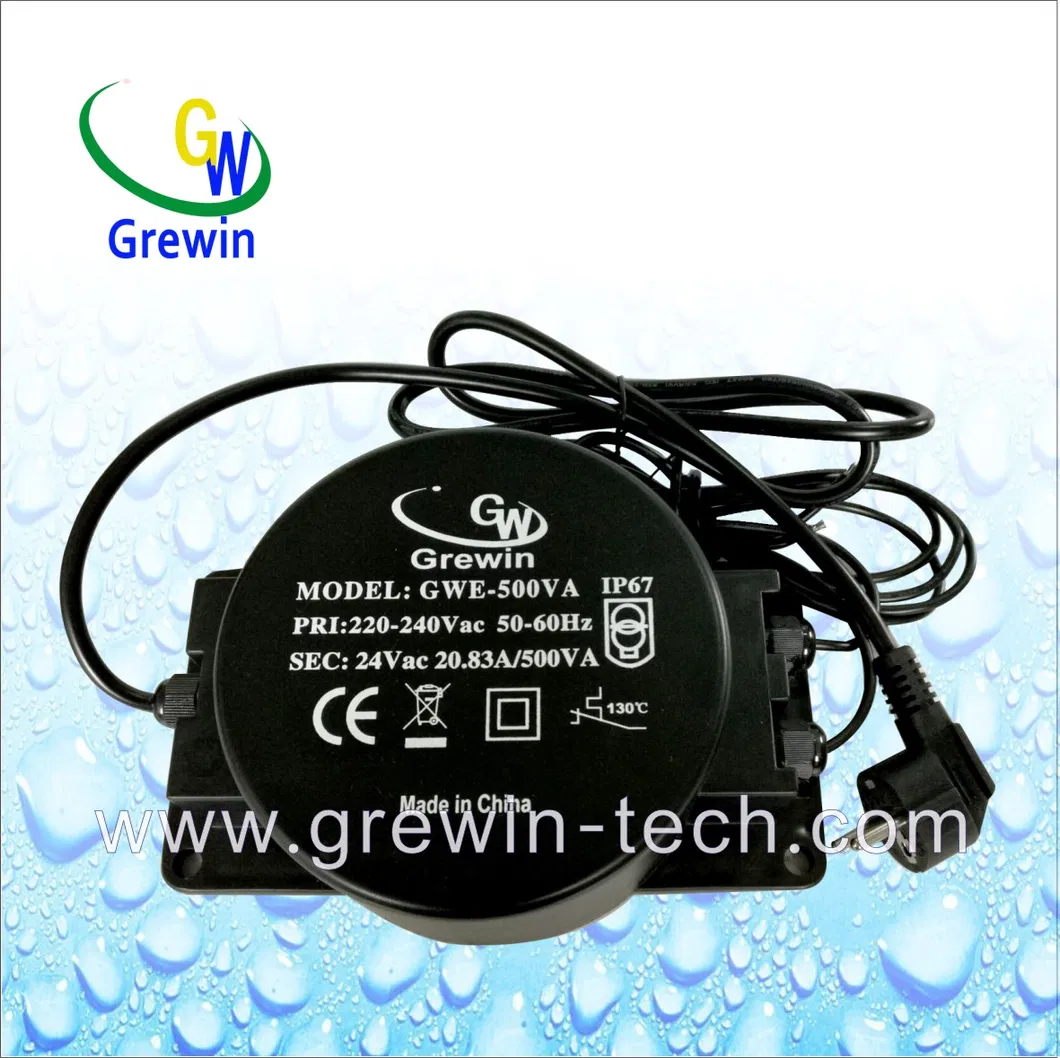

Are these transformers suitable for outdoor use?

We offer a specific range of waterproof outdoor toroidal transformers (105VA-1000VA) designed to withstand external environments.

What safety certifications do your products have?

Our products meet international safety standards and have obtained ISO9001:2015, CE, UL, TUV, and CQC approvals.

How is the quality of the transformers tested?

Every unit undergoes a rigorous 9-step testing process, including Hi-pot tests, load tests, temperature rise tests, and DC resistance tests before shipping.
