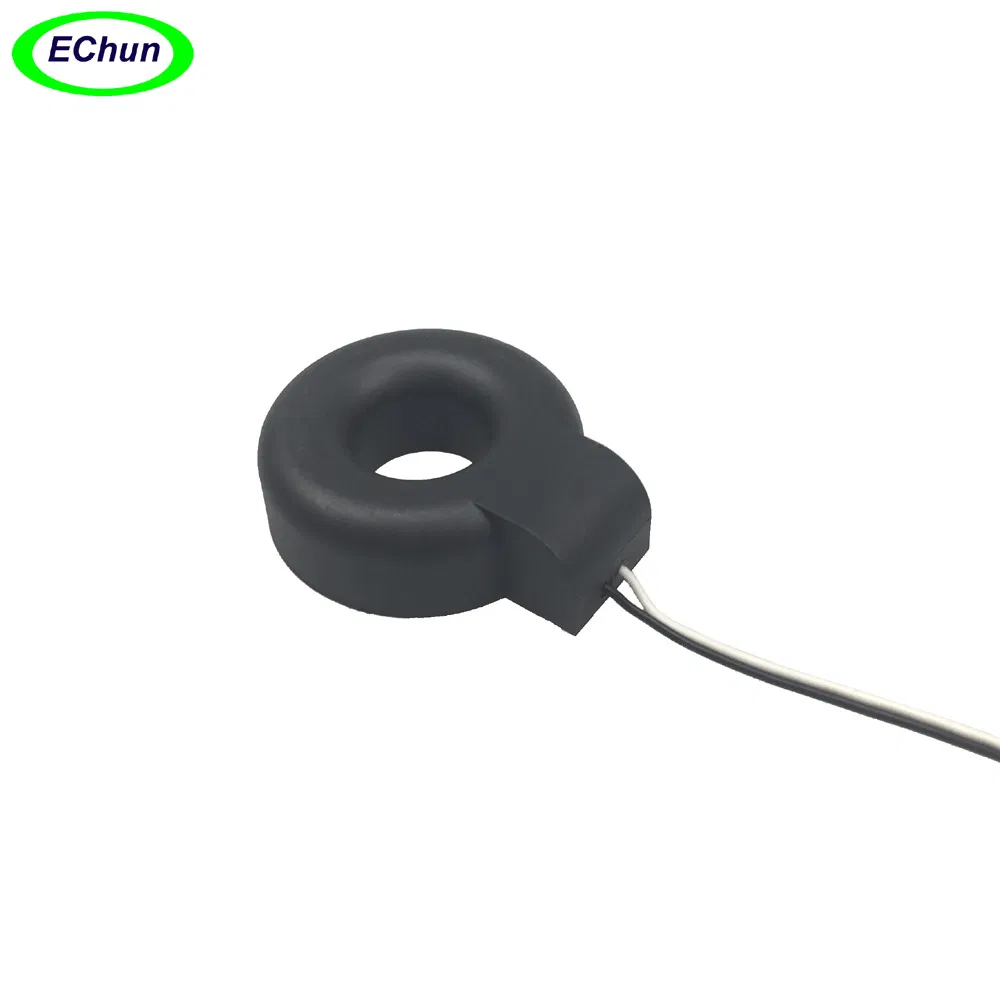

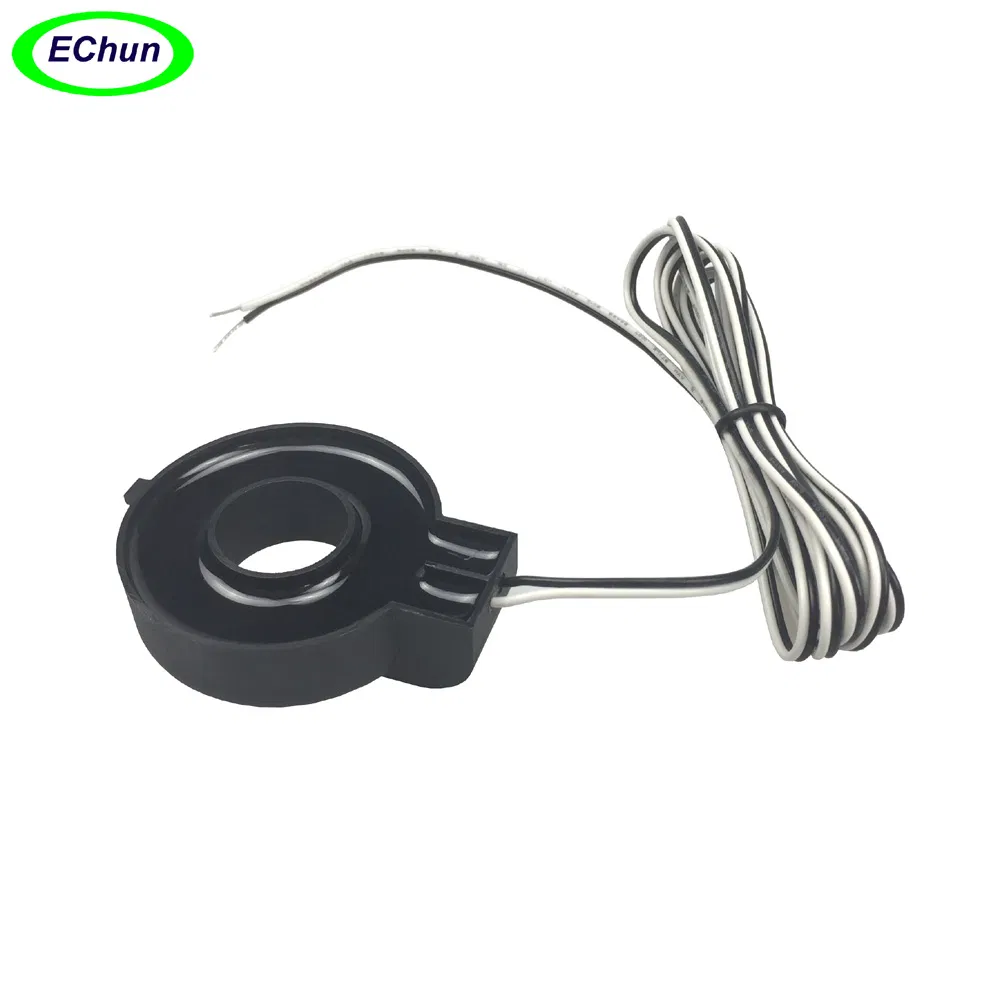

100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
1 / 5
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer
100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer

100A Ring Type Solid Core Mini Precision Nano Alloy Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ECO20100-3
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Insulating Paper
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Electromagnetic Type
Transport Package
80PCS/Box
HS Code
8504500000
Production Capacity
10000PCS/Month
🔍 Product Description

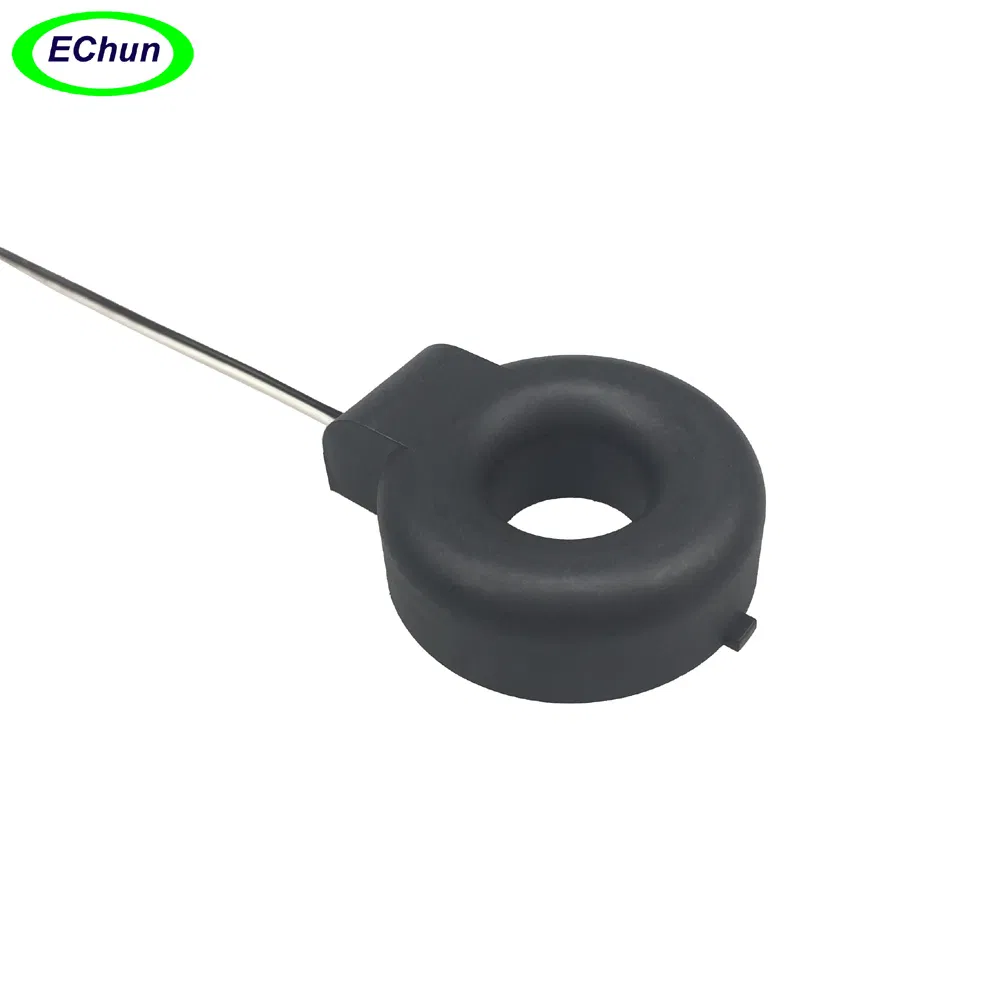

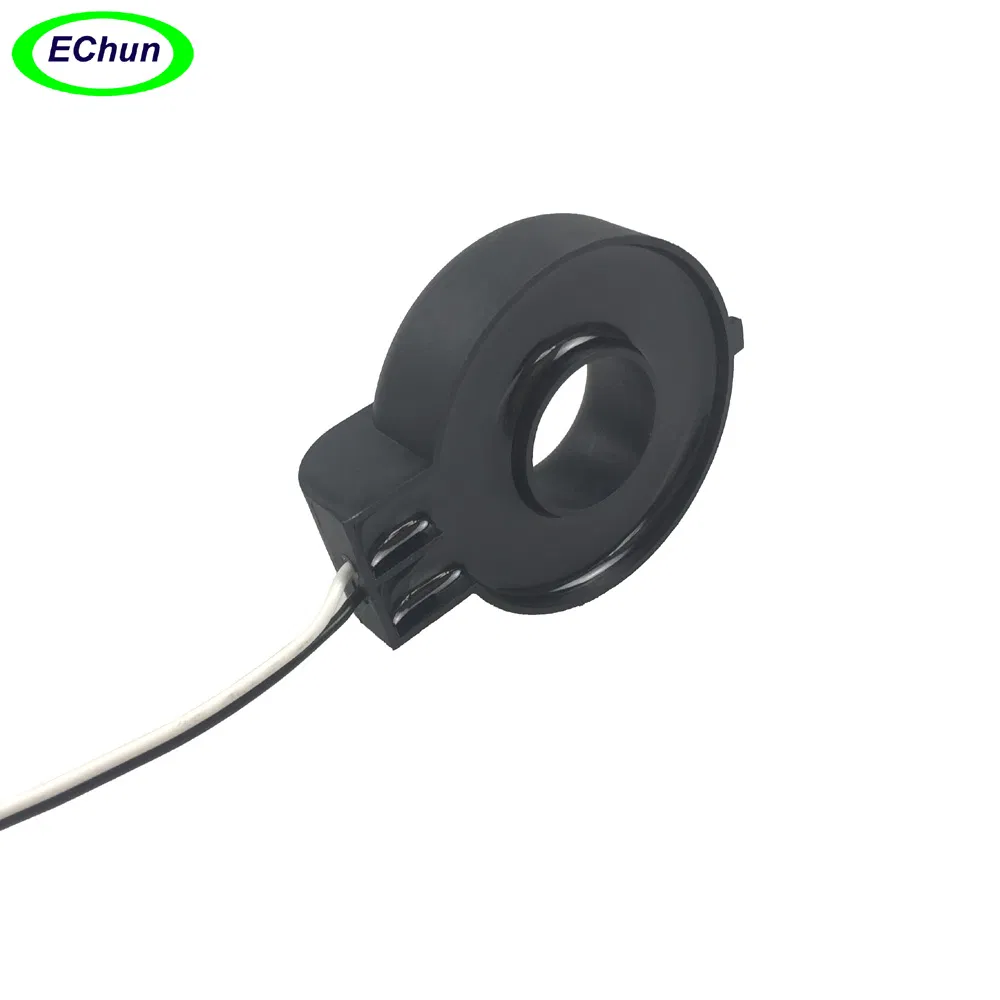

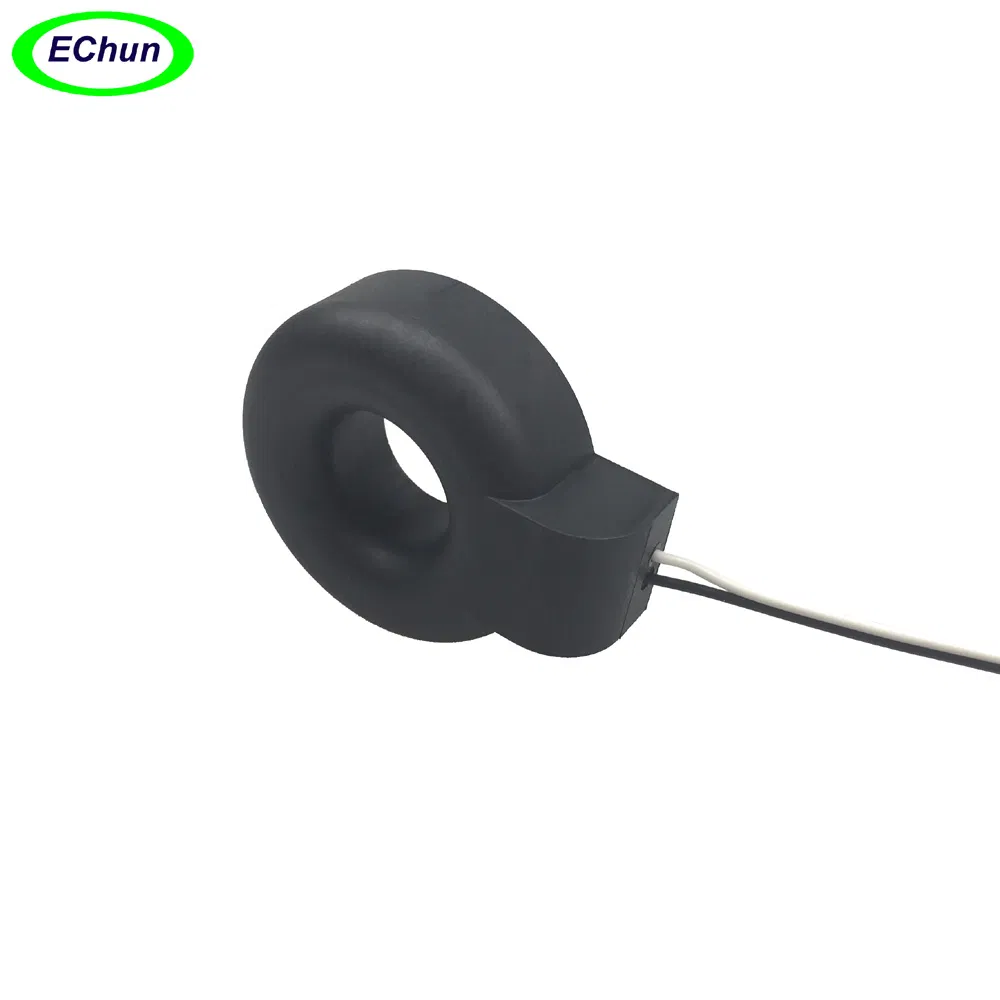

100A Ring type solid core mini precision Nano Alloy current transformer

The ECO20 series are Current Transformers designed for Electrical Control Units, featuring a compact size and cost-effective performance. Customized current ratios are available to meet specific requirements.

Primary current [Arms]100A rms
Max. primary over current [A]200A peak
Turn ratioNp:Ns=1:100
Working frequency [kHz]100-600kHz
Current Ratio100A/1A
Winding D.C. Resistance at 20 ºC400mΩ±10%
L VALUE 10KHZ/1V>150(mH)
Accuracy@RL=10Ω0.5%
Phase Error at Rated Current Range≤5'
Operating Temperature Range-10~65ºC
Storage Temperature Range-25~85ºC
Dielectric Withstanding Voltage(Hi-pot)4.0KV/1mA/1min
Insulation ResistanceDC500V/100MΩ min
🚀 Applications
✔ Current measurement
✔ Monitoring and protection
✔ Energy and sub-metering products
✔ Network equipment
✔ Instruments and sensors
✔ Control systems
🌟 Advantages
👍 Excellent linearity over the whole range.
👍 Fully RoHS compliant.
📷 Product Gallery

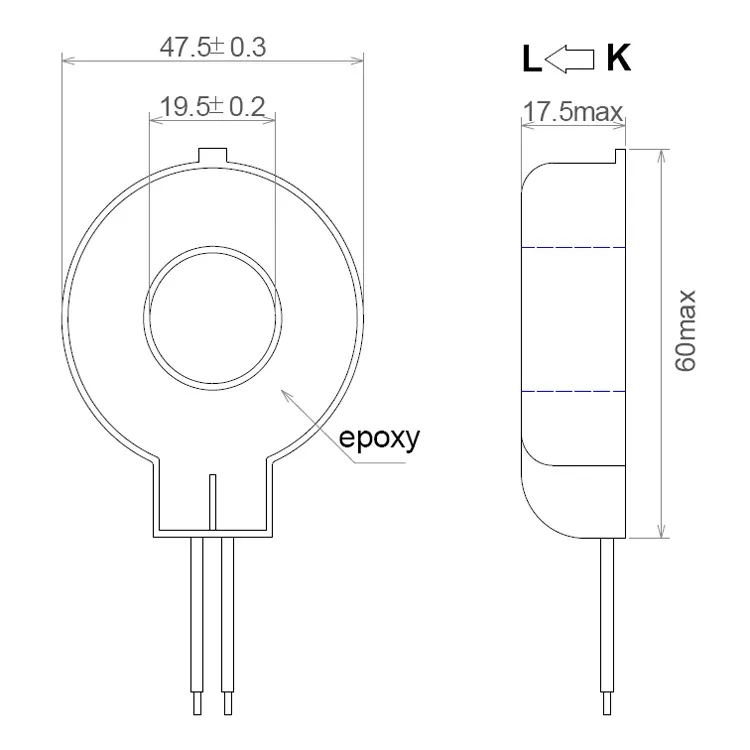

Current Transformer 1
Current Transformer 2
Current Transformer 3
Current Transformer 4
Current Transformer 5
Current Transformer 6
Current Transformer 7
Current Transformer 8
❓ Frequently Asked Questions
Q1: What is the accuracy level of the ECO20100-3 current transformer?
A1: The ECO20100-3 provides a high accuracy of 0.5% at a rated load of RL=10Ω.
Q2: What is the maximum primary current this CT can handle?
A2: While the rated primary current is 100A rms, it can handle a maximum primary over-current of up to 200A peak.
Q3: Can this transformer be used in high-frequency applications?
A3: Yes, the ECO20 series is designed to operate within a working frequency range of 100kHz to 600kHz.
Q4: What are the environmental limits for storage and operation?
A4: The operating temperature range is -10 to 65ºC, and it can be safely stored in temperatures ranging from -25 to 85ºC.
Q5: Is the insulation safety tested for this model?
A5: Absolutely. It features a dielectric withstanding voltage (Hi-pot) of 4.0KV/1mA/1min and an insulation resistance of at least DC500V/100MΩ.
Q6: Is this product compliant with environmental standards?
A6: Yes, the ECO20100-3 is fully RoHS compliant, ensuring it meets international environmental safety requirements.
