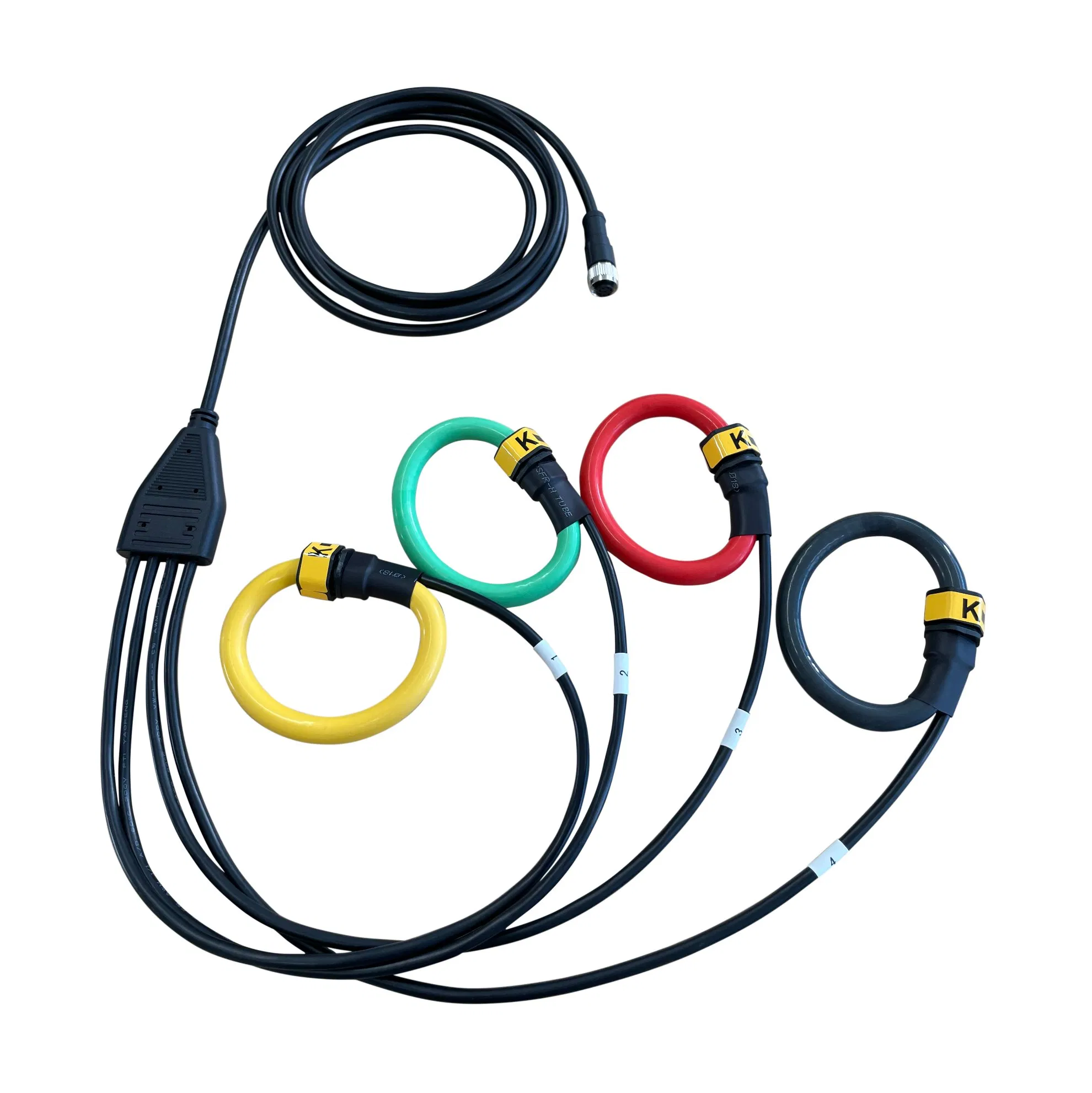

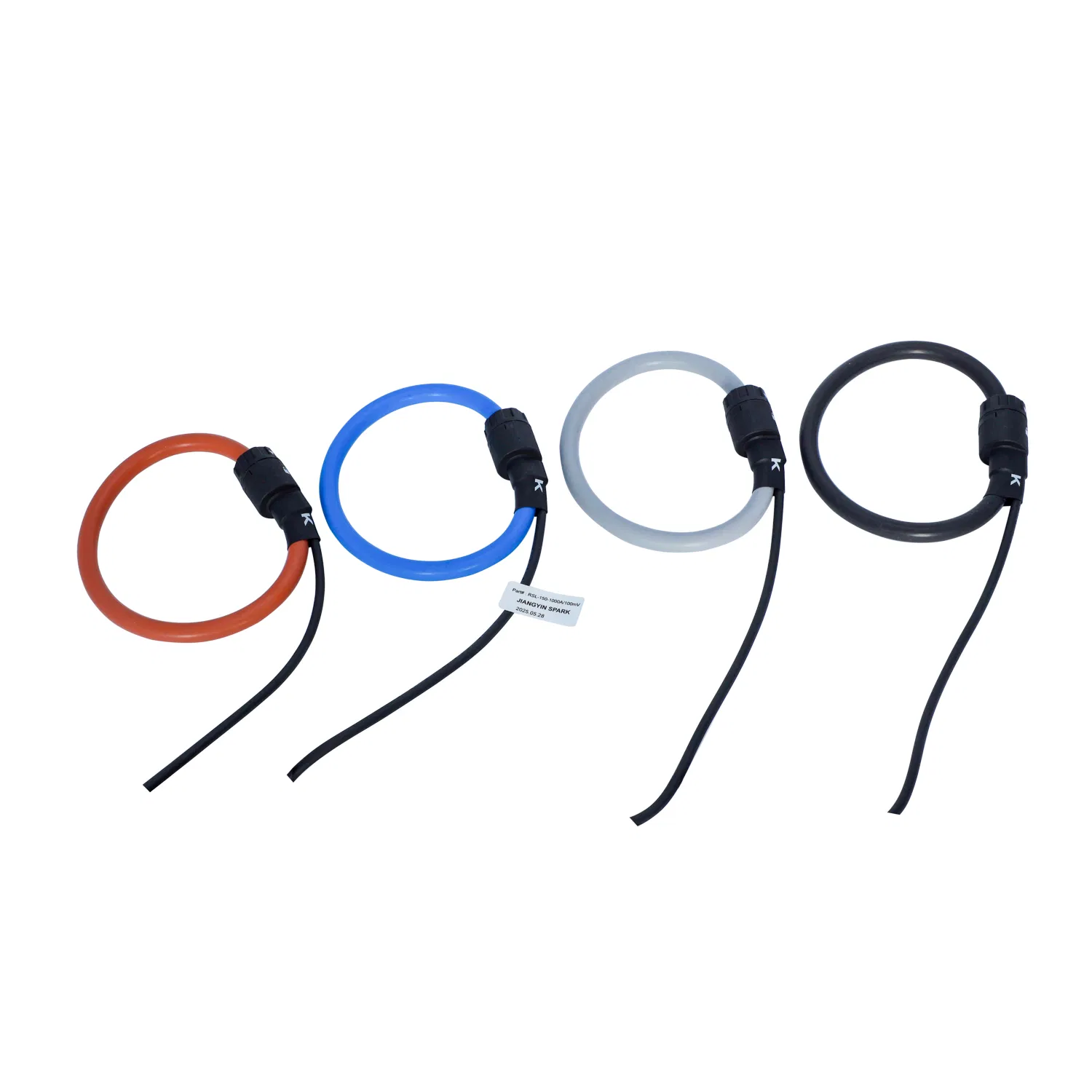

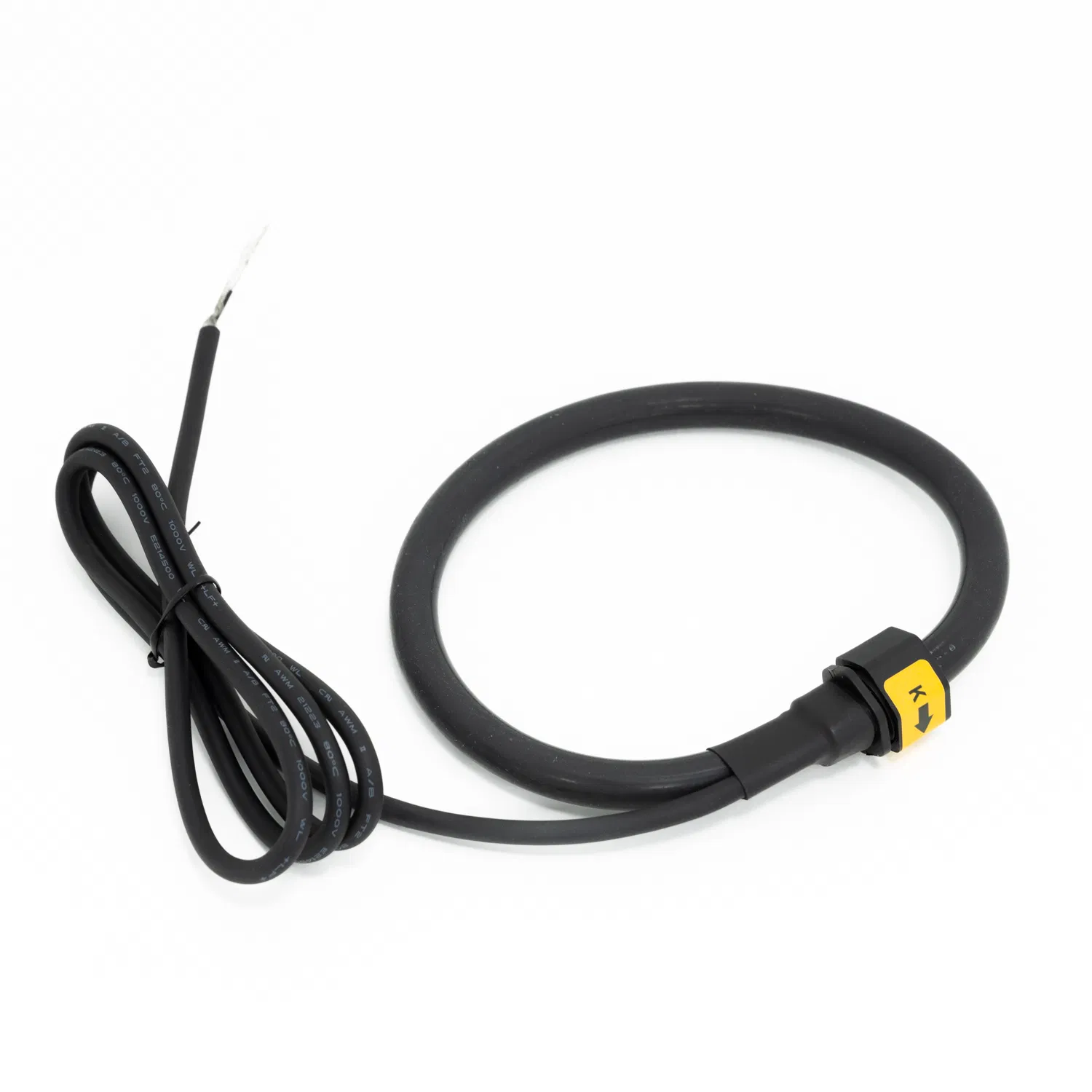

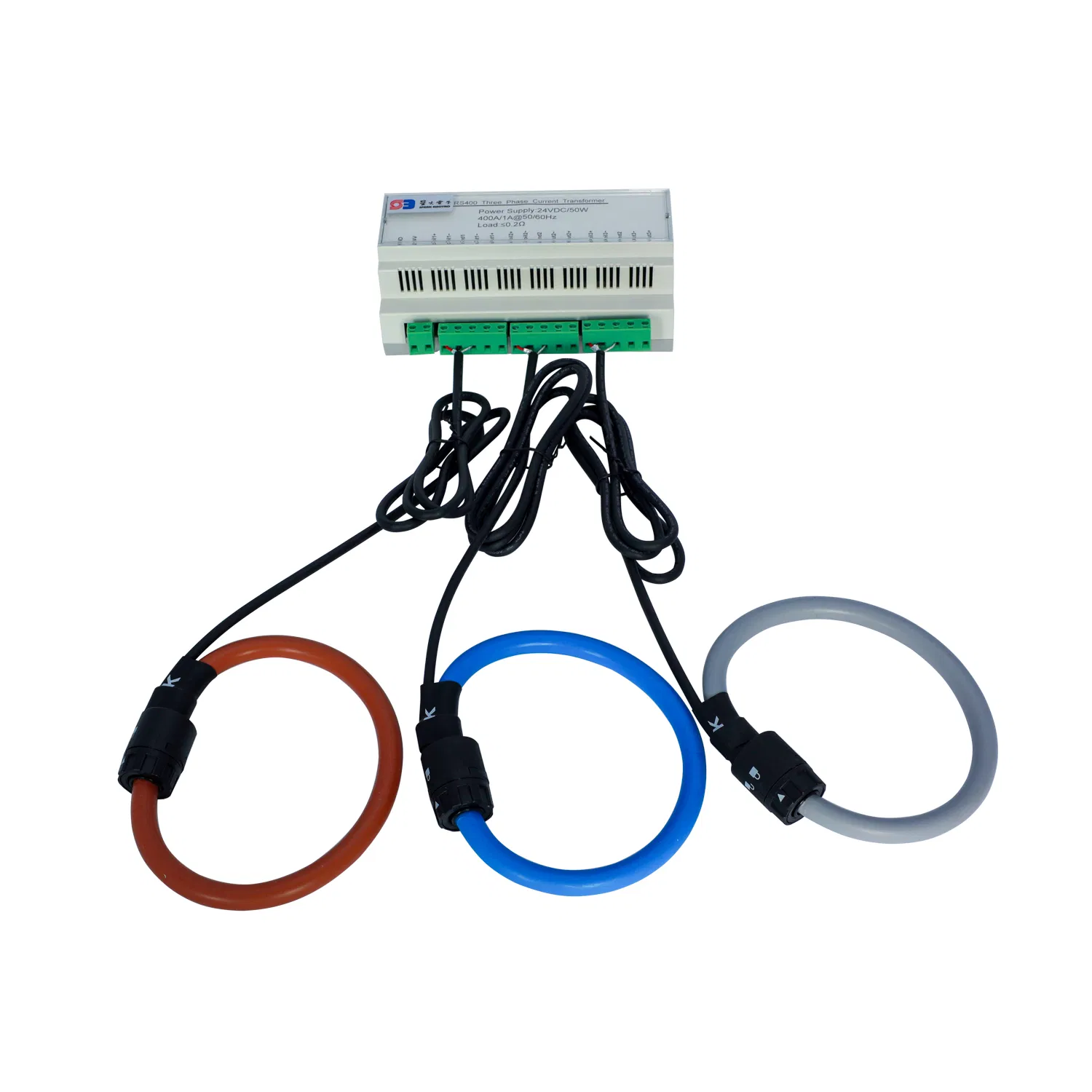

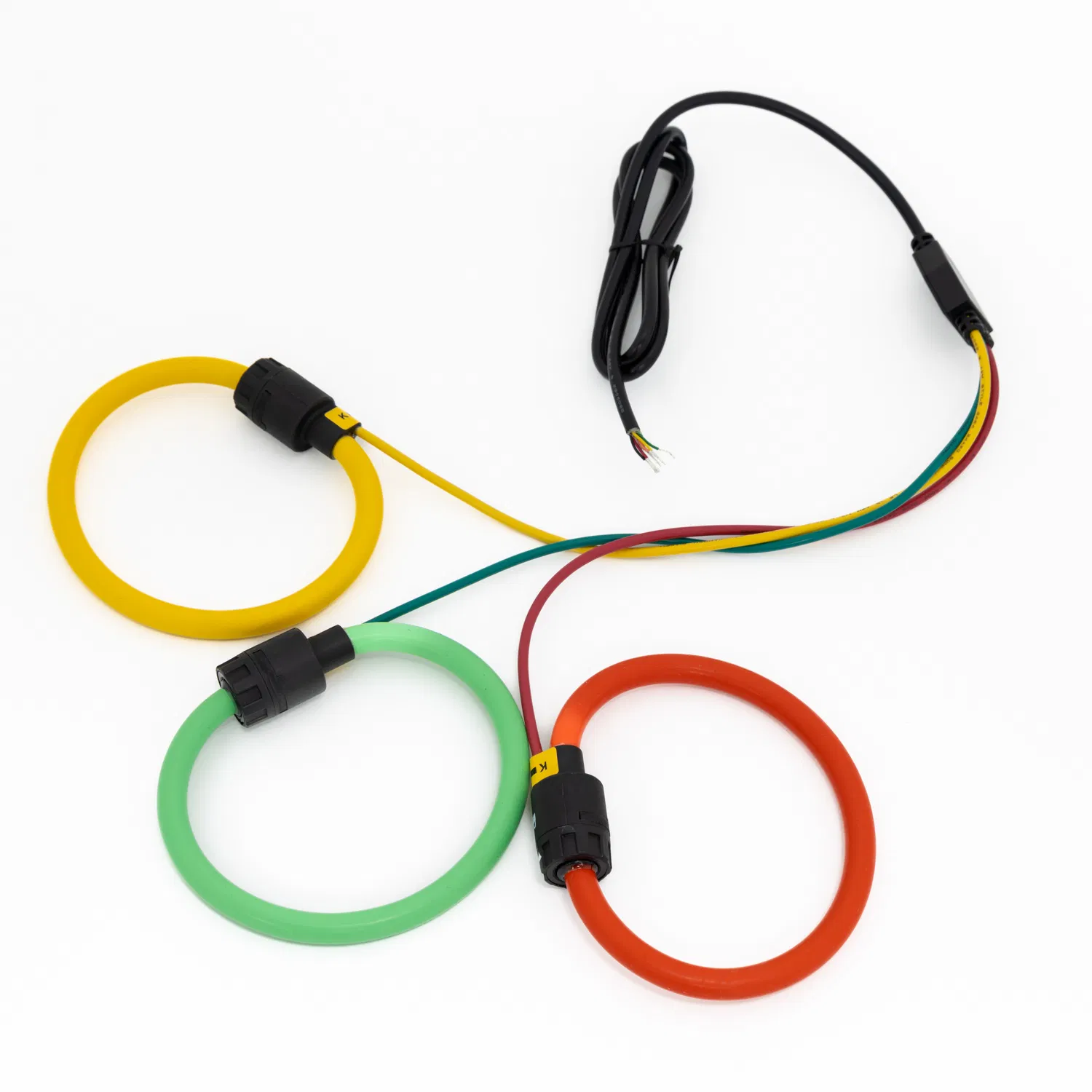

Three/Four Phase Rope CT Sensor 200ka 1000A/100mv 85mv Probe Current Transformer Flexible Rogowski Coil:

Rogowski Coil Overview
Phase Rope CT Sensor
Probe Current Transformer

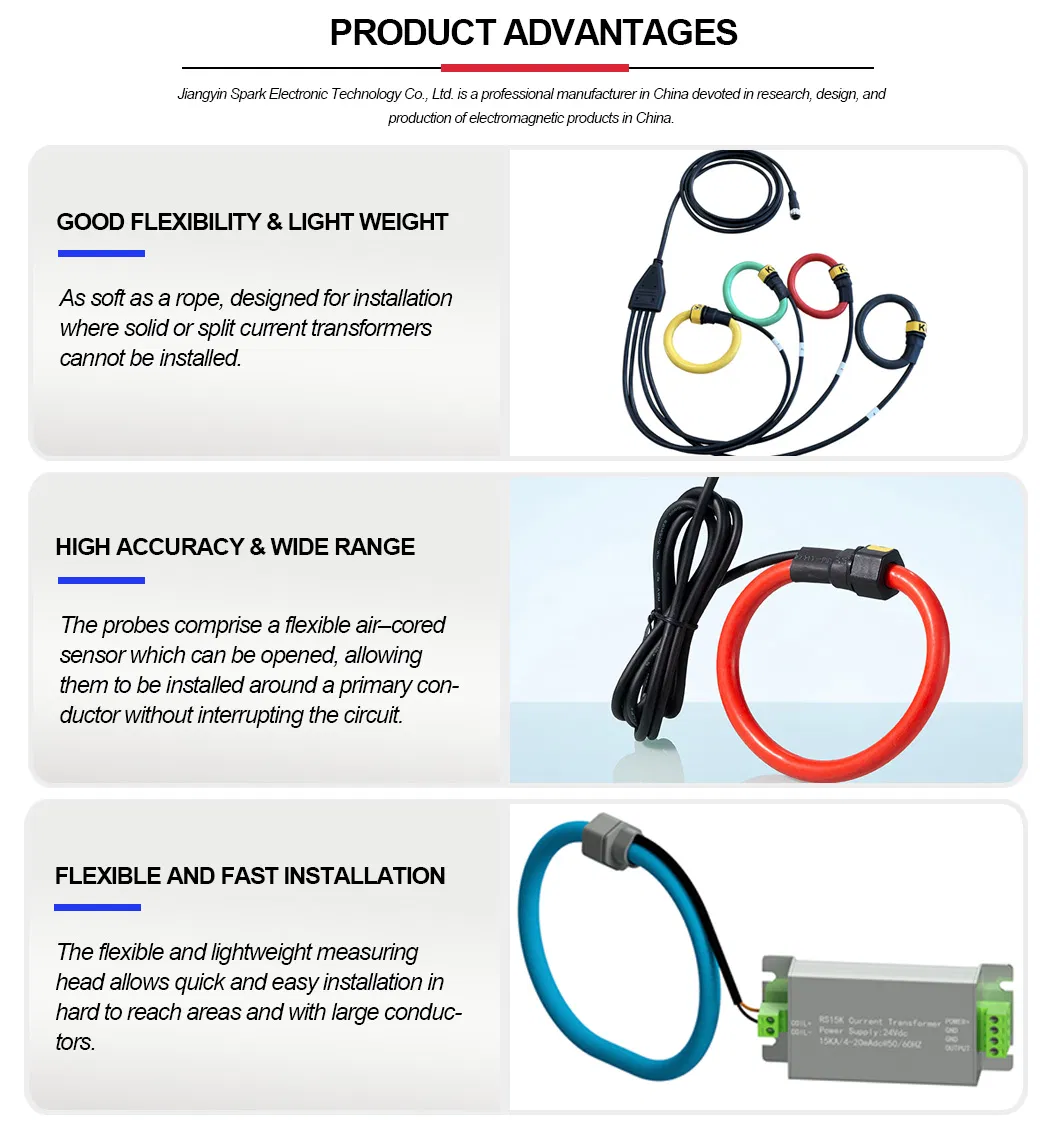

This flexible Rogowski coil is designed like a rope, making it ideal for use where solid or split core current transformers cannot fit. Advantages include high accuracy, a wide measurement and frequency range, and very lightweight construction.

The probes comprise a flexible air-cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard-to-reach areas and with large conductors.

Key Specifications
■ Input range: 0-10000A
■ Bandwidth: 1Hz-1MHz
■ Accuracy: ≤±1%
■ Response time: <10ms
■ Aux power: 6-24VDC
■ Coil length: ≤2m
■ Status indicator: LED light
■ Isolation voltage: CAT IV, 1000V
Rated current (rms)10000A
Output1V/10000A (without integrator)
Window size100mm
Coil diameter10.5 mm
Wire leads1000V cable
Operating temp-25ºC to +70ºC
Accuracy±0.5%
Lock & Screw Types

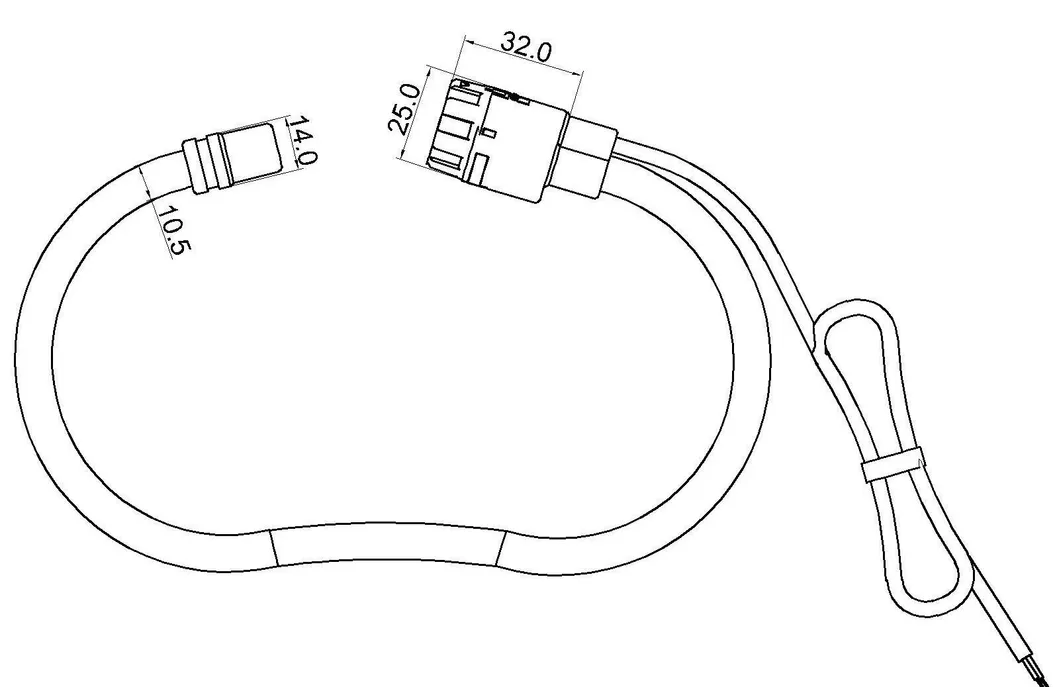

Lock type:

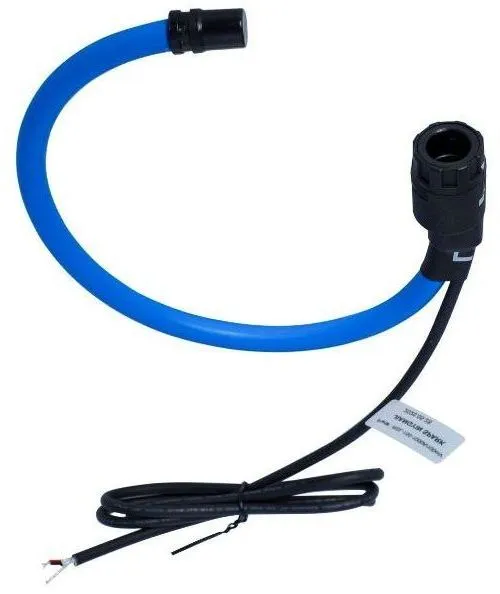

Lock Type A
Lock Type B

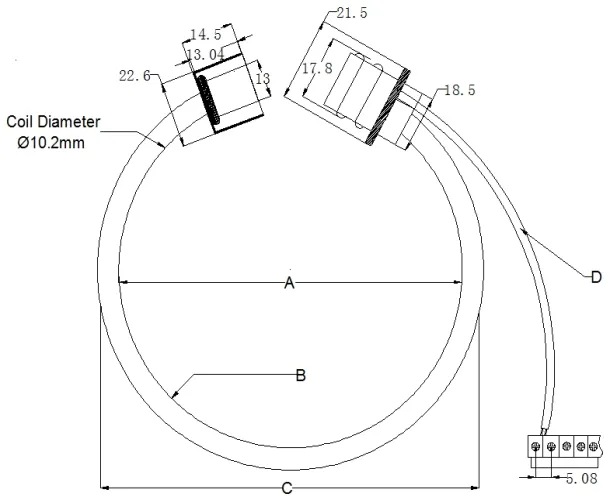

Screw type:

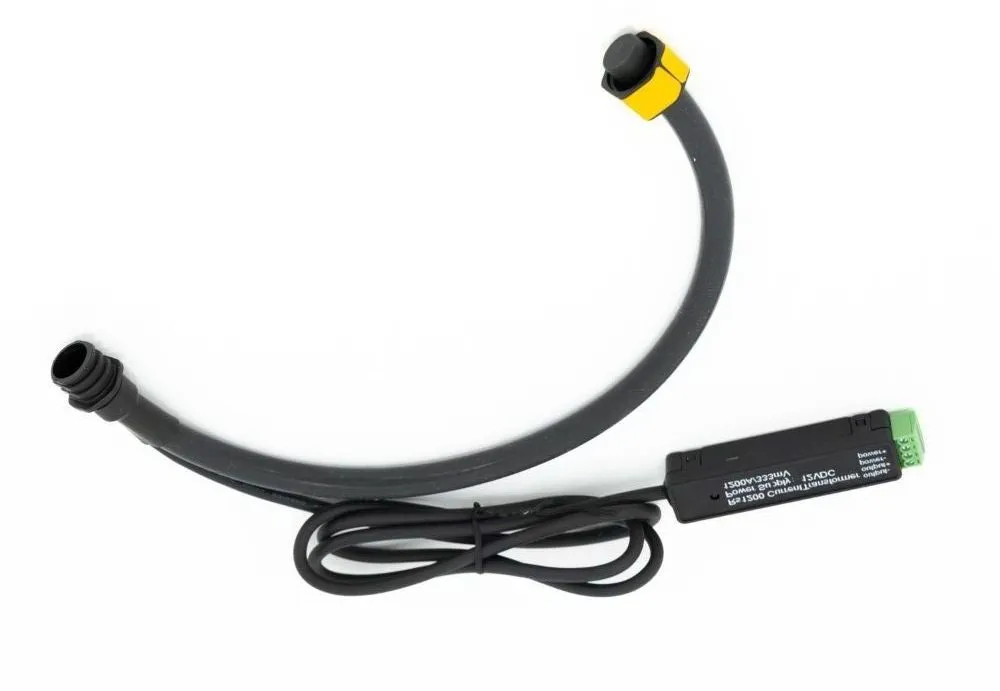

Screw Type A
Screw Type B
Position Accuracy & Applications

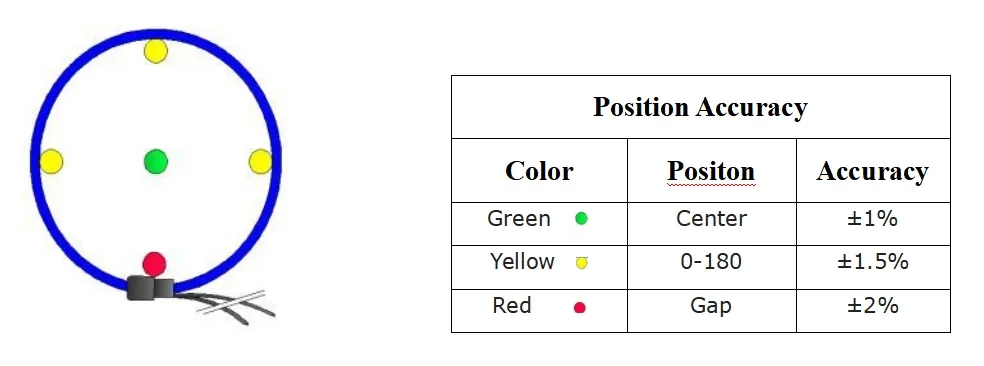

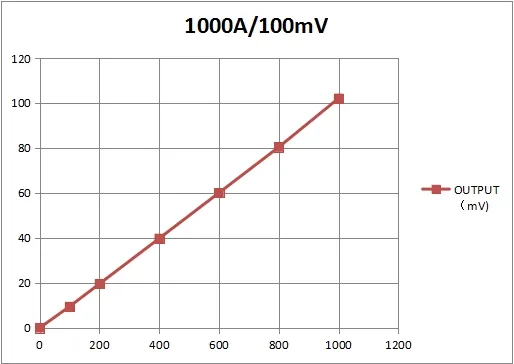

Position Accuracy Chart
Position Testing
Rogowski Sensor Application
Industry Use Case
Installation Display
Output Details
FAQ
Q: What are the main advantages of a flexible Rogowski coil?
A: It is lightweight, highly accurate, and its flexible "rope" design allows for easy installation around large or oddly shaped conductors without breaking the circuit.
Q: What is the maximum current range this sensor can measure?
A: The sensor can handle an input current range from 0 up to 10,000A (and potentially up to 200kA depending on configuration).
Q: Is the sensor suitable for outdoor or harsh environments?
A: Yes, it has an IP67 rating, meaning it is highly resistant to dust and can withstand temporary immersion in water.
Q: What output signals does the flexible coil support?
A: It supports various outputs including 100mV, 0.333V AC, 0-10VDC, and 1A/5A AC depending on whether an integrator is used.
Q: Does the coil require an external power supply?
A: For active integration and specific output types, an auxiliary power supply of 6-24VDC is required.
Q: What certifications does this product hold?
A: The product is certified according to UL, CE, RoHS, and ISO9001:2000 standards.
