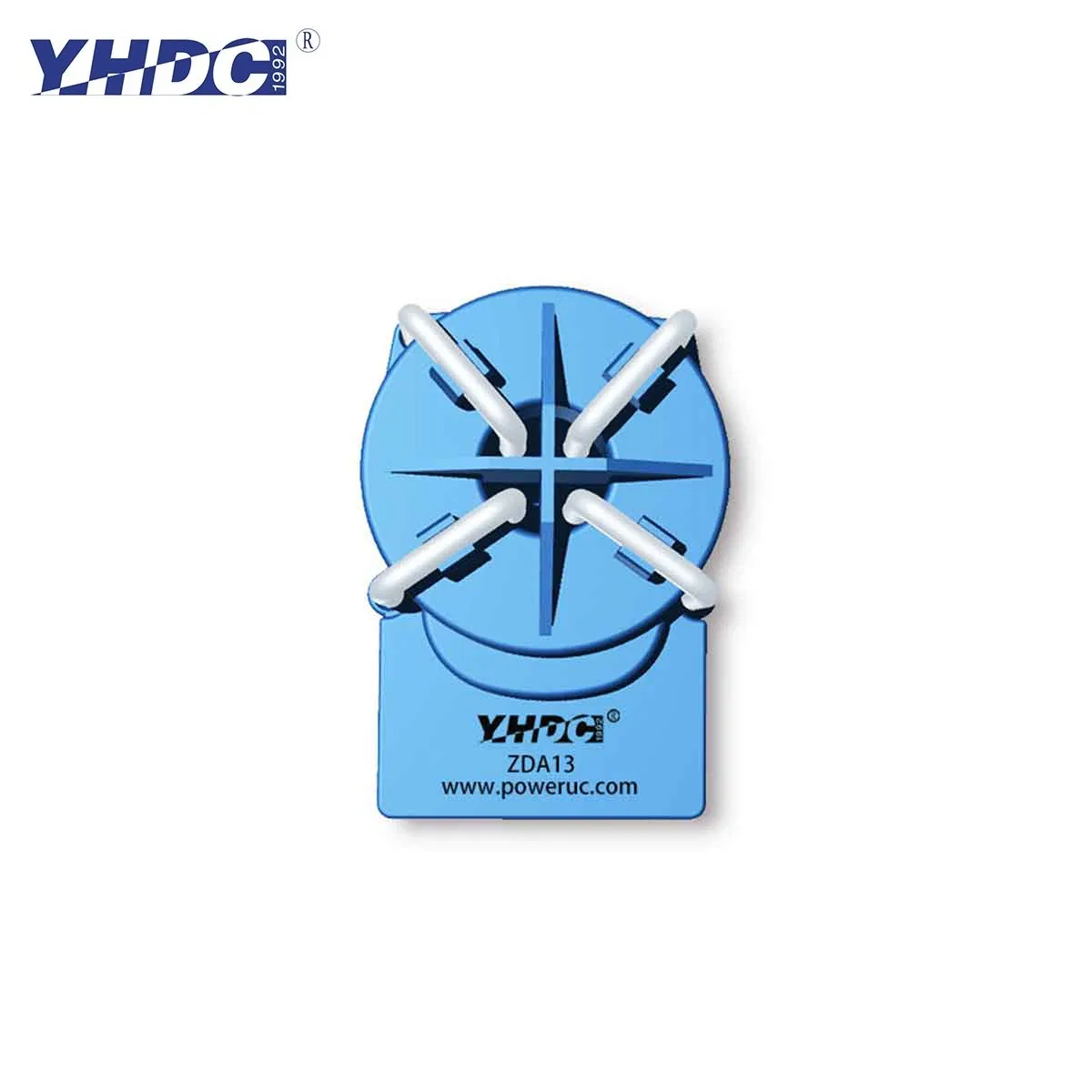

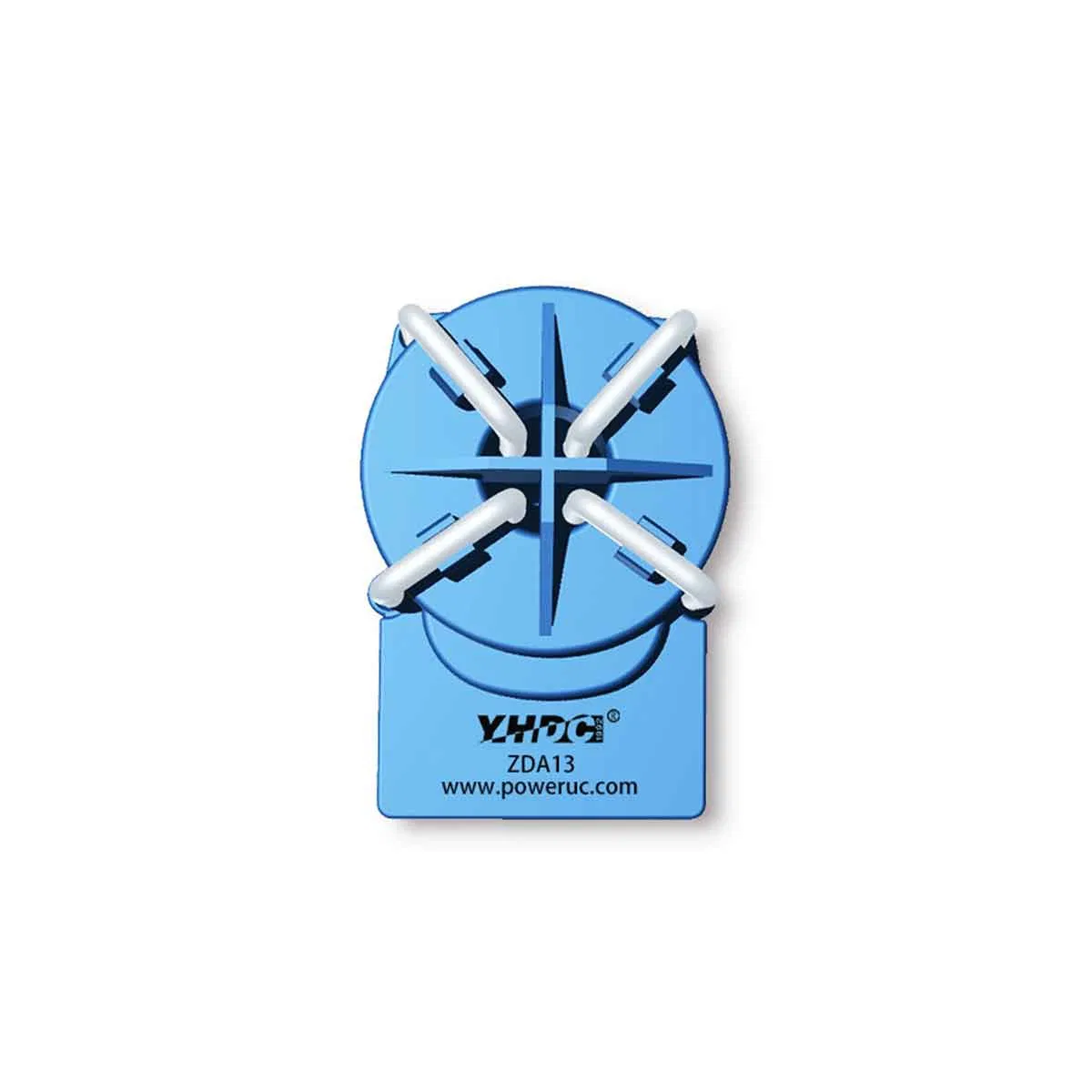

Residual Current Detection DC6ma AC20mA/30mA Leakage Current Sensor Zda13

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
ZDA13
Production Process
Injection
Material
Plastic
Accuracy Grade
1.0G
Application
Leakage Current
Certification
RoHS
Rated Input
6mA
Output
20mA/30mA
Supply Voltage
5V
Frequency Range
DC ~ 2kHz
Residual Current Sensor

Product Description

The ZDA13 is a type-B residual current monitoring device specifically designed for EV charging applications. It fully complies with the IEC62752 and IEC62955 standards. This sensor offers comprehensive all-current sensitivity, ensuring optimal safety during the charging process.

Product Features
Value optimized
Built-in test and calibrate function
Operating supply voltage range: 4.8V - 5.2V
Operating temperature: -40°C ~ +85°C
Small size & Low power consumption
Applications
AC wallboxes
ICCPD (charging cable)
Leakage Current Sensor Detail

Electrical Parameters

Type Parameter DC6mA / AC20mA DC6mA / AC30mA
DC Trip ThresholdTyp.: 4.5mA (Max: 5.5mA)Typ.: 4.5mA (Max: 5.5mA)
AC Trip ThresholdTyp.: 15mATyp.: 22.5mA
DC Recovery Level3mA3mA
Frequency RangeDC ~ 2kHz
Response TimesCompliant with IEC62752:2016
Max Primary Current48A RMS
Supply CurrentTyp.: 16mA

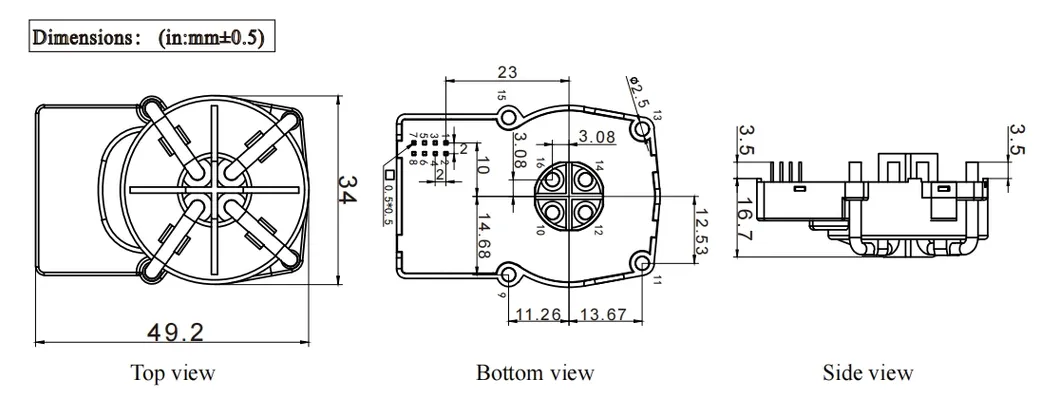

Dimensions & Diagram

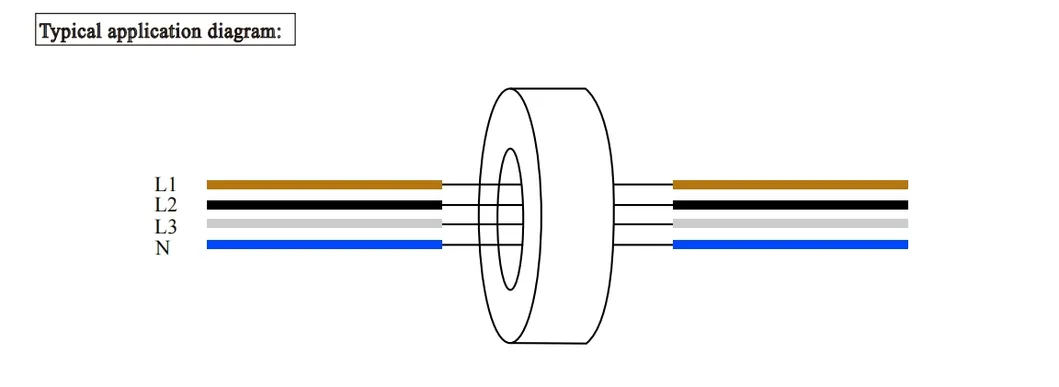

Diagram 1 Diagram 2 Diagram 3

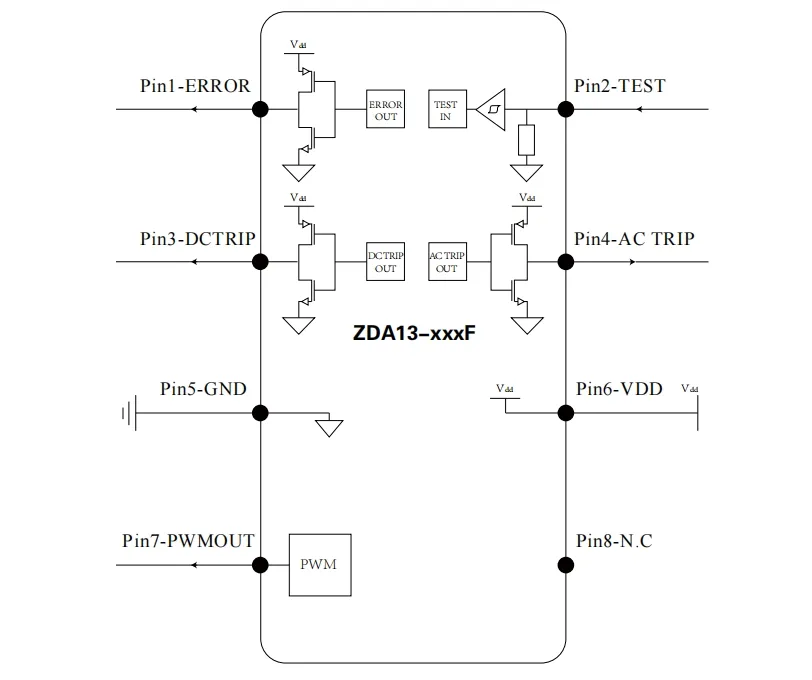

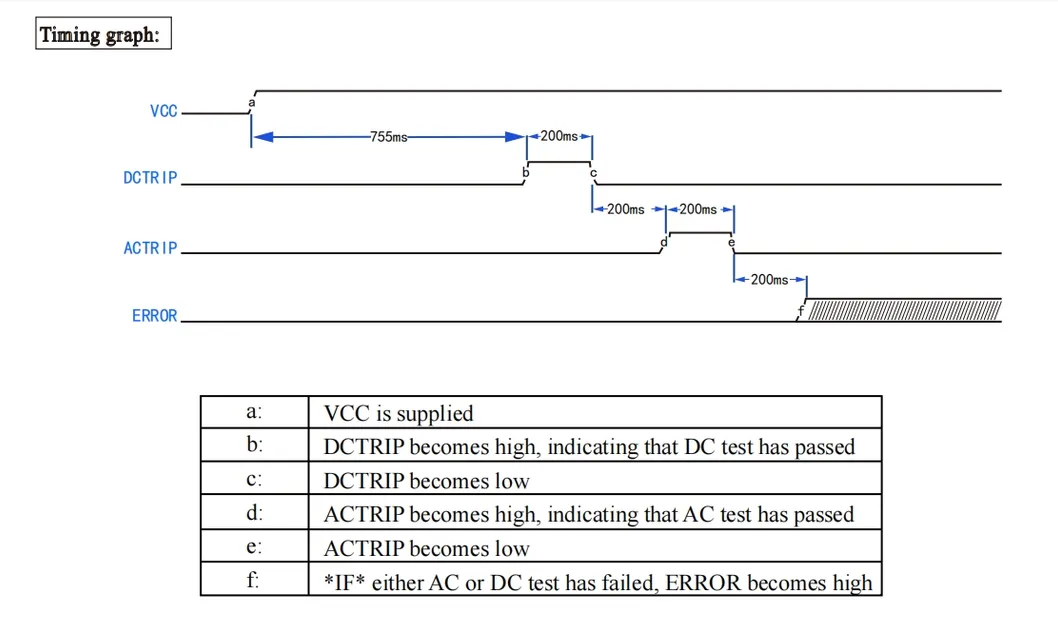

Connection Diagram

Profile & Advantages

Established in 1992, we are a leading manufacturer of electromagnetic components and devices. Our products are widely used in industrial equipment, precision instruments, aerospace, medical, railway, and wind power industries. The range includes power transformers, current transformers, DC current sensors, and Rogowski coils. With in-house mold manufacturing and injection workshops, we focus on high-quality designs for severe environments with a service life of up to 20 years.

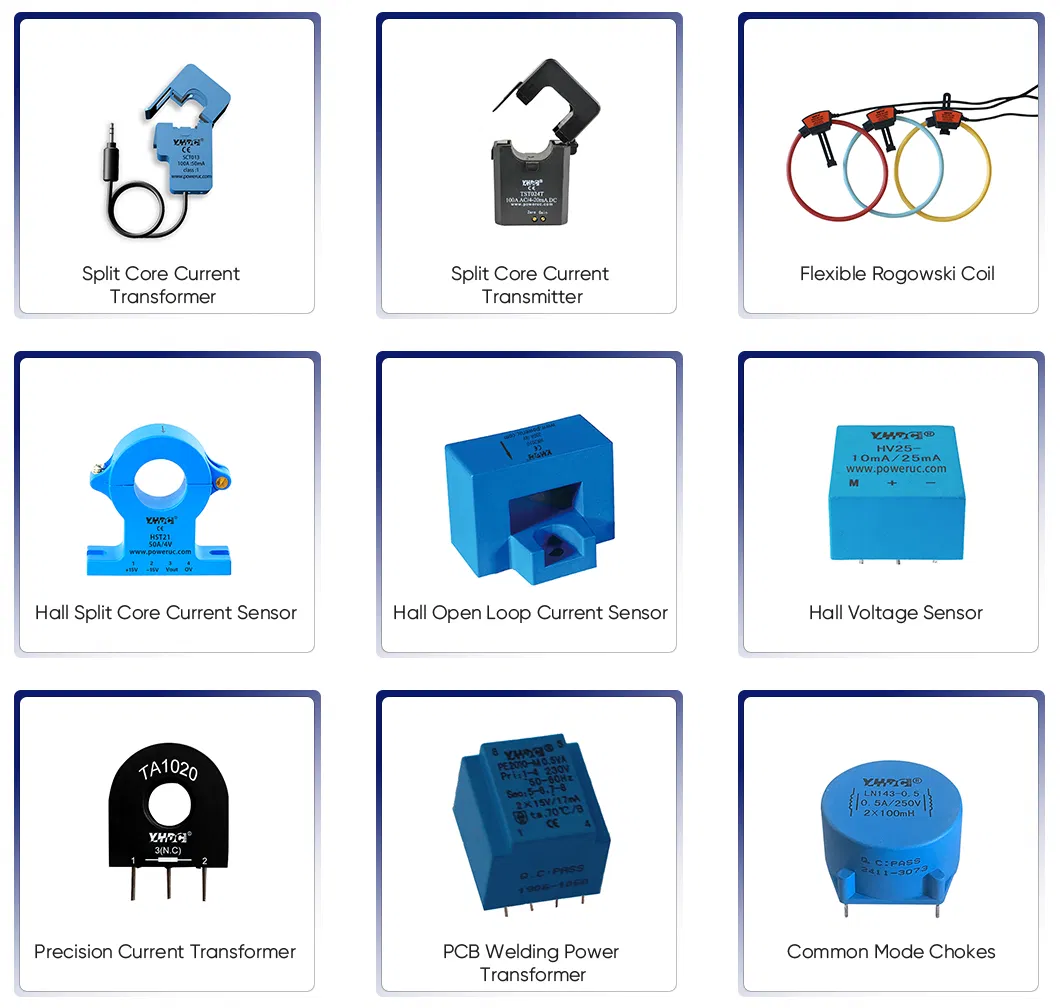

Main Products Workshop
Certifications

Packaging & Shipping

All products are well-packed in cartons with protective boxing.
Support for neutral packing or OEM requirements.
Shipping via DHL, FedEx, UPS, TNT (door to door) or air/sea for bulk orders.
Exhibition Packaging

Frequently Asked Questions

Do you provide samples and support customization?
Yes, we provide samples and products can be customized according to specific requirements.
What is the typical delivery time?
Our standard delivery time is 5-7 working days.
Are you a trading company or a manufacturer?
We are a direct factory with over 30 years of experience in electromagnetic components.
What standards does the ZDA13 sensor comply with?
It fully complies with IEC62752 and IEC62955 standards for EV charging safety.
What is the application range for this sensor?
It is specifically designed for AC wallboxes and ICCPD (charging cables) to detect leakage current.
How can I place an order?
You can contact our team with your order details or place an order directly through our online system.
