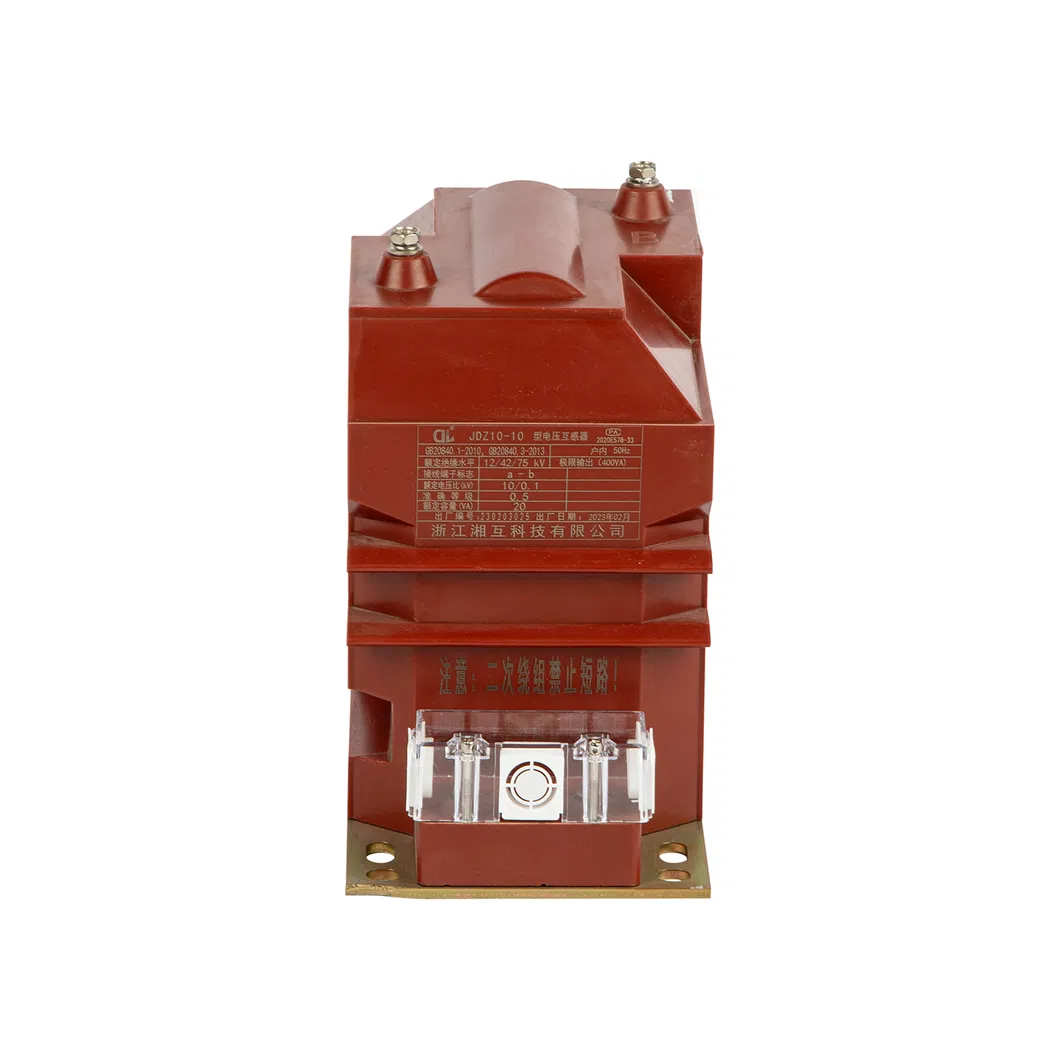

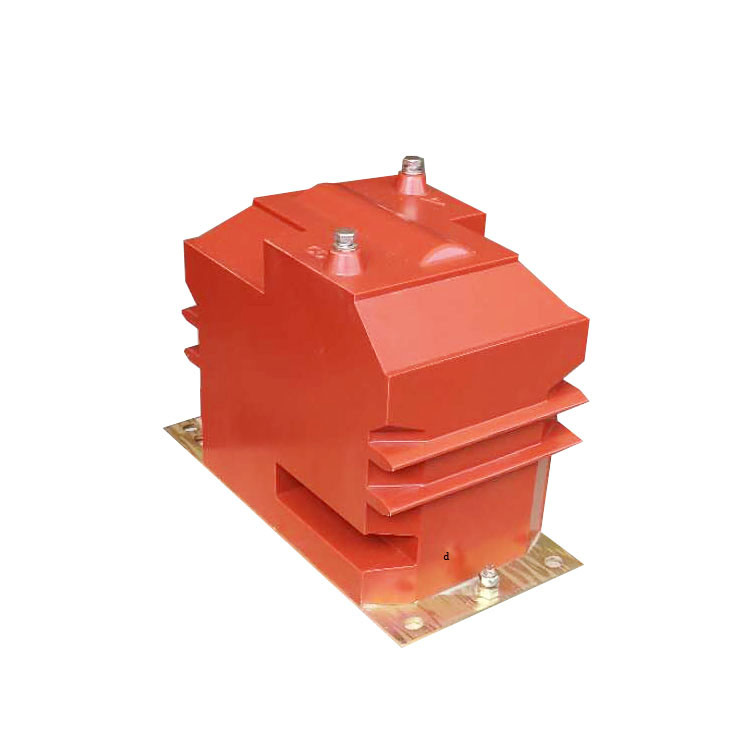

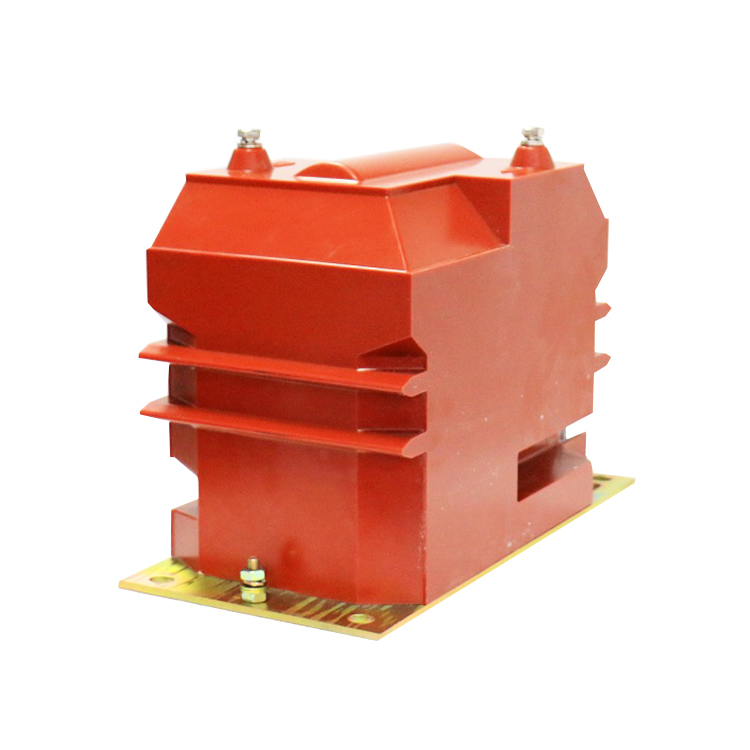

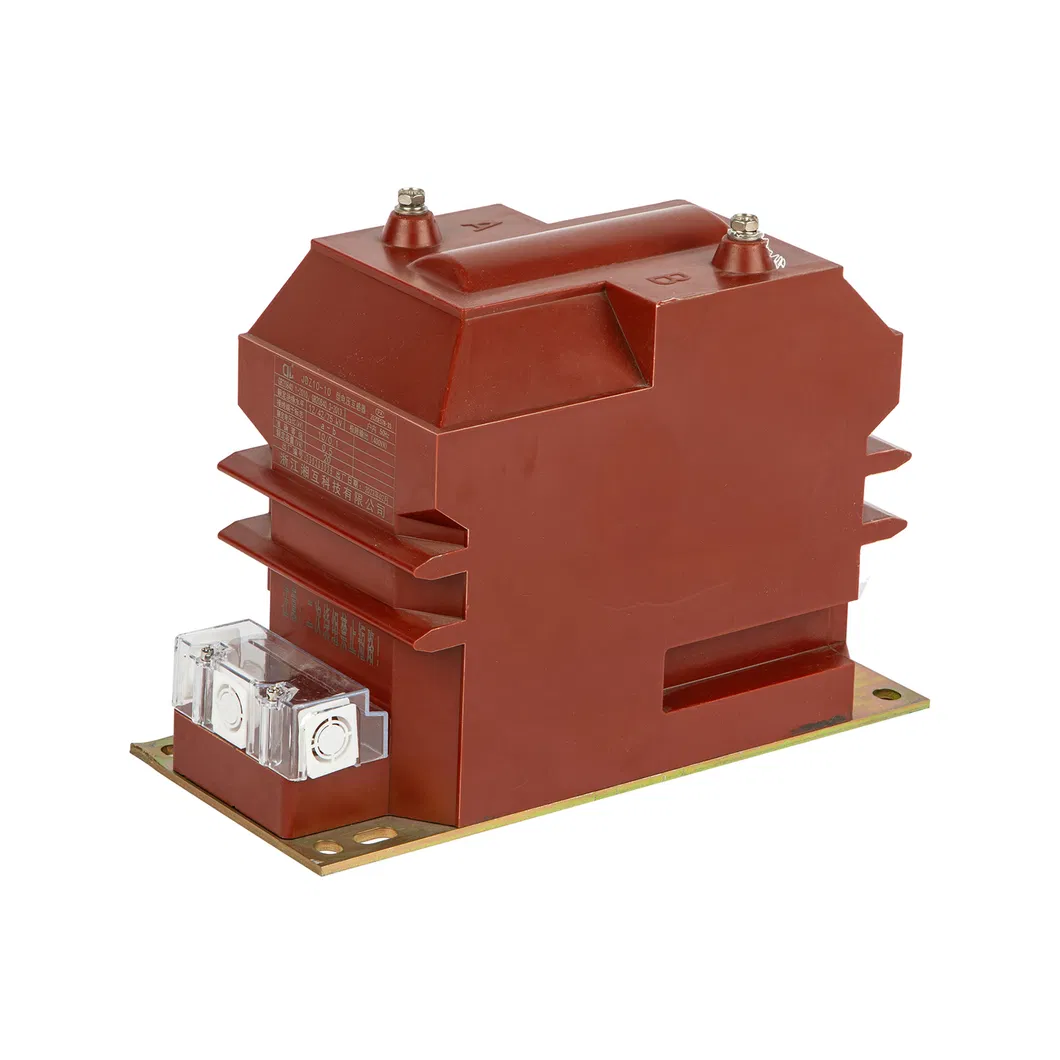

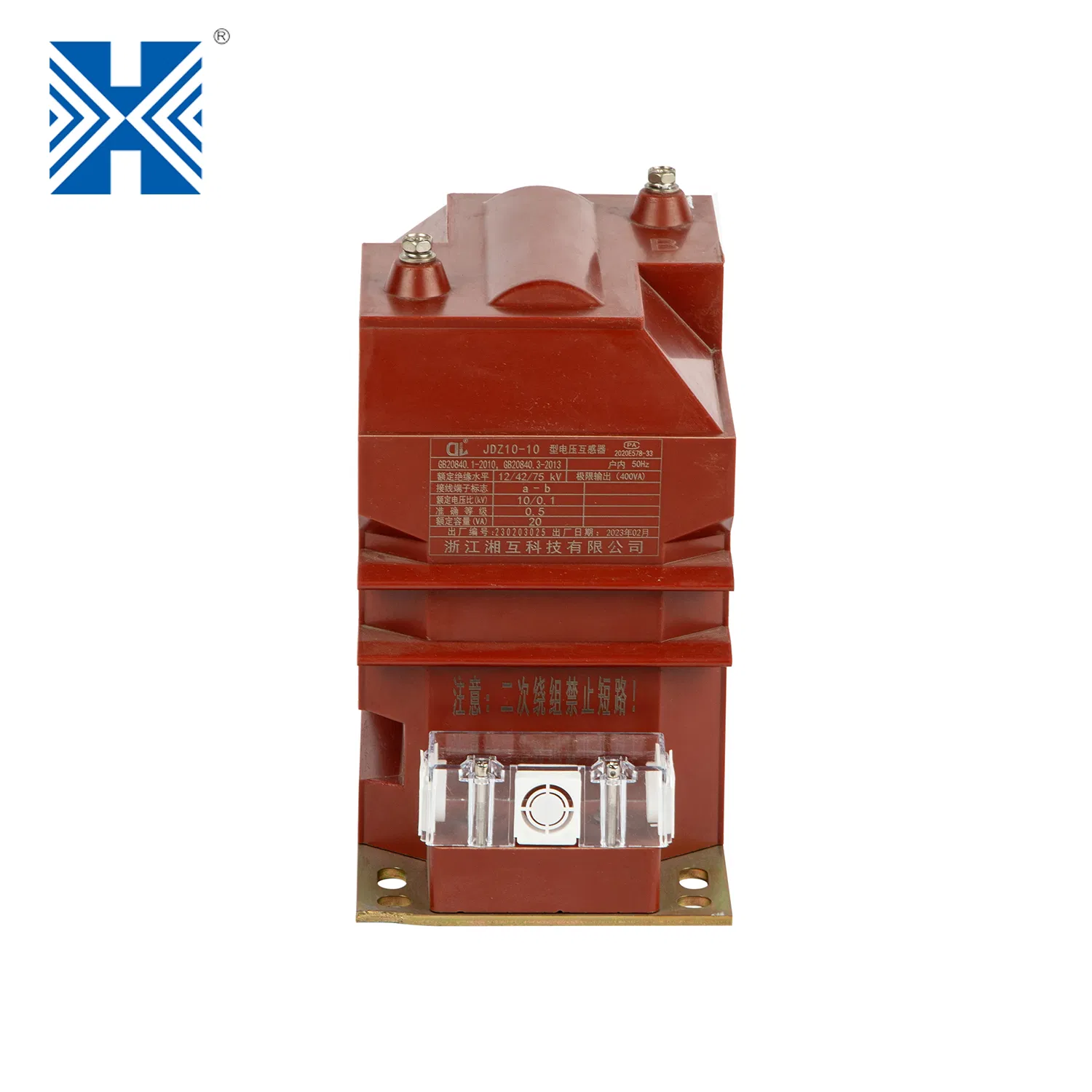

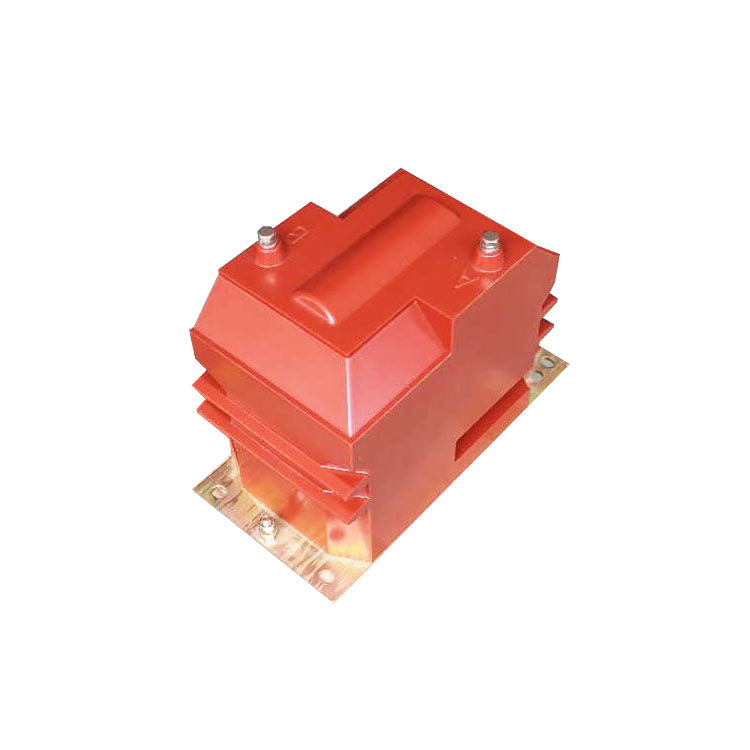

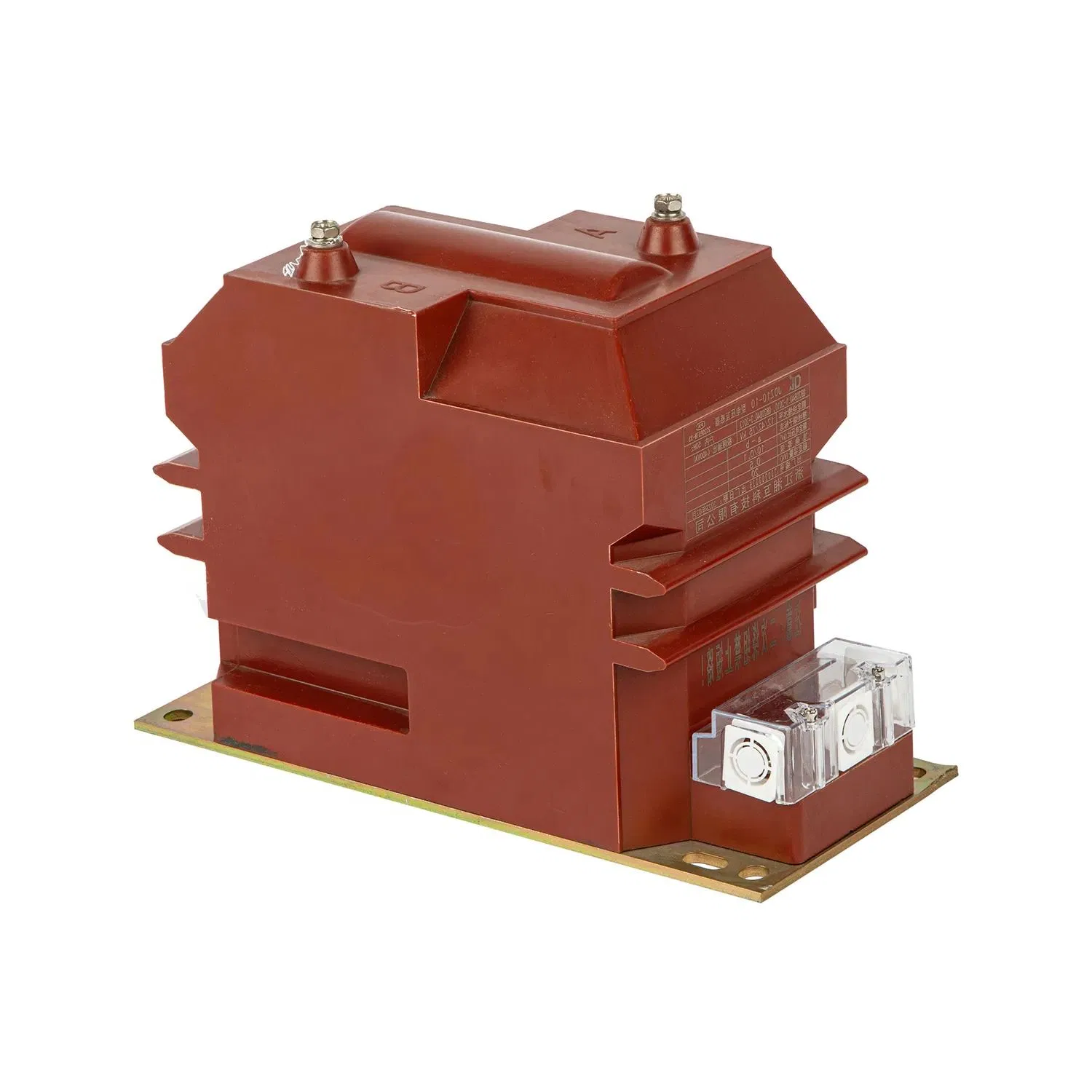

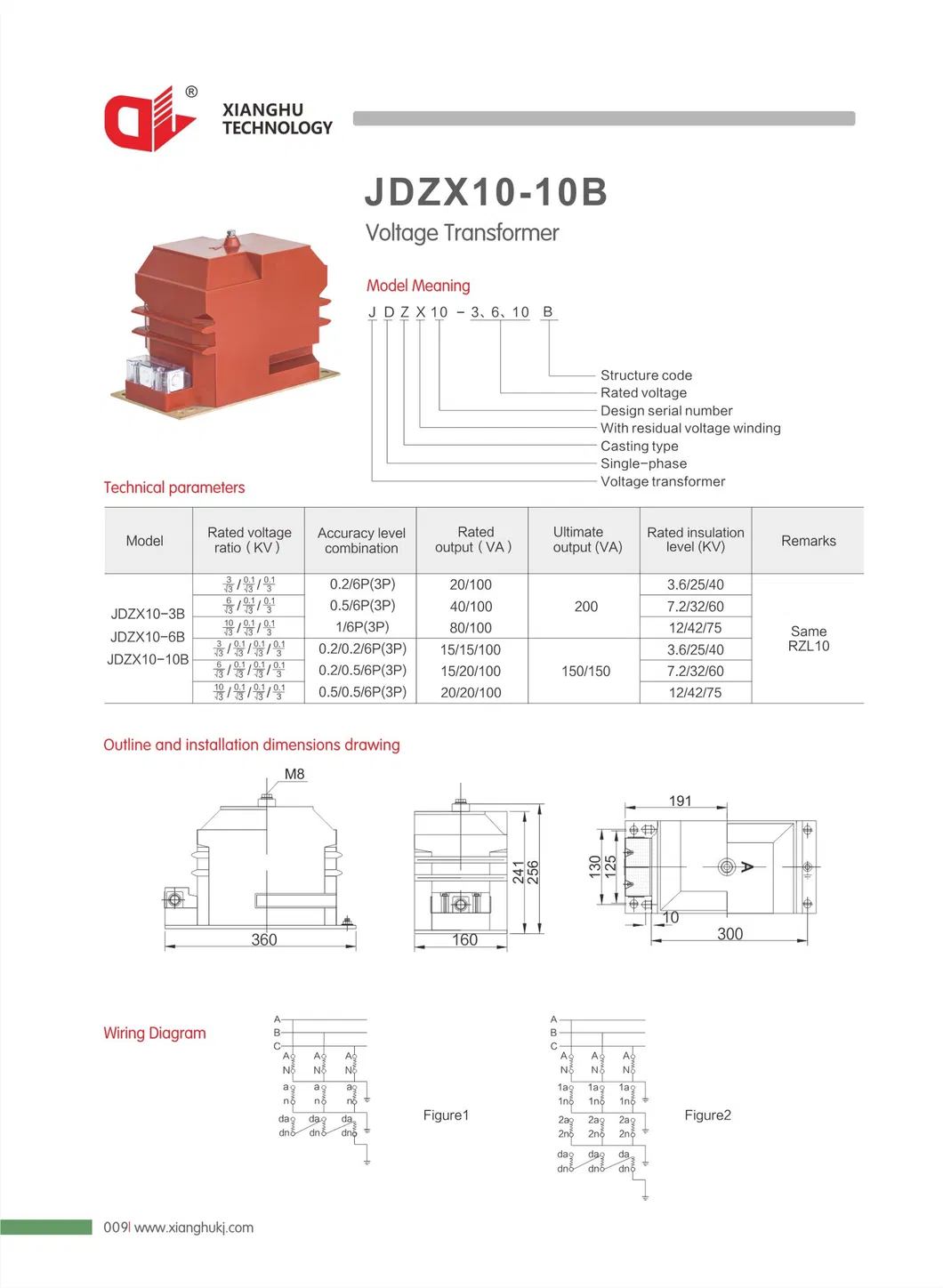

JDZ10-10 and JDZX10-10 voltage transformers are suitable for rated frequencies of 50Hz or 60Hz. They are primarily used for energy metering, voltage monitoring, and relay protection in 10kV power systems.
This type of transformer features a pillar-type structure made of epoxy resin fully enclosed casting. It is resistant to pollution and moisture, making it suitable for tropical regions. These transformers require minimal maintenance, needing only regular cleaning of surface contaminants. Their compact and lightweight design allows for installation in any position and direction.
| Model | Rated Voltage Ratio (kV) | Accuracy Classes | Rated Output (VA) | Ultimate Output (VA) | Insulation Level (kV) |
|---|---|---|---|---|---|
| JDZ10-3 | 3/0.1 | 0.2 | 15 | 200 | 3.6/25/40 |
| 0.5 | 30 | ||||
| JDZ10-6 | 6/0.1 | 0.2 | 15 | 200 | 7.2/32/60 |
| 0.5 | 30 | ||||
| JDZ10-10 | 10/0.1 | 0.2 | 15 | 200 | 12/42/75 |
| 0.5 | 30 |
When placing an order, please provide the following technical parameters:
