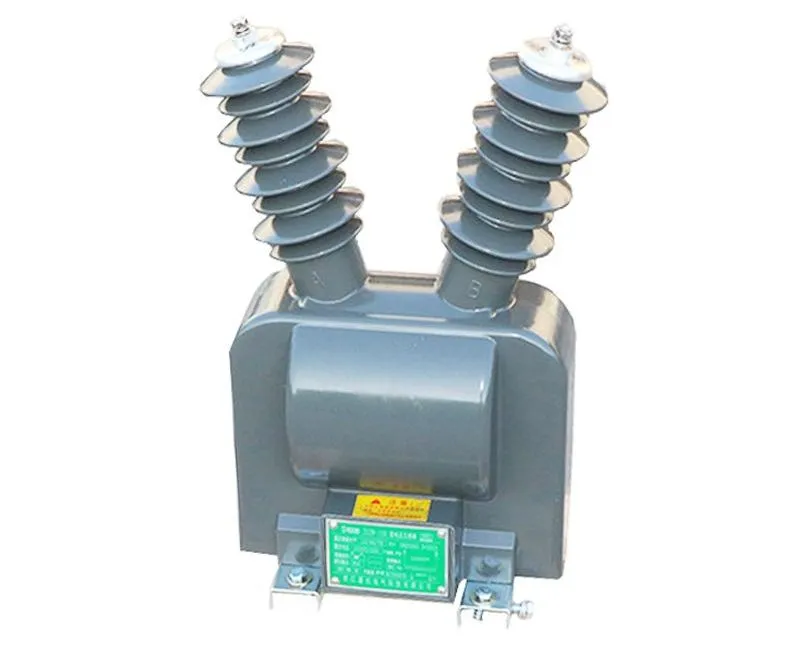

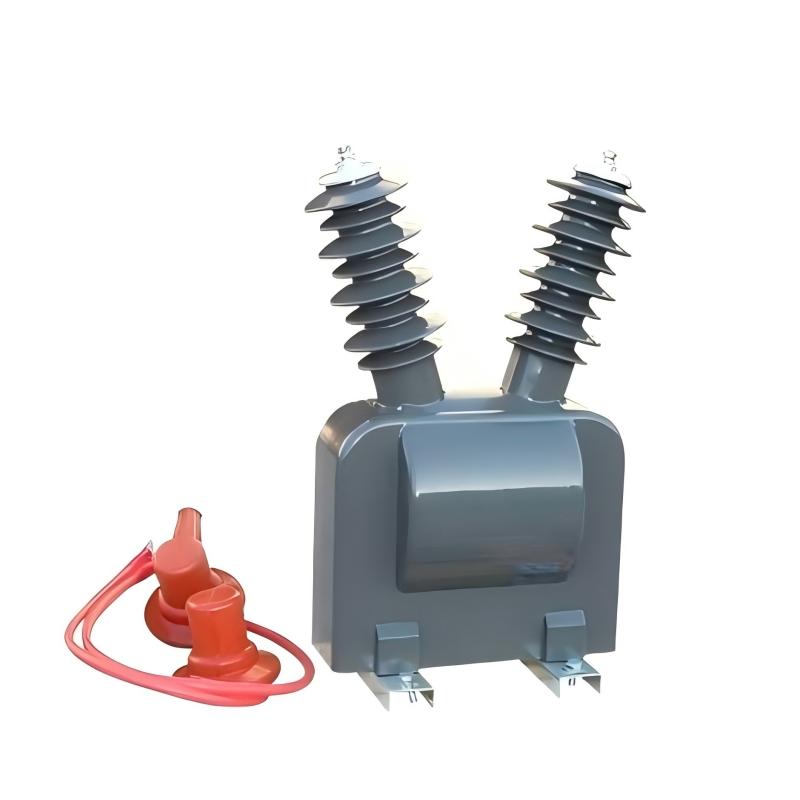

The JDZW-10R is a fully enclosed insulation voltage transformer designed for power pole type applications and high voltage power lines. This outdoor device features a built-in fuse and is engineered for power systems with a rated frequency of 50Hz/60Hz and a rated voltage of 10KV. It is primarily used for electrical measurement, protection, and power supply stability.
| Type | Rated Voltage Ratio | Accuracy & Output (VA) | Limit Output (VA) | Insulation Level (kV) |
|---|---|---|---|---|
| JDZW-10R | 10000/100 10000/220 |
0.2 / 20 0.5 / 50 |
500 | 12/42/75 |
| JDZXW-10R | 10000/√3 / 100√3 / 100/3 | 0.2/6P : 20/100 0.5/6P : 30/100 |
500 | 12/42/75 |
