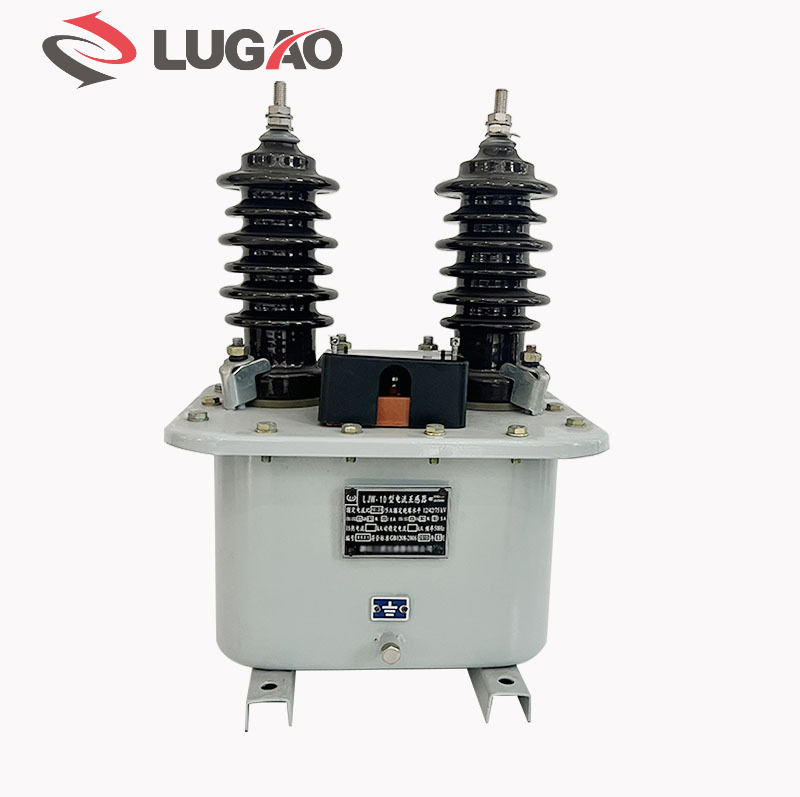

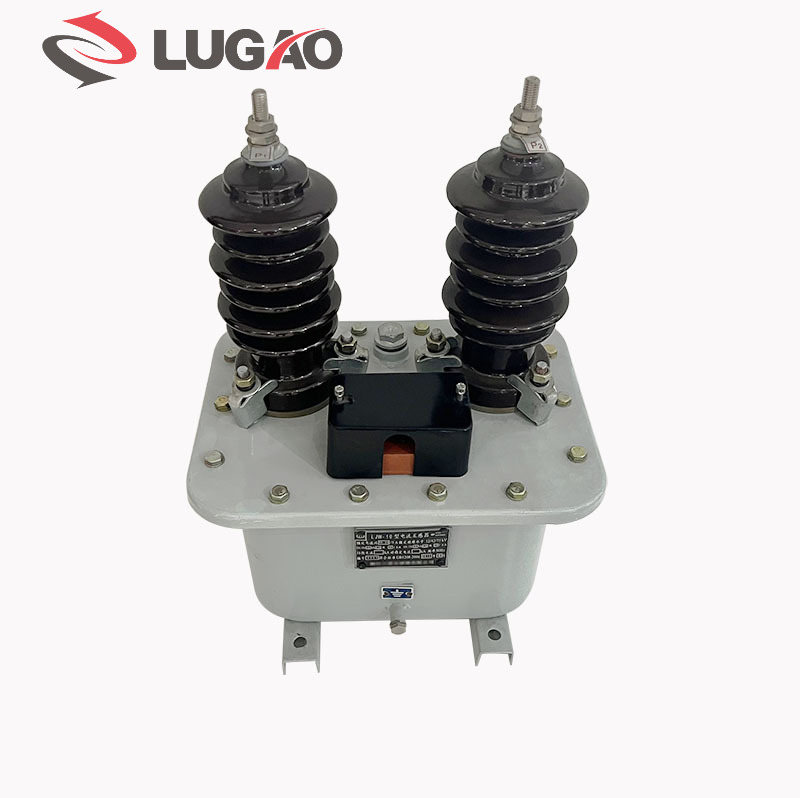

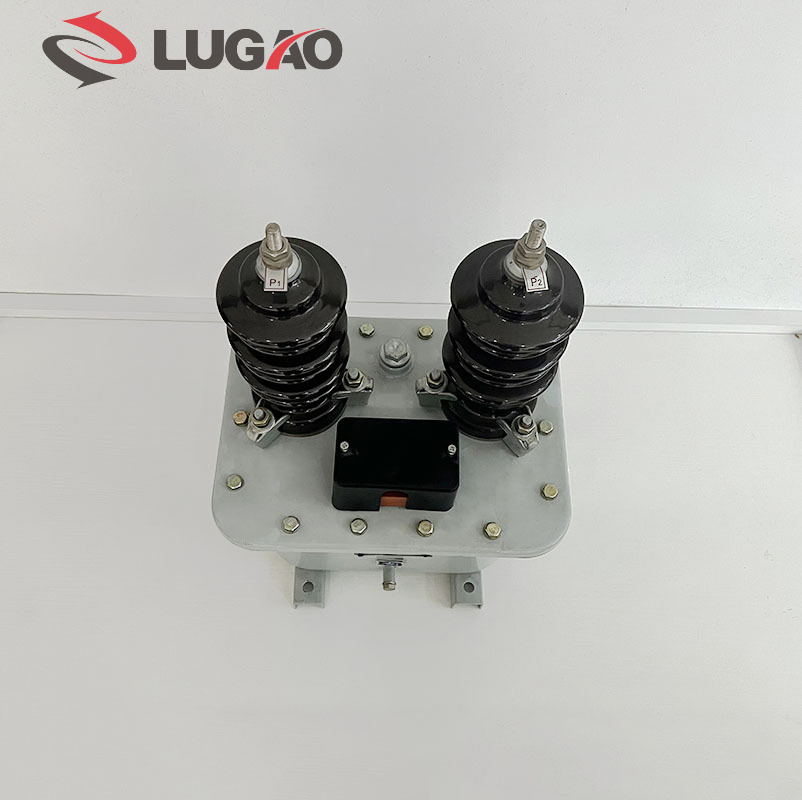

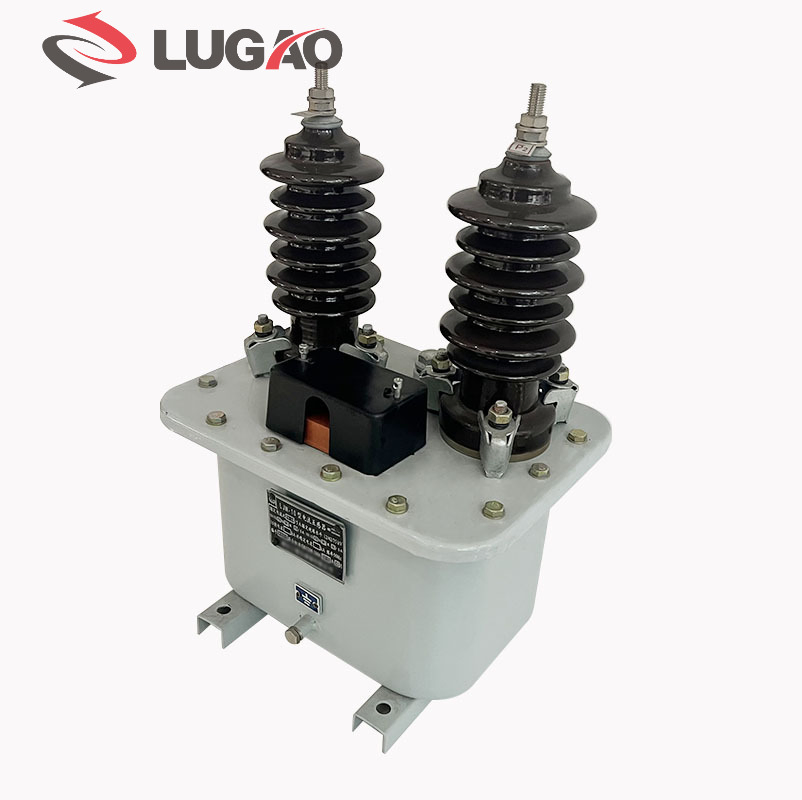

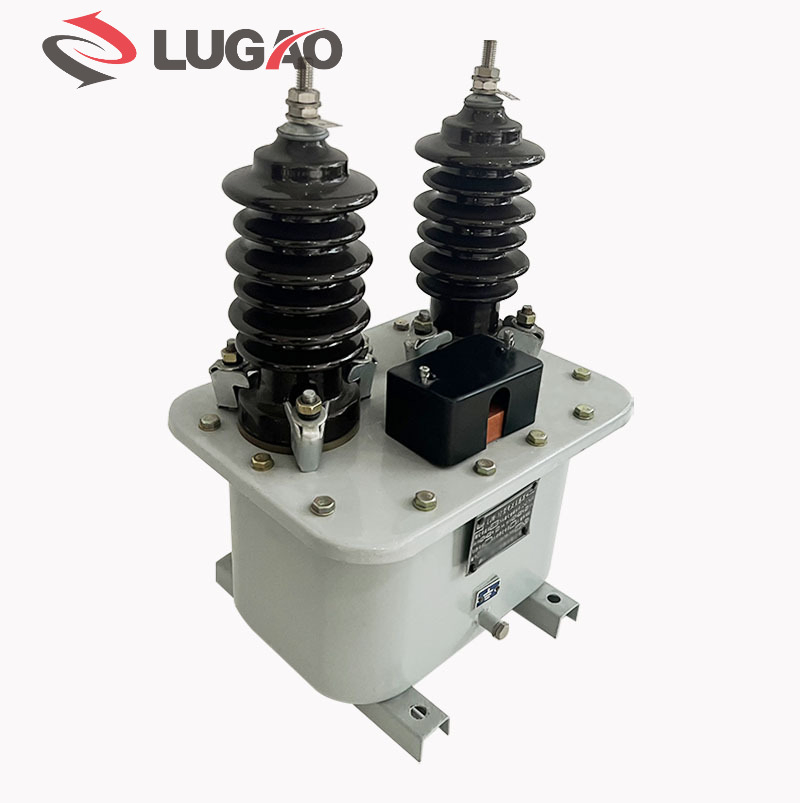

Model NO.JDX-10
PhaseSingle
Operation ConditionOutdoor
UsageProtection, Measurement
Winding FormMultilayer Honeycomb Type
Insulating MediumInsulating Oil
InstallationBusbar Type
Magnetic CircuitCascade Type
PrincipleElectromagnetic Type
Ambient Temp-5~40℃
MaterialSteel, Porcelain
Altitude≤1000m
PRODUCT INTRODUCTION

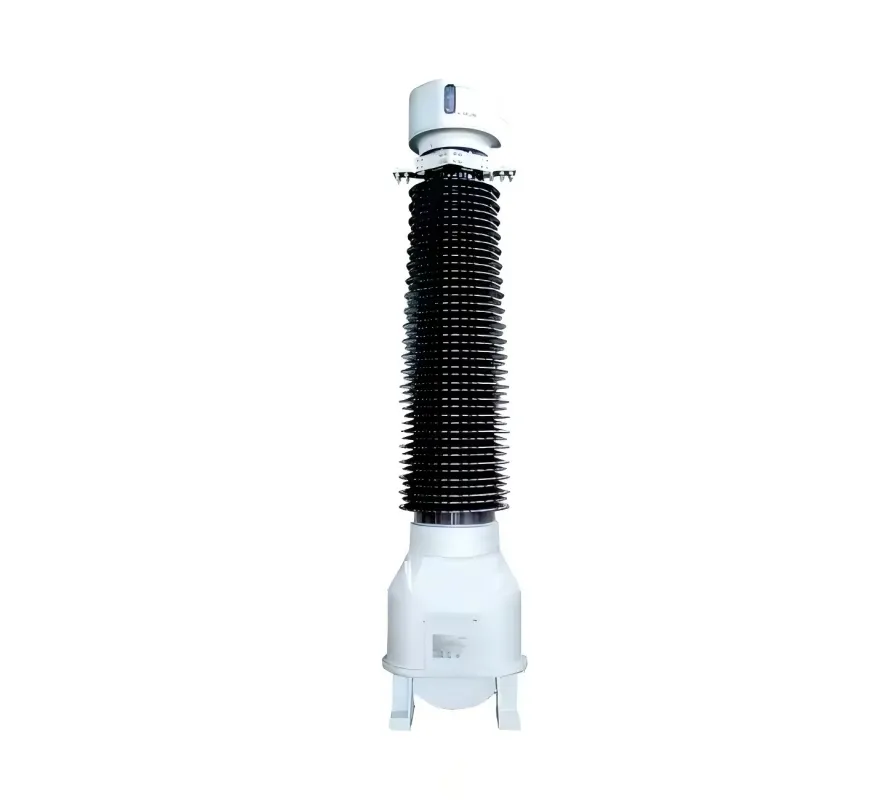

The JDCF-66/JDCF-126 voltage transformer is used to convert high voltage into a standard secondary voltage of 100V or lower in proportion for protection, measurement and instrumentation. At the same time, the use of voltage transformers can isolate high voltage from operators. Although the voltage transformer works on the principle of electromagnetic induction, its structure is specifically designed for high-impedance secondary circuits. When the secondary load impedance decreases, the secondary current increases, causing the primary current to automatically increase to maintain electromagnetic balance.

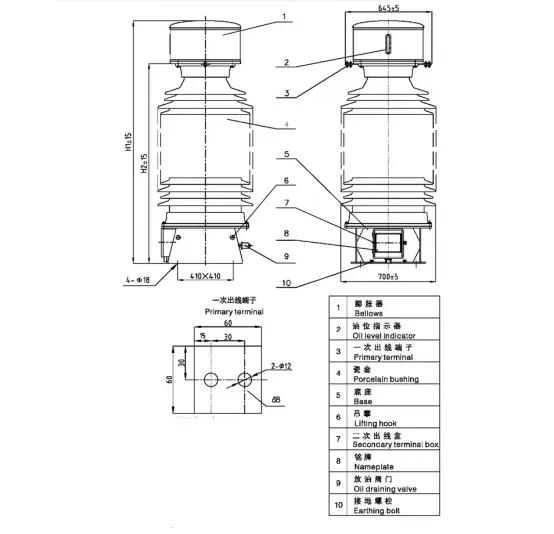

| Type |
H2 (mm) |
H1 (mm) |
| JDCF-60W2 |
(JDCF-72.5W2) |
1300 |
1630 |
| JDCF-66W2 |
| JDCF-110W2 |
(JDCF-126W2) |
1500 |
1830 |
| JDCF-120W2 |
(JDCF-123W2) |
| JDCF-132W2 |
(JDCF-145W2) |
1750 |
2080 |
| JDCF-138W2 |

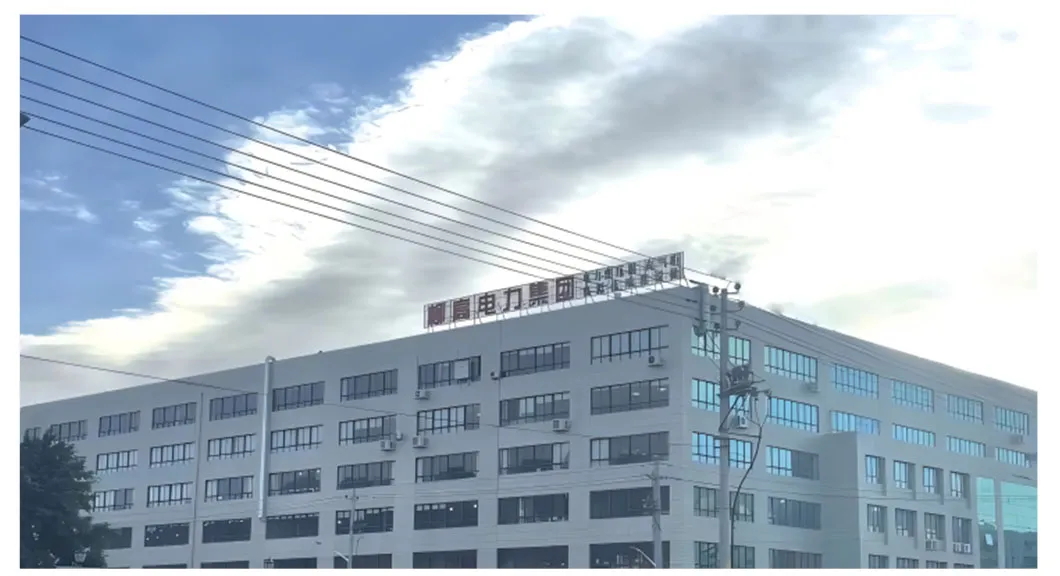

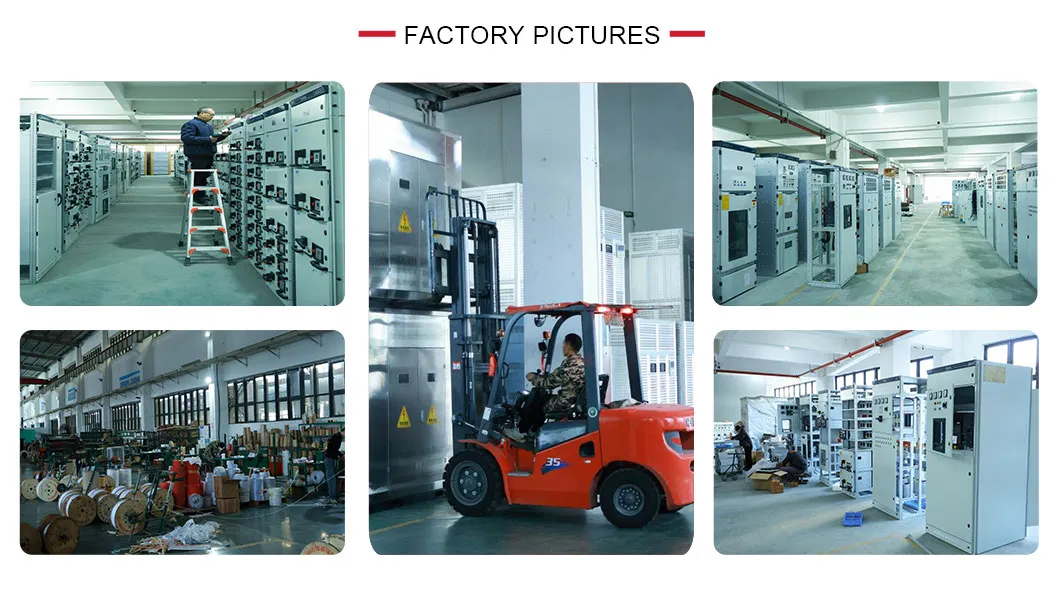

Company & Technical Strength
The company is an international high-tech enterprise specializing in the R&D, production, and sales of high-voltage, medium-voltage and low-voltage transmission and distribution equipment. We provide one-stop solutions for global power infrastructure projects, integrating cutting-edge production technologies supported by rigorous quality control systems.
Frequently Asked Questions
Are you a manufacturer or a trader?
We are a leading and professional manufacturer specializing in power distribution equipment.
What is your after-sales service policy?
We offer 24-hour online support, 1-3 years quality guarantee, and door-to-door service for specific large-scale equipment. Our products meet international standards such as CE, RoHS, KEMA, CB, and TUV.
What are your payment terms?
Standard terms include 30% T/T in advance as a deposit, with the balance paid before shipment. We also accept L/C at sight for large orders and various methods for samples.
Do you provide customized solutions?
Yes, we provide one-stop solutions for global power projects and can adjust technical specifications according to project requirements.
What is the standard lead time for orders?
Lead times typically vary based on order volume and specific product requirements, generally ranging from 15 to 45 days.
How is the equipment packaged for international shipping?
All equipment is securely packed in professional wooden cases to ensure maximum protection during sea or air transportation.
