Engineered to perfection with superior-grade epoxy resin casting, ensuring unmatched durability and precision for your electrical measurement needs. Experience the pinnacle of reliability and performance with our state-of-the-art design, tailored for optimal functionality in diverse applications.

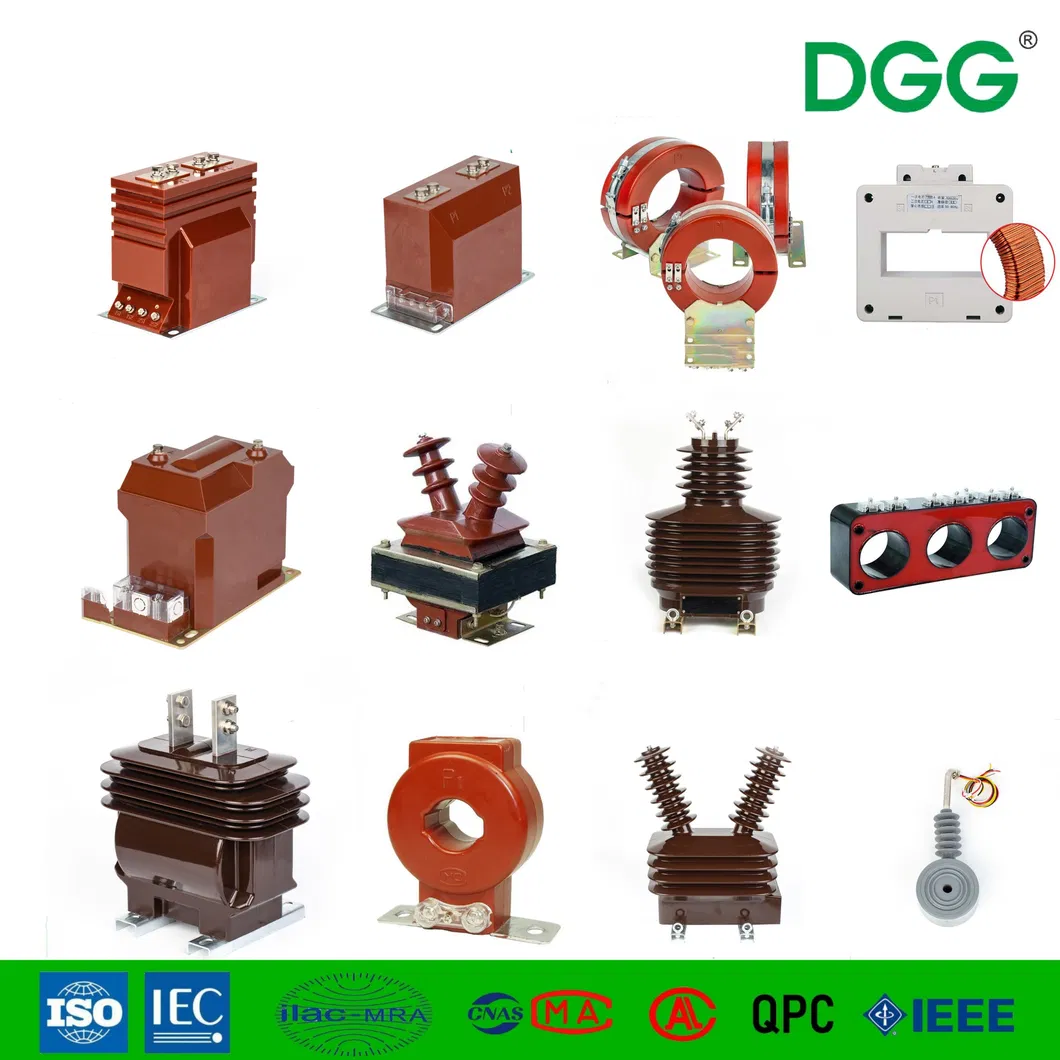

We are a distinguished and professional manufacturer specializing in various high-quality electrical components including: Current Transformers equipped with advanced 35kv technology and robust casting resin, Durable Dropout Fuse Cutouts, Precision-engineered Voltage Transformers, Reliable Vacuum Circuit Breakers/Reclosers, Isolation Switches, Lightning Arresters, High and Low Voltage Cabinets, Metering Devices, and Power Distribution Transformers.
We offer bespoke production tailored to customer specifications, complete with comprehensive testing reports and certificates. Each of our instrument transformers comes with professional testing validation.

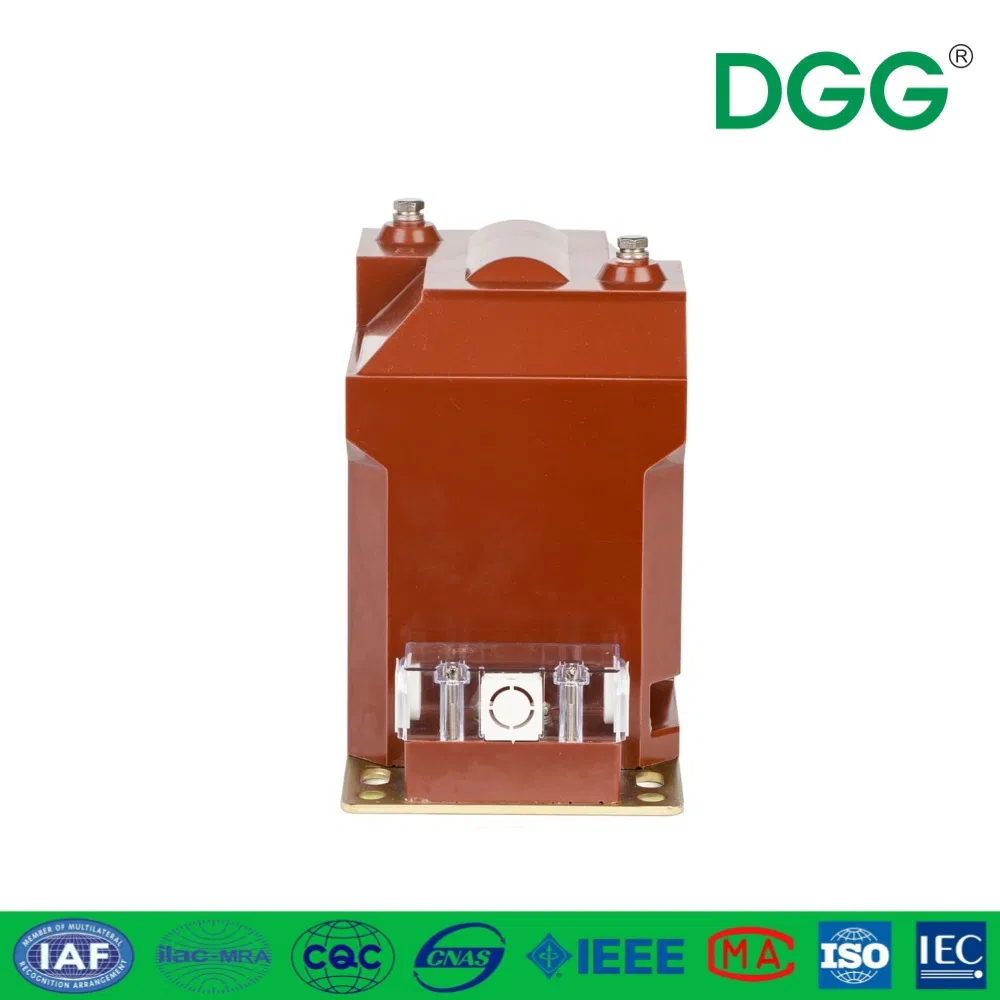

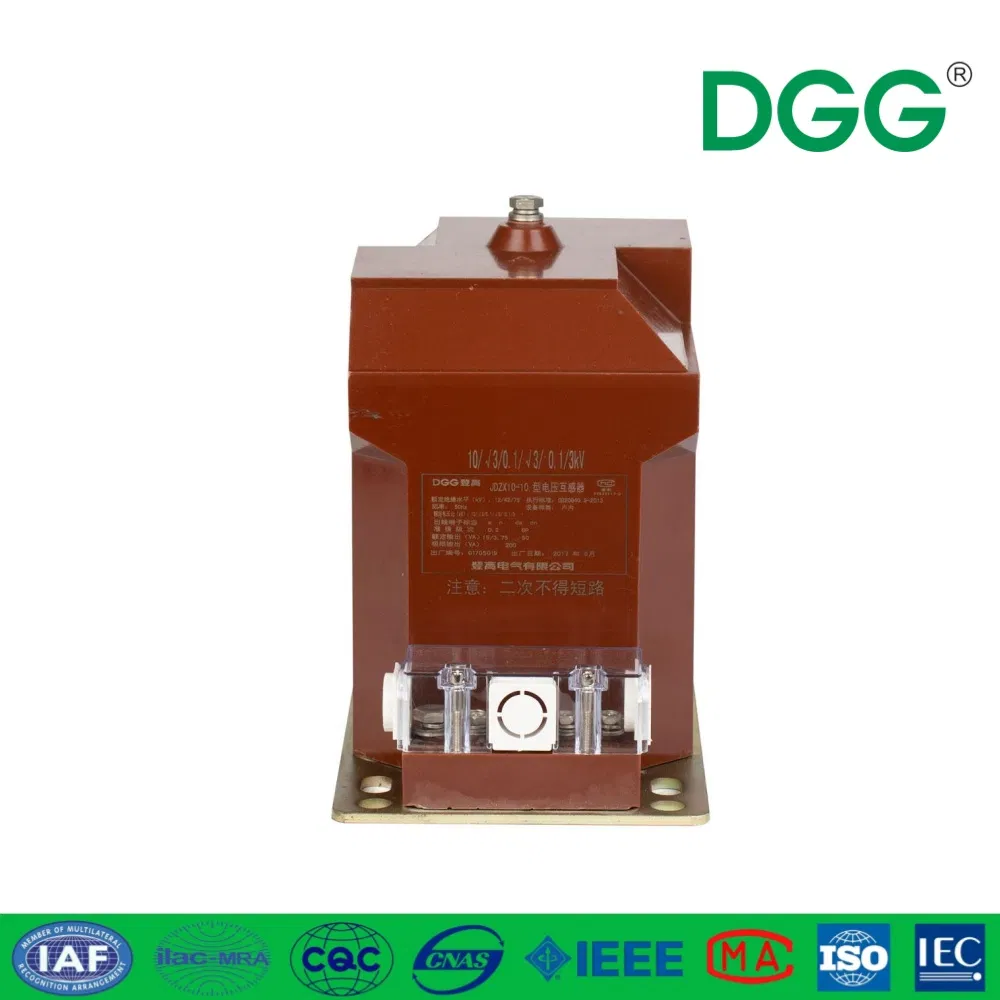

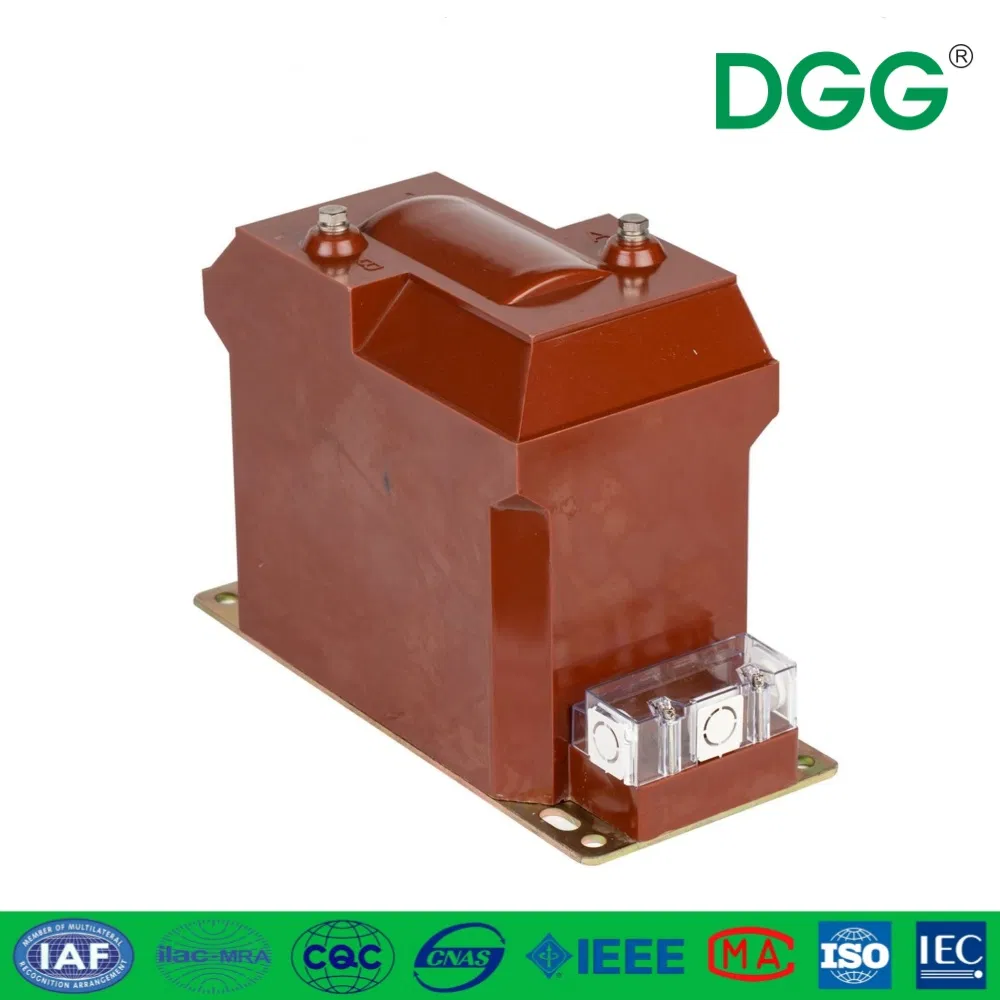

This type of voltage transformer adopts epoxy-resin vacuum casting and a fully closed single-phase structure for indoor use, is applicable for power systems of rated frequency 50Hz or 60Hz and rated voltage up to and including 35kV, used for electric energy metering and voltage measurement.
It complies with the standards GB 20840.1-2010 Instrument transformers-Part1:General requirements, GB 20840.3-2013 Instrument transformers-Part3:Additional requirements for inductive voltage transformers, and JJG314-2010 Instrument Voltage Transformers.
| Rated voltage ratio (kV) | Accuracy class | Rated output (VA) | Limit output (VA) |
|---|---|---|---|
| 6/0.1/0.1 | 0.2/0.2 | 20/20 | 500 |
| 6/0.1/0.22 | 0.2/3 | 20/500 | 500 |
| 10/0.1/0.1 | 0.2/0.5 | 30/30 | 800 |
| 10/0.1/0.22 | 0.2/3 | 30/500 | 800 |
Our products journey across the globe, reaching numerous countries including: Ghana, Gambia, Ethiopia, Philippines, South Korea, Bangladesh, Australia, Pakistan, Azerbaijan, Myanmar, and many more. The exceptional quality and stellar performance have garnered widespread acclaim with an impeccable record of zero complaints.
Our dedicated team excels in designing highly cost-effective power solutions tailored to clients' needs, including substation and distribution plans and overseas bidding.
We proudly hold ISO certification, KEMA certification, along with an extensive array of diverse type test reports, showcasing our commitment to quality and reliability.

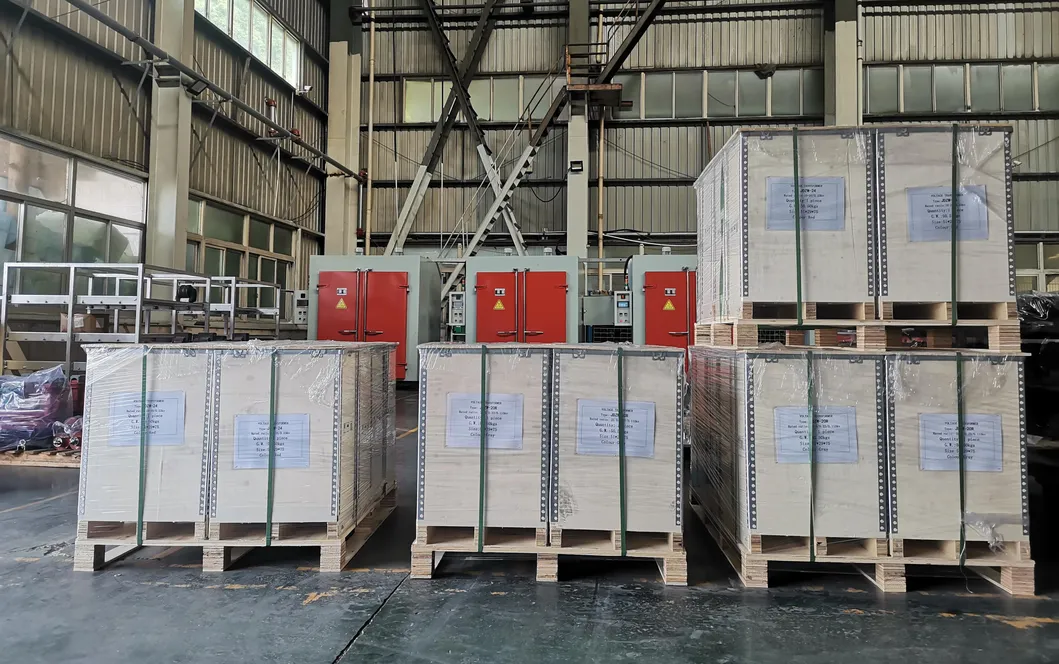

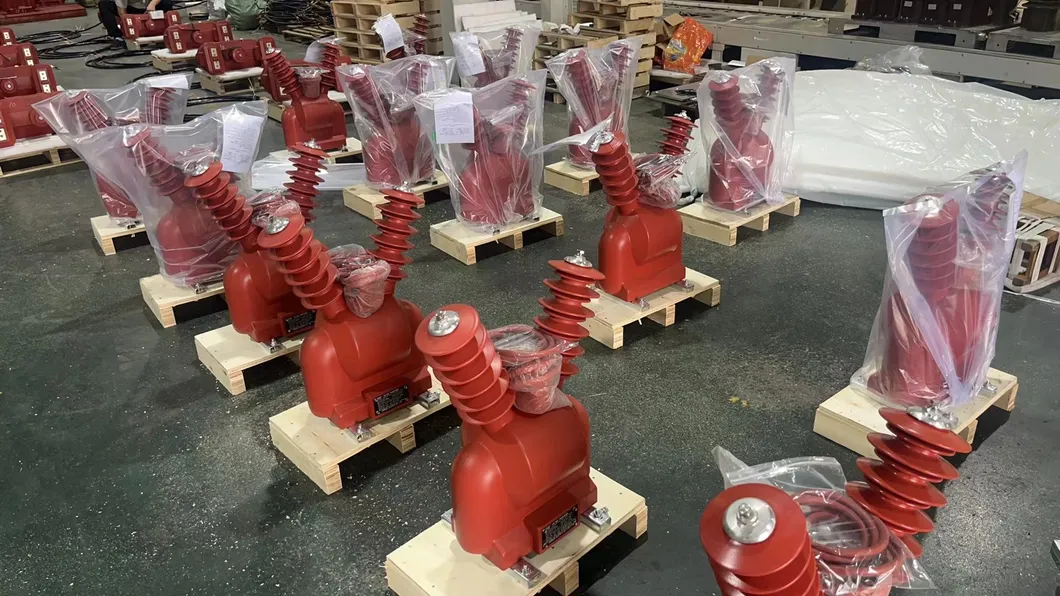

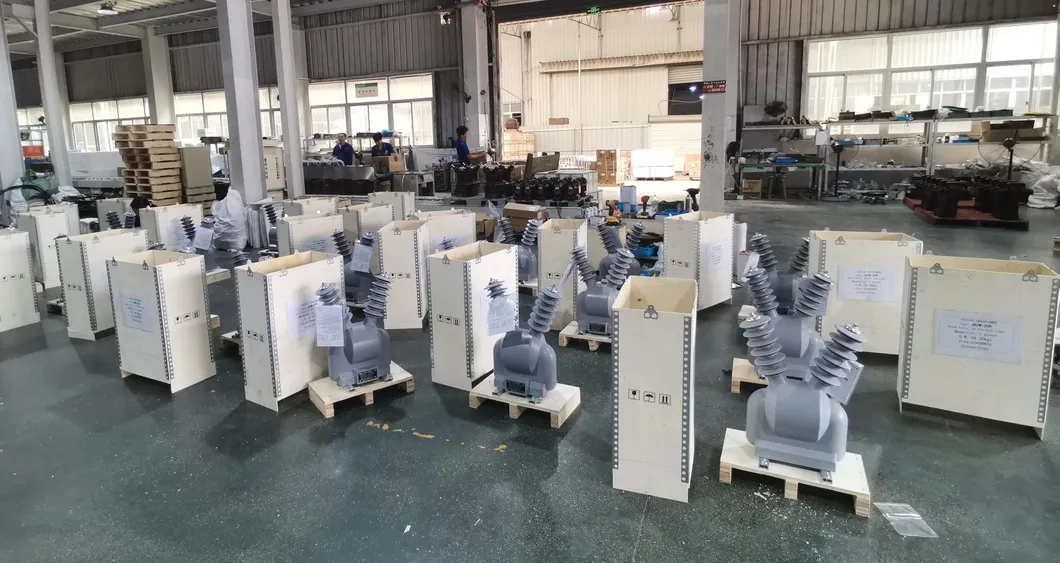

Our dedicated packaging team offers bespoke solutions, crafting wooden boxes tailored to specifications. We meticulously customize logos, colors, and labels to align with your brand identity.

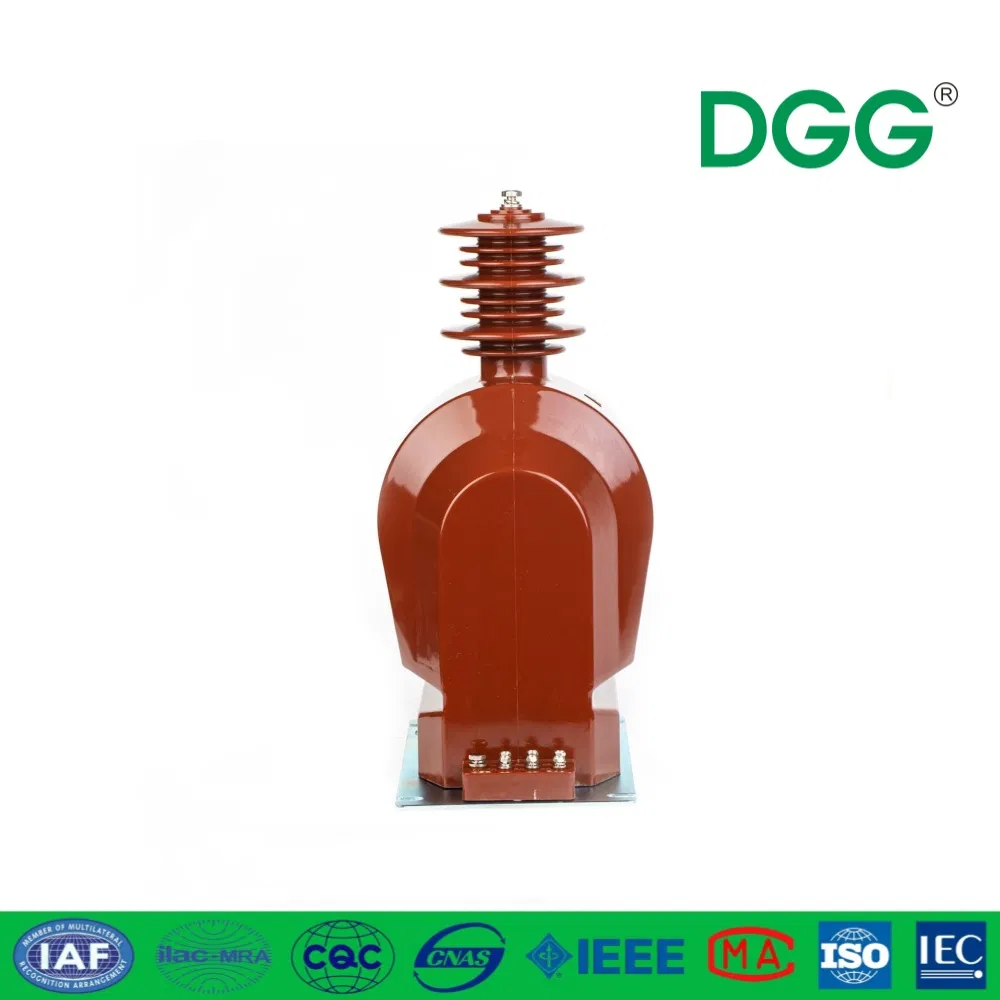

In addition to our flagship 35kv Electrical Current Transformer, we offer a diverse range of other high-precision instrument transformers tailored to meet your unique needs.
