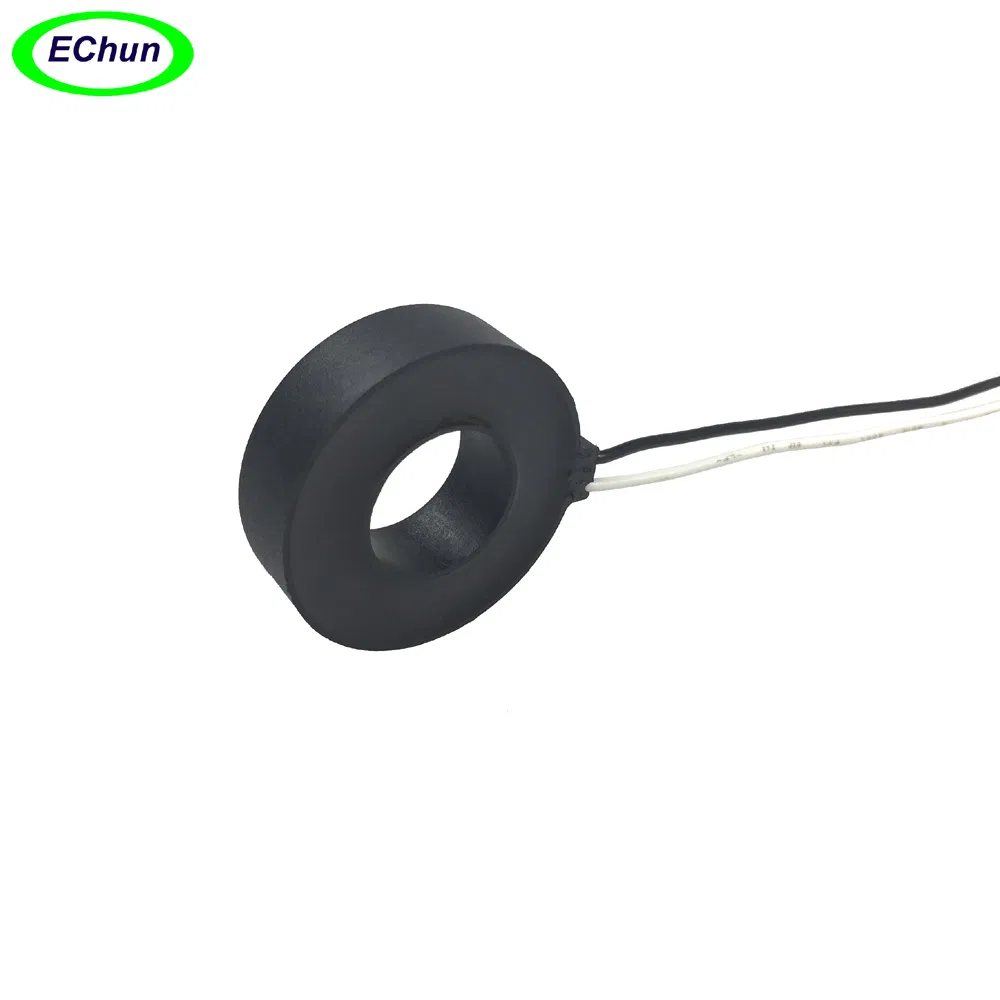

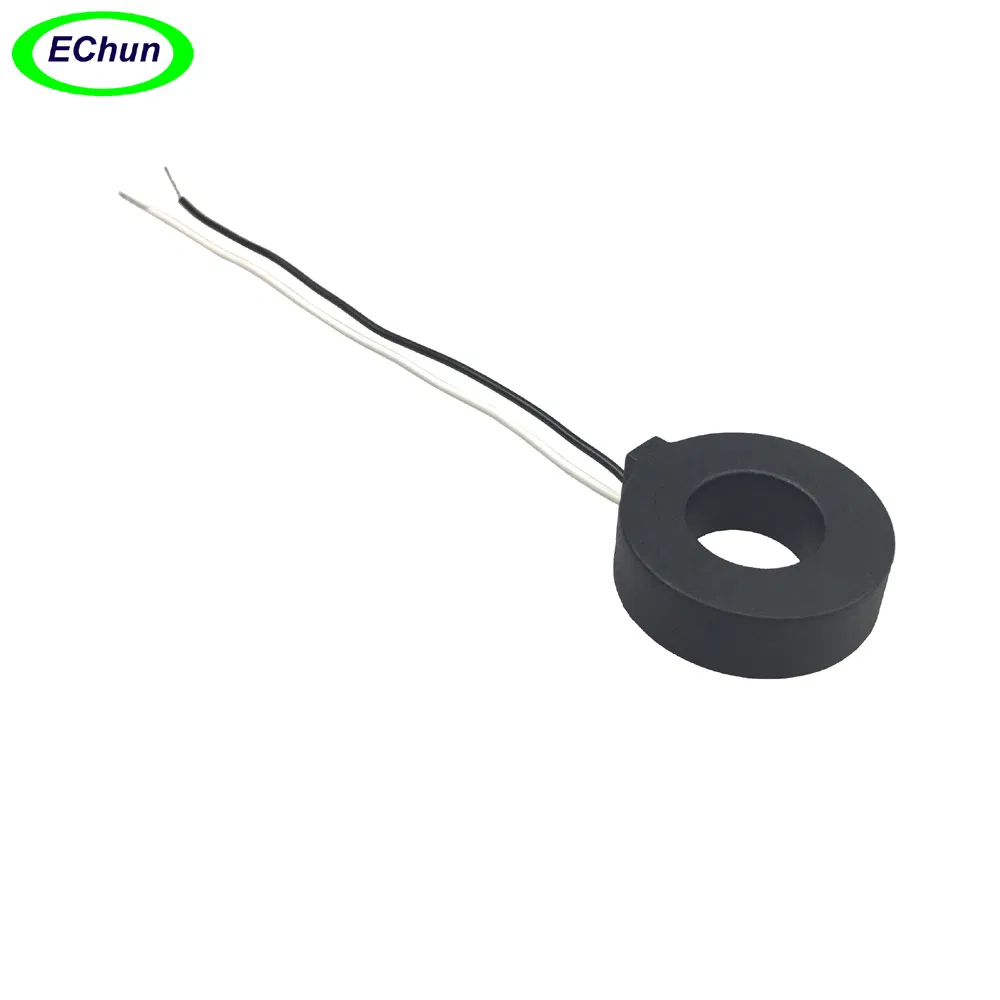

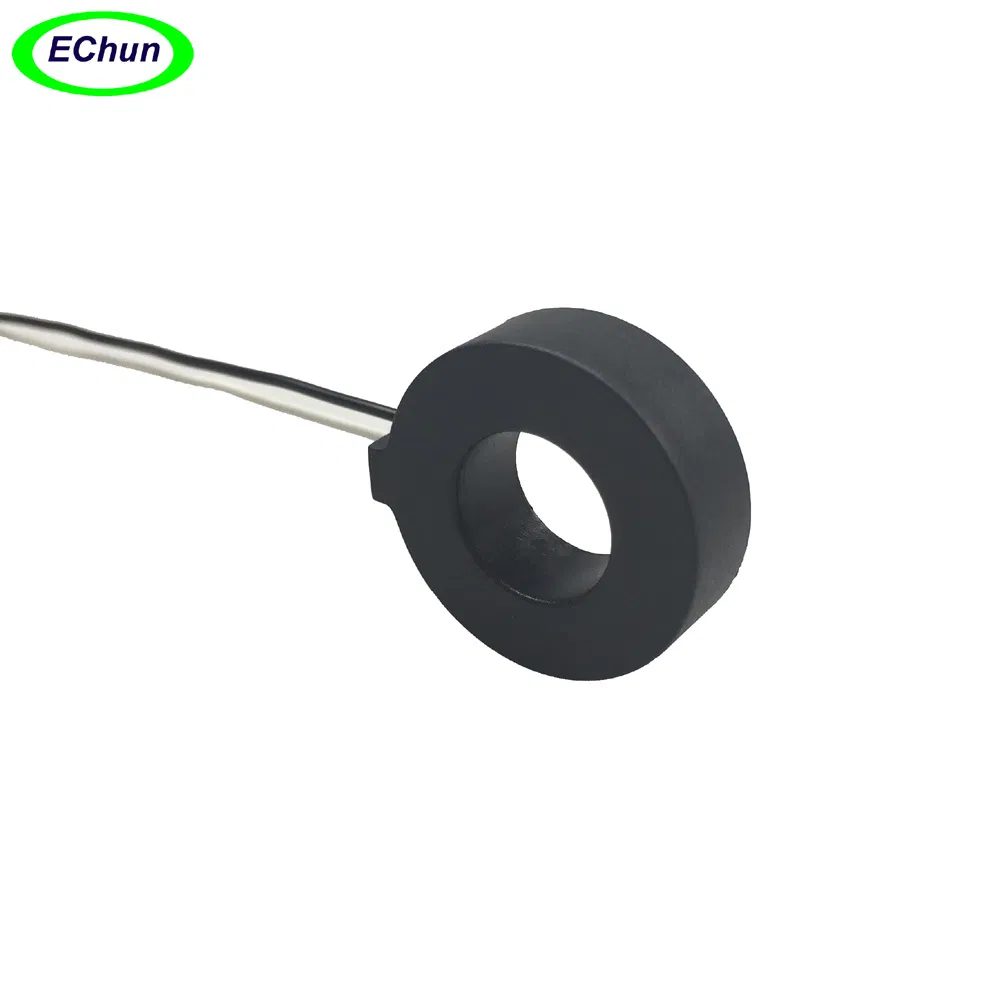

50A Mini Precision Lead Wire Type Zero Phase Current Transformer
50A Mini Precision Lead Wire Type Zero Phase Current Transformer
50A Mini Precision Lead Wire Type Zero Phase Current Transformer
1 / 3
50A Mini Precision Lead Wire Type Zero Phase Current Transformer
50A Mini Precision Lead Wire Type Zero Phase Current Transformer
50A Mini Precision Lead Wire Type Zero Phase Current Transformer

50A Mini Precision Lead Wire Type Zero Phase Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.:
ECO1550-L4A-G
Phase:
Single
Operation Condition:
Indoor
Usage:
Measurement
Winding Form:
Single Layer & Tightly Wound Type
Insulating Medium:
Insulating Paper
Installation:
Active Type
Magnetic Circuit Structure:
Single Stage Type
Voltage Transformation Principle:
Electromagnetic Type
Transport Package:
400PCS/Box
Origin:
China
HS Code:
8504500000
Production Capacity:
10000PCS/Month

Product Description

50A Mini precision Lead wire type Zero phase current transformer

The ECO15 Series are Zero-phase Current Transformers. The ZT is small size, features a lead wire design, and offers a low-cost solution for precise current sensing.

Customized current ratio available.

Max. Continuous Current (Amp.)50
Turn ratioNp:Ns=1:1000
Rated Output Voltage (mV)10-20 mV @Io=20mA, RL=1KΩ
Winding D.C. Resistance at 20 ºC(Ω)44 ±10%
Operating Temperature Range-40~70ºC
Storage Temperature Range-45~90ºC
Dielectric Withstanding Voltage(Hi-pot)4.0KV/1mA/1min
Impluse Withstand Voltage5KV Peak
Insulation ResistanceDC500V/100MΩ min

◈ Applications:

  • Current measurement
  • Monitoring and protection
  • Energy and sub-metering products
  • Network equipment
  • Instruments and sensors
  • Control systems

◈ Advantages:

  • Excellent linearity over the whole range.
  • Fully RoHS compliant.

Product Visuals

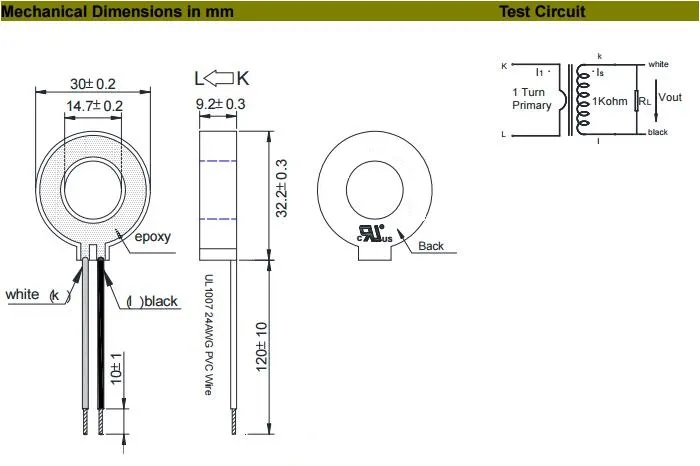

50A Mini Precision Current Transformer 1
50A Mini Precision Current Transformer 2
50A Mini Precision Current Transformer 3
50A Mini Precision Current Transformer 4
50A Mini Precision Current Transformer 5
50A Mini Precision Current Transformer 6

Frequently Asked Questions

What is the primary application of the ECO15 Series?
The ECO15 Series are zero-phase current transformers primarily used for current measurement, monitoring, protection, and energy metering in network equipment and control systems.
What is the maximum continuous current this transformer can handle?
This model is designed to handle a maximum continuous current of 50 Amps.
Is the ECO1550-L4A-G RoHS compliant?
Yes, the product is fully RoHS compliant, ensuring it meets environmental safety standards.
Can the current ratio be customized for specific needs?
Yes, customized current ratios are available to meet specific application requirements.
What are the operating and storage temperature limits?
The operating temperature range is -40°C to 70°C, and the storage temperature range is -45°C to 90°C.
What is the insulation resistance of this transformer?
The insulation resistance is DC500V/100MΩ minimum, providing high safety and reliability.
