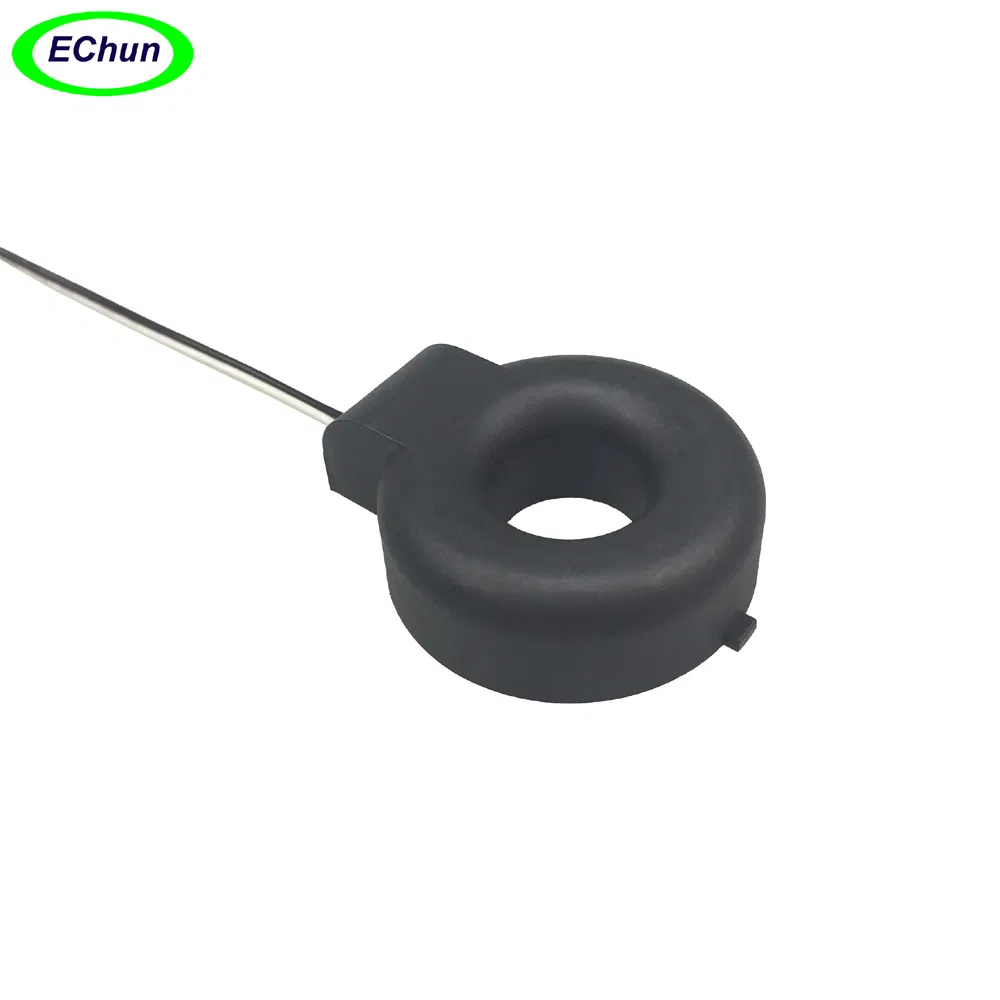

20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor
20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor
20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor
20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor
1 / 4
20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor
20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor
20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor
20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor

20A Close Loop Mini Precision Ring Core Current Transformer Current Sensor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
ECO2020-1
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Insulating Paper
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Electromagnetic Type
Transport Package
80PCS/Box
Origin
China
HS Code
8504500000
Production Capacity
10000PCS/Month
Product Description

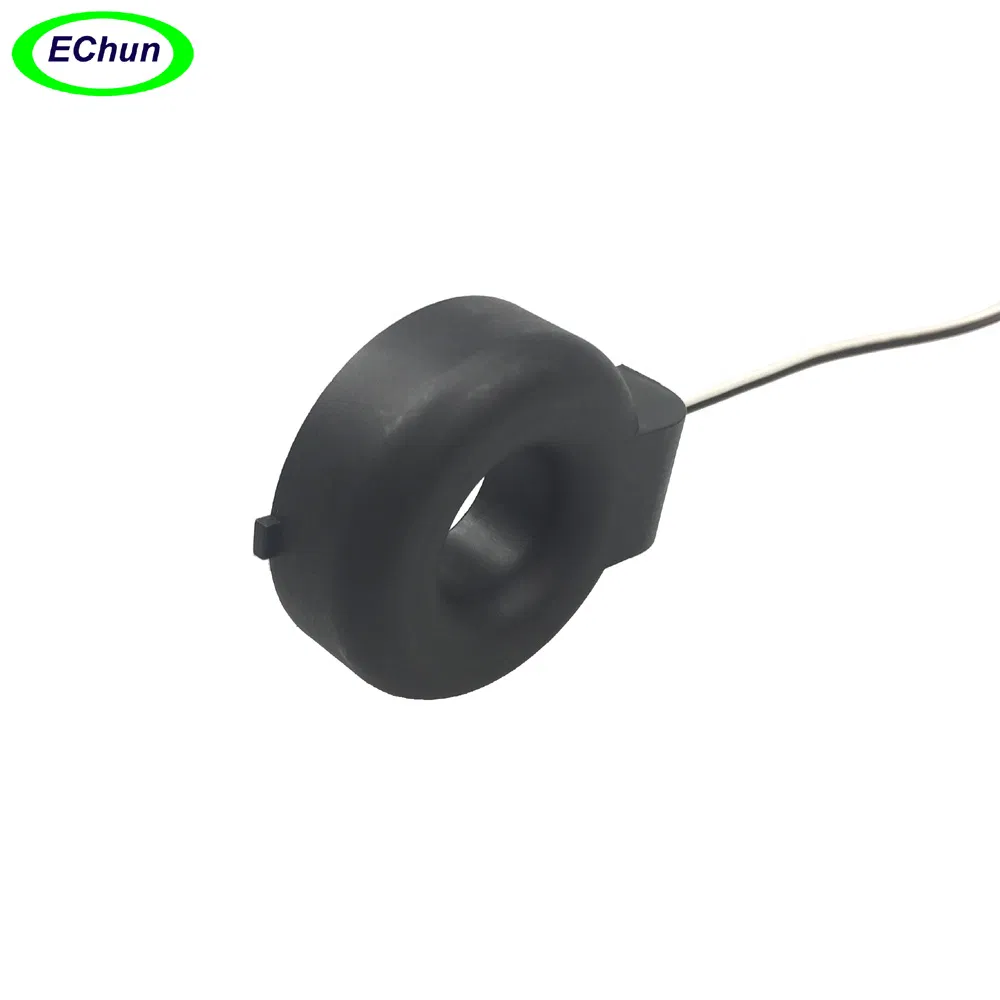

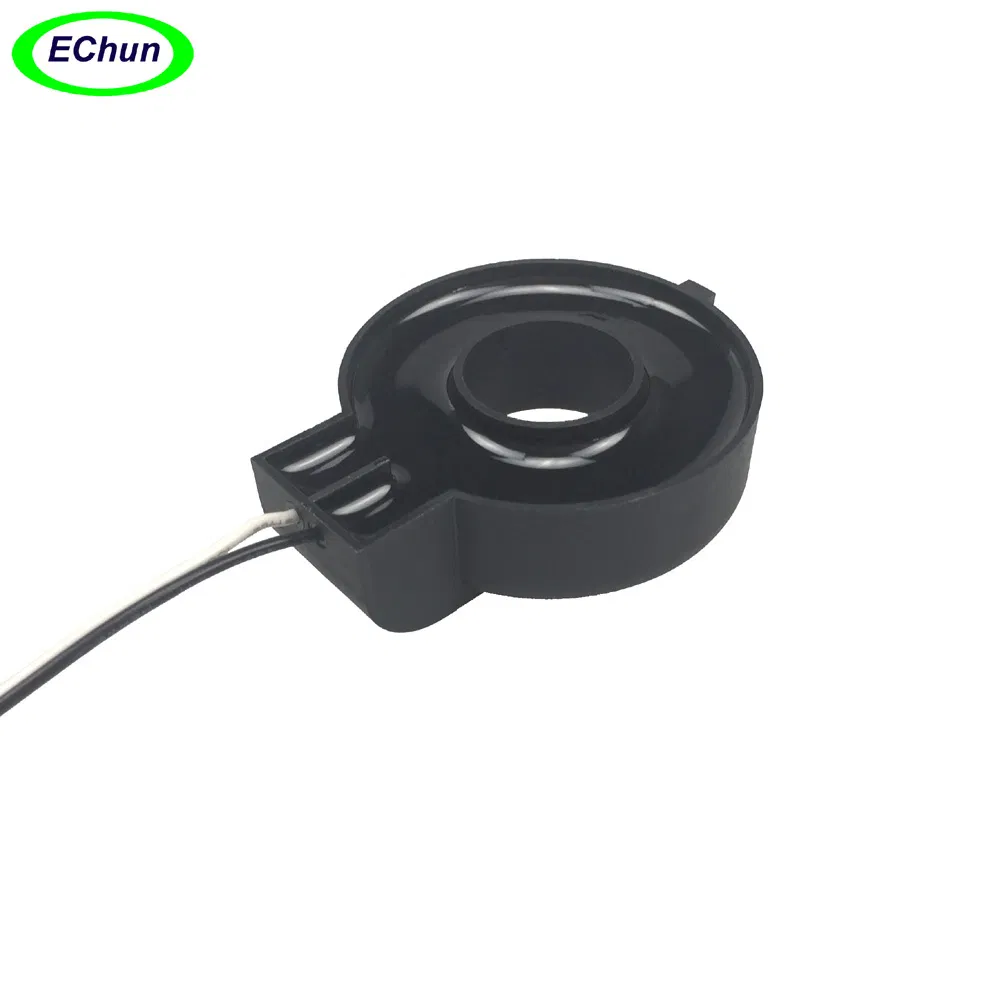

20A Close Loop Mini Precision Ring Core Current Transformer

The ECO20 series are Current Transformers specifically designed for Electrical Control Units. Featuring a compact size and low-cost profile, these CTs are ideal for precision monitoring.

Customized current ratio available.
Rated Primary Current (Amp.) 50/60Hz 20nom (0.01~100A max)
Turn Ratio Np:Ns=1:1000
Current Ratio 20A/20mA
Winding D.C. Resistance at 20 ºC 9.9Ω±10%
Accuracy @ RL=10Ω 0.2%
Phase Error at Rated Current Range ≤10'
Operating Temperature Range -10~65ºC
Storage Temperature Range -25~85ºC
Dielectric Withstanding Voltage (Hi-pot) 4.0KV/1mA/1min
Insulation Resistance DC500V/100MΩ min

Applications

  • Current measurement
  • Monitoring and protection
  • Energy and sub-metering products
  • Network equipment
  • Instruments and sensors
  • Control systems

Advantages

  • Excellent linearity over the whole range.
  • Fully RoHS compliant.
Current Transformer Sensor

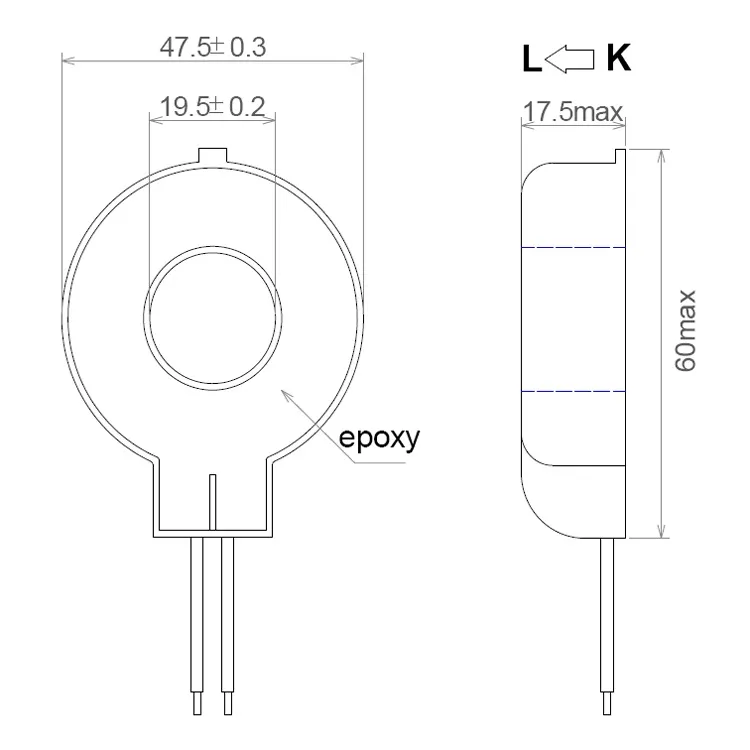

Current Transformer Technical Drawing
Mini Current Sensor
Precision Ring Core CT
Product Specifications Chart

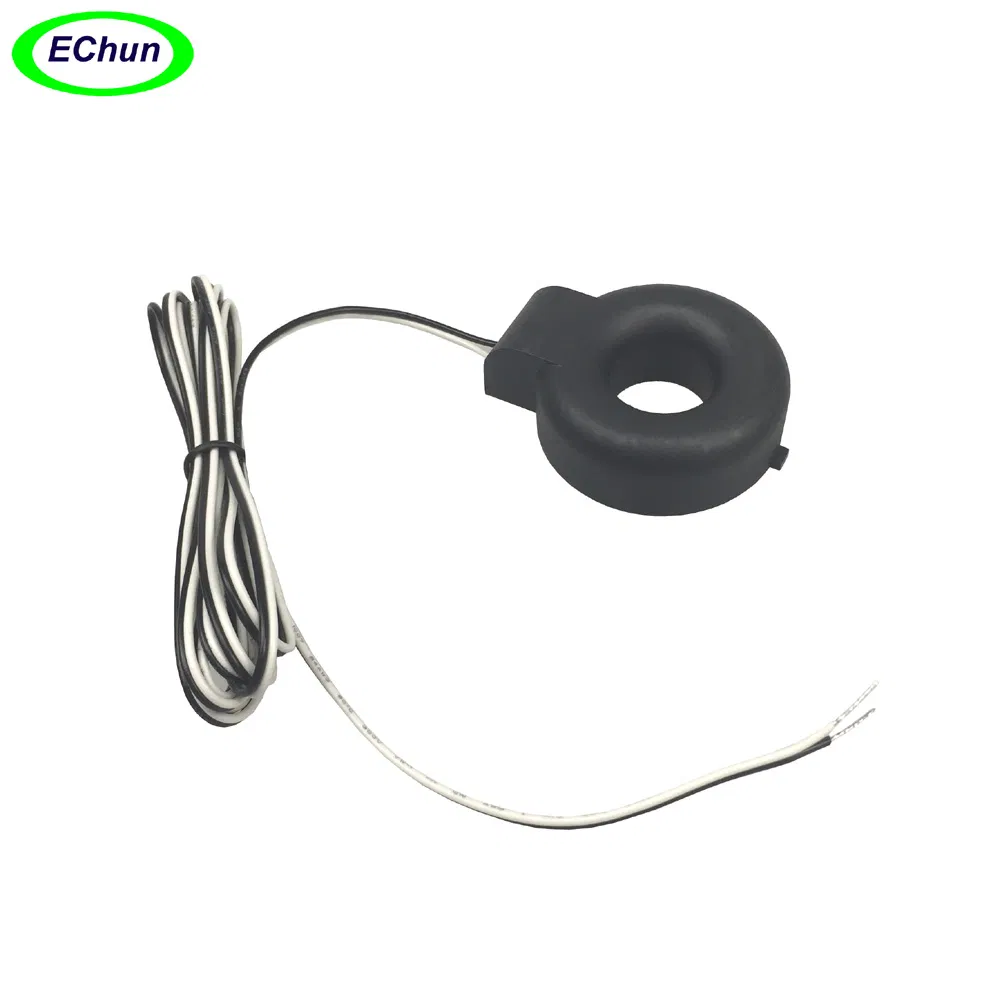

Current Transformer View
Production Detail
Product Size
Frequently Asked Questions
What is the rated primary current for the ECO2020-1?
The nominal rated primary current is 20A, with a maximum measurement range from 0.01A up to 100A.
What is the accuracy level of this current transformer?
The ECO20 series provides a high accuracy of 0.2% at a load resistance (RL) of 10Ω.
Is this product compliant with environmental standards?
Yes, the product is fully RoHS compliant, ensuring it meets environmental safety requirements.
Can I use this sensor in outdoor environments?
This specific model is designed for indoor operation conditions with an operating temperature range of -10 to 65ºC.
Are custom turn ratios available for this model?
Yes, customized current ratios can be provided to meet your specific electrical control unit requirements.
What is the dielectric strength of the ECO20 series?
The dielectric withstanding voltage (Hi-pot) is rated at 4.0KV/1mA for 1 minute.
