Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
1 / 5
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer
Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer

Current Transformer Split Core with 10mm Hole Size 0~60A Mini Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

01
Basic Information
Model NO.
TRFK-04
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit
Single Stage Type
Principle
Electromagnetic Type
Rated Input
0~1500A
Rated Capacity
0~5va
Accuracy Class
0.5, 1.0
Rated Frequency
50/60Hz
Structure
Snap Opening-Closing
02
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Gross Weight
1.000kg
03
Product Description

Split-core Cable Type Current Transformer

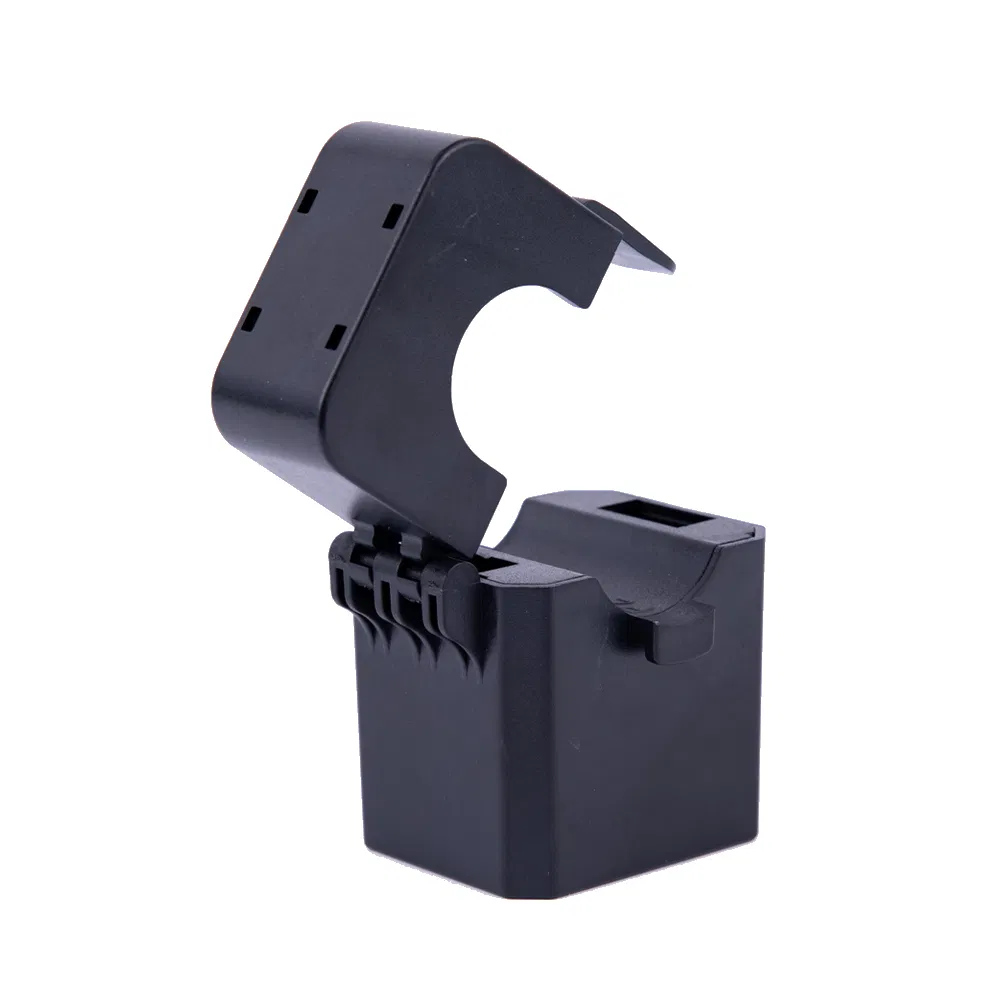

TR-A series open and close current transformer, 180 degrees open and close freely, designed for indoor use. It can be quickly installed and disassembled without power failure or line interruption. Through the principle of electromagnetic induction, the measured source is isolated from personnel and equipment, effectively ensuring safety. This series offers a variety of apertures and specifications to meet diverse installation needs.

04
Key Characteristics
  • Fixed buckle structure for superior stability.
  • Multiple core hole diameters corresponding to various cable specifications.
  • Wide quantity limit and strong anti-saturation ability (Rated primary current: 1~1000A).

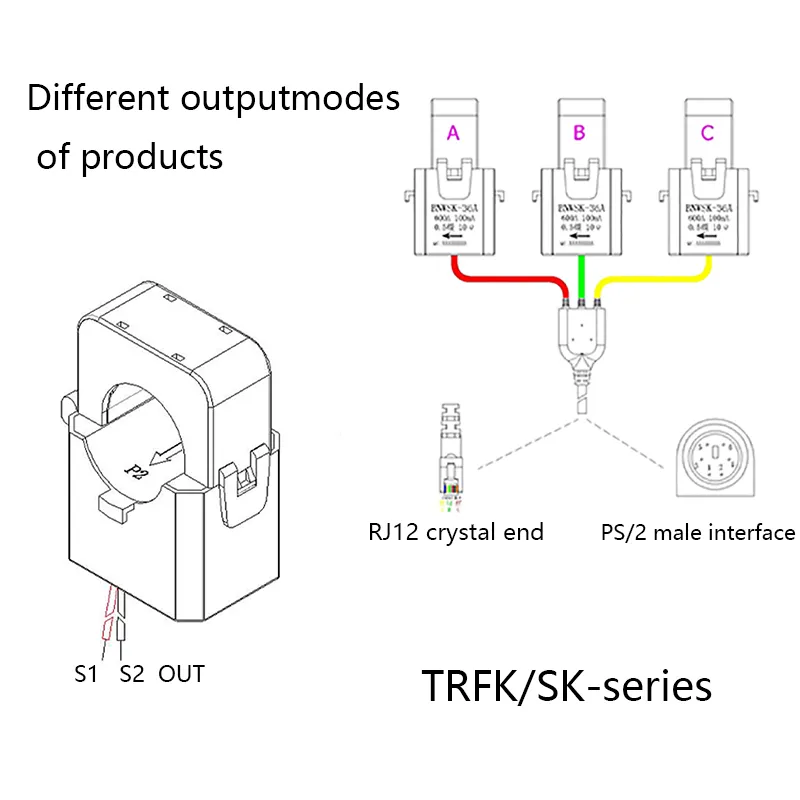

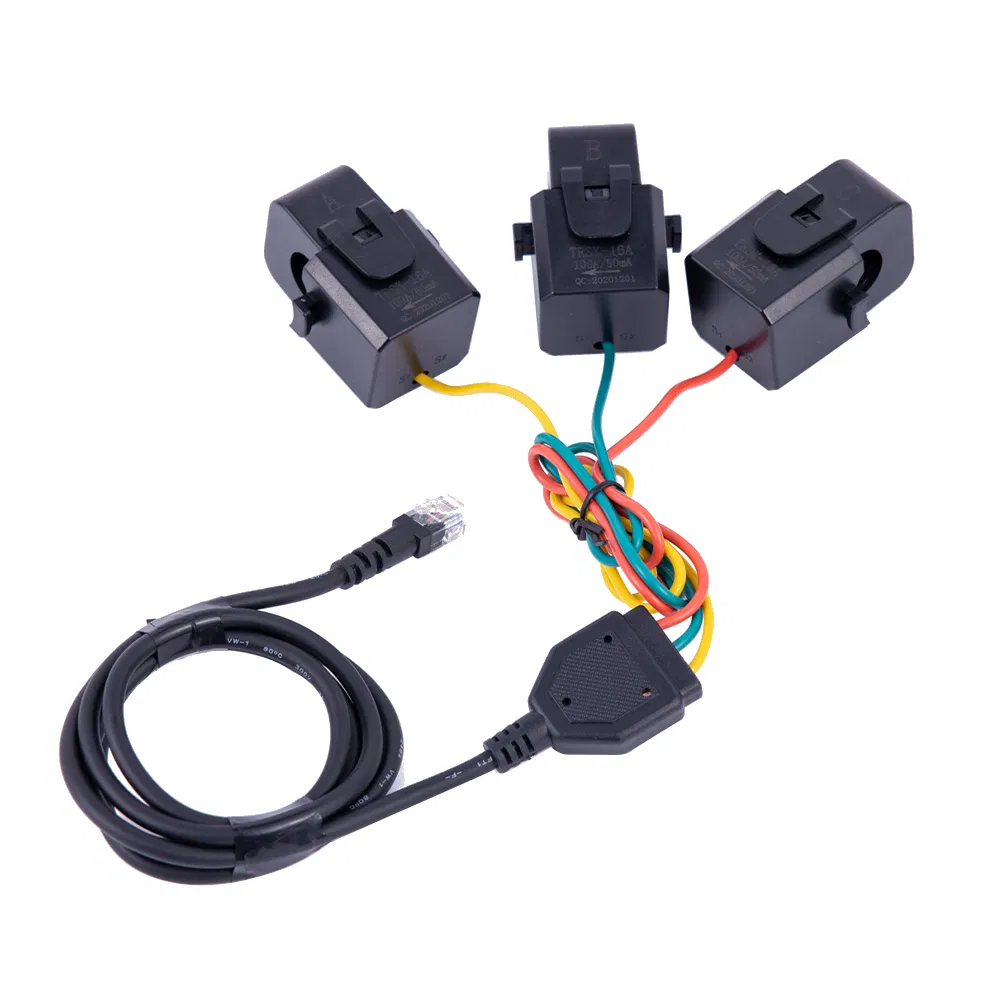

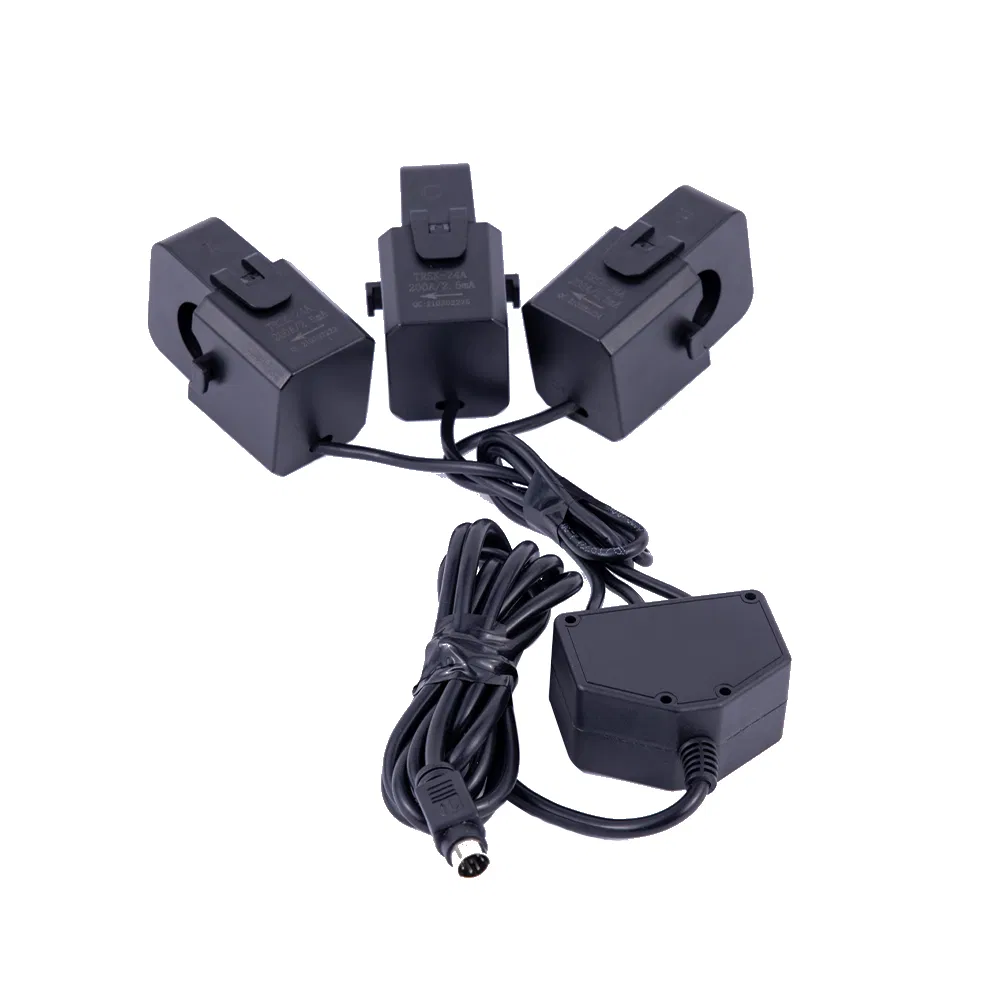

  • Versatile output methods: PVC sheathed wire terminals, three-phase integrated collection terminals, and various signal interfaces.
  • High magnetic permeability core for excellent linearity and sensitivity.
05
Applications

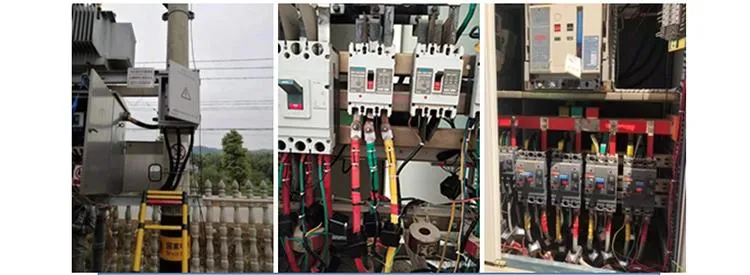

Rural power grid reconstruction, online environmental monitoring, smart fire-fighting power consumption, low-voltage power distribution systems, smart power consumption systems, electricity measurement, power quality analysis, and electrical equipment signal collection.

06
Technical Parameters
Electrical Performance Mechanical Structure
Operation Temperature -40ºC~+70ºC Shell Material PA/PC (94-V0)
Voltage Level 0.4/0.66/0.72KV Output Method PVC Cable/RJ12/PS2
Rated Frequency 50/60Hz Core Material Silicon steel/Ferrite
Accuracy Class 0.5, 1.0 Dielectric Strength 1000MΩ/500V/min
07

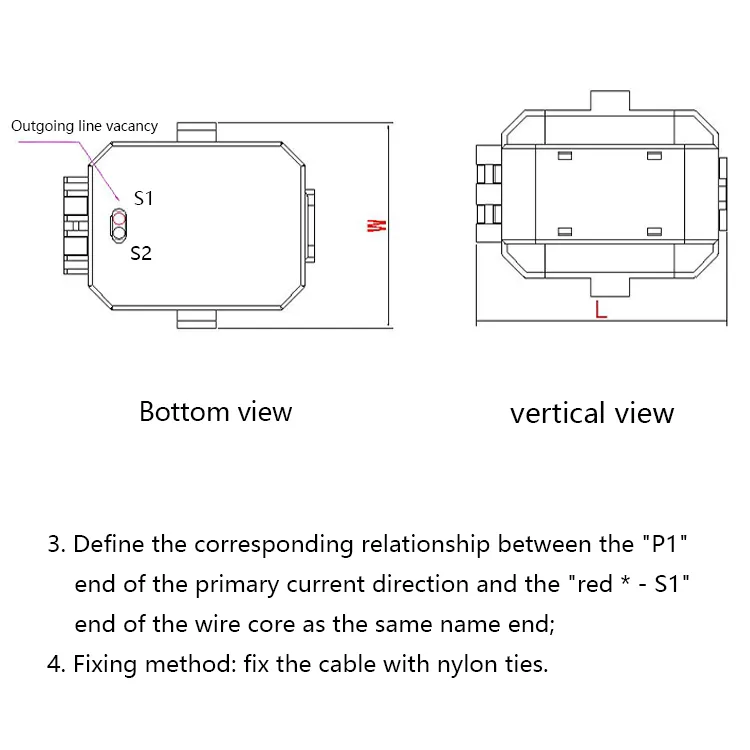

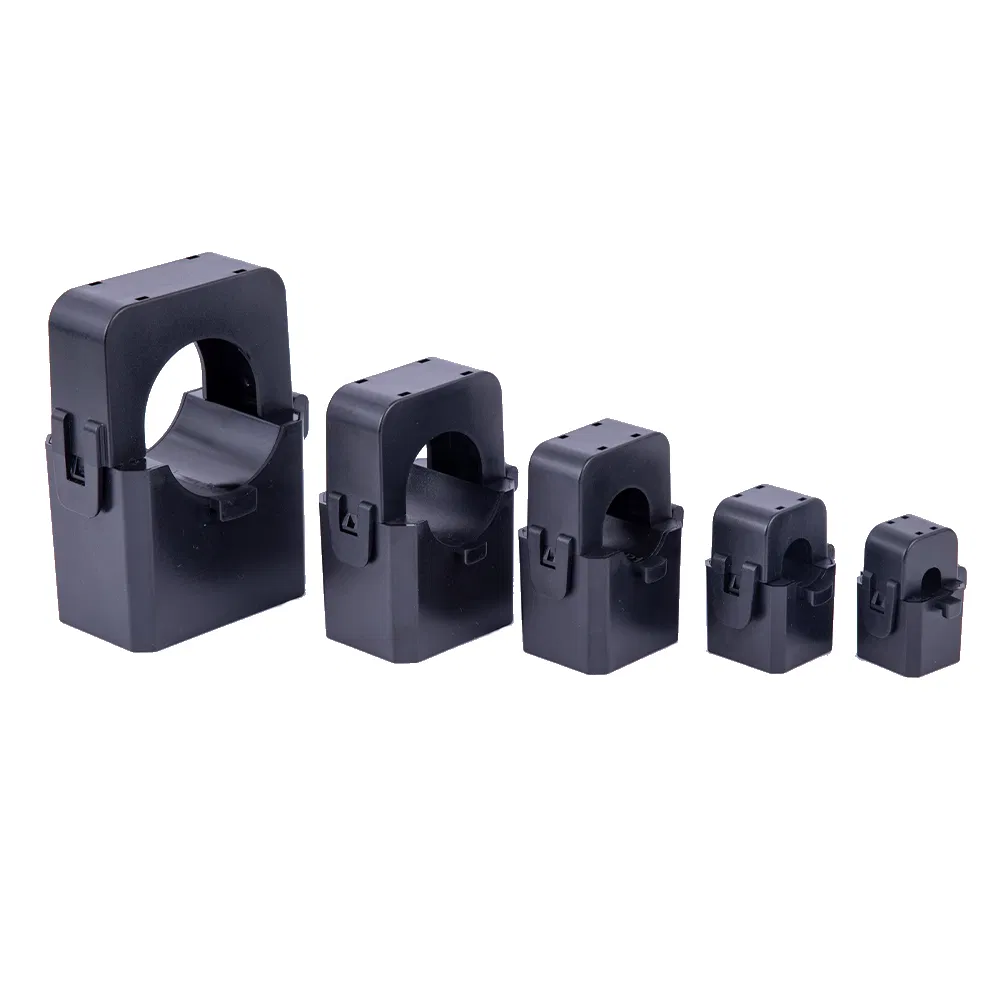

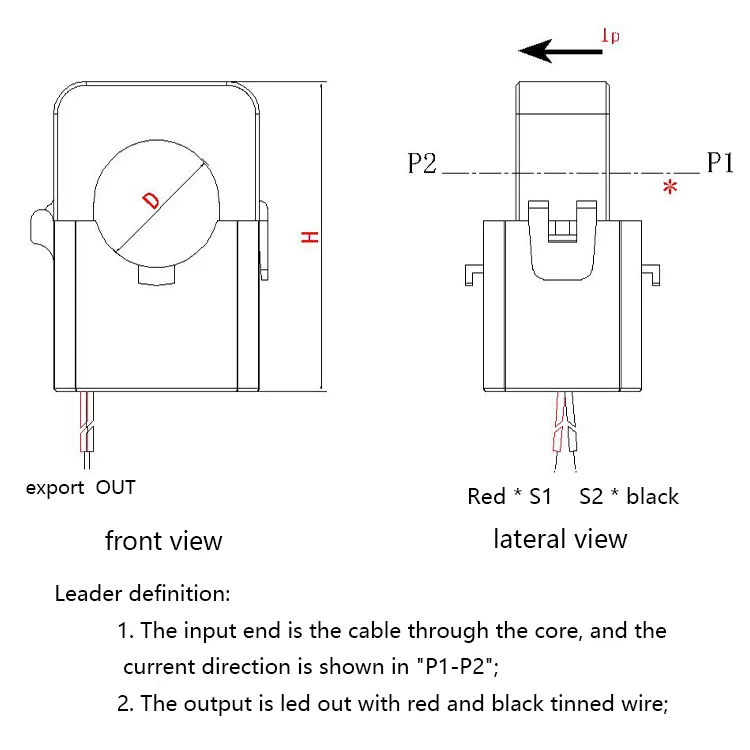

Model Dimensions (mm)
Model Input Range Output Range D L W H
TRFK-10A0~75A0~50mA934.537.545
TRFK-16A0~150A0~100mA1540.542.552
TRFK-24A0~250A0~100mA22.5544771
TRSK-36A0~500A0~100mA35665387
TRSK-50A0~1500A0~5A508859114
08
Product Gallery

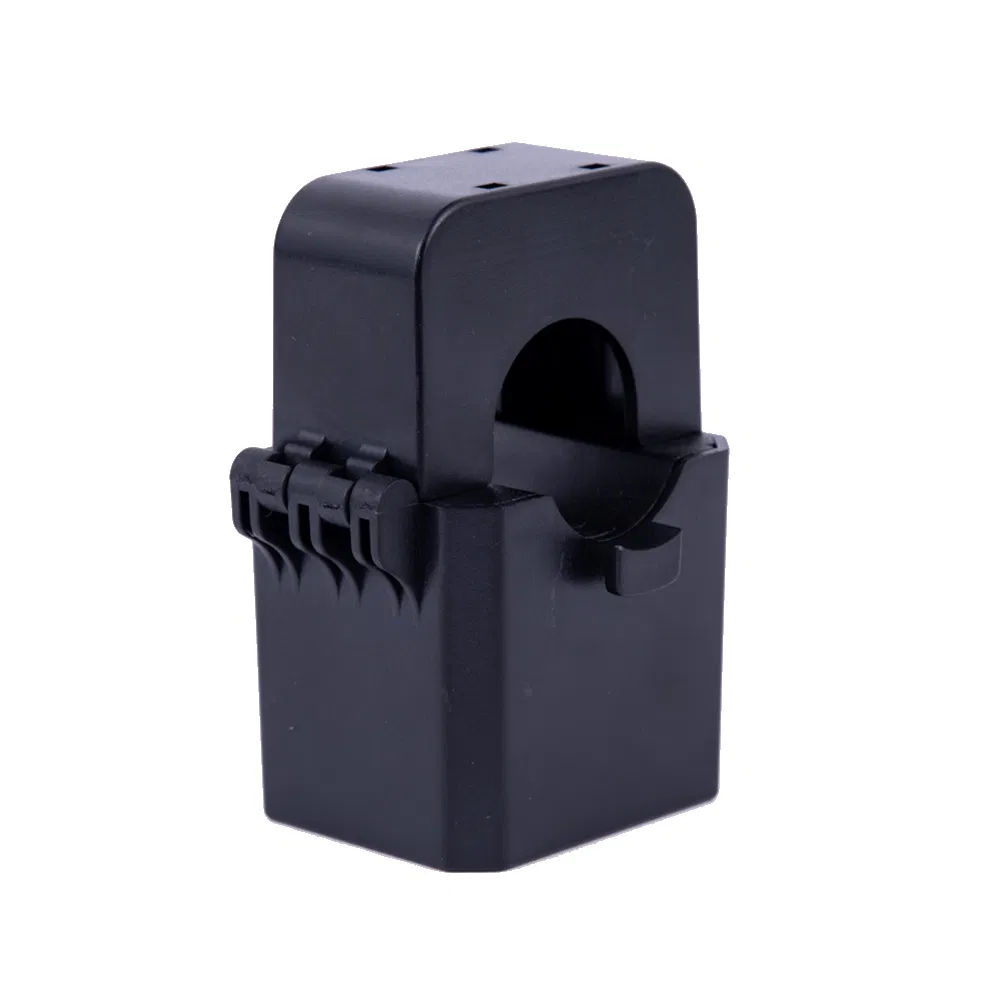

Current Transformer 1
Current Transformer 2
Current Transformer 3
Current Transformer 4
Current Transformer 5
Current Transformer 6
Current Transformer 7
Current Transformer 8
Current Transformer 9
Current Transformer 10
Current Transformer 11
Current Transformer 12
Current Transformer 13
Current Transformer 14
?
Frequently Asked Questions
Can this current transformer be installed without cutting the power?
Yes, the split-core design allows for quick installation and disassembly without power failure or disconnecting the line.
What is the maximum input current supported?
The TR-A series supports a rated primary current range from 1A up to 1500A depending on the specific model.
What are the available output options?
It provides multiple output methods including PVC sheathed cable, RJ12 crystal terminals, and PS/2 round head male interfaces.
Is it suitable for outdoor use?
This specific series is designed for indoor operation conditions with a temperature range of -40ºC to +70ºC.
What is the accuracy class of these transformers?
The transformers meet accuracy classes of 0.5 and 1.0, ensuring precise measurement for power quality analysis.
What materials are used for the shell and core?
The shell is made of PA/PC with a 94-V0 flammability rating, and the core uses high permeability silicon steel or manganese zinc ferrite.
