Lugao Manufacturer 10kv (JD(X)-10) Outdoor Oil-Insulated Voltage Current Transformer CT

Customization:	Available
Application:	Electronic, Instrument, Position Sensor, Audio, Lighting
Type:	Current Transformer

📋

Basic Information

Model NO.

JDX-10

Phase

Single

Operation Condition

Outdoor

Usage

Protection, Measurement

Winding Form

Multilayer Honeycomb Type

Insulating Medium

Insulating Oil

Installation

Busbar Type

Magnetic Circuit

Cascade Type

Principle

Electromagnetic Type

Ambient Temp.

-5~40℃

Anti-Pollution

Class II

Material

Steel, Porcelain

⚡

Product Description

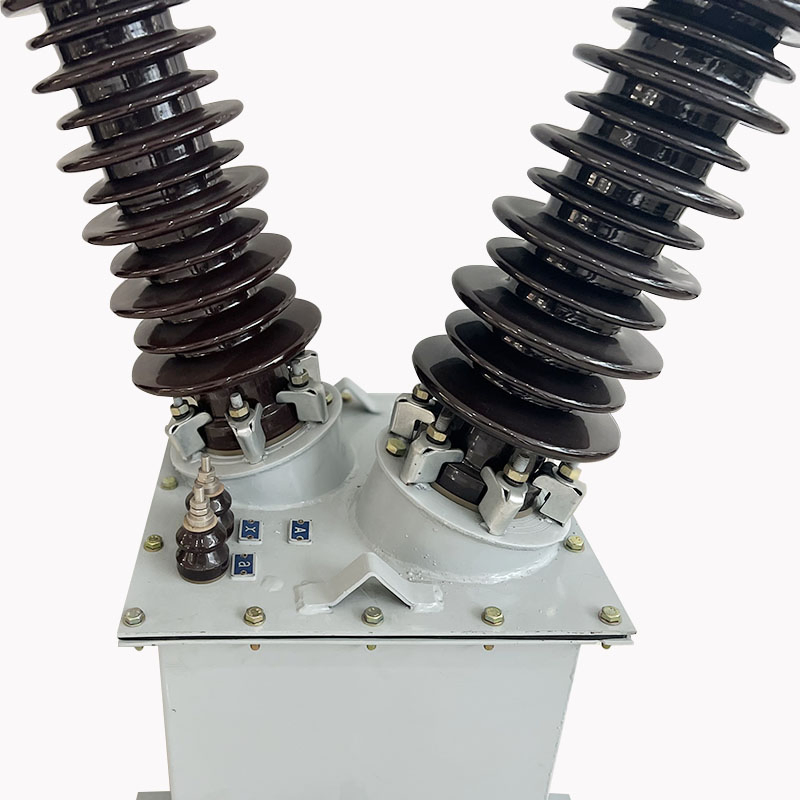

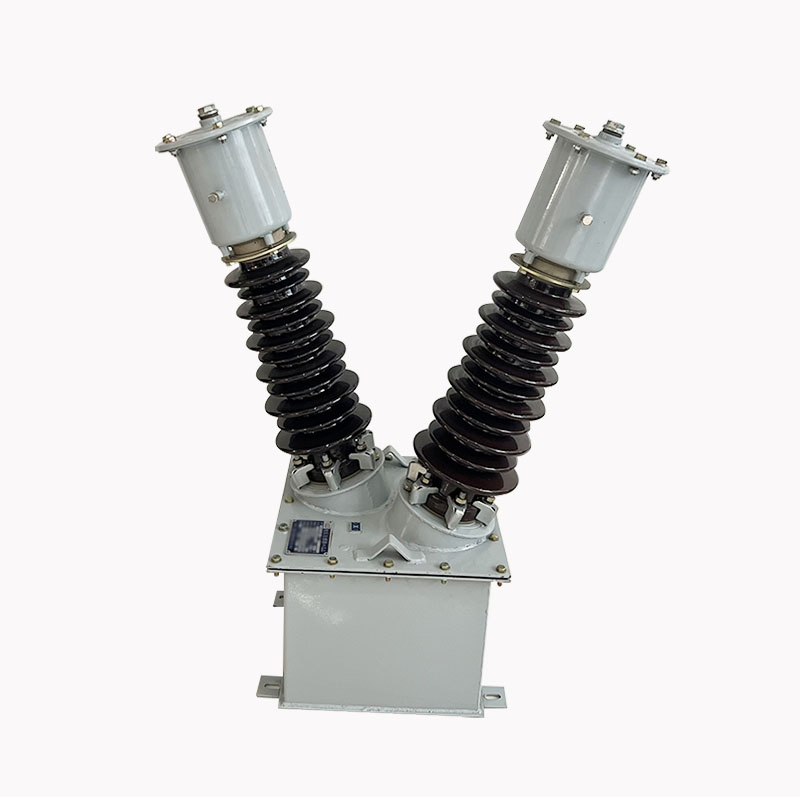

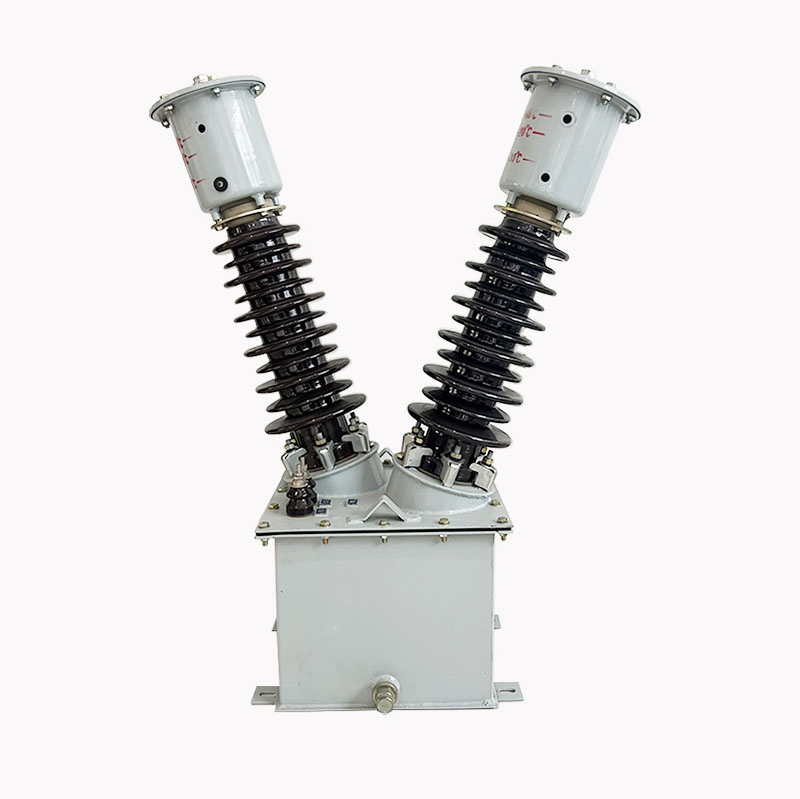

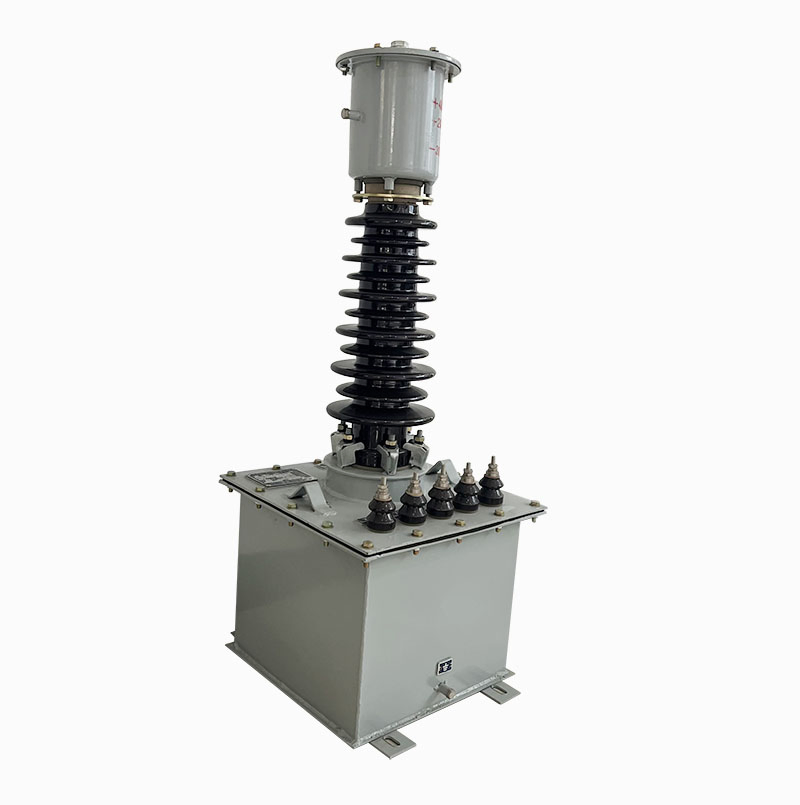

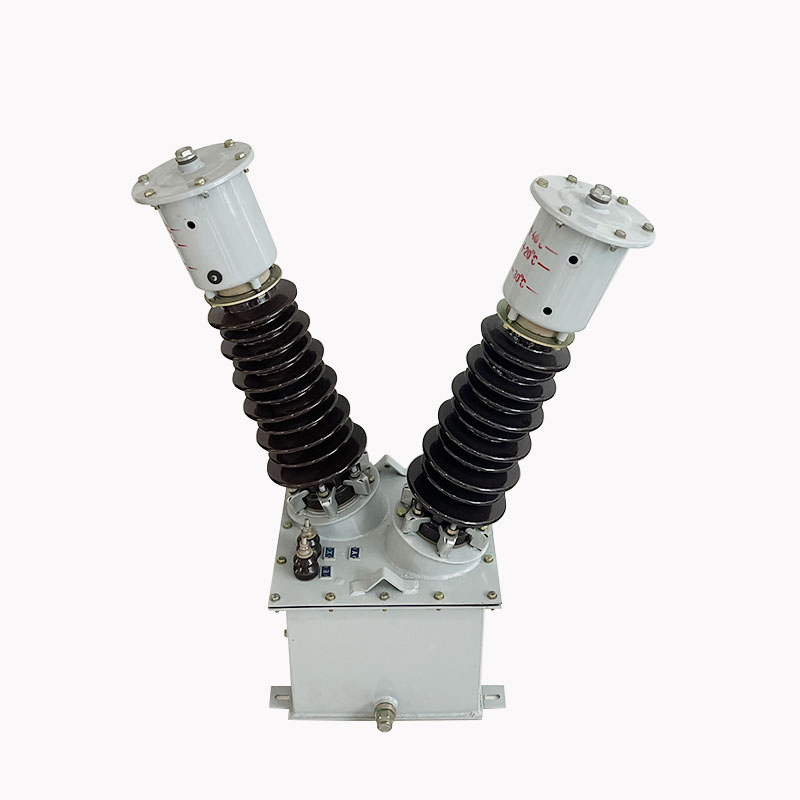

Outdoor Oil-Insulated Voltage Current Transformer

The JDCF-66/JDCF-126 voltage transformer is designed to convert high voltage into a standard secondary voltage of 100V or lower in proportion for protection, measurement, and instrumentation. This equipment ensures the isolation of high voltage from operators, enhancing safety protocols.

Operating on the principle of electromagnetic induction, its structure is specifically optimized for high-impedance secondary circuits. The magnitude of the secondary current is determined by the circuit impedance; as load impedance decreases, the secondary current increases, prompting the primary current to adjust automatically to maintain electromagnetic balance.

Type		H2 (mm)	H1 (mm)
JDCF-60W2	(JDCF-72.5W2)	1300	1630
JDCF-66W2	(JDCF-72.5W2)	1300	1630
JDCF-110W2	(JDCF-126W2)	1500	1830
JDCF-120W2	(JDCF-123W2)	1500	1830
JDCF-132W2	(JDCF-145W2)	1750	2080
JDCF-138W2	(JDCF-145W2)	1750	2080

🏢
