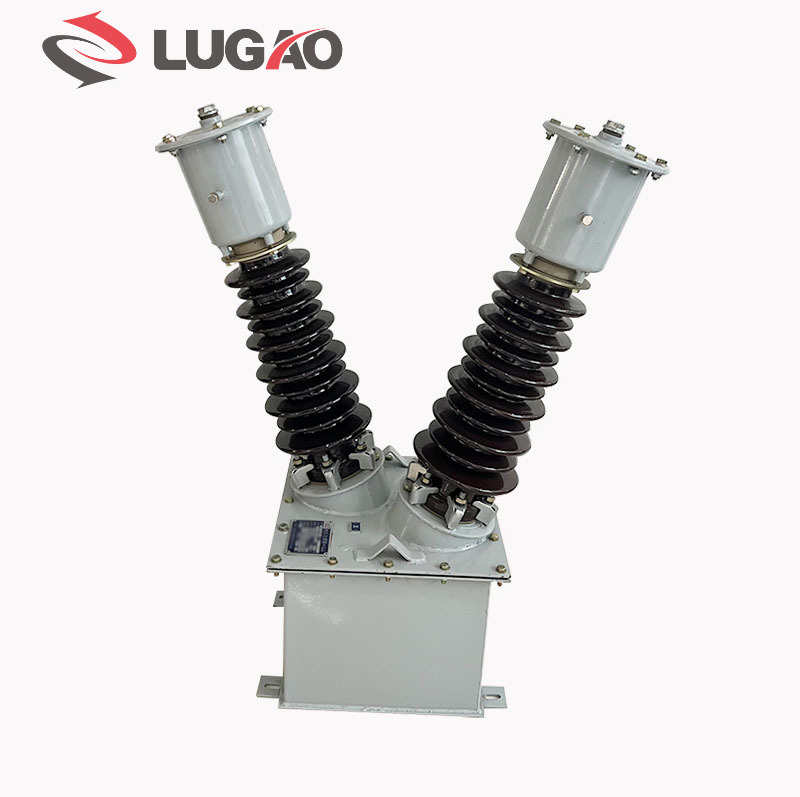

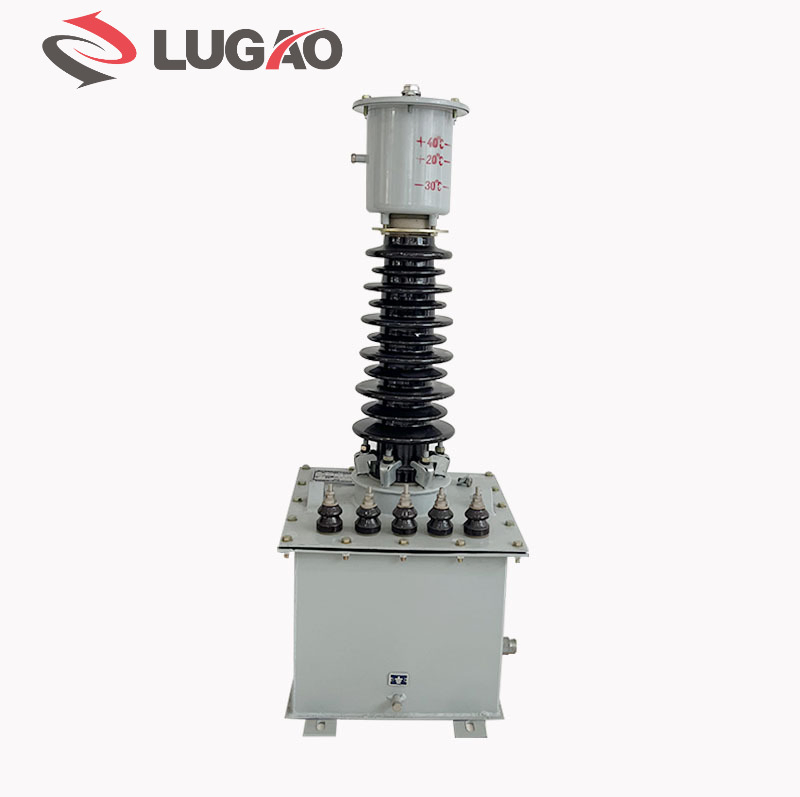

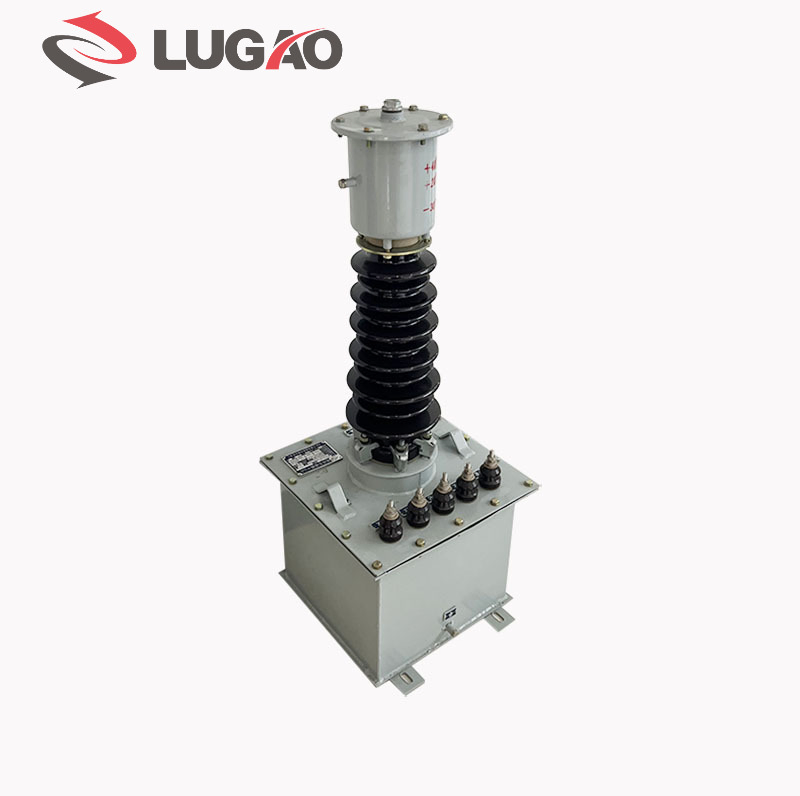

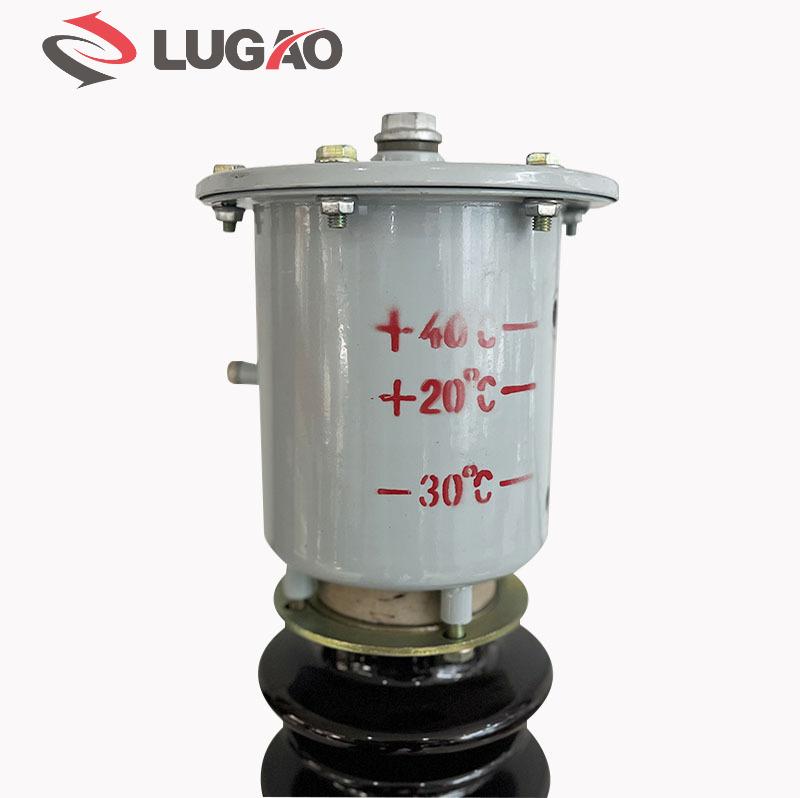

Jd (X) Series Outdoor Oil-Insulated Voltage Current Transformer CT Factory Price

1 / 5

Jd (X) Series Outdoor Oil-Insulated Voltage Current Transformer CT Factory Price

Customization:	Available
Application:	Electronic, Instrument, Position Sensor, Audio, Lighting
Type:	Current Transformer

Send Inquiry

Product Description

📋

Basic Information

Model NO.

JDX-10

Phase

Single

Operation Condition

Outdoor

Usage

Protection, Measurement

Winding Form

Multilayer Honeycomb Type

Insulating Medium

Insulating Oil

Installation

Busbar Type

Magnetic Circuit

Cascade Type

Principle

Electromagnetic Type

Ambient Temp

-5~40℃

Anti-Pollution

Class II

Material

Steel, Porcelain

Outdoor Oil-Insulated Voltage Current Transformer

⚡

Product Introduction

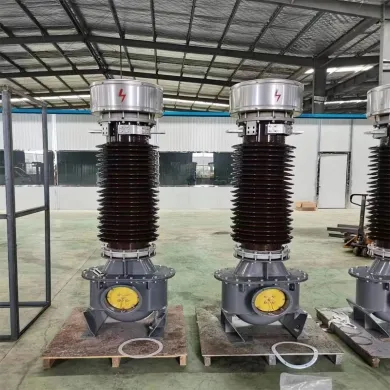

The JDCF-66/JDCF-126 voltage transformer is designed to convert high voltage into a standard secondary voltage of 100V or lower in proportion for protection, measurement, and instrumentation. This equipment ensures the isolation of high voltage from operators for safety. While operating on the principle of electromagnetic induction, its structure is the inverse of a current transformer. The secondary circuit functions as a high-impedance circuit where the current magnitude is determined by the circuit's impedance.

📊

Technical Specifications

Type		H2 (mm)	H1 (mm)
JDCF-60W2	(JDCF-72.5W2)	1300	1630
JDCF-66W2	(JDCF-72.5W2)	1300	1630
JDCF-110W2	(JDCF-126W2)	1500	1830
JDCF-120W2	(JDCF-123W2)	1500	1830
JDCF-132W2	(JDCF-145W2)	1750	2080
JDCF-138W2	(JDCF-145W2)	1750	2080

🏢

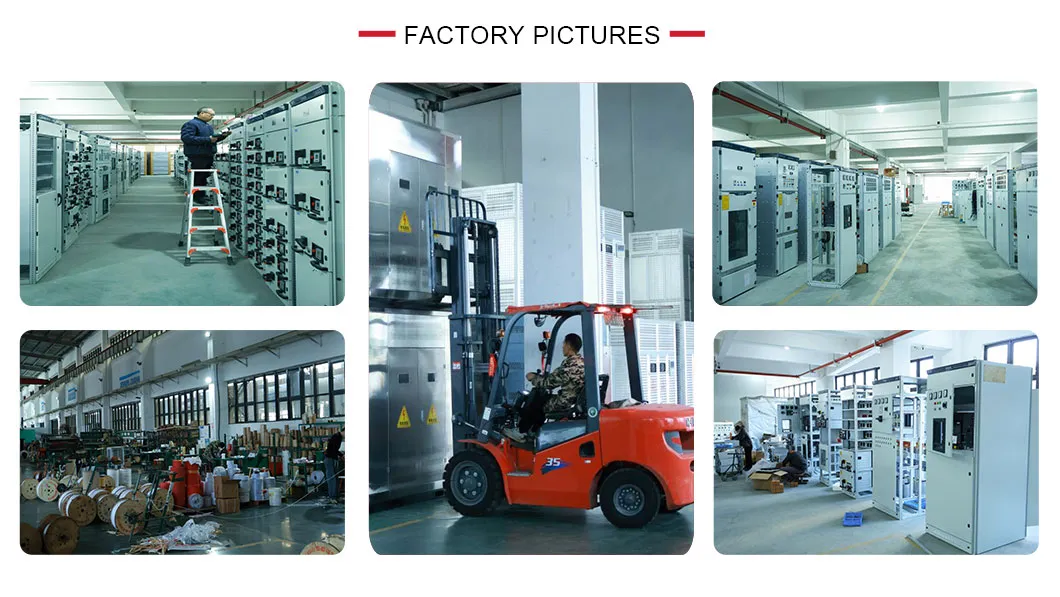

Manufacturing Excellence

Founded in 2009, our facility is an international high-tech enterprise specializing in the R&D, production, and sales of high-voltage, medium-voltage, and low-voltage transmission and distribution equipment. We provide one-stop solutions for global power infrastructure projects, integrating cutting-edge production technologies supported by rigorous quality control systems.

📜

Certifications

❓

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a leading and professional manufacturer specializing in power transmission and distribution equipment.

What after-sales services do you provide?

We offer 24-hour online support, 1-3 years quality guarantee, and door-to-door service for specific large-scale equipment like transformers and switchgear.

What are your standard payment terms?

Typically, we require a 30% T/T deposit in advance with the balance due before shipment. Irrevocable L/C at sight is also accepted for large orders.

What quality certifications do your products hold?

Our products carry international approvals including CE, RoHS, Kema, CB, and TUV to ensure global quality standards.

What is the primary function of the JDCF series voltage transformer?

It is used to convert high voltage into a standard secondary voltage (100V or lower) for safe measurement, instrumentation, and protection in power systems.

Can you provide invitation letters for factory visits?

Yes, we can provide formal invitation letters for business partners planning to visit our production facilities for inspection and development.
