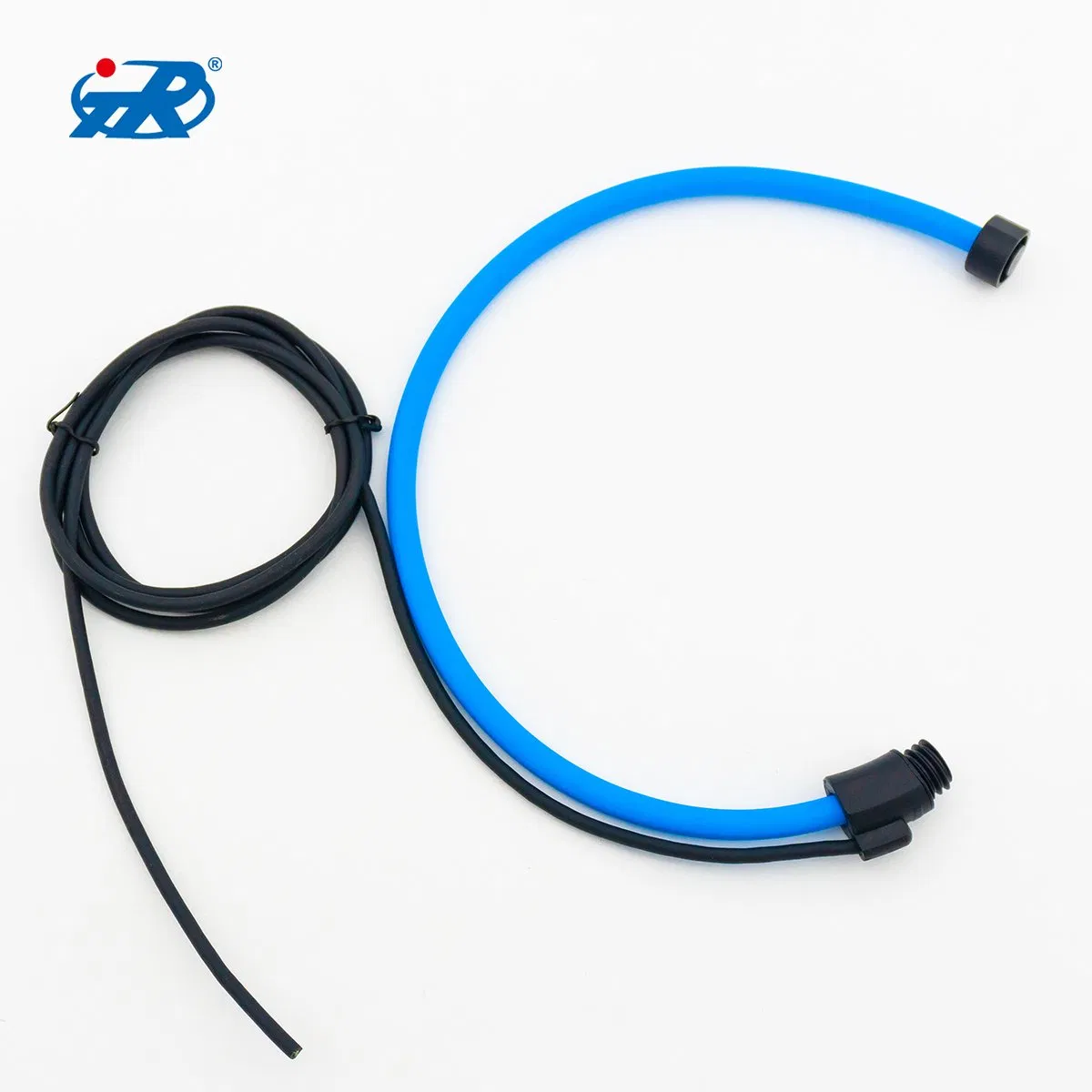

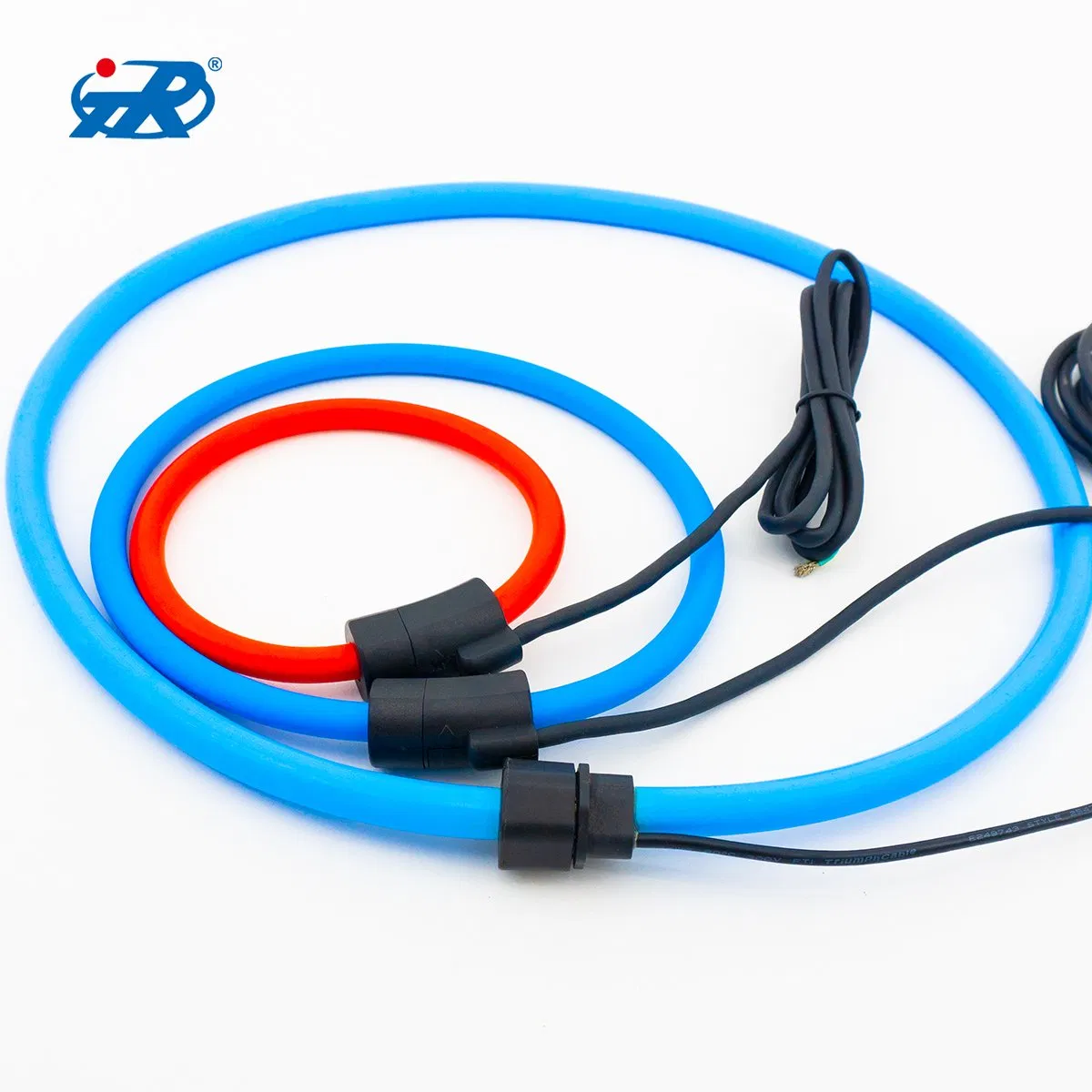

TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
1 / 5

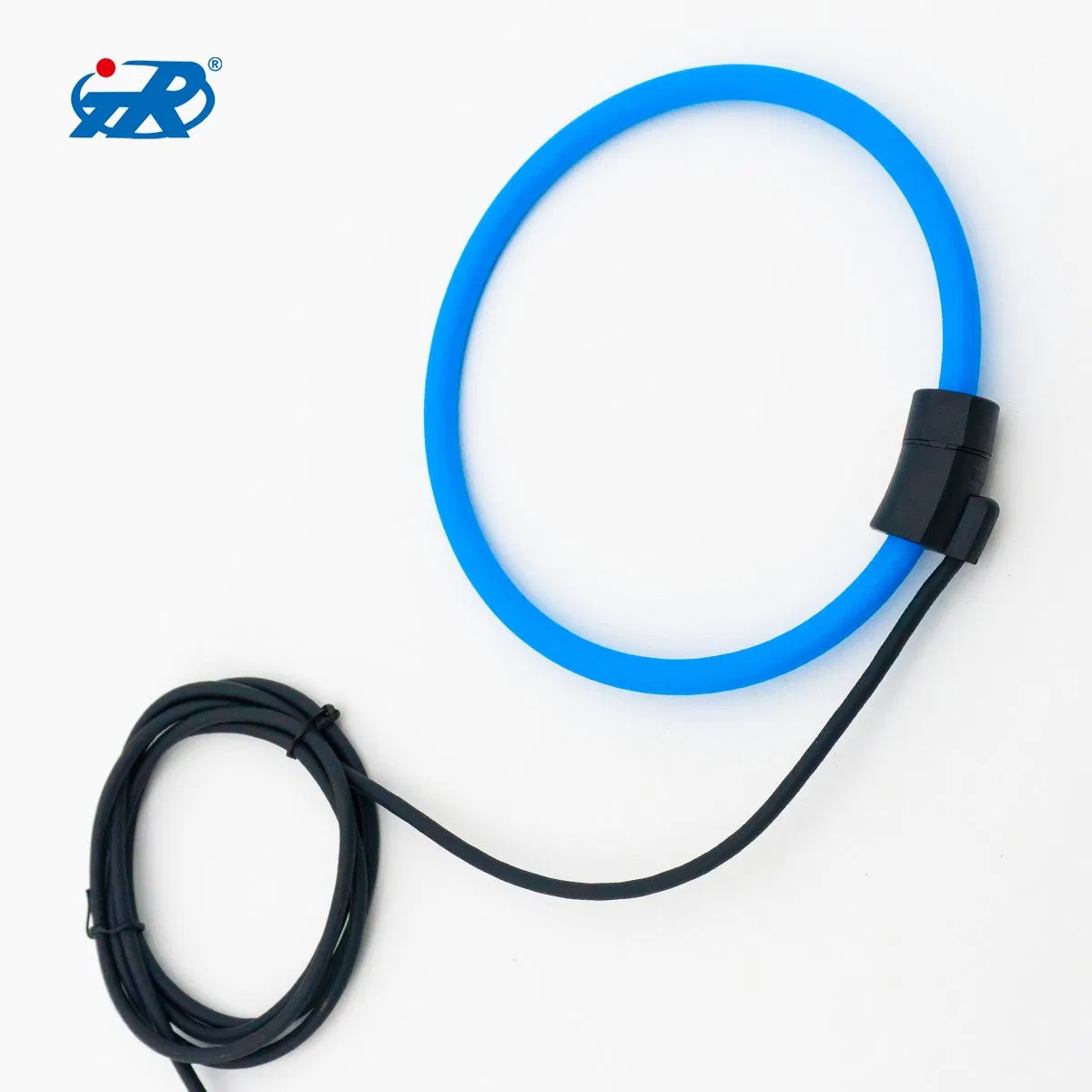

TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible
TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible

TR High Efficiency DC Current Transformer Mount Energy Meter Rogowski Coil Current Transformer Rogowski Coil Flexible

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.TRKLS-200R-4
PhaseSingle
Operation ConditionIndoor
UsageProtection, Measurement
Winding FormSingle Layer & Tightly Wound
Insulating MediumInsulating Paper
InstallationActive Type
Voltage Level0.4/0.66/0.72kv
Rated Input Current10~2000A
IP Protection ClassIP65
MaterialSilicone Rubber
Specification200mm

Product Overview

TRKLS-R series split-core three-phase flexible Rogowski coils are engineered for high-precision measurement and protection of three-phase current in power lines. The output signal is a differential of current against time, which, when used with an integrator, accurately restores the measured current. These coils feature excellent transient response, zero hysteresis, and no magnetic saturation.

Rogowski Coil Overview

Performance Parameters

Parameter Value Parameter Value
Working Temp -40ºC ~ +70ºC Relative Humidity ≤90%
Voltage Level 0.4/0.66/0.72KV Accuracy Class 1% (with integrator)
Rated Input 10~2000A Phase Error ≤60' (45Hz~65Hz)
Linear Range 5%~200% Bandwidth 1Hz~1MHz
Power Supply 5~15VDC Insulation 1000MΩ/500V/min

Product Features

⚡

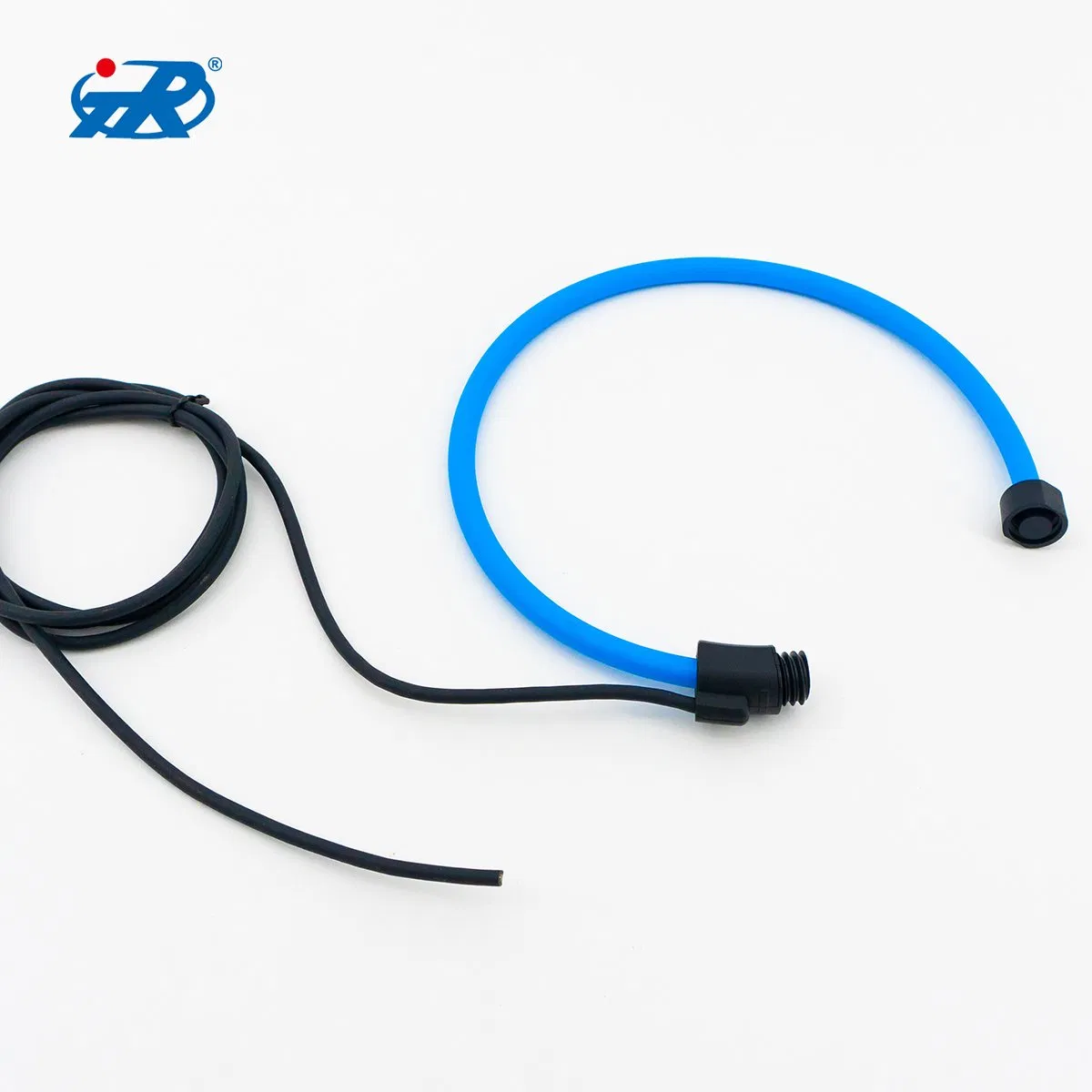

Split-core Structure: Easy to install or remove without disconnecting the primary cable, ensuring safe and efficient testing.
🔄
Flexible Design: Specifically designed to detect current in irregular primary conductors or large-sized cables.
📈
High Performance: Low output voltage, high linearity, and wide frequency range with no saturation risks.
🔌
Customizable Output: Secondary output utilizes RJ45 terminals; cable lengths can be customized to specific requirements.

Dimensions & Models

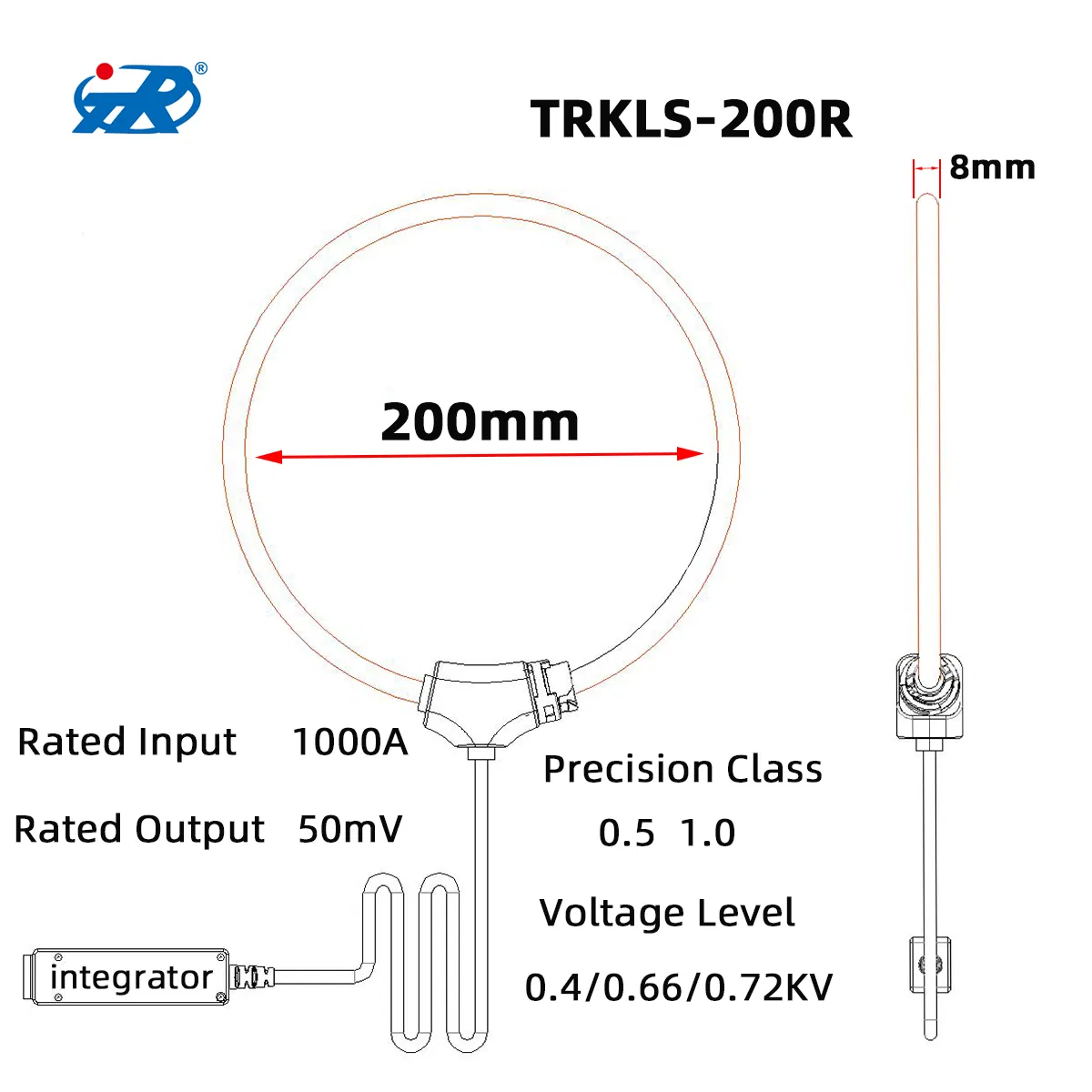

Model Dimensions 1

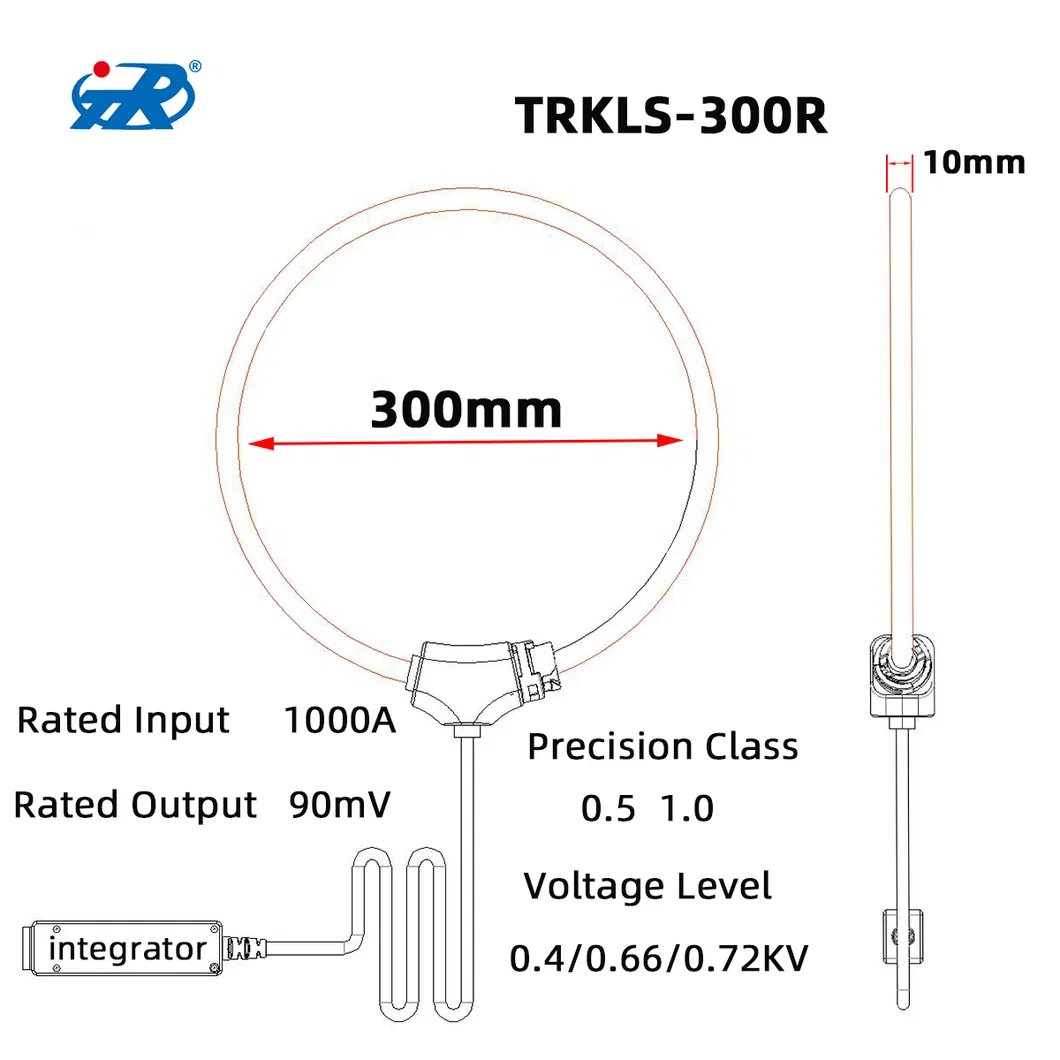

Model Dimensions 2
Model No. Rated Input Rated Output Class Φ1 (mm) Φ2 (mm)
TRKLS-100R 600A 333mV 0.5/1.0 100 8
TRKLS-200R 1000A 50mV 0.5/1.0 200 8
TRKLS-300R 1000A 90mV 0.5/1.0 300 10

Application Scenarios

🏢
Measurement of high current AC signals (e.g., short-circuit current) and lightning pulse signals with high peak values.
🏗️
Current measurement for electric welding machines (resistance welding) and harmonic signal analysis.
🛤️
Irregular conductor measurement, including rail current and large-scale industrial conductors.

Product Gallery

Rogowski Detail 1

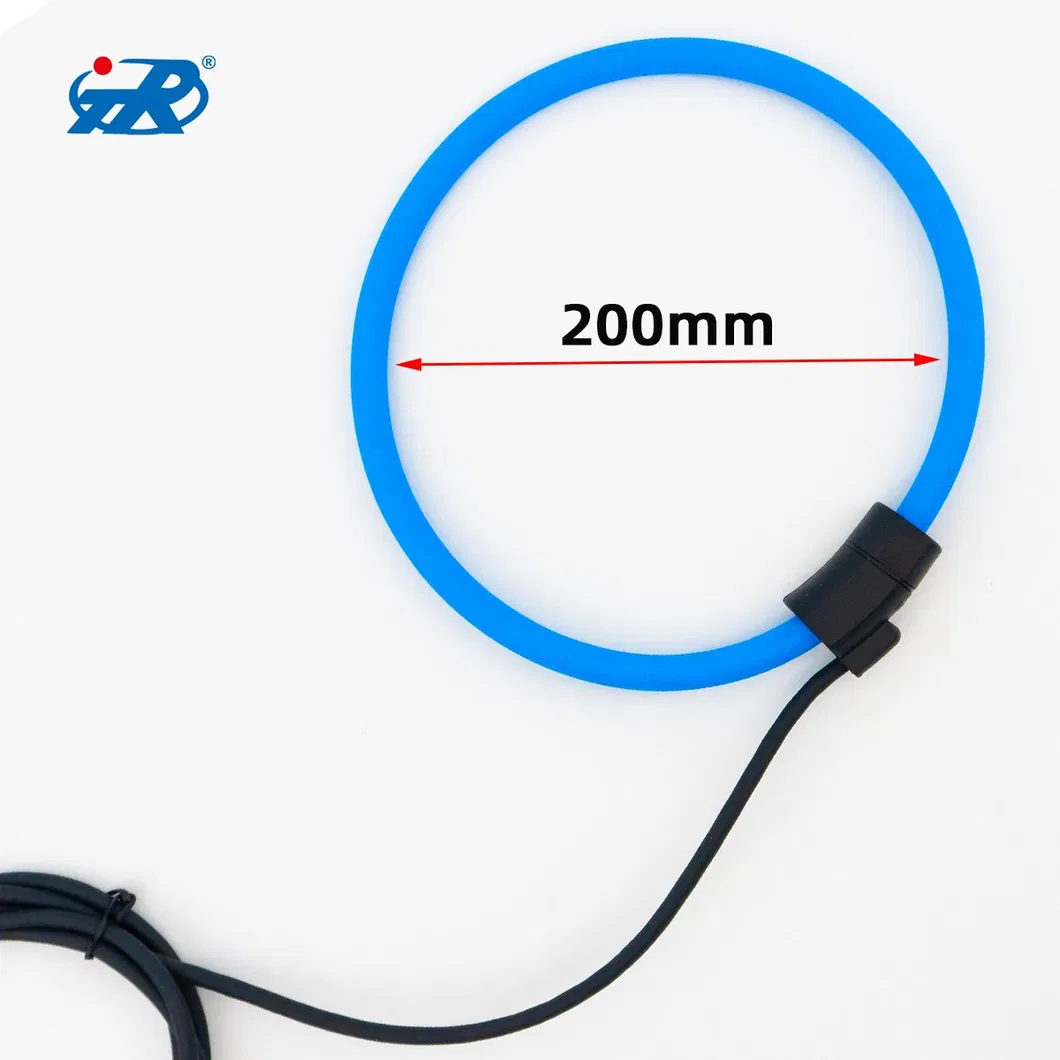

Rogowski Detail 2

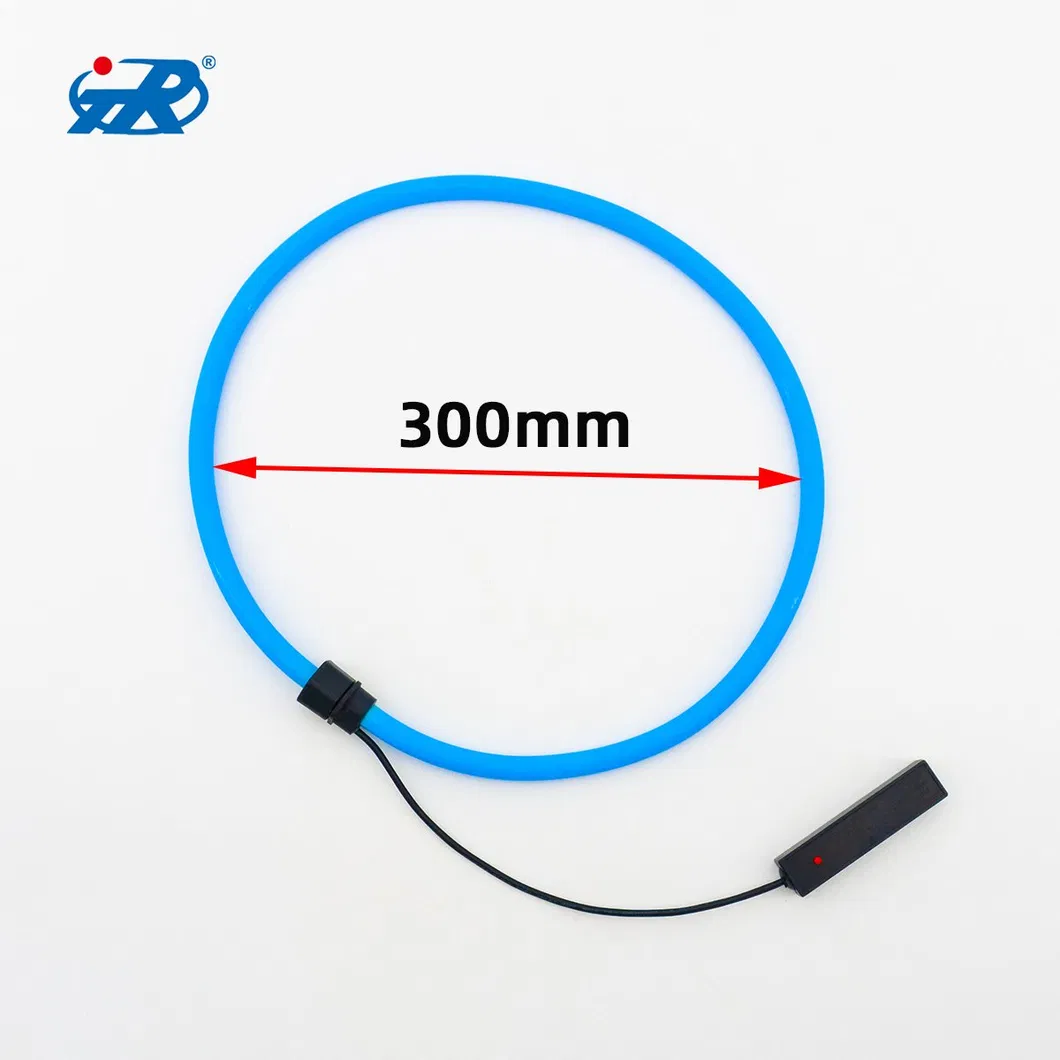

Rogowski Detail 3

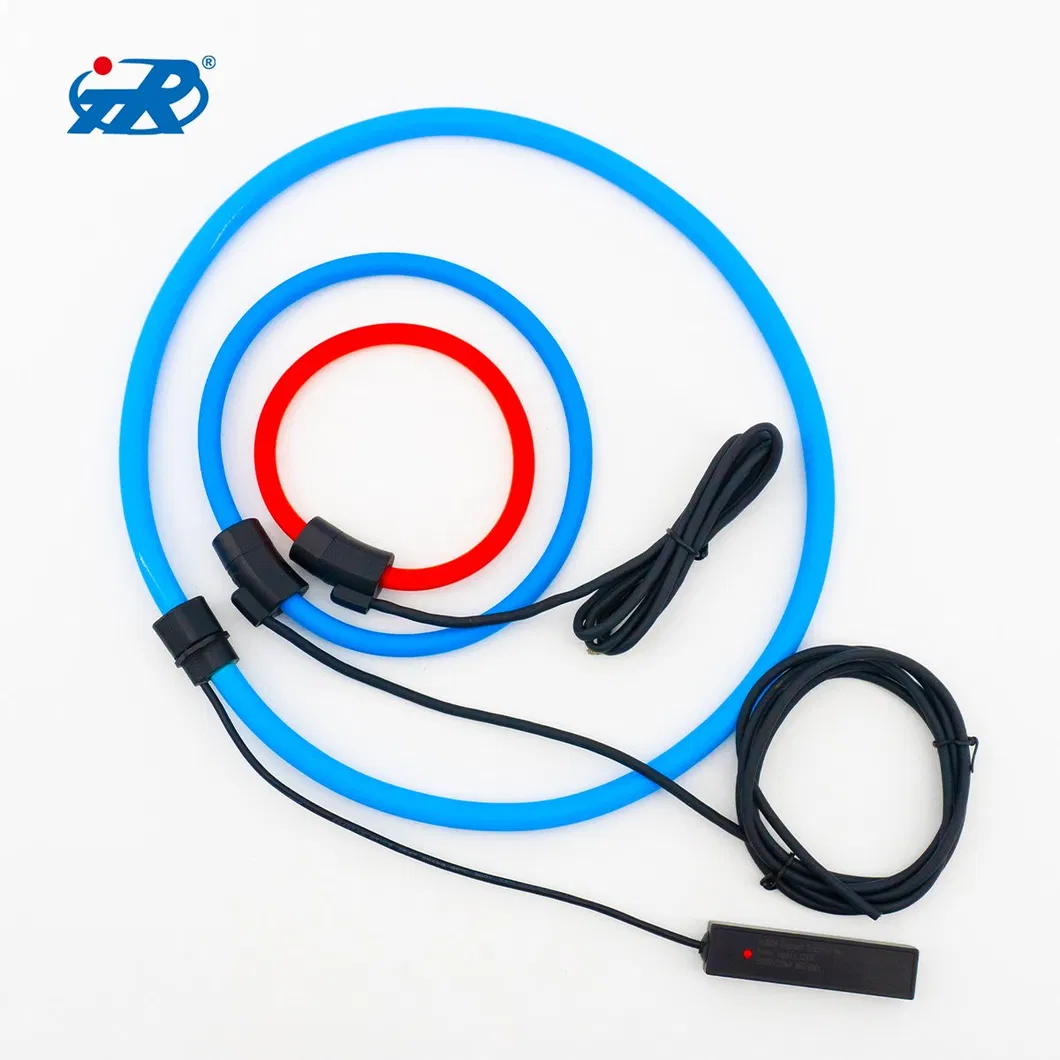

Rogowski Detail 4
Rogowski Detail 5
Rogowski Detail 6
Rogowski Detail 7
Rogowski Detail 8
Rogowski Detail 9
Rogowski Detail 10
Rogowski Detail 11
Rogowski Detail 12
Installation Guide

Frequently Asked Questions

What is the main advantage of a flexible Rogowski coil over a traditional CT?
The flexible Rogowski coil has no magnetic core, meaning it cannot saturate. This allows for a much wider measurement range, better transient response, and the ability to fit around large or irregular conductors.
Does this coil require an external power supply?
If used with an integrator to convert the differential signal into a standard current or voltage output, a 5~15VDC power supply is typically required for the integrator component.
Is the installation process complex?
No, the split-core design allows you to wrap the coil around a conductor and lock it in place without having to disconnect the primary circuit.
What is the environmental protection rating?
This model is rated IP65, making it highly resistant to dust and low-pressure water jets, suitable for various indoor and protected outdoor environments.
Can the output cable be customized?
Yes, the secondary lead uses a shielded wire or RJ45 terminal, and the length can be customized according to specific on-site requirements.
