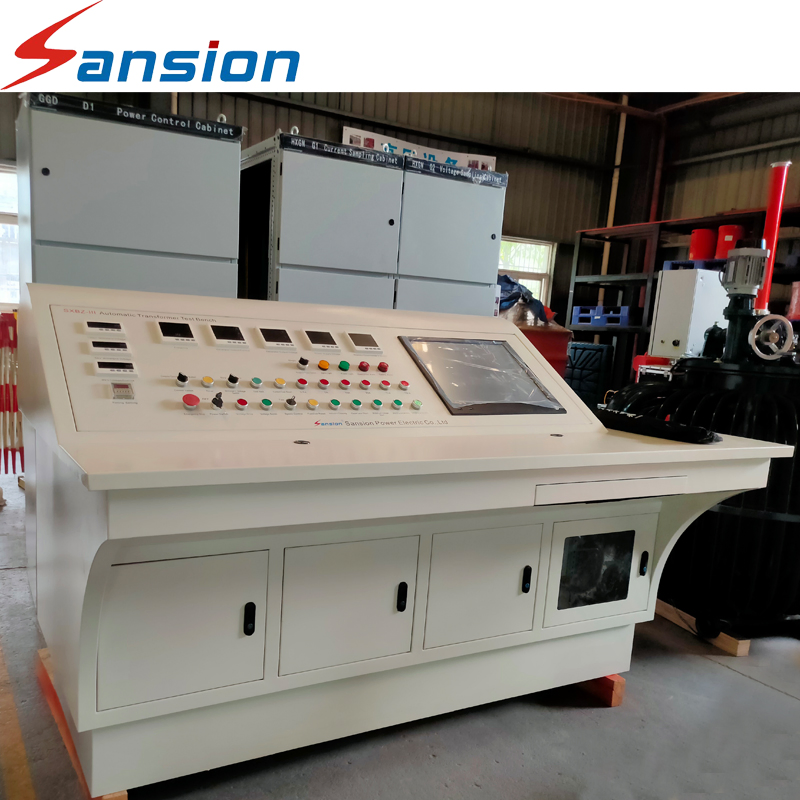

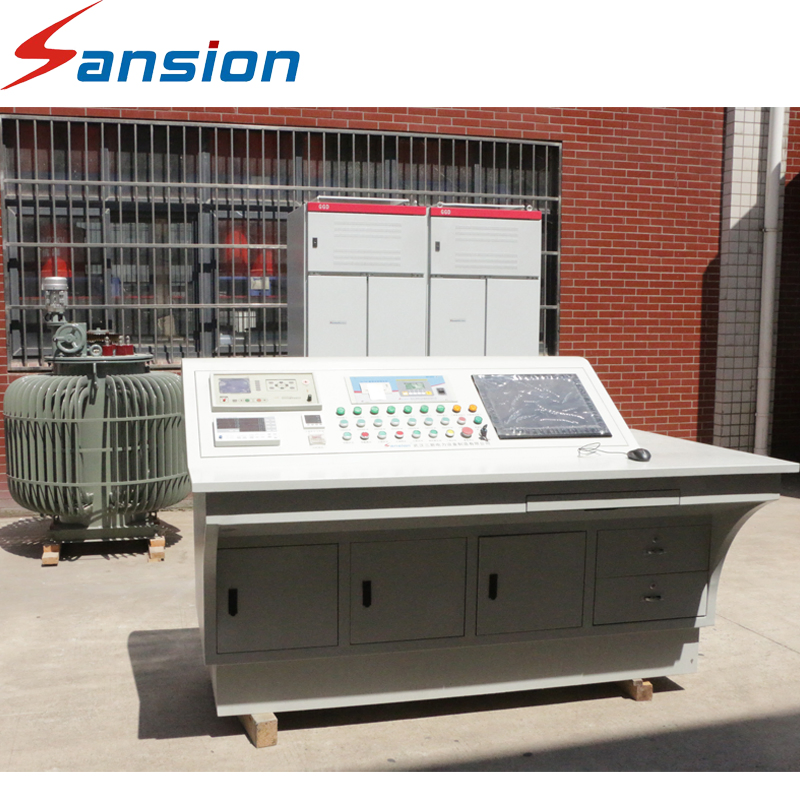

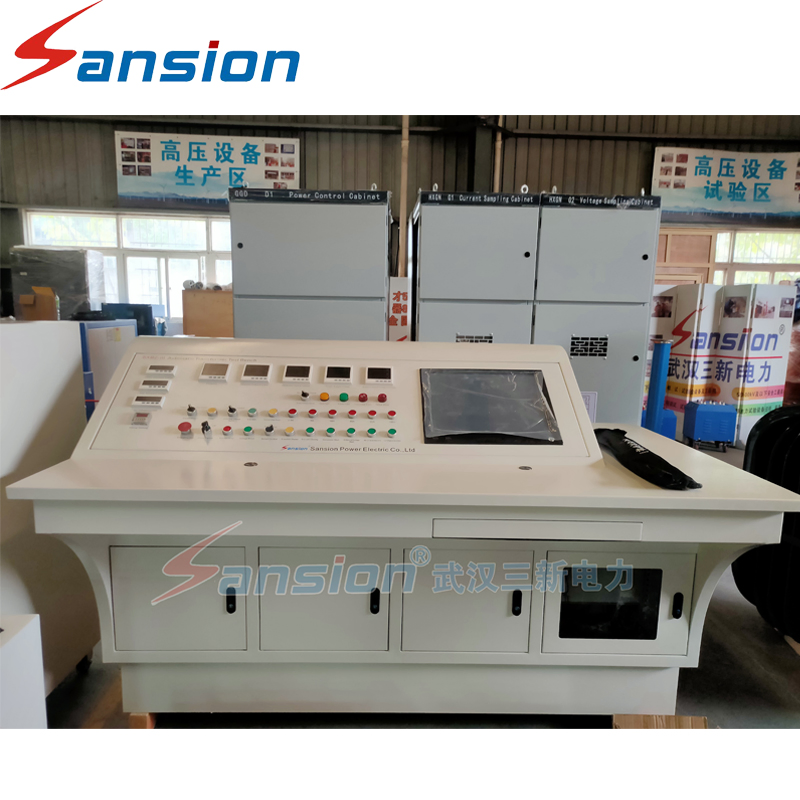

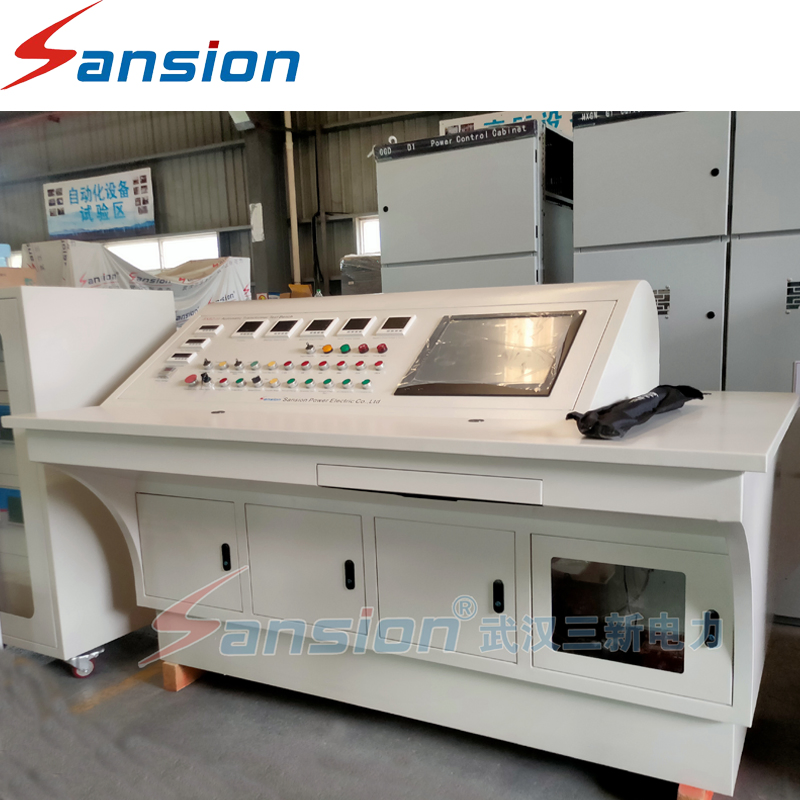

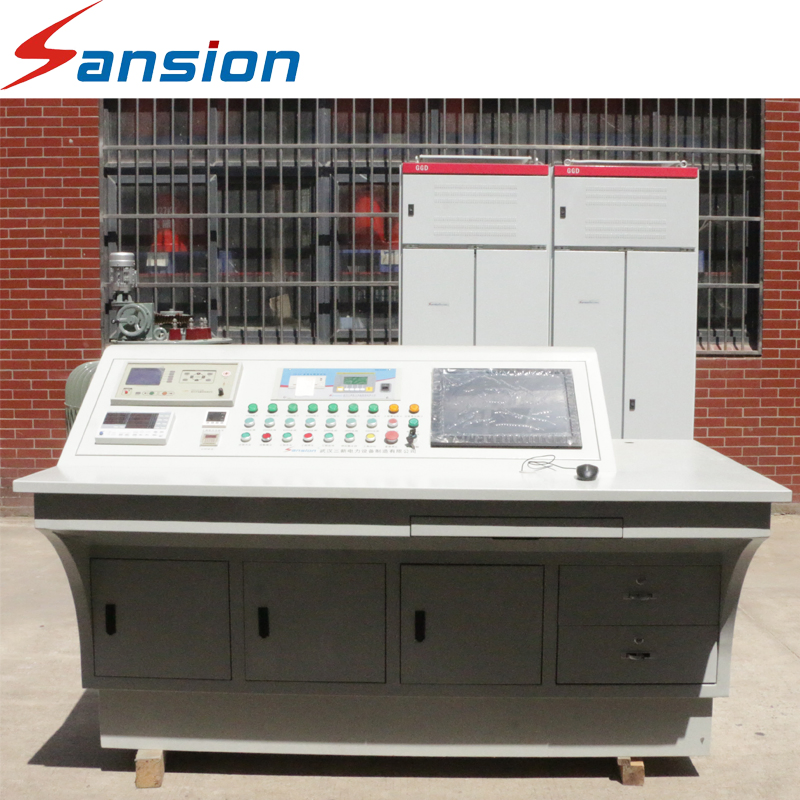

High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
1 / 5
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test
High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test

High Accuracy Three Phase Distribution Transformer Integrated Test Bed for Partial Discharge Test

Customization: Available
After-sales Service: Onsite and Video Call Remote Guidance
Warranty: 2 Years Free Warranty Long Life Service
Send Inquiry

Product Description

📊 Basic Information
Model NO.
SXBZ-III
Max Diameter
2000mm
Mass Scope
1000kg
Type
Universal Testing Machine
Accuracy Grade
0.5
Load Way
Electronic Load
Display
LCD Display
Control
Computer Control
Power Source
AC380V
Specification
1000mm*600mm*560mm
Origin
China
Capacity
100 Units/Month
⚙️ Product Description

High Accuracy Three Phase Distribution Transformer Integrated Test Bed For Partial Discharge Test

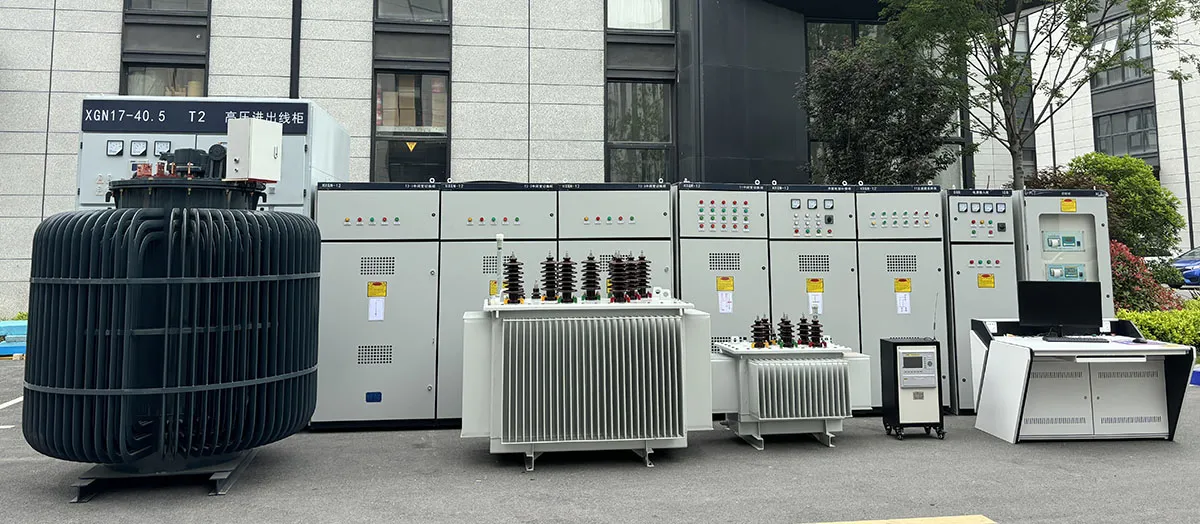

Transformer Integrated Test Bed
General Information

The series Transformer Comprehensive Test Bench is applied for ex-work and maintenance detecting on various transformers. It's widely used in the fields of power supply and distribution, power transformer manufacturing, transformer maintenance centers, and industrial mining enterprises.

Key Features
  • Applied for different voltage degree transformers, reactors, and HV switchgears.
  • Fully PLC controlling and measurement with integrated primary wire connection circuit display.
  • All test data calculation operated by IPC, ensuring high precision and efficiency.
  • Integrated report storing, printing, and system protection.
Test Items

Routine Tests:

  • Insulation resistance testing
  • Winding resistance testing
  • Turns ratio testing
  • Load/no-load current & loss testing
  • Capacitance & tan delta testing
  • Short circuit impedance testing
  • Power frequency withstand voltage
  • Inductive withstand voltage (including PD testing)
  • Impulse voltage testing
  • Oil testing (acidity, dewpoint, flashpoint, etc.)

Type & Special Tests:

  • Temperature rising testing
  • Zero-sequence impedance testing
  • No load current harmonic testing
📋 Testing Equipments Included
  1. Transformer Test Bench
  2. Inductive regulator
  3. Intermediate frequency motor sets
  4. Intermediate transformer
  5. Compensation capacitor
  6. Compensation reactor
  7. Sampling cabinet (HV/LV CT/PT)
  8. Controlling system cabinet (PLC)
  9. Power analyzer
  10. DC winding resistance tester
  11. Transformer turns ratio tester
  12. Megohm meter
  13. Partial discharge system
  14. Temperature logger
🏭 Manufacturing Excellence

Established in 2005, our technical team brings over 20 years of experience in R&D, manufacturing, and marketing of power electrical testing products. Our facilities include specialized R&D departments, instrument manufacturing workshops, HV laboratories, and quality control centers.

We have obtained ISO9001 quality system certification, and all products strictly conform to international IEC and state standards. Our solutions serve key industries including Power, Railway, Energy Conservation, and Aerospace.

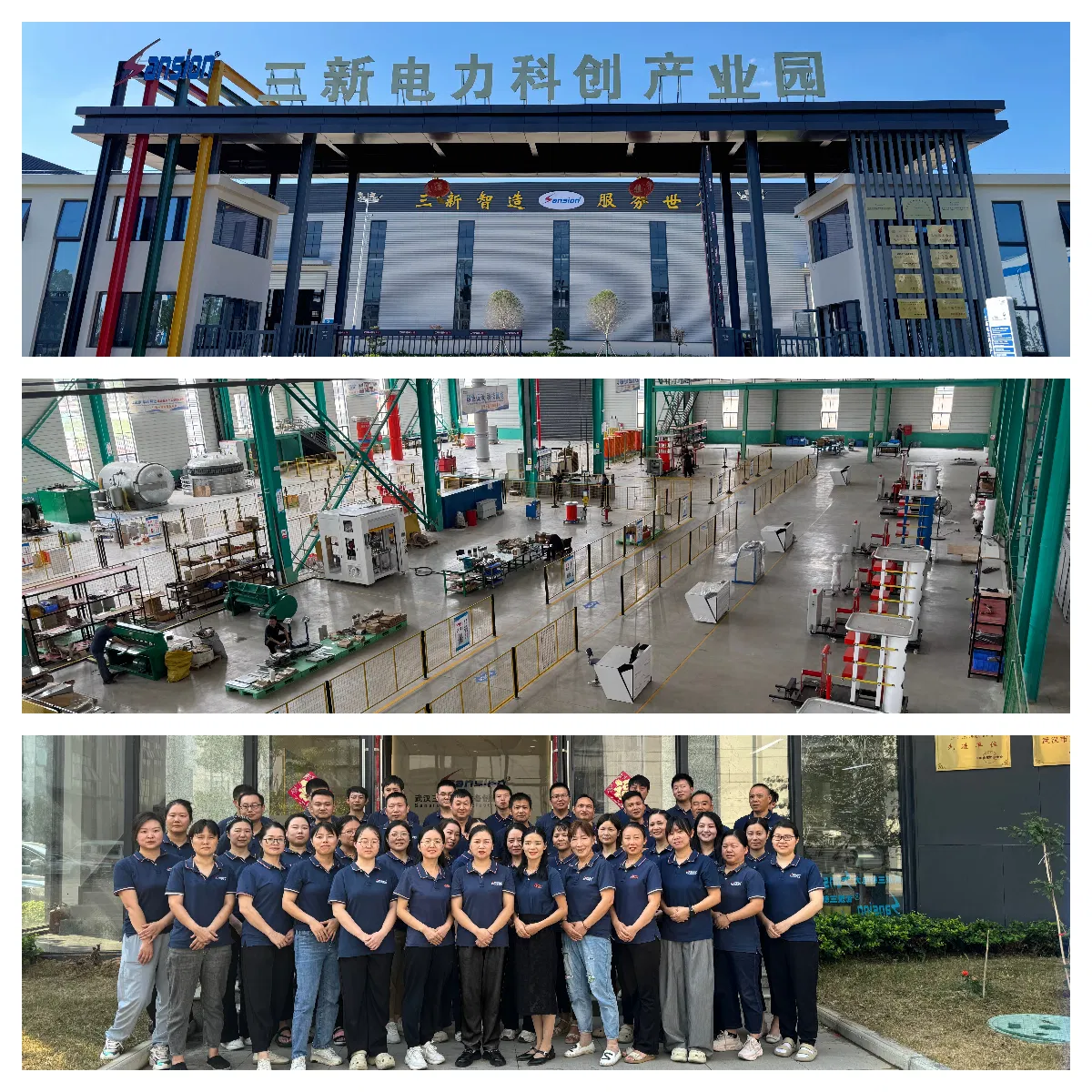

Factory Workshop

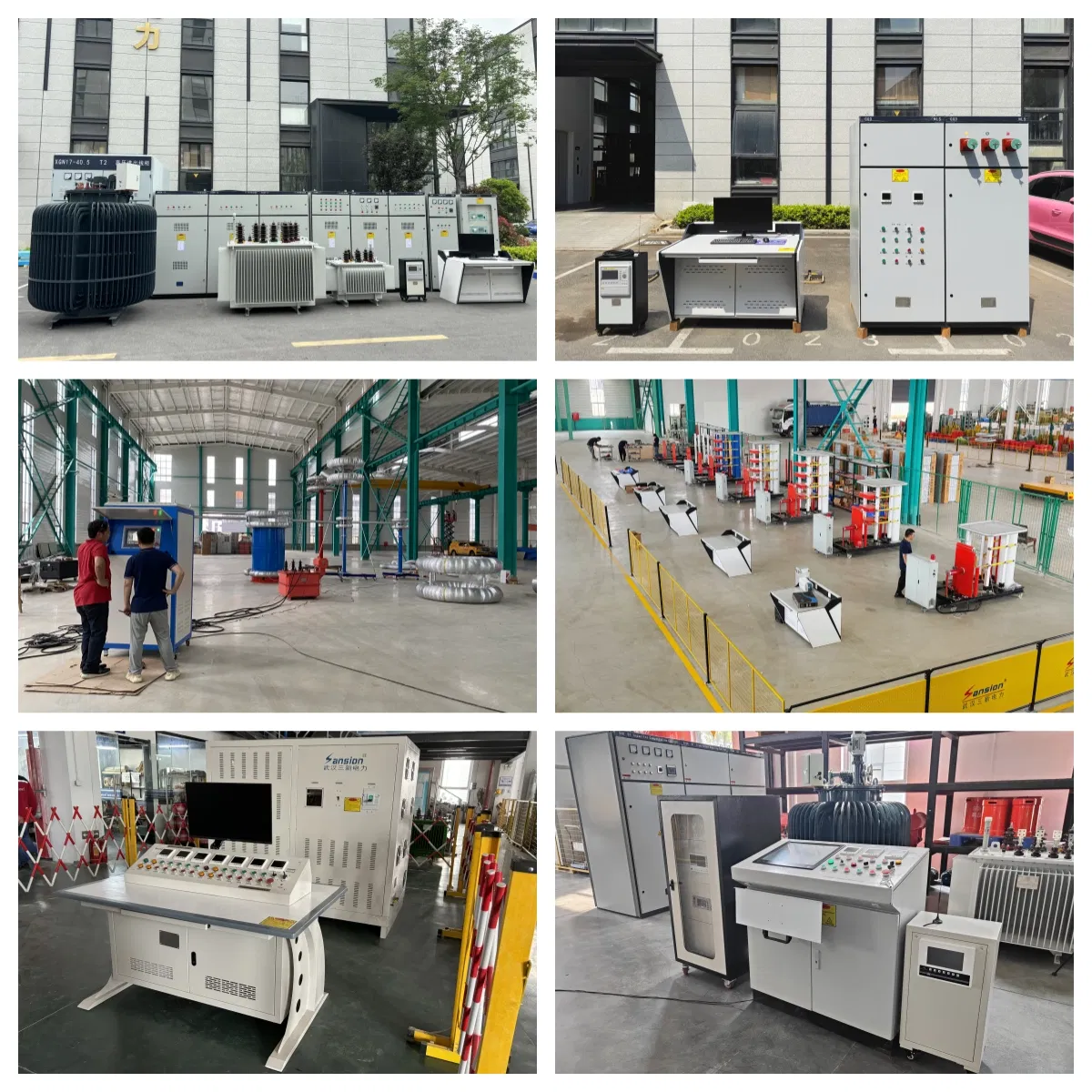

Testing Laboratory
📜 Certifications & Global Presence
ISO Certification
Product Patents
Customer Visit

We provide OEM services according to your customized requirements. With a production cycle of 3-7 working days, we ensure efficient delivery via air or ocean to partners worldwide.

📦 Packing & Delivery
Plywood Case Packing
Shipping Preparation
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are an industrial and trade enterprise with our own factory, established in 2005. We have twenty years of production experience with dedicated production lines and R&D centers.
Can the equipment be customized and what is the delivery time?
Yes, we can customize equipment based on special requirements using the latest technology. Delivery is usually within 10 working days.
How do you guarantee product quality?
We use high-quality imported components and perform three rounds of quality inspections before shipping. All goods are packed in non-fumigation wooden boxes for export.
What are your after-sales service terms?
We offer free consulting services and a one-year warranty. We provide support via email, video calls, and on-site technical assistance to solve any issues promptly.
In which fields can your products be applied?
Our equipment is widely used in Power, Railway, Energy Conservation, Water Conservancy, Petrochemicals, and Aerospace industries.
Which countries do you export to?
Our products have been successfully exported to the United States, France, Brazil, Australia, Russia, Saudi Arabia, Indonesia, and many other regions globally.
