Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
1 / 5
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer
Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer

Heyi Asct Hall-Effect Current Sensor (K5X) Current Transducer

Customization: Available
Type: Hall Type
Output Signal Type: Analog Output
Send Inquiry

Product Description

Basic Information
Model NO.
K5X
Production Process
SemiConductor Integrated
Material
Mixture
Accuracy Grade
0.5G

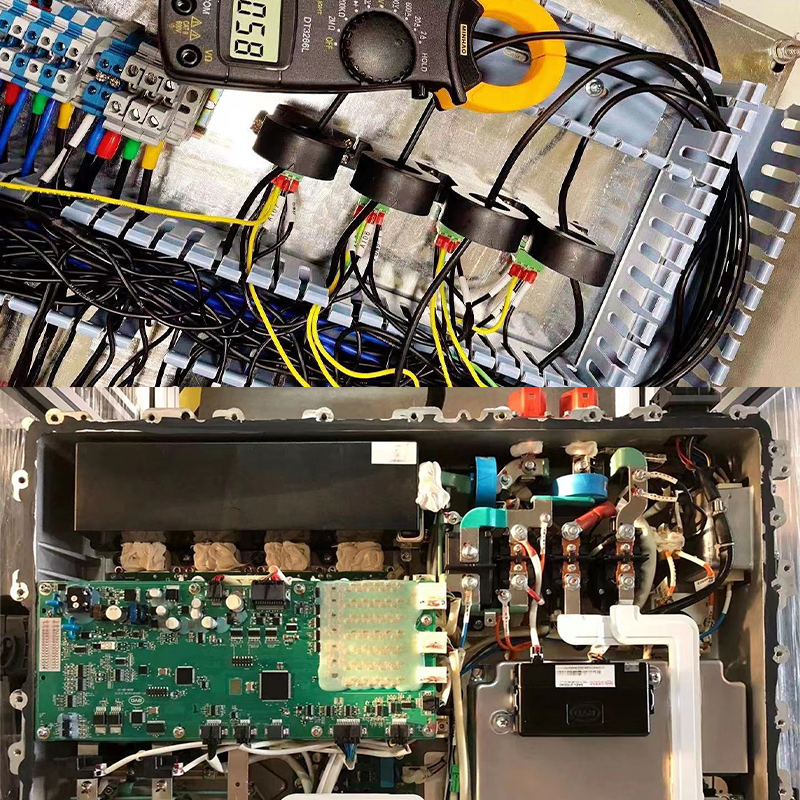

Application
Switching Power Supply
IP Rating
IP65
Certification
ISO
Customized
Customized
Output
Analog Sensor
Usage
Hall Sensor
Theory
Hall Sensor
Courier
DHL, TNT, FedEx
Transport Package
Outer Carton with Smaller Inner Carton
Specification
IEC 6044-1
HS Code
8542390000
Production Capacity
100000PCS/Year
Packaging & Delivery
Package Size
5.00cm * 2.00cm * 5.00cm
Package Gross Weight
0.500kg

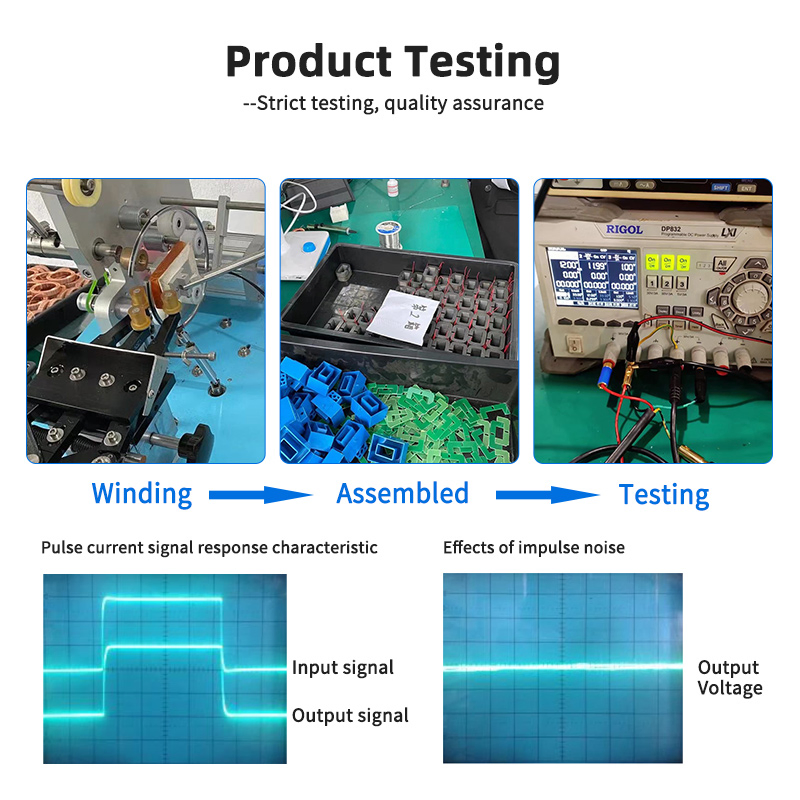

Product Description
The magnetic flux created by the primary current IP is balanced by a complementary flux produced by driving a current through the secondary windings. A hall device and associated electronic circuit are used to generated the secondary (compensating) current that is an extract representation of the primary current.
Type K5X-200A K5X-500A K5X-1000A K5X-1500A Unit
Primary nominal input current 200 500 1000 1500 A
Measuring range of primary current 0- ± 400 0- ± 1000 0- ± 2000 0- ± 2500 A
Secondary nominal output voltage 4± 1% V
Supply voltage ± 12- - ± 15 V
Current consumption 20+Is mA
Insulation voltage 6KV/50Hz/1min -
Linearity 1 %FS
Zero offset voltage (TA=25C) ± 25 mV
Residual voltage ± 30 mV
Thermal drift of V0 ± 1 mV/C
Response time 7 μ s
Frequency bandwidth(-3dB) DC- - 20 KHz
Ambient operating temperature -40- - +85 C
Ambient storage temperature -40- - +125 C
Load resistance (TA=25C) ≥ 10K Ω
K5X Sensor Detail 1
K5X Sensor Detail 2
K5X Sensor Detail 3
K5X Sensor Detail 4
K5X Sensor Detail 5
K5X Sensor Detail 6
Frequently Asked Questions
What is the accuracy grade of the K5X Hall effect current sensor?
The K5X series features a high accuracy grade of 0.5G, ensuring precise current measurement for demanding applications.
What is the environmental protection rating for this sensor?
This sensor is rated IP65, providing excellent protection against dust and low-pressure water jets, making it suitable for various industrial environments.
What is the response time for the K5X-200A/500A/1000A/1500A models?
The K5X series offers an extremely fast response time of ≤ 7 microseconds (μs) for efficient real-time monitoring.
What are the operating and storage temperature limits?
The ambient operating temperature ranges from -40°C to +85°C, while the storage temperature range is -40°C to +125°C.
Does the sensor comply with international standards?
Yes, the K5X sensor is manufactured according to the IEC 6044-1 specification and is ISO certified.
What type of supply voltage is required?
The device operates on a supply voltage of ± 12V to ± 15V DC.
