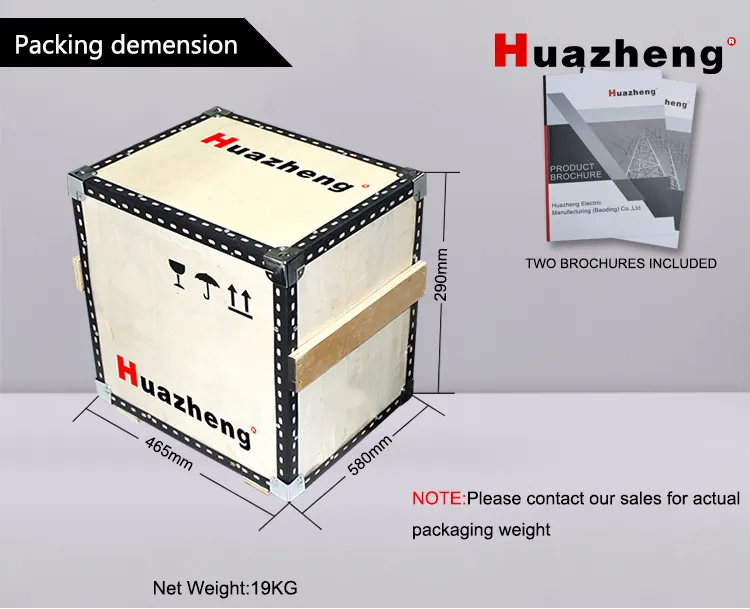

Package TypeWooden Box with Foam Inside

Product Description

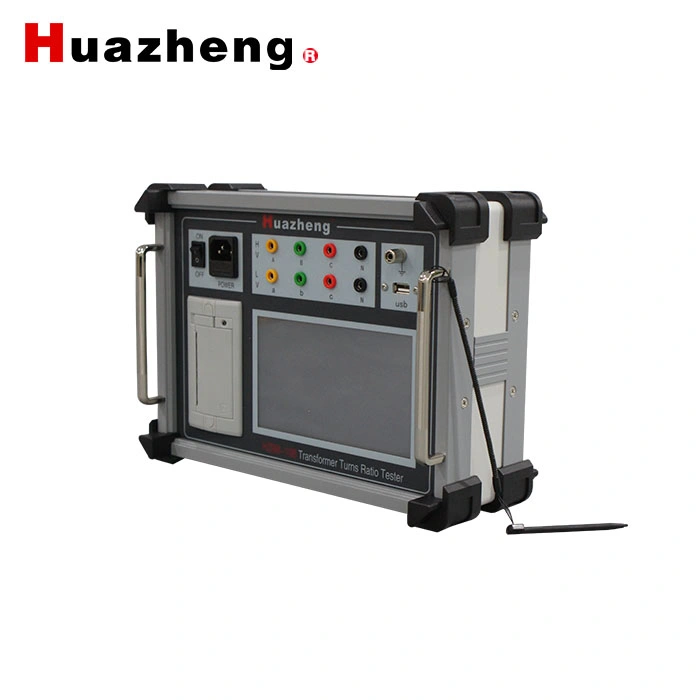

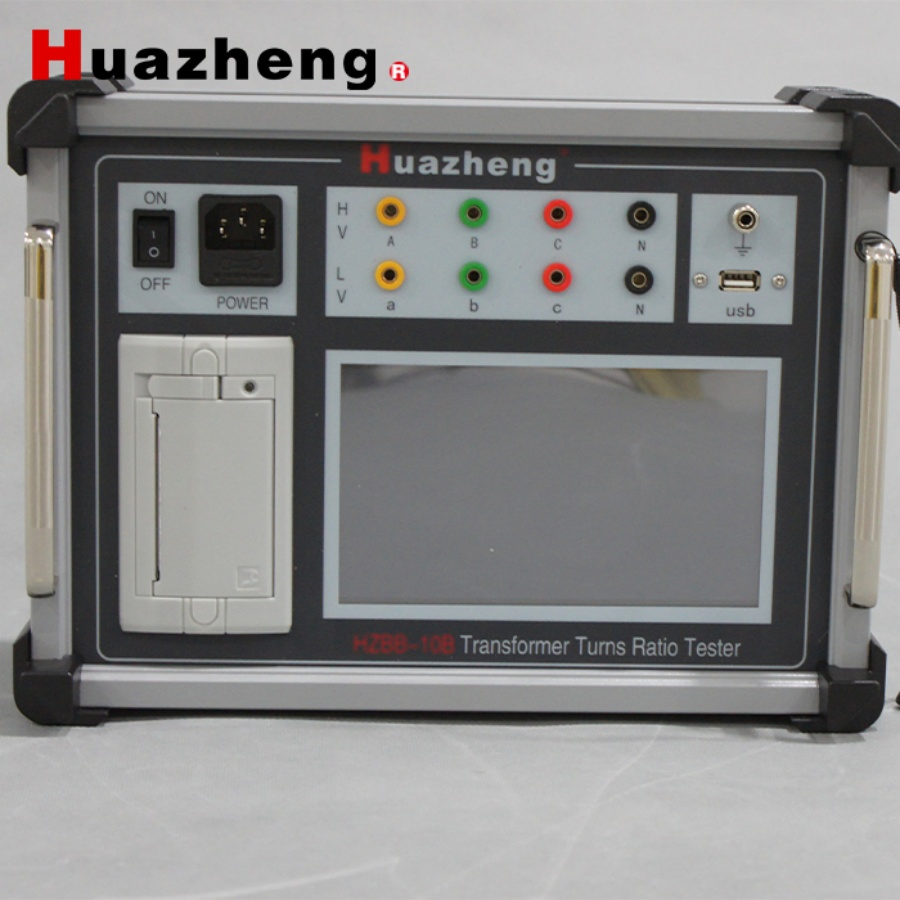

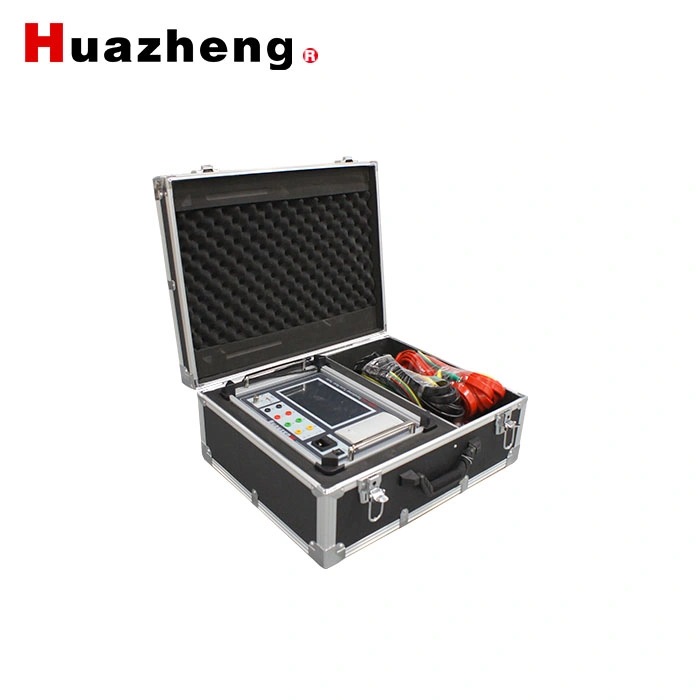

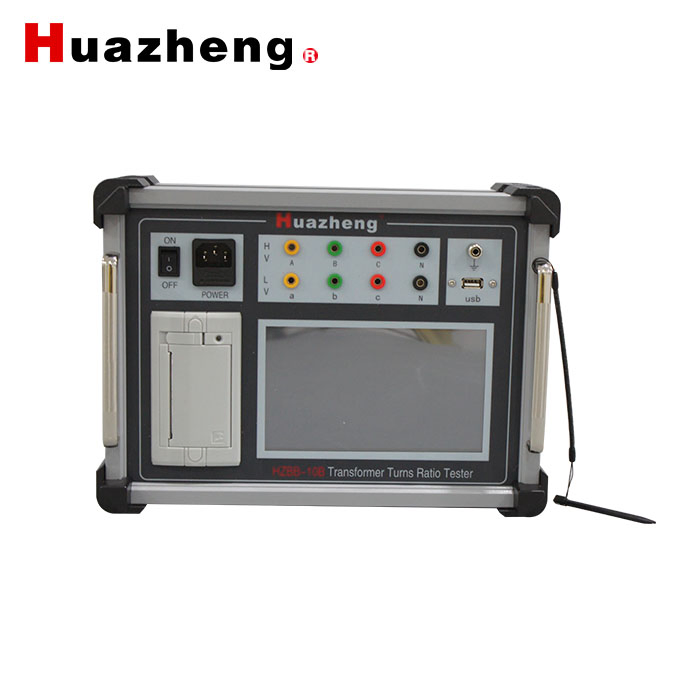

High Quality Electrical Transformation Ration Meter Automatic Transformer Ratio Tester

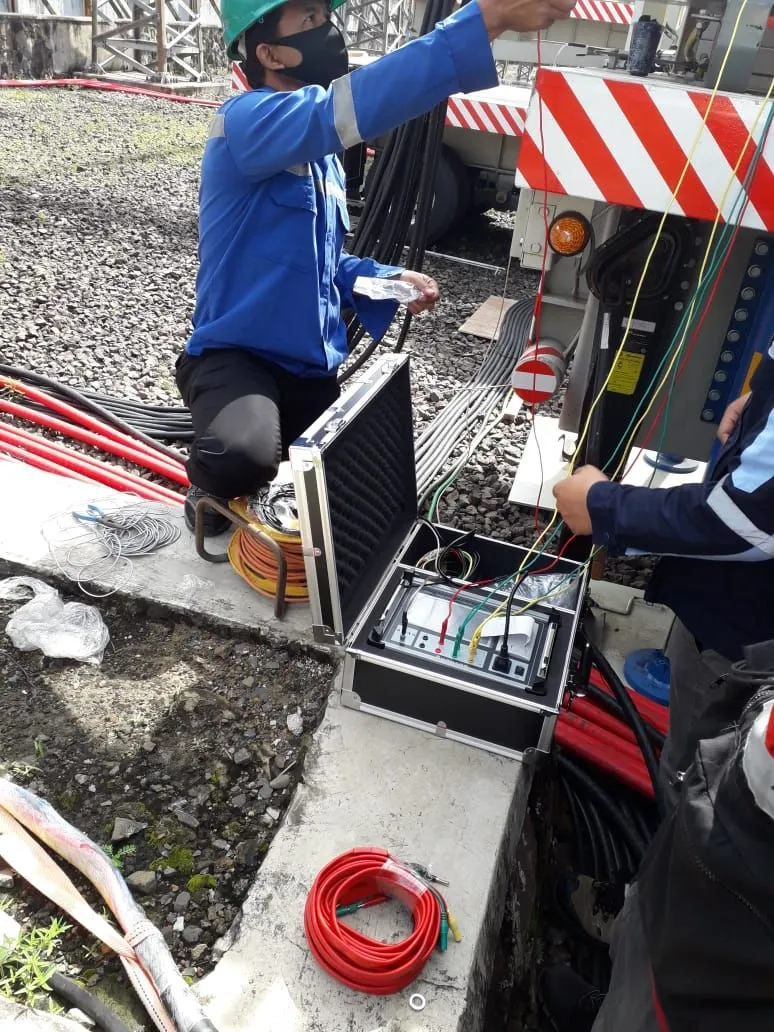

Transformer Ratio Tester

I. Introduction

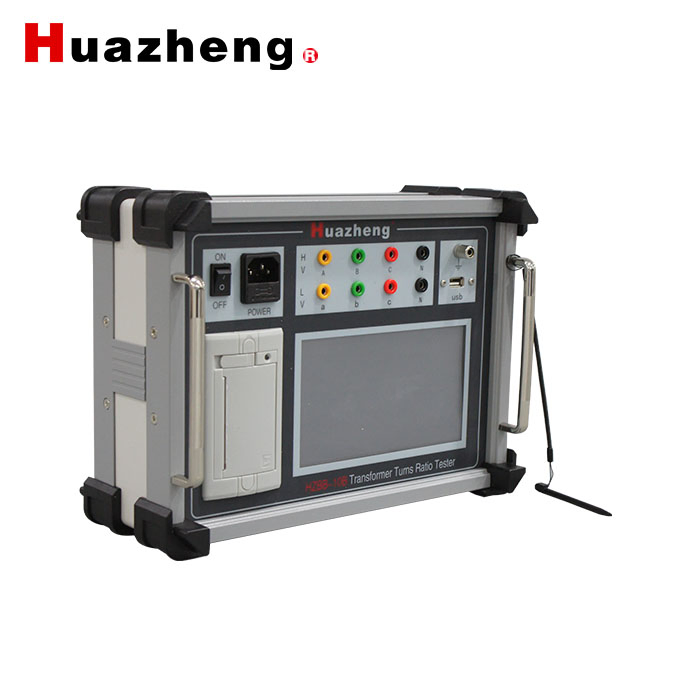

HZBB-10B Intelligent Tester of Transformer Ratio and Connection Groups adopts popular ARM processor, 168M frequency, 128M memory available. The LCD screen adopts 5-inch high-definition color touch screen, making the tester interface simple and user-friendly. The tester supports database and can be exported from the USB drive.

It is especially suitable for special transformers such as Z-type transformers, rectifier transformers, Scott or anti-Scott transformers, etc. The transformer ratio and wiring method can be measured in about 3 seconds.

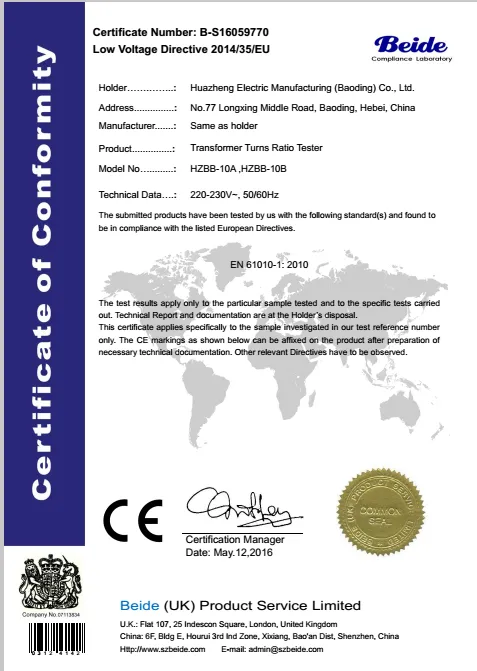

Digital Tester

II. Main Functions and Characters

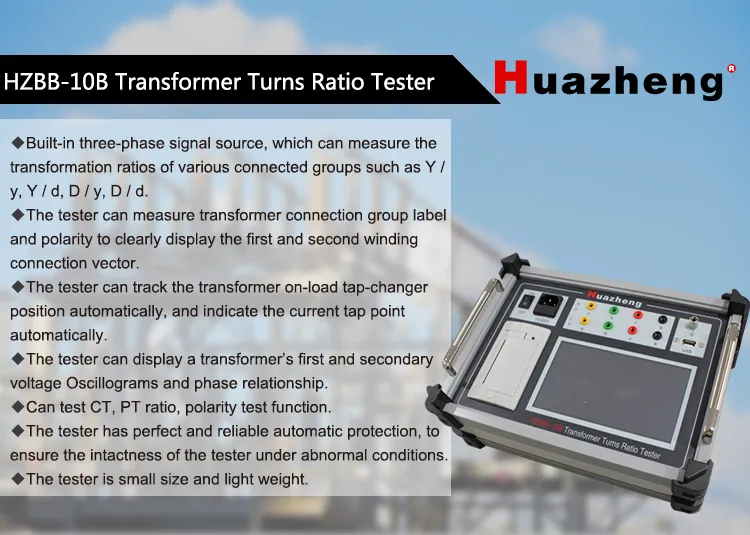

  • Automatic measurement with no need to set parameters.
  • Measures three-phase and single-phase transformer ratios and calculates error.
  • Inner three-phase signal source for Y/y, Y/d, D/y, D/d, ZN/y, ZN/d and rectifier transformers.
  • Measures connection group label and polarity, displaying vector diagrams.
  • Tracks on-load tap-changer position automatically.
  • Displays voltage Oscillograms and phase relationship.
  • Tests CT, PT ratio and polarity functions.
  • Built-in 128M memory (extendable to 4G) with USB export support.
  • 5-inch true color touch screen with fast measurement speed (approx. 3 seconds).

III. Technical Parameters

Parameter Item Specifications
Test Range0.8 - 20000
Accuracy0.2% (0.8-2000), 0.5% (2000-20000)
Input VoltageHV side AC 24V, LV side AC 4V
Power SupplyAC220V ± 15%
Ambient Temperature-10 ºC to -40 ºC
Relative Humidity10% - 85%
Dimension270 × 190 × 70mm
Weight2kg (excluding wires)

Detailed Product Gallery

Detail 1

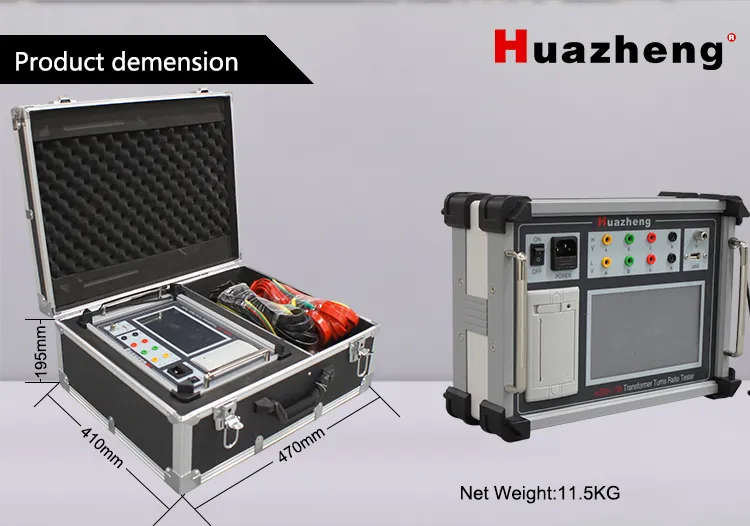

Detail 2

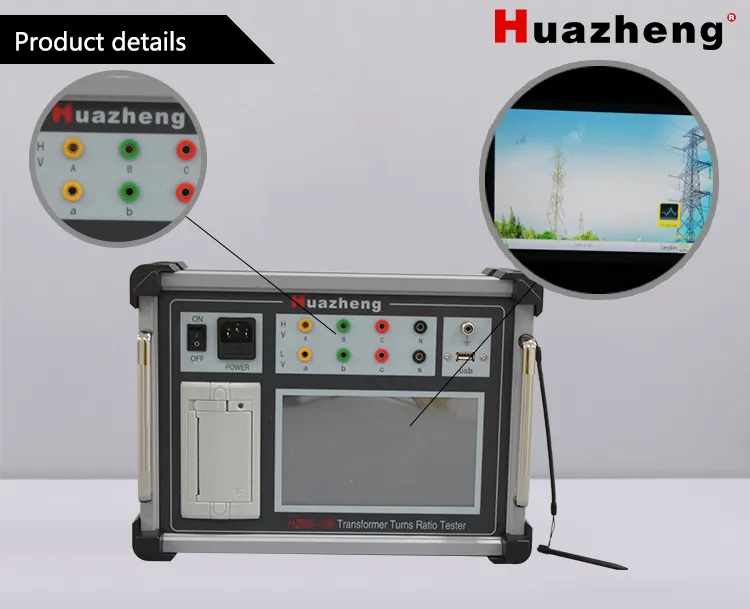

Detail 3

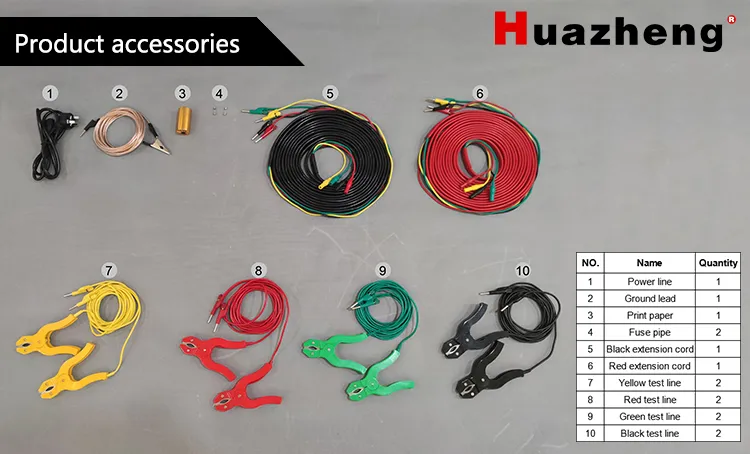

Detail 4
Detail 5

Professional Capability

Our supply network covers global markets including America, England, Bulgaria, Brazil, Chile, Malaysia, and Vietnam. We specialize in high-precision electrical testing equipment designed for government and industrial grid standards.

Core Product Line:

  • Insulation Oil Testers
  • Cable Fault Locators
  • Power Quality Analyzers
  • High Voltage Generators & Capacitors
  • Testing Transformers
Facility 1
Facility 2
Customer Visit
Exhibition

Similar Recommendations

Rec 1
Rec 2
Rec 3
Rec 4
Rec 5

Frequently Asked Questions

What is the measurement range of the HZBB-10B?
The device offers a wide measurement range from 0.8 up to 20000, suitable for various transformer types.
How long does a single test take?
The tester uses advanced algorithms to complete transformer ratio and wiring method measurements in approximately 3 seconds.
Does it support special transformer types?
Yes, it is specifically designed for Z-type transformers, rectifier transformers, Scott, and anti-Scott transformers.
What is the accuracy of the measurements?
The accuracy is ±0.2% for the range of 0.8-2000 and ±0.5% for the range of 2000-20000.
How can I export the test results?
Test results can be stored in the built-in 128M memory and exported via a USB drive or uploaded to a computer in Excel format.
Is the screen easy to operate?
Yes, it features a 5-inch high-definition color touch screen with a user-friendly emwin interface, eliminating the need for a keyboard.
