Intelligent energy storage + peak shaving and valley filling, saving 30% of annual electricity bills.
Based on German wholesale time-of-use pricing, net income can reach 7,447 euros per year, with a static payback period of approximately 4.4 years.
| Project | Unit | Numerical Value |
|---|---|---|
| Power | kW | 50 |
| System Capacity | kWh | 100 |
| Total Investment | € | 32,609 |
| Peak and Valley Difference | €/kWh | 0.238 |
| Annual Electricity Savings | €/year | 8,099 |
| Annual Net Income | €/year | 7,447 |
| Static Payback Period | year | 4.4 |

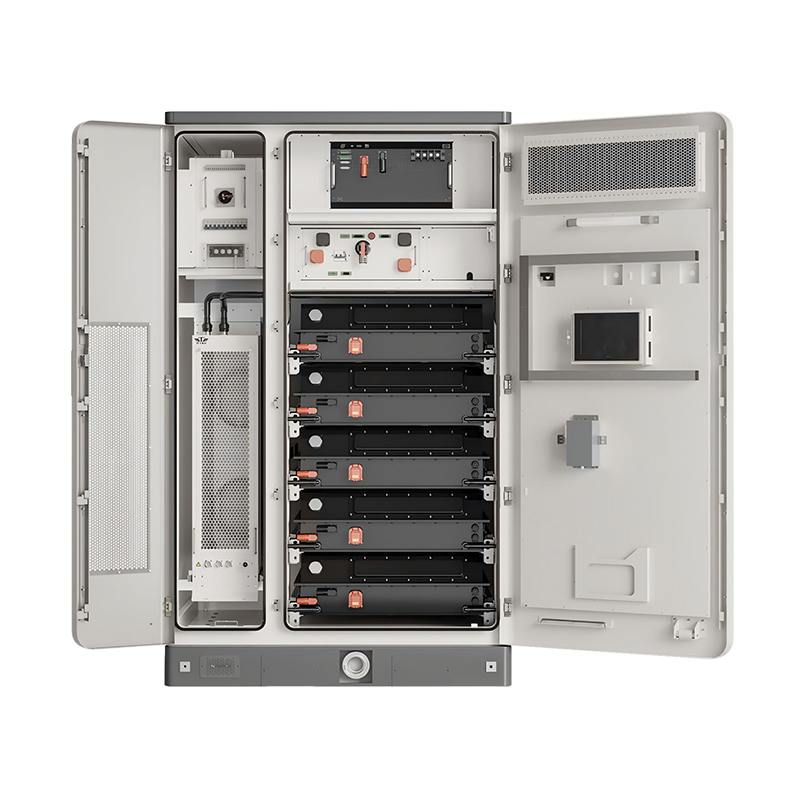

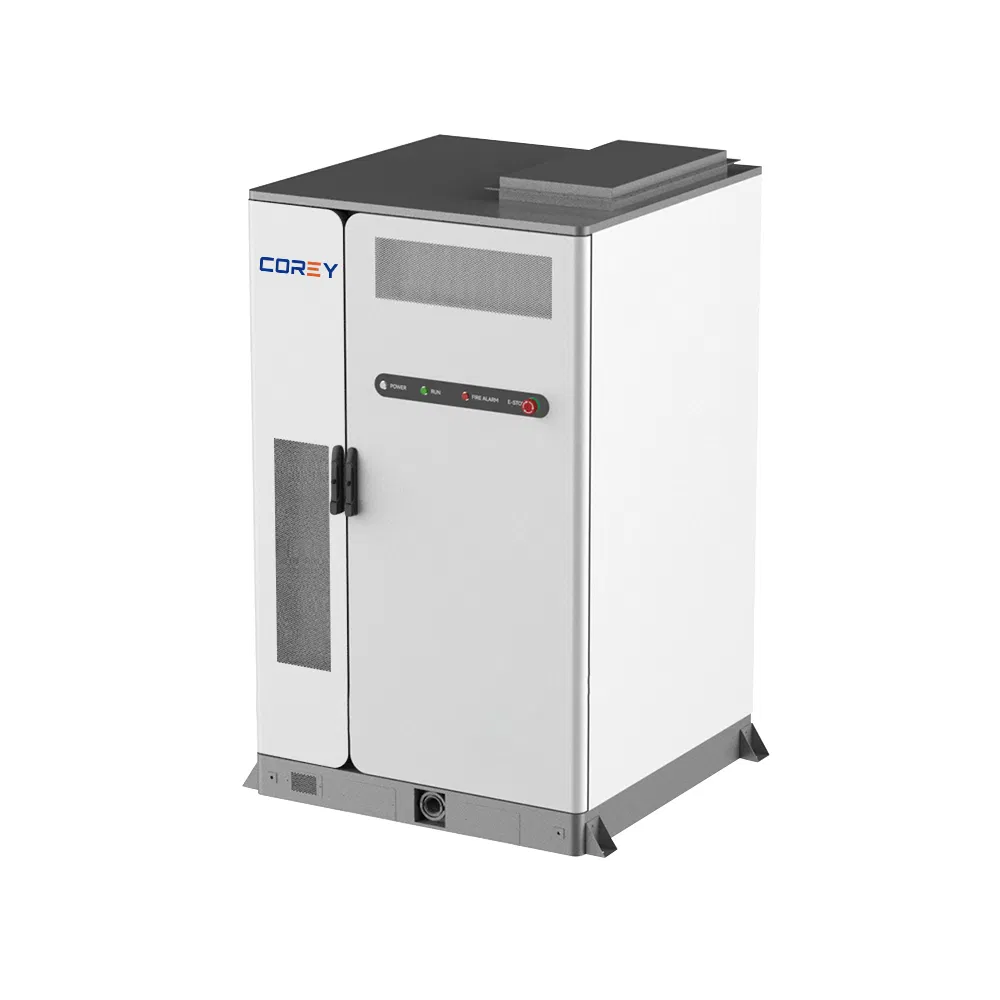

| System Parameter | Specification | |
|---|---|---|
| Battery Info | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Discharge Depth | 95% DOD | |
| Environment | Operating Temp | -20ºC ~ 50ºC |
| Protection Level | IP54 / C4 Anti-corrosion | |
| Noise | ≤75dB | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Frequency | 50/60 Hz | |
| Max Current | 167A | |
| Physical | Weight | 2800kg ± 50kg |
| Dimensions | 1560mm * 1380mm * 2385mm | |

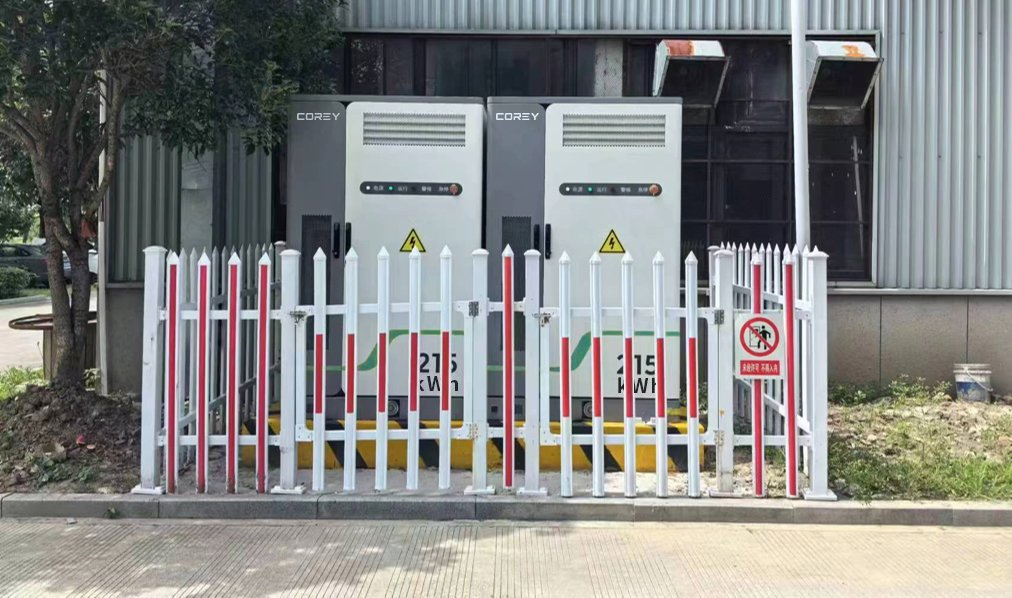

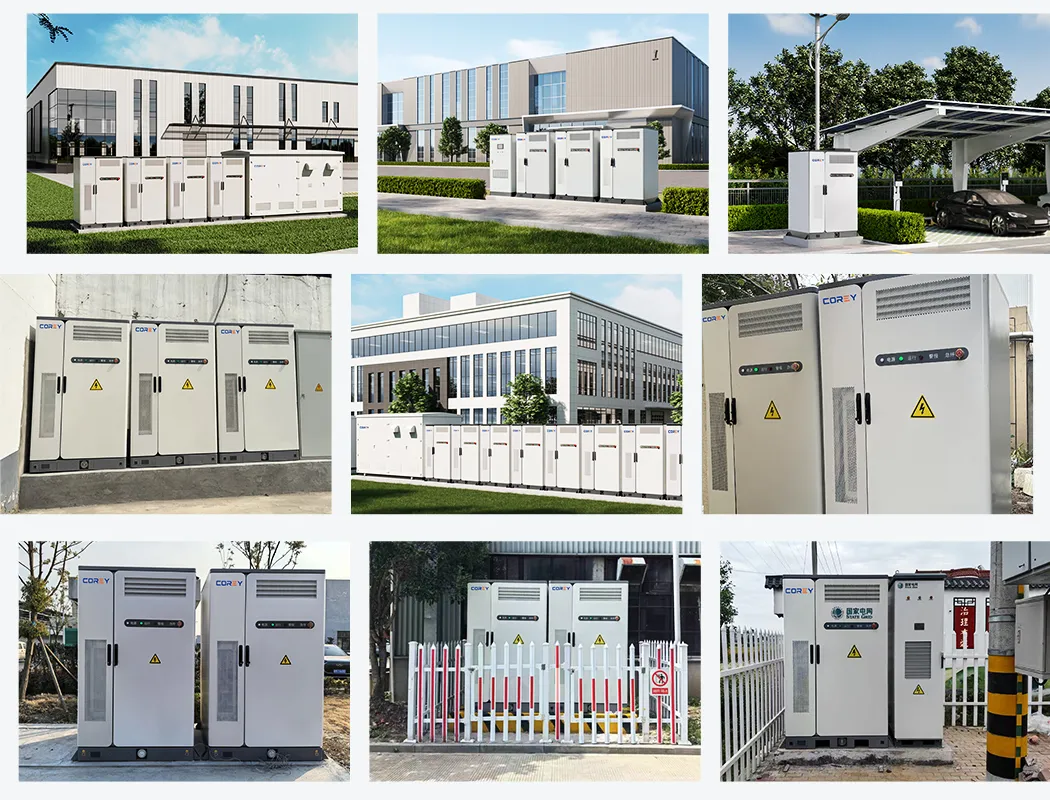

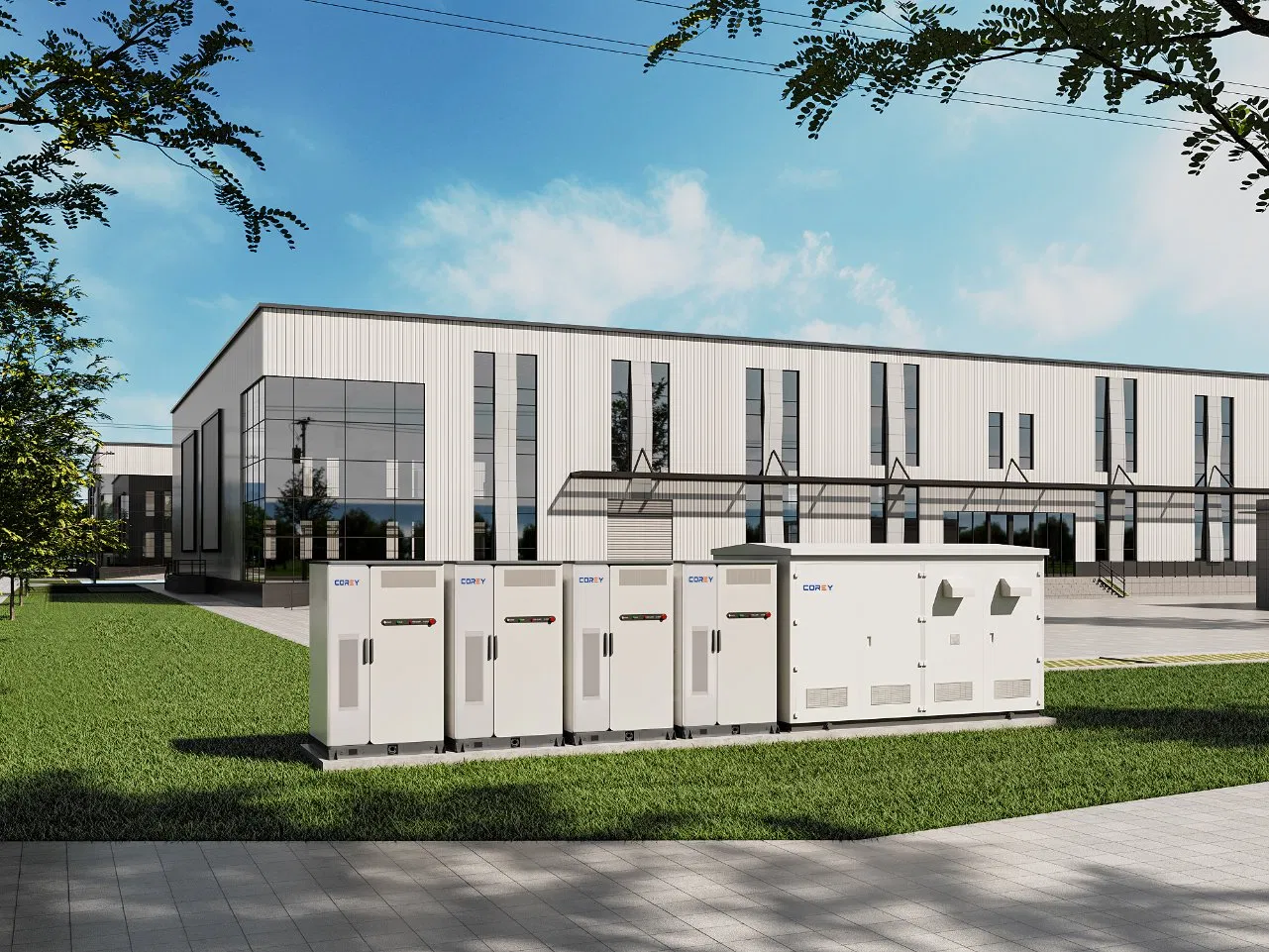

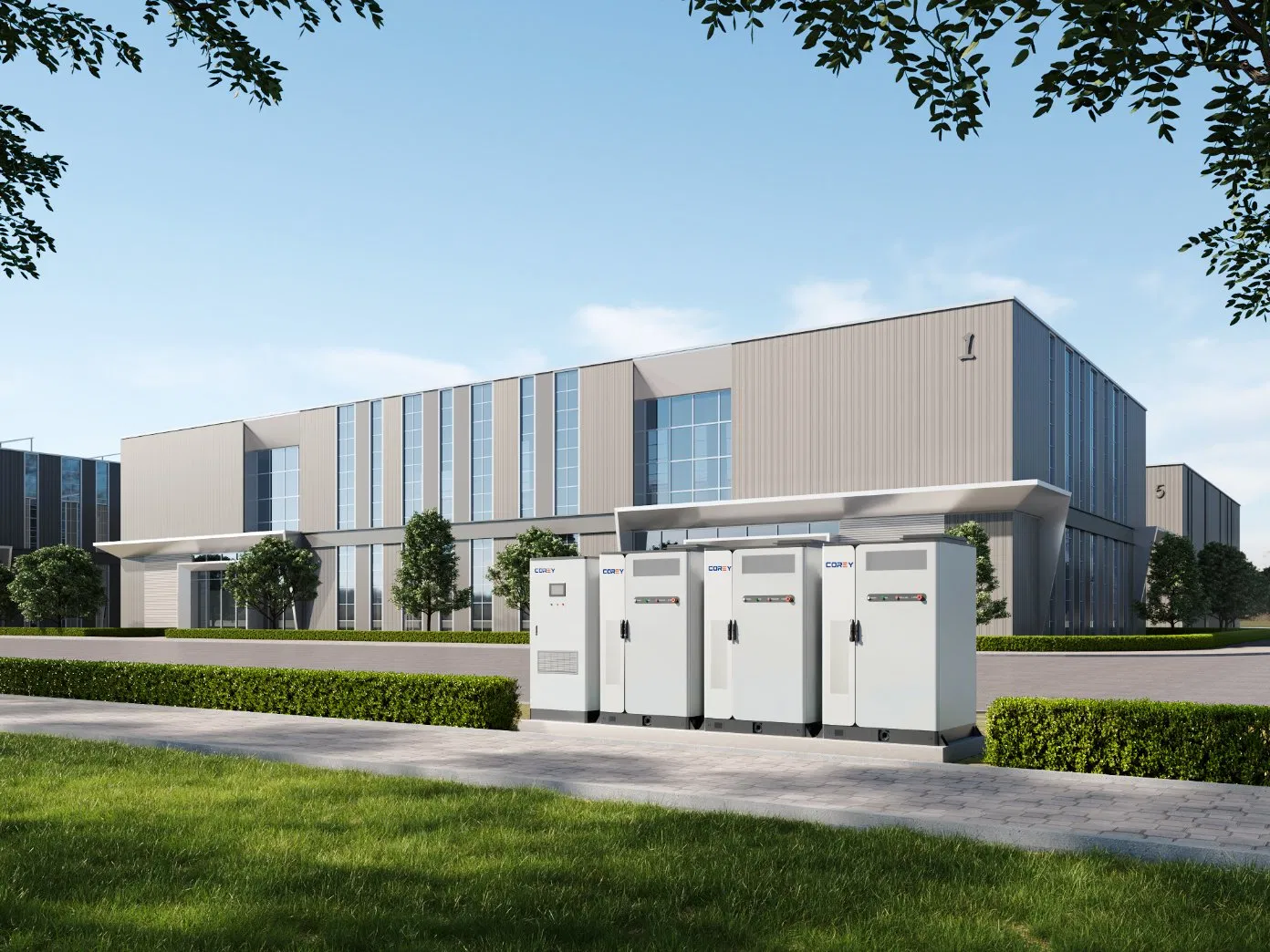

Perfectly suited for factory buildings, commercial centers, remote areas with power shortages, and micro-grid integration.
The system utilizes high-quality LiFePO4 cells with a cycle life of up to 9000 cycles, ensuring long-term reliability for over 10 years of typical use.
Yes, the system features an IP54 protection rating and C4 anti-corrosion level, making it suitable for various outdoor industrial and commercial environments.

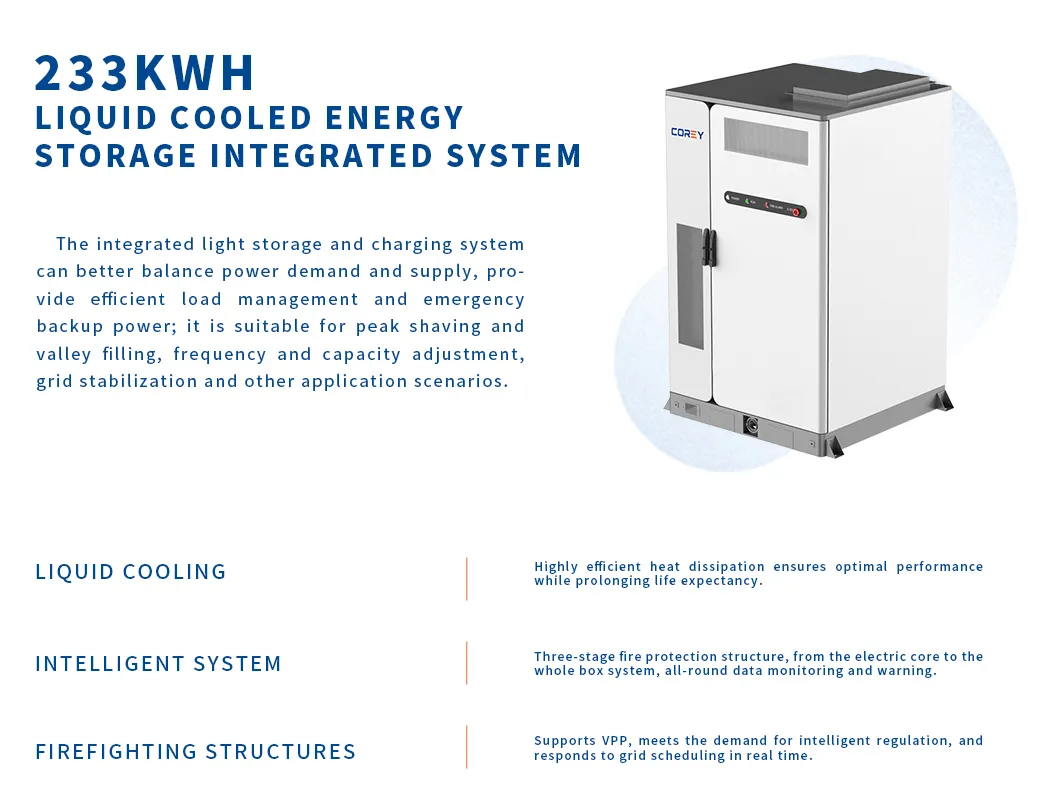

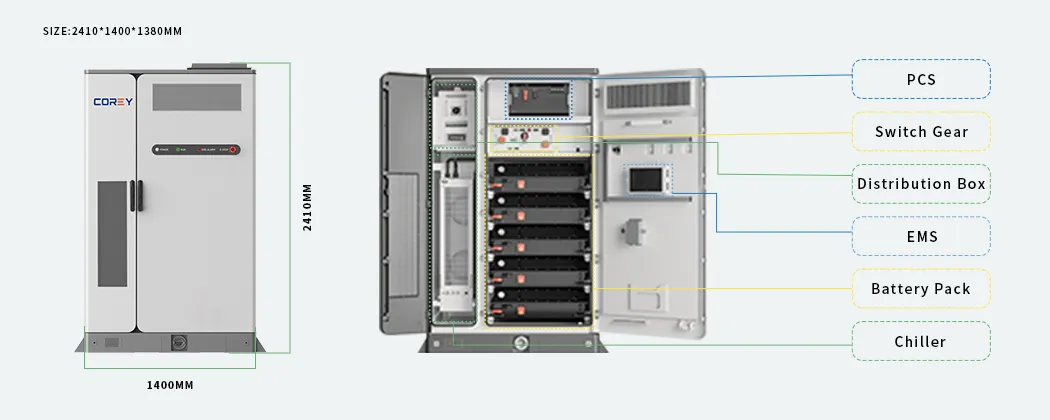

Intelligent liquid cooling maintains the battery cells at an optimum temperature (25ºC±2ºC), which enhances charging efficiency and significantly extends the battery's service life compared to air cooling.

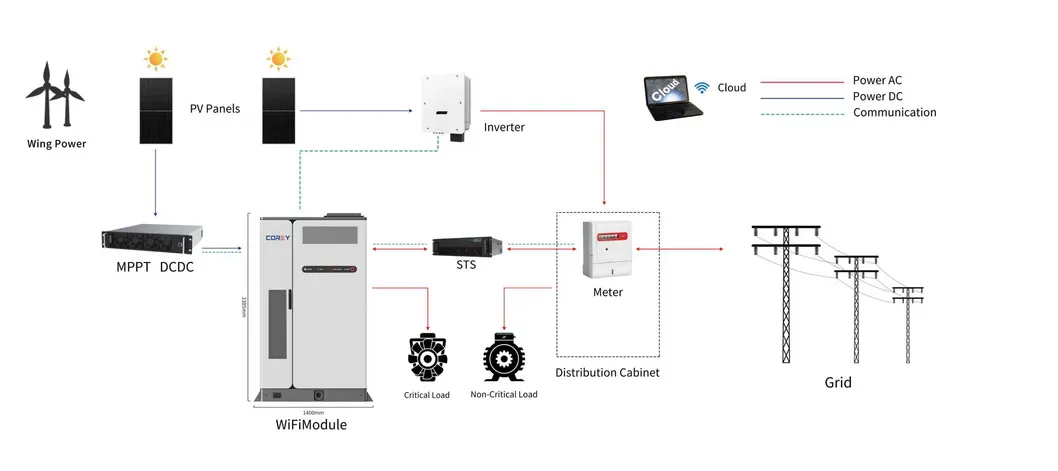

Yes, the system supports automatic on-grid and off-grid switching with an optional switching time of just 20ms, providing seamless backup power for critical loads.
Safety is our priority. The system includes pack-level and cluster-level aerosol fire suppression, combined with cabinet-level water fire protection interfaces.
Based on actual case data in markets like Germany, users can achieve a static payback period of approximately 4.4 years through peak-valley arbitrage and electricity bill savings.
