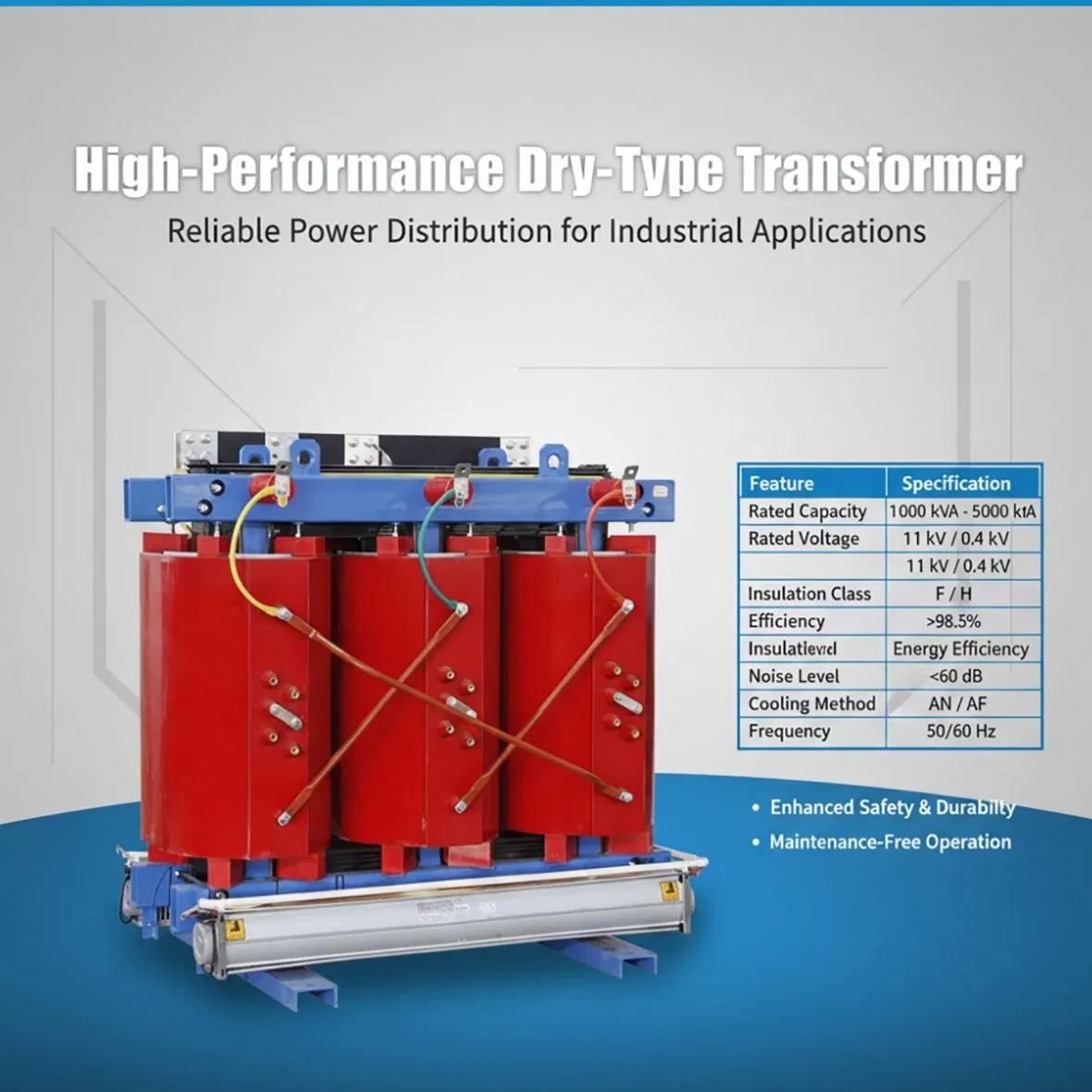

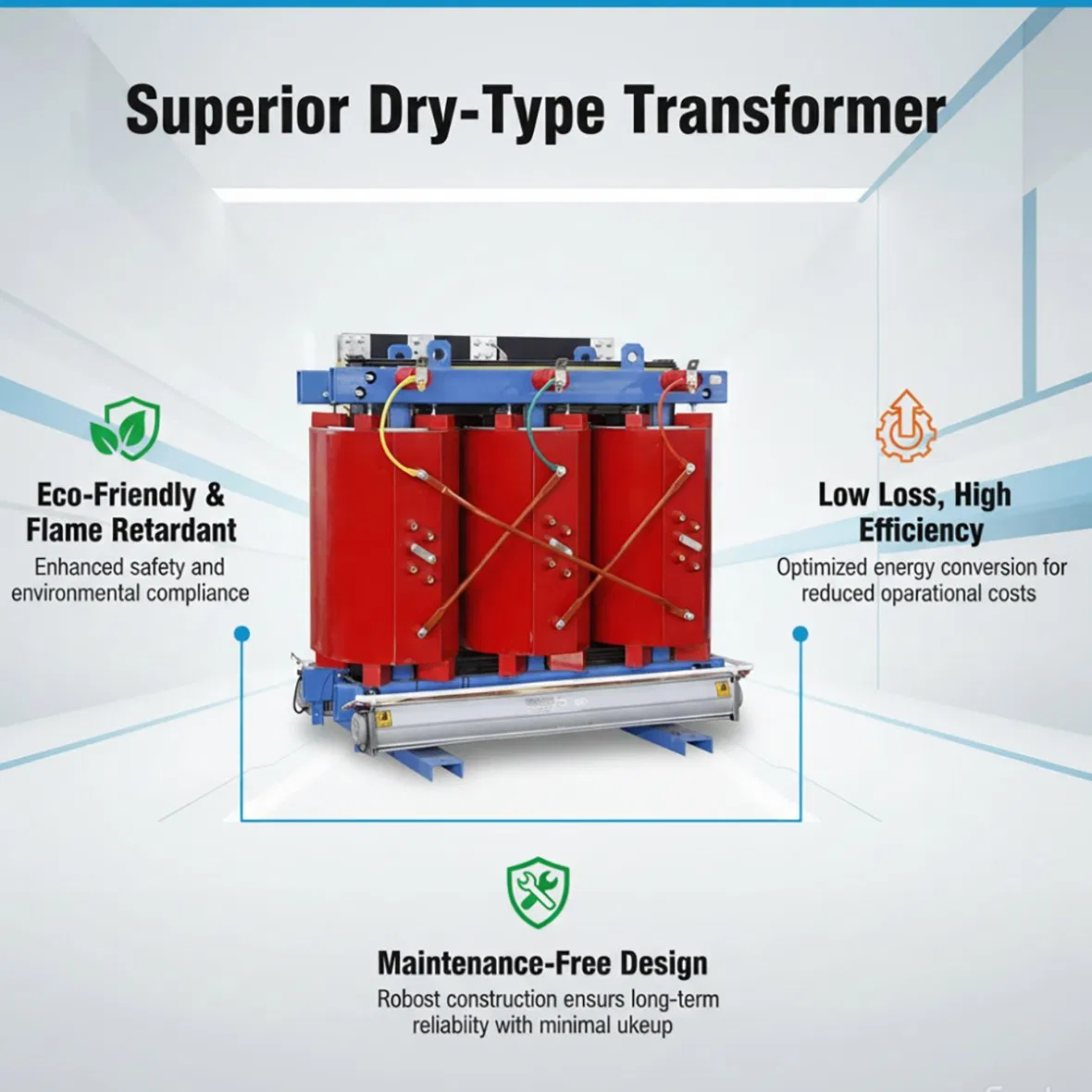

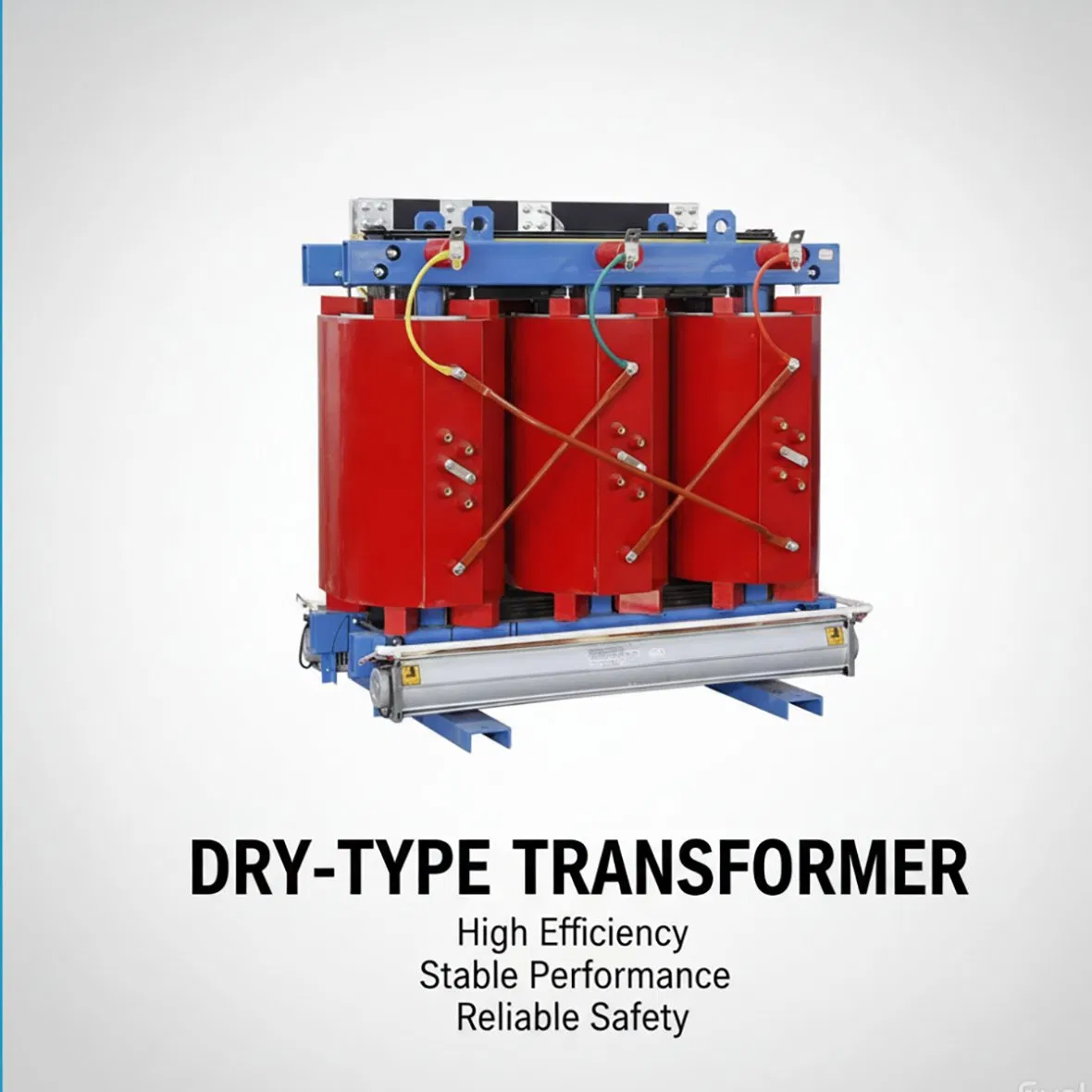

Eco-Friendly Pole Mounted Step-Down Current Three-Phase Dry-Type Transformer

Basic Specifications

Model NO.:SCB

Core:Core-type Transformer

Cooling Method:AN or AF

Winding Type:Two-winding Transformer

Certification:ISO9001, CCC, CE

Usage:Power & Distribution Transformer

Material:Epoxy Resin

Rated Capacity:30-2500kVA

Package Gross Weight:1000.000kg

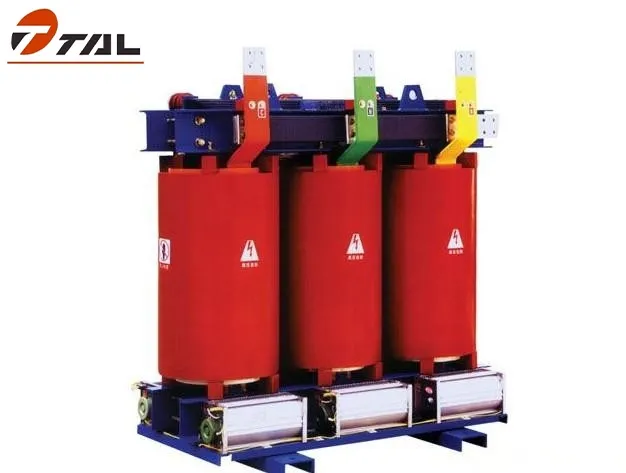

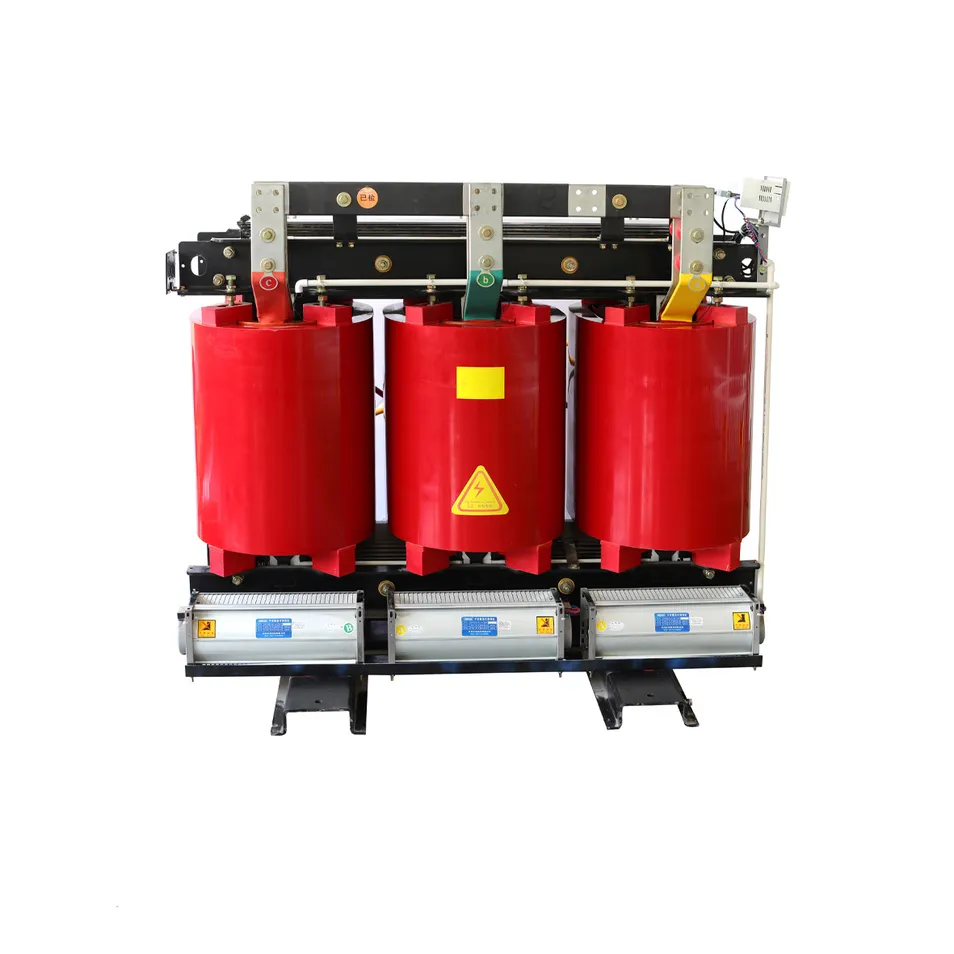

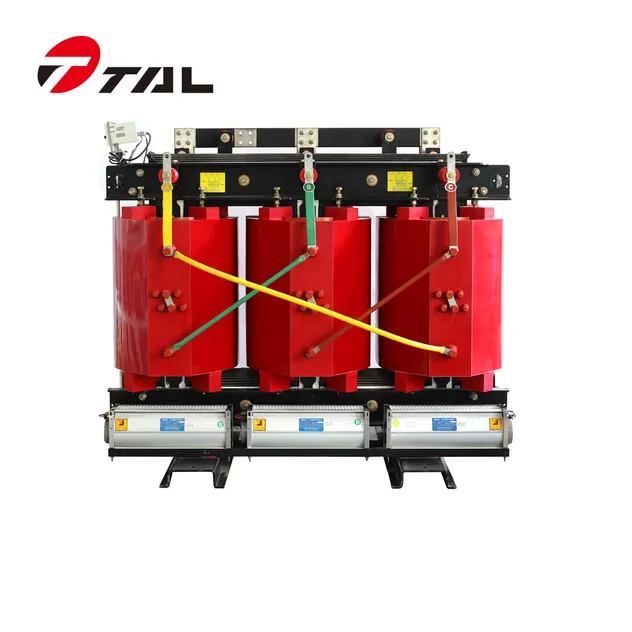

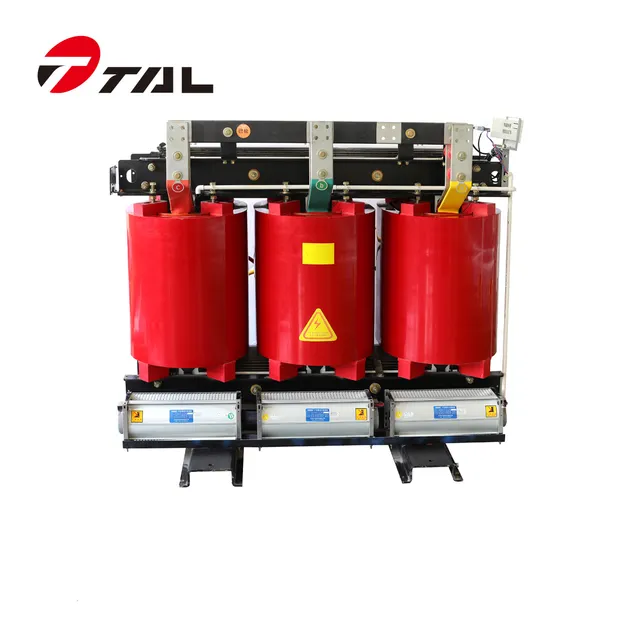

Cast Resin Dry Type Transformer

Our Cast Resin Dry Type Distribution Transformers are engineered for reliable performance in industrial and power distribution applications. Available in capacities from 630kVA to 3150kVA, these three-phase units feature cast resin insulation for superior fire resistance, low maintenance, and suitability for indoor or high-altitude installations.

🔥

Fire Resistant

Epoxy resin insulation provides excellent fireproof properties for indoor safety.

❄️

Advanced Cooling

Equipped with cross-flow cooling fans to accelerate air movement and prevent overheating.

⚡

High Efficiency

Low loss and low noise design ensures stable power conversion and energy saving.

Key Features

Safe & Pollution-free: Can be operated directly in the load center.
Mechanical Strength: Strong short-circuit resistance and high thermal stability.
Maintenance-Free: Low noise and energy-saving effect.
Overload Capacity: Forced air cooling (AF) can increase capacity by up to 50%.
Intelligent Control: Automatic temperature detection and display for three-phase windings.
Compact Design: Small volume and light weight for low installation costs.

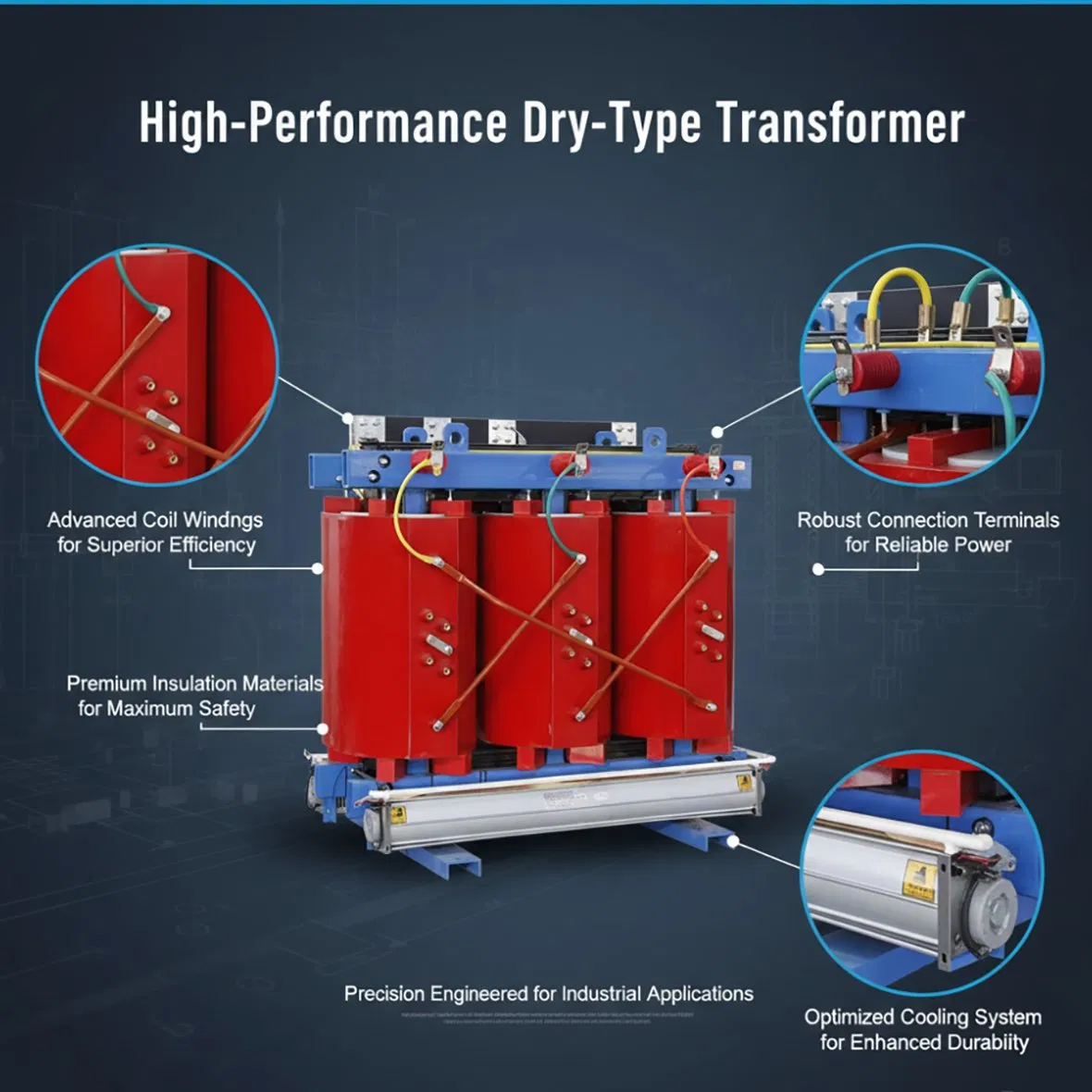

Core Components

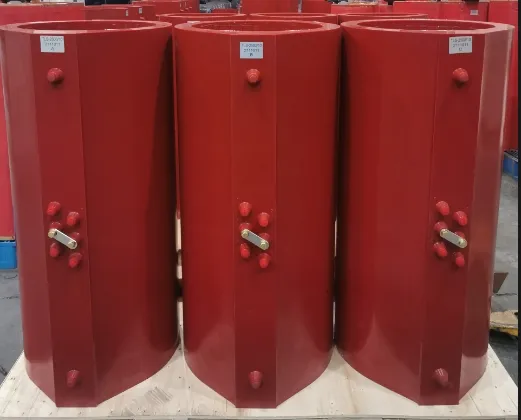

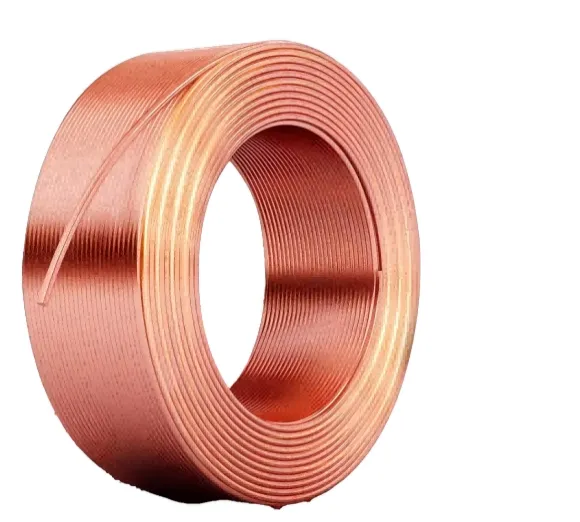

High Temperature Resistant Coil

High-Permeability Core

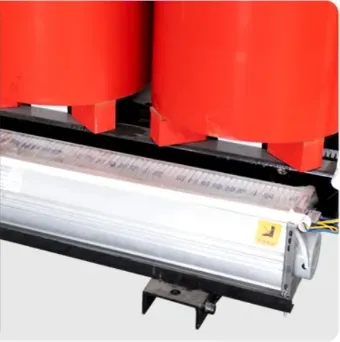

Cross Flow Cooling Fan

Technical Specifications

(Values can be customized according to local demand!)

Rated Capacity (kVA)	Voltage Combination			Connected Group	No-load Loss (W)	Load Loss (W)
Rated Capacity (kVA)	HV (kV)	Tap Range	LV (kV)	Connected Group	No-load Loss (W)	130°C	155°C	180°C
100	20/22/24	±2x2.5%	0.4	Dyn11	540	1870	1990	2130
400	20/22/24	±2x2.5%	0.4	Dyn11	1150	4650	4840	5180
630	20/22/24	±2x2.5%	0.4	Dyn11	1530	6450	6840	7320
1000	20/22/24	±2x2.5%	0.4	Dyn11	2070	9220	9780	10400
2500	20/22/24	±2x2.5%	0.4	Dyn11	3870	18200	19300	20700

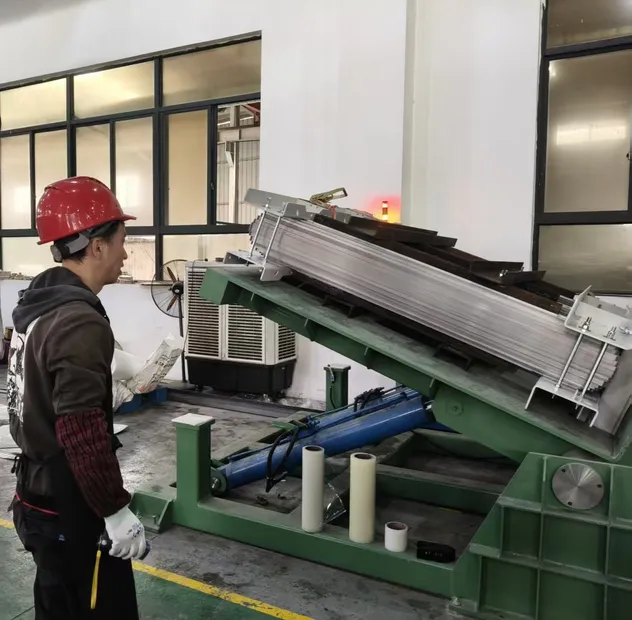

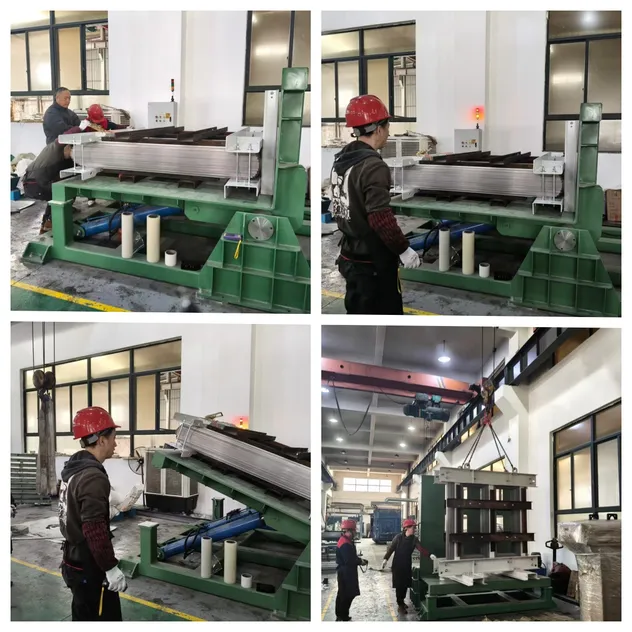

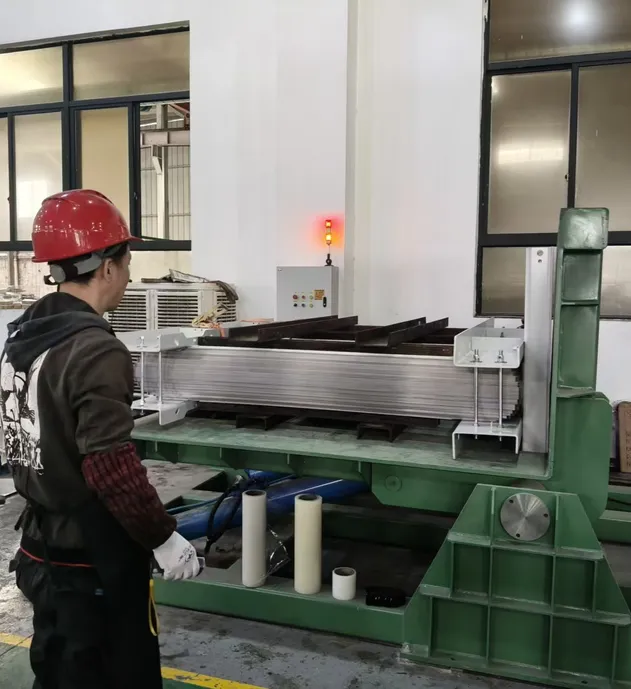

Manufacturing & Quality

Service Commitment

🛠️

Technical Support

7×24-hour remote guidance for installation, commissioning, and maintenance.

🛡️

2-Year Warranty

Standardized warranty service with free repair or replacement for non-human damage.

🎓

Customized Training

Special online training courses for equipment operation and maintenance skills.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a dedicated manufacturer specializing in customized power transformers, switchgears, and substations designed to meet international standards.

How do you handle quality control?

All products undergo 100% inspection and testing before delivery. We provide video inspections or detailed reports to ensure quality assurance.

What is the typical delivery time?

Standard orders usually take about 15 - 20 days. Customized designs may vary based on technical specifications.

What is the difference between copper and aluminum windings?

Copper offers better long-term durability and efficiency but comes at a higher price. Aluminum is more cost-effective. Both perform reliably when designed correctly.

Do your products have international certifications?

Yes, our products carry CE, 3C, and CQC certificates. We can also assist in applying for other specific regional certificates if required.

What are your payment terms?

We generally accept T/T (30% deposit and 70% balance against copy of BL) and L/C.
