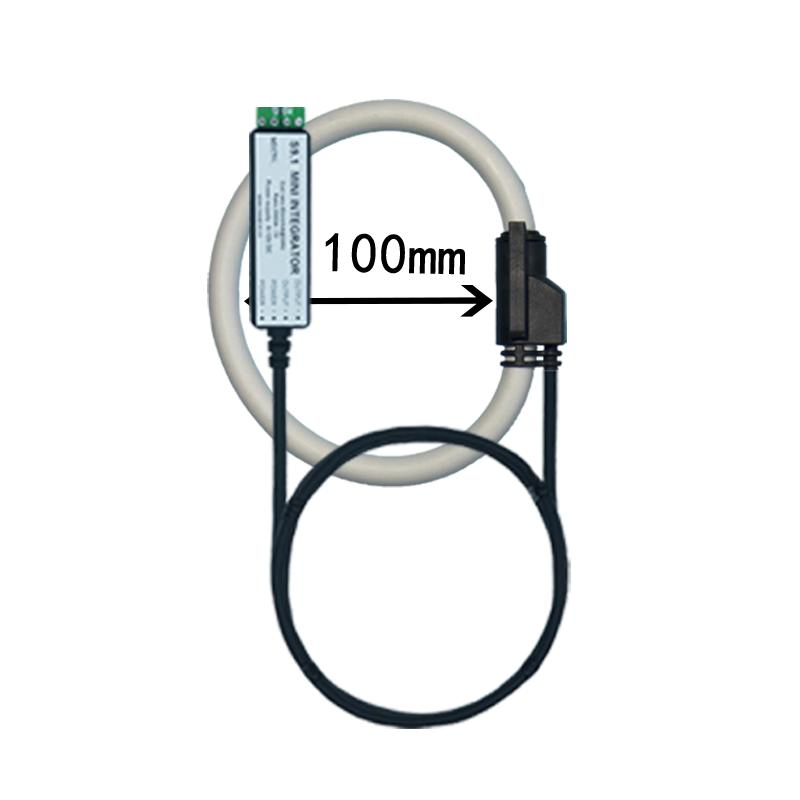

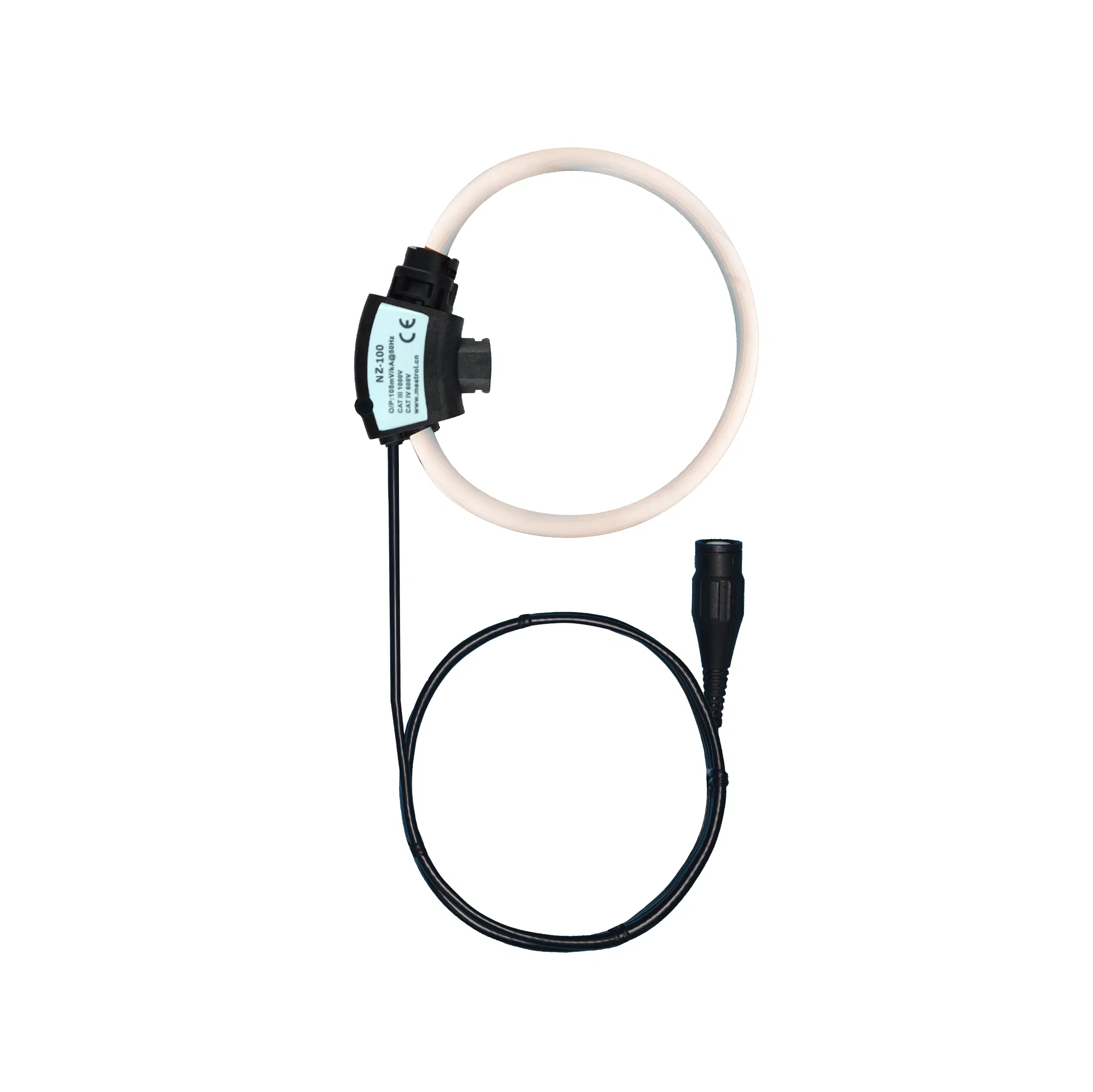

D-Src 36kv High Voltage Rogowski Coil Current Sensor

1 / 5

D-Src 36kv High Voltage Rogowski Coil Current Sensor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	D-SRC-100
Production Process	Integration
Material	Metal
Accuracy Grade	0.5G
Application	All Electronic, Electrical, Electric Related Cases
IP Rating	IP65 / IP67
Certification	CE
Window Size	50, 100, 150mm
Current Range(RMS)	≤100ka AC
Operating Temperature	-40℃ to 85℃

Product Description

High Voltage Rogowski Coil Current Sensor

D-SRC Series: Ø12 High Voltage Flexible Rogowski Coil

The D-SRC is a flexible current transducer based on the Rogowski principle, specifically optimized for measurements in combination with portable devices. Due to its unique flexibility and lightweight design, it serves as an ideal solution where traditional transducers cannot fit due to size or weight constraints.

Key Features

High linearity from 1A to 100kA

Wide dynamic range for versatile applications

Non-intrusive: draws no power from the main circuit

Voltage-resistant level up to 36kV

Measurement uniformity at any conductor position

No danger from open-circuited secondary

IP67 protection level for harsh environments

Resistant to damage from large overloads

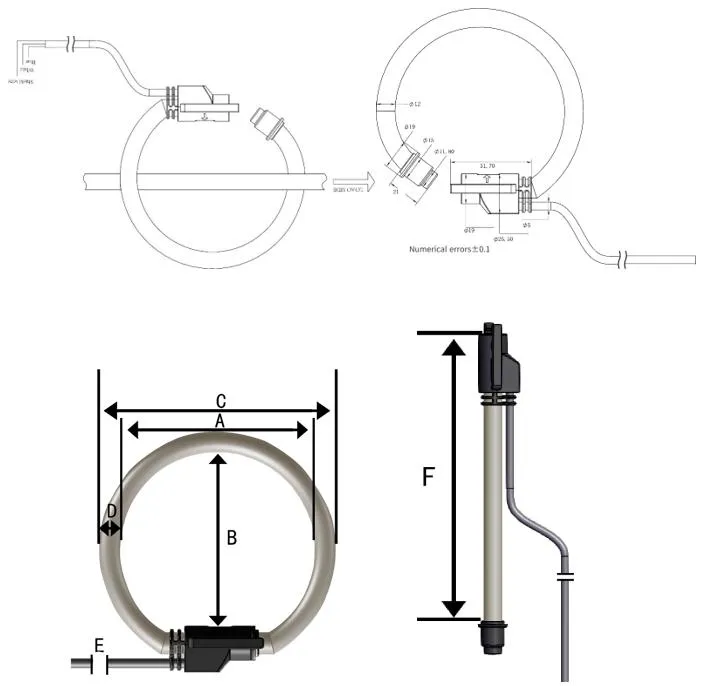

Detailed Technical Specifications

MODEL	D-SRC-50	D-SRC-100	D-SRC-150
Coil length	180mm	380mm	555mm
Window size	50mm	100mm	150mm
Coil Resistance	85 (+/-10) Ω	170 (+/-10) Ω	255 (+/-10) Ω
Rated Current	≤100kA
Ratio (Uncalibrated)	60mV/kA@50Hz, 72mV/kA@60Hz
Position Error	±2% maximum
Linearity	±0.2% of reading
Bandwidth	1Hz to 100kHz (-3dB)

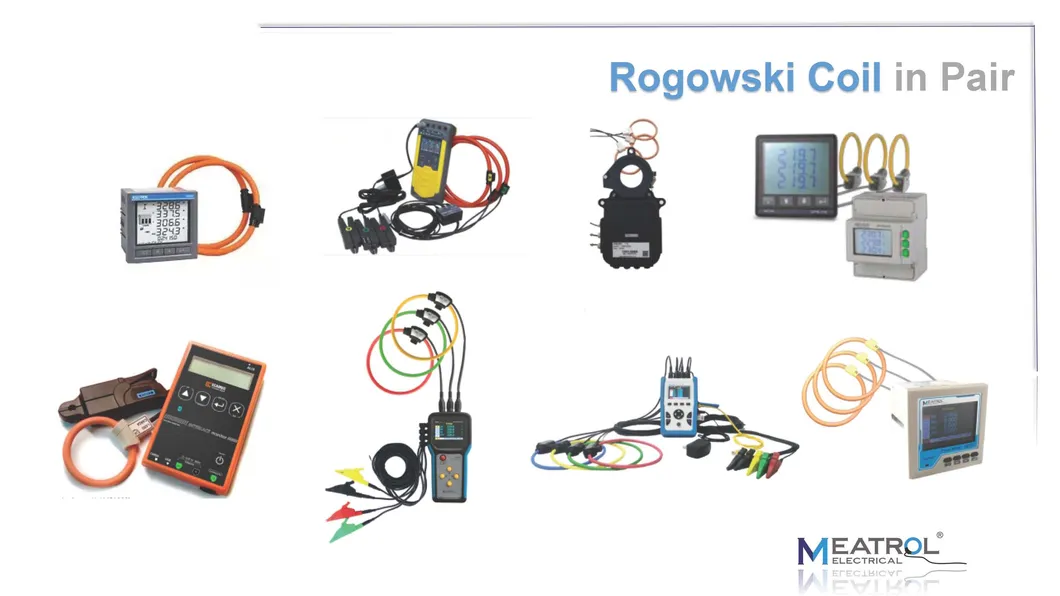

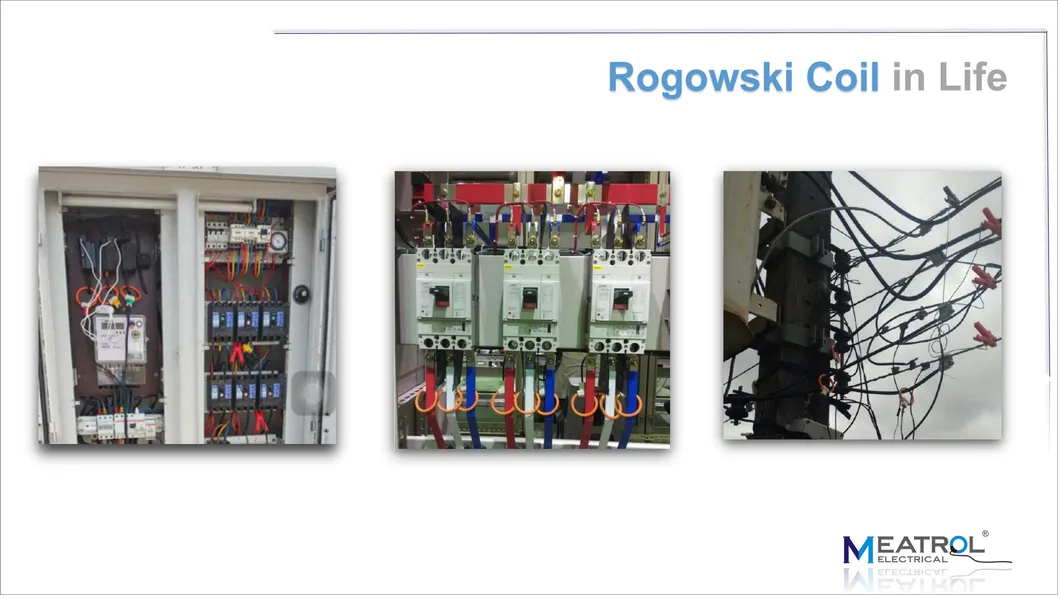

Application Areas

Measuring devices and lab instrumentation

Power monitoring & control systems

Harmonics and transients monitoring

Very high current monitoring

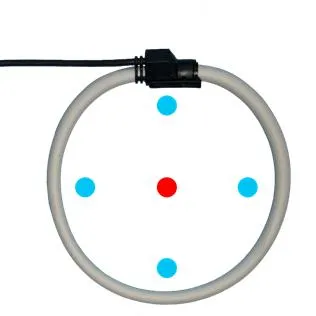

Position Sensitivity & Material

Conductor Position	Typical Error (%)
Adjacent to center of coil	< 0.5%
Adjacent to inside edge	< 2%

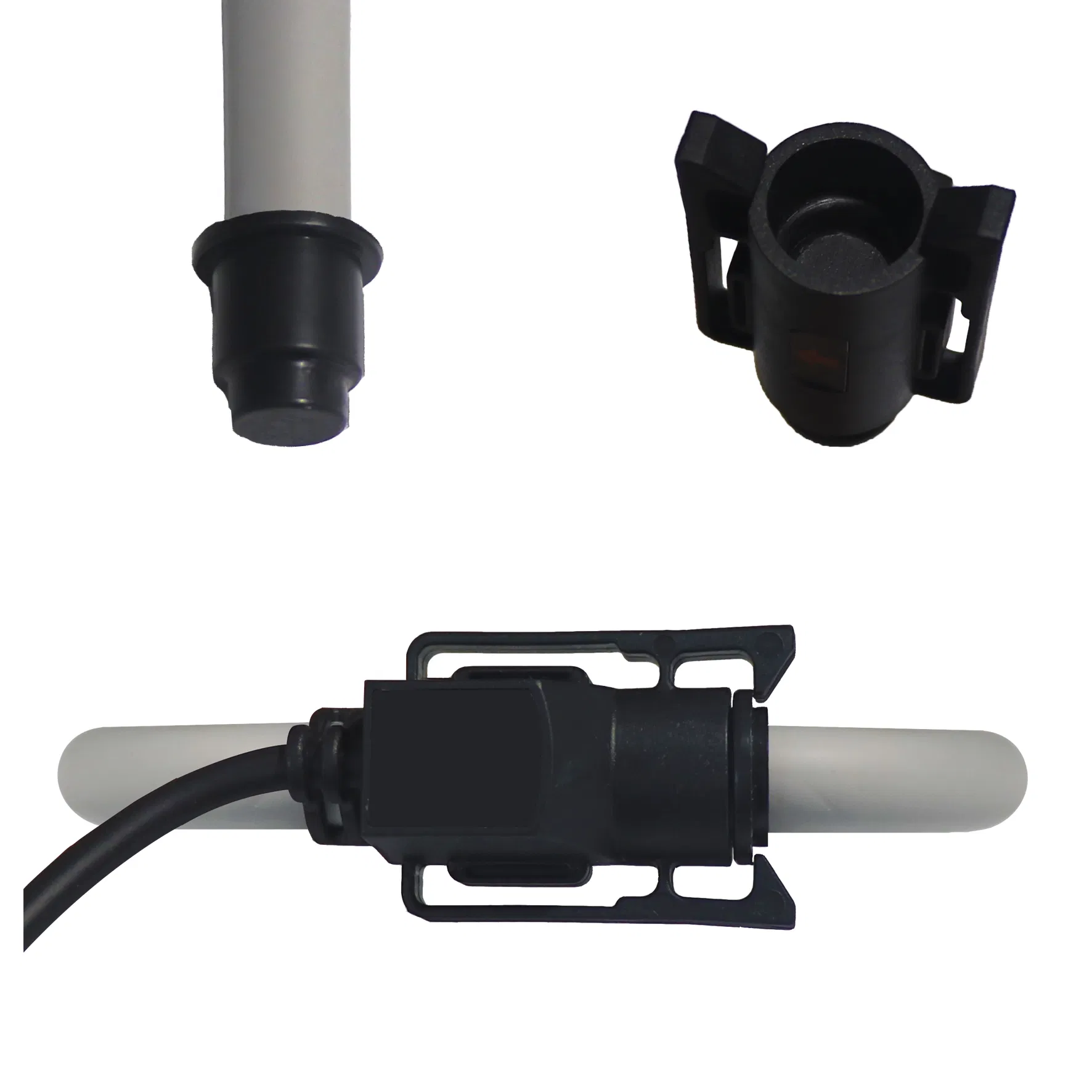

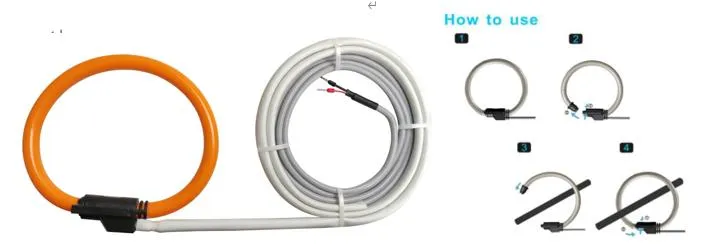

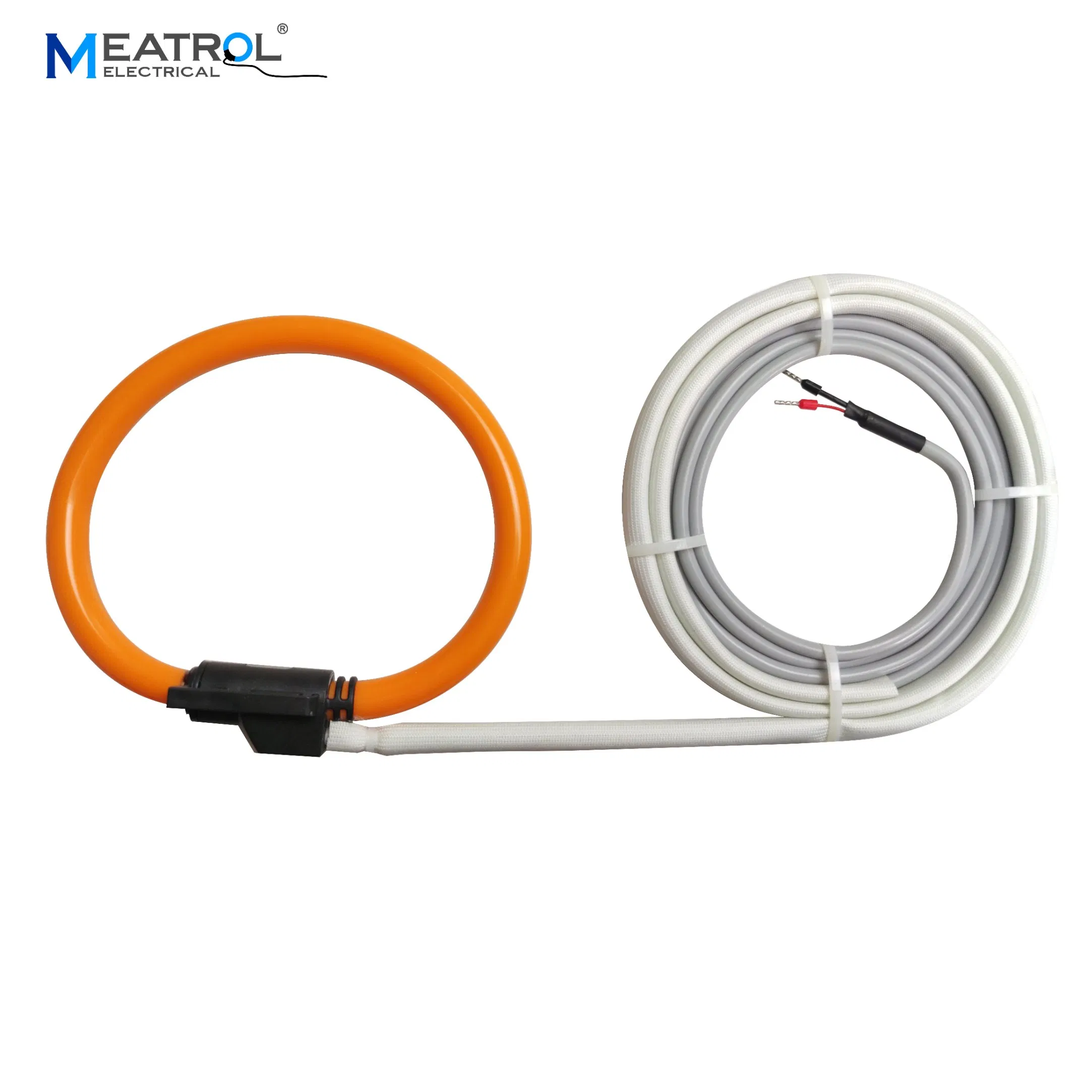

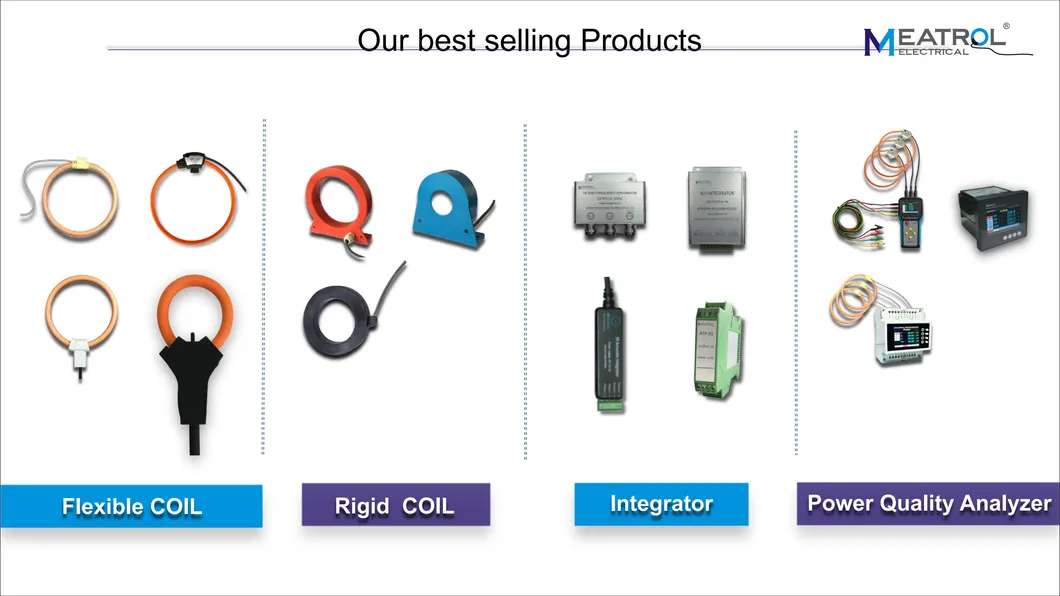

Product Gallery

Safety and Warnings

Caution! Risk of Electrical Shock: When operating the transducer, certain parts may carry hazardous live voltage. Installation and maintenance should only be performed by qualified personnel with the main power supply disconnected.

Warning: Do not apply mechanical force to the coil as it will degrade the device's accuracy.

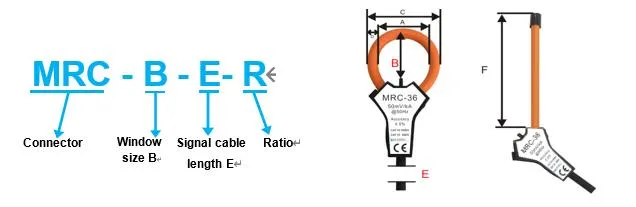

Model Number Definition

Additional Visuals

Frequently Asked Questions (FAQ)

Q1: What is the maximum current the D-SRC Rogowski coil can measure? A1: The D-SRC series is capable of measuring AC currents up to 100kA RMS.

Q2: Does this sensor require an external integrator? A2: While Rogowski coils typically require an electronic integrator for phase shift compensation, certain DIN-RAIL and panel meters can interface with them directly, eliminating the need for external boxes.

Q3: Can the D-SRC Rogowski coil be used in high-voltage environments? A3: Yes, it is designed with a voltage-resistant level of 36kV and complies with safety standards such as 1000V CATIII and 600V CATIV.

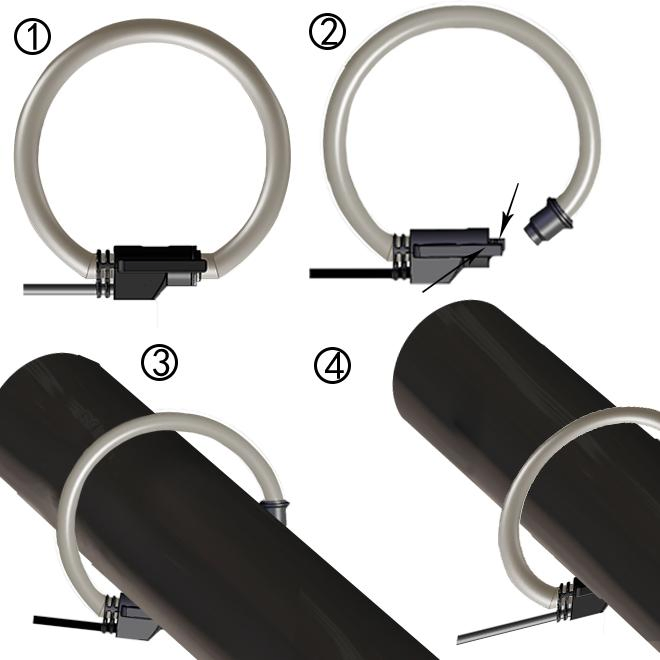

Q4: How does the flexible design benefit installation? A4: The flexible coil is lightweight and can be easily wrapped around large or awkwardly shaped conductors, making it ideal for places with limited access where rigid transducers won't fit.

Q5: What is the environmental protection rating of the coil? A5: The D-SRC coil features an IP65 protection rating, with some models offering up to IP67, making it suitable for demanding industrial conditions.

Q6: Does the conductor's position inside the coil affect the reading? A6: Thanks to precision winding techniques, the output is highly uniform. Typical position error is less than 0.5% near the center and less than 2% near the edges.
