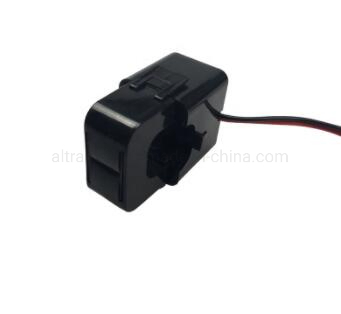

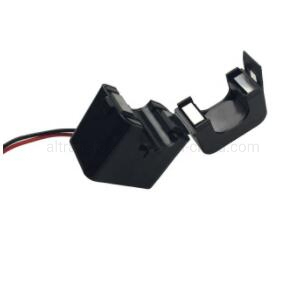

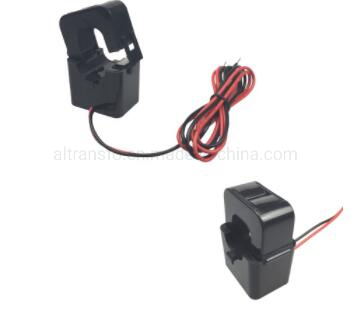

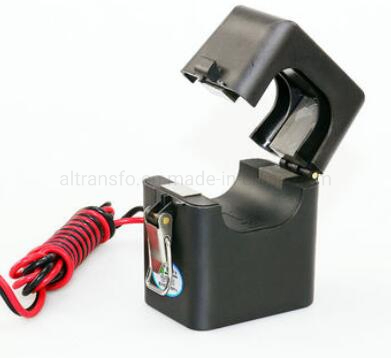

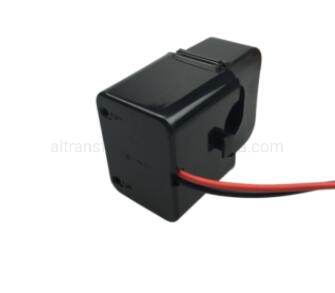

Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer
1 / 5
Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer
Custom Made AC electric mini split core current transformer

Custom Made AC electric mini split core current transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
AL-CT121
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Small Fixed Type
Insulating Medium
Common Insulating Materials
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Electromagnetic Type
Coil Structure
Toroidal
Secondary Output
0-500mA/1A/5A/333mv
Primary Input
5A-10ka
Operation Temp
- 25 to + 75c
Accuracy
0.5/1 Class
Frequency
50/60Hz
Insulation Strength
3kv
Inner Diameter
10~51mm
Origin
China
HS Code
85043190
Production Capacity
8000PCS/15days
Packaging & Delivery
Package Size
33.00cm * 33.00cm * 20.00cm
Package Gross Weight
5.000kg
Transport Package
Carton
Specification
10pcs/box
Product Description

The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

Key Features
● Maximum continuous primary current 600A AC
● Output: 33.3-100 mA Volt at rated current
● Current Ratio: 500:1, 1000:1, 2000:1, 2500:1, 3000:1
● Maximum Primary Voltage: 3500-5000Vac (Insulated Conductor)
● Phase angle: Less than 0.5 degrees at rated current
● Frequency Range: 50 Hz to 1K Hz
● Accuracy: ± 0.5/1% from 5% to 120% of rated current
● Operating Temperature: -25 C to 60 C
● Insulation Voltage: 720 Vac
● Leads: 4Foot (105cm), UL 1015, Twisted Pair, 24AWG
● CE, ETL recognized, and RoHS compliant
Split Core Current Transformer

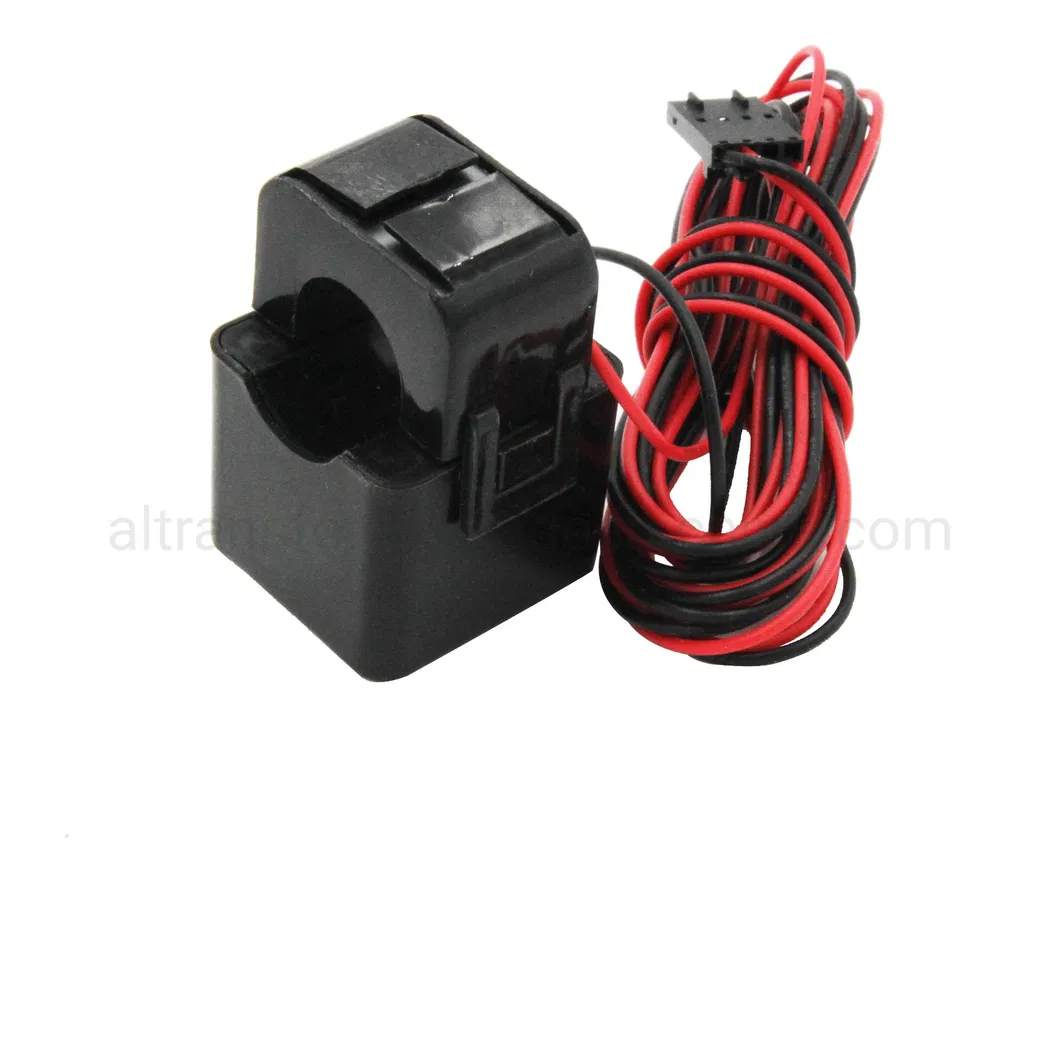

Mini Split Core CT

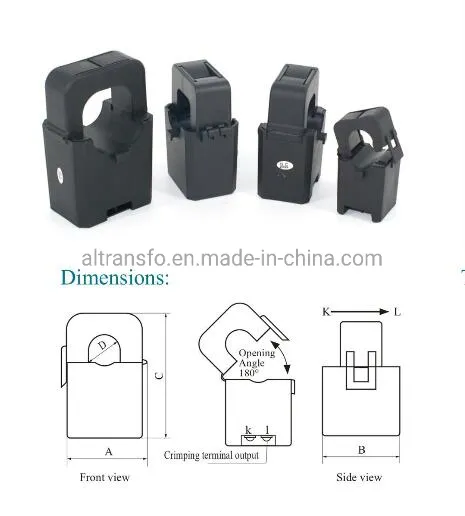

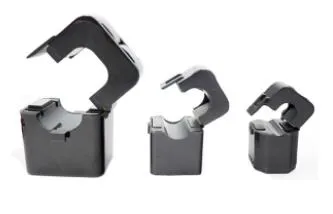

Transformer Dimension Design
Applications

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc. Compatible with HVAC temperature control, power management, and building automation systems.

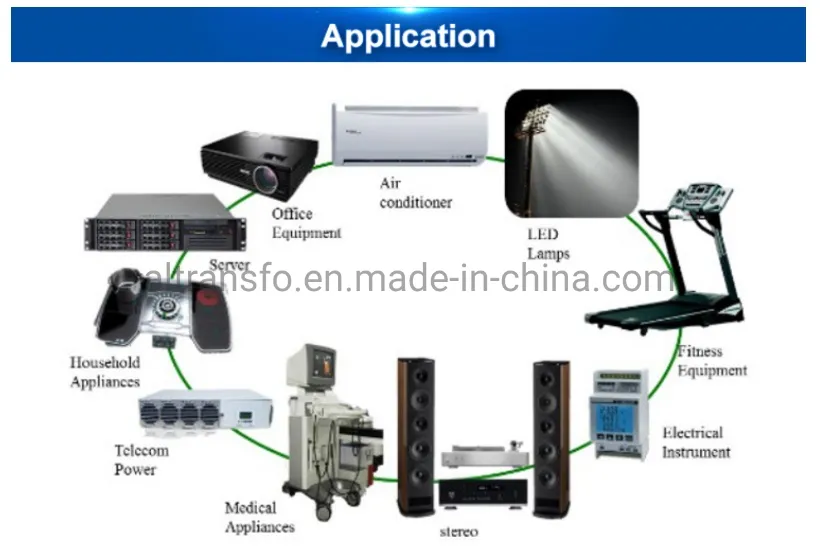

Application Scenario
Packaging & Shipping
Packaging Process 1
Packaging Process 2
Our Services
Service Showcase 1
Service Showcase 2
FAQ
1. What is the advantage of the split core design?
The split core design allows for non-contact current measurements without disconnecting the primary wire, making installation safer and faster.
2. What are the available current ratios for the AL-CT121?
We offer multiple current ratios including 500:1, 1000:1, 2000:1, 2500:1, and 3000:1 to suit different measurement needs.
3. What is the accuracy class of this current transformer?
This model features an accuracy of ± 0.5% to 1% within 5% to 120% of the rated current range.
4. Can the output and lead wires be customized?
Yes, both the secondary output specifications and the lead wire lengths can be customized according to specific customer requirements.
5. Is this product compliant with international safety standards?
Yes, the product is CE and ETL recognized, and it is fully RoHS compliant.
6. What is the operating temperature range?
The transformer is designed to operate reliably in temperatures ranging from -25°C to +75°C.
