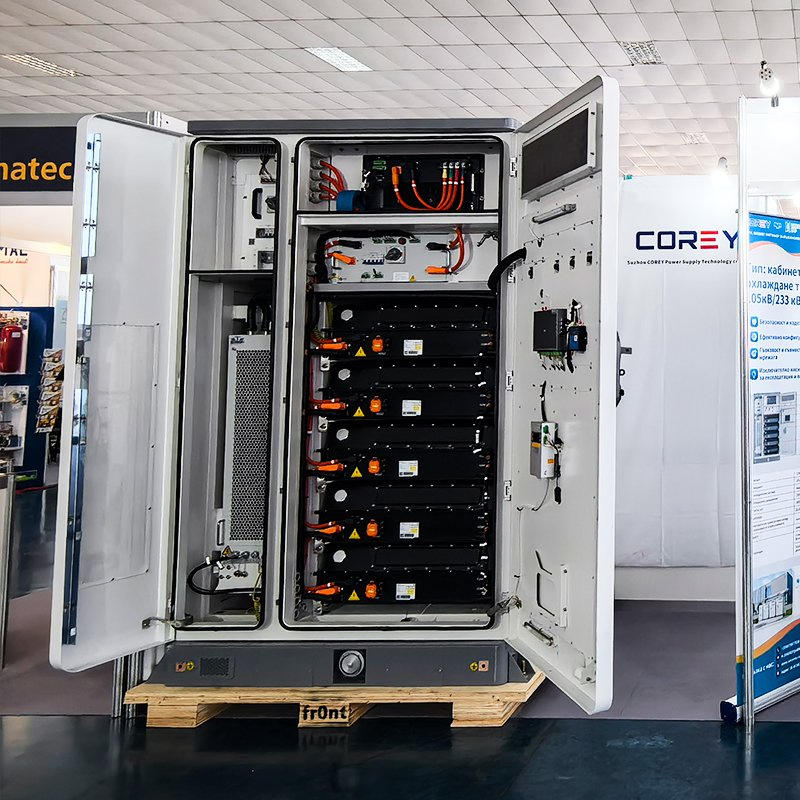

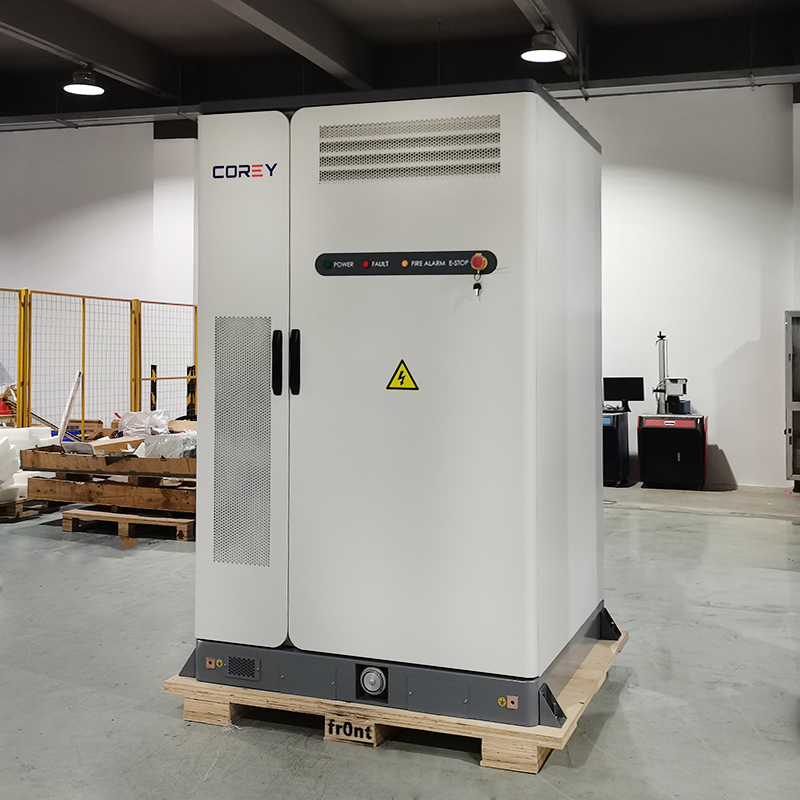

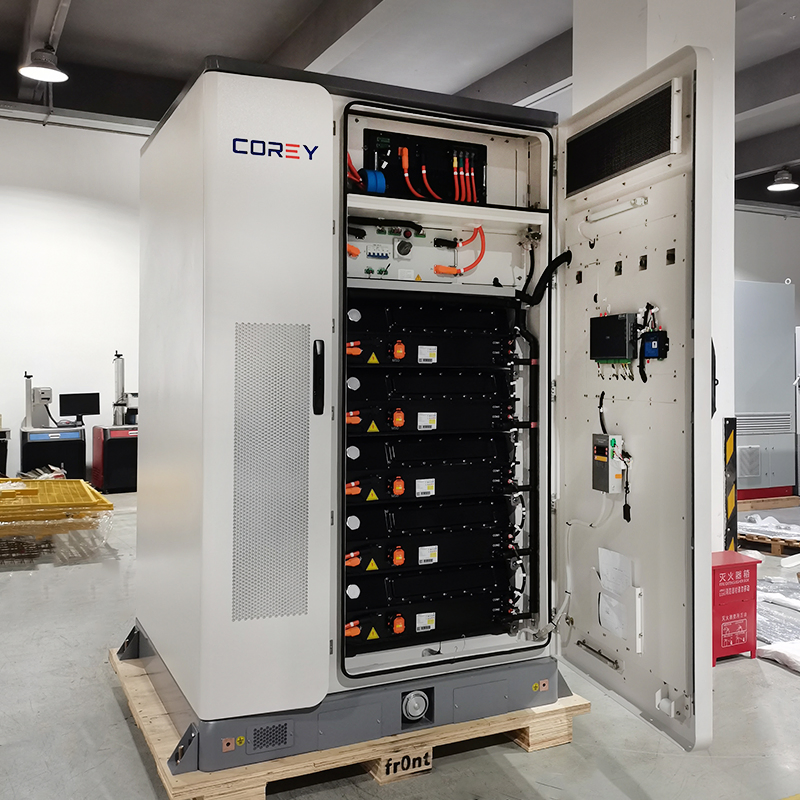

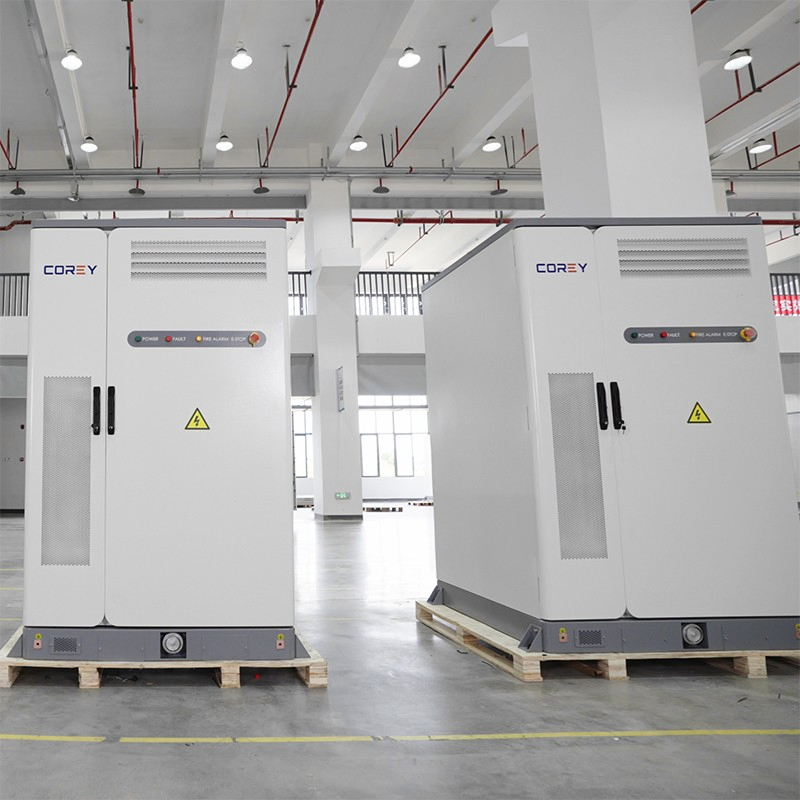

The commercial and industrial storage cabinet system utilizes a multi-stage protection design for battery packs and clusters to effectively isolate faults. Its divided system design and three-tier intelligent fire safety design minimize fire risks, ensuring maximum security for assets.
Emergency backup power ensuring continuous operations.
Modular configuration for easy expansion and installation.
Optimized energy usage to significantly reduce costs.
Reduced maintenance costs through smart monitoring.
| Product Model | COREY 233CE | |
|---|---|---|
| System Parameter | Battery Cell | LFP(LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Fire Fighting | Aerosol (pack + cluster) + Water (cabinet) | |
| Operating Temp | -20ºC ~ 50ºC (discharge) | |
| Weight | 2800kg±50kg | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Switching Time | 20ms (optional) | |

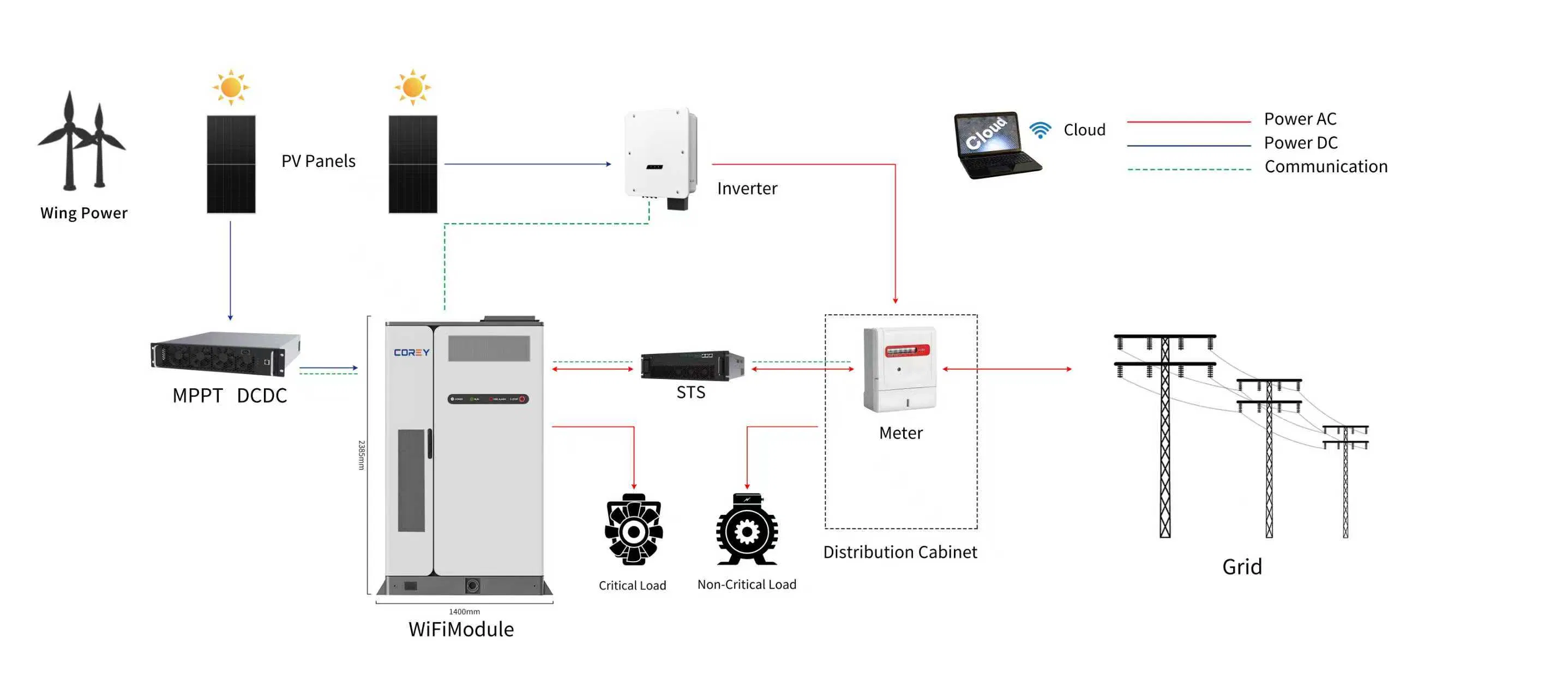

Ideal for commercial buildings, industrial factory buildings, remote areas, and regions experiencing power shortages.

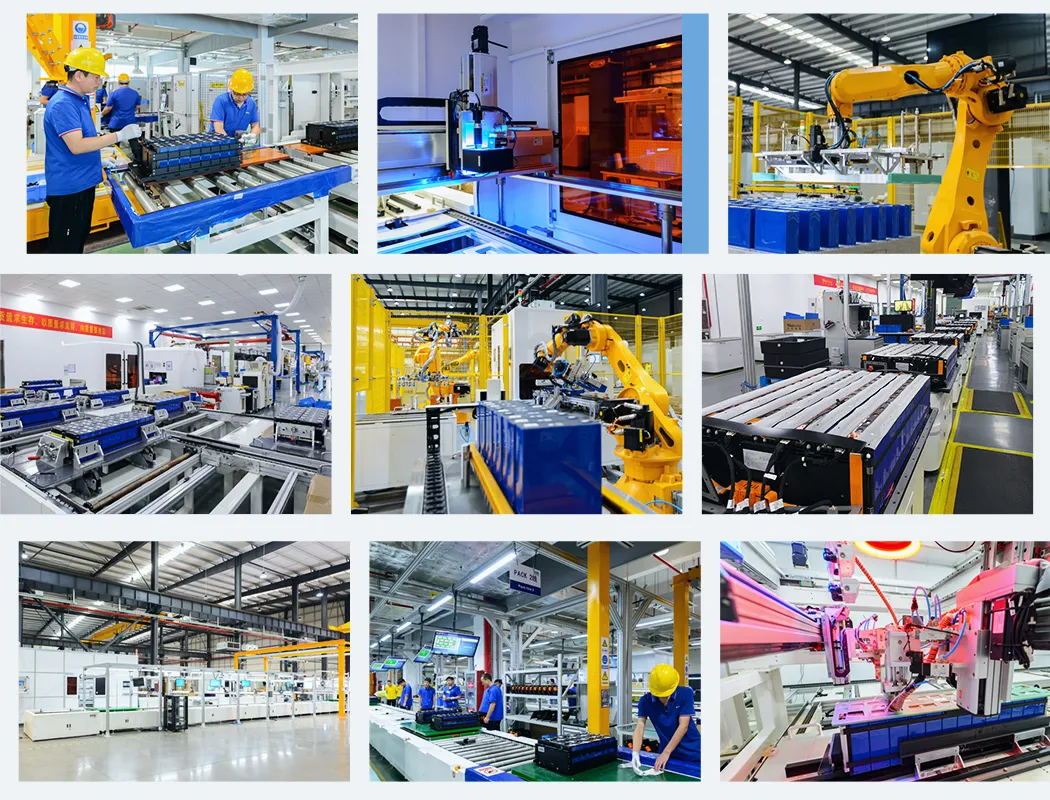

The manufacturing group specializes in automated intelligent equipment and laser welding technologies for lithium battery modules. By providing high-intelligence manufacturing solutions, the group supports top-tier energy storage system integrators worldwide. Dedicated to becoming a leading microgrid solution provider, the company focuses on promoting clean energy transformation and building zero-carbon power systems for a stable and safe power future.
