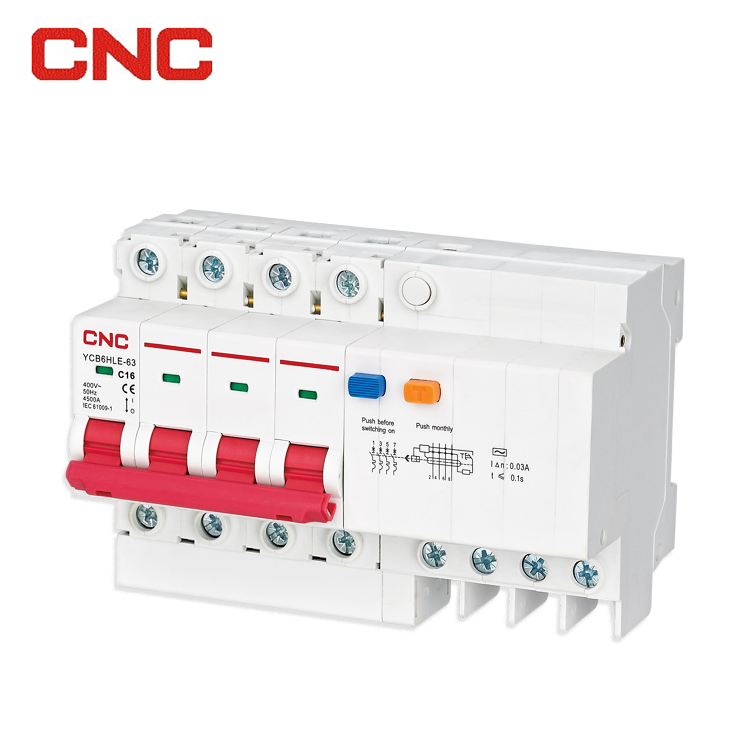

CNC Ycb6hle-63 Type C Residual Current Circuit Breaker 4 Pole 63A 30mA ELCB/RCD/RCCB/RCBO
CNC Ycb6hle-63 Type C Residual Current Circuit Breaker 4 Pole 63A 30mA ELCB/RCD/RCCB/RCBO
CNC Ycb6hle-63 Type C Residual Current Circuit Breaker 4 Pole 63A 30mA ELCB/RCD/RCCB/RCBO
1 / 3
CNC Ycb6hle-63 Type C Residual Current Circuit Breaker 4 Pole 63A 30mA ELCB/RCD/RCCB/RCBO
CNC Ycb6hle-63 Type C Residual Current Circuit Breaker 4 Pole 63A 30mA ELCB/RCD/RCCB/RCBO
CNC Ycb6hle-63 Type C Residual Current Circuit Breaker 4 Pole 63A 30mA ELCB/RCD/RCCB/RCBO

CNC Ycb6hle-63 Type C Residual Current Circuit Breaker 4 Pole 63A 30mA ELCB/RCD/RCCB/RCBO

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
YCB6HLE-63
Speed
Normal Type Circuit Breaker
Medium
Air
Installation
Fixed
Structure
MCB
Poles
1, 2, 3, 4
Certification
ISO9001-2000, CE, CB, CCC
Specification
IEC 60898

Product Description

YCB6HLE-63 Type C Residual Current Circuit Breaker
✓
Protection against overload and short-circuit currents.
✓
Protection against the effects of sinusoidal alternating earth fault currents.
✓
Protection against indirect contacts and additional protection against direct contacts.
✓
Protection against fire hazard caused by insulation faults.
✓
Instantaneous release types available: Type B (3-5)ln, Type C (5-10)ln, Type D (10-20)ln.

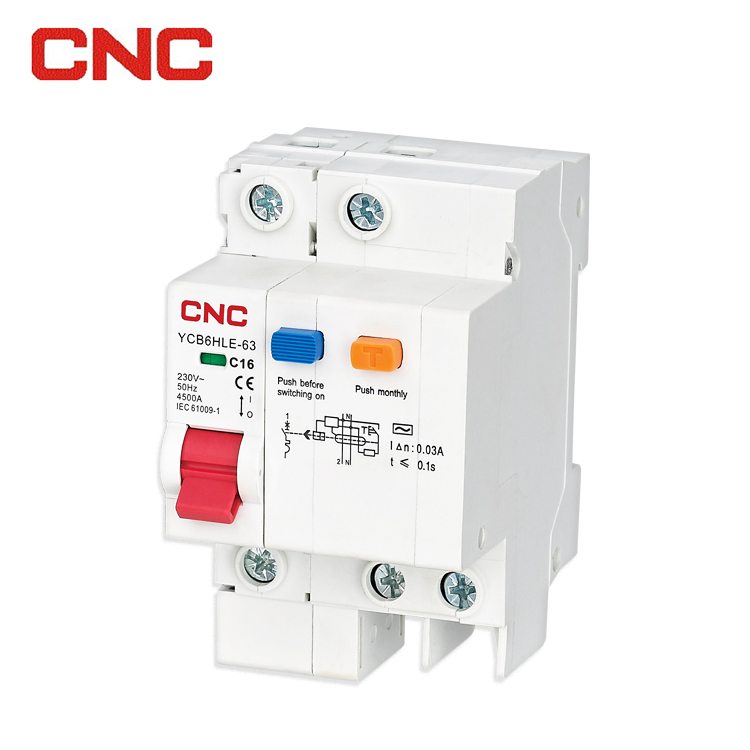

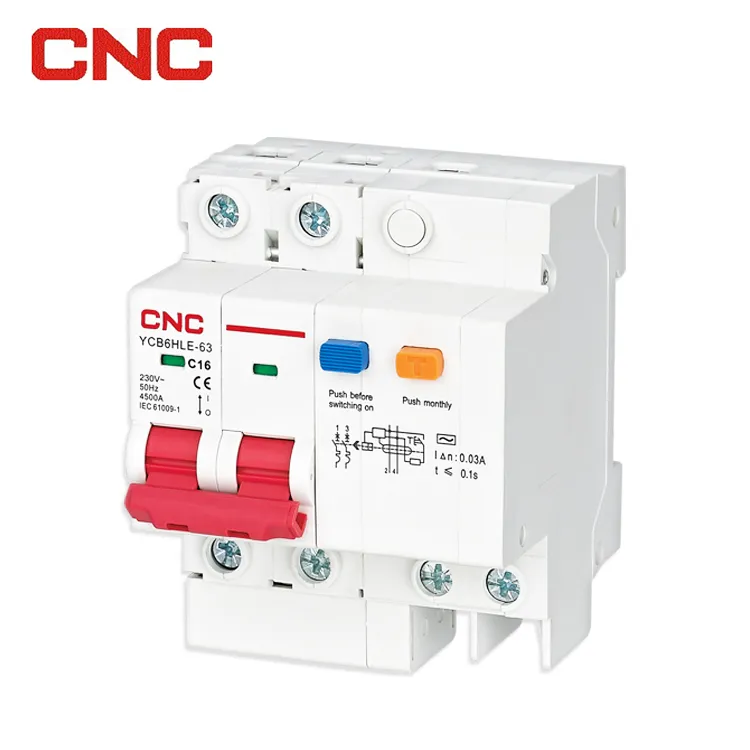

Circuit Breaker View 1 Circuit Breaker View 2

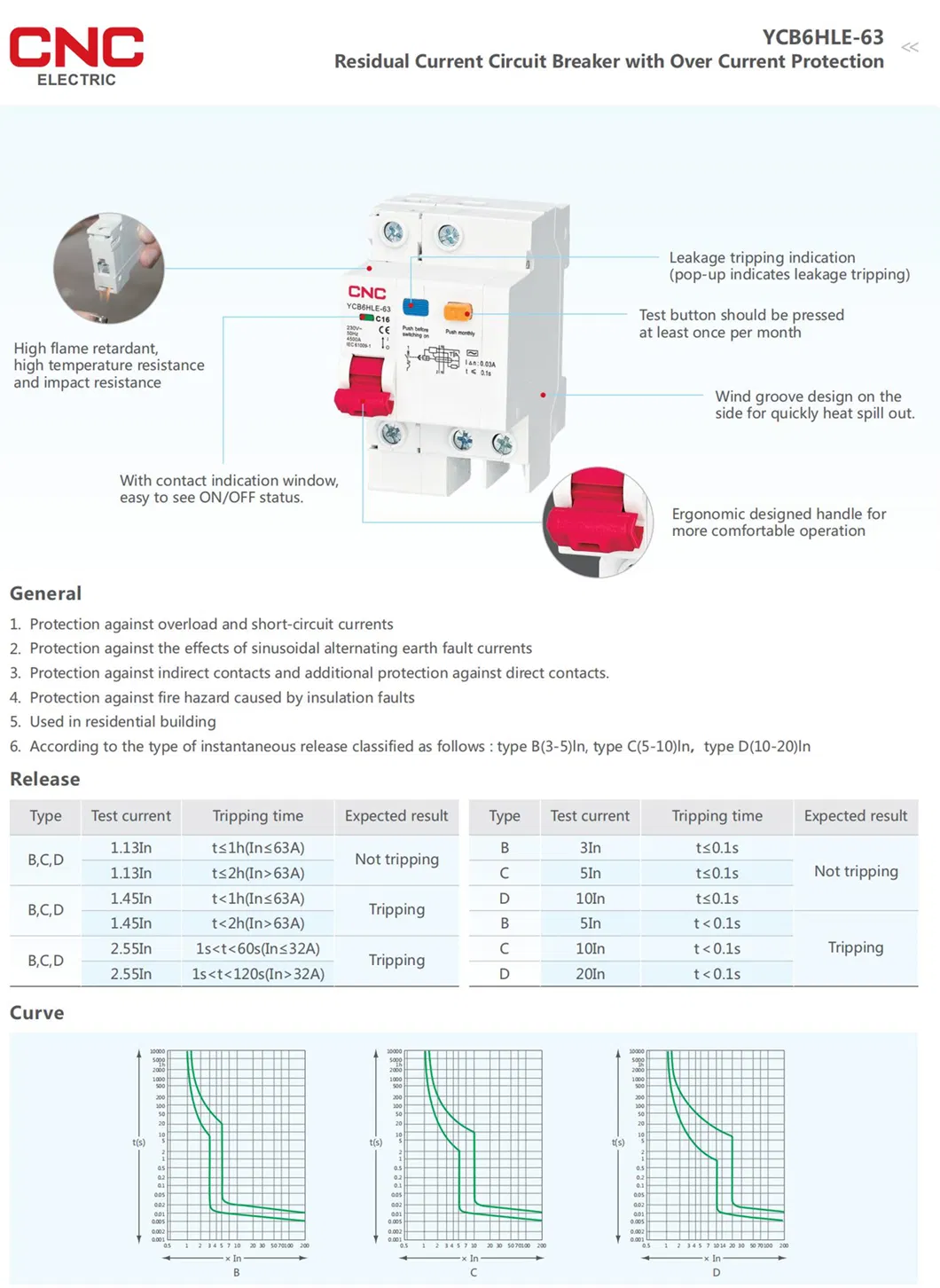

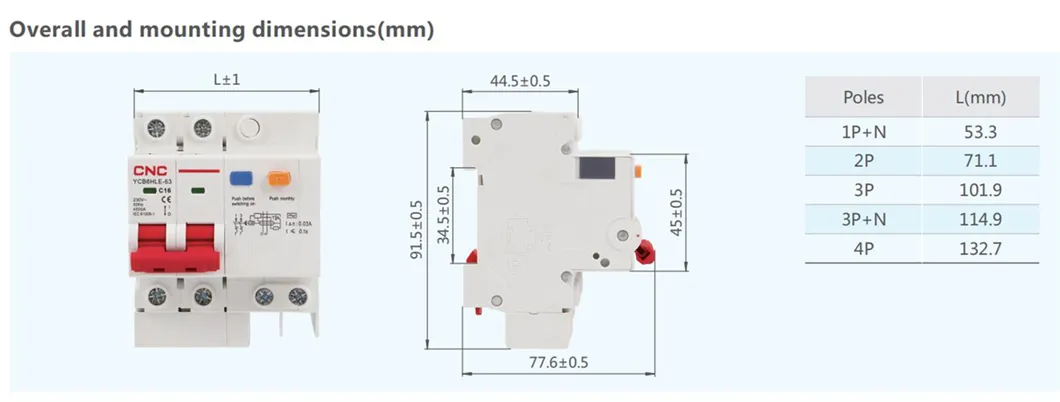

Detailed Dimensions

Technical Specifications

Standard IEC/EN 61009-1
Electrical FeaturesPoles1P+N, 2, 3, 3P+N, 4
Rated Current (In)6, 10, 16, 20, 25, 32, 40, 50, 63A
Rated Voltage (Ue)230V AC(1P+N, 2P) 400V AC(3P, 3P+N, 4P)
Rated Sensitivity (lΔn)0.03, 0.05, 0.1, 0.3A
Mechanical FeaturesElectrical Life4000 times
Mechanical Life10000 times
Protection DegreeIP20
InstallationTerminal Size25mm² (18-3 AWG)
Tightening Torque2 N*m (18 In-lbs)
MountingOn DIN rail EN60715 (35mm)
Installation Diagram

Visual Overview

Product Image 3 Product Image 4 Product Image 5 Product Image 6 Product Image 7 Product Image 8 Product Image 9 Product Image 10

Frequently Asked Questions

What are the primary functions of the YCB6HLE-63?
It provides protection against overloads, short-circuits, and earth fault currents, effectively preventing fire hazards caused by insulation faults and protecting against direct/indirect contact.
Which instantaneous release types are available?
The device comes in Type B (3-5ln), Type C (5-10ln), and Type D (10-20ln) to suit different application requirements.
What is the rated breaking capacity of this circuit breaker?
The rated short-circuit capacity (lcn) is 4500A, compliant with IEC/EN 61009-1 standards.
How many poles can I choose for this model?
This series supports various configurations including 1P+N, 2P, 3P, 3P+N, and 4P.
What is the mechanical and electrical life expectancy?
It is designed for high durability with a mechanical life of 10,000 cycles and an electrical life of 4,000 cycles.
Is it suitable for DIN rail mounting?
Yes, it is designed for installation on standard DIN rail EN60715 (35mm) using a fast clip device for easy setup.
