Product Description

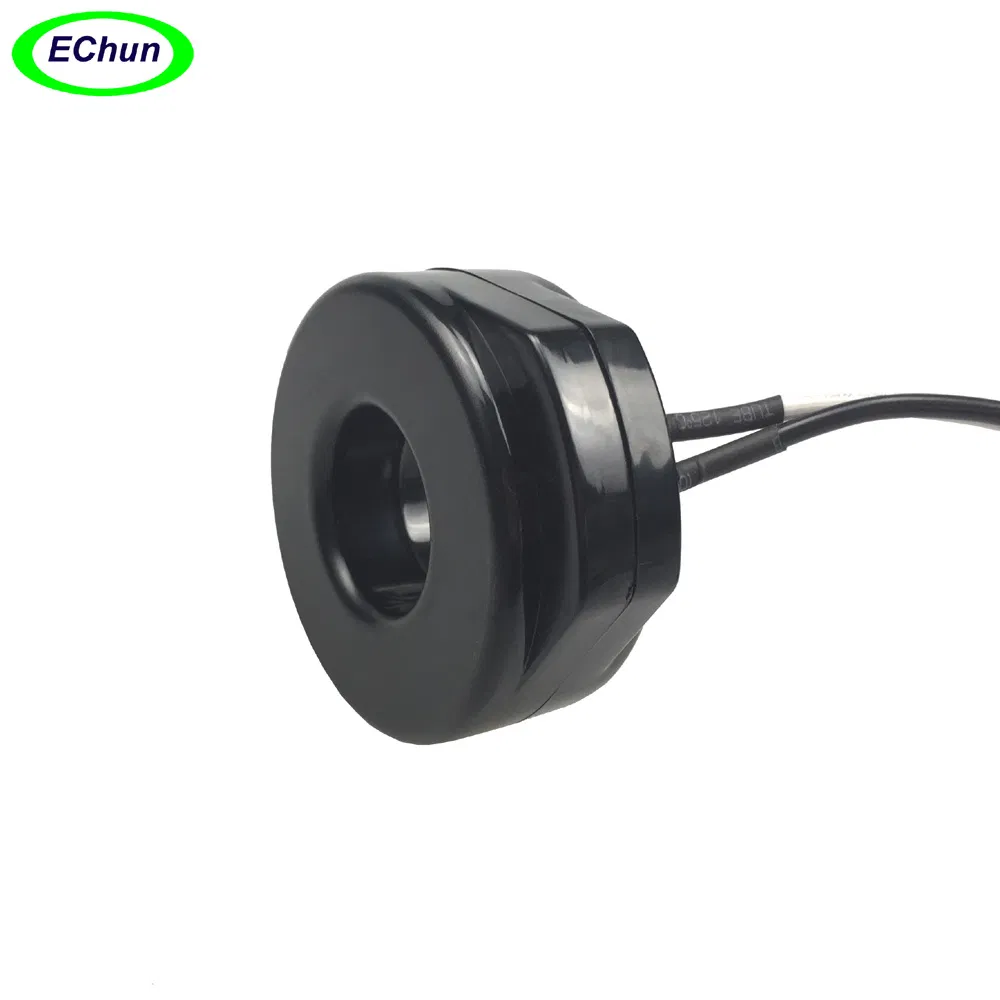

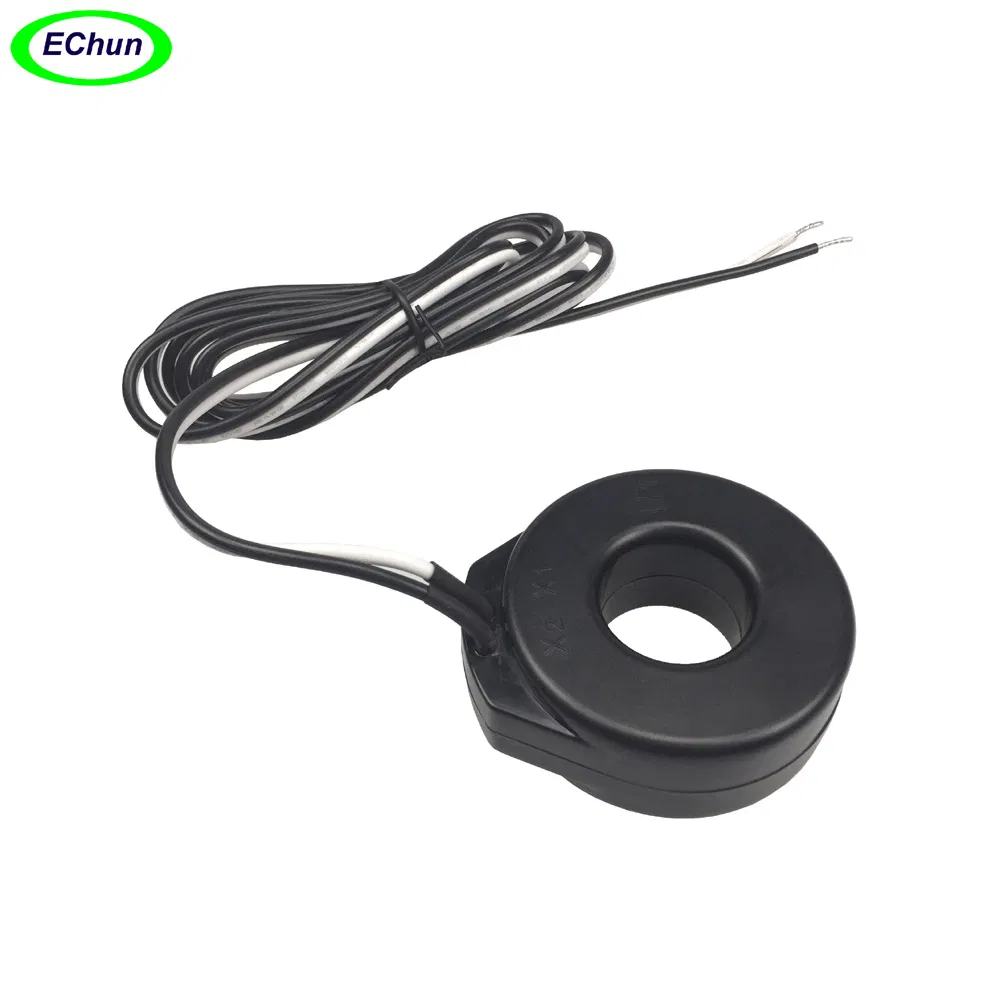

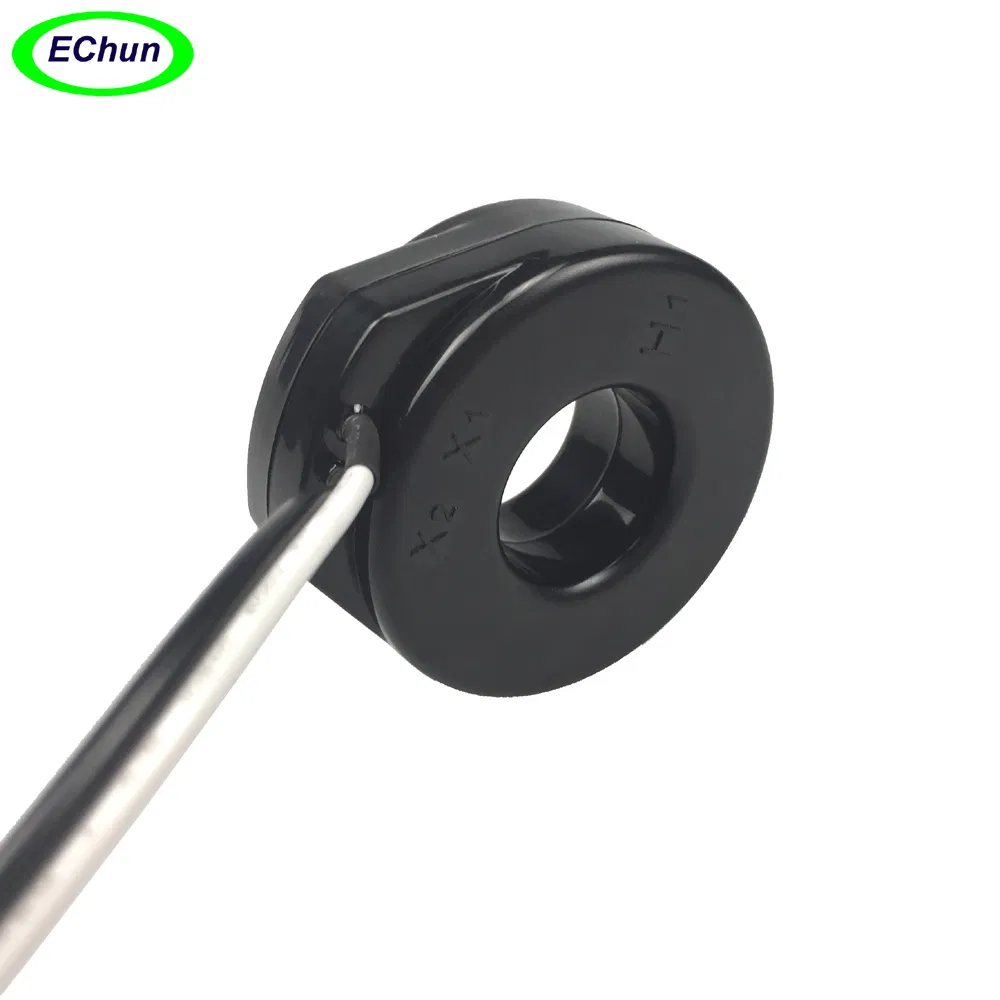

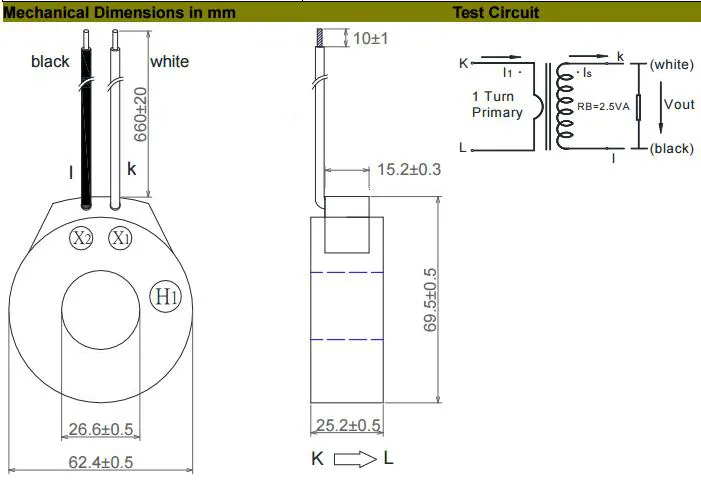

26mm 200A Ring Type Solid Core Mini Precision Current Transformer

The ECO26 series are Current Transformers specifically designed for Electrical Control Units. This CT features a small size and provides a low-cost solution for precise measurement.

★ Customized current ratio available.

Rated Primary Current (Amp.) 50/60Hz	200nom (1~300A max)
Turn ratio	Np:Ns=1:40
Current Ratio	200A/5A
Winding D.C. Resistance at 20 ºC (Ω)	29.5 ±10%
Accuracy @ Rb=2.5VA	0.5%
Phase Error at Rated Current Range	≤0.5°
Protection Level	6.8 VO (peak)
Operating Temperature Range	-40 ~ 85ºC
Storage Temperature Range	-45 ~ 90ºC
Dielectric Withstanding Voltage (Hi-pot)	4.0KV/1mA/1min
Insulation Resistance	DC500V/100MΩ min

➤ Applications • Current measurement
• Monitoring and protection
• Energy and sub-metering products
• Network equipment
• Instruments and sensors
• Control systems

➤ Advantages • Excellent linearity over the whole range.
• Fully RoHS compliant.
• Mini size for compact installation.
• High precision and stable performance.
