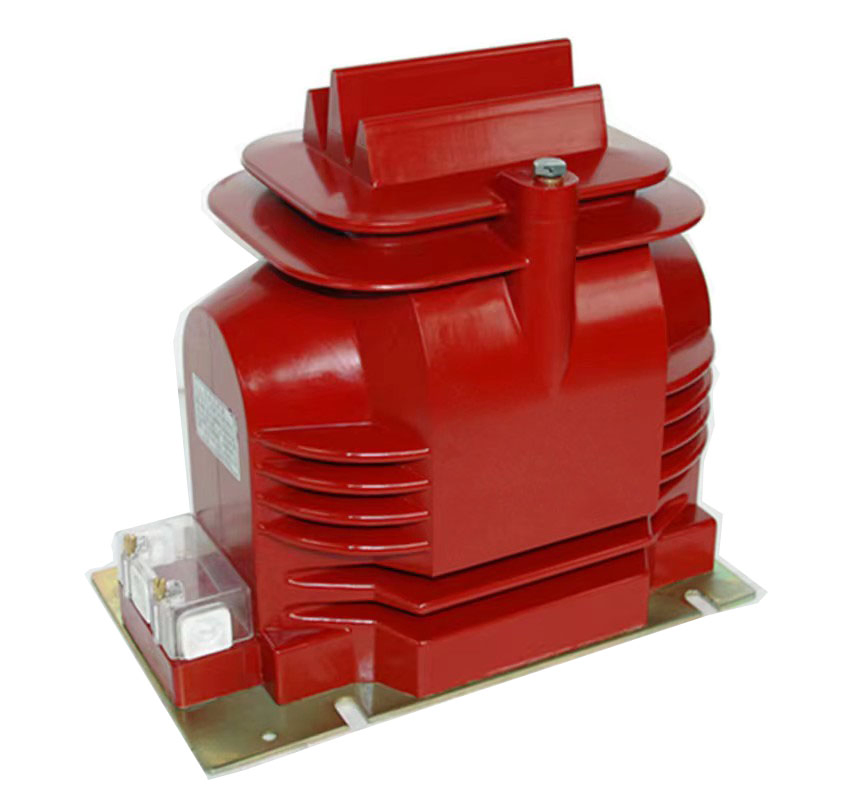

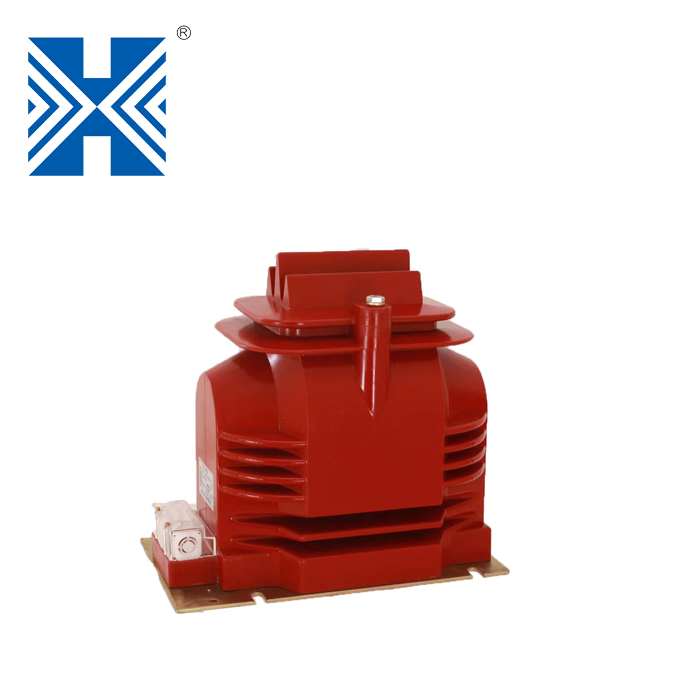

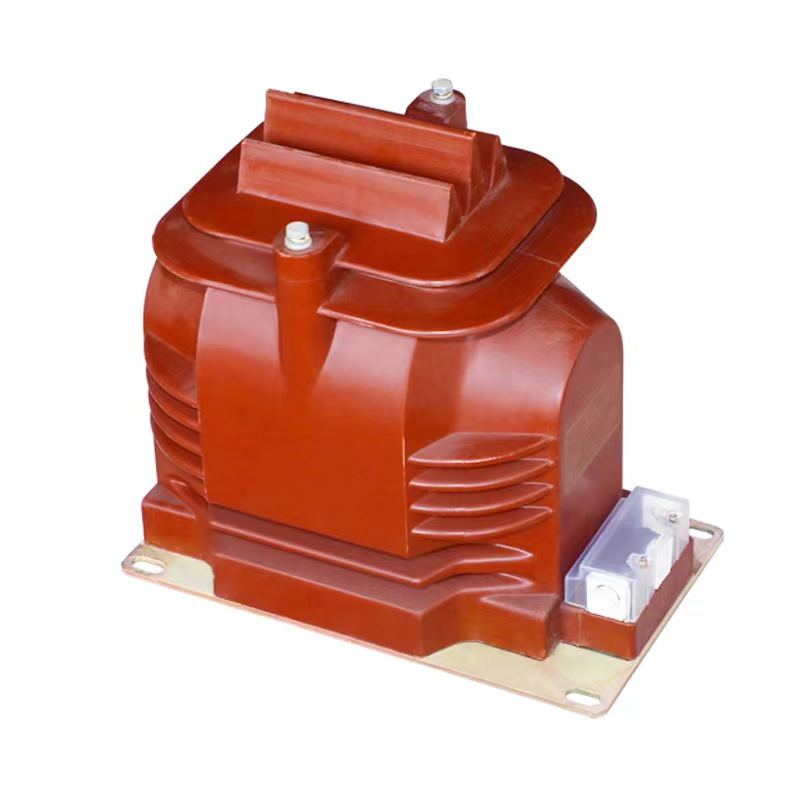

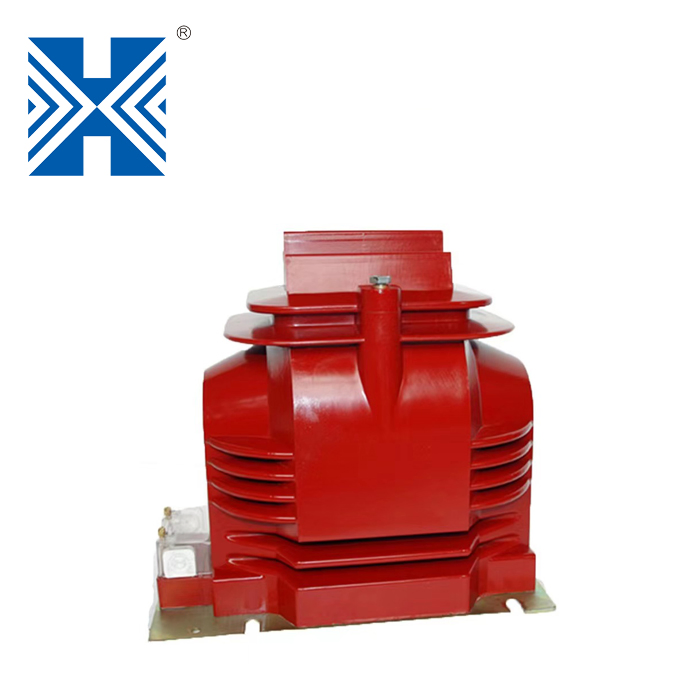

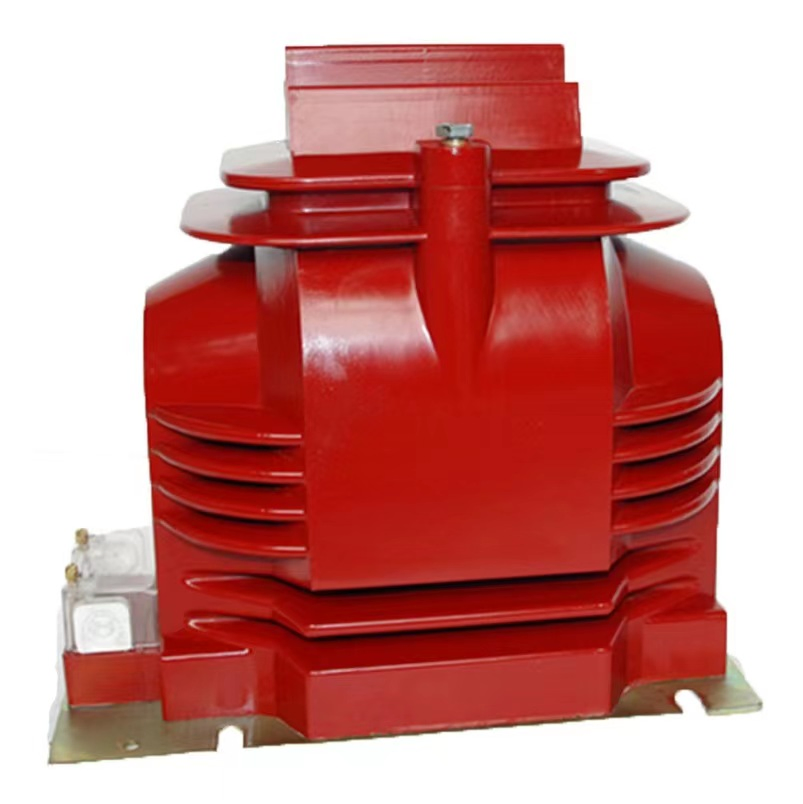

Applications: JDZ11-20 Voltage Transformer is suitable for power measurement, current monitoring, and relay protection in power systems with a rated frequency of 50Hz or 60Hz and rated voltage 3~10kV. Applicable Standards: IEC60044-1, GB 1207.
| Model | Rated Voltage Ratio (kV) | Accuracy Class | Rated Output (VA) | Ultimate Output (VA) | Insulation Level (kV) |
|---|---|---|---|---|---|
| JDZ11-20 | 20/0.1 | 0.2 | 30 | 500 | 24/65/125 |
| 0.5 | 80 | ||||
| 20/0.1/0.1 | 0.2/0.2 | 20/20 | 300 | ||
| 0.2/0.5 | 20/30 | ||||
| 0.5/0.5 | 30/30 |

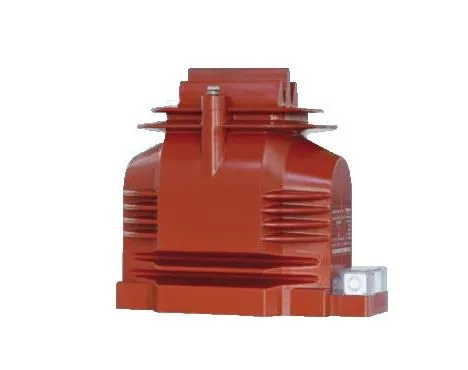

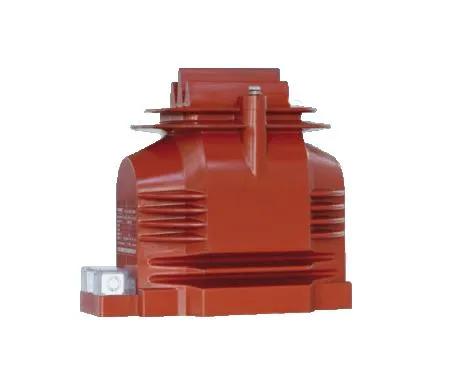

Structure and Feature: The Voltage Transformer is a post type, hermetically sealed by epoxy resin. It offers anti-pollution, anti-damp properties and is easy to install. Suitable for tropical areas and maintenance-free except for periodic surface cleaning.

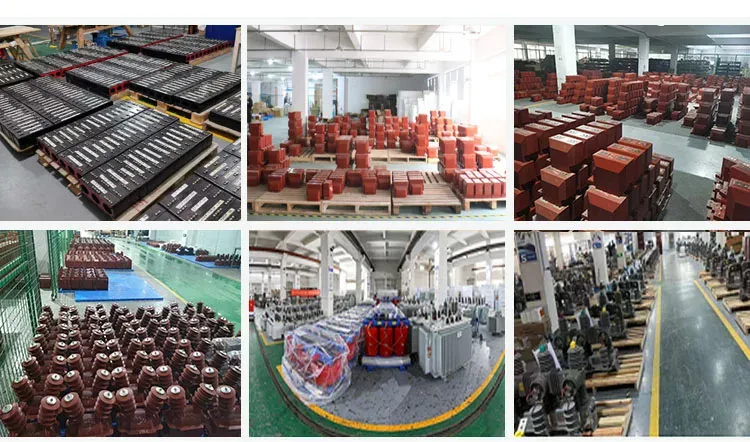

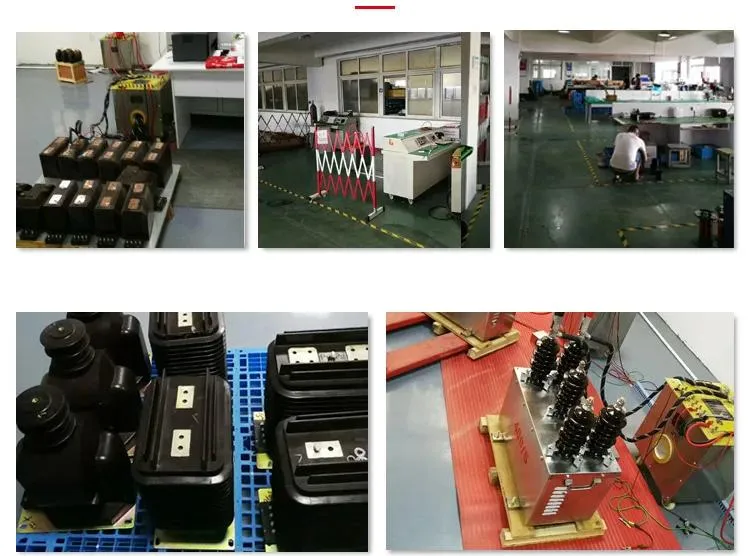

Our company specializes in the production of high and low voltage switch power transmission and distribution equipment and electrical components. We produce fully insulated and sealed inflatable cabinets, intelligent solid insulation ring main units, outdoor high voltage cable branch boxes, box-type substations, and more. Our product quality is stable and reliable, trusted by customers globally.

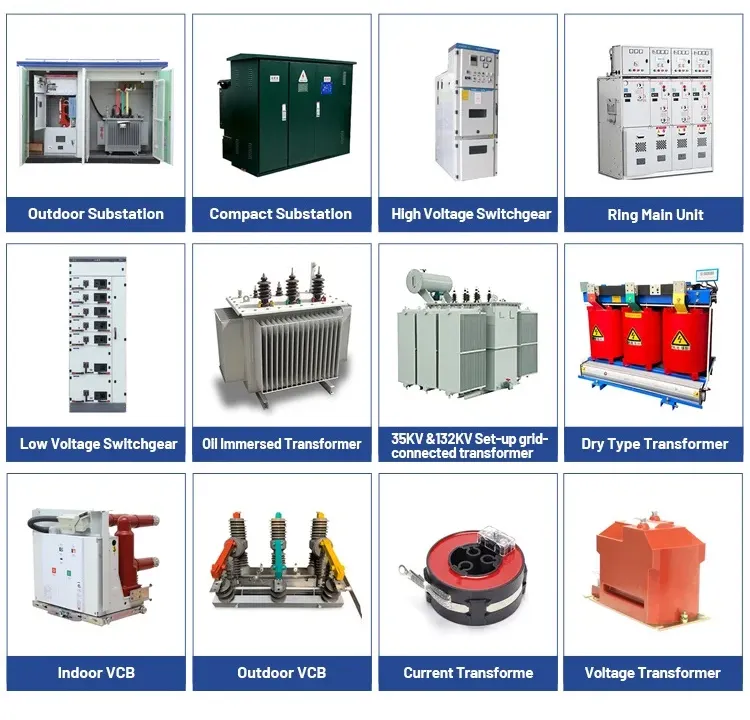

Main product range includes 10kv High tension Mutual inductors, 10kv transformers, YBW box-type substations, KYN61-40.5, KYN28A-24, KYN28A-12, and various high voltage switchgears. We serve industries such as metallurgy, shipbuilding, electric power, mining, and intelligent building infrastructure.
